Product Overview

Description

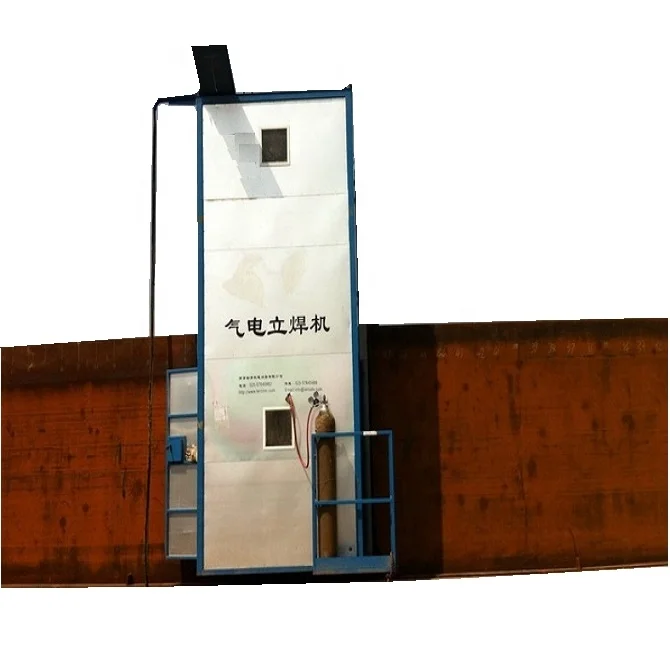

Tank Vertical Welding Machine


PRODUCT OVERVIEW


EGW vertical gas-electric welder is an efficient automatic welding equipment according to the current feedback closed-loop to control the welding carriage improve. In a single weld pass forced by water-cooled once molding thickness from 10mm to 50mm is the main characteristic of it. Molten pool liquid level automatic control at the same time, And the length of wire stretched out is automatic adjusted. With the small volume, light weight welding carriage and flexible modular easy to update, it's used convenient. Widely used in petroleum, chemical industry, the blast furnace of thick plate welding and shipbuilding and other industries.

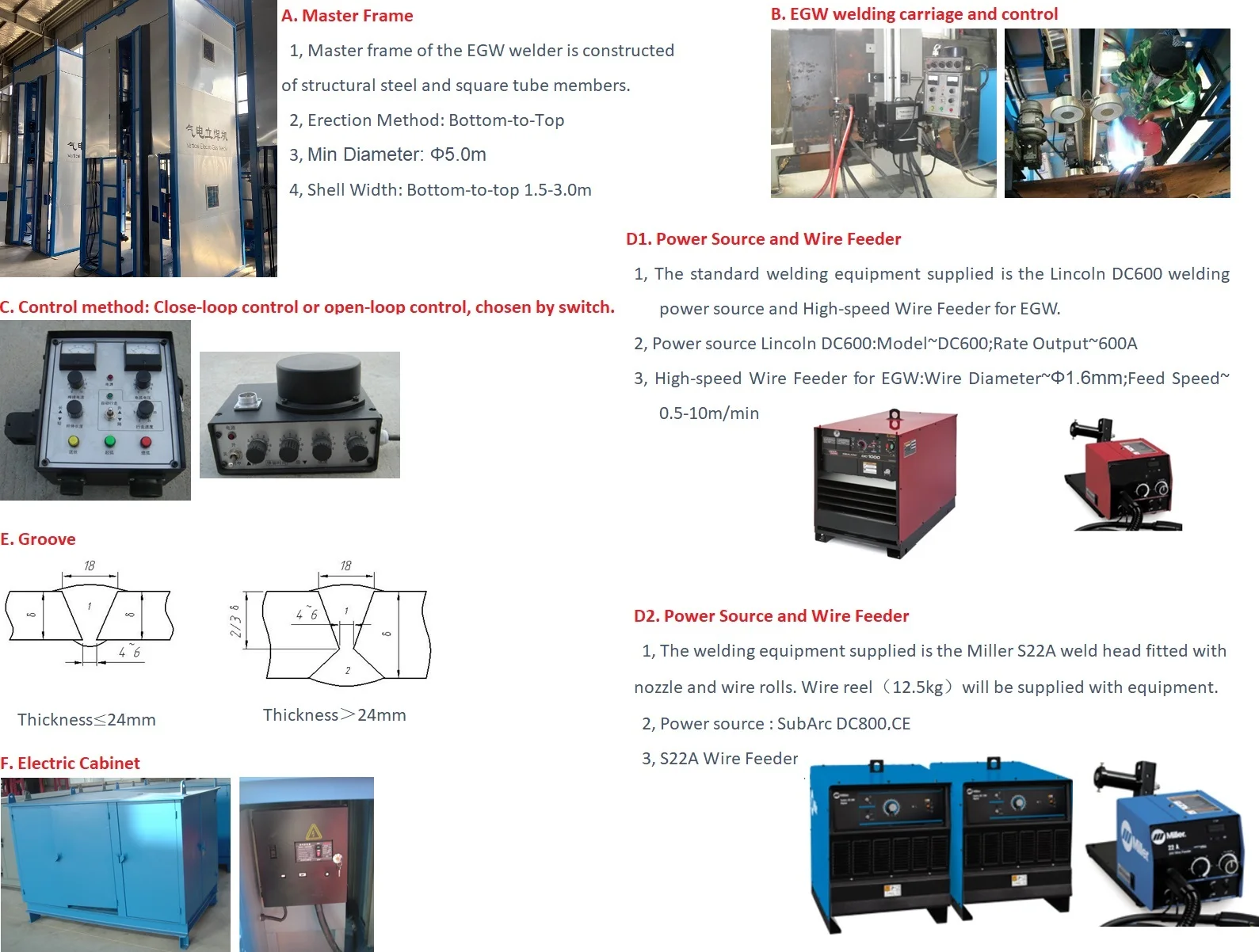

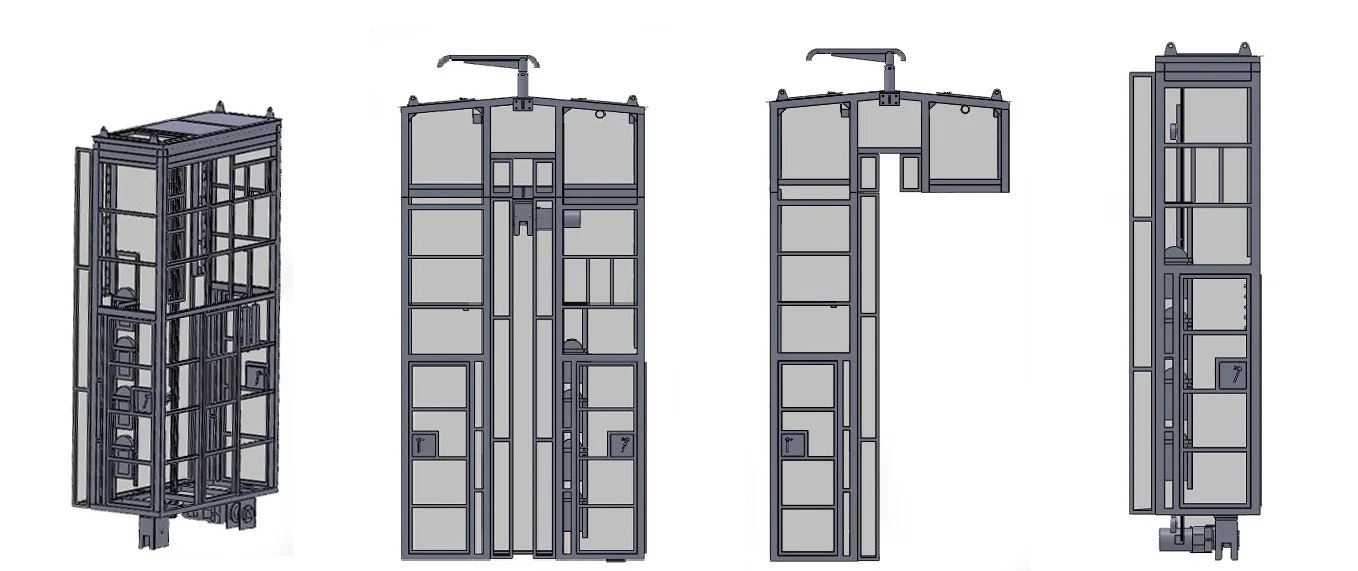

MAJOR COMPONENTS








TECHNICAL PARAMETER


Model
MEGW-I-Z/D
Welding Currency
80~800 A
Welding Voltage
20~45 V
Welding Speed
100~300 mm/min
Power Input
380/3PH/50Hz
Rated power
25 kw
Groove
V/X Groove
Position
Vertical seam(3G)
Full traveling speed
2650 mm/min
Full traveling speed of carriage
350 mm/min
Tank Dia
5.0 m and above
Wire Dia
Φ1.6mm
Plate Thickness
10 ~45 mm
Shell width
bottom-to-top 1.5~3.2 m
Torch adjustment
3 axis
Torch up/down adjustment
±25 mm
Torch fwd/rev adjustment
±25 mm

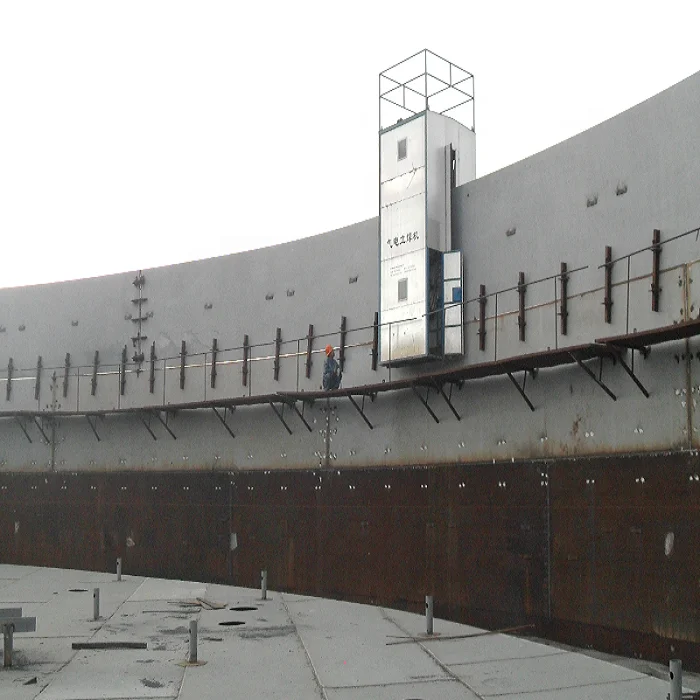

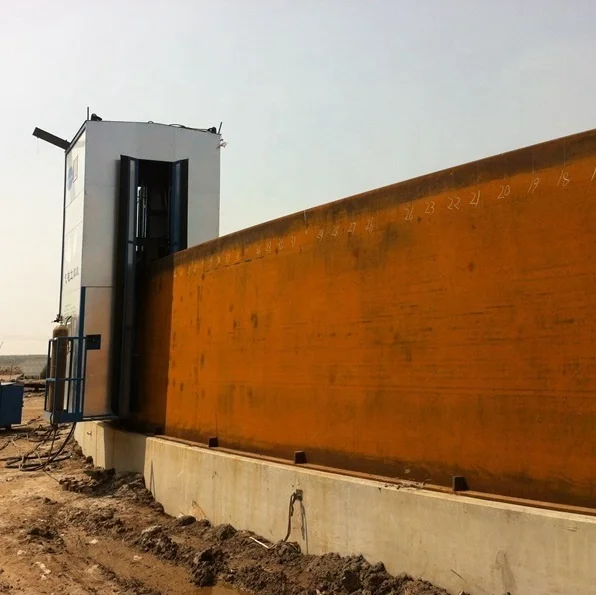

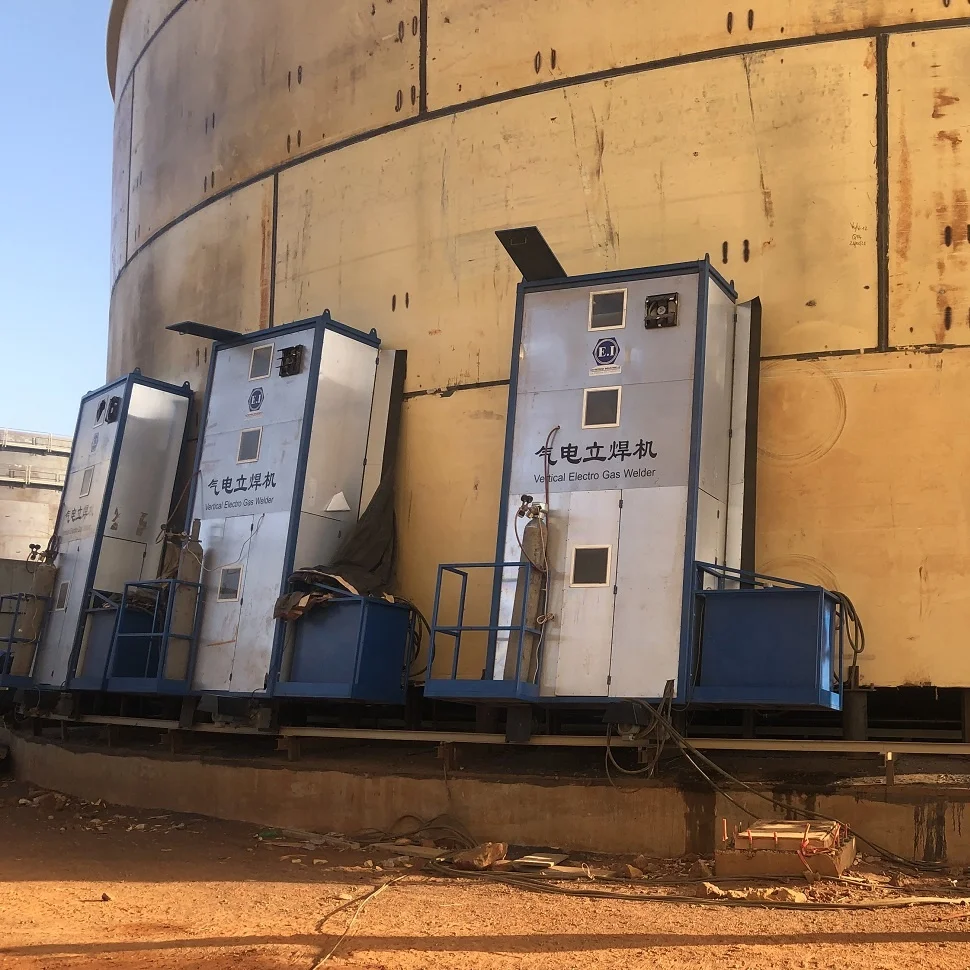

CONSTRUCTION SITE PHOTOS
