Product Overview

Description

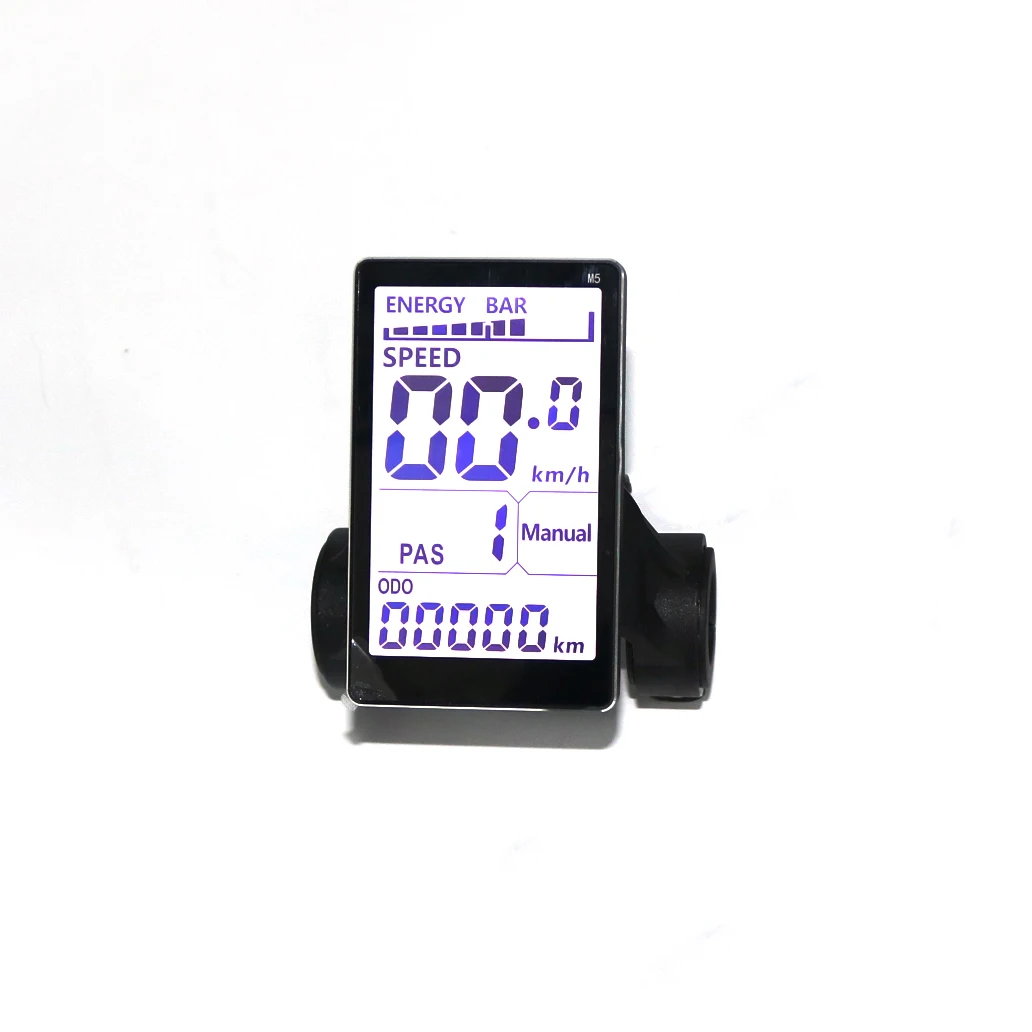

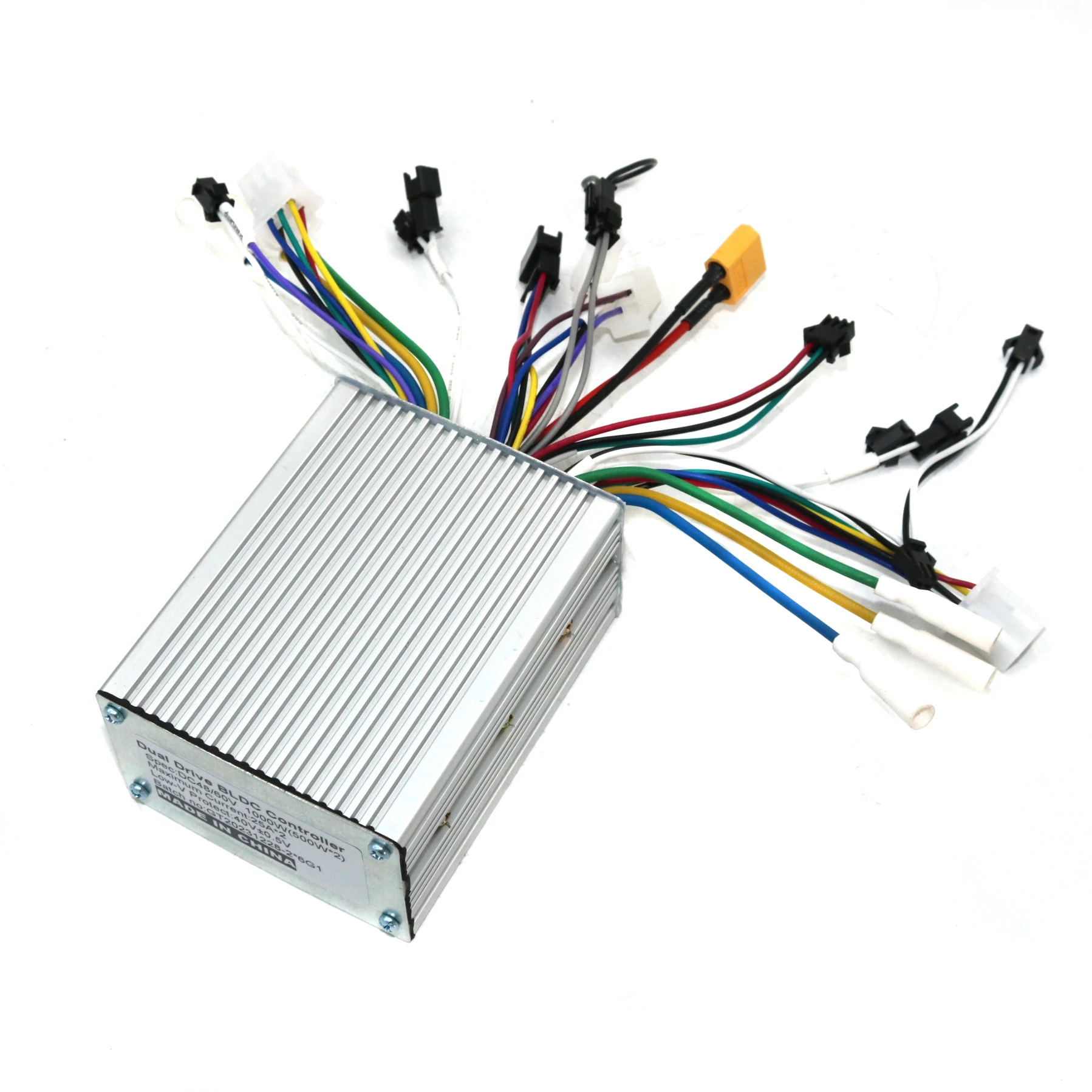

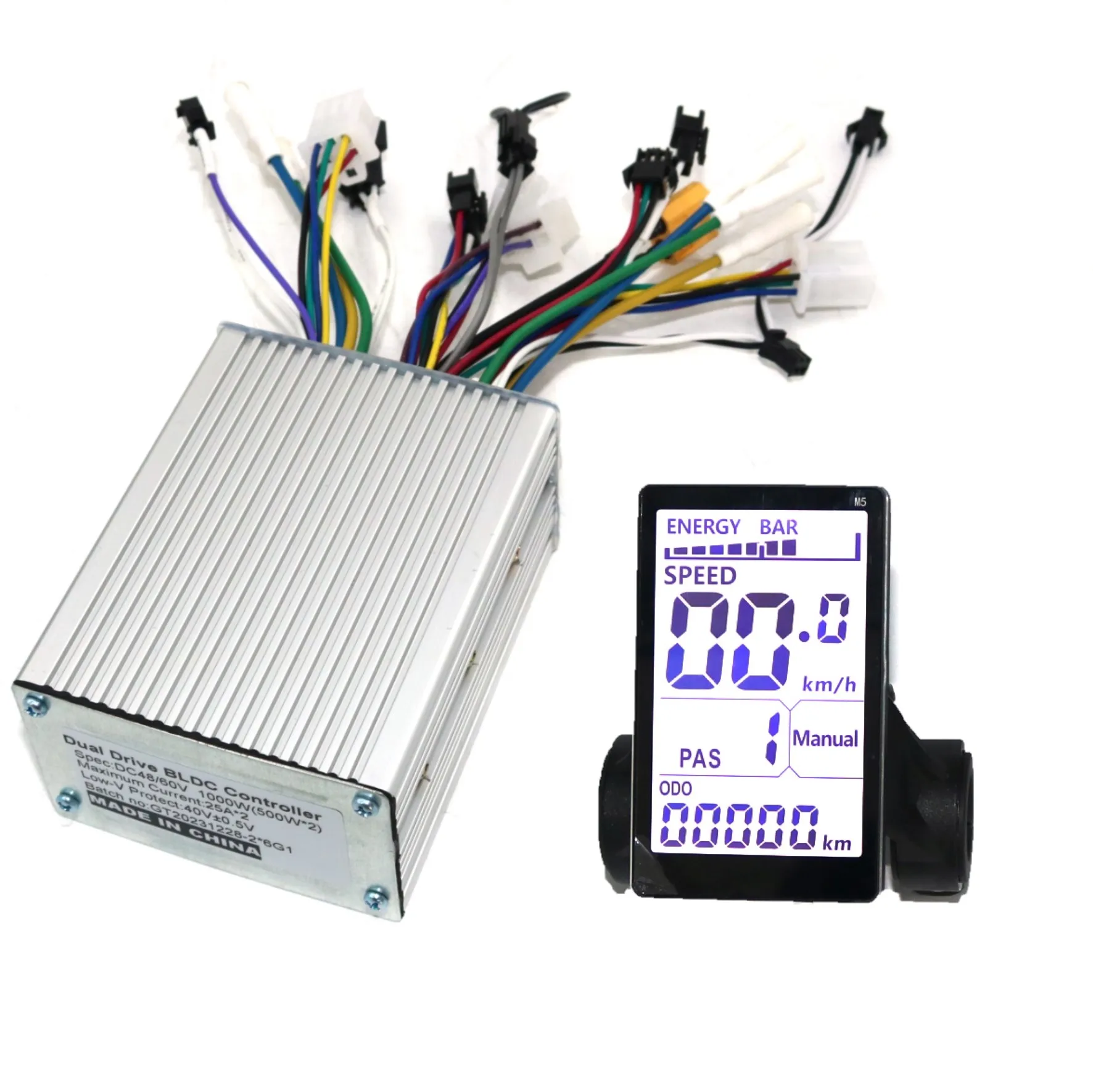

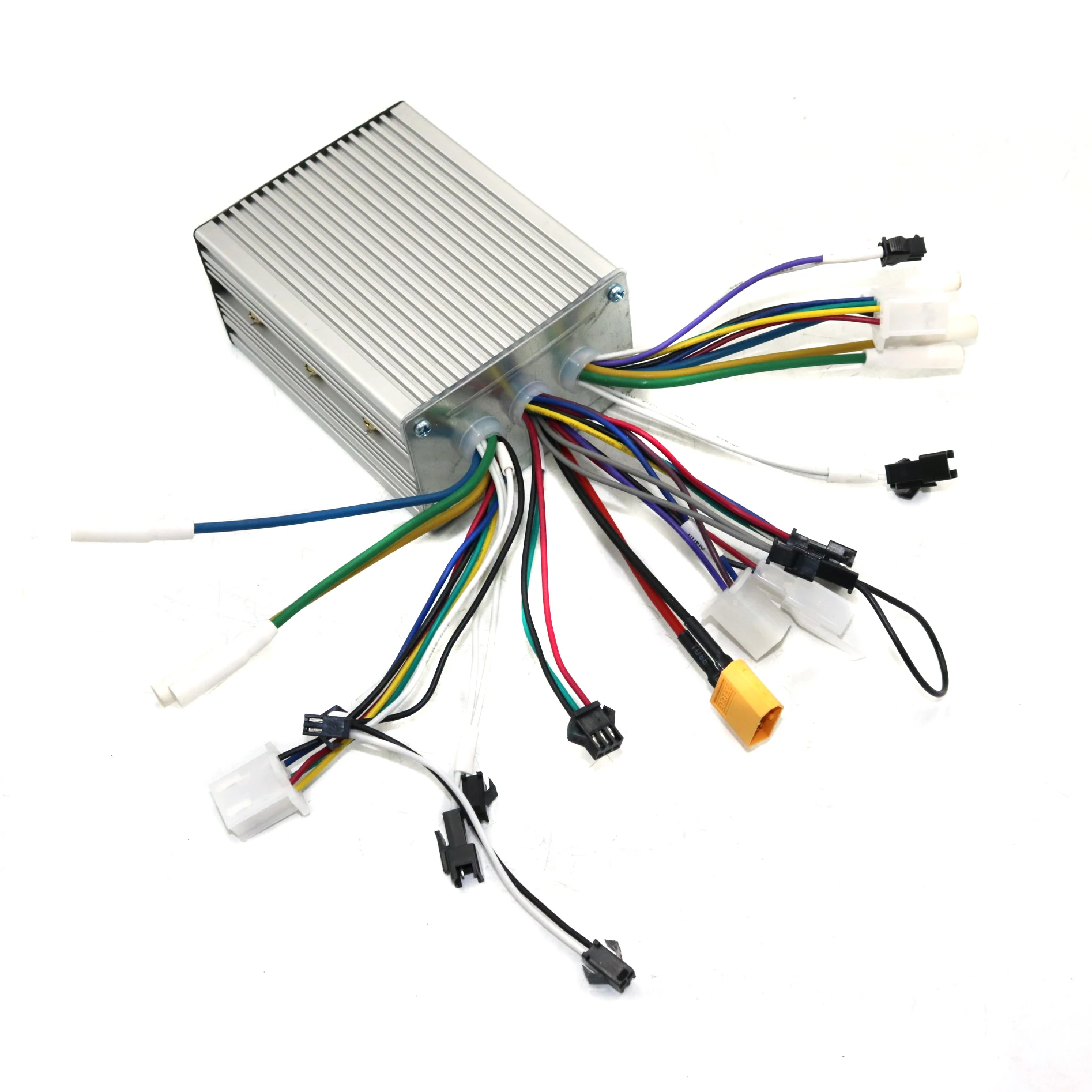

Dual drive 6MOSFET 48/60V 1000W (500W * 2) brushless DC electric scooter controller+M5 LCD set



Rated voltage: 48V/60V



Low voltage cutoff: 40V/50V+0.5V



Rated power: 1000W (500 * 2)



Limit current: 25A * 2+-1A



1) Low noise during startup



2) Undervoltage protection



3) Overcurrent protection



4) Switching between single drive and dual drive



5) Dual low brake cable



6) With self-learning line (self-learning function can only be used when

PAS is set to 2 or above)

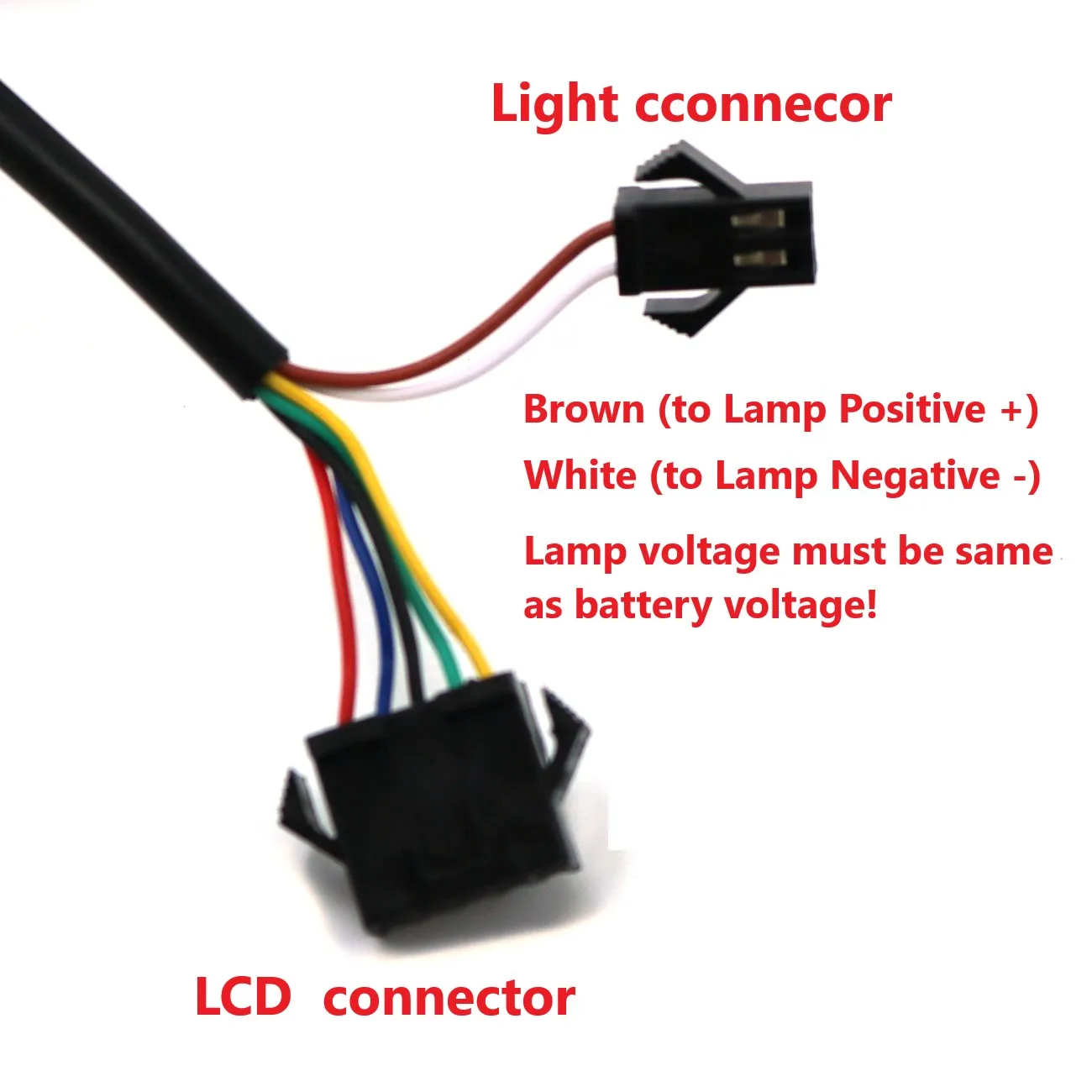

7) With M5 display connector



8) The throttle of the display and the throttle of the controller cannot

work simultaneously.

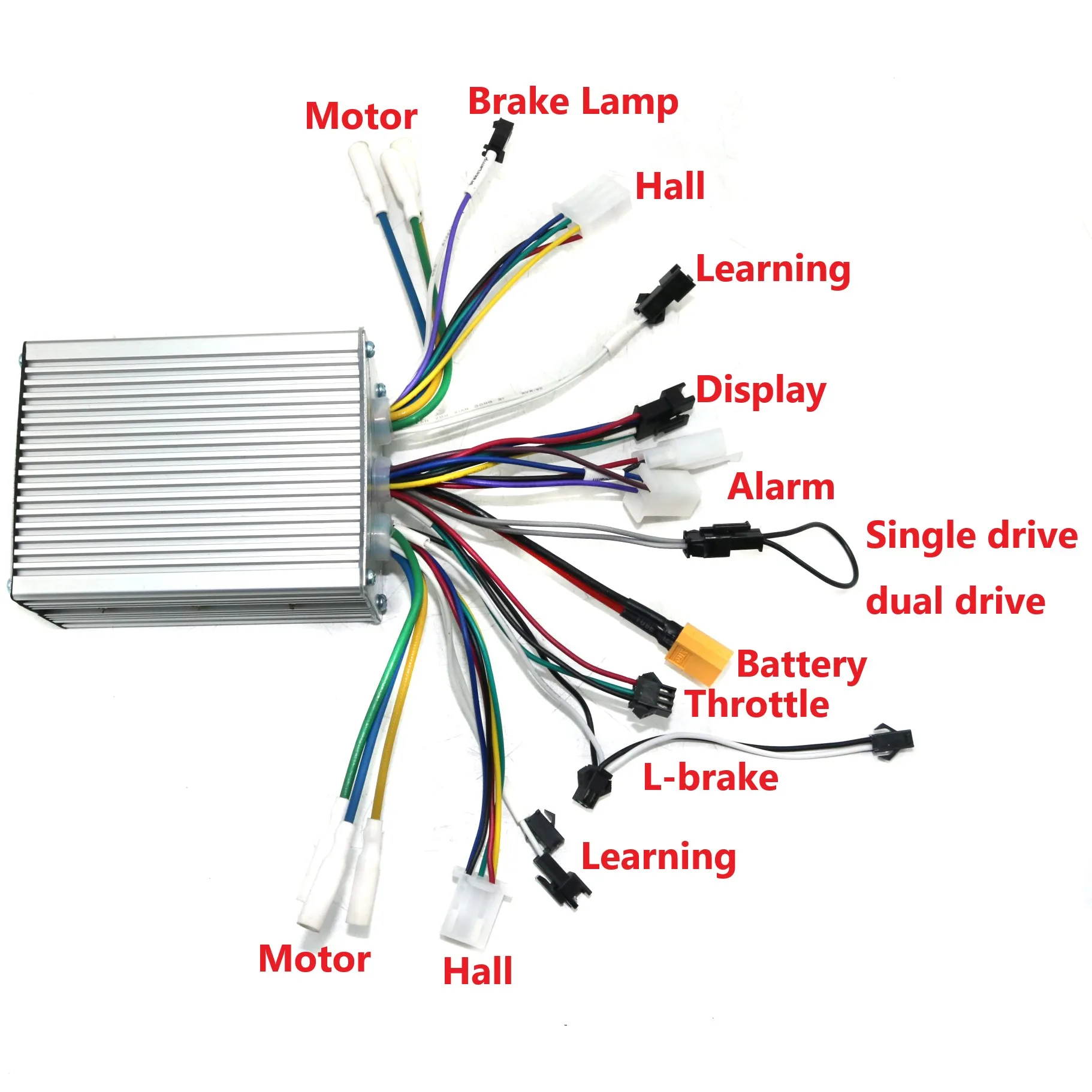

This controller and LCD display must be connected to the motor Hall sensor and throttle valve! The speed limit can be used for pedal assist and throttle.
