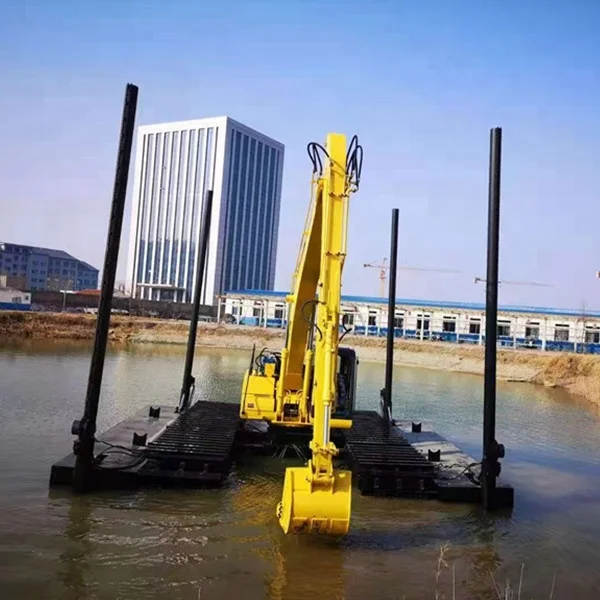

HK200SD 20 Ton amphibious swamp excavator
- Category: >>>
- Supplier: Luoyang Truemach Trading Co. Ltd.
Share on (1601017481641):
Product Overview
Description
Product Description
Product Application
Designed For Water Conservancy, River Dredging And Reclamation

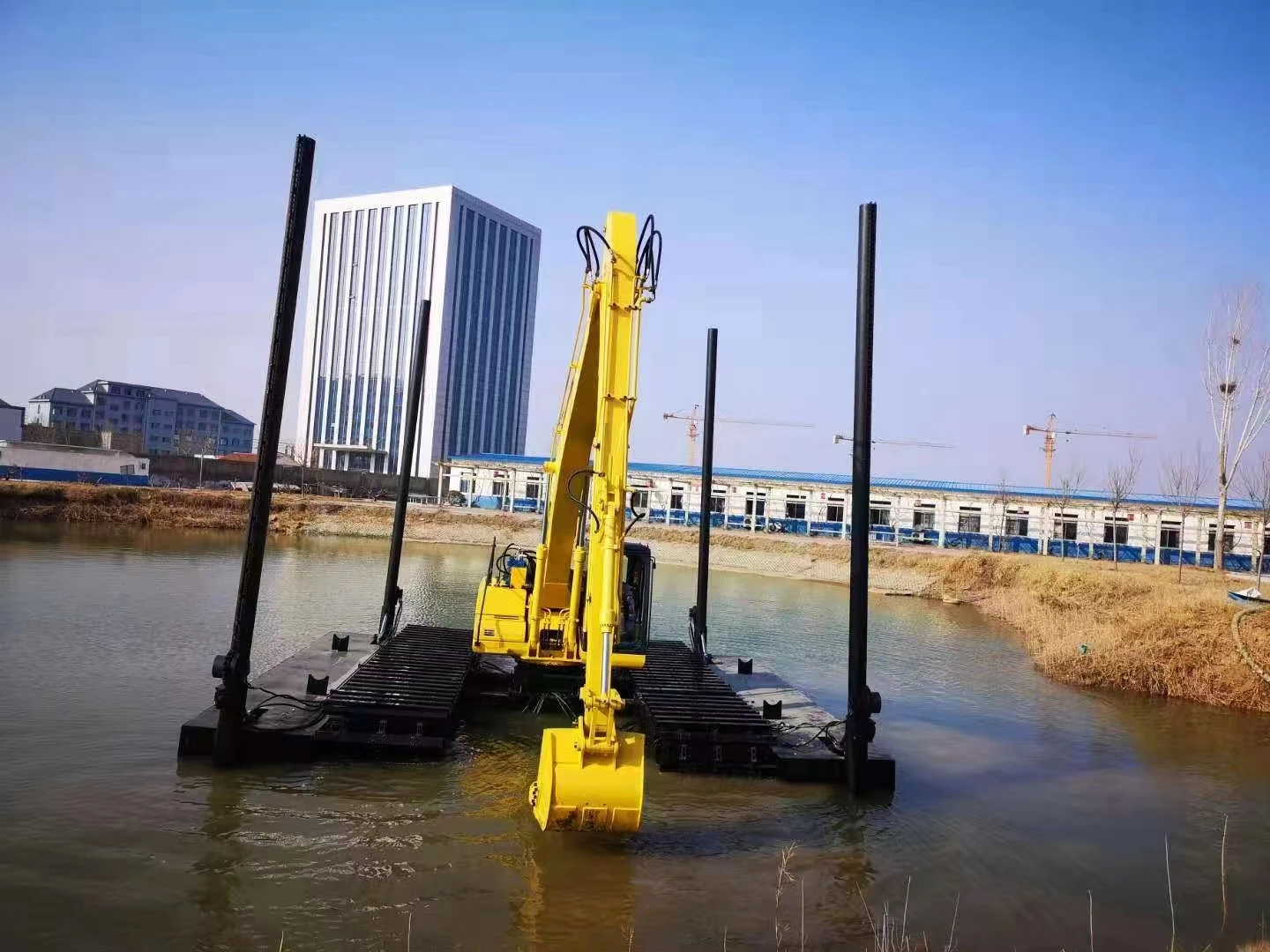

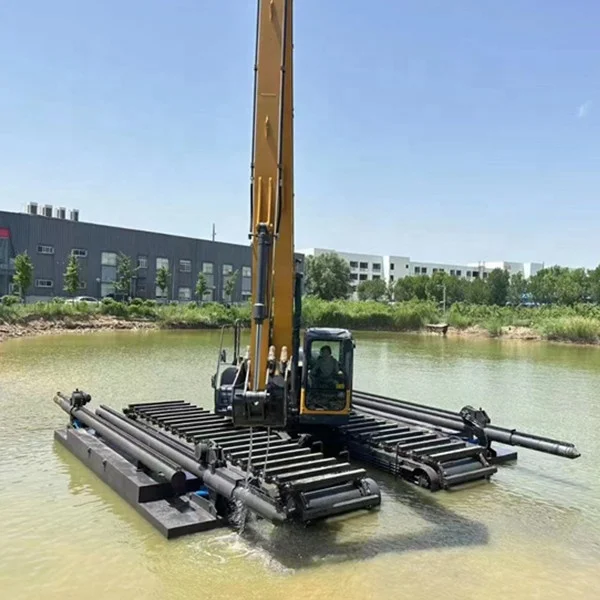

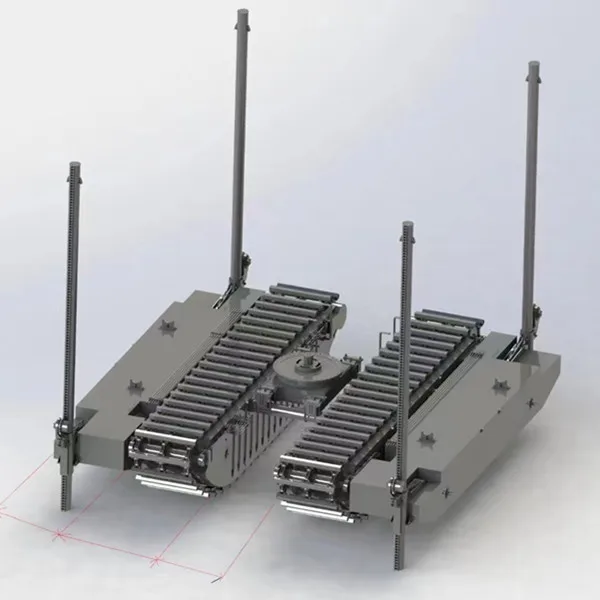

HK200SD amphibious swamp excavator is composed of the upper part of the 20-ton excavator and 20-ton amphibious undercarriage pontoon. The lower part has two kinds of fixed lower part and telescopic lower part. The product is widely used in cleaning waterways, lakes, coastlines and other fields. The lower telescopic float can reduce the total width when fully retracted and can be directly transported by a flatbed. When the machine is working, the lower part can be extended to improve stability. On both sides of the float can be added additional pontoon and spud pile to increase balance and buoyancy, and can work at a water depth of 4 meters.
SPECIFICATIONS FOR HK200SD 20 Ton Amphibious Excavator | ||||||
Engine | Model | ISUZU 6BG1 | ||||
Engine power | kW | 114 | ||||
Rated speed | r/min | 2100 | ||||
Main parameters | Total weight | ton | 26 | |||
Bucket Capacity | m3 | 0.8 with teeth | ||||
Working Pressure | MPa | 32 | ||||
Main Features
High Efficiency And Low Fuel Consumption Creates More Wealth For Customers
1) More durable chain and track shoe has longer lifetime more than similar product by 15%.
2) Original imported hydraulic system parts from Germany, Japan and South Korea ensure the quality of the whole machine with durablity, stable performance and stability.
3) Large section boom and high rigidity structure enhance the durability. Optional various long reach boom can meet user's requirement in different operating conditions.
Detailed Image
Imported Powerful Engine
The original imported engine has low noise, low fuel consumption, less parts, low failure rate, low maintenance cost, with its performance increased 8% to 20% and maintenance time saving more than 50%.
CUMMINS Diesel Engine For Your Preference!
Durable Chain And Track Shoe
Improved design of track roller and idler improve durability
Confortable & Safety Cab:
Advanced sealing and sound insulation design ensure the indoor noise not higher than 75db. The cab is equipped with air-condition, suspension seat, radio, safety belt, safety hammer and pilot control valve. And reinforced front window is optional.
Spacious Cab:
The cab is ergonomically designed with board vision.Improved structure of roll-over safety and deformation resistance ensures the safety of the operator.
*Hydraulic spud poles provide additional stability in deep water with security and easy operation.
*Side pontoons increases the buoyancy of the machine and improves the stability in deep water areas.
*Side pontoons increases the buoyancy of the machine and improves the stability in deep water areas.
Multifunctional Dredging Pump |
The dredging pump can work in water up to 5-6 meters deep, mainly applicable for in cleaning waterways, sand removing, etc. Multifunctional working devices are optional, such as cutter suction pump, multifunctional dredging pump, screening bucket and attachment, ditch bucket, ripper and ripper bucket, hydraulic grab, thumb grabs, rock bucket and hydraulic hammer etc. |
Dredging Bucket
Hydraulic Hammer
Hdraulic Grab
Screen Type Bucket
Ripper Bucket
Strengthed Bucket
Our Service
Truemach Warranty
Each model is manufactured to meet international standards of safety and quality.
Spare parts are readily available worldwide and a sufficient inventory of parts is maintained in our warehouse to meet the urgent needs of customers. All machines excluding spare parts are guaranteed one year. Spare parts can be replaced on favorably for the buyer
Packing & Delivery
Packaging | ||
Size | 14700(L) * 4500(W) * 4144 (H) | |
Weight | 26 T | |
Packaging Details | nude packaging, Bulk Carrier/RO-RO; if disassembed, 01 complete set can be shipped by 1x40'HC & Flat Rack. | |
