china detachable goose neck low bed semi trailer removable gooseneck trailer goose neck trailer
- Category: >>>
- Supplier: Liangshan Zgon Automotive Technology Co. Ltd.
Share on (1601019237077):
Product Overview
Description

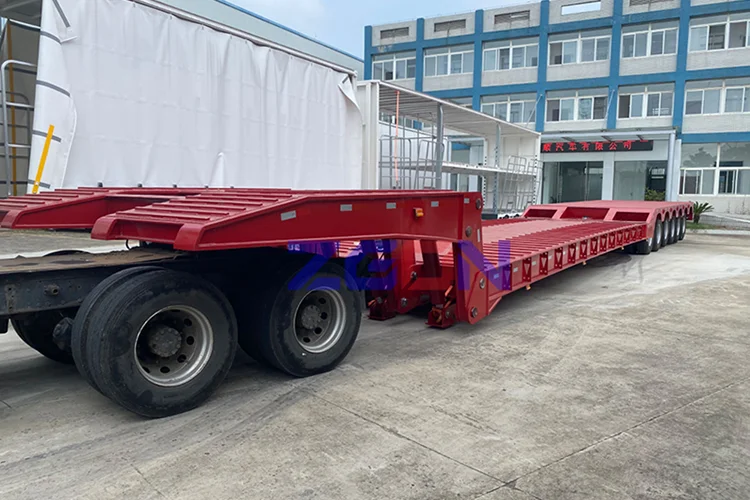

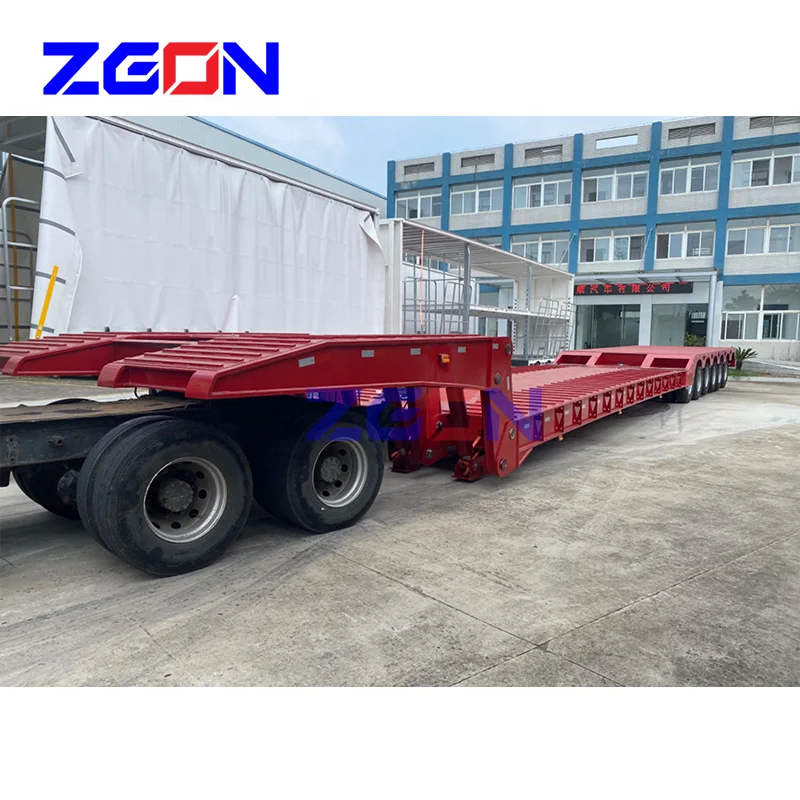

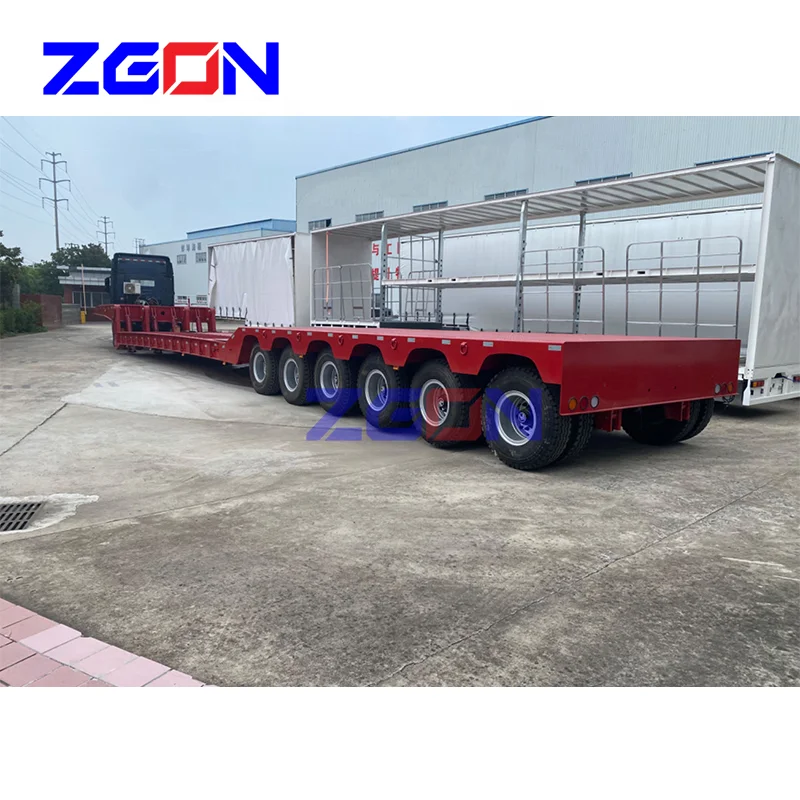

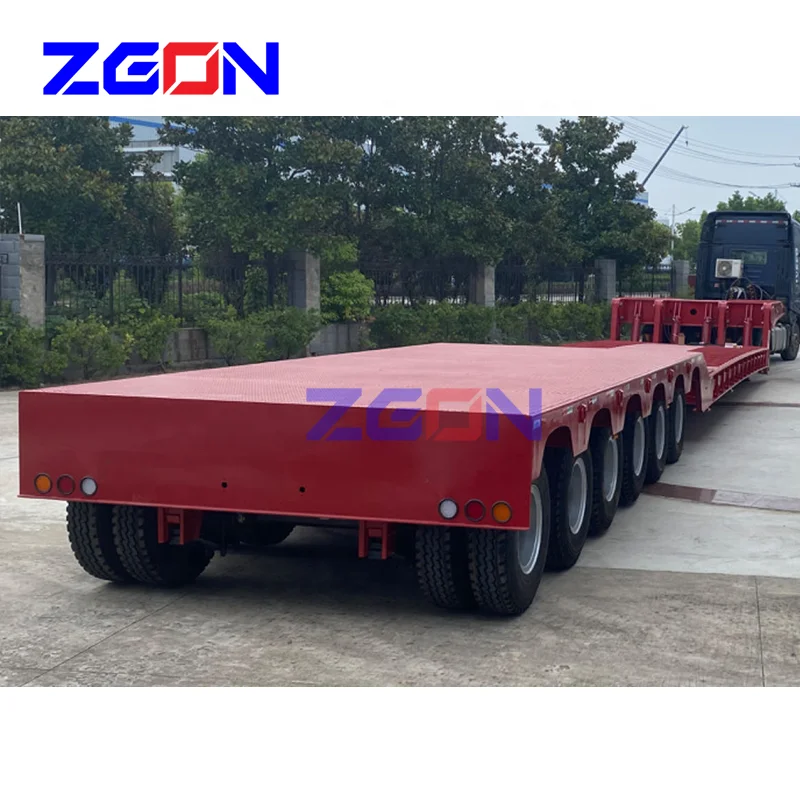

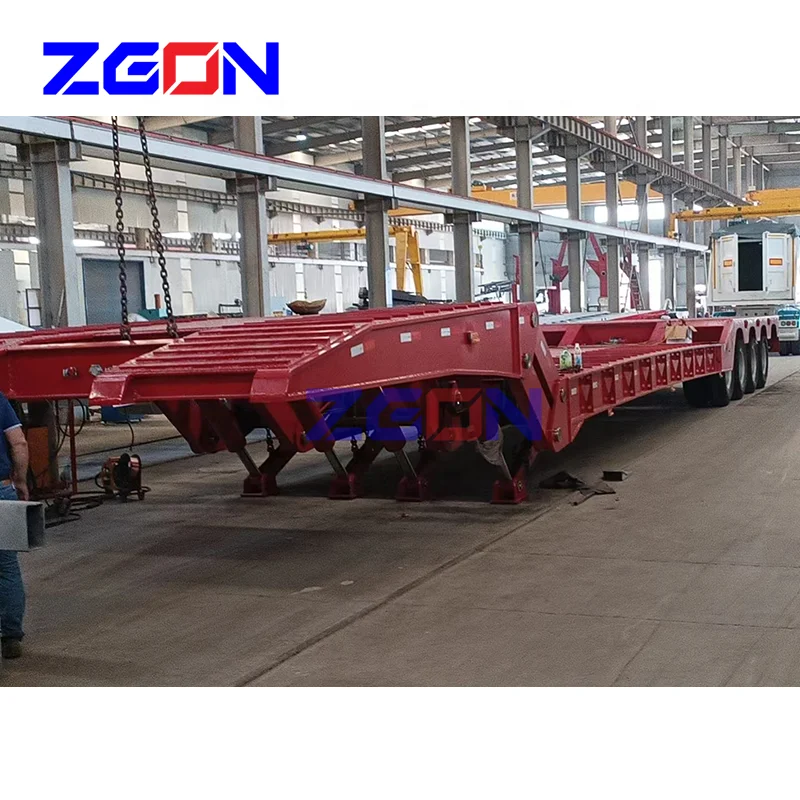

china detachable goose neck low-bed semi-trailer removable gooseneck trailer goose neck trailer
Serial Number | item | volume | specification |
1 | size | overall size: 16000*2500*1600mm | |
2 | body sheet | Q355 | |
specification | |||
Serial Number | item | Qty | notice |
3 | chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel , welded by automatic Submerged-Arc processes. | |
4 | axle | 4 | 13T Axle,braking pad width 220mm, |
5 | tyre | 16 | 12R22.5, china famous brand |
6 | rim | 16 | 9.0-22.5,china famous brand |
7 | suspention | 4 | first 1 axle(Air lift suspension)+last 3 axle (Air suspension) |
8 | braking system | 2 line air braking system with air tank , WABCO emergency relay valve,braking chambers and mechanical slack adjusters. | |
9 | electrical system | 24 volt electrical system.LED lights, 7 pin electrical connector.parking .stop,reverse,number plate and indicator lights.rear lights conform to European standard,rear front and side reflectors | |
10 | Shotblasting and paint | Chassis is comletely shotblasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns. high quality painting. | |
11 | landing gear | 1 | 28T, two sides operation |
12 | chamber | 8 | T30/30 on front and middle axle |
13 | kingpin | 1 | 50#,90# Bolted type |
14 | spare tire carrier | 1 | standard |
15 | tool box | 1 | ZGON standard |
16 | All details not mentioned should be comply with ZGON standard without advanced notice | ||
| Advantage |

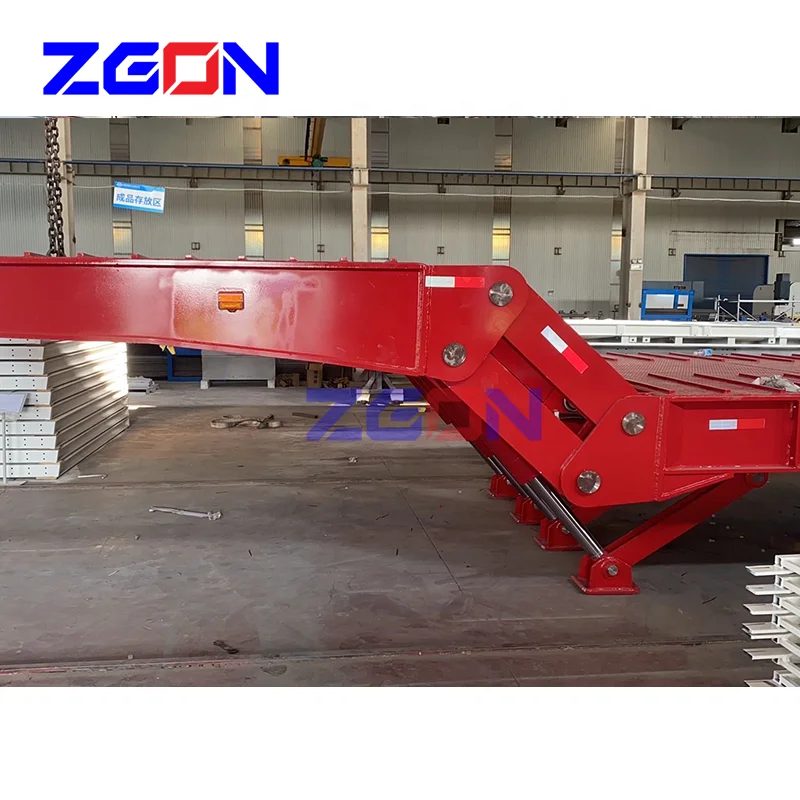

1. Heavy duty ladder, and extra support to prevent ladder from being broken when loading equipment.
2. Optional hydraulic ladder for more than 60 tons capacity,avoiding occupational injury when release ladder by manual operation.
3. Anti-slip strip on tail and rear of platform to ensure loading safely.
4. Optional landing gear under tail to ensure trailer to be stable when loading.
5. H-beam for side beam instead of channel steel.
| Reference |

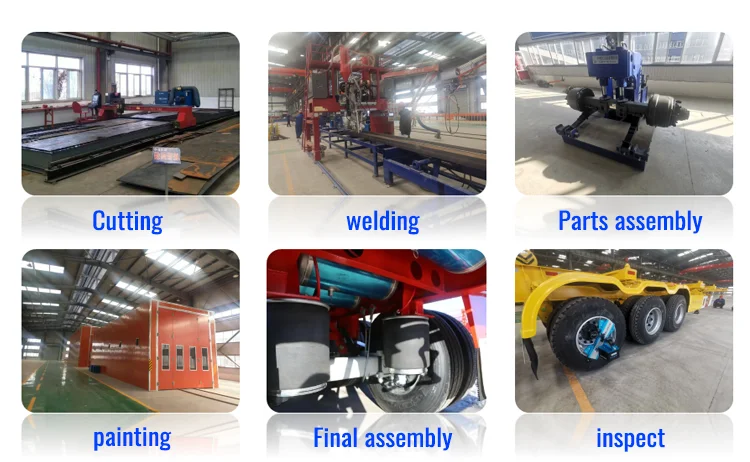

| Production Process |
Our team has 15 years of experience in designing special vehicles. Since its inception, the company has been using the latest 3D design software and engineering calculations to solve various problems in the vehicle design process, and conducting virtual assembly and working condition simulation. We have first-class product forming capabilities in China. Today we will serve users around the world and provide systematic design solutions for specialized vehi
| More Products |
| Company information |
Liangshan ZGON Automotive Technology Co., Ltd. has been committed to the design, research, development, production, and sales of special vehicle products. The product field covers metallurgy, chemical industry, ports, wind power, and logistics transportation, and provides comprehensive transportation solutions for domestic and foreign users. The team has 15 years of industry experience and has multiple independently developed special vehicle application achievements. It is an excellent special vehicle research and development company at home and abroad.
Our products have been exported to more than 40 countries, including Russia, Uzbekistan, Mongolia, Kazakhstan, the Philippines, Vietnam, Myanmar, Thailand, India, Ghana, Mozambique, Peru, etc., and have received unanimous positive reviews from customers in terms of product design and quality. Our company's mission is to solve the problem of manufacturing special semi-trailers for global customers and tailor our own semi-trailers for them.
| Customer Visit |
| FAQ |
Q:How about payment?
A:30% T/T deposit, 70% T/T balanced before shipment.
Q:How about your delivery time?
A:Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q: Is OEM available?
A: Yes, we offer customized service according to your requests.
Q:Do you test all your goods before delivery?
A:Yes, we have 100% test before delivery.
Q: Can I paint my logo on trailer?
A: Of course, you can send me your company logo, then we will design it.
| Contact us |
Contact us for more produces, latest promotion and ready shipping products information, etc.
Any questions about sales, maintain and repair whatever ZGON or yourself vehicle, feel free to contact us, we will try our best to support you.
Any questions about sales, maintain and repair whatever ZGON or yourself vehicle, feel free to contact us, we will try our best to support you.
