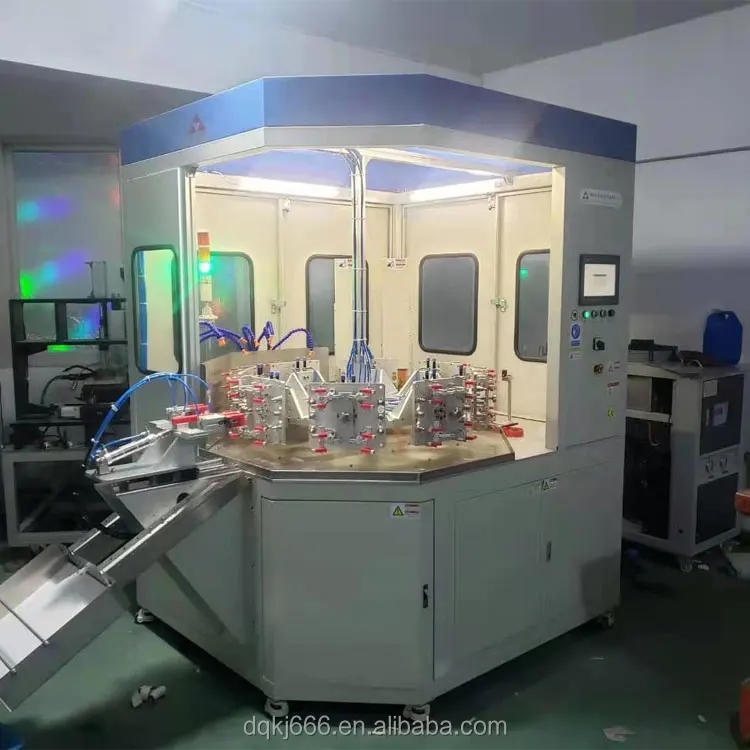

Multi station rotating high frequency automatic induction welding machine
Multi station rotating high-frequency automatic induction welding machine
Multi station rotating high-frequency automatic induction welding machine
Multi station rotating high-frequency automatic induction welding machine
Multi station rotating high-frequency automatic induction welding machine
Multi station rotating high-frequency automatic induction welding machine

Multi station rotating high frequency automatic induction welding machine

Share on (1601019825129):


Price:$42,950.00 - $65,000.00

Quantity:


Product Overview

Description

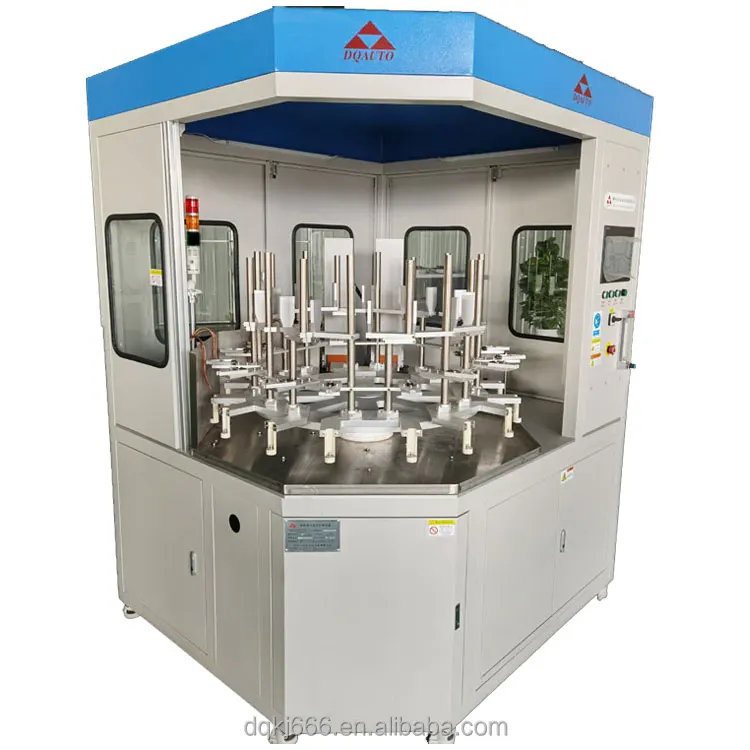

turntable induction brazing equipment

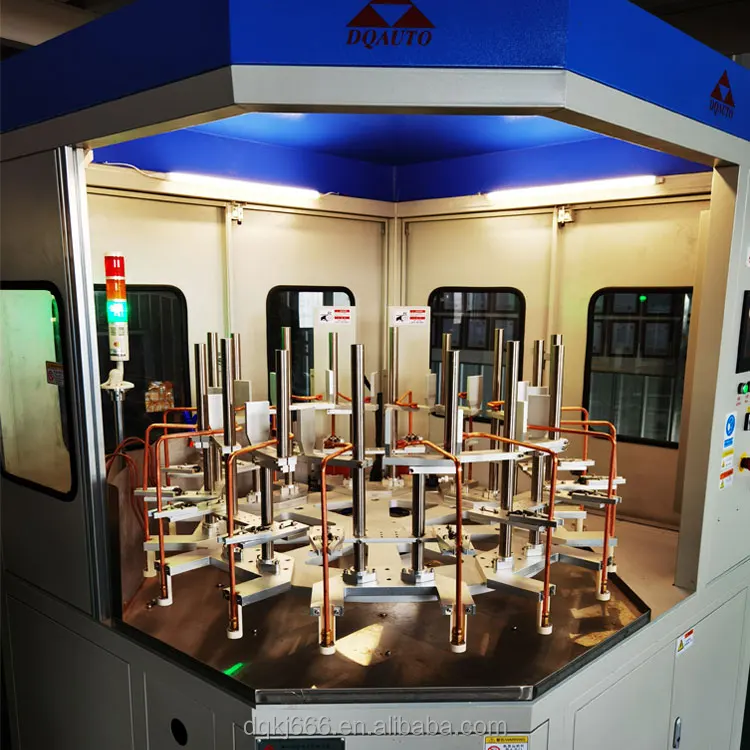

DQAUTO brand Intelligent turntable induction brazing equipment is an energy-saving and high-efficiency brazing equipment specially developed by Daqing Technology to solve the welding of refrigeration accessories. It has the advantages of high welding efficiency, good penetration, high yield, convenient operation, and heating location far away from the operator. It has been highly recognized by customers after it has been put on the market.
After several generations of products, it has been standardized and mass-produced. It is mainly used in the welding of air-conditioning pipe fittings, automobile pipe fittings, and bathroom fittings etc.




Note: The equipment used 16 stations,each station welding two products


Technical parameters of intelligent turntable induction brazing series products
Welding beat
(8-15) s two products
Operator requirements
1 general worker
High frequency machine model
All digitalFD-40H
Number of high frequency machines
2 sets
Feeding form
Manual feeding and automatic welding
Unload feeding form
Manual or automatic unload feeding
Display size
10-inch touch screen
High frequency machine type
DSP full digital control
Section heating
5 segments
Number of stored products
8 types
Max power
50kW
Max input current
80A
Rated power
30KW
Rated current
45A
Motor type
Servo motor
Max lifting stroke
200mm
Sensor lifting speed
100mm/s
Lifting accuracy
0.1mm
Tooling base type
Special ceramics
Number of tooling bases
16 piece
Nitrogen protection function
Equipped with nitrogen protection function
Air cooling function
Equipped with air cooling function
Water cooling function
Equipped with independent water cooling system
Lighting function
Station, distribution box lighting
Working desk
Aluminum alloy
Sink type
304 stainless steel
Equipment size
1450*1600*2360mm
Equipment weight
400kg
Industrial chiller (optional)
3P
Water quality requirements
Scale free purified water
Cooling water flow
4L/min
Cold water pressure
4-8bar
Max water temperature
of cooling water inlet
35℃
Cooling water PH
7.0-9.0


Memo:
This automatic induction welding system is a custom brazing welding line for different metal parts brazing welding, if you have any other requests, please contact us for customizing the appropriate technical solution.




Machine Overall Structure of Induction Brazing Soldering System:
1. An automatic high frequency induction brazing soldering systems rotary table containing product positioning tooling, a total of 16 sets of fixtures.
2. 6 Axis manipulator (well-known brands at home and abroad) for high-frequency rotary plate automatic unloading.
3. Shunt with famous brand.
4. Corresponding tooling and tooling table
5. Centralized controlled electric cabinet.
6. The system has an active top ventilation function
7. Industrial chillers(optional)
8. Match 4 pieces high frequency induction welding coils( use 2 pieces stock 2 pieces)
9. High frequency welding equipment has an active ventilation function.






Application fields:
The induction brazing soldering system is a customized induction heating system, mainly used for all kinds of air conditioner parts, tubes, pipes, valves, bathroom accessories, refrigerators, electrical home appliances, and automotive parts brazing welding jobs.
