TRODAT line contact wire rope for ship handling, hoisting, 6*19
- Category: >>>
- Supplier: Trodat (Shandong) Marine Engineering Co. Ltd.
Share on (1601021131835):
Product Overview
Description
Product Overview
Wire Rope Series-Round Stranded Wire Rope 6*19
Line contact wire rope has large rupture force, long fatigue life and good corrosion resistant to suit soft requirements.
FEATURES AT A GLANCE
Rope Type: 6*19

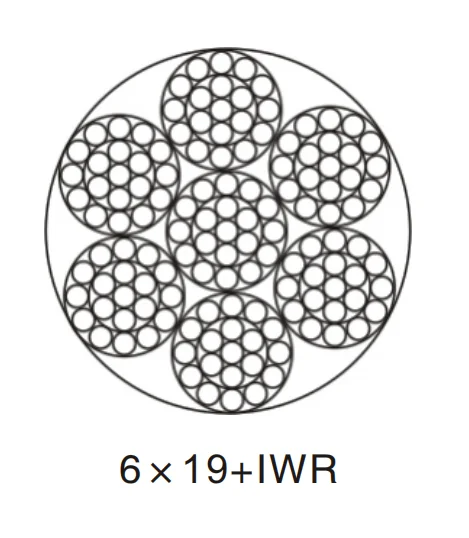

Rope Constructure: 6* 19+FC 6*19+IWR
Standard GB/T8918-1996
Applied for
Tower Crane, Deck Crane, Hydro Crane
Level Luffing Hoist, Boom Hoist
Habor Crane, Container Crane, offshore Crane
High Cut Loading
Excellent Shape Stability
Excellent Fatigue Resistance
PRODUCT SPECIFICATIONS
Nominal Diameter | Approx.Weight | Minimun Breaking Load of Rope(KN) | ||||||
mm | Kg/100m | 1670MPa | ||||||
D | FC | IWS | FC | IWS | ||||
3 | 3.16 | 3.6 | 4.61 | 4.99 | ||||
4 | 5.62 | 6.4 | 8.2 | 8.87 | ||||
5 | 8.78 | 10 | 12.8 | 13.9 | ||||
6 | 12.6 | 14.4 | 18.5 | 20 | ||||
7 | 17.2 | 19.6 | 25.1 | 27.2 | ||||
8 | 22.5 | 25.6 | 32.8 | 35.5 | ||||
9 | 28.4 | 32.4 | 41.5 | 44.9 | ||||
10 | 35.1 | 40 | 51.3 | 55.4 | ||||
11 | 42.5 | 48.4 | 62 | 67.1 | ||||
12 | 50.5 | 57.6 | 73.8 | 79.8 | ||||
13 | 59.3 | 67.6 | 86.6 | 93.7 | ||||
14 | 68.8 | 78.4 | 101 | 109 | ||||
15 | 79 | 90 | 115 | 125 | ||||
16 | 89.9 | 102 | 131 | 142 | ||||
17 | 101 | 116 | 148 | 160 | ||||
18 | 114 | 130 | 166 | 180 | ||||
20 | 140 | 160 | 205 | 222 | ||||
22 | 170 | 194 | 248 | 268 | ||||
24 | 202 | 230 | 295 | 319 | ||||
26 | 237 | 270 | 347 | 375 | ||||
28 | 275 | 314 | 402 | 435 | ||||
30 | 316 | 360 | 461 | 499 | ||||
32 | 359 | 410 | 525 | 568 | ||||
34 | 406 | 462 | 593 | 641 | ||||
36 | 455 | 518 | 664 | 719 | ||||
38 | 507 | 578 | 740 | 801 | ||||
40 | 562 | 640 | 820 | 887 | ||||
42 | 619 | 706 | 904 | 978 | ||||
44 | 680 | 774 | 993 | 1070 | ||||
46 | 743 | 846 | 1080 | 1170 | ||||
48 | 809 | 922 | 1180 | 1280 | ||||
50 | 878 | 1000 | 1280 | 1390 | ||||
52 | 949 | 1080 | 1390 | 1500 | ||||
54 | 1024 | 1170 | 1500 | 1620 | ||||
56 | 1100 | 1250 | 1610 | 1740 | ||||
58 | 1180 | 1350 | 1720 | 1870 | ||||
60 | 1260 | 1440 | 1850 | 2000 | ||||
62 | 1350 | 1540 | 1970 | 2130 | ||||
64 | 1440 | 1640 | 2100 | 2270 | ||||
66 | 1530 | 1740 | 2230 | 2420 | ||||
68 | 1620 | 1850 | 2370 | 2560 | ||||
70 | 1720 | 1960 | 2510 | 2720 | ||||
72 | 1820 | 2070 | 2660 | 2870 | ||||
74 | 1920 | 2190 | 2810 | 3040 | ||||
76 | 2030 | 2310 | 2960 | 3200 | ||||
78 | 2140 | 2430 | 3120 | 3370 | ||||
80 | 2250 | 2560 | 3280 | 3550 | ||||
Note: Please contact our pre-sales technical support to get more technical data on breaking load at 1770Mpa, 1870Mpa, 1960Mpa. | ||||||||
Case Show
Type | Applied for | |
Triangle -Strand Wire Rope | Vertical Shaft Hoist | |
Linear Contact Wire Rope | Vertical Shaft Hoist | |
Multi-layer Strand Wire Rope | Vertical Shaft Hoist | |
Multi-layer Strand Wire Rope | Port Handling , Hydraulic Engineering And Tower Crane | |
Four -Strand Fan-Shaped Wire Rope | ||
Linear -Contact Wire Rope | Large Pouring Crane | |
Please know more about application from our pre-sales technical support. | e | |
