5 inch IADC637 Roller Bit Rotary Drilling Single Roller Cone Bit Tricone Cutter Bit for Core Barrel foundation
- Category: >>>
- Supplier: Zhengzhou Sungood New Material Technology Co. Ltd.
Share on (1601021837015):
Product Overview
Description
Product Description
We and our product advantages

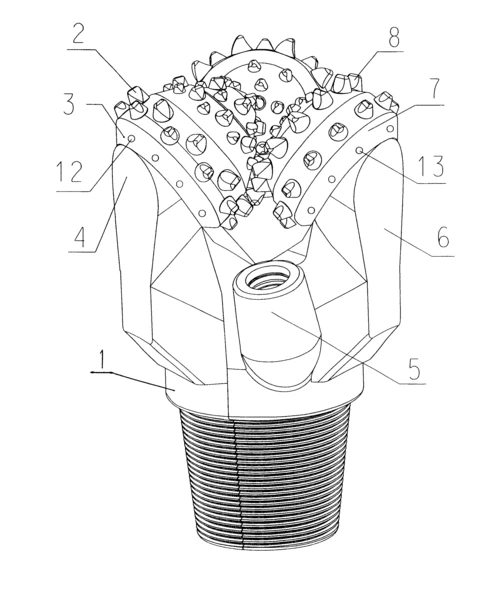

Advantages of cone bit
1.Tungsten carbide hard surfacing weldingTungsten carbide hard surface surfacing welding is used in the palm lip part to increase the wear resistance of the palm back and the diameter protection effect, and increase the working capacity and service life of the bearing
2.Carbide tooth
The use of high strength and high toughness carbide teeth, improve the impact resistance of teeth to reduce the rate of broken teeth.
3.Diameter guard alloy teeth
The ball face of the bit is provided with diameter protection alloy teeth to protect the bit
4.Silvering
Compared with the traditional process, the silver plating can reduce wear and improve the utilization of the drill bit.
Our company can provide specific solutions according to the actual drilling situation, customized arbitrary diameter assembly drill bits, including large caliber pile drill, special-shaped drill, reaming drill, directional drill and so on.
Our company can provide specific solutions according to the actual drilling situation, customized arbitrary diameter assembly drill bits, including large caliber pile drill, special-shaped drill, reaming drill, directional drill and so on.
Cone size and model comparison table | ||||||
Size | Model(IADC) | |||||
Inch | mm | Insert cone bit | Steel tooth cone bit | |||
6 | 152.4 | 517, 537,617, 637 | 126.127.216.217. 316.346.347 | |||
6 1/2 | 165.1 | 517, 537 | 126.127.216.217. 316.346.347 | |||
7 7/8 | 200 | 517,527,547,617,627,000 | 126.127.216.217. 316.346.347 | |||
8 1/2 | 215.9 | 437,447,517,537,617,000,000 | 126.127.216.217. 316.346.347 | |||
9 1/2 | 241.3 | 437,517,537,547,617 | 126.127.216.217. 316.346.347 | |||
9 5/8 | 244.5 | 437,517, 537,547,617 | 126.127.216.217. 316.346.347 | |||
9 7/8 | 250.8 | 437,517, 537,547,617 | 126.127.216.217. 316.346.347 | |||
12 1/4 | 311.1 | 437,517, 537,547,617,627,637 | 126.127.216.217. 316.346.347 | |||
17 1/2 | 444.5 | 517,537,617,627,637 | 126.127.216.217. 316.346.347 | |||
24 | 609 | 417,517, 537,547,617,637 | 126.127.216.217. 316.346.347 | |||
26 | 660 | 417,517, 537,547,617,637 | 126.127.216.217. 316.346.347 | |||
Note on the use of cone in rotary digging engineering
1. The opening width of the cylinder wall should be just put into the claw or the base, and do not leave too much gap; The opening depth of the cylinder wall should ensure that the welded cone is exposed to 1/2 to 2/3 of the cylinder wall. Both sides of the cone wall top open splayed chamfer.
2. The installation sequence of the cone palm is likely to follow the principle of alternating positive and negative and complementary three rounds.
3. When welding the cone palm/base, ensure that the horizontal height of the cone palm is consistent and in the same circle, the protruding cone palm will be damaged in advance.
4. During welding, follow the principle that the cone should tilt 5°-7° to the back side of the claw. Do not tilt to the tip side of the wheel to avoid premature wear of the claw tip.
5. When welding, the cone palm should be immersed in water and welded in stages, focusing on the joint of the cutting claw and the cone to avoid the failure of the sealing ring or bearing lubrication system caused by high temperature.
6. The load range of each cone palm is 3 to 5 tons, which ensures that the barrel drill is within the pressure range in use.
Specification
Description of PDC drill bit
1.Suitable for soft, medium and hard formations.
2.Super strong material promotes gauge wear resistance to provide long bit life.
3.The cutter’s back rake has been unique design, reducing the bit torque and increasing aggressiveness.
4.Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each bladewiththe proportional fluid flow.
2.Super strong material promotes gauge wear resistance to provide long bit life.
3.The cutter’s back rake has been unique design, reducing the bit torque and increasing aggressiveness.
4.Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each bladewiththe proportional fluid flow.
Function
When the drill bits work, the edge is used to cut ordinary and symmetrical formation, while the ledge acts as cushioning toavoidhuge drilling footage, which helps to low the possibility of damage. Thanks to that, the drilling level of complicated formationis improved.
Application
Our PDC drill bits are widely used in various industries, such as coal mining, petroleum exploration, geological exploration, water conservancy and hydropower, railway and highway, tunnel construction, etc.
Steel drill bits are used for drilling blowholes, drainage holes, and grouting holes in coal mines and water conservancy projects; Blade drills are mainly used for drilling soft media formations, such as mudstone, limestone, shale, sandstone, and granite.
Our PDC drill bits are widely used in various industries, such as coal mining, petroleum exploration, geological exploration, water conservancy and hydropower, railway and highway, tunnel construction, etc.
Steel drill bits are used for drilling blowholes, drainage holes, and grouting holes in coal mines and water conservancy projects; Blade drills are mainly used for drilling soft media formations, such as mudstone, limestone, shale, sandstone, and granite.
Company Profile
Why did you choose us?
Zhengzhou Shangong New Material Technology Co., Ltd. has 15 years of professional experience in the production of mining machinery mining tools and accessories, cable specialized materials, and other products. Its main products include PDC cutting tools, PDC drill bits, diamond drill bits, saw blades, polishing and grinding tools, cable armor aluminum strips, etc. Our products are sold to multiple countries and regions, and we have established stable cooperative relationships with more than 20 customers worldwide. In order to respond to customer needs faster and provide better product quality, a new integrated platform for research and development, production, sales, and after-sales service was established in 2023. We hope to provide you with more satisfactory and comprehensive services.
Zhengzhou Shangong New Material Technology Co., Ltd. has 15 years of professional experience in the production of mining machinery mining tools and accessories, cable specialized materials, and other products. Its main products include PDC cutting tools, PDC drill bits, diamond drill bits, saw blades, polishing and grinding tools, cable armor aluminum strips, etc. Our products are sold to multiple countries and regions, and we have established stable cooperative relationships with more than 20 customers worldwide. In order to respond to customer needs faster and provide better product quality, a new integrated platform for research and development, production, sales, and after-sales service was established in 2023. We hope to provide you with more satisfactory and comprehensive services.
What can we offer you？
Zhengzhou Sungood New Material Technology Co., Ltd. has been developing new products mainly based on diamond composite materials and efficiently producing the following drilling tools:
※ PDC cutting tools/blades: 1304, 1305, 1306, 1308, 1310, 1313, 1613, 1616, 1916... petroleum or mining types.
※ PDC core drill bits: diameter 46mm, 50mm, 55mm, 60mm, 65mm, 75mm, 89mm, 94mm, 98mm, 113mm, 124mm, 127mm, 132mm, 146mm, 153mm, 190mm, 216mm，.......
※ PDC non core drill bits: including arc angle drill bits, flat top drill bits, and concave drill bits, providing products of any size from 50mm to 300mm. According to your needs, you can produce products such as two wings, three wings, and four wings;
PDC anchor rods for roof bolt support: diameter 25mm, 27mm, 28mm, 29mm, 30mm, 32mm, 35mm, 42mm, 43mm
Hard alloy drill bits: double wing coal drill bits, chisel drill bits, cross drill bits, button drill bits, hammer heads
According to your needs, we can provide you with customized products, including trademarks, packaging, etc
※ PDC cutting tools/blades: 1304, 1305, 1306, 1308, 1310, 1313, 1613, 1616, 1916... petroleum or mining types.
※ PDC core drill bits: diameter 46mm, 50mm, 55mm, 60mm, 65mm, 75mm, 89mm, 94mm, 98mm, 113mm, 124mm, 127mm, 132mm, 146mm, 153mm, 190mm, 216mm，.......
※ PDC non core drill bits: including arc angle drill bits, flat top drill bits, and concave drill bits, providing products of any size from 50mm to 300mm. According to your needs, you can produce products such as two wings, three wings, and four wings;
PDC anchor rods for roof bolt support: diameter 25mm, 27mm, 28mm, 29mm, 30mm, 32mm, 35mm, 42mm, 43mm
Hard alloy drill bits: double wing coal drill bits, chisel drill bits, cross drill bits, button drill bits, hammer heads
According to your needs, we can provide you with customized products, including trademarks, packaging, etc
Body Material
1.Steel body:suitable for soft to medium hard chunks of homogeneous,hard and abrasive high formation.
2.Matrix body:Suitable for harder geological conditions
Cutter size | 13X 8 mm | The smallest cutter suitable for the hardest rock information ,then the biggest cutter gets the fastest speed . | ||||
13X19 mm | ||||||
16X13 mm | ||||||
19X13 mm | ||||||
Unmatched quality gives you peace of mind
Our PDC bits adopt superior material C45# steel, the bits are widely used in hole drilling of geological drilling and water well drilling. They are also widely using in hole drilling of dam construction and water conservancy.
Main features
1) Wear resistance and long service life;2) Adopting mature process and 100% raw material(Tungsten carbide substrate and diamond powder) to manufacture;
3) Tungsten carbide as the matrix body makes the bit more wear resistance and impact toughness.
4) Diamond polystyrene as the gauge.
5) Suit for drilling hard rocks.
Main parameters and performance of PDC anchor bit:
Diameter (mm) | 30 | Material | diamond+hard alloy |
Length (mm) | 32 | Production process | high-quality steel forging and forming |
Weight on bit (Kg) | 300-700 | Main Use | Diamond drill bits are mainly used in industries such as coal fields, oil drilling, geological exploration, water conservancy and hydropower, railways and highways, tunnel construction, etc. across the country |
Speed (rpm) | 300-500 | ||
Pump capacity (1/min) | 150-200 |
Unmatched product performance
Under the same rock layer conditions, the drilling life is 10-30 times that of ordinary alloy bits, and the efficiency is improved by at least 60%. It does not require grinding, greatly reducing the labor intensity of workers and saving labor hours. The key raw materials for the two wing PDC anchor bit (half reinforced) blade are produced by GE Company in the United States. Its diamond content is 1.5 times that of a regular drill bit, with excellent wear resistance, significantly improved efficiency, and reduced overall cost. It is suitable for medium hard rock layers below grade 12.
Special dimensions of PDC drill bits
If you need a special design and size PCD drill bit, please do not forget to provide the following important information for our engineers' reference:
1. Type of drilling conditions (coal mining, geological drilling, quarries, etc.).
2. Formation type and hardness.
3. Requirements for drilling depth.
4. Special design precise drawings.
1. Type of drilling conditions (coal mining, geological drilling, quarries, etc.).
2. Formation type and hardness.
3. Requirements for drilling depth.
4. Special design precise drawings.
Packing & Delivery
Single carton box package, safe and regular placement.
Samples are shipped by express, batch products are shipped by sea or by air.
Delivery: 1-5 days for samples, 1-15 days for batch products.
Samples are shipped by express, batch products are shipped by sea or by air.
Delivery: 1-5 days for samples, 1-15 days for batch products.
FAQ
To provide you with thoughtful service
Question 1. What are your packaging conditions?
Answer: Usually, we package the goods in neutral white boxes and brown cardboard boxes. If you have a legally registered patent, we can package the goods in your brand box after receiving your authorizationletter.
Question 2. What are your payment terms?
Answer: T/T 50% as deposit, 50% before delivery. Before you make the remainingpayment, we will show you photos of the product and packaging.
Question 3. What are your delivery terms?
Answer: EXW, FOB, CFR,CIF.
Question 4. What is your delivery time?
Answer: Generally speaking, it takes 10 to 15 working days after receiving the advance payment. The specific delivery time depends on the items and quantity in your order.
Question 5. Can you produce based on samples?
Answer: Yes, we can produce according to your samples or technical drawings.
Question 6. What is your sample policy?
Question 6. What is your sample policy?
Answer: If we have ready-made inventory of parts, we can provide samples, but customers must pay for sample and courier fees.
Question 7. Do you test all the goods before delivery? Answer: Yes, we have 100% testing before delivery
Question 8: How can you establish long-term good relationships with our business?
Answer: 1. We maintain good quality and competitive prices to ensure that our customers benefit; 2. We respect every customer as our friend, no matter where they come
from, we sincerely do business with them and make friends.
from, we sincerely do business with them and make friends.
