Full Automatic EP1 with PLC system.




Stoneplus Co.










Product Description

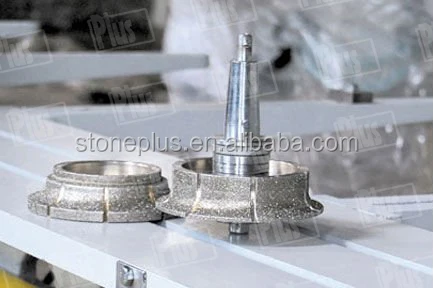

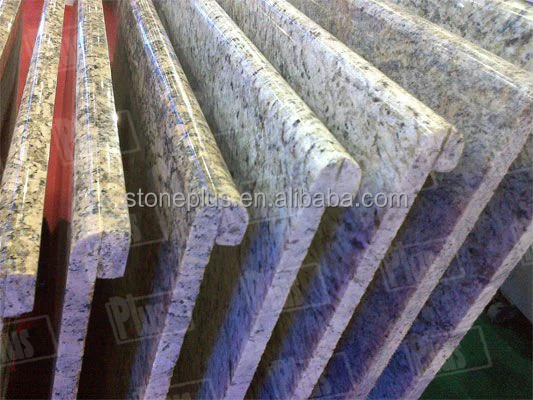

The machine is to make the edge of countertops. By using the diamond wheels of corresponding shapes, it can profile the bullnose,
half bullnose, ogee, flat and etc.
The pre-polishing of the edge can be done by polishing wheels.
The machine can do the linear edge automatically. it can also do the arc edge by holding the arm manually.
The work feeding speed is adjustable by inverter.



Technical Parameter


Max length of stone
mm
3200
Max thickness of stone
mm
150
Diameter of drilling holes
mm
6-100
Cutting head tilting degree
degree
any degree
Power of main motor(2 speeds)
kw
4.0/3.3
Spindle speed
rpm
1900/3880
Work feeding speed
m/min
0.2/4.0
Dimensions of machine
mm
3800/1500/1600H
