Automatic Tile Cutter Machine 5 Axis Cnc Bridge Saw Granite Cutting Polishing Machine With Automatic Positioning

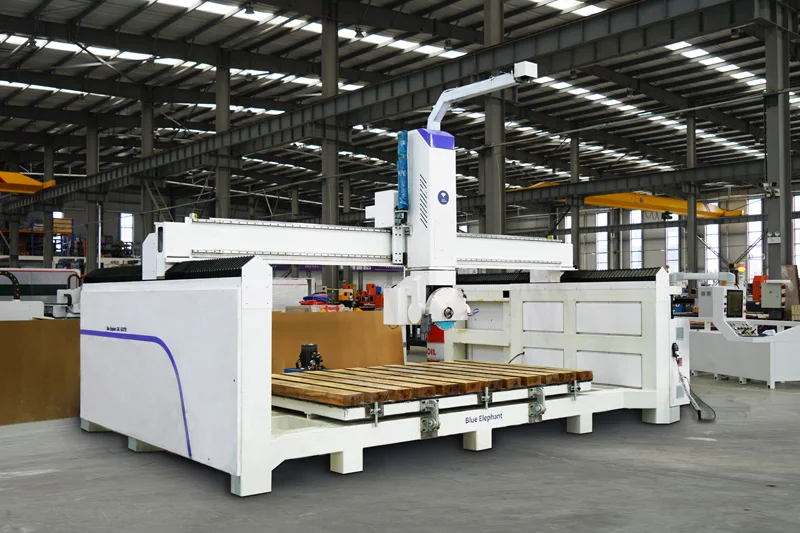

This is a 2023 newly designed 5 axis CNC bridge saw for stone cutting. It is added with a camera to automatically position plates. And the machine head can swing freely at 360°, which can cut and edge at any angle and shape for granite, marble, artificial stone, slate and other stone materials. So it is widely used in slate application industry, prefabricated building industry, home decoration industry, etc. Its maximum cutting length is 2800mm, maximum cutting widths is 1200mm, and maximum cutting thicknesses is 100mm. The worktable can tilt up to 80°and the spindle can rotate to 90° or 360°. It is the ideal machine for large and industrial stone professing factory.


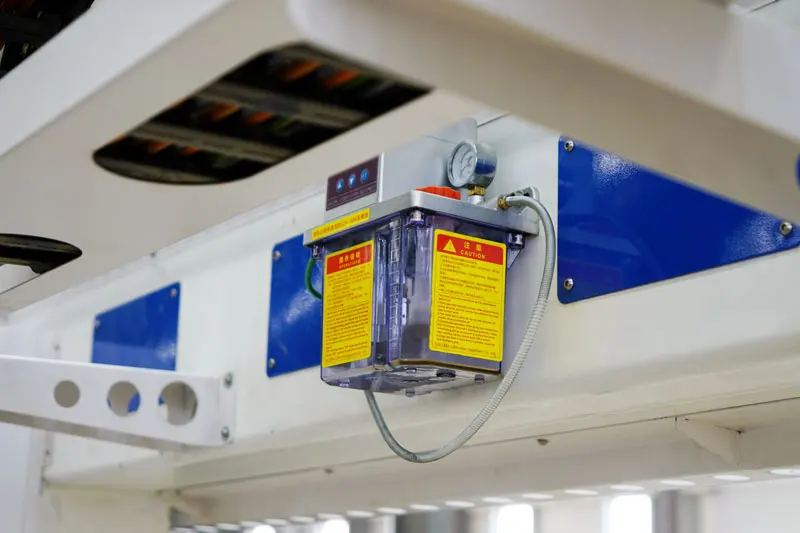

Features
1. The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.

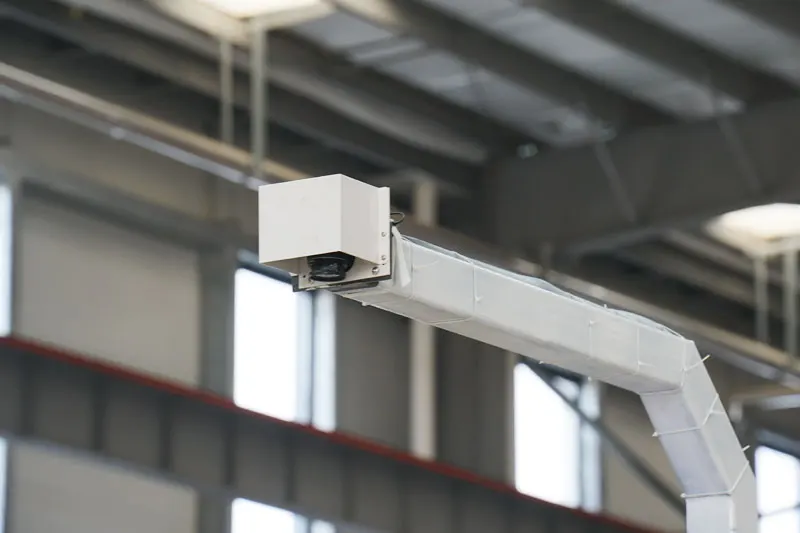

2. It is equipped with a high-precision on-board camera, which brings higher-definition images and can provide high-precision stone processing. Moreover, it can take pictures to position stone plates, and can automatically plan the cutting path directly from the generated map, which greatly improves the processing efficiency.

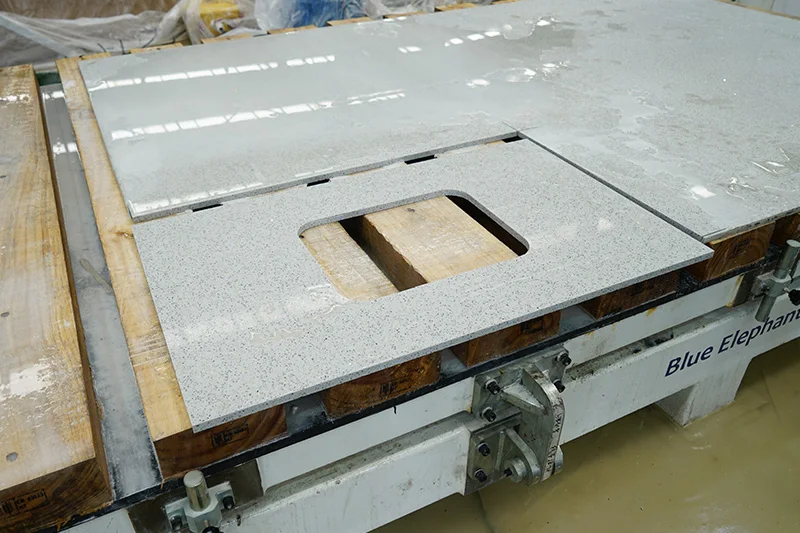

3. The overturned worktable is adopted, which has large overturning weight redundancy, up to 80°.

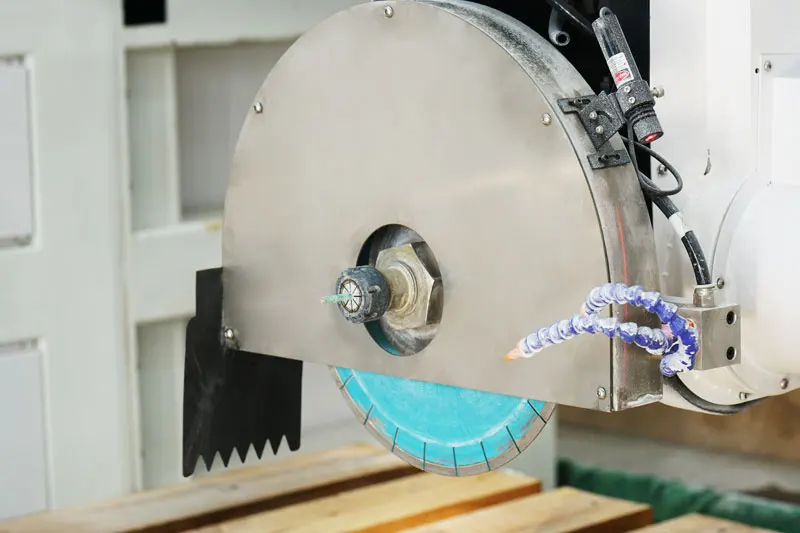

4. Adopts a 11kw motor with high precision, it can complete circular cutting, square cutting, sector cutting, oval cutting,45 miter cutting, drilling, external edge polishing, etc.
5. The robotic system has a lift capacity of 75 kgs for stone slab moving.
6. The 5-axis cutting head can miter and interpolate in any direction.




Product Paramenters


ES5 5 axis CNC stone bridge saw
Working travel
X, Y, and Z  3200*2000*400mm
C axis ±360°
A axis 0-90°
Moving speed
Xaxis 30m/min
Yaxis 30m/min
Zaxis 15m/min
Servo motor
Xand Y 1300W absolute servo motor
Zaxis 1300W absolute servo motor with brake
A and C 1000W absolute servo motor
Guide rail
X, Y, and Z: # 30
Rack
X、Y 2MT-WIN
Worktable
Structure Square timber
Worktable size 3200×2000mm
Turning angle 0-80°
Max. weight for turning 800KG
Saw
Dimension 450mm
Max. cutting thickness 100mm
Ball screw
Z  3210PREYP
Reducer
X/Y: Japan SHIMPO
Saw motor
11KW motor, rated: 3000r/min
Inverter
15KW BRICH
Control system
Blue Elephant customized system (built-in CAM software)
Low-voltage electronics
French SCHNEIDER
Working air pressure
0.7-0.8Mpa
Voltage
380V/3P/50HZ
Overall dimension
5.85×4.5×3.3m
