Tigerrig API 16c high pressure movable elbow hydraulic stainless steel rotary 1502 chiksan joint swivel joint for oilfield
- Category: >>>
- Supplier: Zhonghang (avic) Machinery Manufacturing Group Co. Ltd.
Share on (1601025523409):
Product Overview
Description
Company Information
Zhonghang (avic) Machinery Group Co., Ltd.. (brand: Tiger Rig) was established in 2005. The company is located in Xindu Town, the most dynamic and potential city in Chengdu. Tiger rig is committed to the research and advanced development of well control tools. At present, the company has formed more than 50 series and more than 100 specifications of products, which have been widely used in all oil fields in China and have been exported to Europe, America, Southeast Asia, the Middle East, Central Asia, and the North. Africa and other regions.
We can provide wellhead products, such as oil and gas production wellhead devices, casing heads, blowout preventer, drilling spool, and various gate valves and butterfly valves. We also provide diesel generator and engine for CAT, Commins, MTU. Besides, we have drilling motor, air compressor, gear box transmission and son on. Welcome to ask for more information about your favorite products, we are always waiting for your arrival!
Product Specifications
Model | Working pressure | diameter | External connection size | External sealing form |
2WT*35.1 | 5000(35) | 2（50） | Trl100*12 | Spherical hard seal |
2WT*35.2 | 5000(35) | 2（50） | Trl100*12 | Face seal |
2WT*70.1 | 10000(70) | 2（50） | Trl100*12 | Face seal |
2WT*70.2 | 10000(70) | 2（50） | Trl100*12 | U-shaped seal |
2WT*70.3 | 10000(70) | 2（50） | Trl100*12 | Spherical seal |
2WT*70.4 | 10000(70) | 2（50） | 4 1/8-3ACME-2G | Face seal |
2 1/2WT*35.1 | 5000(35) | 2 1/2（65） | Trl120*12 | U-shaped seal |
2 1/2WT*35.1 | 5000（35）） | 2 1/2（65） | Trl120*12 | Spherical seal |
Products Description

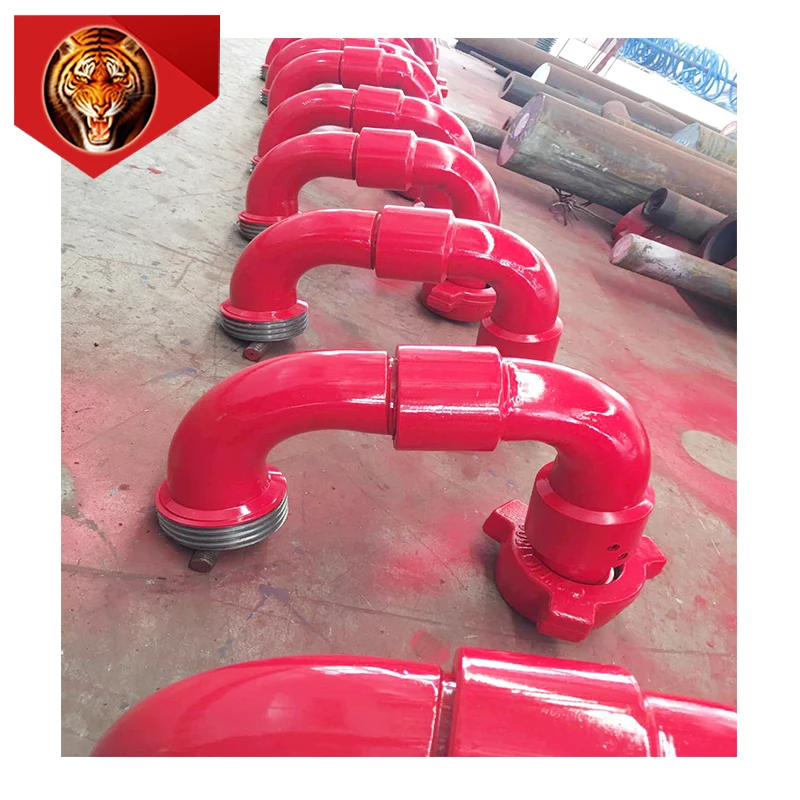

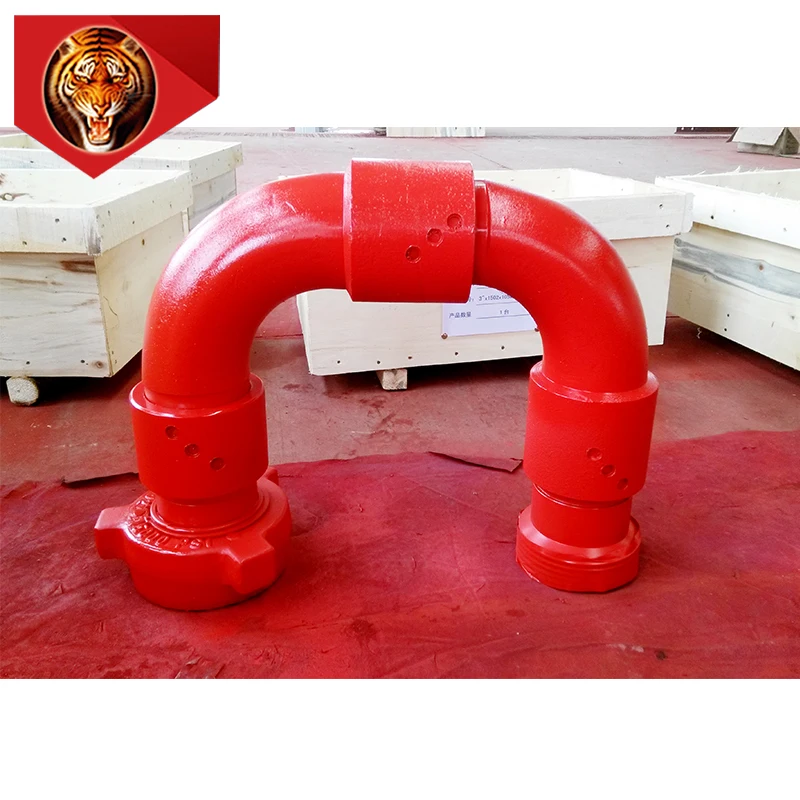

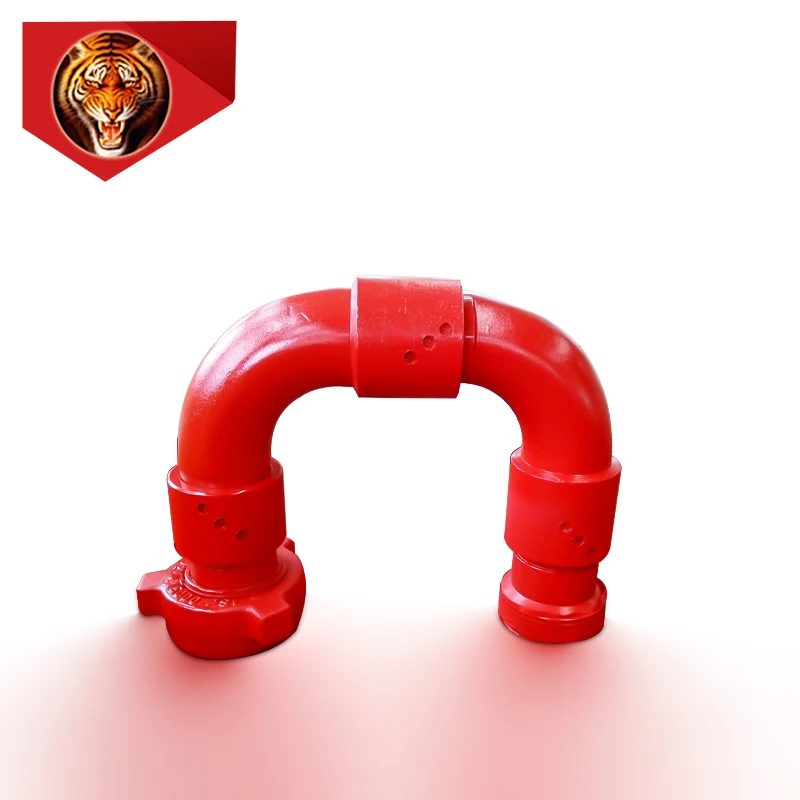

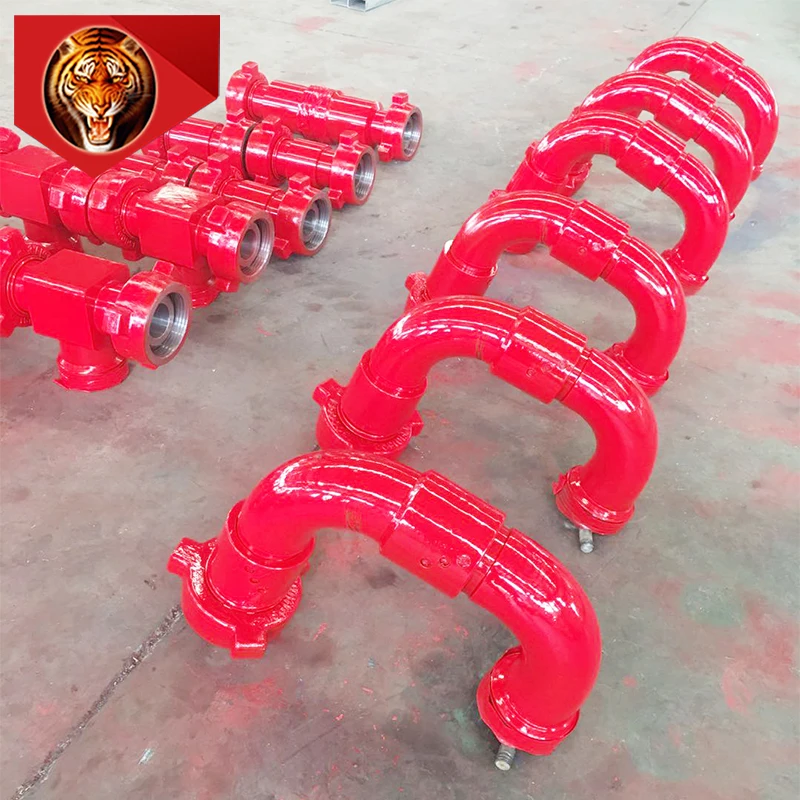

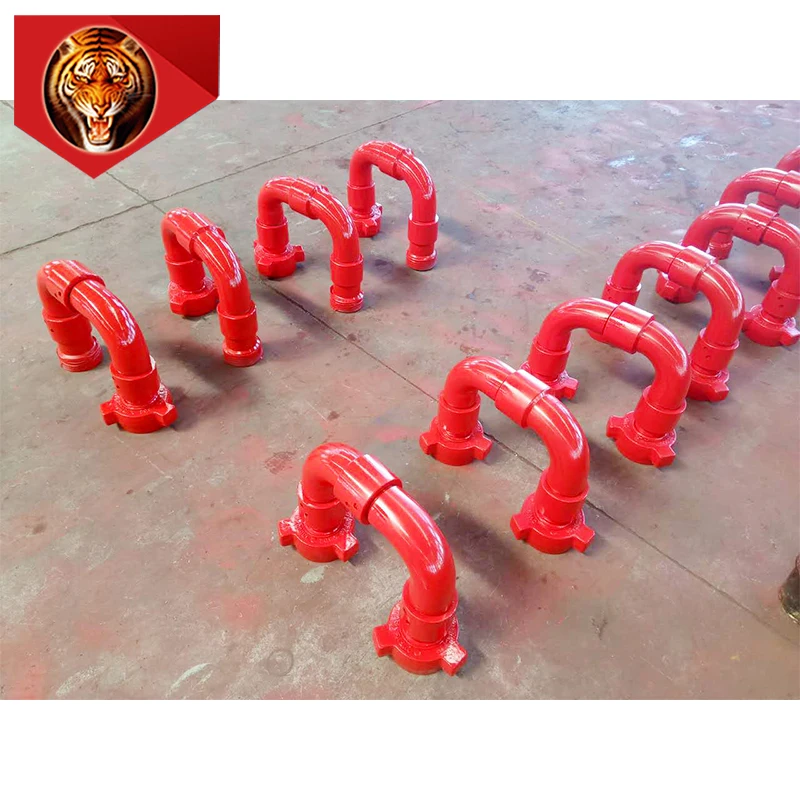

The movable elbow produced by our company is a metal pipeline joint equipped with ball bearings. Its specifications are 1′-4′, and the rated working pressure is 14-140MPa (2000psi-20000psi). It can provide normal temperature, low temperature and sulfur-containing gas conditions. Various types of movable elbows and repair kits used under.
There are two types of movable elbows, long radius and short radius. The long radius movable elbow has a smooth diameter, which can minimize the resistance when the liquid passes. The erosion and corrosion resistance of the fluid to the turning wall is better than the short radius. But sometimes due to the limitation of on-site installation space or when the pressure is low, a short radius is also used.
There are two types of movable elbows, long radius and short radius. The long radius movable elbow has a smooth diameter, which can minimize the resistance when the liquid passes. The erosion and corrosion resistance of the fluid to the turning wall is better than the short radius. But sometimes due to the limitation of on-site installation space or when the pressure is low, a short radius is also used.
Recommend Products
Company Profile
Packing & Delivery
FAQ
1.How long is the delivery time?
Some parts are available from stock. The delivery time is within 3 days after you pay on alibaba.com.
2.How is your workflow?
We can confirm the specification and specification first, and then sign the sales contract and the drawings. Once the drawings are confirmed, we will take photos for you to confirm that the goods are new and in shipment before shipment. Please pay the balance before the machine leaves the factory, and then we will ship the machine to Shanghai.
3.How to contact us?
Company Website: www.tigerrig.com.cn
WECHAT: drillingrig
Email: terry@tigerrig.com
