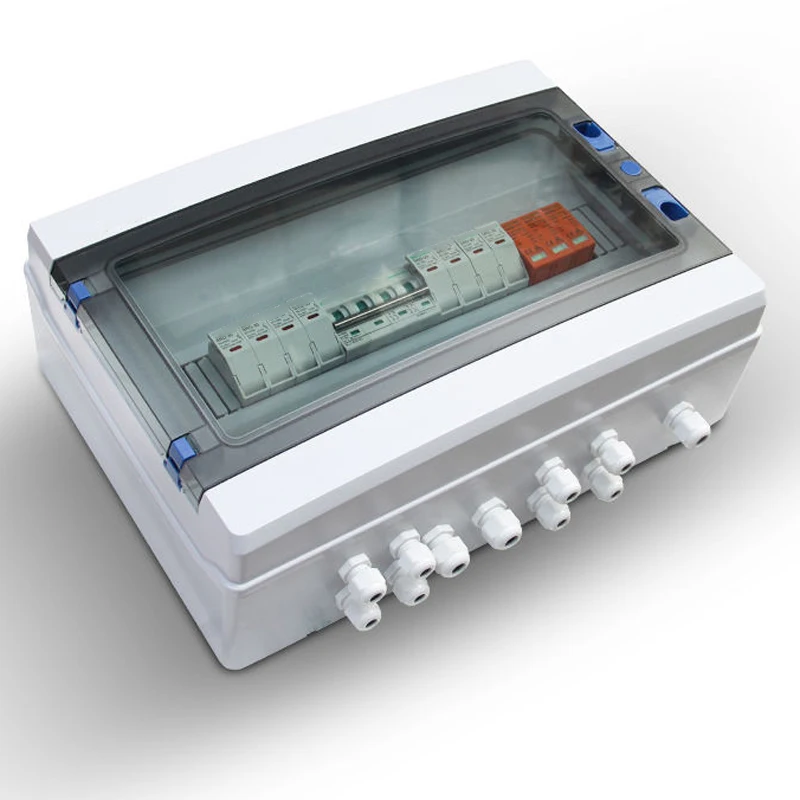

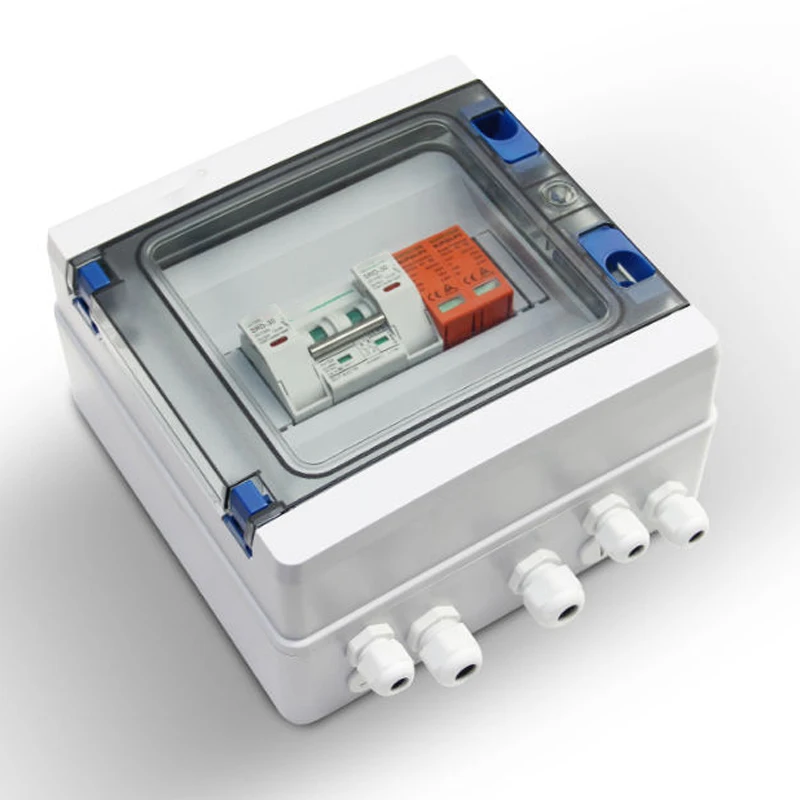

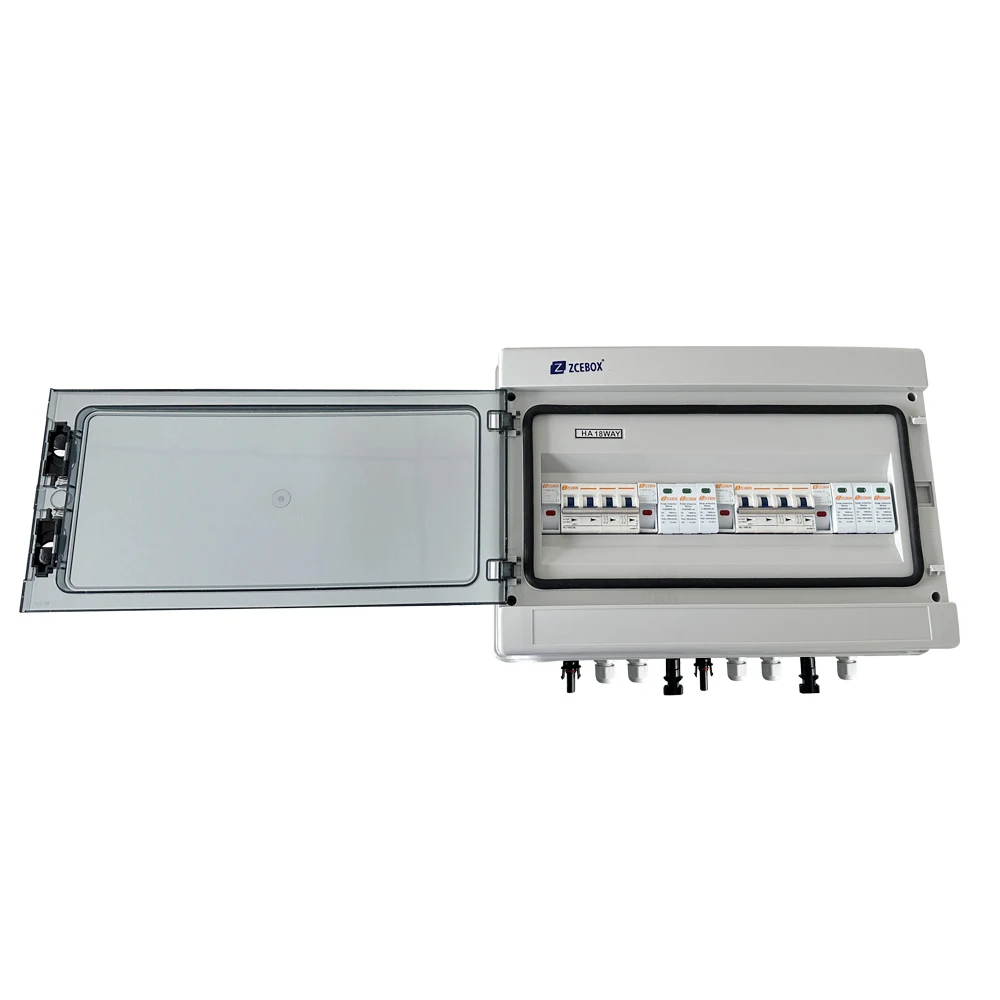

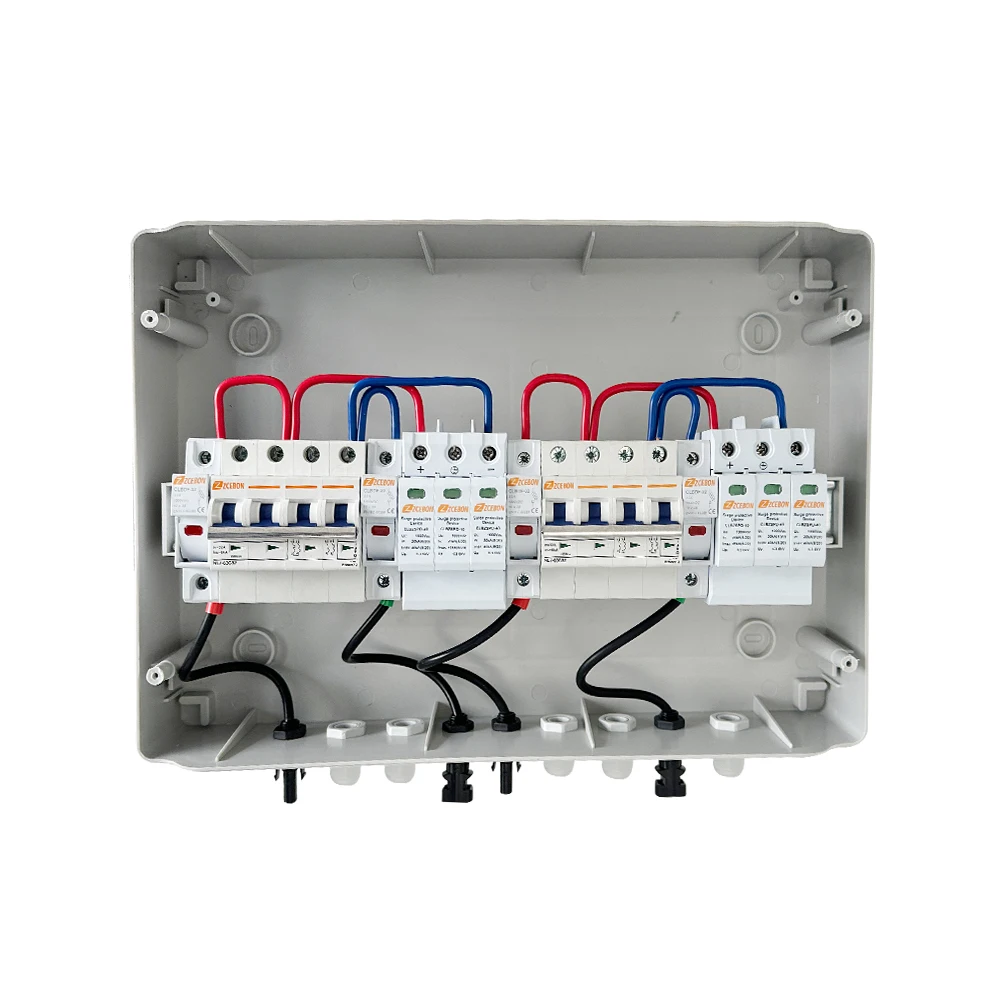

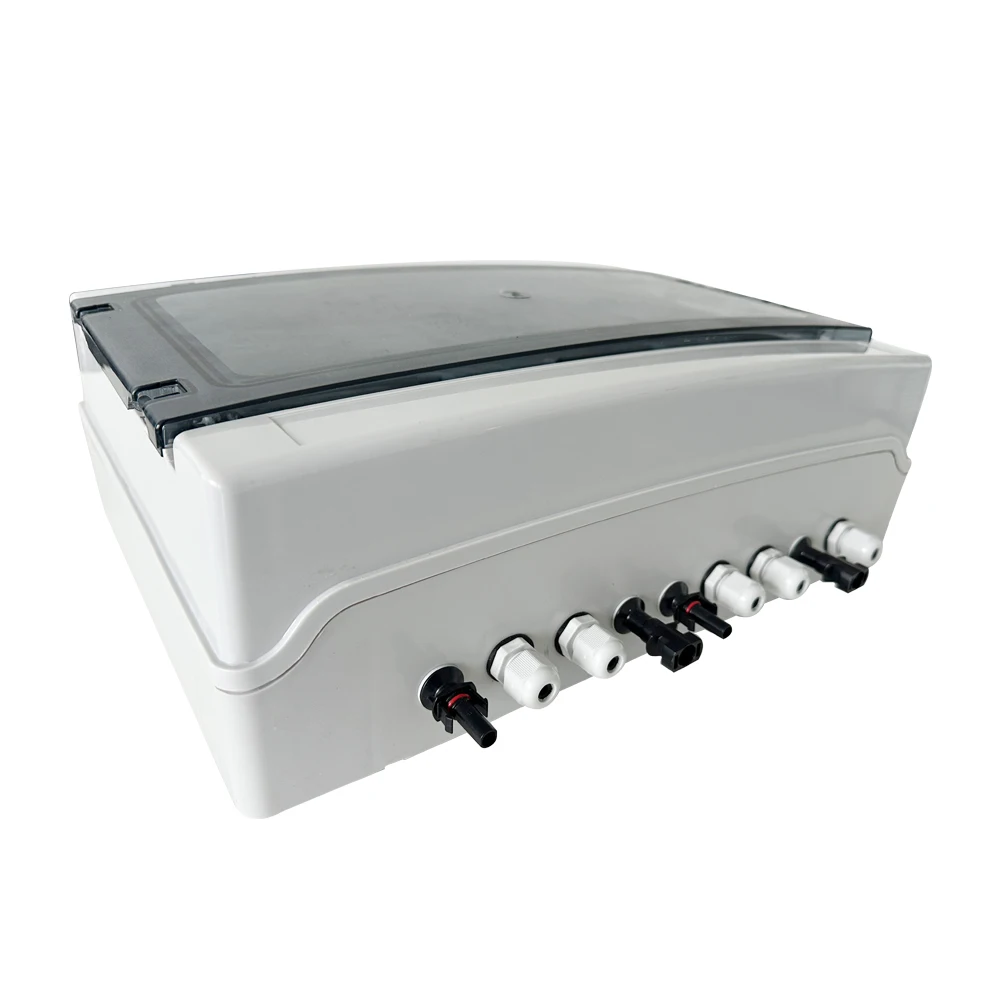

ZCEBOX DC Combiner Solar Panel String Box Efficient Solar Related Product
- Category: >>>
- Supplier: Tangshan Zhengcheng Electric Co. Ltd.
Share on (1601025628397):
Product Overview
Description
Products Description

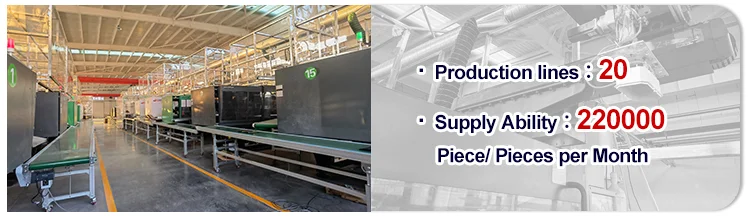

Our factory
1.Own factory,Strictly control quality. 2.Injection machine:20. 3.Production Capacity:10000 sets.
Our Advantages
ODM:moulds adjustment,accessiries customize.
OEM:logo making,packing customize.
Packaging & Shipping
1.Packaging supports customized services.
2.Close to port,lower forwarder cost.

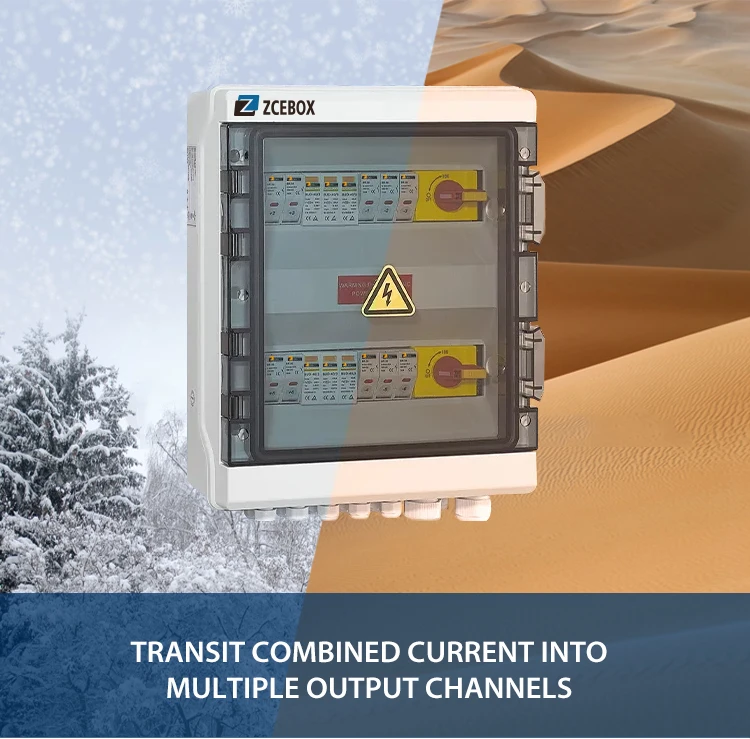

Introduction:
Have sufficient photovoltaic array output capacity.
It is convenient to connect with the load.
It is easy to install and debug.

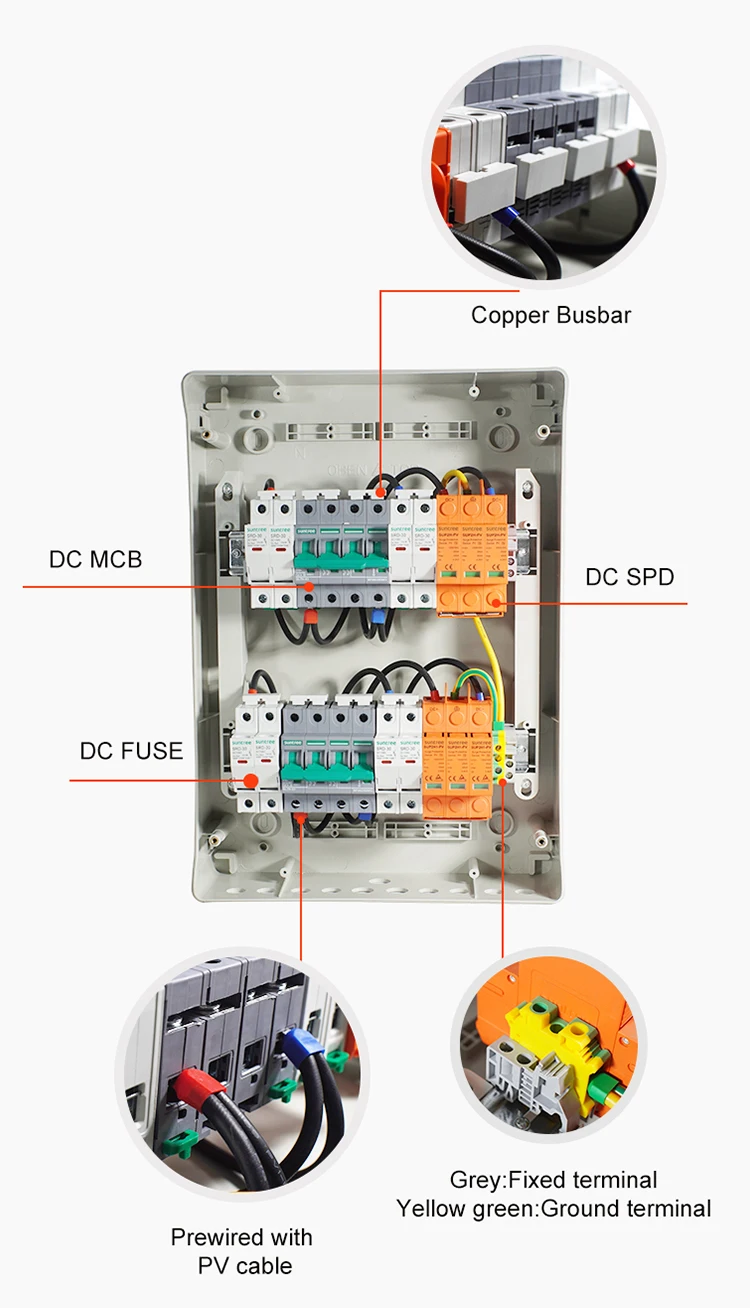

High reliability :With DC FUSE With DC Surge Protection Device With DC circuit breaker or DC load isolation switch.
Strong adaptability：IP65 design, waterproof, anti dust and anti ultraviolet.
Strict test for high and low temperature, used widely.
The simple installation, the simplified system wiring, the convenient wiring.
The box body is made of cold rolled steel and other metal materials.
Flexible configuration ：Used for single crystal silicon solar modules, polycrystalline silicon solar modules, thin film solar
modules. Current rating of the photovoltaic fuse, circuit breaker, load isolation switch is modified.
LWHLX | ||||||||
Protection grade | IP65 | |||||||
Output switch | DC isolation switch(standard)/DC circuit breaker(optional) | |||||||
SMC4 Waterproof Connectors | Standard | |||||||
PV dc fuse | Standard | |||||||
PV surge protector | Standard | |||||||
Monitoring module | Optional | |||||||
Preventing diode | Optional | |||||||
Box material | PVC | |||||||
Installation method | Wall mounting type | |||||||
Operating Temperature | -25℃~+55℃ | |||||||
Elevation of temperature | 2km | |||||||
Permissible relative humidity | 0-95%. no condensation | |||||||
Name | Maximum input current for each string | Maximum input strings | Maximum output switch current | Number of Output strings |
LWHLX-PV1/1 | 15A | 1 | 16A/20A | 1 |
LWHLX-PV2/1 | 15A | 2 | 20A/32A | 1 |
LWHLX-PV4/1 | 15A | 4 | 50A/63A | 1 |
LWHLX-PV4/2 | 15A | 4 | 20A/32A | 2 |
LWHLX-PV6/2 | 15A | 6 | 32A/40A | 2 |
LWHLX-PV6/3 | 15A | 6 | 20A/32A | 3 |
LWHLX-PV8/2 | 15A | 8 | 20A/32A | 2 |
LWHLX-PV6/1 | 15A | 6 | 20A/32A | 1 |
LWHLX-PV8/1 | 15A | 8 | 125A | 1 |
LWHLX-PV12/1 | 15A | 12 | 160A | 1 |
LWHLX-PV16/1 | 15A | 16 | 200A | 1 |

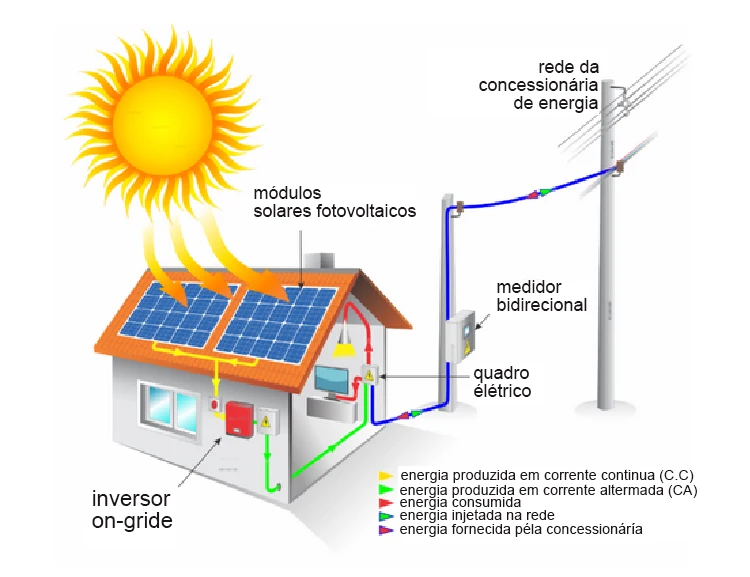

Application
Why Choose Us
About Us
ZCEBOX is an experienced and reliable manufacturer of low-voltage electrics,and produce distribution box, junction box,MCB,consumer units with OEM and ODM services professionally.We have a professional technical team to provide customers with customized production and services.Our production comply with ISO9001 standard also approved by CE, ROHS, IK and HF test.
Certifications
Packaging&Shipping
Our Exhibition
FAQ
Q: Is sample available and free?
A: Free samples are available for small value.
Q: What certificates do you have?
A:We have CE , RoHS , HF, ISO9001 ......
Q: What's your warranty ?
A: 2 years.
Q: What's the delivery time ?
A: Generally 15-45days, depends on the order quantity and if need OEM service.
Q: How about the transport ?
A:Generally delivery by courier or by air for small order, and by sea for full containers.
A: Free samples are available for small value.
Q: What certificates do you have?
A:We have CE , RoHS , HF, ISO9001 ......
Q: What's your warranty ?
A: 2 years.
Q: What's the delivery time ?
A: Generally 15-45days, depends on the order quantity and if need OEM service.
Q: How about the transport ?
A:Generally delivery by courier or by air for small order, and by sea for full containers.
