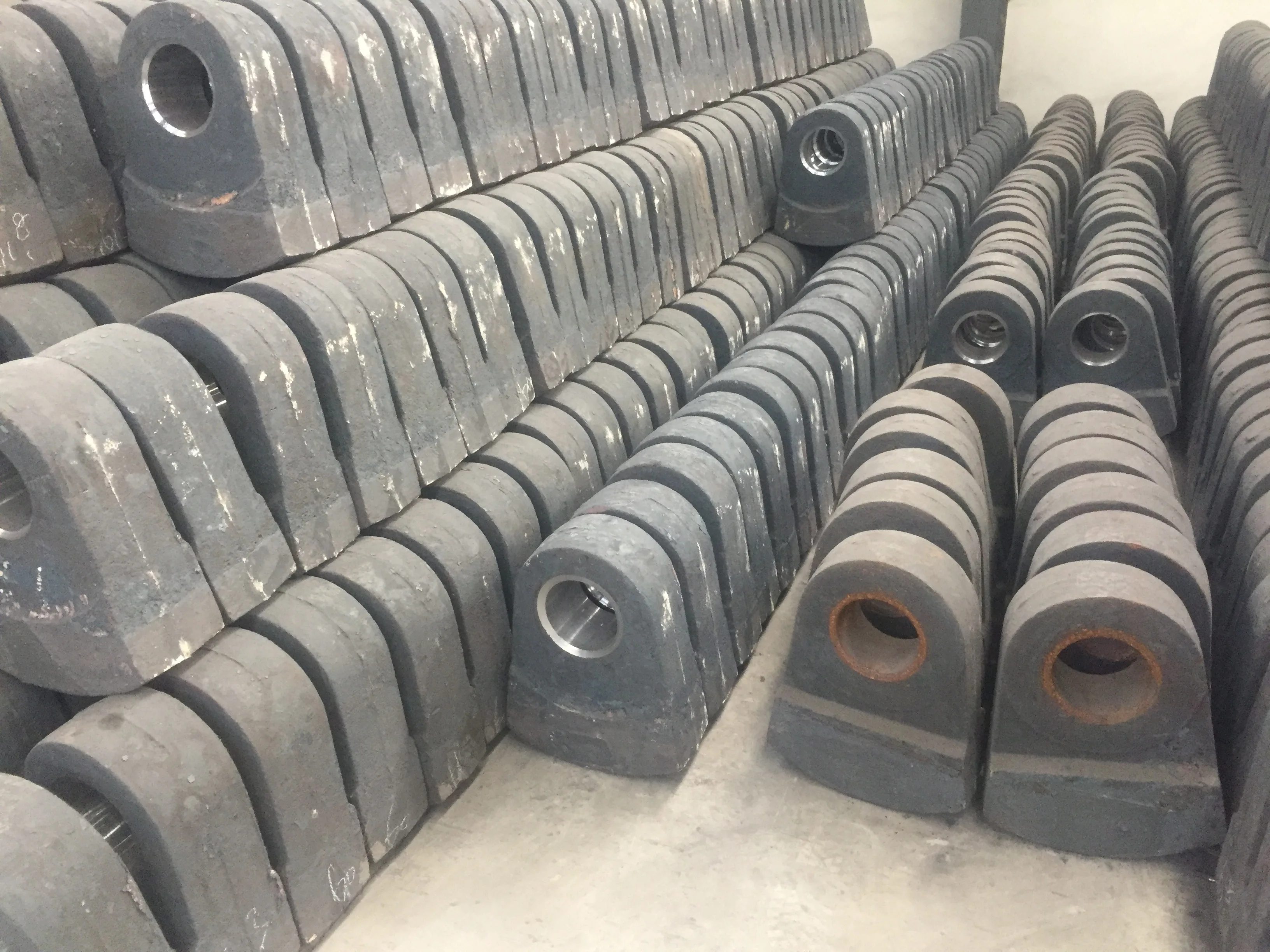

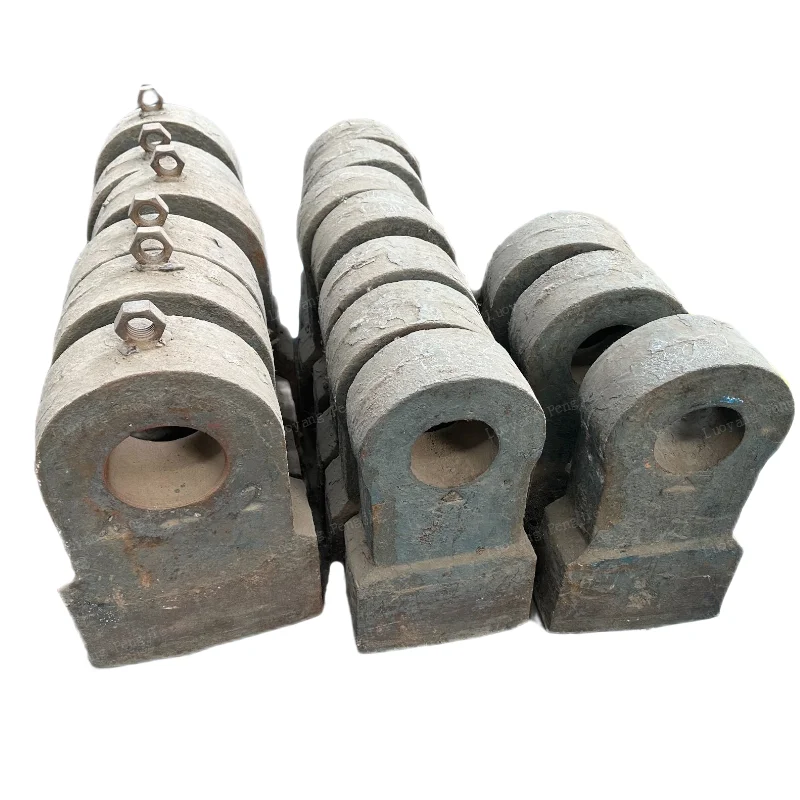

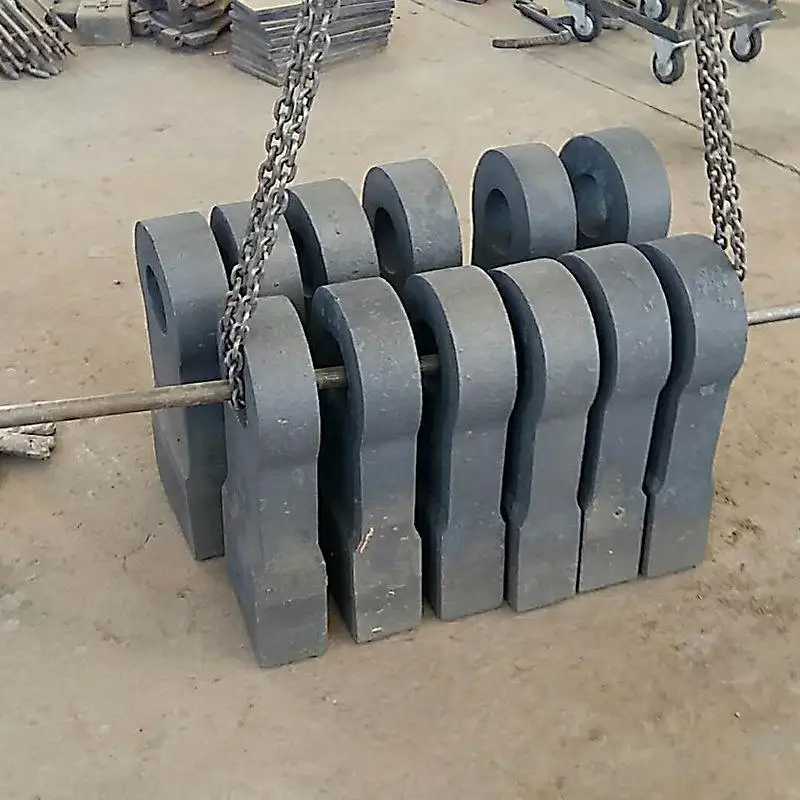

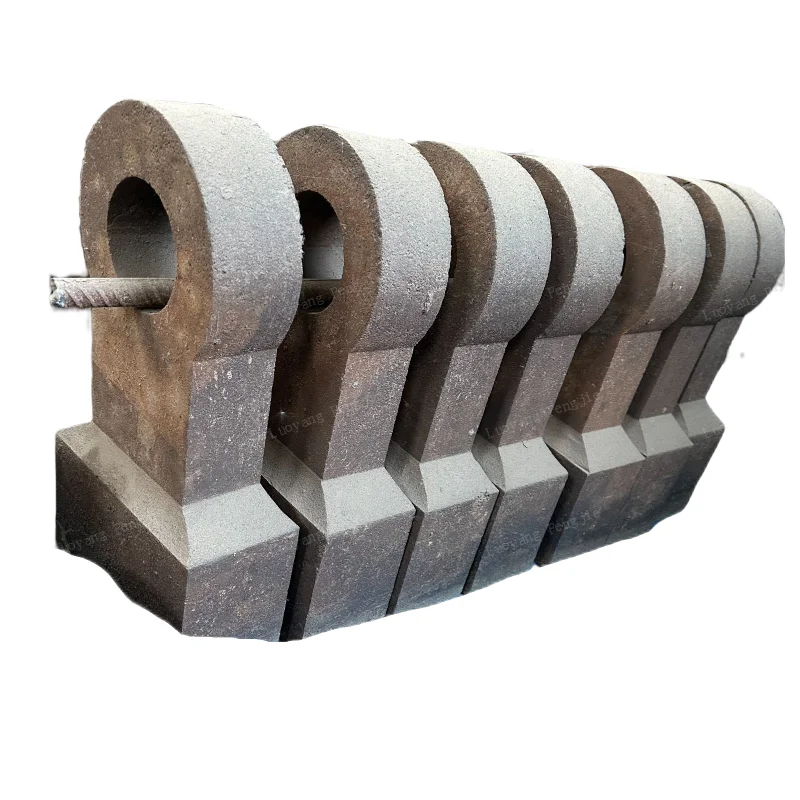

The self developed high chromium bimetal composite hammer has a higher wear resistance than the existing hammer
- Category: >>>
- Supplier: Luoyang Pengjie Wear Resistant Materials Co. Ltd.
Share on (1601028445782):
Product Overview
Description
We have more than 20 years of production experience, specializing in the production of jaw plates, hammer heads, armored cones,blow bars, liner bowls, liners and other crusher spare parts.
We accept customization and can easily help customers solve spare parts supply problems.Why Choose Us
Various materials can be selected
Mn13Cr2, Mn18Cr2, Mn22Cr2, high chromium, etc.
Quality certification：ISO9001
We have established and passed the global quality system certification
ODM
We can customize according to buyer's requirements
Main production technology
We support sand casting and lost foam casting.
Solid Quality Control
Standard process, computer statistical analysis and final inspection will be 100% qualified
Fast delivery
We cooperate with a professional logistics team to facilitate fast delivery
Timely feedback on the production process
1. Give you timely feedback on the production progress of the product: it can let you know which stage the product has reached, understand the details of the production process, and understand our work efficiency and professional capabilities.
2. Actively respond to your questions: If you have any questions or concerns, please contact us and we will provide solutions.
3. Before the spare parts leave the factory, the quality inspection department will conduct inspections on hardness testing, metallographic structure, mechanical performance testing, surface analysis and other items to ensure the high quality of each product.
2. Actively respond to your questions: If you have any questions or concerns, please contact us and we will provide solutions.
3. Before the spare parts leave the factory, the quality inspection department will conduct inspections on hardness testing, metallographic structure, mechanical performance testing, surface analysis and other items to ensure the high quality of each product.
Products Description

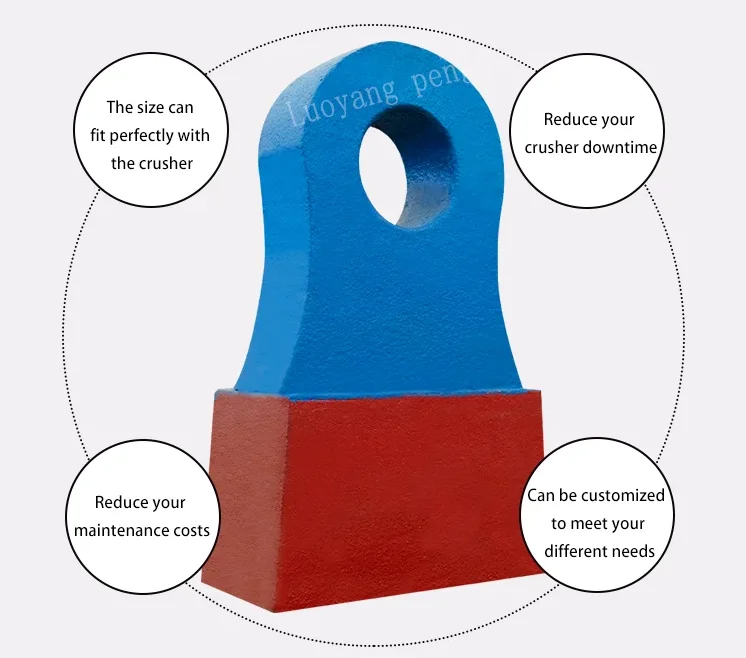

Customized Hammer Head Parameters
To customize the hammer head of a crusher, you only need to measure several dimensions of the hammer head:
1. The size of the hole.
2. Height from center to bottom.
3. Hammer head working surface width.
4. Hammer handle thickness.
5. Thickness of hammer head working surface.
1. The size of the hole.
2. Height from center to bottom.
3. Hammer head working surface width.
4. Hammer handle thickness.
5. Thickness of hammer head working surface.
Classification of Hammer Heads
01
High Manganese Steel Hammer Head
The characteristics of high manganese steel are: the greater the external compressive stress or impact load, it is conducive to the formation of a hardened layer on the surface, so the wear resistance of the casting is higher; as the surface hardened layer gradually wears away, the effect of external compressive stress or impact load Under this condition, new work-hardened layers will continue to form. Therefore, it is suitable for making wear-resistant spare parts that can withstand high impact load material wear for a long time. Widely used in grinding equipment such as metallurgy, mining, building materials, railways, electric power, and coal.
02
Bimetal Composite Hammer Head
Bimetallic composite hammer head The hammerhead produced using bimetal thermal composite material has a longer service life than high manganese based materials. It is especially suitable for large crusher hammer heads, plate hammers, and large ball mill linings. It is especially suitable for environments with harsh industrial and mining conditions. Used for limestone, cement clinker, iron ore, sandstone, coal gangue, basalt, etc.
03
High Chromium Cast Iron Hammer Head
After appropriate alloying and related process measures, the hardness of the entire section can reach more than 58hrc, ensuring hardness and high wear resistance during the wear process.
04
High chromium alloy hammer head
High chrome alloy hammer head with high hardness is a high-quality wear-resistant material, which has been widely used in hammer crusher. The hardness of high chrome cast iron after heat treatment can be up to 58hrc or more, the matrix is high hardness martensite, and the organization contains a large number of high hardness carbides M7C3. it is considered as a good wear-resistant material for crusher hammerhead.
Chemical Composition Table of High Manganese Steel Material | ||||||||||||
Material | C | Cr | Mn | P | S | Si | ||||||
Mn13Cr2 | 1.05-1.4 | 1.8-2.5 | 12-14 | ≤0.06 | ≤0.04 | 0.3-0.9 | ||||||
Mn18Cr2 | 1.05-1.4 | 1.8-2.5 | 17-19 | ≤0.06 | ≤0.04 | 0.3-0.9 | ||||||
Mn22Cr2 | 1.05-1.4 | 1.8-2.5 | 21-23 | ≤0.06 | ≤0.04 | 0.3-0.9 | ||||||
Material | Cr26 Cr26Mo1 | ||||||
Hardness | HRC: 60-62 | ||||||
Trade Terms | FCA,FOB,EXW,CIF | |
Port | Tian jin,Shen zhen | |
Shipment | Tian jin,Shen zhen | |
Payment Terms | TT,Paypal,West Union | |
Payment Condition | 30% before production, 70% before delivery | |
Support for designated port and packaging | ||
MAIN PRODUCT
Company Profile
Luoyang Pengjie Wear-resistant Material Co., Ltd. is a comprehensive wear-resistant material application compound company. There are 130 employees, 35 of whom are technicians; 4 laboratories, 10% of research and development funds, 25 sets of mechanical processing equipment, 5 tons to 51 tons of intermediate frequency furnace equipment, the company has passed ISO quality system certification, a variety of products We have our own invention patents and utility patents.
The company mainly produces high-chromium cast iron series, stainless steel series, ball milled cast iron series, impregnated cast iron series, heat-resistant steel series, high manganese steel series, alloy steel series and other high-alloy castings.
Products are exported to more than 30 countries around the world, including the United States, Russia, Honduras, Chile, Australia, Nigeria, Thailand, and South Africa. We are committed to providing one-stop solutions with satisfactory products and best services to global customers.
Our mission is to use our expertise to provide you with the most suitable products to improve lifecycle performance and save costs. We look forward to becoming your best partner, advancing hand in hand with you and growing together.
The company mainly produces high-chromium cast iron series, stainless steel series, ball milled cast iron series, impregnated cast iron series, heat-resistant steel series, high manganese steel series, alloy steel series and other high-alloy castings.
Products are exported to more than 30 countries around the world, including the United States, Russia, Honduras, Chile, Australia, Nigeria, Thailand, and South Africa. We are committed to providing one-stop solutions with satisfactory products and best services to global customers.
Our mission is to use our expertise to provide you with the most suitable products to improve lifecycle performance and save costs. We look forward to becoming your best partner, advancing hand in hand with you and growing together.
Manufacturing process
01
Design drawings and Assembly molds
02
Brush Paint
03
Boxing and Pouring
04
Heat Treatment
05
Sanding and Finishing
06
Quality Inspection
Certifications
Transportation and packaging
FAQ
Q1. What’s your company’s casting methods?
A: We support sand casting and lost foam casting.
Q2. Can you make products without drawing?
A: No, we can only make products strictly according to customers’ technical drawing. Because every spare parts must be install to the equipment even little error will make big problem.
Q3. How about the lifetime of your wear spare parts?
A: Different working condition make different results based on same products. You buy our products and try them, you will know our quality.
Q4. What’s the delivery time?
A: Usually abroad brands’ delivery time is 20 days, but if we need to make wooden mould, then 15 days more. Domestic brand’s delivery time will be 20 days.
Q5. What’s the payment term does your company accept?
A: T/T, L/C, Western Union etc.
Q6. Are you a production factory or a trading company?
A: We are a production factory with more than 30 years of production experience. We have our own R&D team, perfect service team, and advanced testing instruments. Our products have been exported to more than ten countries.
A: We support sand casting and lost foam casting.
Q2. Can you make products without drawing?
A: No, we can only make products strictly according to customers’ technical drawing. Because every spare parts must be install to the equipment even little error will make big problem.
Q3. How about the lifetime of your wear spare parts?
A: Different working condition make different results based on same products. You buy our products and try them, you will know our quality.
Q4. What’s the delivery time?
A: Usually abroad brands’ delivery time is 20 days, but if we need to make wooden mould, then 15 days more. Domestic brand’s delivery time will be 20 days.
Q5. What’s the payment term does your company accept?
A: T/T, L/C, Western Union etc.
Q6. Are you a production factory or a trading company?
A: We are a production factory with more than 30 years of production experience. We have our own R&D team, perfect service team, and advanced testing instruments. Our products have been exported to more than ten countries.
Q7: How can we trust your company?
A:We support Alibaba trade insurance, 100% product quality guarantee, 100%。On-Time Shipment Protection, 100% Payment Protection Your Covered Amount.
A:We support Alibaba trade insurance, 100% product quality guarantee, 100%。On-Time Shipment Protection, 100% Payment Protection Your Covered Amount.
