Polycrystalline Diamond Compact PDC Cutter Inserts For Oil Well Gas Drilling
- Category: >>>
- Supplier: Unirun Diamond Co. Ltd.
Share on (1601028936025):
Product Overview
Description
Company Profile
UniRun Diamond Co.,Ltd located in the center of abrasives & grinding city-Zhengzhou,is a high tech enterprise that specializes in the research,manufacture and marketing of Conventional Grinding wheels,Diamond and CBN grinding wheels,PCD and PCBN tools,Synthetic Diamond and CBN powders etc. abrasives and tools.
Our products are widely used in cutting,grinding and polishing materials such as carbide,ceramic,cermet,glass,magnetic materials,PCD,CBN,high-speed steel,stainless steel,cast iron etc.different applications.

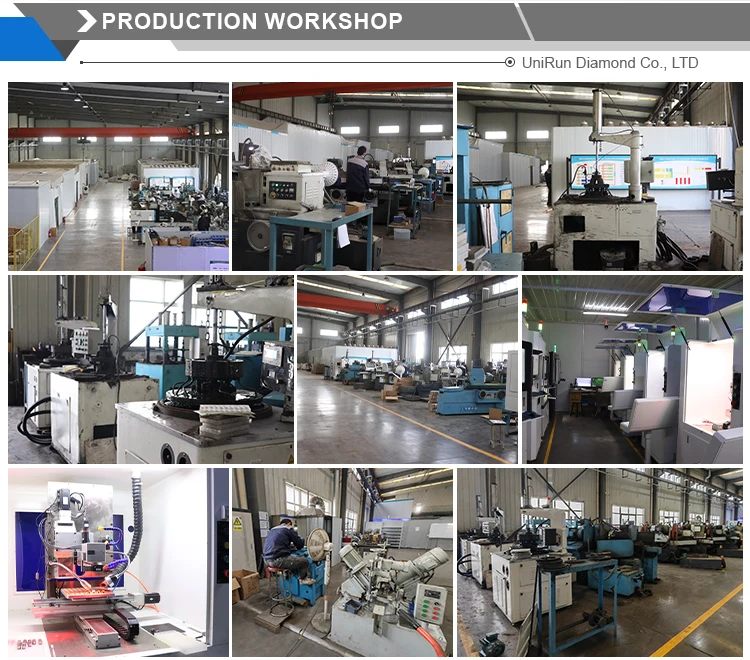

Unirun has cubic press,high-temperature sintering furnaces, welding furnaces, CNC machining centers, Scanning Electron Microscopy (SEM) and more than 90 sets advanced R&D,Production and Test equipments, which ensure the reliability of the timely delivery and quality.
Unirun insists that the essence of the enterprise is the product, and the core of the product is stability.Starting from the actual needs of customers, the company provides customized product services for customers.
The annual investment in product research occupies 10% of the annual income.With its own expertise, Unirun continues to create value for customers. The products are not only popular in China, but also exported to Russia, the United States, Japan, South Korea, Turkey etc.more than 40 countries.
Our products are widely used in cutting,grinding and polishing materials such as carbide,ceramic,cermet,glass,magnetic materials,PCD,CBN,high-speed steel,stainless steel,cast iron etc.different applications.
Unirun has cubic press,high-temperature sintering furnaces, welding furnaces, CNC machining centers, Scanning Electron Microscopy (SEM) and more than 90 sets advanced R&D,Production and Test equipments, which ensure the reliability of the timely delivery and quality.
Unirun insists that the essence of the enterprise is the product, and the core of the product is stability.Starting from the actual needs of customers, the company provides customized product services for customers.
The annual investment in product research occupies 10% of the annual income.With its own expertise, Unirun continues to create value for customers. The products are not only popular in China, but also exported to Russia, the United States, Japan, South Korea, Turkey etc.more than 40 countries.
Products Description
Product Introduction

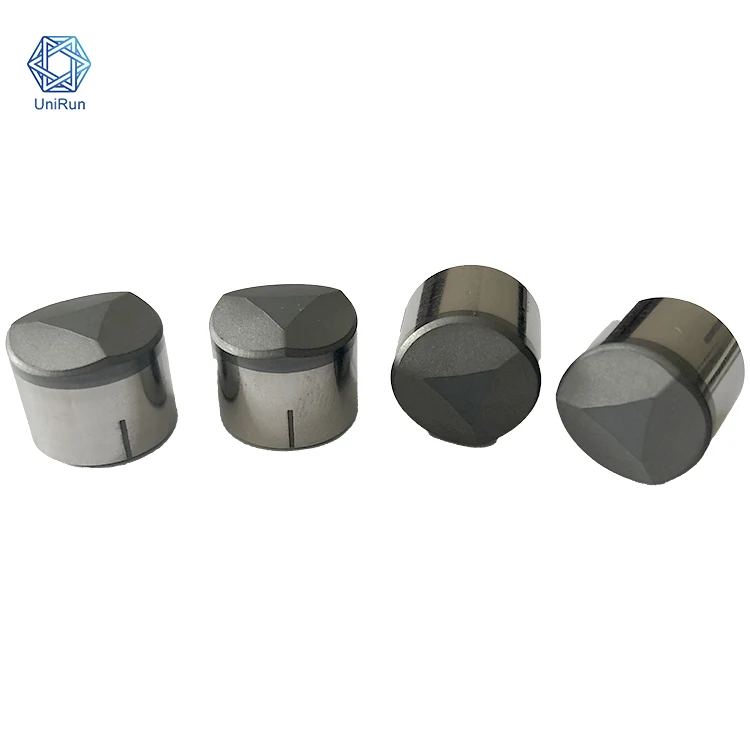

Polycrystalline diamond composite cutters (“PDC cutters” for short) are kind of composite material consists of polycrystalline diamond power and tungsten carbide, sintered by ultra high pressure and high temperature. The composite combines the physical advantages of both diamond and tungsten carbide - high toughness, high abrasion resistance and high impact resistance.Unirun flat PDC cutters for oil gas drilling are made by special interface design, can well optimized and promote the cutters’ performance, increase the drill bit’s mechanical speed, extend the drill bit’s working life, help customers to save the drilling cost and improve the efficiency.
Application
Oil and gas drilling bits,downhole tools such as hole openers,reamer,etc.
Oil and gas drilling bits,downhole tools such as hole openers,reamer,etc.
Parameters
Size | Diameter(mm) | Height(mm) |
1308 | 13.44 | 8.0 |
1313 | 13.44 | 13.2 |
1608 | 15.88 | 8.0 |
1613 | 15.88 | 13.2 |
1616 | 15.88 | 16.0 |
1913 | 19.05 | 13.2 |
1916 | 19.05 | 16.3 |
1919 | 19.05 | 19.0 |
Our Advantages
Details Images
Recommend Products
Why Choose Us
FAQ
1.What is your MOQ?
Our MOQ usually is 20pcs, trial order is accepted.
2.Can we use your brand?
Sure, we provide OEM service ,just send us your packing design and company logo.
3.Can you supply sample for test and your samples are free?
Yes, usually we will make sample specially according to clients’ request , and the sample cost and freight charge will be paid by clients, the sample charge will be deducted from the following order.
4.Do you have different quality grade to meet our customer and market?
Yes ,different customer market ,different quality grade .
5.what’s your competitive advantage?
1) our company is a manufacturer, so the price must be the best for you.
2) We have full-automatic machine to produce product , it can make our quality steady and safety.
3) we have a professional technological team, mainly are from the famous research institute.
4) More than 15 years of experience in design research and development
5) 24 Hours Technical consultation and one-year warranty for all products
Our MOQ usually is 20pcs, trial order is accepted.
2.Can we use your brand?
Sure, we provide OEM service ,just send us your packing design and company logo.
3.Can you supply sample for test and your samples are free?
Yes, usually we will make sample specially according to clients’ request , and the sample cost and freight charge will be paid by clients, the sample charge will be deducted from the following order.
4.Do you have different quality grade to meet our customer and market?
Yes ,different customer market ,different quality grade .
5.what’s your competitive advantage?
1) our company is a manufacturer, so the price must be the best for you.
2) We have full-automatic machine to produce product , it can make our quality steady and safety.
3) we have a professional technological team, mainly are from the famous research institute.
4) More than 15 years of experience in design research and development
5) 24 Hours Technical consultation and one-year warranty for all products
