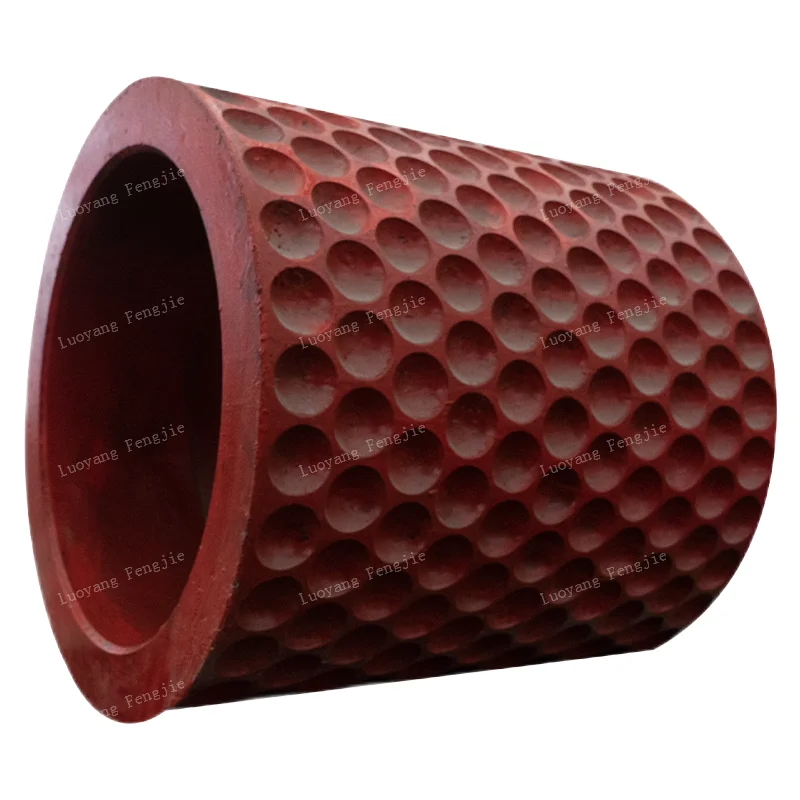

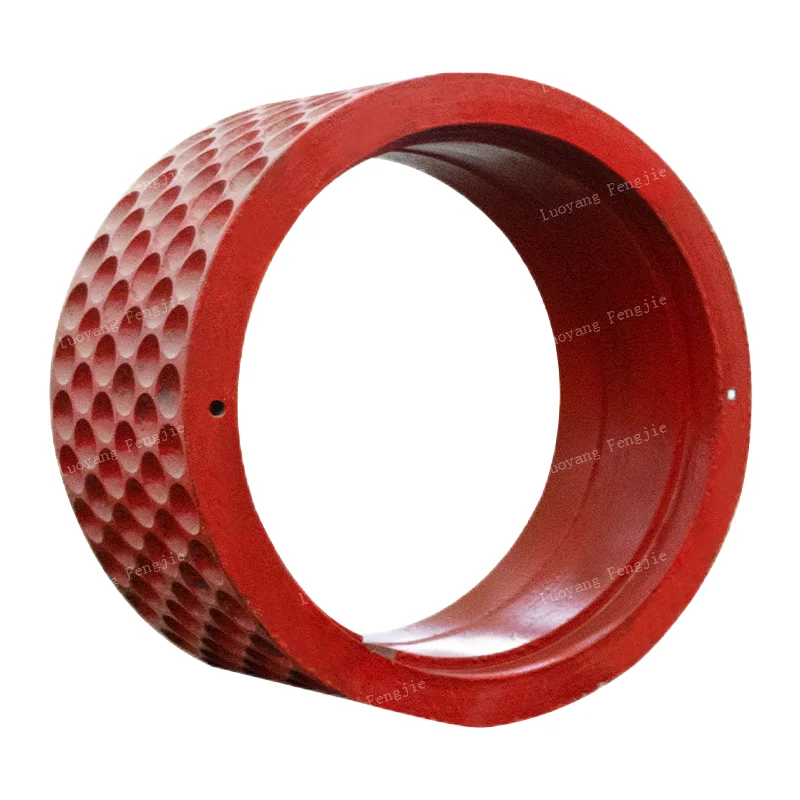

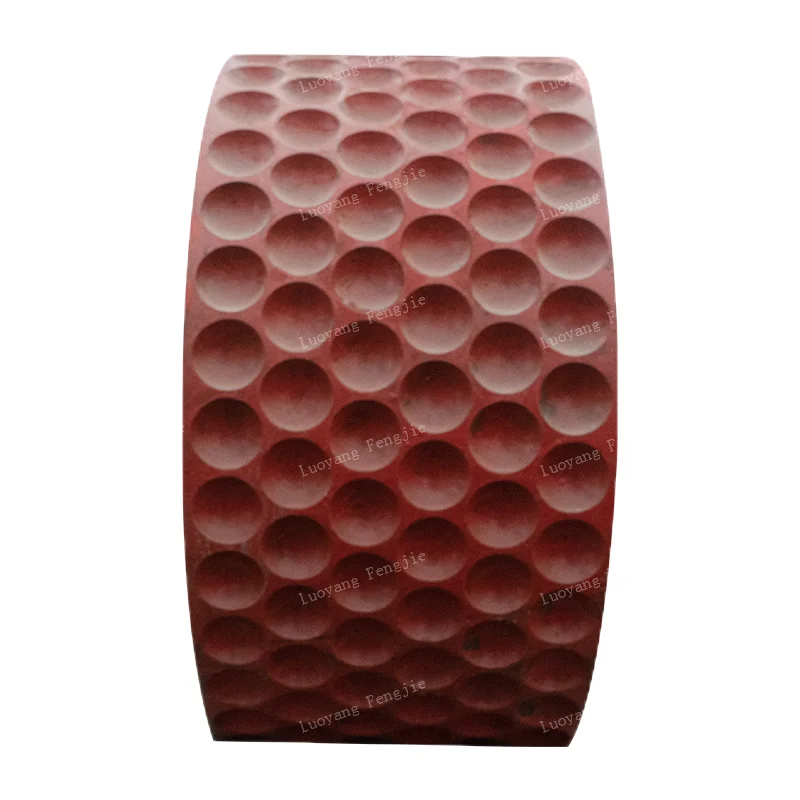

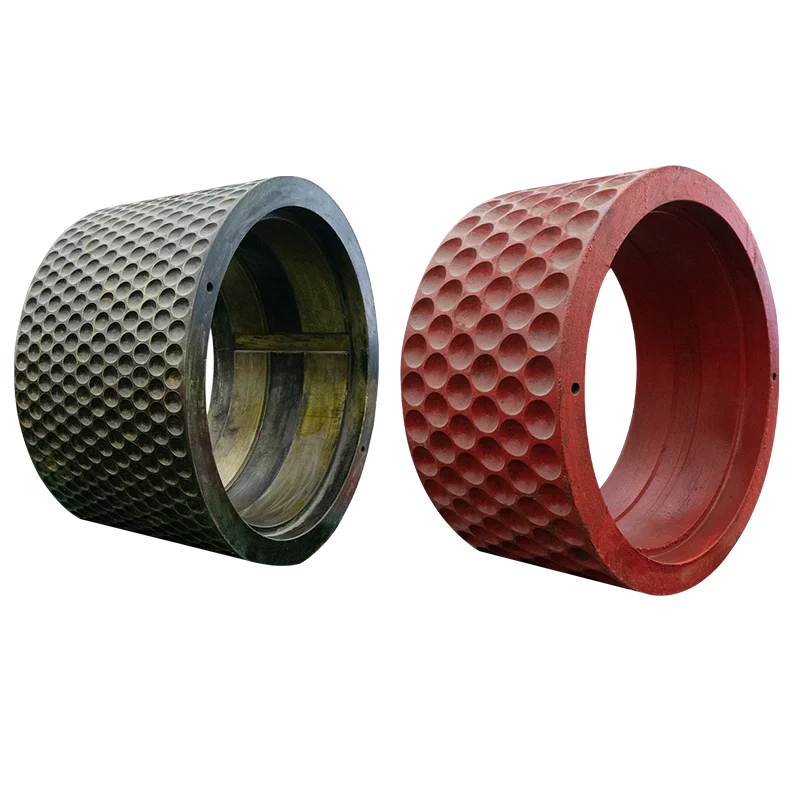

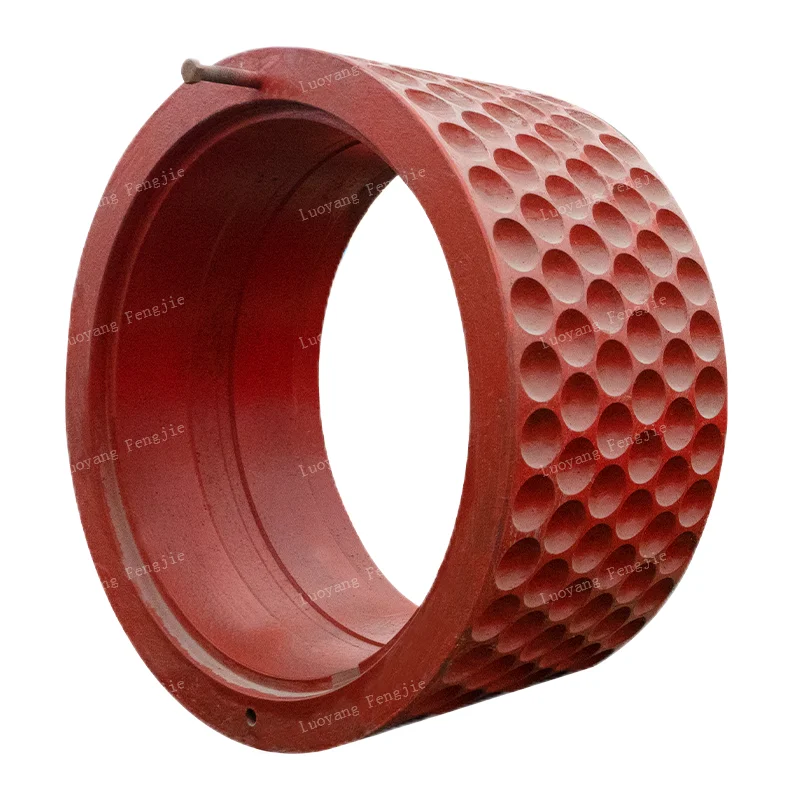

Corrosion resistant and wear resistant ball pressing machine roller series spare parts charcoal making machine
- Category: >>>
- Supplier: Luoyang Pengjie Wear Resistant Materials Co. Ltd.
Share on (1601029413232):
Product Overview
Description
Choose processing plant
Did you really choose the right one?
Cutting corners and shoddy goods
Dilapidated machinery and Equipment small workshop
Second-hand supply at outrageous prices
Delivery date cannot be guaranteed
Products Description
Balls press machine
Corrosion resistance
Wear resistance The more you use it, the smoother it gets.
The roller skin of the ball press is generally 65Mn castings, and can also be made of 9Cr2Mo or alloy. The specific situation should be selected according to the actual situation of the material.
Mainstream briquetting machines are generally cast with 9Cr2Mo, which have the strongest wear resistance and will greatly extend the service life of the briquetting machine equipment.
Mainstream briquetting machines are generally cast with 9Cr2Mo, which have the strongest wear resistance and will greatly extend the service life of the briquetting machine equipment.
Material | 9Cr2Mo 7Cr17 | ||||||
Hardness | HRC: 58-60 | ||||||
Pengjie ball press
A variety of models for you to choose from
The briquetting machine has a wide range of applications and can pellet, pellet or pellet the following materials. Such as aluminum chips, activated carbon, alumina, bauxite, caustic soda, charcoal, clay, coke chips, coal, cryolite, chemical fertilizers, plastics, limestone, pigments, urea, potash...etc.
Our Advantages
Four reasons to choose us
The main reason why you choose us is---Quality
Source manufacturer, advanced equipment, high-quality raw materials, preferential prices
Professional processing and customized materials and sizes according to customer requirements
Professional testing equipment and strict inspection standards ensure product quality
Technical support engineers answer various technical questions for you
Product Paramenters
Good products are a company’s best business card
Model: 300 | |
Shape of briquettes | 20*10----60*30 Oblate type |
Pressure | 800KG/CM |
Rotating speed | 16r/min |
Power | 4KW-4 level |
Reducer | Type 250 |
Output | 6 tons/hour |
Weight | 600KG |
Overall dimensions | (length, width and height) 2200*1100*1150MM |
Model: 350 | |
Shape of briquettes | 25*12----70*50 Oblate type |
Pressure | 1000KG/CM |
Rotating speed | 18r/min |
Power | 11KW-4 level |
Reducer | Type 400 |
Output | 6-8 tons/hour |
Weight | 1300KG |
Overall dimensions | (length, width and height) 2300*1100*1200MM |
Model: 500 high pressure type | |
Shape of briquettes | 25*12----70*50 Oblate type |
Pressure | 2800KG/CM |
Rotating speed | 20r/min |
Power | 22 level |
Reducer | Type ZQ500 |
Output | 10-12 tons/hour |
Weight | 2200KG |
Overall dimensions | (length, width and height) 2800*1500*1750MM |
Model: 650 | |
Shape of briquettes | 25*12----70*50 Oblate type |
Pressure | 3500KG/CM |
Rotating speed | 22r/min |
Power | 37 level |
Reducer | Type ZQ650 |
Output | 12-15 tons/hour |
Weight | 4500KG |
Overall dimensions | (length, width and height) 3000*2000*2000MM |
Why Choose Us
Company Profile
Luoyang Pengjie Wear-resistant Material Co., Ltd., is a comprehensive composite company in the application of wear-resistant materials, involving antiwear alloys, braking materials, composite materials, surface engineering and many other fields.With 130 employees, 35 of which are technicians; 4 laboratories, 10% research and development funds?, 25 sets of mechanical processing equipment, 51-ton to 5-ton medium frequency furnace equipment, the company has passed the ISO quality system certification, with a variety of products have their own invention patents and utility patents.
The company’s main production and business scope includes high chromium cast iron series, stainless steel series, ball grinding cast iron series, immersion cast iron series, heat resistant steel series, high manganese steel series alloy steel series and many other high alloy castings.
Welcome new and regular customers to contact us at any time, visit our factory in Luoyang city, Henan, China, and establish a long-term friendly and cooperative relationship with us.
The company’s main production and business scope includes high chromium cast iron series, stainless steel series, ball grinding cast iron series, immersion cast iron series, heat resistant steel series, high manganese steel series alloy steel series and many other high alloy castings.
Welcome new and regular customers to contact us at any time, visit our factory in Luoyang city, Henan, China, and establish a long-term friendly and cooperative relationship with us.
Manufacturing process
01
Design drawings and Assembly molds
02
Brush Paint
03
Boxing and Pouring
04
Heat Treatment
05
Sanding and Finishing
06
Quality Inspection
Certifications
We continue to develop new technologies and have 9 utility model patent certificates and ISO certifications to reduce production costs and improve product quality.
An air-cooled quenching device for castings
A kind of sand drying platform
A kind of lost foam drying room
A wear-resistant alloy casting grinding device
A paint stirring device
A kind of sand box vibration table for wear-resistant casting casting
A kind of wear-resistant paint stirring mechanism for the production of wear-resistant materials
A sand box for lost foam casting
A drying device for wear-resistant material processing_
Product packaging
FAQ
Q1. What’s your company’s casting methods?
A: We support sand casting and lost foam casting.
Q2. Can you make products without drawing?
A: No, we can only make products strictly according to customers’ technical drawing. Because every spare parts must be install to the equipment even little error will make big problem.
Q3. How about the lifetime of your wear spare parts?
A: Different working condition make different results based on same products. You buy our products and try them, you will know our quality.
Q4. What’s the delivery time?
A: Usually abroad brands’ delivery time is 20 days, but if we need to make wooden mould, then 15 days more. Domestic brand’s delivery time will be 20 days.
Q5. What’s the payment term does your company accept?
A: T/T, L/C, Western Union etc.
Q6. Are you a production factory or a trading company?
A: We are a production factory with more than 30 years of production experience. We have our own R&D team, perfect service team, and advanced testing instruments. Our products have been exported to more than ten countries.
A: We support sand casting and lost foam casting.
Q2. Can you make products without drawing?
A: No, we can only make products strictly according to customers’ technical drawing. Because every spare parts must be install to the equipment even little error will make big problem.
Q3. How about the lifetime of your wear spare parts?
A: Different working condition make different results based on same products. You buy our products and try them, you will know our quality.
Q4. What’s the delivery time?
A: Usually abroad brands’ delivery time is 20 days, but if we need to make wooden mould, then 15 days more. Domestic brand’s delivery time will be 20 days.
Q5. What’s the payment term does your company accept?
A: T/T, L/C, Western Union etc.
Q6. Are you a production factory or a trading company?
A: We are a production factory with more than 30 years of production experience. We have our own R&D team, perfect service team, and advanced testing instruments. Our products have been exported to more than ten countries.
Q7. How can we trust your company?
A:We support Alibaba trade insurance, 100% product quality guarantee, 100%。On-Time Shipment Protection, 100% Payment Protection Your Covered Amount.
A:We support Alibaba trade insurance, 100% product quality guarantee, 100%。On-Time Shipment Protection, 100% Payment Protection Your Covered Amount.
