H-beam vertical assembling, welding and straightening multi-function integrated machine is a high-efficiency equipment for the production of welded H-beams. It can simultaneously complete H-beam assembly, submerged arc welding, and flange plate welding deformation on the same machine.The machine occupies a small area which can save installation space. It saves the hoisting and turning time between each process with single machine,then the efficiency is greatly improved, and the cost is reduced. It is a high-tech, economical and practical H-beam production equipment.


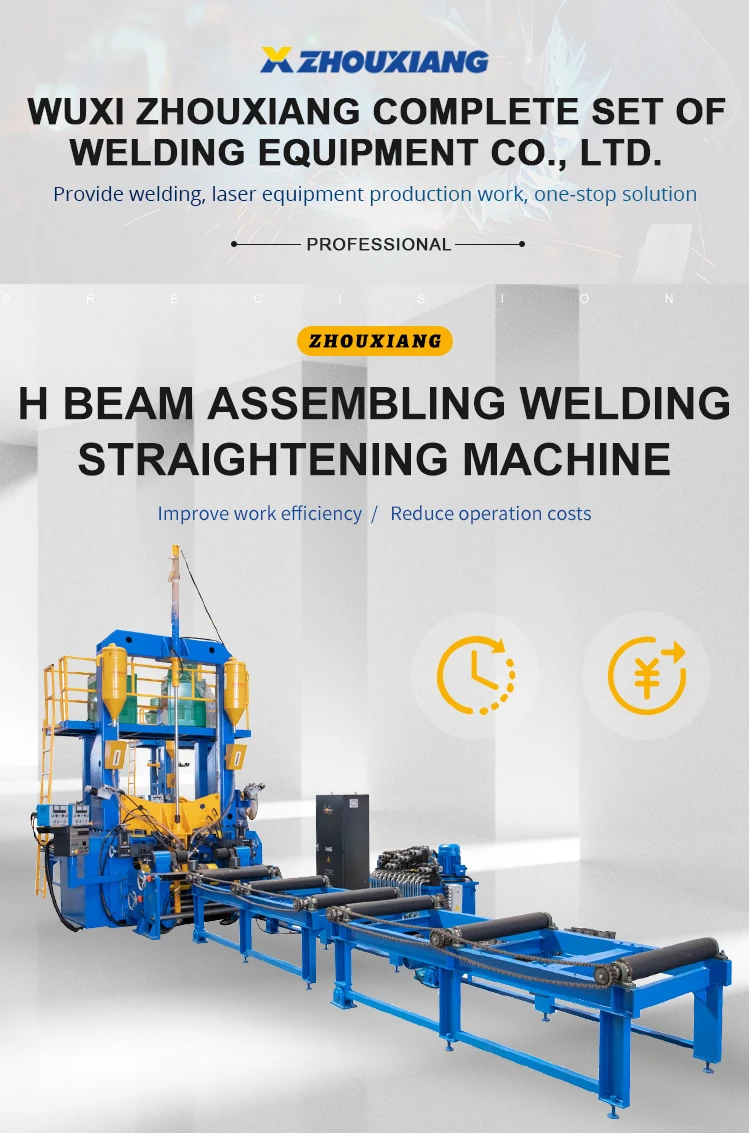

High Frequency Assembly Welding Straightening Fabrication Machine H Beam

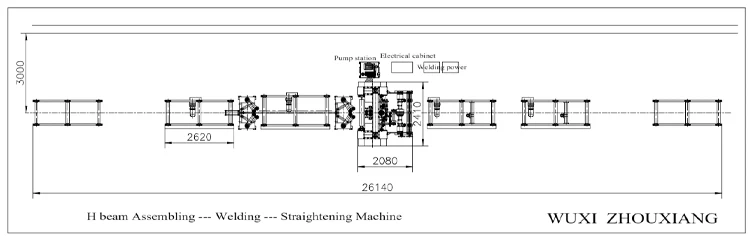

H beam assembling, welding, straightening machine


Metric units：


Web plate height
160~1500 mm
Web plate thickness
6~16 mm
Flange plate width
50~800 mm
Flange plate thickness
6~20 mm
H beam length
6000~15000mm or as user’s request
Assembly and welding speed
0.35~3 m/min
Main machine power
0.55kw*4=2.2kW
Roller conveyor motor power
4 kW
Flux recycling machine motor power
3kw*2=6 kW
Pump station power
4 kW
Welding source power
69kW*2=138kW
Above are our standard model, it can be designed and manufactured according to customer’s request.


Web plate height
7 7/8＂~ 49 1/5＂
Web plate thickness
15/64＂~ 5/8＂
Flange plate width
7 7/8＂~ 31 1/2＂
Flange plate thickness
15/64＂~ 25/32＂
H beam length
19＇8 5/32＂~ 49＇2 13/32＂ or as user’s request
Assembly and welding speed
0.35~3m/min
Main machine power
4 HP
Roller conveyor motor power
4 x 1HP= 4 HP
Flux recycling machine motor power
2 x 4 HP= 8 HP
Pump station power
5.36 HP
Welding source power
2 x 92.5HP = 185 HP
Above are our standard model, it can be designed and manufactured according to customer’s request.


Product Advantages




High Frequency Assembly Welding Straightening Fabrication Machine H Beam

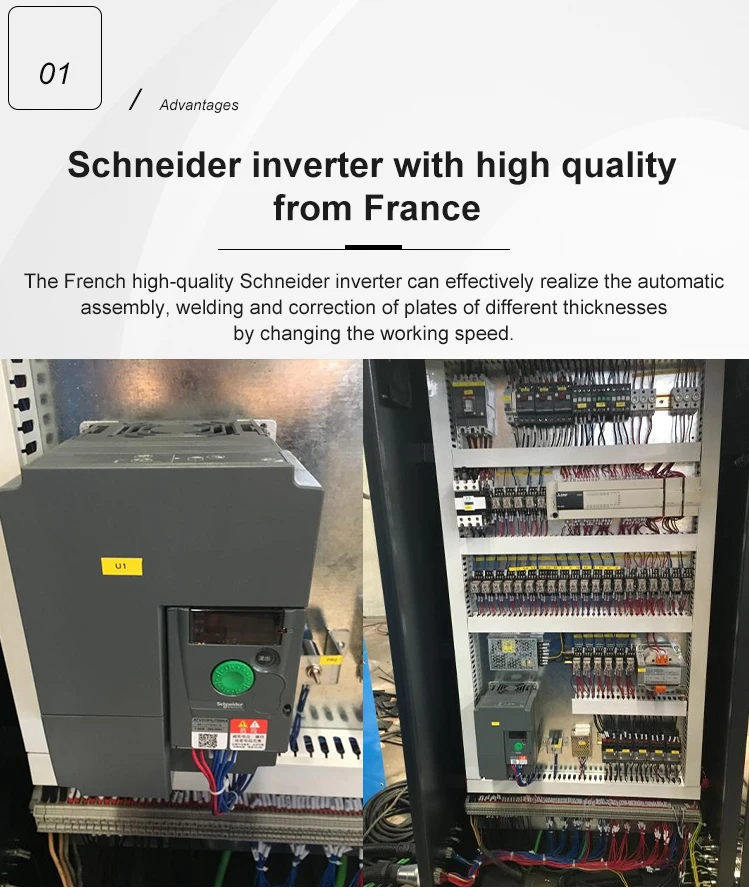

The French high-quality Schneider inverter can effectively realize the automatic assembly, welding and correction of plates of different thicknesses by changing the working speed. High Frequency Assembly Welding Straightening Fabrication Machine H Beam


High Frequency Assembly Welding Straightening Fabrication Machine H Beam

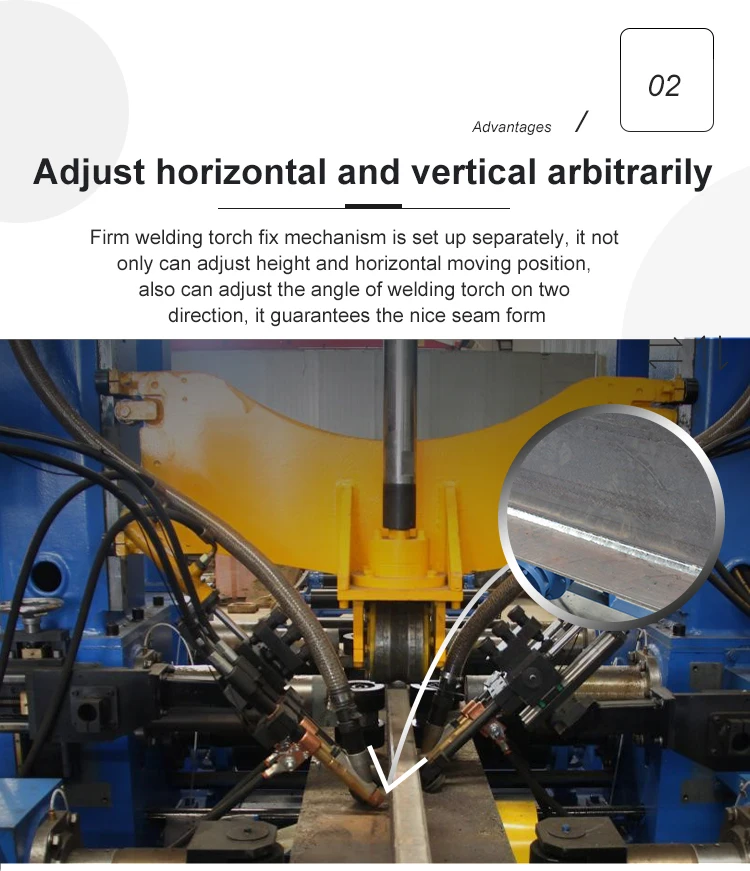

Firm welding torch fix mechanism is set up separately, it not only can adjust height and horizontal moving position, also can adjust the angle of welding torch on two direction, it guarantees the nice seam form.

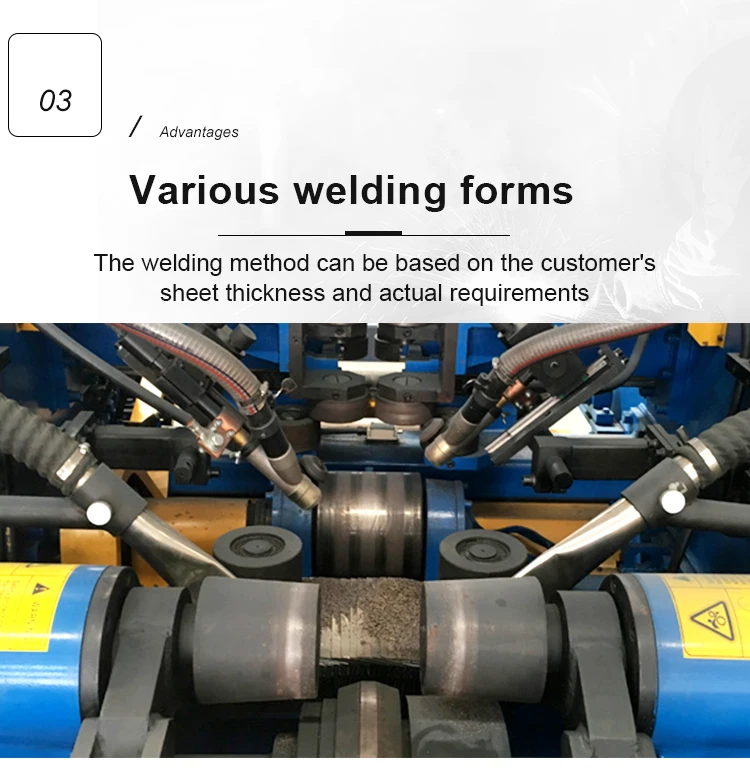

Various welding forms, generally single-arc single-wire submerged arc welding or single-arc double-wire submerged arc welding; according to the customer's sheet thickness and actual requirements, CO2 gas shielded welding can also be used.


Details

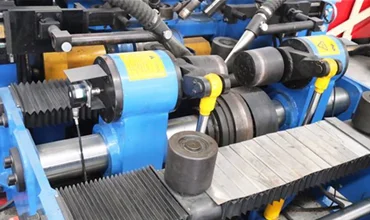

Flange and web centering device driven by hydraulic motor for automatic centering
High Frequency Assembly Welding Straightening Fabrication Machine H Beam

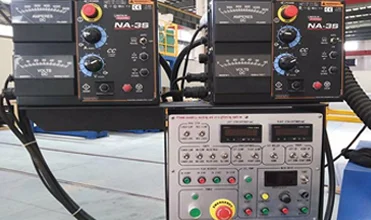

American Lincoln welding power source DC-1000 and NA-3S control system can ensure the forming quality of welding seam, especially the welding leg forming of fillet welding seam, which is easy to use
High Frequency Assembly Welding Straightening Fabrication Machine H Beam

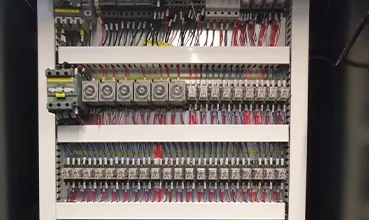

Standardized wiring method is neat and uniform, which greatly facilitates the operation and maintenance of customers.
High Frequency Assembly Welding Straightening Fabrication Machine H Beam

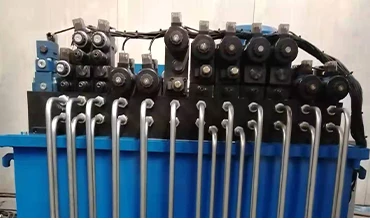

High-quality hydraulic valves can precisely and effectively control the clamping and loosening of each web and wing plate.
High Frequency Assembly Welding Straightening Fabrication Machine H Beam

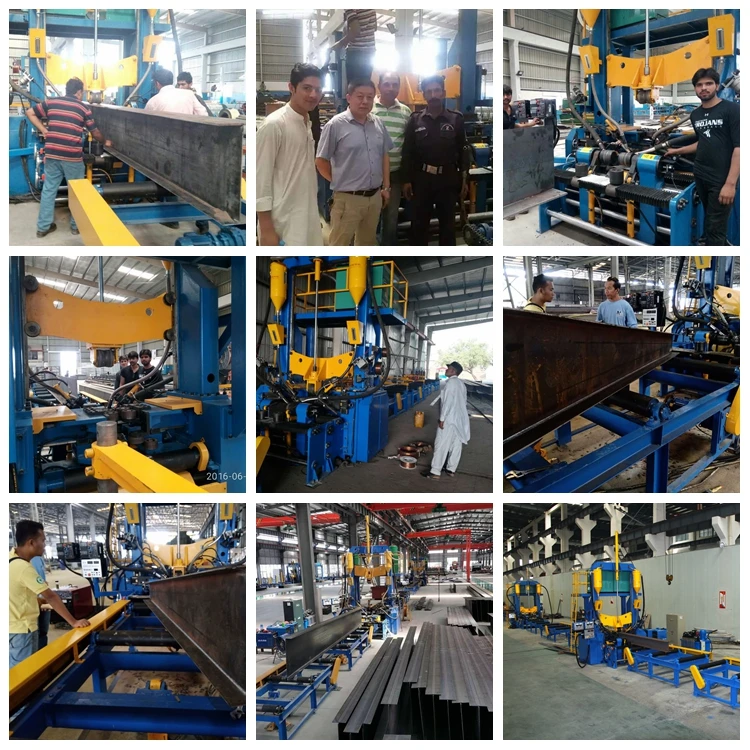

Customer Photos
