Automatic Multi Head Stone Surface Polishing Machine for Granite and Marble for Stone Machinery
- Category: >>>
- Supplier: Laizhou Oriental Machinery Co. Ltd.
Share on (1601030054547):
Product Overview
Description
Product Show
Product Paramenters
Features
7.5kw/11kw premium main motor
12-20 Multihead install
Total install power: 92kw/142kw/172kw
Programmable auto electrical control system
High quality electrical element
PLC and human-computer interface
Iron solid frame
27years' stone machinery experience

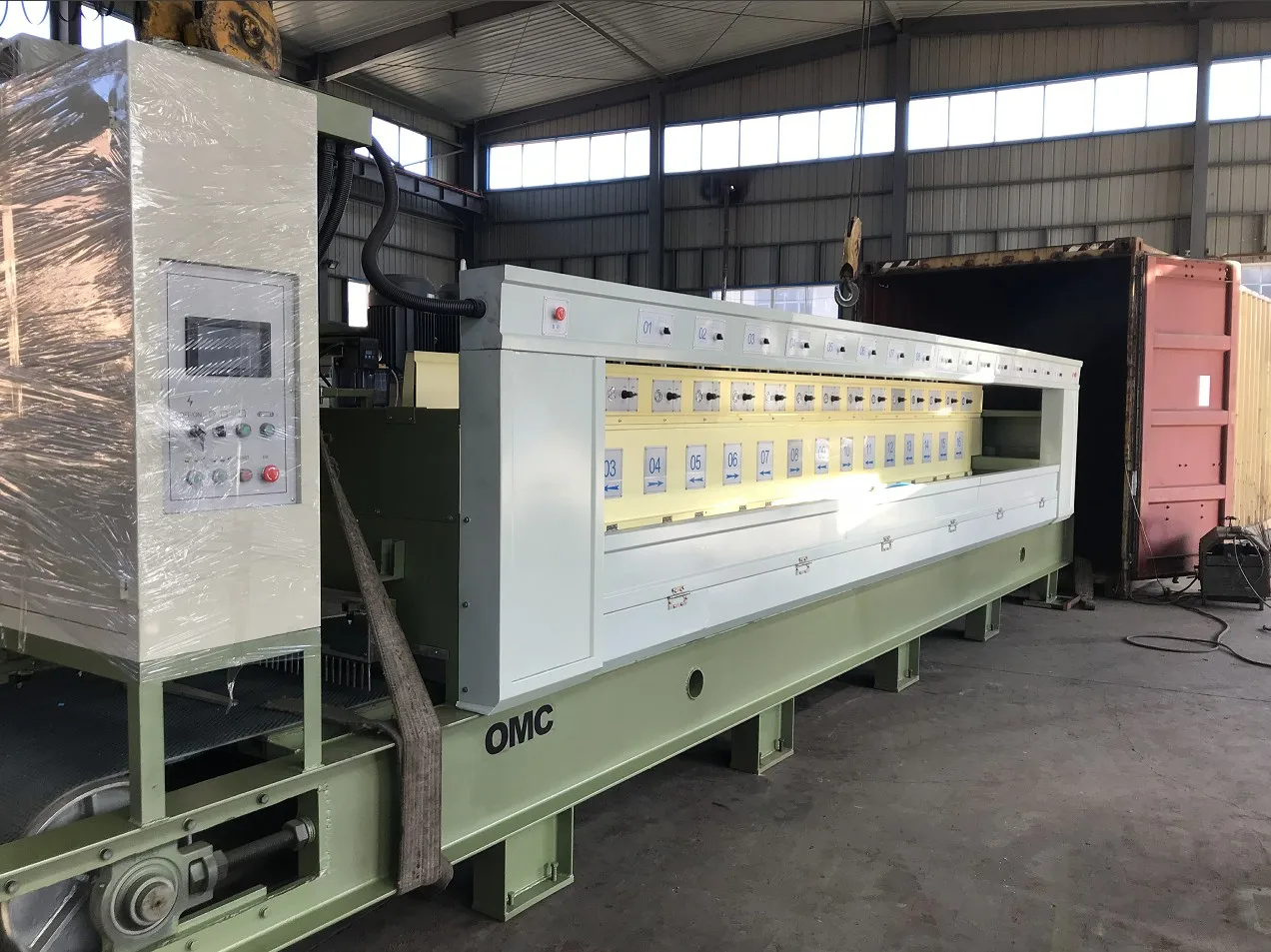

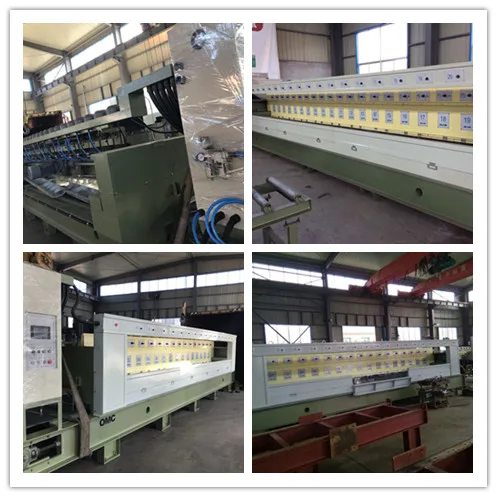

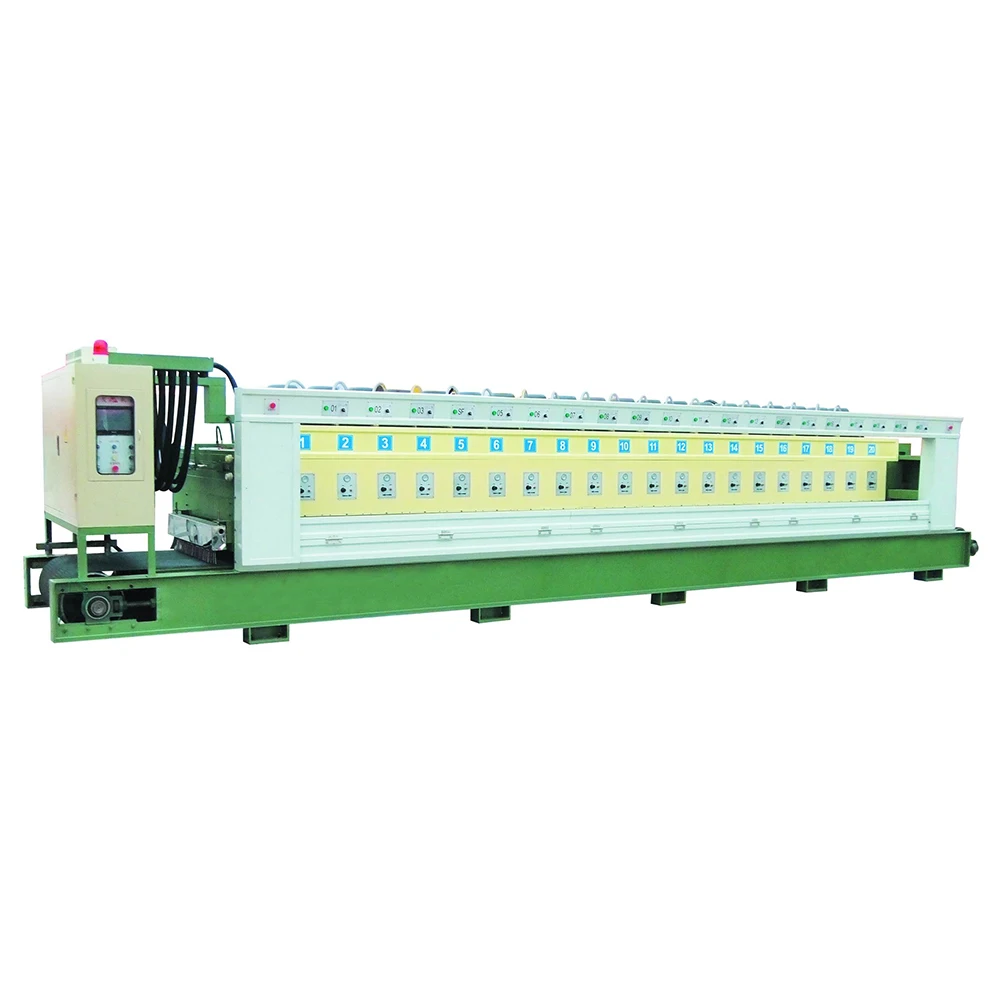

LXM100 12-20 head automatic stone surface polishing machine

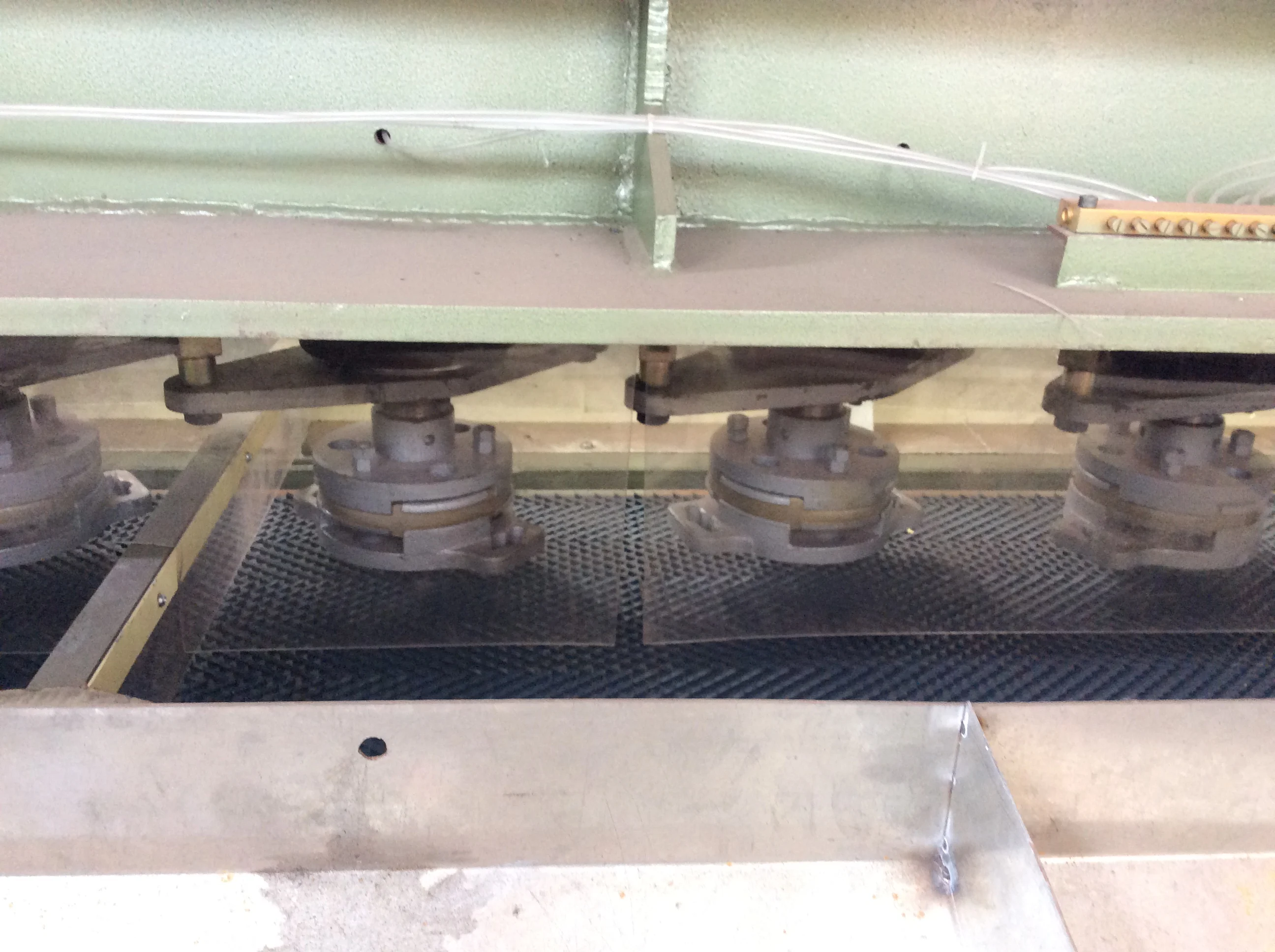

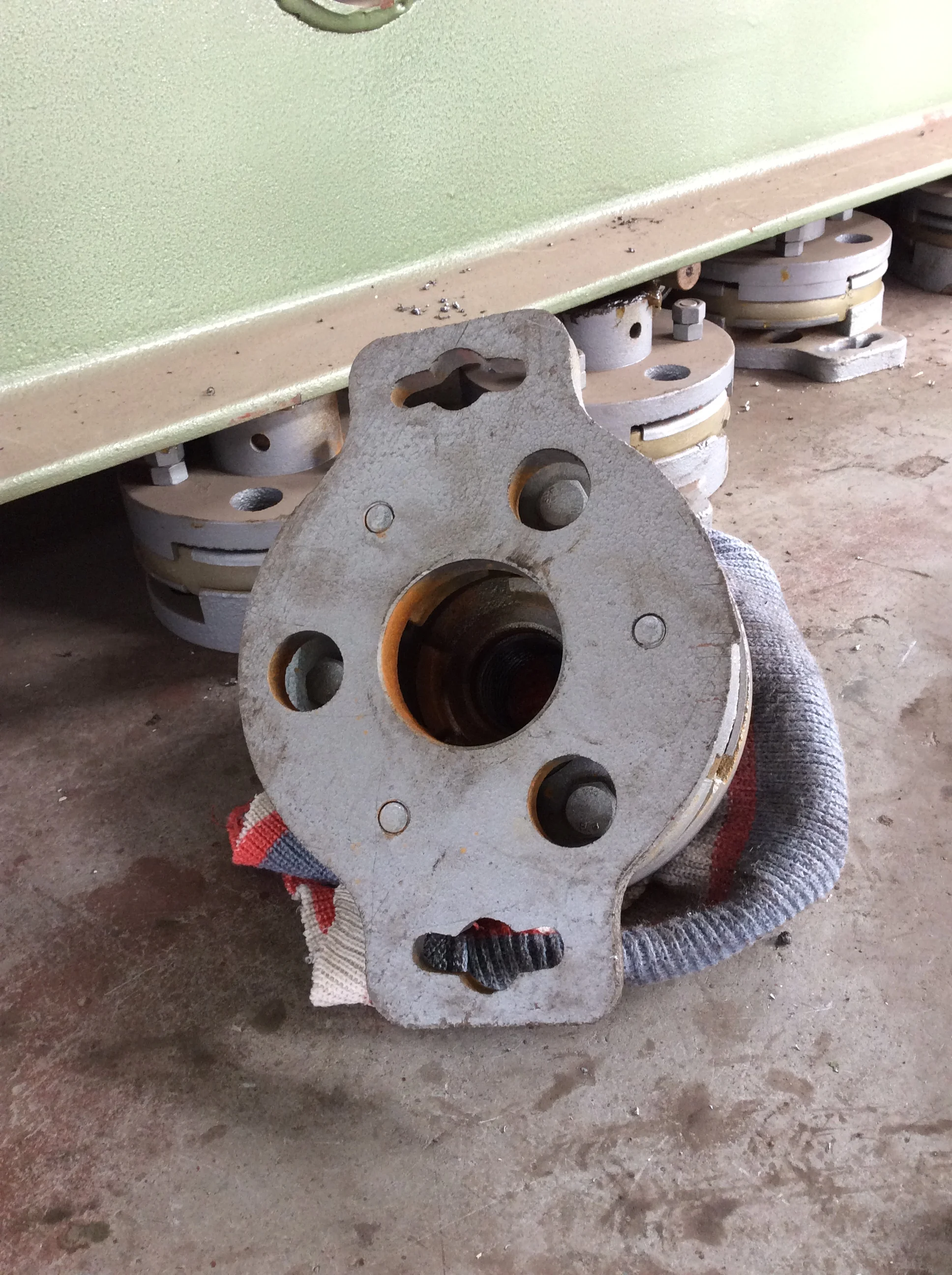

The machine uses resin disc and tilting disc, because resin disc is light in weight, small in consumed power, and high in grinding efficiency; its price is only 1/2 of traditional continuous grinding and polishing machine of the same specification; the power needed by the grinding disc is 7.5KW, which is only 1/3-2/3 of grinding head for ordinary grinding machine of the same specification, with low power consumption.
The machine is multi-point continuous board-incoming production, with high efficiency and low labor cost. Production efficiency of a set of equipment may be that of several walking or bridge-type grinding and polishing machine, and only 2~4 workers are needed.

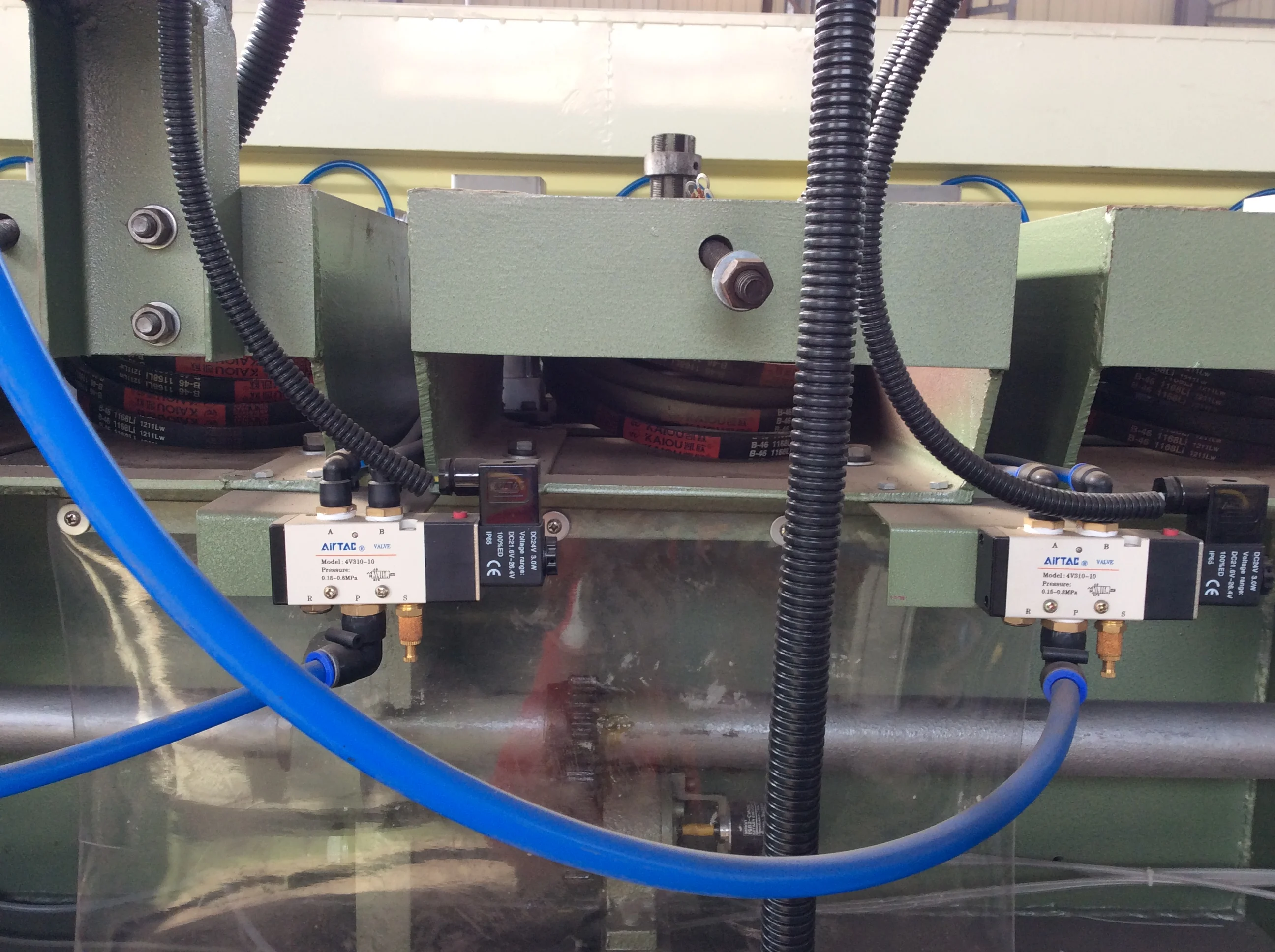

As for the machine, air pressure controls lifting and falling of grinding disc and pressuring range is adjustable; oscillating
beams can drive grinding disc for moving and movement speed is adjustable; belt of belt-type board-sending workbench can is adjustable; electrical system adopts PLC and human-computer interface.
The machine is multi-point continuous board-incoming production, with high efficiency and low labor cost. Production efficiency of a set of equipment may be that of several walking or bridge-type grinding and polishing machine, and only 2~4 workers are needed.
As for the machine, air pressure controls lifting and falling of grinding disc and pressuring range is adjustable; oscillating
beams can drive grinding disc for moving and movement speed is adjustable; belt of belt-type board-sending workbench can is adjustable; electrical system adopts PLC and human-computer interface.
Voltage | 380v-3phase,50hz |
Power motor for polishing | 7.5kw/head |
Total install power 12/16/20 | 99kw/142kw/172kw |
Machine model | LXM100-12/LXM100-16/LXM100-20 |
Dia. of grinding disc | 220mm |
Width of grinding slabs | 300-1000mm |
Thickness of processing | 10-50mm |
Productivity | 350/400/450㎡/8hrs |
Water consumption of each head | 25L/min/head |
Air supplier pressure of compressor | >0.15Mpa |
Overall dimension | 7200/8700/10000x2450x2350/mm |
Total gross weight | 10000kgs/13000kgs/16000kgs |

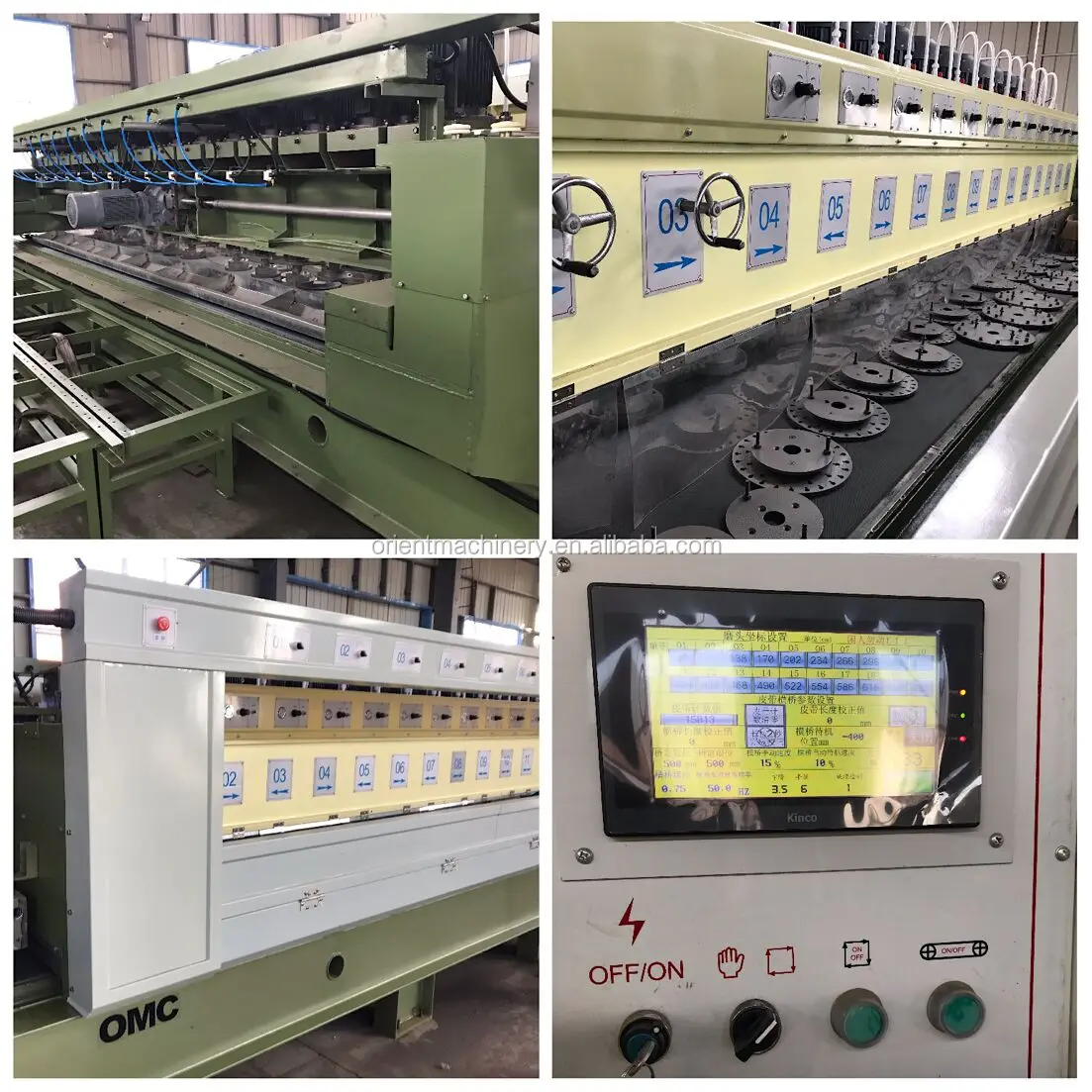

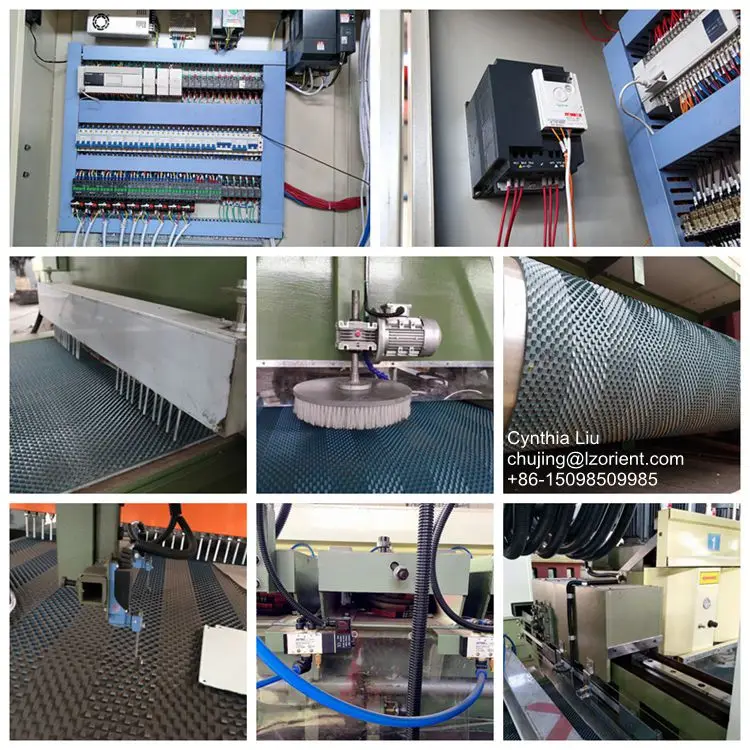

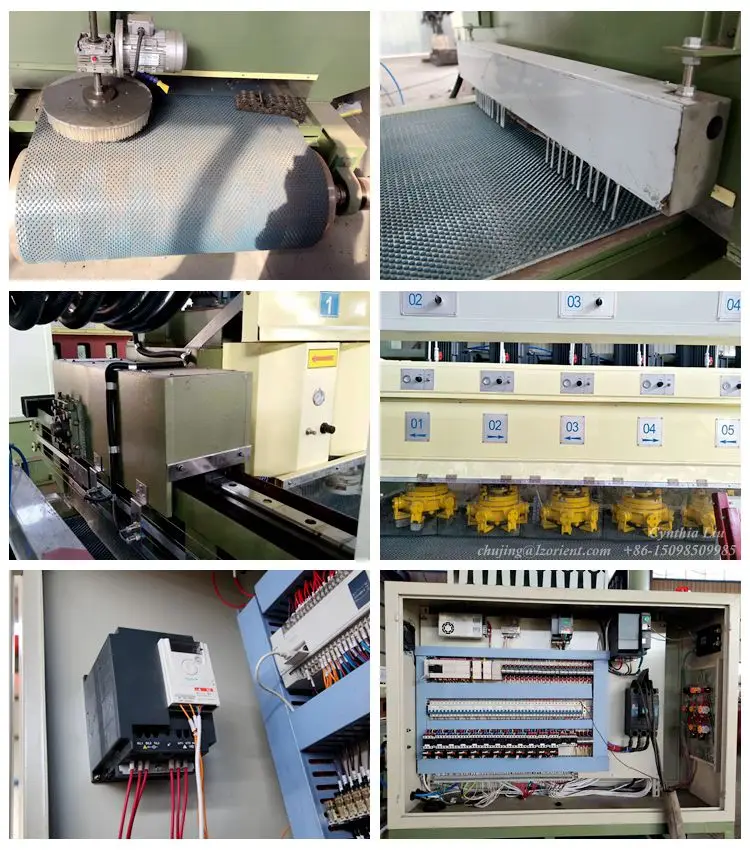

Details Images
Product packaging
- Nude with Plastic Film and Wire Fixing
- 40ft dry HQ container Load 1 Set
- Qingdao Port Shipment
- 1 Year Warranty
- 40ft dry HQ container Load 1 Set
- Qingdao Port Shipment
- 1 Year Warranty
- OEM&ODM Available
- Assemble Tools Included
- Spare Parts Available- Wirerope,Strap,Wood batten reinforce
- Assemble Tools Included
- Spare Parts Available- Wirerope,Strap,Wood batten reinforce
Recommend Products

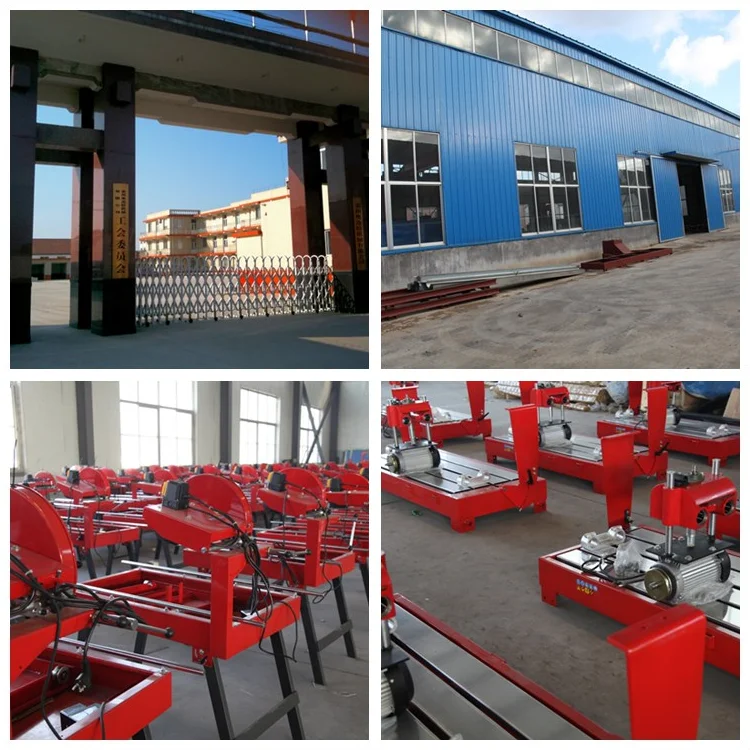

Company Profile
