100w mobile phone multi camera module high speed automatic remote monitoring support fiber laser welding equipment for sale
- Category: >>>
- Supplier: Hunan Jiankun Precision Technology Co. Ltd.
Share on (1601030447626):
Product Overview
Description
Product Description

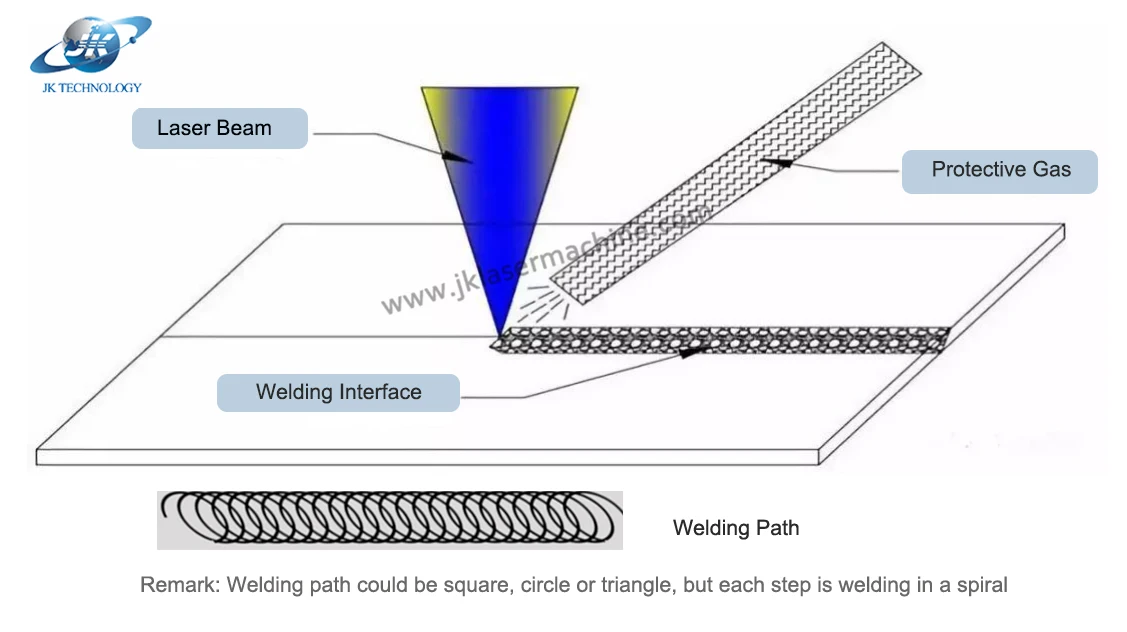

Laser spiral welding technology
The laser beam scan during the welding process and weld in a spiral trajectory to form a spiral weld. Compared with traditional spot welding and line welding, which are welded along straight lines, thread welding has the advantages of relatively fast speed, better welding quality, and wider application fields.
Foldable working table
The special designed working table is fordable, after the machine set up all function well, forded the working table could get more space for the monitoring operator when walking through the path, and keep the machine working more stable.
Servo Motor+ On line monitoring
Servo motor for X, Y, z axis movement，ensure the high-precision locating and control of the welding, all process is achieved through precise control of the laser beam, more precise welding effect is achieved and the mass production yield and output is improved.
Specification
Laser Mode | Pulse Fiber Laser |
Galvanometer Accuracy | ±3μm |
Max visual range | 25X25mm |
Laser Power | 100W |
Drive Method | Servo Module Drive |
Axis Accuracy | ±5μm |
UPH | Depends on the actual product and the number of welding joints |
Working Tem. | 15℃-25℃ |
Working Humidity | 30%-60% (non-condensing) |
Net Weight | 450KG |
Vacuum Source | Negative pressure 0～100Kpa |
Air Source | 0.3~0.7MPa |
Rated Power | AC220V 50/60HZ, 3KW |
Application
Widely used in the various kind of electronics camera module, 3C precision part, VCM motors, Motor shrapnel, metal components, copper silver aluminum accessories, etc.
Packing & Delivery
plywood case+foam cotton+wooden frame
1, Warranty for 1 years.
2, Maintenance for whole life.
3, We will provide the consumable parts at an agency price.
4, 24 hours online service,free technical support.
5, Machine has been adjusted before delivery
3, We will provide the consumable parts at an agency price.
4, 24 hours online service,free technical support.
5, Machine has been adjusted before delivery
6, We have manual instruction for software installation,operation and machine's using and maintenance.
Company Profile
Hunan Jiankun Precision Technology Co., Ltd. is specialized in the R&D, production and sales of semiconductor packaging test equipment, laser marking, welding, cutting equipment, optical lens assembly equipment, vehicle mounted and VR/AR test equipment, VCM plug-in, appearance inspection equipment and non-standard automation equipment. It's the world's famous solution and equipment manufacturer for opto-mechatronics integration projects.
Hunan Jiankun Precision Technology Co., Ltd. was established in 2018, the company has always focused on the four major scenarios of R&D, manufacturing, sales and terminals, layout of consumer electronics, semiconductor, automotive, new energy and other applications, set up a modern "intelligent manufacturing meta-universe" base in Central China.
The company has always adhere to the business philosophy of "everything is market-oriented, everything is service to the market, and everything is satisfied with the market", actively research and produce various types of precision equipment to meet the customer's needs, which can not only provide customers the sample and batch processing, and also has the comprehensive ability to provide customers with a complete set of automatic processing solutions and related supporting equipment. At the same time, we has the most timely sales and maintenance service network at home and abroad, and is the best partner for enterprise development.
In recent years, the sales volume of the company has increased at an average rate of more than
30%, and its products have been widely used in electronic appliances, integrated circuits, instruments and meters, printed circuits, computer manufacturing, mobile phone communication, auto parts, precision building materials, apparel, jewelry, AR, VR meta-universe and other fields.
Hunan Jiankun Precision Technology Co., Ltd. is headquartered in Changsha, Hunan. The company is based on the development strategy of central China, shooting the whole country and overlooking the world. It has set up R&D centers in Dongguan and Suzhou, sales centers in Shenzhen, and technical support service departments in South China, central China and East China.
Hunan Jiankun Precision Technology Co., Ltd. was established in 2018, the company has always focused on the four major scenarios of R&D, manufacturing, sales and terminals, layout of consumer electronics, semiconductor, automotive, new energy and other applications, set up a modern "intelligent manufacturing meta-universe" base in Central China.
The company has always adhere to the business philosophy of "everything is market-oriented, everything is service to the market, and everything is satisfied with the market", actively research and produce various types of precision equipment to meet the customer's needs, which can not only provide customers the sample and batch processing, and also has the comprehensive ability to provide customers with a complete set of automatic processing solutions and related supporting equipment. At the same time, we has the most timely sales and maintenance service network at home and abroad, and is the best partner for enterprise development.
In recent years, the sales volume of the company has increased at an average rate of more than
30%, and its products have been widely used in electronic appliances, integrated circuits, instruments and meters, printed circuits, computer manufacturing, mobile phone communication, auto parts, precision building materials, apparel, jewelry, AR, VR meta-universe and other fields.
Hunan Jiankun Precision Technology Co., Ltd. is headquartered in Changsha, Hunan. The company is based on the development strategy of central China, shooting the whole country and overlooking the world. It has set up R&D centers in Dongguan and Suzhou, sales centers in Shenzhen, and technical support service departments in South China, central China and East China.
FAQ
Q1. How can I choose the most suitable machine?
A1: Please tell us what kind of work you want the machine to do. Engraving, cutting, marking? What kind of materials mainly? Cutting/engraving, Max thickness for cutting? How big a working area do you need?
Q2. How long can delivery of the machine?
A2Common machines can be delivered within 3~7 days. Customized machines need 12~25 days.
Q3. If there is any technical help after we receive the machine?
A3 Yes, we have a perfect after-sale service team to supply technical support to our customers. Our technical can assist you in installing the machine and give you free training after you receive the machine.
Q4. If there are some problems with some parts during the warranty period, will your company repair or replace them for me?
A4 Yes, we will. Please send the main part back to our company, we will repair and send back them to you for free within warranty time. If the problem part can not be repaired well, we will send the new one to you within warranty time for free. PS: Not including the consumable parts and Man-made damage.
Q5. Will the machine be sent to my door?
A5 1)Usually for large size and heavy machines, we will quote CFR price. The best shipping way for large and heavy goods is by sea or air. We ship the goods by sea for shipping free to your base seaport in your country (You find a broker to help you to do customs clearance ).
2)For small-size machines, we can quote prices with DHL express cost. Then the machine can send it to your door.
Q6. Can I buy spare parts from your company if I have spare parts in the future?
A6 Yes, please. Our company supplies spare parts for all of our machines.
A1: Please tell us what kind of work you want the machine to do. Engraving, cutting, marking? What kind of materials mainly? Cutting/engraving, Max thickness for cutting? How big a working area do you need?
Q2. How long can delivery of the machine?
A2Common machines can be delivered within 3~7 days. Customized machines need 12~25 days.
Q3. If there is any technical help after we receive the machine?
A3 Yes, we have a perfect after-sale service team to supply technical support to our customers. Our technical can assist you in installing the machine and give you free training after you receive the machine.
Q4. If there are some problems with some parts during the warranty period, will your company repair or replace them for me?
A4 Yes, we will. Please send the main part back to our company, we will repair and send back them to you for free within warranty time. If the problem part can not be repaired well, we will send the new one to you within warranty time for free. PS: Not including the consumable parts and Man-made damage.
Q5. Will the machine be sent to my door?
A5 1)Usually for large size and heavy machines, we will quote CFR price. The best shipping way for large and heavy goods is by sea or air. We ship the goods by sea for shipping free to your base seaport in your country (You find a broker to help you to do customs clearance ).
2)For small-size machines, we can quote prices with DHL express cost. Then the machine can send it to your door.
Q6. Can I buy spare parts from your company if I have spare parts in the future?
A6 Yes, please. Our company supplies spare parts for all of our machines.
Q7. Give me reasons to choose your company.
A7 1)Professional laser marking factory with competitive price;
2) High-quality control and perfect service: All of our machines adopted top quality parts → Test machine works well for 3 days before delivery → sent working video and all items photos based on the order list to the buyer to check → Buyer checks everything is included and satisfied → Professional plywood package to avoid damage → shipping machine
3)Supply technical support all the time for our machine; We have a professional after-sale service team to supply technical support to our clients for free. You can talk with them at any time if you need to.
4)Strict implementation of after-sales warranty.
5)The important is that you will receive the Corresponding goods after you make the payment.
Q8. How do we pay you?
A8 Please talk with us first. After we confirm the machine optional parts, and spare parts for order with each other, we will give you the link to order, or transfer via T/T bank.
A7 1)Professional laser marking factory with competitive price;
2) High-quality control and perfect service: All of our machines adopted top quality parts → Test machine works well for 3 days before delivery → sent working video and all items photos based on the order list to the buyer to check → Buyer checks everything is included and satisfied → Professional plywood package to avoid damage → shipping machine
3)Supply technical support all the time for our machine; We have a professional after-sale service team to supply technical support to our clients for free. You can talk with them at any time if you need to.
4)Strict implementation of after-sales warranty.
5)The important is that you will receive the Corresponding goods after you make the payment.
Q8. How do we pay you?
A8 Please talk with us first. After we confirm the machine optional parts, and spare parts for order with each other, we will give you the link to order, or transfer via T/T bank.
