Duct Type Fan Coil Unit,Ceiling Concealed Air Conditioner Fcu
- Category: >>>
- Supplier: Go Free Airconditioning System Co. Ltd.Go Ltd.
Share on (1601030657938):
Product Overview
Description
Product Description

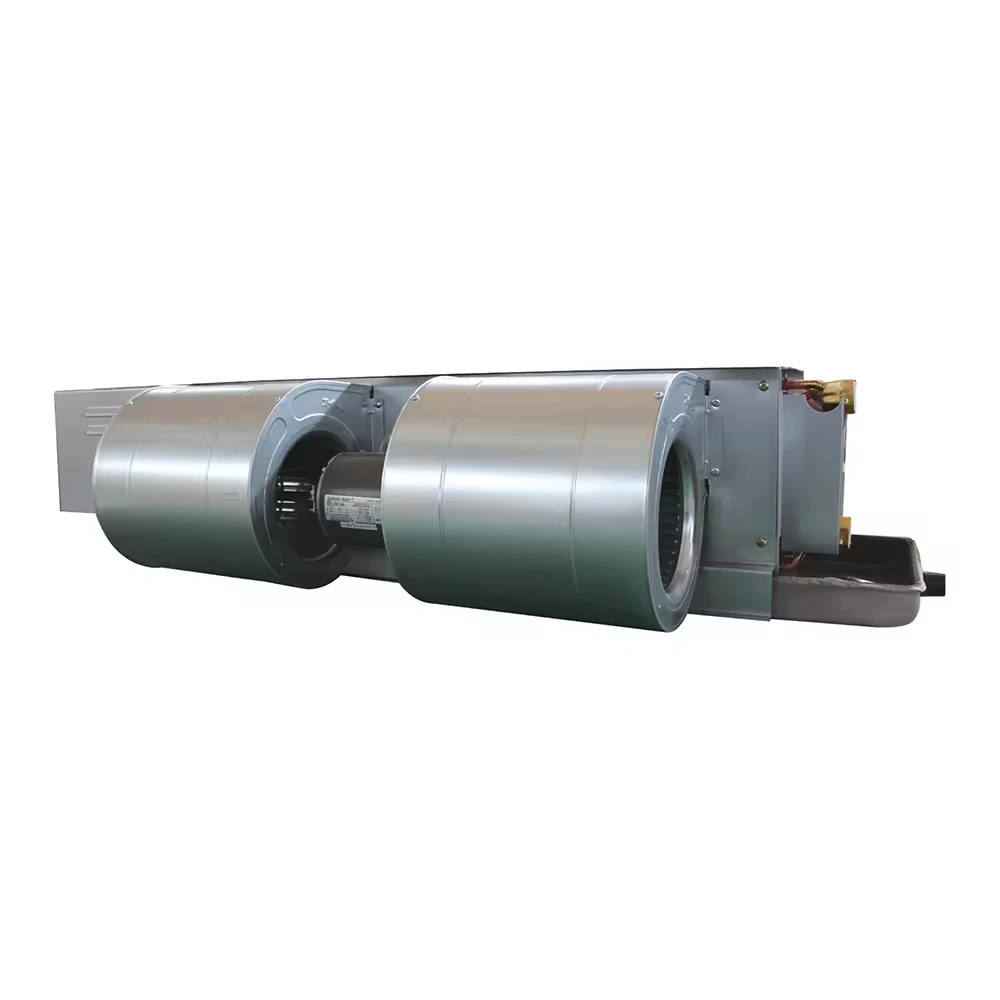

Chilled Water Fcu System Ec Inverter Motor Concealed Ceiling Duct Type Fan Coil Units
Fan coil air conditioners are designed specially to meet the varied requirements of zone cooling or heating using chilled water or hot water. fan coils can be applied to two or four pipesystems to satisfy the requirements of a wide variety of air conditioning or heating application.
FCU (Fan coil unit) is available in concealed and exposed versions for ceiling an floor mounted installation. They offer effective zone control and are especially suitable for use in apartments, hotels,shopping centers, office buildings and hospitals.

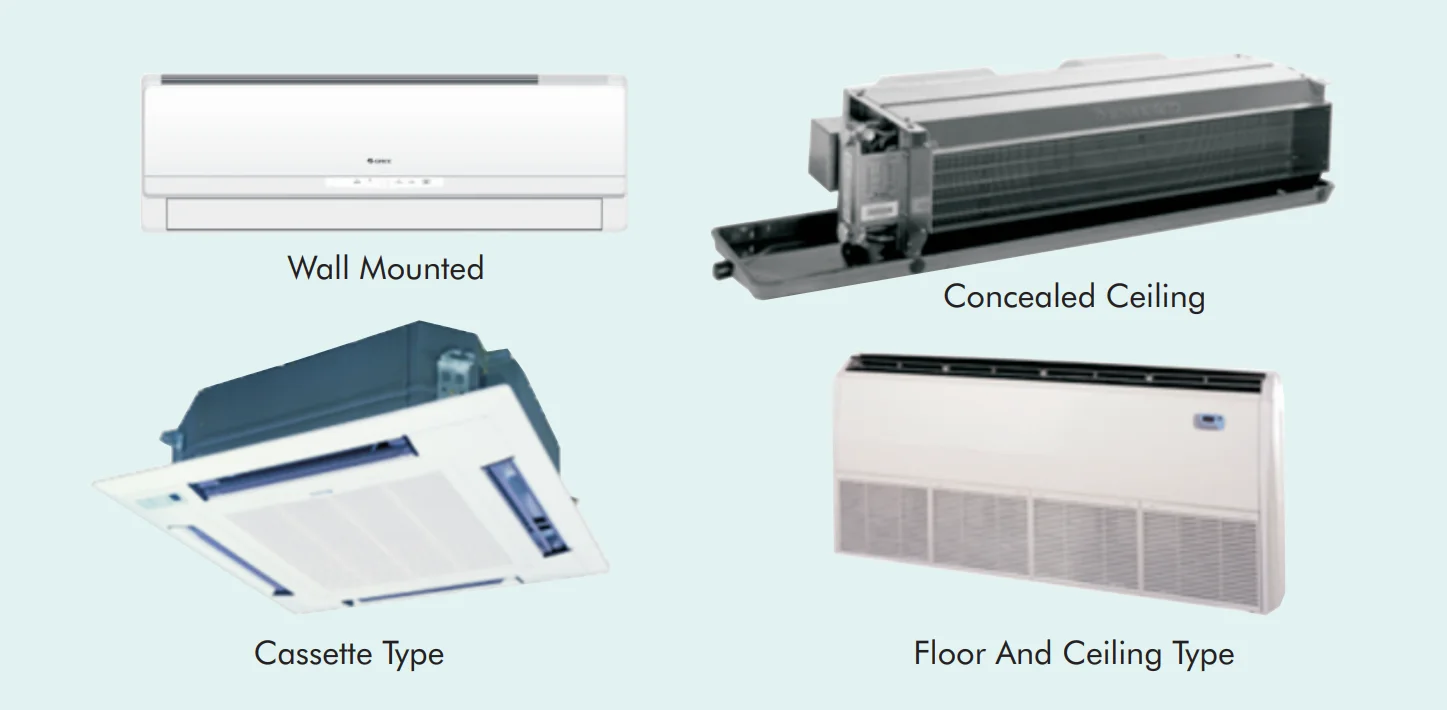

FCU is available four configurations: WA:Concealed Ceiling ;WM-Floor And Ceiling Type ;XD-Cassette type;B-Wall mounted
FCU (Fan coil unit) is available in concealed and exposed versions for ceiling an floor mounted installation. They offer effective zone control and are especially suitable for use in apartments, hotels,shopping centers, office buildings and hospitals.
FCU is available four configurations: WA:Concealed Ceiling ;WM-Floor And Ceiling Type ;XD-Cassette type;B-Wall mounted
Our Fan Coil Unit Feature & Advantages
The unit casing is of single skin type with inner insulation.Panel is made of galvanized steel. The standard insulation
consists of 8 mm fiber glass 5mm polyethylene insulation thus producing a rigid and robust panel. The casing is suitably stiffened to minimize drumming and vibration and fully protected against corrosion. The overall unit has a compact graceful finish with a only of 230mm height to easily fit into tight architectural ceiling Space.
consists of 8 mm fiber glass 5mm polyethylene insulation thus producing a rigid and robust panel. The casing is suitably stiffened to minimize drumming and vibration and fully protected against corrosion. The overall unit has a compact graceful finish with a only of 230mm height to easily fit into tight architectural ceiling Space.

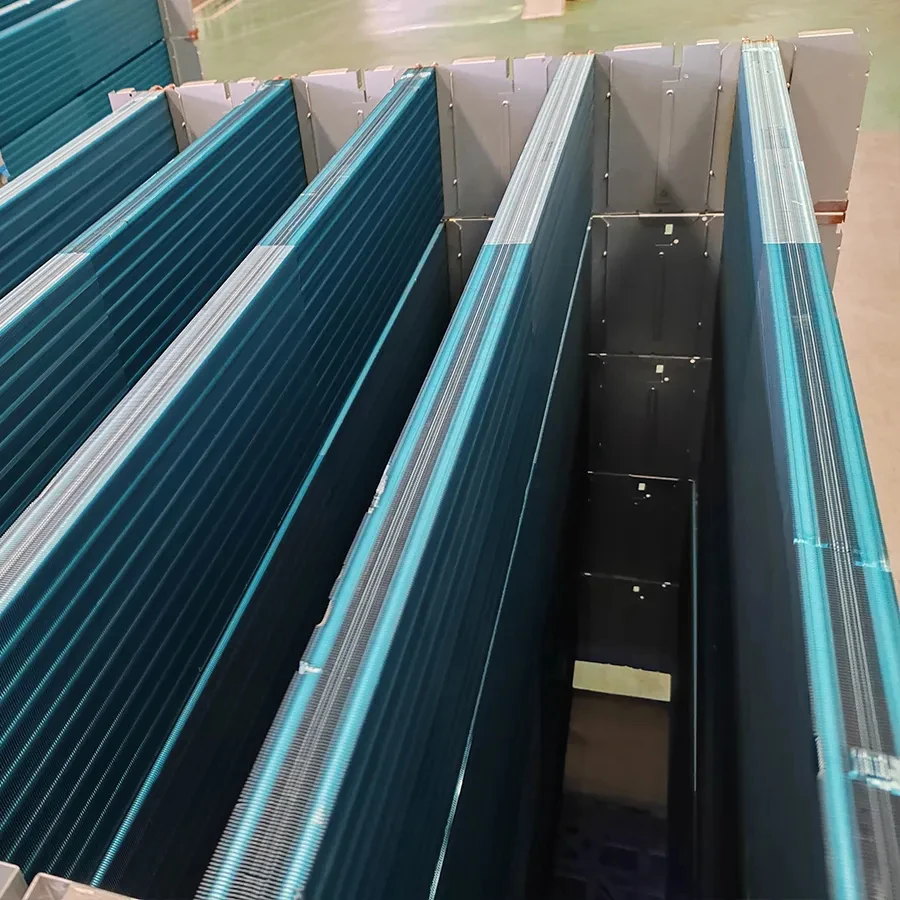

Heat Exchanger - Coil
The coil is standard Cu/Al 3/8"OD having manifolds made of steel with threaded connections.The coil is provided with manual air-vent.The aluminum fins are pre-coated for protection by hydrophilic blue fin mechanically bonded to the copper tubes by precise machine expansion and tested to 3.3MPa pressure.
The coil is standard Cu/Al 3/8"OD having manifolds made of steel with threaded connections.The coil is provided with manual air-vent.The aluminum fins are pre-coated for protection by hydrophilic blue fin mechanically bonded to the copper tubes by precise machine expansion and tested to 3.3MPa pressure.
Condensate Drain Pan
The condensate drain pan is constructed of galvanized steel sheet (inner surface pre-coated).The drain pan is
lined with 7 mm polyethylene thermal insulation.The drain pan extends under the full length width of the coil and pitched for positive drainage. Fan-Motor Section Fan is direct drive forward centrifugal double inlet double width type,constructed from galvanized steel, dynamically statically balanced.
lined with 7 mm polyethylene thermal insulation.The drain pan extends under the full length width of the coil and pitched for positive drainage. Fan-Motor Section Fan is direct drive forward centrifugal double inlet double width type,constructed from galvanized steel, dynamically statically balanced.
Fan motor is selected for maximum efficiency and low noise.
1.220-240V/1Ph/50Hz.
2. IP 20 with class B insulation.
3. 3-speed motor.
4. Permanent split-capacitor with ball bearings.
5.Built-in automatic reset thermal overload protection.
Low Noise
Units have been configured to minimize noise output with the smallest size unit generating only 33.5-52 dB(A) at high fan speed depending on unit size.
Flexibility
1. Fan coil units are designed to maximize product flexibility with;
2. Auxiliary electric heater is available for heating needs.
3. Back return or bottom return air plenum is available for multiple applications.
4. Inter-changeable Left/Right pipe connections on site.
4. Inter-changeable Left/Right pipe connections on site.
5. Easy to install optional external valves with standard pipe
connection.
connection.
6. Externally mounted electrical junction box for field wiring termination.
7. Quick disconnect motor connections with removable fan motor assembly for easy service access.
Standard configuration
Whilst the standard configuration is based on the description as above.A number of OPTIONAL FEATURES and enhancement to suit special requirements upon request.
Whilst the standard configuration is based on the description as above.A number of OPTIONAL FEATURES and enhancement to suit special requirements upon request.

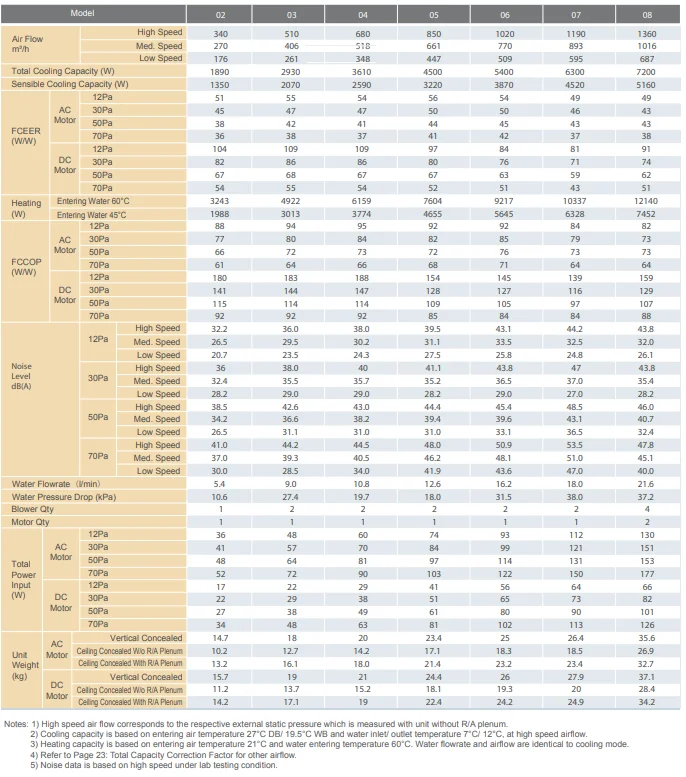

Specification
Chilled Water Fcu System Ec Inverter Motor Concealed Ceiling Duct Type Fan Coil Units |

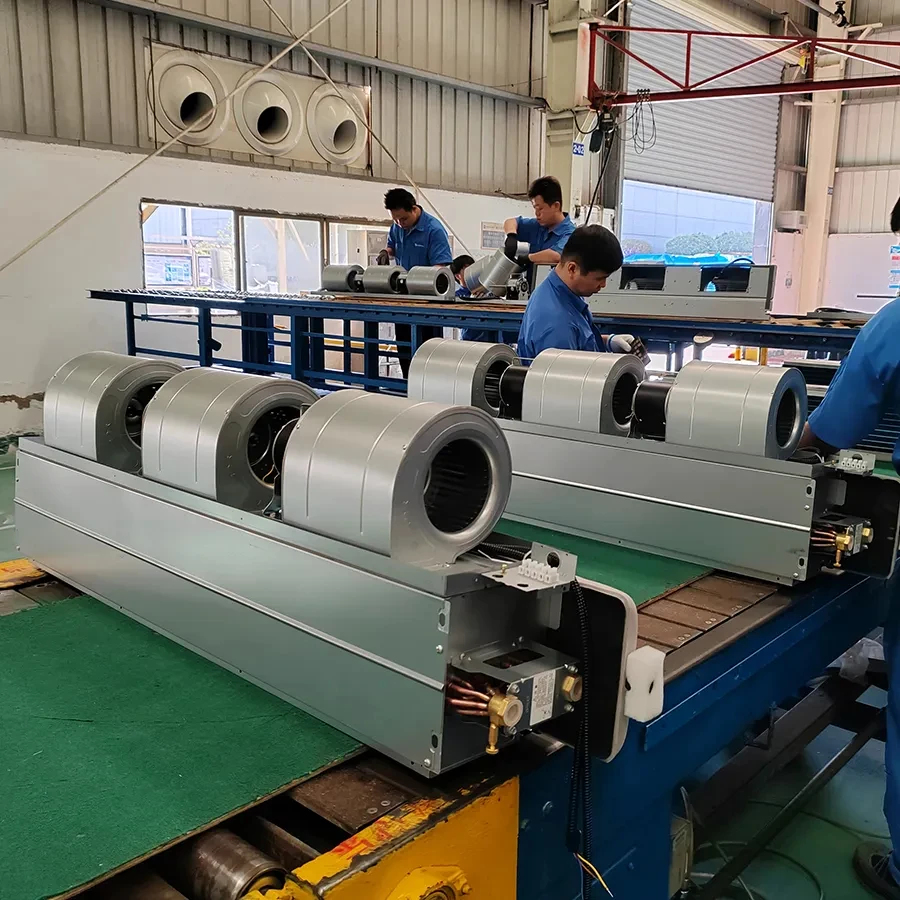

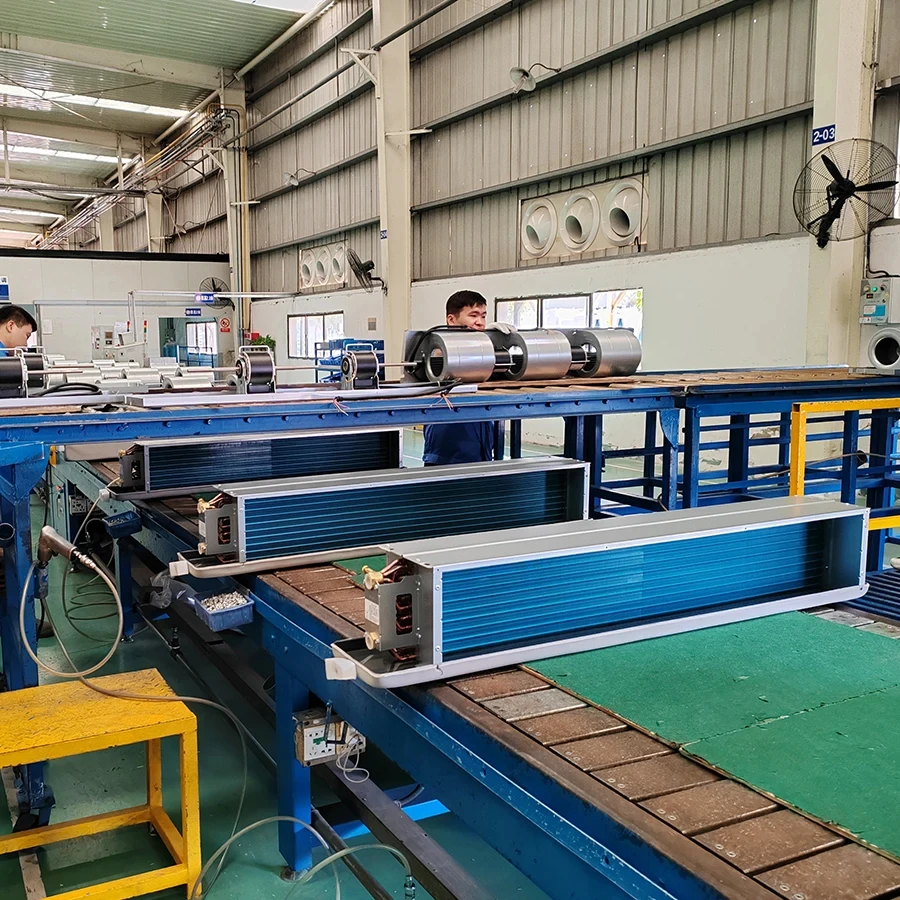

Details Images

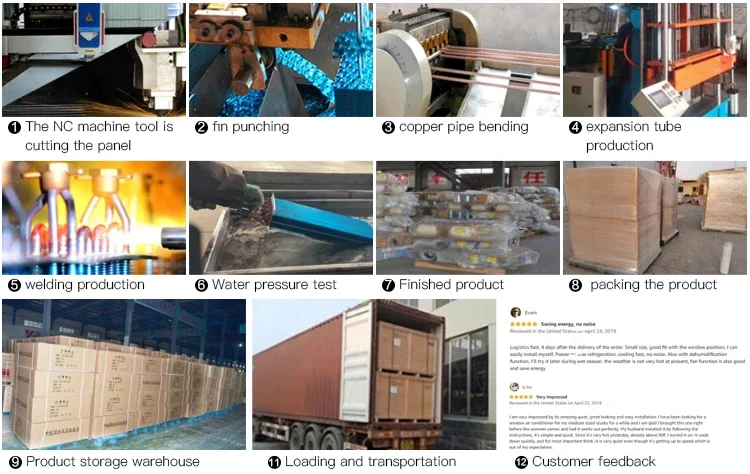

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

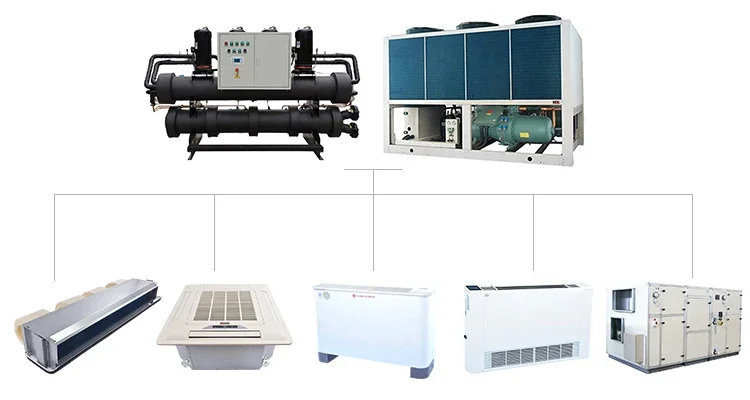

gofreeaircon Co., Ltd. is a professional central air conditioning solution provider. Specializing in the design, sales and installation of central air conditioning products, covering household air conditioners, such as wall-mounted, floor-standing split air conditioners, commercial and industrial air conditioners, such as VRF system air conditioners, and refrigeration systems including air-cooled combined scroll/screw type Chillers, water-cooled scroll/screw centrifugal chillers, commercial rooftop charter units, precision air conditioners for communication data centers, including air handling units and fan coil units, etc. This broad product range provides complete air conditioning solutions for a variety of applications. The brands distributed include Gree, Midea, Dunant, Carrier, McKay, etc.
