multi functional ston cutting machine profiling for marble
- Category: >>>
- Supplier: Quanzhou Dinosaw Machinery Technology Co. Ltd.
Share on (1601030935386):
Product Overview
Description
Product Description

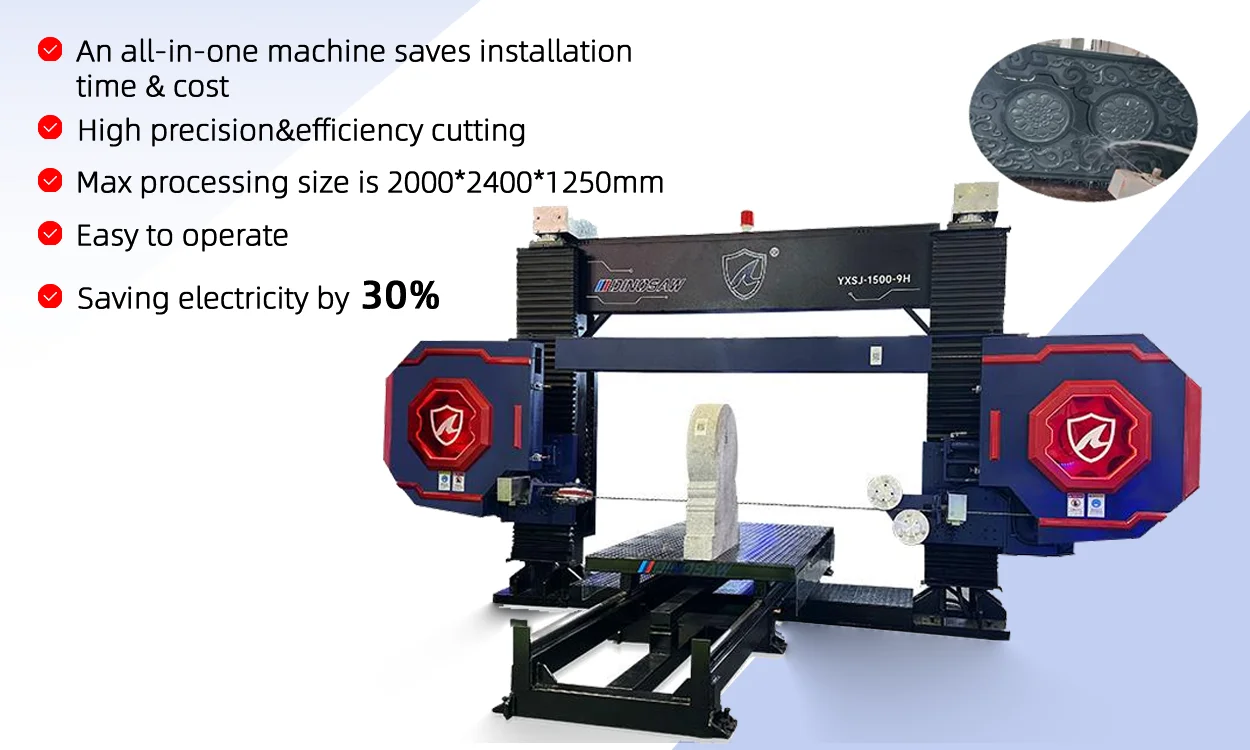

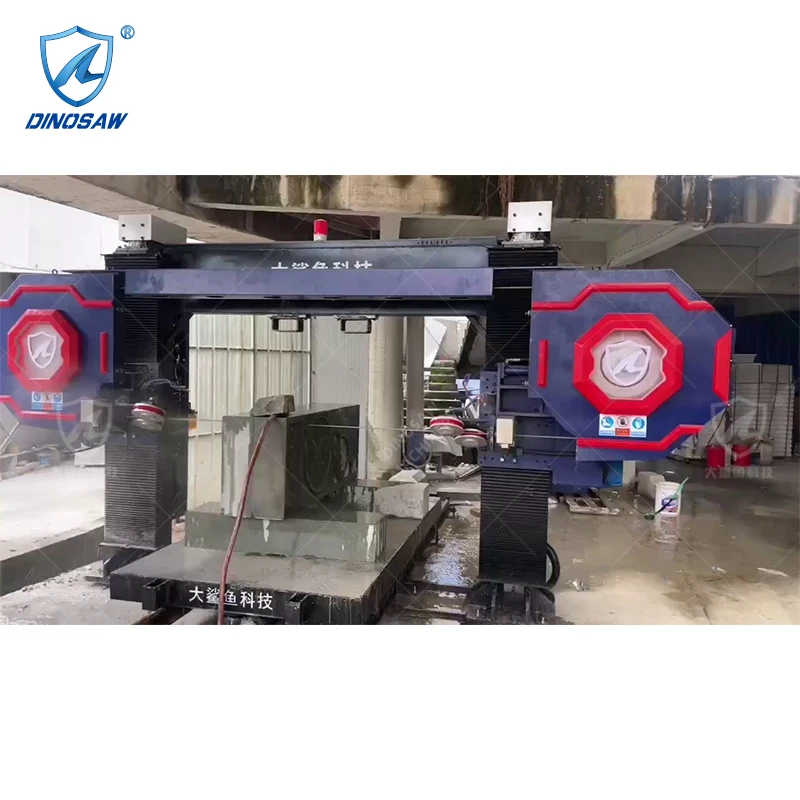

Dinosaw diamond wire saw tombstone cutting machine

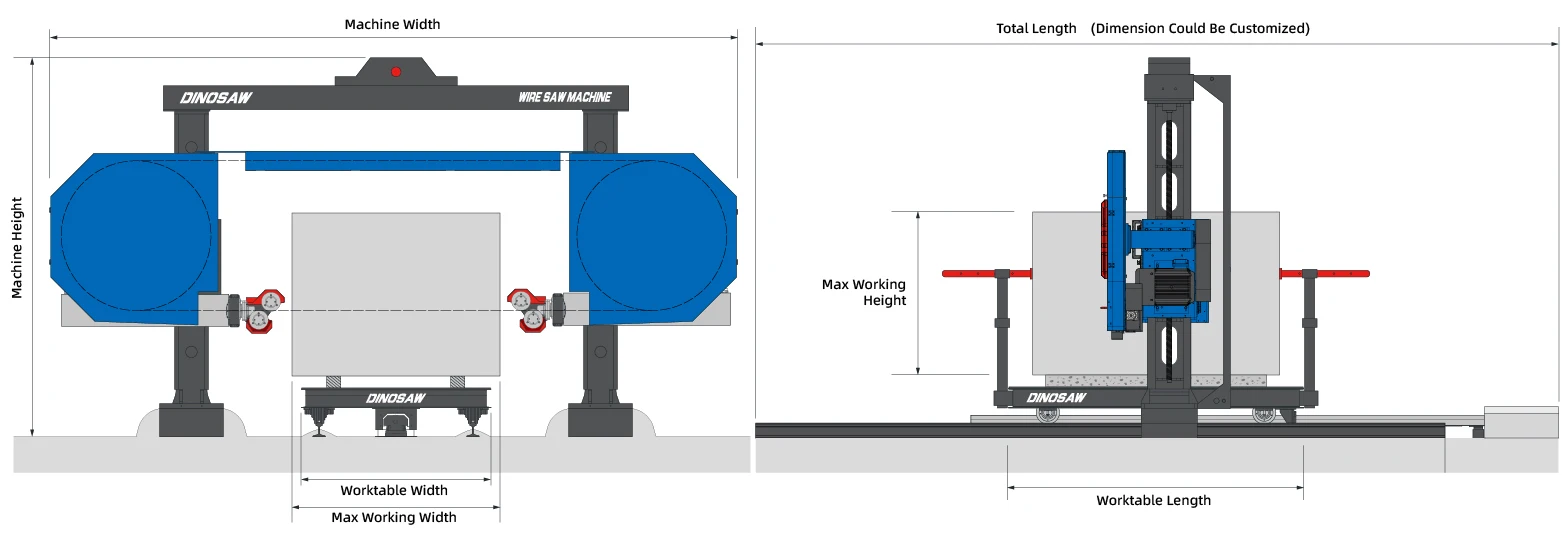

Technical Parameter
Model | Unit | YXSJ-2400-13H | ||
Max working dimensions | mm | 2000*2000*1300 | ||
Worktable size | mm | 2500x1400 | ||
Wire length | m | 14.12 | ||
Wire diameter | mm | 7.6-11.5 | ||
Cutting linear speed | mm/min | 20-40 | ||
Main motor power | kw | 7.5/11/15 | ||
Water consumption | L/h | 500 | ||
Overall dimensions | mm | 6700*5900*2500 | ||
Approximate weight | kg | 5000 | ||
* It can be customized according to customers’ requirement. | ||||
Product Advantage
Main motor & Servo motor
High Precision Hydraulic System
Full-screen Touch Interaction
Efficient cutting
Dinosaw intelligent wire saw machine using advanced cutting technology, it can realize high-speed and high-efficiency cutting, greatly improving the cutting efficiency, which can increase by more than 5 times compared with traditional cutting efficiency.
High-precision cutting
Dinosaw intelligent wire saw machine adopts high-precision cutting technology, which can achieve millimeter-level precision, ensuring the precise size of the processed stone and meeting customer requirements.
Wide range of processing sizes
Dinosaw intelligent wire saw machine can be customized according to customer requirements, and can quickly and accurately cut stones of different sizes and shapes.

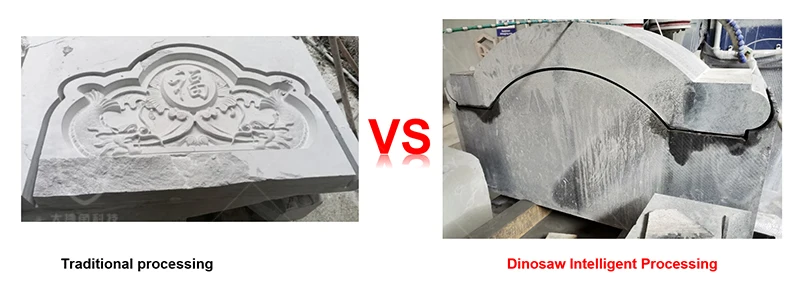

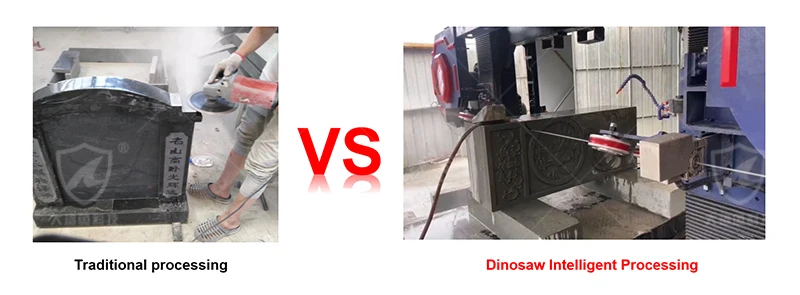

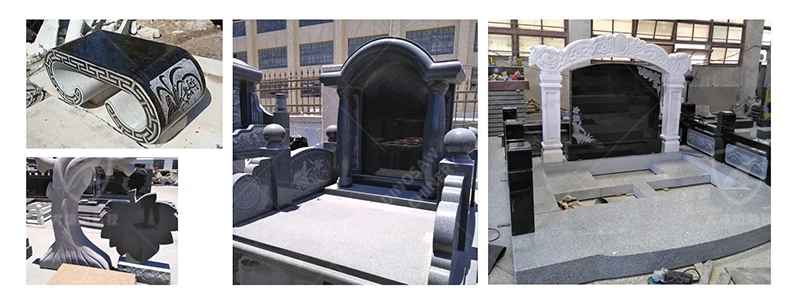

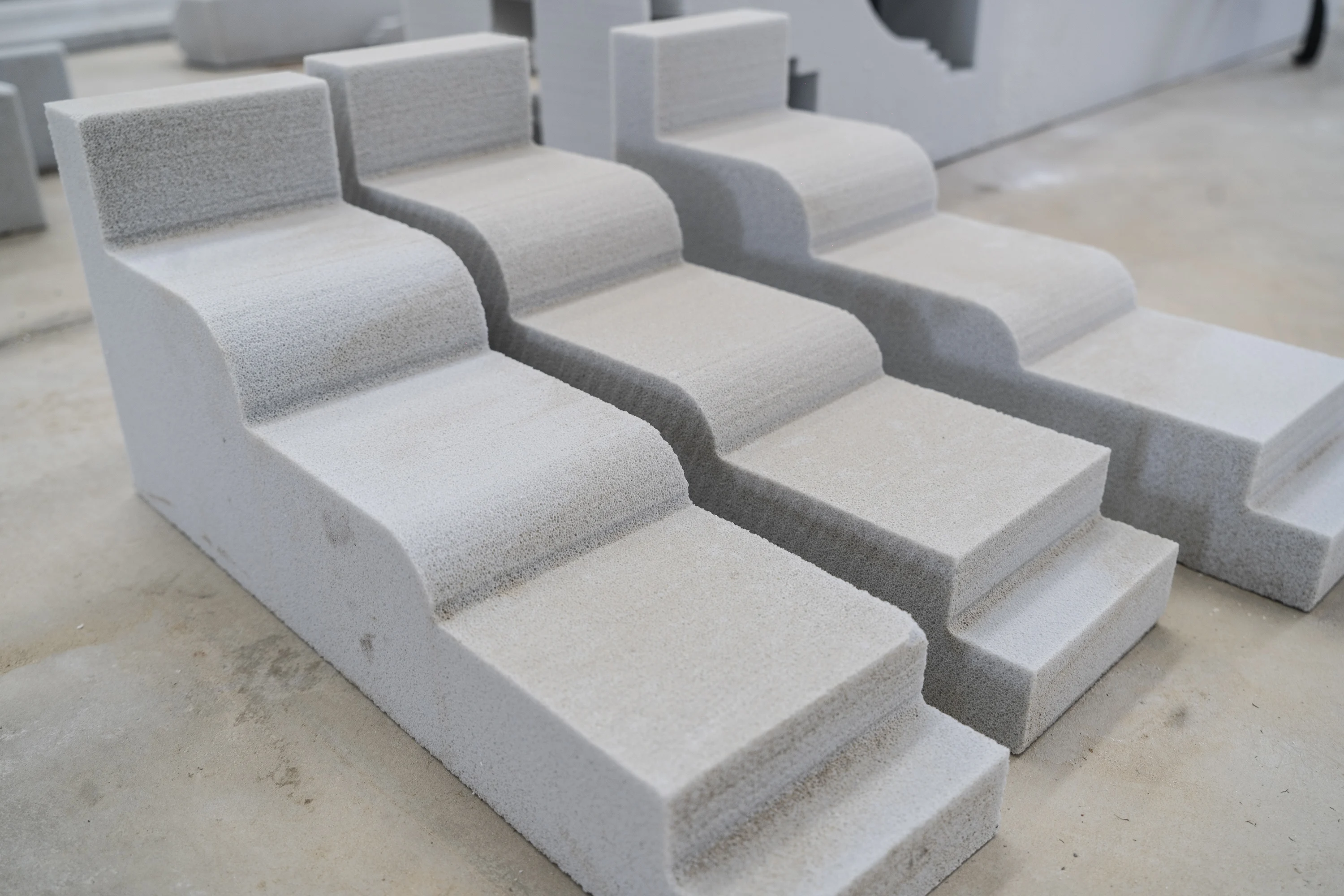

Our Dinosaw wire saw machine can easily complete such processing tasks, but traditional processing is difficult.
Dinosaw wire saw machine system can realize various applications through programming, has strong data processing ability, and can realize complex calculation and logic functions. While ensuring high-efficiency cutting accuracy, personal safety is also guaranteed.
Certificate&Our partener
About Us
Product Processing Line
Packing & Delivery
FAQ
Q：Are you manufacturer or trading company?
A：We have two factories, one for stone processing machines and another for diamond tools. Besides, we are the only new composite technology company in China's stone machinery industry that integrates AI+IOT software development team, electrical engineer team, mechanical design team, and mechanical production team.
Q：What is your maximum processing size?
A：Our biggest model is YXSJ-4000-25H, its max. cutting size is 4000*4000*2500mm. Can also be customized as per specific requirement.
Q：Is your wire saw easy to get broken?
A：No. Our machine is equipped with hydraulic tension device + pressure sensor, which can automatically balance the wire pressure during production(accuracy up to 0.1Mpa), so that the wire always maintains tension and thus not easy to break.
Q：Is it difficult to operate your wire saw machine?
A：Our machine is very simple and easy to operate. It takes around 2~3 days for installation & training, no need to learn complicated G code, no need to have CNC background. We have patent for our operation system;
Q：How many tons stones can your trolley load?
A：We have different design for option, 20T, 30T or 50T etc. For trolley we apply heavy duty rail, which is same used for train, thus lifetime is longer. The trolley rotation adopts rotary support(same applied on loader), this is more stable and can bear more load compared to gear structure.
Q：What's the warranty time?
A：One year, not including wire saw, guide wheels, rubber ring, rubber strips etc. After warranty, we will continue to provide service support for client;
Q：Does your machine have remote control system?
A：Yes. Once connected with Internet, our service center engineer can enter the system to help check machine running status and correct setting parameters/datas if needed. Also we can transfer G Code or CAD drawing to the system and help upgrade the system future for free.
A：We have two factories, one for stone processing machines and another for diamond tools. Besides, we are the only new composite technology company in China's stone machinery industry that integrates AI+IOT software development team, electrical engineer team, mechanical design team, and mechanical production team.
Q：What is your maximum processing size?
A：Our biggest model is YXSJ-4000-25H, its max. cutting size is 4000*4000*2500mm. Can also be customized as per specific requirement.
Q：Is your wire saw easy to get broken?
A：No. Our machine is equipped with hydraulic tension device + pressure sensor, which can automatically balance the wire pressure during production(accuracy up to 0.1Mpa), so that the wire always maintains tension and thus not easy to break.
Q：Is it difficult to operate your wire saw machine?
A：Our machine is very simple and easy to operate. It takes around 2~3 days for installation & training, no need to learn complicated G code, no need to have CNC background. We have patent for our operation system;
Q：How many tons stones can your trolley load?
A：We have different design for option, 20T, 30T or 50T etc. For trolley we apply heavy duty rail, which is same used for train, thus lifetime is longer. The trolley rotation adopts rotary support(same applied on loader), this is more stable and can bear more load compared to gear structure.
Q：What's the warranty time?
A：One year, not including wire saw, guide wheels, rubber ring, rubber strips etc. After warranty, we will continue to provide service support for client;
Q：Does your machine have remote control system?
A：Yes. Once connected with Internet, our service center engineer can enter the system to help check machine running status and correct setting parameters/datas if needed. Also we can transfer G Code or CAD drawing to the system and help upgrade the system future for free.
