API 8 Inch Drill Collar with Non Magnetic Material NMDC for Oil Well Downhole Drilling
- Category: >>>
- Supplier: Orchid Energy Co. Ltd.
Share on (1601032697657):
Product Overview
Description
Products Description

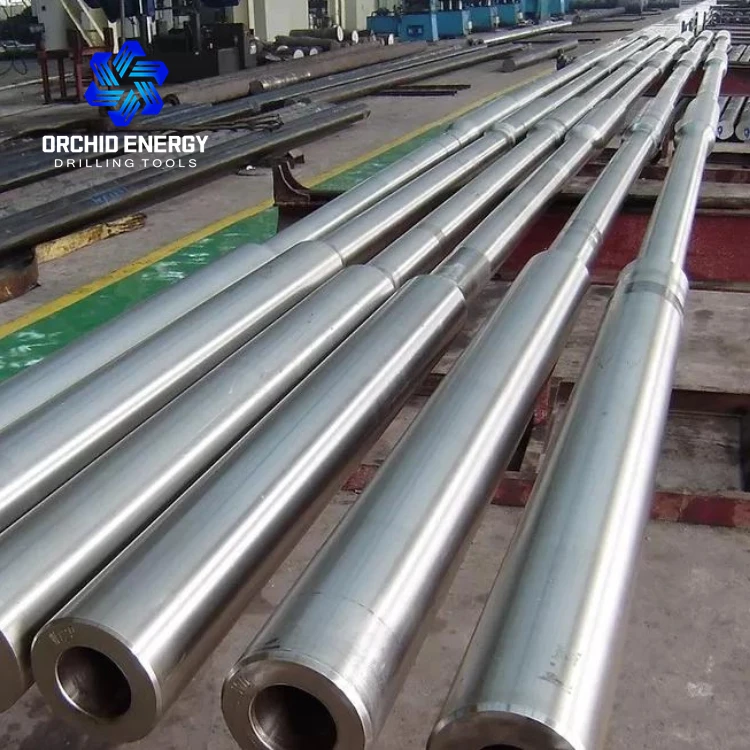

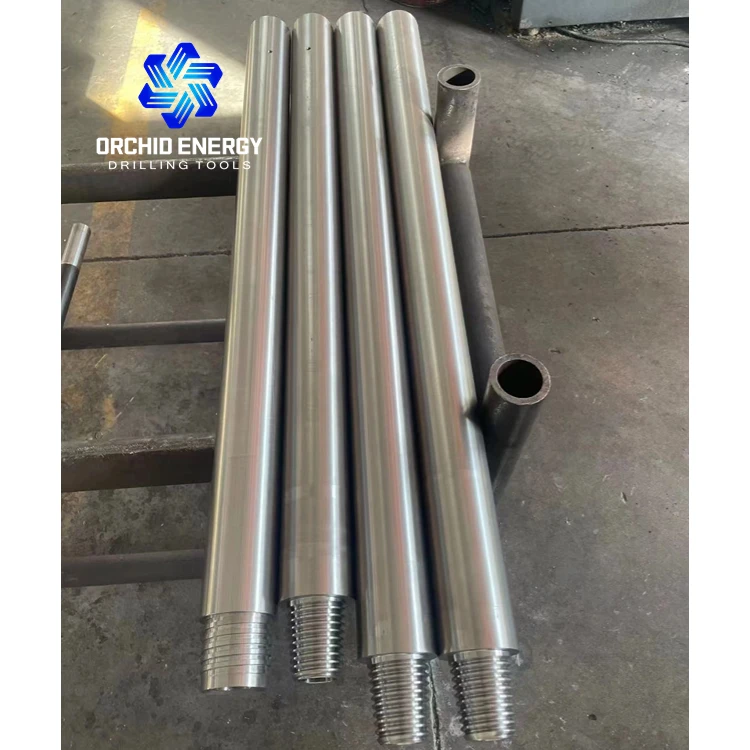

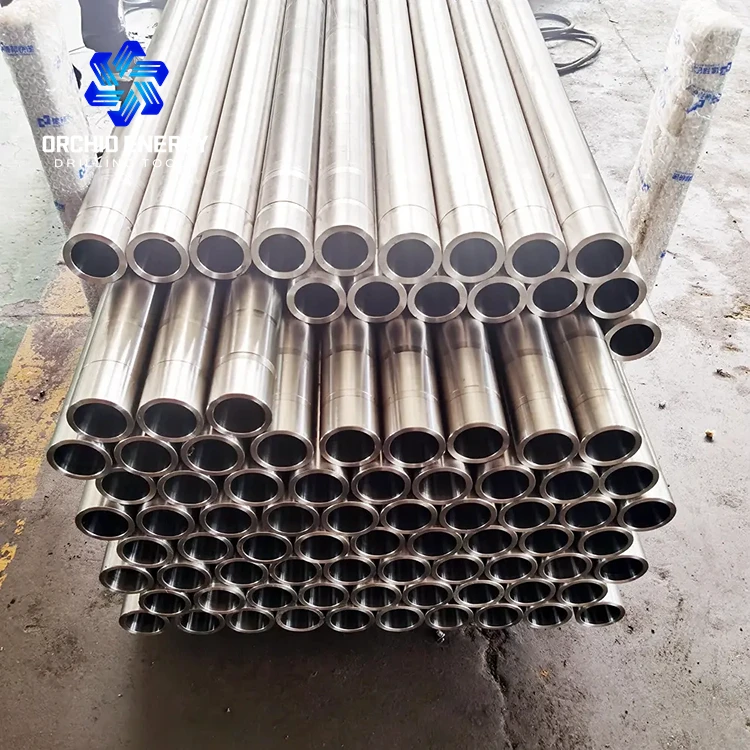

Non-Magnetic Drill Collar (NMDC) is specialized tools extensively employed in the oil and gas industry to facilitate efficient drilling operations while minimizing magnetic interference. Orchid Energy can provide slick/spiral/flex/pony types of non-magnetic drill collar.
Constructed from low or non-magnetic alloys, such as stainless steel or non-magnetic steel composites, NMDCs offer a crucial solution to eliminate magnetic fields’ disruptive effects during drilling activities.
Orchid Energy Non-Magnetic Drill Collar (NMDC) are made from low-carbon stainless steel as API specification and implementation of SY/T5144 standard, which can be cold thread rolling, machine special double shoulder thread and do as other specifications request. Non-Magnetic Drill Collar are as a housing for MWD tools and also could provide weight for drill string.
Constructed from low or non-magnetic alloys, such as stainless steel or non-magnetic steel composites, NMDCs offer a crucial solution to eliminate magnetic fields’ disruptive effects during drilling activities.
Orchid Energy Non-Magnetic Drill Collar (NMDC) are made from low-carbon stainless steel as API specification and implementation of SY/T5144 standard, which can be cold thread rolling, machine special double shoulder thread and do as other specifications request. Non-Magnetic Drill Collar are as a housing for MWD tools and also could provide weight for drill string.
Types of Drill Collar Orchid Energy Supplies:

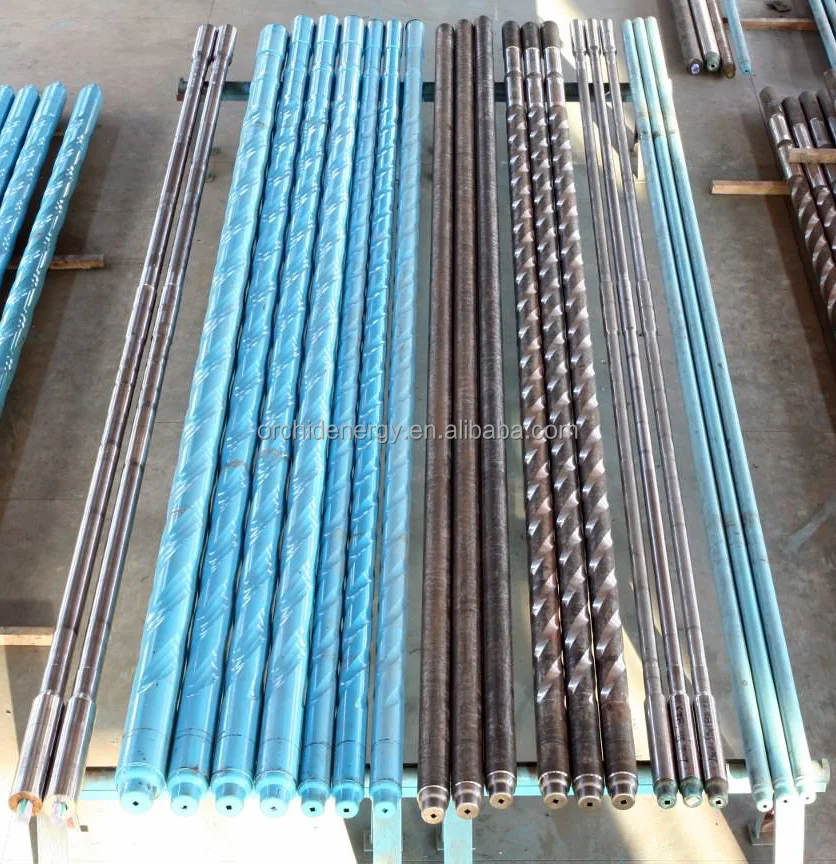

Orchid Energy could offer a series type of borehole drill collars as shown in the picture above including:
1. CONVENTIONAL DRILL COLLAR: slick type and spiral type.
2. NON-MAGNETIC DRILL COLLAR: slick type, spiral type and flex type.
Spiral Drill Collar (Standard and Non-magnetic Type)

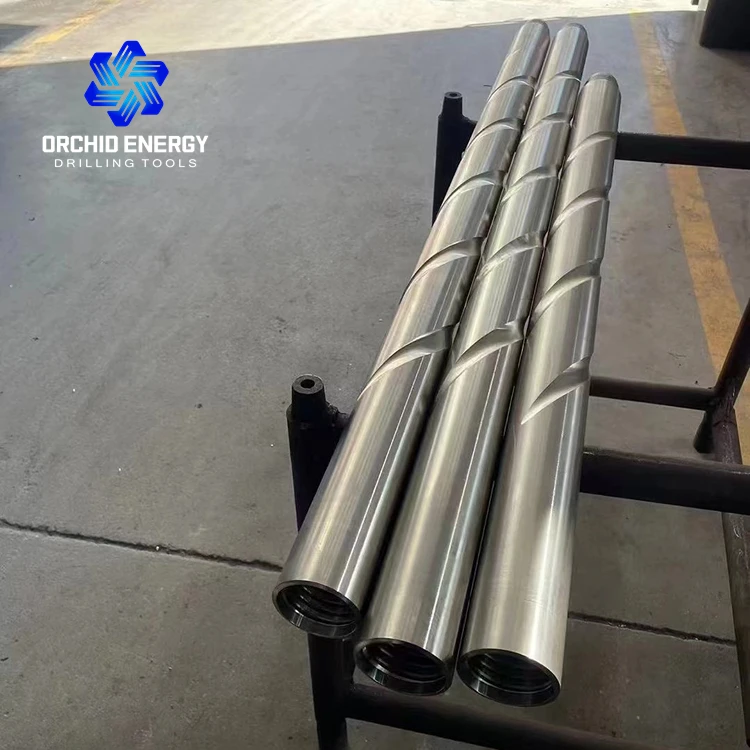

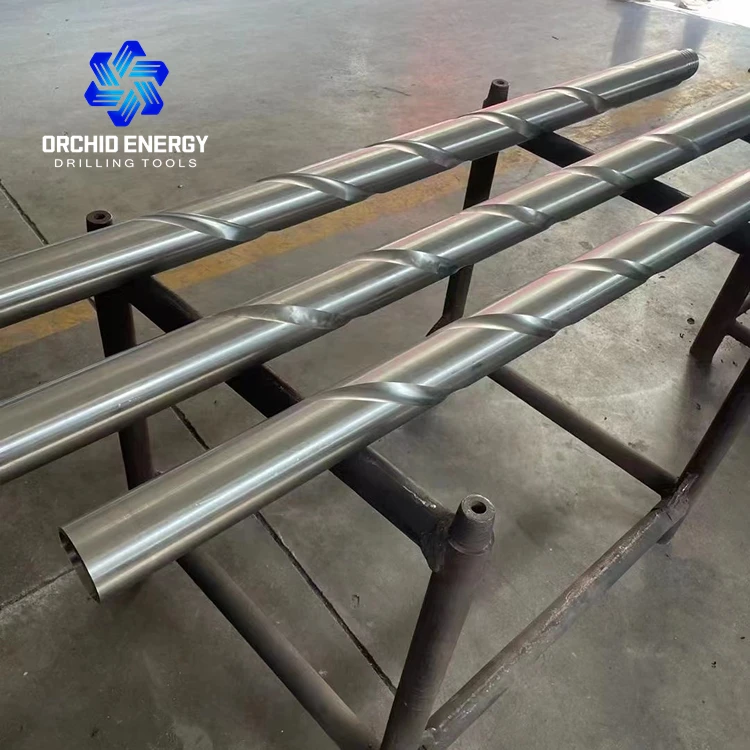

The surface of drill collars (including NMDC) can be processed as spiral grooving to avoid different pressure sticking of drilling fluid in the hole. Followings are some key points about spiral drill collars.

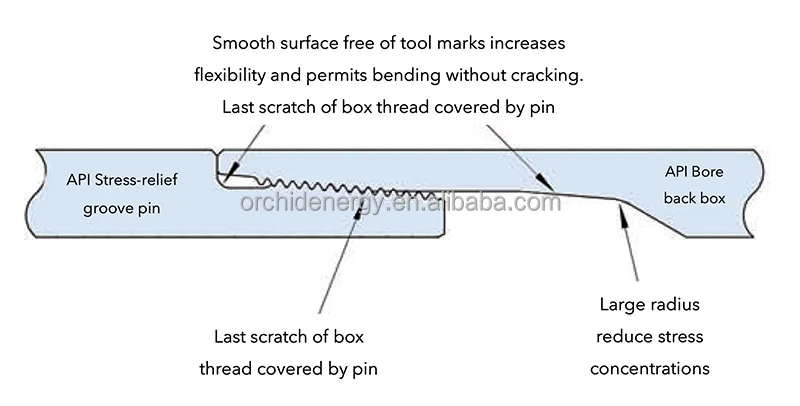

1. Stress relief groove & Bore back box
Stress relief grooves improve bending strength of pin and box connections and, therefore, durability. Stress relief grooves for box and pin are defined by Apl. Bore back box is nothing but gradual reduction of diameter by gradually increasing internal material cross sectional area at critical section. This will ultimately reduce drastically stress concentration during Static / Dynamic loading and prevents box connections from failure.
2. Hardbanding
We could provide hardbanding material ARNCO 100XT, ARNCO 300XT, TCS8000. Here's the recommended hardbanding location:
①Drill collars with slip and elevator recesses
·4"long wear pad above elevator recess
·1 "long wear pad above slip recess.
·1 0"long wear pad under slip recess
②Drill collars with slip recess
·10"long wear pad under slip recess
·4"long wear pad above slip recess
③Drill collars without slip and elevator recesses
·10"long wear pad at 30"from pin shoulder.
3. Slip and Elevator Recess
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Specification
Connection | OD | ID | Length (mm) | Bevel Diameter (mm) | Weight (lb/ft) | Bending Strength Ratio | ||||
(in) | (mm) | (in) | (mm) | |||||||
NC23-31 | 3 1/8 | 79.4 | 1 1/4 | 31.8 | 9150 | 76.2 | 22 | 2.57:1 | ||
NC26-35 | 3 1/2 | 88.9 | 1 1/2 | 38.1 | 9150 | 82.9 | 27 | 2.42:1 | ||
NC31-41 | 4 1/8 | 104.8 | 2 | 50.8 | 9150 | 100.4 | 35 | 2.43:1 | ||
NC35-47 | 4 3/4 | 120.7 | 2 | 50.8 | 9150 | 114.7 | 47 | 2.58:1 | ||
NC38-50 | 5 | 127 | 2 1/4 | 57.2 | 9150 | 121.0 | 53 | 2.38:1 | ||
NC44-60 | 6 | 152.4 | 2 1/4 | 57.2 | 9150 or 9450 | 144.5 | 83 | 2.49:1 | ||
NC44-60 | 6 | 152.4 | 2 13/16 | 71.4 | 9150 or 9450 | 144.5 | 75 | 2.84:1 | ||
NC44-62 | 6 1/4 | 158.8 | 2 1/4 | 57.2 | 9150 or 9450 | 149.2 | 91 | 2.91:1 | ||
NC46-62 | 6 1/4 | 158.8 | 2 13/16 | 71.4 | 9150 or 9450 | 150.0 | 83 | 2.63:1 | ||
NC46-65 | 6 1/2 | 165.1 | 2 1/4 | 57.2 | 9150 or 9450 | 154.8 | 99 | 2.76:1 | ||
NC46-65 | 6 1/2 | 165.1 | 2 13/16 | 71.4 | 9150 or 9450 | 154.8 | 91 | 3.05:1 | ||
NC46-67 | 6 3/4 | 171.4 | 2 1/4 | 57.2 | 9150 or 9450 | 159.5 | 108 | 3.18:1 | ||
NC50-67 | 6 3/4 | 171.4 | 2 13/16 | 71.4 | 9150 or 9450 | 159.5 | 108 | 2.37:1 | ||
NC50-70 | 7 | 177.8 | 2 1/4 | 57.2 | 9150 or 9450 | 164.7 | 117 | 2.54:1 | ||
NC50-70 | 7 | 177.8 | 2 13/16 | 71.4 | 9150 or 9450 | 164.7 | 110 | 2.73:1 | ||
NC50-72 | 7 1/4 | 184.2 | 2 13/16 | 71.4 | 9150 or 9450 | 169.5 | 119 | 3.12:1 | ||
NC56-77 | 7 3/4 | 196.8 | 2 13/16 | 71.4 | 9150 or 9450 | 185.3 | 139 | 2.70:1 | ||
NC56-80 | 8 | 203.2 | 2 13/16 | 71.4 | 9150 or 9450 | 190.1 | 150 | 3.02:1 | ||
6 5/8REG | 8 1/4 | 209.6 | 2 13/16 | 71.4 | 9150 or 9450 | 195.7 | 160 | 2.93:1 | ||
NC61-90 | 9 | 228.6 | 2 13/16 | 71.4 | 9150 or 9450 | 212.7 | 195 | 3.17:1 | ||
7 5/8REG | 9 1/2 | 241.3 | 3 | 76.2 | 9150 or 9450 | 223.8 | 216 | 2.81:1 | ||
NC70-97 | 9 3/4 | 247.6 | 3 | 76.2 | 9150 or 9450 | 232.6 | 229 | 2.57:1 | ||
NC70-100 | 10 | 254 | 3 | 76.2 | 9150 or 9450 | 237.3 | 243 | 2.81:1 | ||
8 5/8REG | 11 | 279.4 | 3 | 76.2 | 9150 or 9450 | 266.7 | 299 | 2.84:1 | ||
Tolerance of Non-magnetic Drill Collar | ||||||||||
OD Range | OD | ID | Length | Shoulder chamfer diameter-DF | ||||||
(mm) | (Inch) | |||||||||
≤88.9 | ≤3 1/2 | +1.2 0 | +1.6 0 | ＋152.4 | ±0.4 | |||||
＞88.9 - 114.3 | ＞3 1/2 - 4 1/2 | +1.6 0 | ||||||||
＞114.3 - 139.7 | ＞4 1/2 - 5 1/2 | +2.0 0 | ||||||||
＞139.7 - 165.1 | ＞5 1/2 - 6 1/2 | +3.2 0 | ||||||||
＞165.1 - 215.9 | ＞6 1/2 - 8 1/2 | +4.0 0 | ||||||||
＞215.9 - 241.3 | ＞8 1/2 - 9 1/2 | +4.8 0 | ||||||||
＞241.3 | ＞9 1/2 | +6.4 0 | ||||||||
Spiral Grooved Drill Collars (usual sizes) | ||||||||||||||||||
O.D. (in) | 4 3/4 | 6 1/4 | 6 3/4 | 7 1/4 | 7 1/2 | 8 | 9 1/2 | 10 | 11 | |||||||||
Depth of cut (in) | 7/32 | 9/32 | 5/16 | 11/32 | 11/32 | 3/8 | 13/32 | 7/16 | 15/32 | |||||||||
±1/32 | ±1/16 | ±1/16 | ±1/16 | ±1/16 | ±1/16 | ±3/12 | ±3/12 | ±3/12 | ||||||||||
Spiral pitch (in) | 38 | 42 | 46 | 64 | 64 | 68 | 71 | 76 | 80 | |||||||||
±1 | ||||||||||||||||||
Note 1-Loss of weight is approximatively 4%, compared to slick drill collars.
Note 2-Length of spiraled section allows reconditioning of connections.
Note 2-Length of spiraled section allows reconditioning of connections.
