High performance long marble cutting machine automatic 5axis bridge cutting saw router for 3d caring for headstone for sale
- Category: >>>
- Supplier: Jinan Blue Elephant Cnc Machinery Co. Ltd.
Share on (1601032998196):
Product Overview
Description
Product Description
Affordable Cost-effective Automatic 5 Axis Bridge Saw Quartz Slab Production Line for Stone Cutting and Polishing for sale
Features:

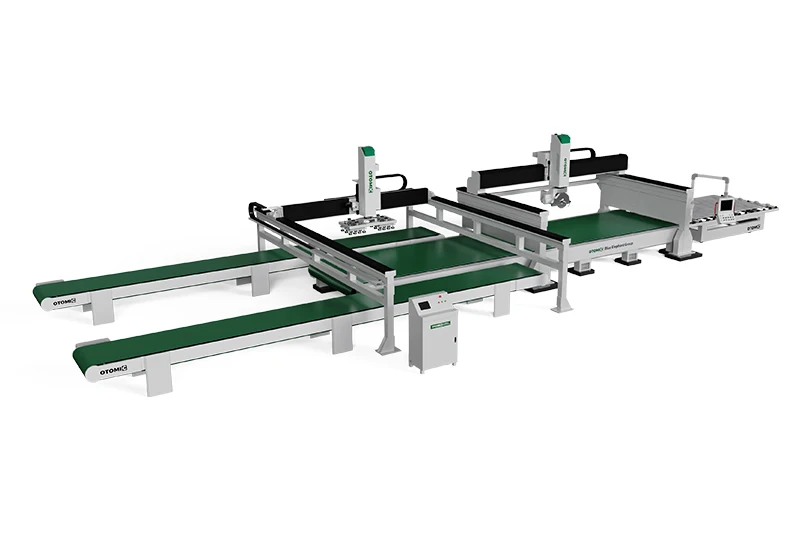

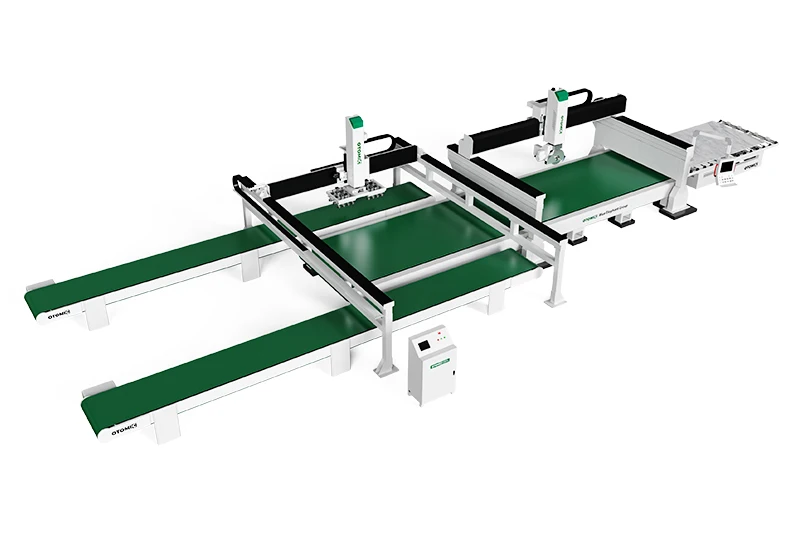

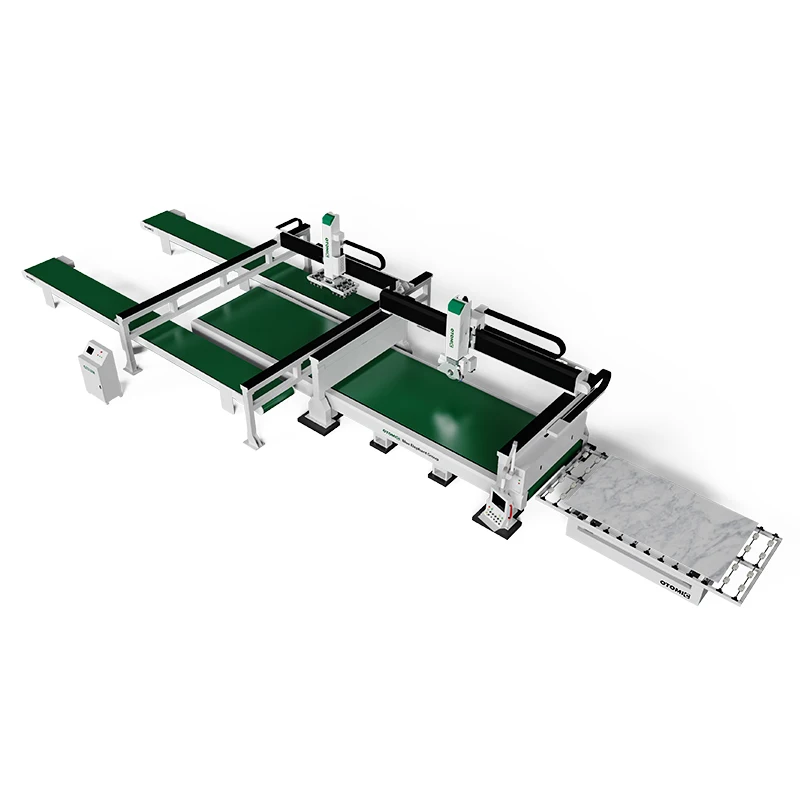

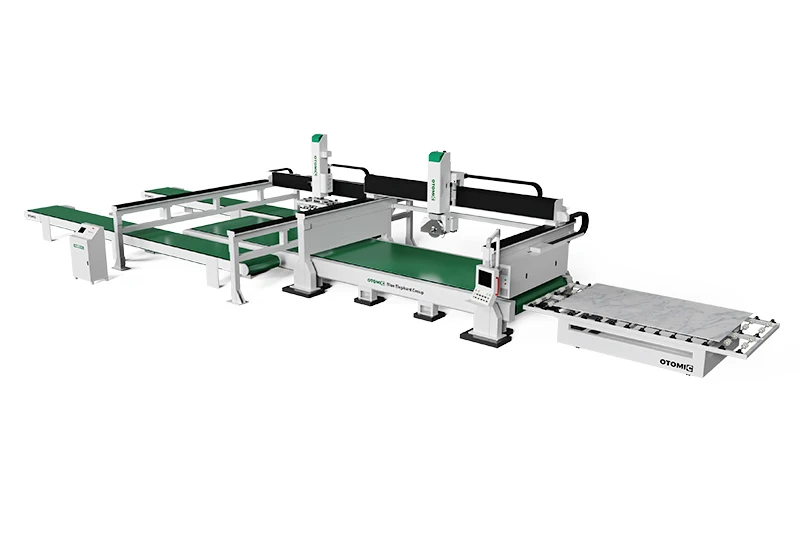

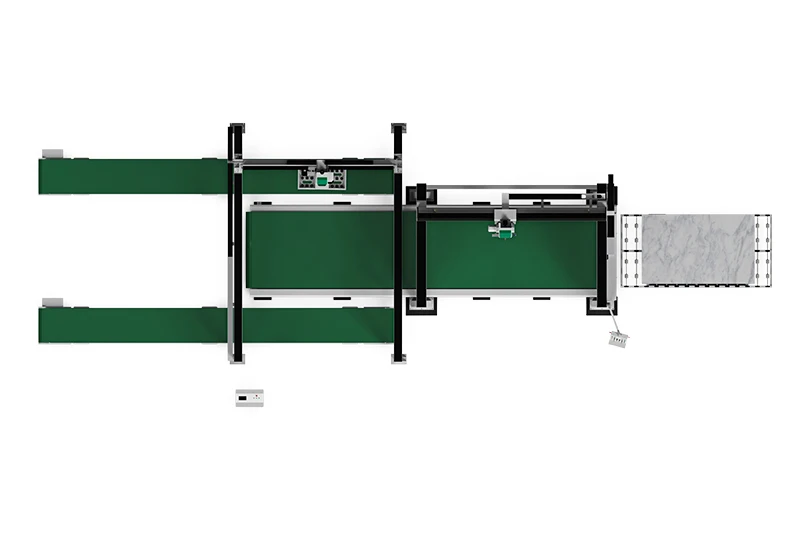

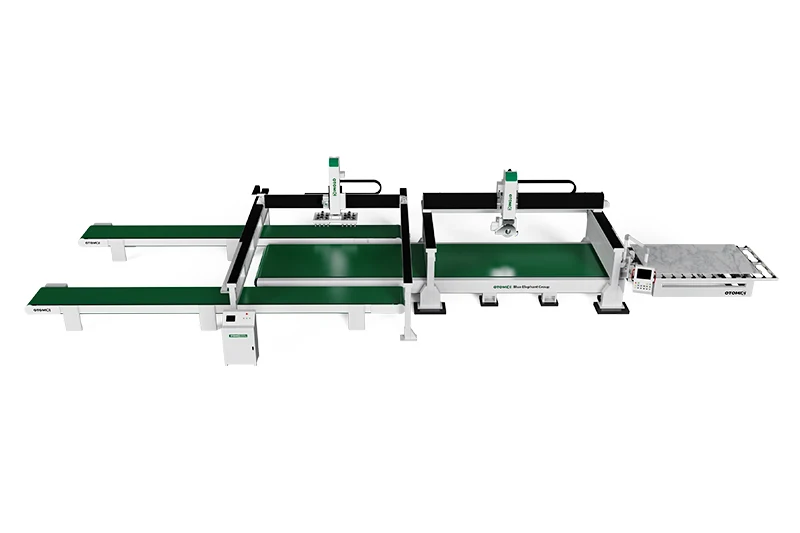

This quartz stone cutting production line is a high-end stone processing center newly developed and manufactured by Blue Elephant. The 5 axis bridge saw quartz stone cutting line is consisted of three parts: a loading machine, a 5 axis bridge saw machine and an an unloading machine. This quartz stone production line is specifically designed to solve various special-shaped processing of stone materials. It is compatible with functions of stone cutting, profiling, special-shaped cutting, edge grinding, polishing and so on. It is often used in stone processing for waterscapes, gardens, and high-end villas.
Place the large stone slabs on the fully automatic loading machine. Thus it will transport the stone slabs to the 5-axis bridge cutting machine, saving loading time and labor, and improves work efficiency.
2. 5 axis bridge saw machine
The 5 axis bridge saw machine can take pictures and position through the visual function. It can also cut according to the pre-arranged engineering documents, making it more intelligent and easier to operate.
3. High automation
The production line control system automatically sets tools, moves stone slabs, and completes stone cutting.
4. Automatic stone unloading
The automatic unloading machine can be assigned to designated wire racks or palletizing racks according to the process, which greatly saves unloading time and reduces manual errors.
Technical parameters
QX3400-5X-SP Quartz Stone Cutting Production Line | ||||||
Bridge Saw | Working travel | X, Y, and Z | 3400*2000*250mm | |||
C axis | ±365° | |||||
A axis | 0-90° | |||||
Worktable (optional) | Max. weight for feeding | 1500kg | ||||
Max. speed for feeding | 10m/min | |||||
Saw | Dimension | 450mm | ||||
Maximum thickness | 80mm | |||||
Moving speed | 25m/min | |||||
Spindle | 22kw water cooling spindle, 4000rpm | |||||
Control system | CutCam | |||||
Motor | CutCam servo | |||||
Reducer | Japan SHIMPO | |||||
Size | 6000×3500×3600mm | |||||
Loader | Working travel | X, Y, and Z | 3500*4000*1000mm | |||
A axis | 0-90° | |||||
Control system | CutCam | |||||
Motor | CutCam servo | |||||
Reducer | Japan SHIMPO | |||||
Moving speed | 25m/min | |||||
Max suction size | 3200×1200mm | |||||
Min suction size | 300×150mm | |||||
Power | 8kw | |||||
Weight | 3000kg | |||||
Machine size | 5000×5800×3800mm | |||||
Product Details
Electronic Components
Using the standard components with CE certification, such as Germany Schneider company.
Guide Rail
Taiwan guide rail which ensure high weigh capacity, high precision, and stable performance.
Motor and Driver
Japan YASKAWA Servo motors & drivers from Japan, which ensurs the machine's stronger strength and high accuracy.
Spindle
55 kw mechanical main spindle, which is durable and has a strong power.
SYNTEC Control System
This machine adopts Taiwan SYNTEC control system. With an open PLC program, customers can plan according to processing needs.
Tool Magazine
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Sample & Application
Suitable for drilling,sanding,edging,carving on artifical stone,quartz stone, marble, granite,ceramics,glass,ceramic stones and other anomalous stones.
In addition,it is suitable for making cabinets,countertops,sinks,European style edging,splashbacks and so on.
In addition,it is suitable for making cabinets,countertops,sinks,European style edging,splashbacks and so on.
40% customer choice
Customer feedback
American customers visit the factory
Feedback from New Zealand customers
After sales service in Holland
After-sales in Cyprus
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* More than 95% of the timely response rate, timely response to customer questions
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packing & Delivery
Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
