Semi automatic PCB Hot Bar Tin Soldering Machine
- Category: >>>
- Supplier: Suzhou Crown Electronic Technology Co. Ltd.
Share on (1601033664722):
Product Overview
Description

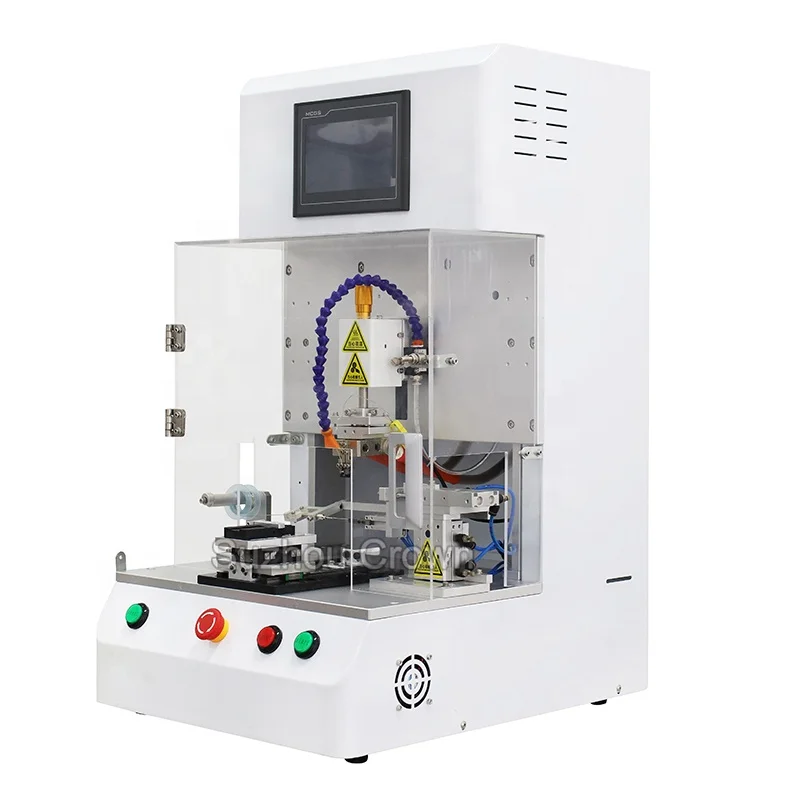

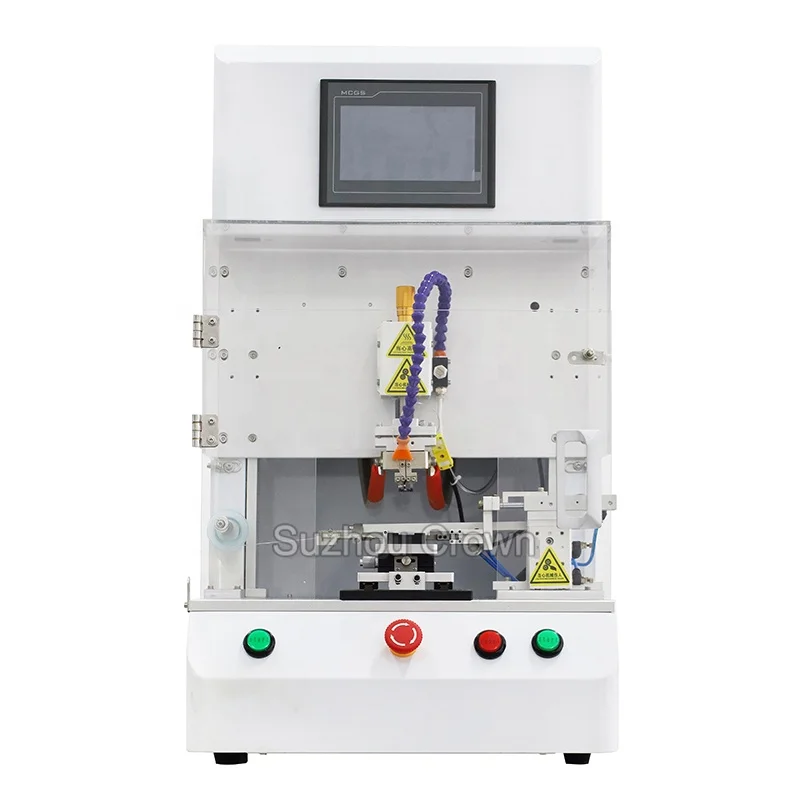

Semi-automatic PCB Hot Bar Tin Soldering Machine
Specification:
The hot bar soldering machine is mainly suitable for the hot bar soldering machine process between high-density Lvds, FPC, FFC, ACF, TAB, ultra-fine coaxial lines, wires and PCBs, and connectors.
○ Adopt PLC control system, pulse heating method, and cooperate with various alloy indenter(Titanium or molybdenum alloy indenter), accurate temperature control.
○ Touch screen display input, real-time temperature curve display, and all parameter setting browsing is simple and intuitive.
○ Power adaptive adjustment, the whole machine has leakage protection function, safe and reliable.
○ Using motor for pressurization, the welding position can be adjusted accurately, and the solder joints will be full and bright.

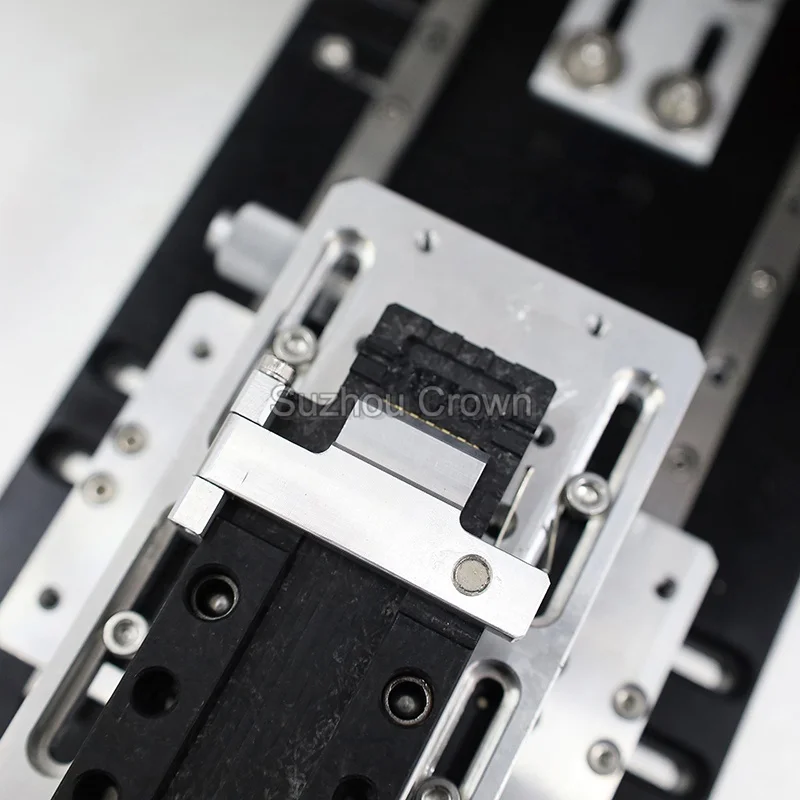

○ The platform can be used to pick and place materials, with a longitudinal stroke of 50MM, which can be customized according to needs.
The hot bar soldering machine is mainly suitable for the hot bar soldering machine process between high-density Lvds, FPC, FFC, ACF, TAB, ultra-fine coaxial lines, wires and PCBs, and connectors.
○ Adopt PLC control system, pulse heating method, and cooperate with various alloy indenter(Titanium or molybdenum alloy indenter), accurate temperature control.
○ Touch screen display input, real-time temperature curve display, and all parameter setting browsing is simple and intuitive.
○ Power adaptive adjustment, the whole machine has leakage protection function, safe and reliable.
○ Using motor for pressurization, the welding position can be adjusted accurately, and the solder joints will be full and bright.
○ The platform can be used to pick and place materials, with a longitudinal stroke of 50MM, which can be customized according to needs.
Product Description
Specification
Model | WL-HBH |
Rated voltage | 220V, 50Hz |
Temperature setting range | 50-600℃ |
Heating stage | 1-4 stages |
Hot head cooling method | air cooling |
Indenter accuracy | ±0.03mm |
Temperature accuracy | ±5℃ |
Z-axis motion | screw drive |
Z-axis travel | 50mm |
Drawing type automatic tin feeding | cylinder driven |
Dimensions | 450x560x850mm (width x length x height ) |
Weight | 80KG |
Heating power | 2000W |
Packing & Delivery
Export standard package
