bulldozer Segment Bolt Nuts high quality Grade 12.9 bolt nut SCREW OF 5P7665 CA T D7R SPROCKET BOLT
bulldozer Segment Bolt Nuts high quality Grade 12.9 bolt nut SCREW OF 5P7665 CA T D7R SPROCKET BOLT
bulldozer Segment Bolt Nuts high quality Grade 12.9 bolt nut SCREW OF 5P7665 CA T D7R SPROCKET BOLT
bulldozer Segment Bolt Nuts high quality Grade 12.9 bolt nut SCREW OF 5P7665 CA T D7R SPROCKET BOLT
bulldozer Segment Bolt Nuts high quality Grade 12.9 bolt nut SCREW OF 5P7665 CA T D7R SPROCKET BOLT

bulldozer Segment Bolt Nuts high quality Grade 12.9 bolt nut SCREW OF 5P7665 CA T D7R SPROCKET BOLT

Share on (1601034348889):


Price:$0.90 - $1.50

Quantity:


Product Overview

Description


bolt photoplow boltbPRODUCT-DESCRIPTION


01




















































Xiamen Globe Truth (GT) Industries Co., Ltd.

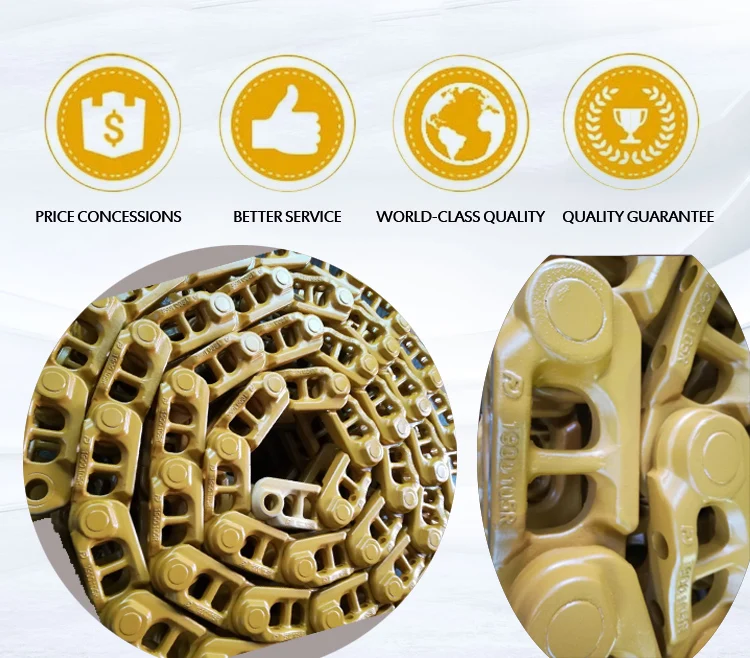

Product  InformationUndercarriage parts/Track chain
Material35MnBH
ColorsBlack or yellow
TechniqueForging & casting
Surface Hardness52-56HRC
Heat Treatment:quenching+induction+tempering
CertificationISO9001-9002
Delivery TimeWithin 30 days after contract established
PackageFumigate seaworthy packing
Payment Term

(1) T/T,30% in deposit,balance on the receipt of copy of B/L


(2)L/C,Irrevocable letter of credit at sight


Business Scope

Bulldozer & excavator undercarriage parts,underground engage tools,hydraulic track press,hydraulic pump etc...





























Material Analysis
DescriptionMaterialHeat treatment and hardness
Link35MnBHTempered hardness:HRC30°- 36°
Track surface:HRC50 - 55°
Harden depth:5-9mm
Bushing40CrTempered hardness:HRC32°- 36°
Hardness of outer diameter: HRC55°- 60°
Hardness of inner diameter: HRC36°- 42°
Harden depth of outer and inner: 2.5-3mm
Pin40CrTempered hardness: HRC55°- 60°
Harden depth of outer and inner: 3-5mm


Partial-list

























































































































































































































































































































































































































































































MODELDESCRIPTIONPITCHOEM No.
PC60-3LINK(42L)12.3mm135201-32-00131
PC60-6, PC75LINK(39L)14.3mm154201-32-00011
PC120-3LINK(43L) 14.3mm154202-32-00010
PC100-5LINK(42L)16.3mm175203-32-00101
PC200-5/6LINK(45L)20.3mm19020Y-32-00013
 LINK(49L)None Seal190
PC200-3LINK(46L)18.3mm190206-32-00011
 LINK(46L)None Seal190
PC300-3LINK(47L)20.0mm203207-32-00050
 LINK(47L)None Seal203
PC300-5LINK(47L)22.0mm203207-32-00101
PC300-6LINK(48L)216207-32-00300
PC400-3LINK(53L)22.3mm216208-32-00040
PC400-5LINK(49L)24.3mm216208-32-00101
PC400-6LINK(49L)229208-32-00300
PC650LINK(47L)260.4209-32-00022
PC1000-3LINK(51L)26021N-32-00013
PC1100-6/1250-7LINK948L)26021N-32-00101
E70LINK(42L)1351028077
E311LINK(41L)171.454I7479
CAT213/215LINK(49L)171.45
E110LINK(43L)171.45
CAT225LINK(43L)171.1
CAT225BLINK(46L)175.55A5293
CAT225DLINK(49L) 19.3mm1906Y8184
CAT320LINK(45L)1909W9354
CAT325LINK(45L)2036Y0854
CAT330LINK(45L)215.96Y2755
CAT235LINK(49L)215.98E4274
EX40/45LINK(38L)1359087953
EX60LINK(37L)1549096710
EX100LINK(41L)171.45995398
EX100M(EX150)LINK(45L)171.45AT159899
EX200-1LINK(48L)175.59066724
EX200-3LINK(46L)1909092517
EX300LINK(47L)2039140549
ZX330LINK(45L)2169202851
EX400-1LINK(49L)2169084353
EX550LINK(53L) 2289137494
EX700/750/800LINK(51L)2609152643
EX1100-3LINK(52L)2609104792
SK60LINK(38L)154
SK120LINK(43L)171.1
K907BLINK(48L)175.4
SK200LINK(49L)190
SK300LINK(47L)2035603941
SK480LCLINK(50L)22801040304
HD770LINK(47L)175.5
S50LINK(40L)135
S220LINK(52L)175.52272-1025
S220-3LINK(49L)190
S280LINK(47L)203
MX55LINK(39L)135
MX135LINK(46L)171.451181-00620
SE210 LINK(54L)171.1
SE210-2LINK(45L)1901082-02210
SE280-2LINK(47L)2031082-02651
SE350LINK(48L)2161082-00892
SE450LINK(52L)2168250-00210
R500LINK(40L)13581M6-51120
R1300-3LINK(46L)171.4581E6-2501
R2000LINK(54L)171.45
R210-7LINK(49L)19081EM-20010
R280LINK(51L)20381EM-35010
R290-7LINK(48L)216
R360LINK(51L)21681EH-20010
R450LINK(53L)21684E7-00190
FIAT 25LINK(34L)125557115
FL4LINK(35L)140580373
FL4 SPECIALLINK(35L)140
FL6LINK(35L)1605115560
FIAT 7C/FL9LINK(45L)17071400985
FH200LINK(48L)17671400996
FH300LINK(47L)202.9
BENFRA 4C/4CHLINK(36L)1403538949M91
HD11BLINK(56L)177.8
LS4300QLINK(50L)203
