The Whole Series Of Trailer Used 6 Axle 30Tons Low Bed Trailer Semi Trailer Truck with Mechanical Suspension Low Bed Semitrailer
- Category: >>>
- Supplier: Shandong Hstar Auto Co. Ltd.
Share on (1601034880763):
Product Overview
Description
Product Description

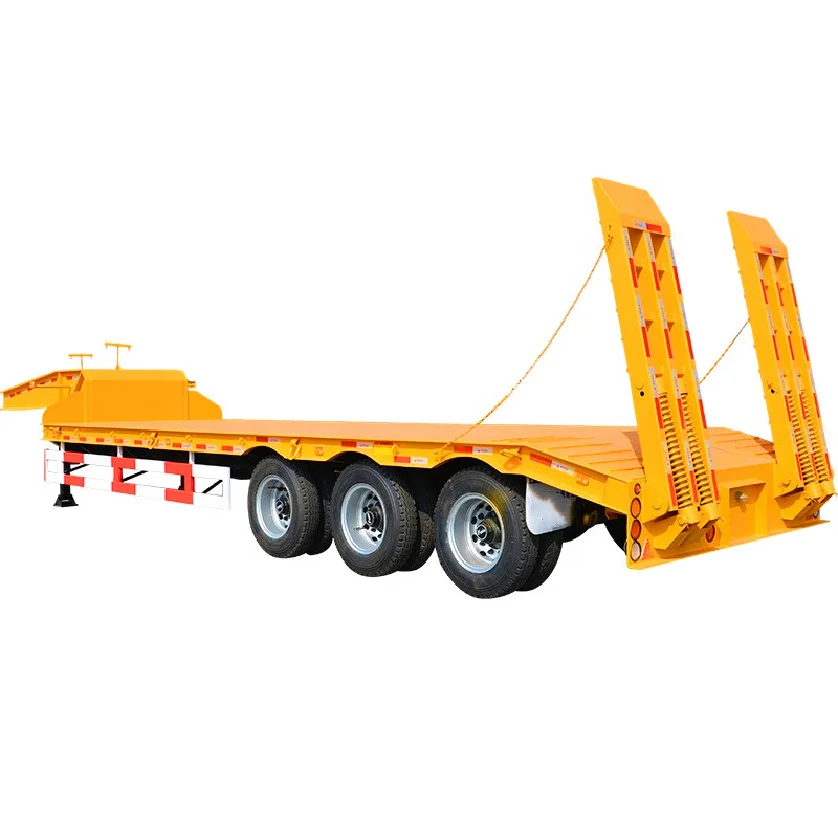

3 Axles Lowbed Semi Trailer
The 3-axle Lowbed semi-trailer is an important logistics transportation tool. It has multiple functions and unique design features, providing strong support for modern logistics transportation.
First ,the 3-axle low-bed semi-trailer uses advanced manufacturing processes and materials to ensure its structural stability and load-bearing capacity. The body is made of high-quality steel, which has high strength and durability and can withstand the pressure and vibration of heavy objects. In addition, the vehicle's chassis has a lower height, which effectively reduces the height limit of cargo, increases loading flexibility, and facilitates loading and unloading of cargo.
Secondly, the3-axle lowbed semi-trailer has a body length , which can meet the needs of small and medium-sized logistics transportation. The transportation of small and medium-sized goods is one of the mainstream forms of modern logistics. With lowbed semi-trailers, goods can be transported to their destination safely and efficiently.

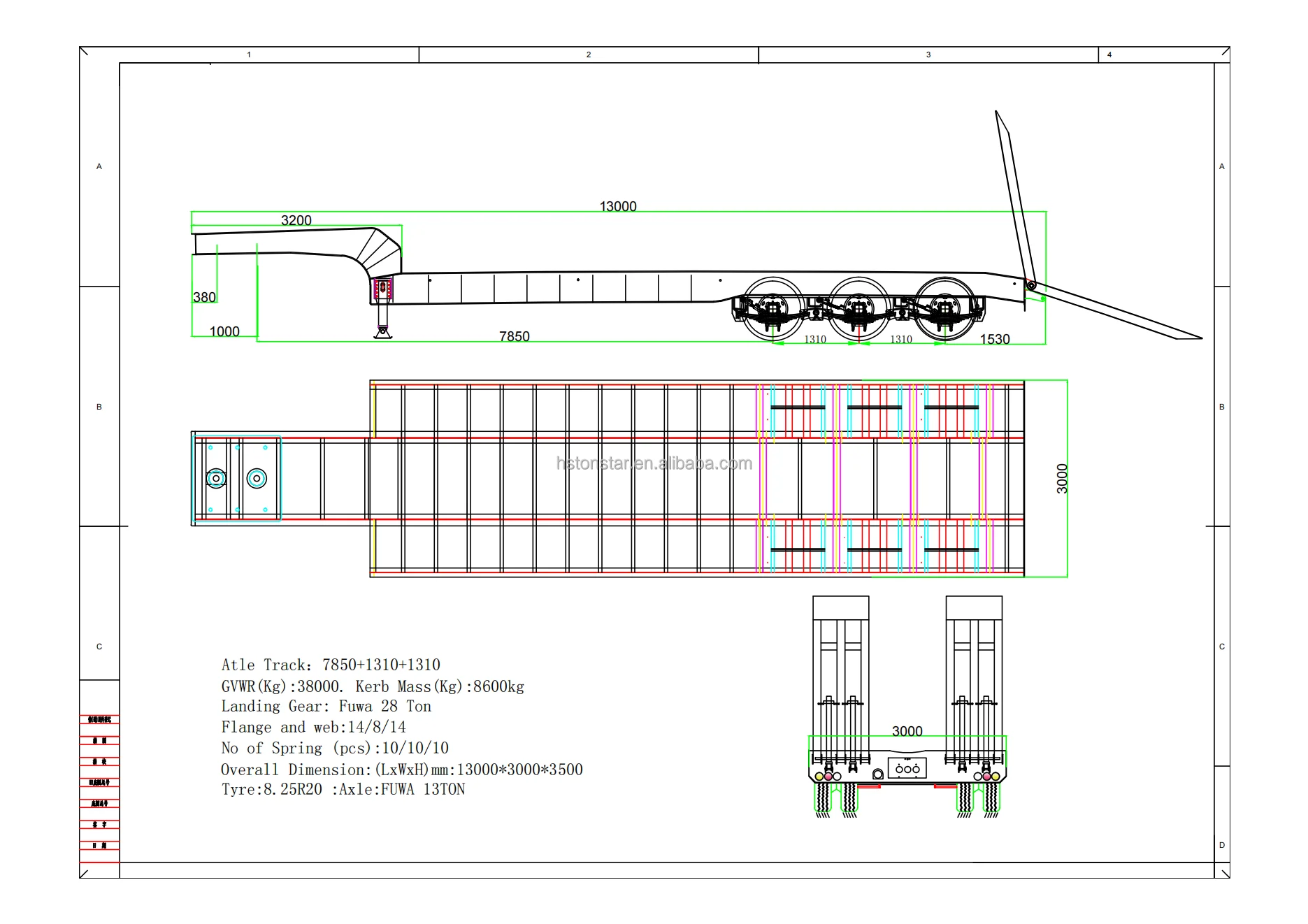

Specifications | ||
Dimension | 13m×3.00m×1.32m (Outside) | |
Payload | 60T | |
Tare weight | About 6.5 T | |
Twist lock | 12uints | |
Chassis | ||
Main beam | Heavy duty and extra durability designed I beam; Opting for high tensile steel T700, welded by automatic Submerged-Arc processes. | |
Frame Beam | Top Flange 12mm,width 140mm; Middle Flange 8mm; Bottom Flange 12mm,width 140mm, main beam height 500mm | |
Frame Floor | The Thickness is 3mm pattern | |
Axle | 3 axles, 13Ton 16ton brake pads | |
Landing Gear | Fuwa BRAND 28T lifting capacity with two speed | |
King Pin | 2.00 inch bolt-in king pin | |
Suspension | Mechanical suspension reinforced type | |
Leaf Spring | 90mm(W)*13mm(T)*10 Layer | |
Pneumatic Braking System | Dual line pneumatic brake system,T30 air chamber ,40L x2 air tanks, Emergency relay valve | |
Rim | 9.0-20*13 pcs | |
Tire | 12R22.5*13 pcs Triangle tire | |
Accessories | One standard tool box | |
Spare tire rack | One | |
Electrical system | 24 volt electrical system.7 pin electrical connector. Parking stop, reverse, number plate and indicator lights. rear lights conform to European standard, rear front and side reflectors | |
Packing and shipping | ||
Painting | Dusting | |
Shipping Terms | By container | |
Construction
Mainbeam: High strength Q345 or T700 steel materail weldedby submerged arc.

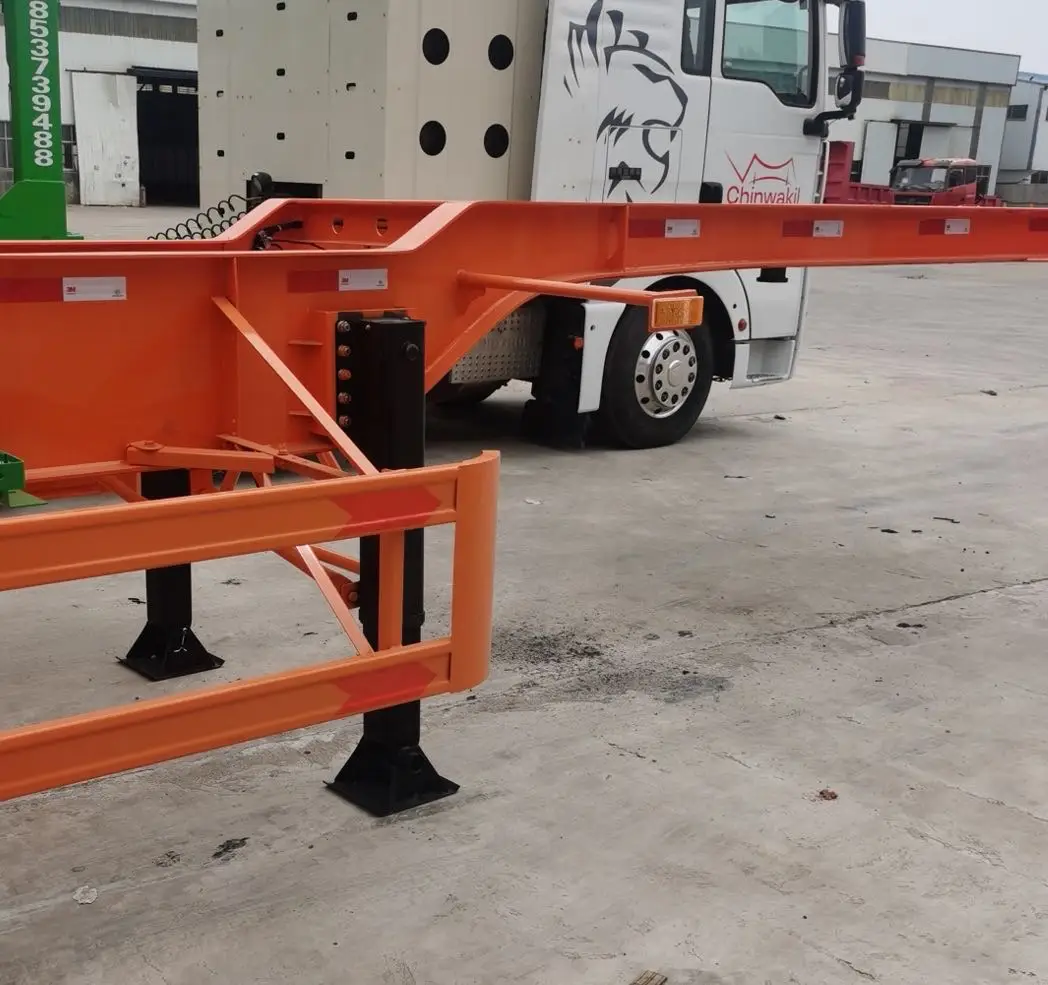

Twist Lock: ISO standard lock suitable worldwide container,additional protection switch avoid mistake opperate .Kingpin: JOST brand bolting type, changing between 2”or3.5" possible.

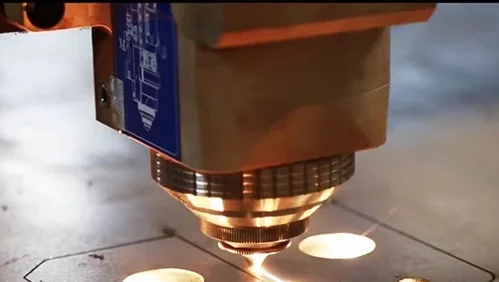

Plasma Cutting Machine
system configuration is high. Automatic arc ignition, stable performance, arc ignition success rate reaches over 99%.

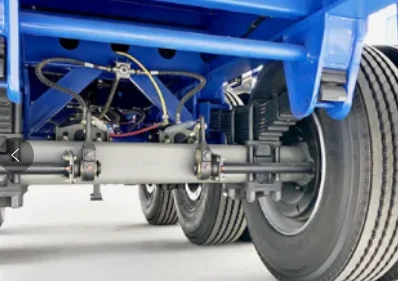

Suspenssion and Brake System
Suspension:Heavy duty mechanical suspension with equalizersquality spring Brake system:Dual line air brake system, T30/30 chamber and WABCOrelay emergency valve，ABS and EBS system optitional
Brake Pipe:Nylon wire pipe more safty for high pressure braking

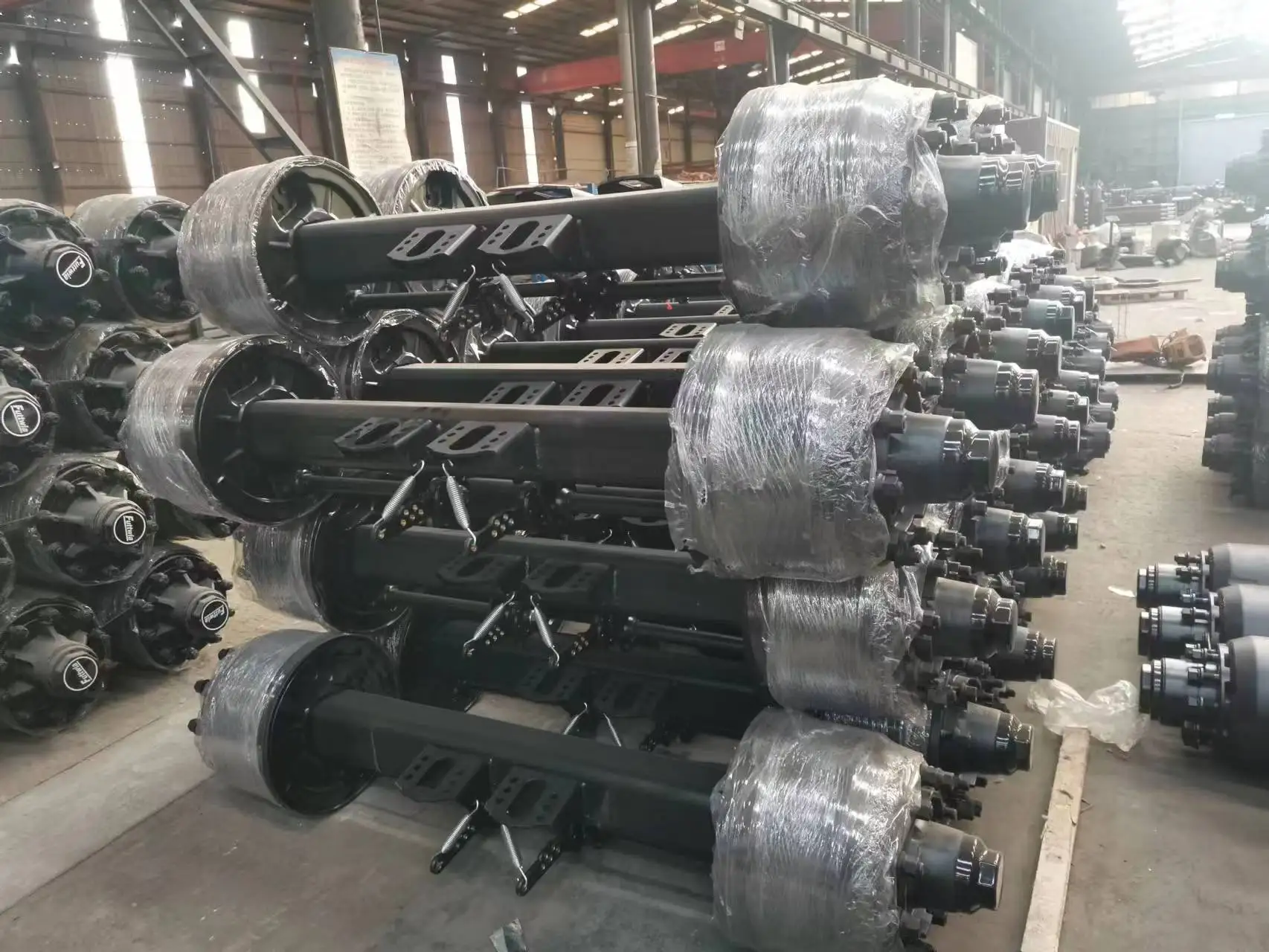

Advanced Axle Performance
Integrated advanced low-alloy axle beam with no welding points; strong capacity and high strength; axles can be free of maintenance upto 3 years or 400,000 kilometers.
Tires
High quality tire brandssuch as DoubleCoin/Linglong/MichelinTriangle/Bridqestonecan be optioned for the best performance
Landing Gear
Automatic welding construction of submerged arc welding, strengthening of key parts, targeted welding, avoiding some parts prone
to welding leakage, to ensure that vehicles work for a long time without maintenance.
Our Advantages
Company Profile
Our advantages:
1.Factory direct sale ,over 20 years of production experience, high quality with best price.
2.Our products can
be customized for various needs.And customize unique company logo is available.
3.Cutting edge automation equipment adopted in the
factory.Steel is welded by automatic submerged arc process, connection spots look more flawless, more solid and durable compared
with traditional manual ways.
4.Cover painting is more sustainable, corrosion-resistant, uniform and smooth, using sand blastingnpowder painting process .
5.Provide professional pre-sales, during and after-sales services.
6.Safety and Economic Shipping:We supervise the process from the factory to the port designated by the customer to ensure that the
customer's products arrive at the destination accurately and safely!
2.Our products can
be customized for various needs.And customize unique company logo is available.
3.Cutting edge automation equipment adopted in the
factory.Steel is welded by automatic submerged arc process, connection spots look more flawless, more solid and durable compared
with traditional manual ways.
4.Cover painting is more sustainable, corrosion-resistant, uniform and smooth, using sand blastingnpowder painting process .
5.Provide professional pre-sales, during and after-sales services.
6.Safety and Economic Shipping:We supervise the process from the factory to the port designated by the customer to ensure that the
customer's products arrive at the destination accurately and safely!
Our Factory
Customer Photos

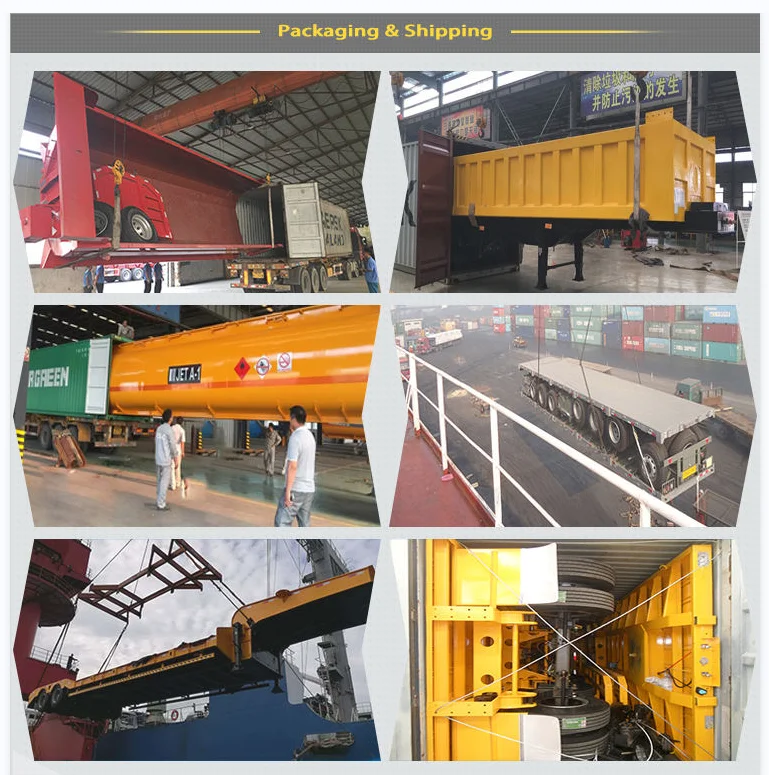

Packing & Delivery
FAQ
Q1: Does your company is a factory or trade company?
A1: We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.
Q2: Whats the qualify assurance we provided and how do we control quality?
Q3: What's your MOQ?
A3: One unit trailer or truck.
Q4: How do you transport the semi trailers ?
A4: We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
A1: We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.
Q2: Whats the qualify assurance we provided and how do we control quality?
A2: Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process. 100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
Q3: What's your MOQ?
A3: One unit trailer or truck.
Q4: How do you transport the semi trailers ?
A4: We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
