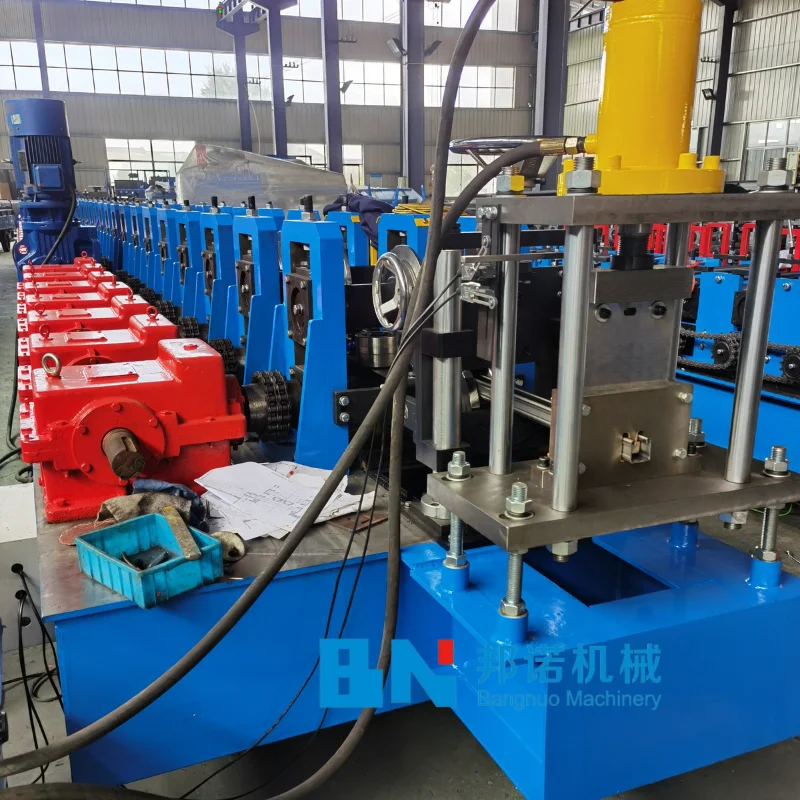

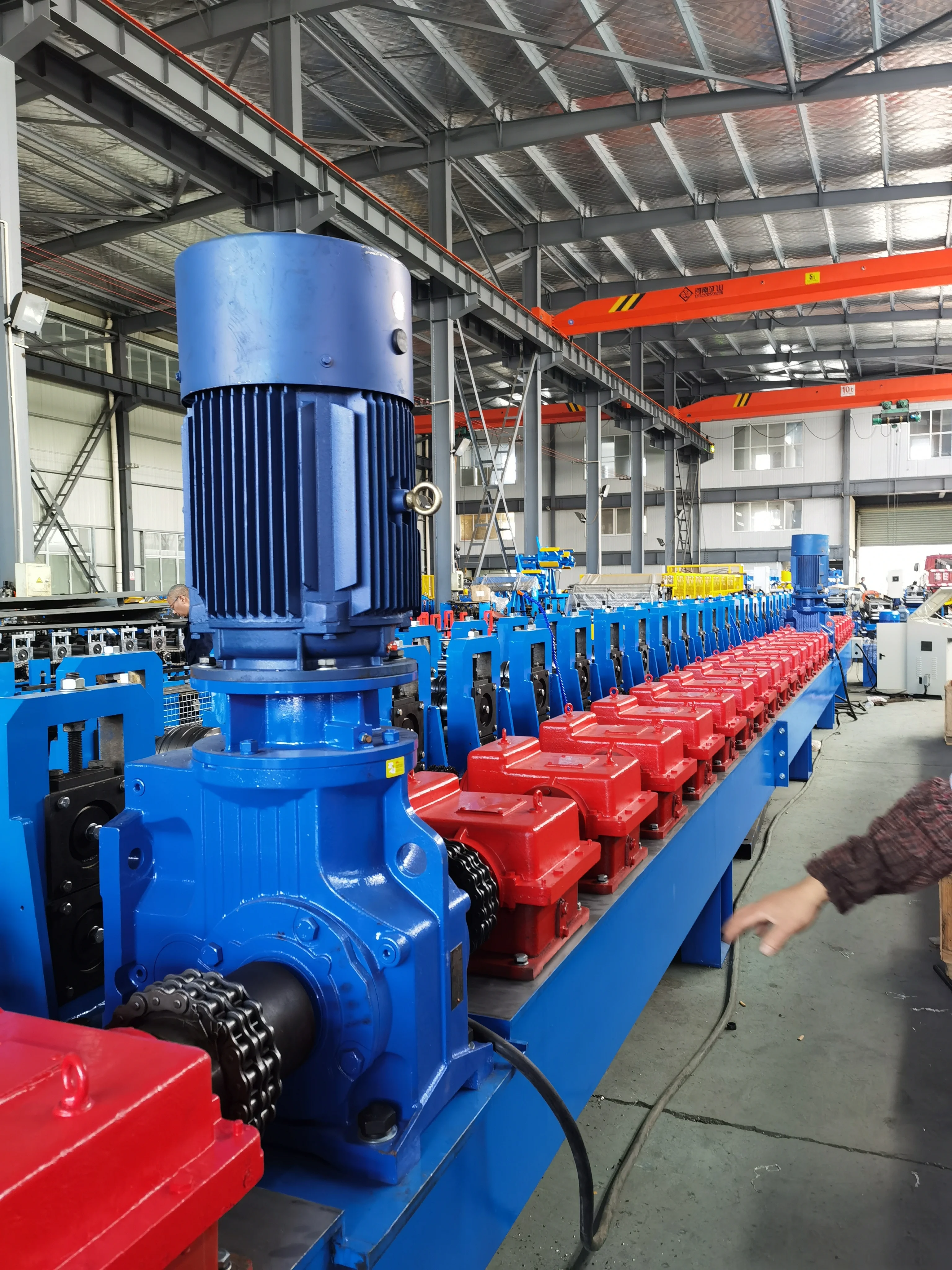

Strut Channel / Unistrut Channel making Machine Strut Channel Roll Forming Machine solar roll forming machine
- Category: >>>
- Supplier: Jiangyin Bangnuo Machinery Co. Ltd.
Share on (1601035394458):
Product Overview
Description
Products Description
Description | Explaination |
Working speed | 10-15 m/min（Shear time is not included） |
Pressed plate thickness | 1.5-3.0mm |
Control mode | Panasonic PLC |
Discharging rack | 6t hydraulic discharging rack |
Feeding | 2 groups |
Leveling | 7 groups |
Front punching | 2 groups |
Anterior shear | 1 group |
Number of molding passes | 18 lanes [Electric width adjustment] |
Roll material | Gcr15 quenching of steel after finishing HRC58-62℃，surface chrome plating |
Shaft material and diameter | 45# Steel finishing，Shaft diameter is￠76mm |
Main engine power | 15kw |
Power of hydraulic station | 5.5kw |
Hydraulic pressure | 12Mpa |
Scissors material | Cr12Mov， quench HRC 58-62℃ |
Length tolerance | 3m±1.5mm |
Voltage | 380V, 50HZ,3 phase（According to customer requirements can be adjusted） |
Transmission mode | 1.0 inch double row chain |
Equipment form | Card structure |
Equipment color | Company color |
Equipment size | L*W*H--11.5m*1.6m*1. 2m |
Date of delivery | 80 days |
Payment method | 30% advance charge，70% pay off on delivery |

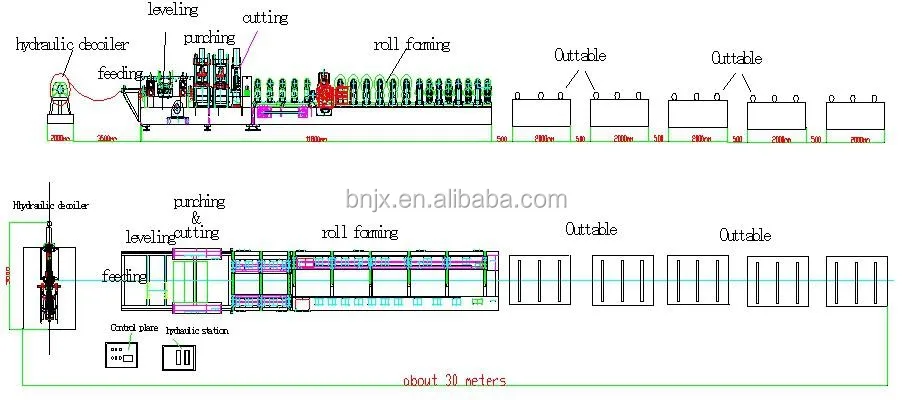

Flow Chart
Equipment composition
6t hydraulic discharging rack | 1 piece |
Molding machine | 1 set |
Front punching structure | 1 set |

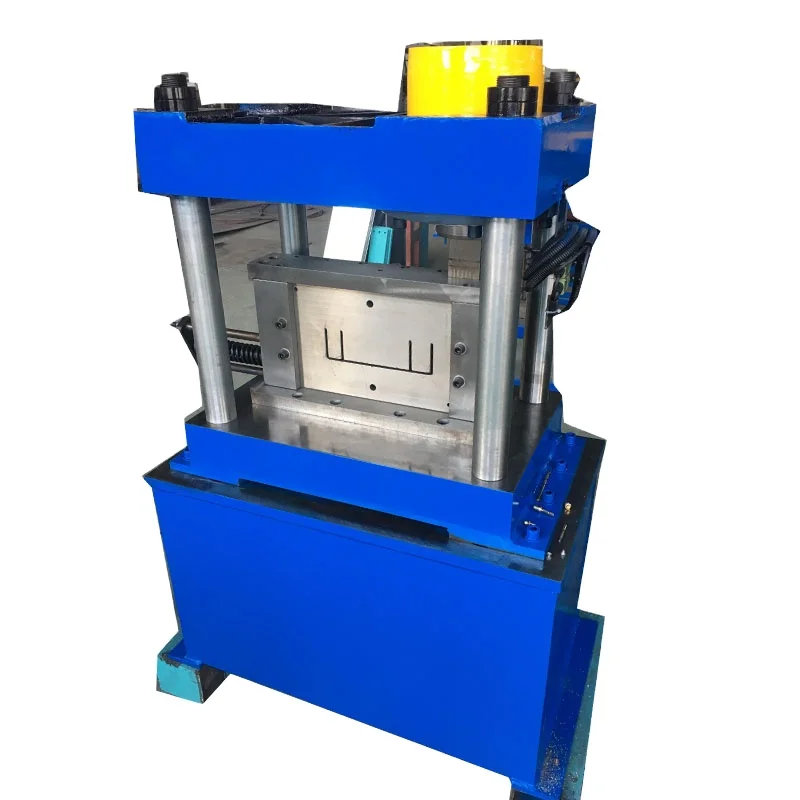

Front shear structure | 1 set |
Control cabinet | 1 set |
Hydraulic station | 1 set |
Discharge table | 2 sets |

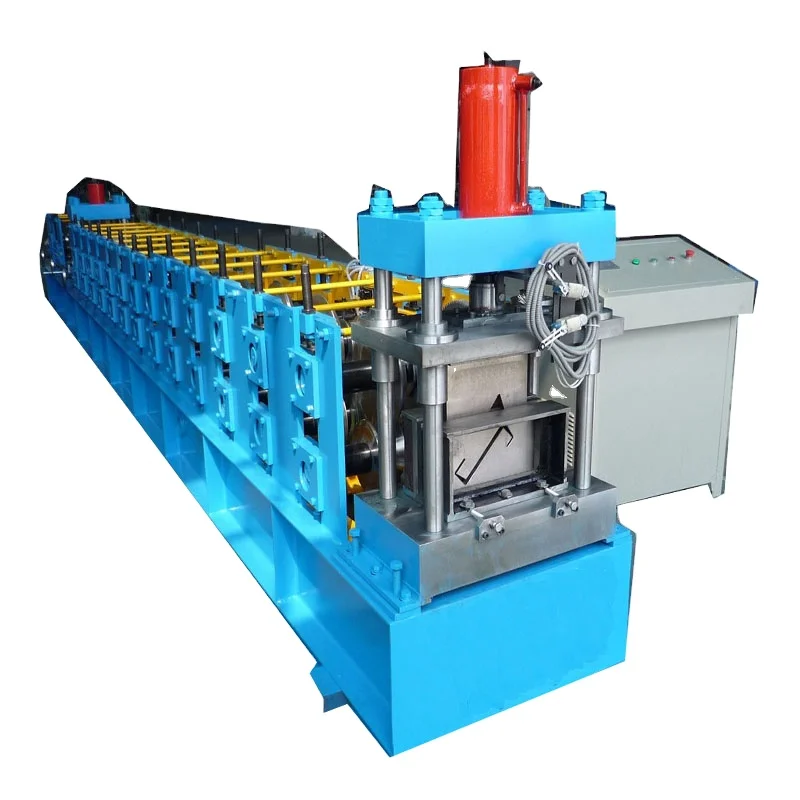

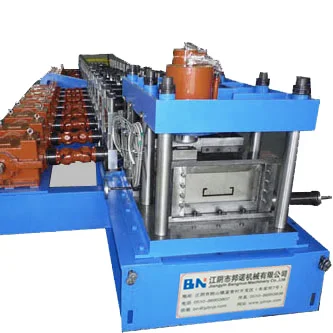

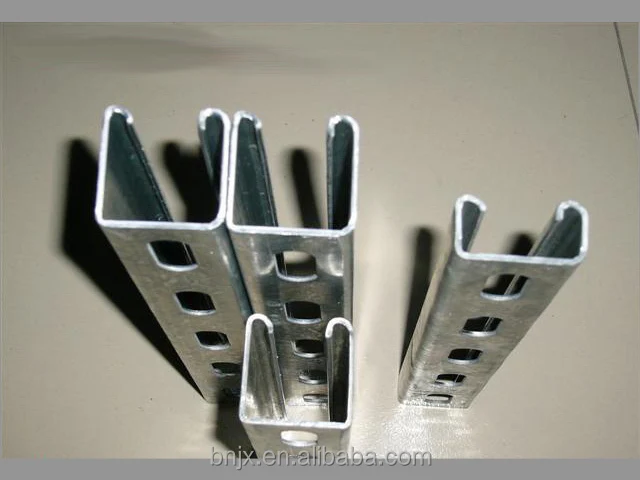

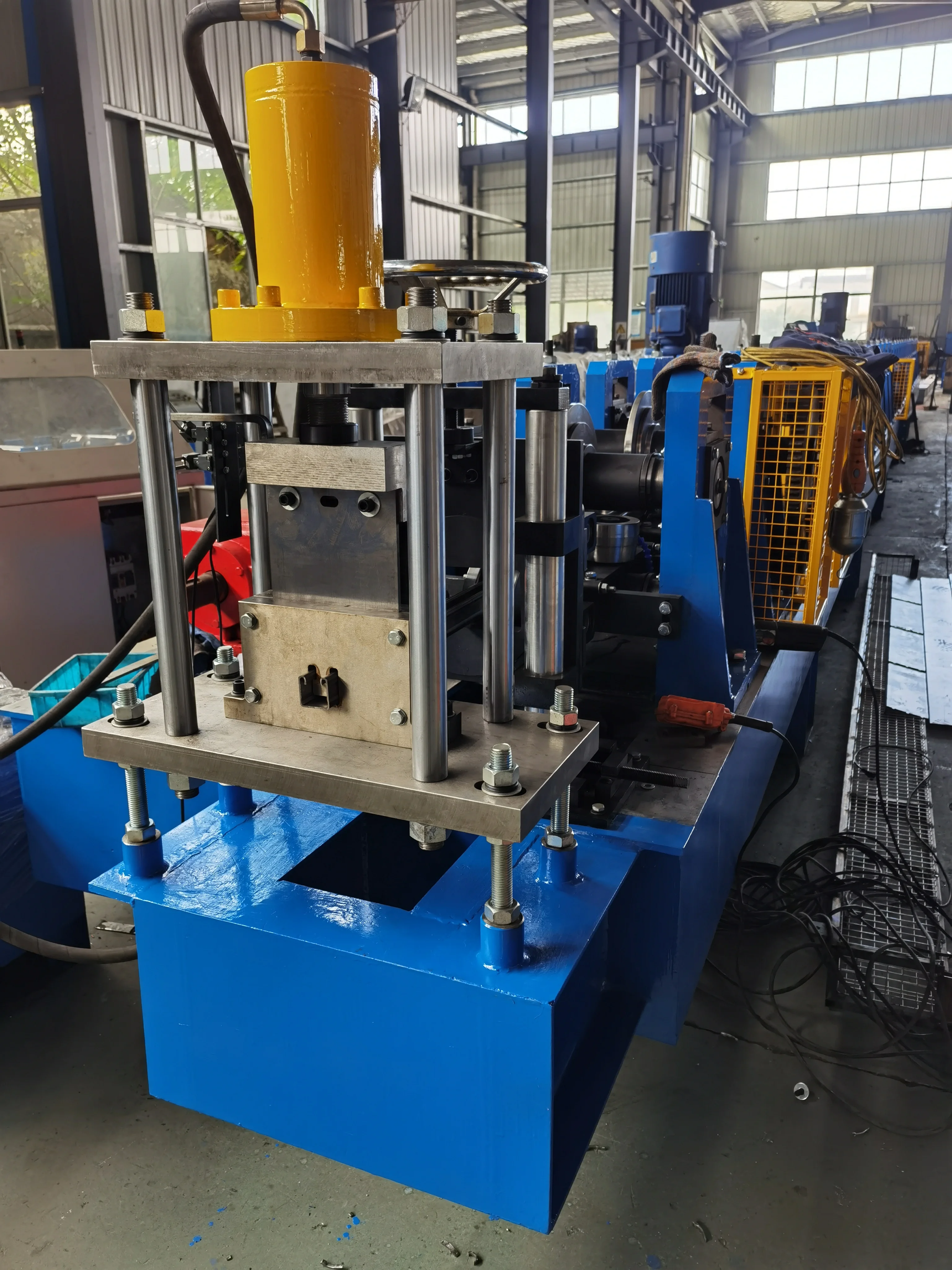

Details Images
FAQ
1.Q：What is your MOQ?
A:The minimum order quantity is one set.
2.Q:How can I order?
A:Please contact our staffs for the products you like, then we will send you a quotation.
3.Q:Can I customize the size according to my own drawing?
A:Of course, everything is according to your requirements.
4.Q:Can you make our own logo on the products?
A:Yes,custom logo is available.
5.Q:What services are available after purchase?
A:Our machine is definitely guarantee for 12 months. If there is any problem,we will send the technician to fix the problem ASAP!
Certifications
Company Profile
Company Profile.
Jiangyin Bangnuo Machinery Co.. Ltd. is a professional manufacturer dedicated Color light steel construction . C. Z steel equipment and rolling, bending molding equipment enterprises. with the design and manufacture of various types of steel sheet thickness roll forming production line strength.
Company specializing in the productian of Dagong machines, foor plate machine, guardrail plate machine, corrugated tie machine , shearing machine, sub-board machine , highway guardrail , tile machine equipment , automatic tile press , iron Piva machine, iron tile machine, all automatic C-shaped steel machine. glazed tile machine
