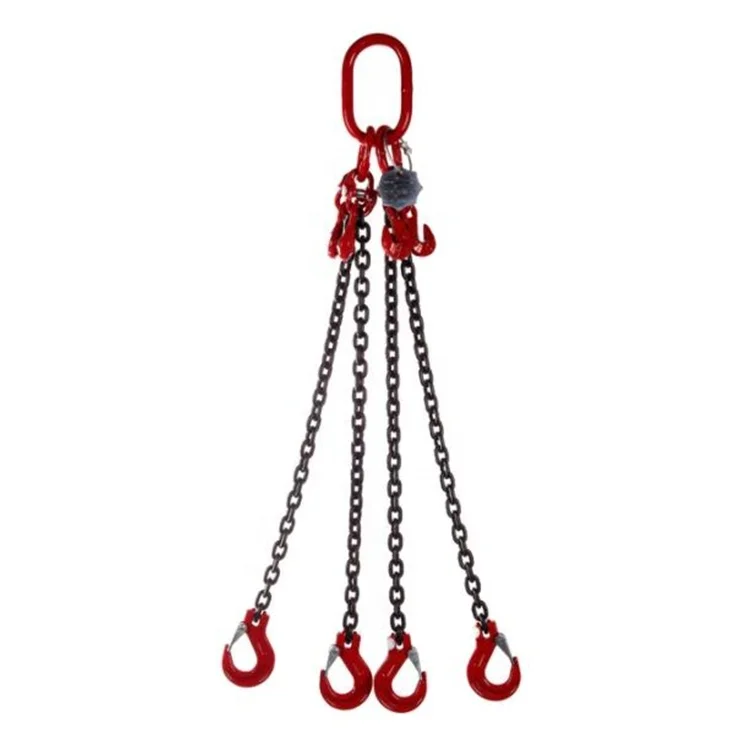

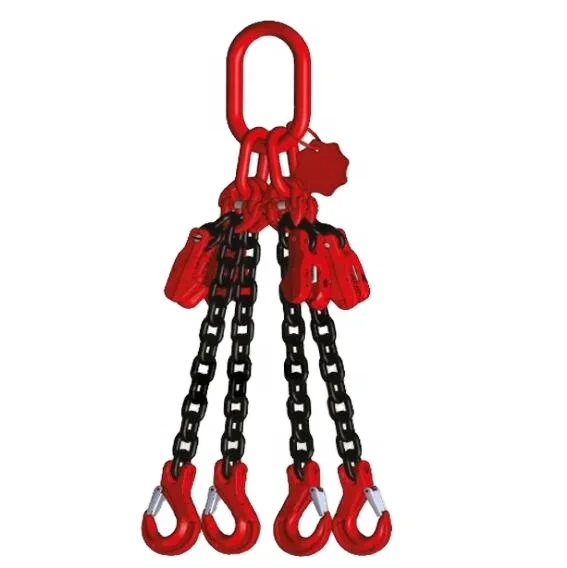

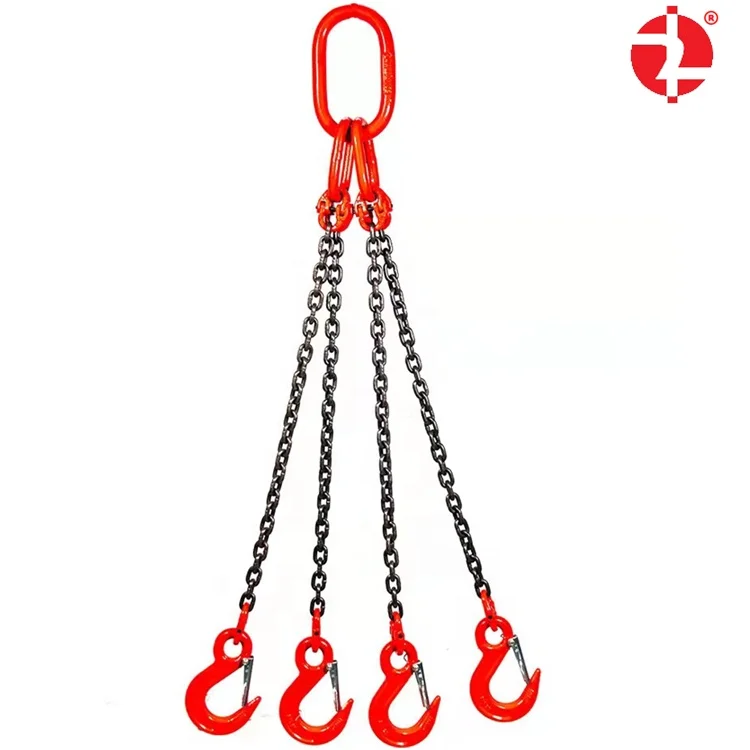

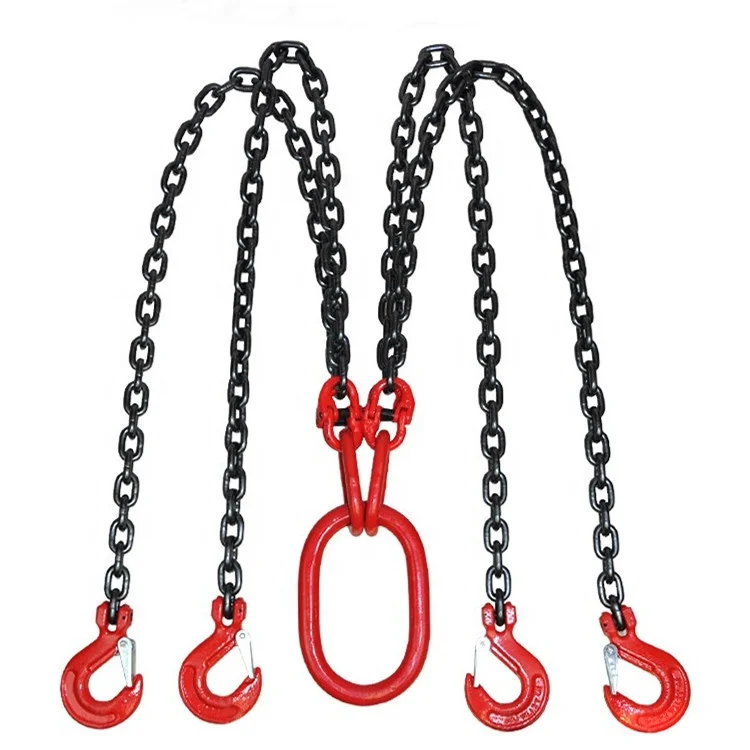

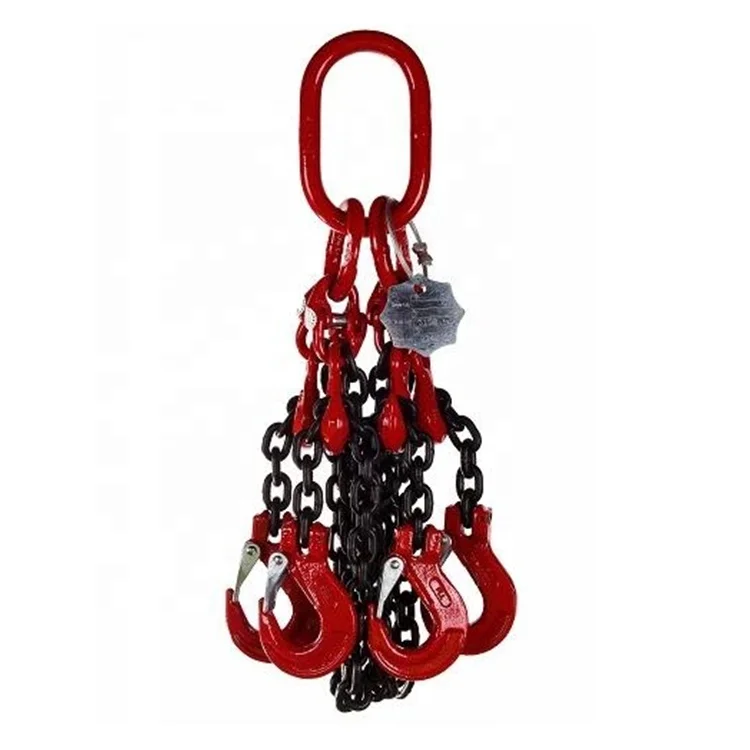

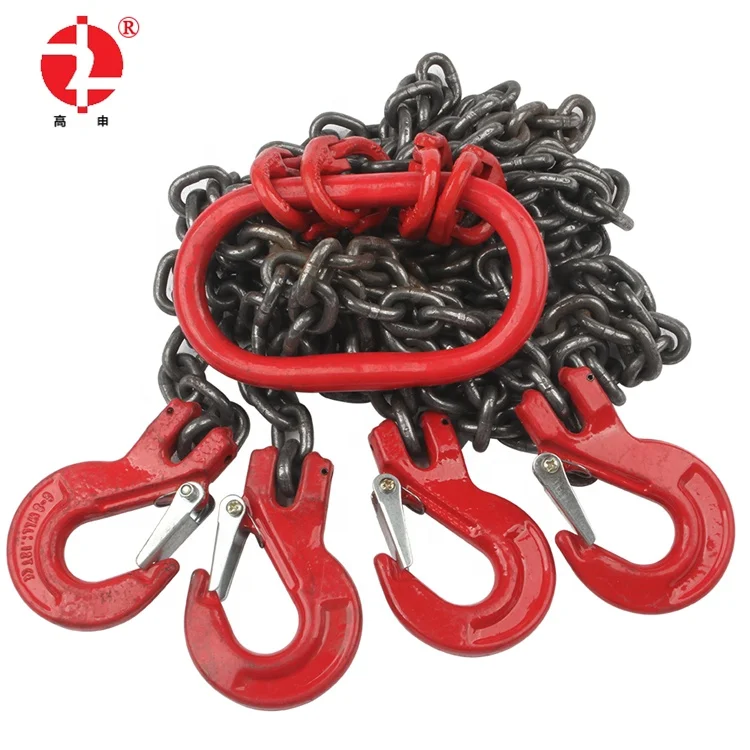

Rigging 4 strand chain sling 4 legs adjustable lifting chain sling
Rigging 4 strand chain sling 4 legs adjustable lifting chain sling
Rigging 4 strand chain sling 4 legs adjustable lifting chain sling
Rigging 4 strand chain sling 4 legs adjustable lifting chain sling
Rigging 4 strand chain sling 4 legs adjustable lifting chain sling
Rigging 4 strand chain sling 4 legs adjustable lifting chain sling
Rigging 4 strand chain sling 4 legs adjustable lifting chain sling

Rigging 4 strand chain sling 4 legs adjustable lifting chain sling

Share on (1601035478003):


Price:

Quantity:


Product Overview

Description



Product Description


chain sling manufacturer is used for lifting ,they are combined with lifting chain and accessories.




PRODUCT NAME
Rigging sling 4 legs adjustable lifting chain sling
STANDARD
EN818-2
SIZE
6MM-34MM
MATERIAL
25MnV OR 20Mn2
23MnNiMoCr54
Strength grade
G80
Elongation of chain breaking
≥ 16%
PACKING
Plywood reel/plastic reel/plastic drum/gunny bag/iron drum+plywood pallet/iron pallet
APPLICATION
chain sling manufacturer  is used for overhead lifting ,dragging ,chain slings and so on
FINISH
Self-colored,Paint,Black,Galvanized,Yellow.
OEM
Accepct.
MOQ
1-5t according to the size you need.
Technological process
cutting- heating- bending –flash welding - trimming -stud setting - heat treatment -proof testing -breaking testing - shot blasting- surface finished -packing.



ADVANTAGE of  lifting load chain
1. High tensile strength
2. Excellent core ductility
3. Long service life
4. Safety factor: Min.4:1
5.  If you need more custom lengths, please contact us.

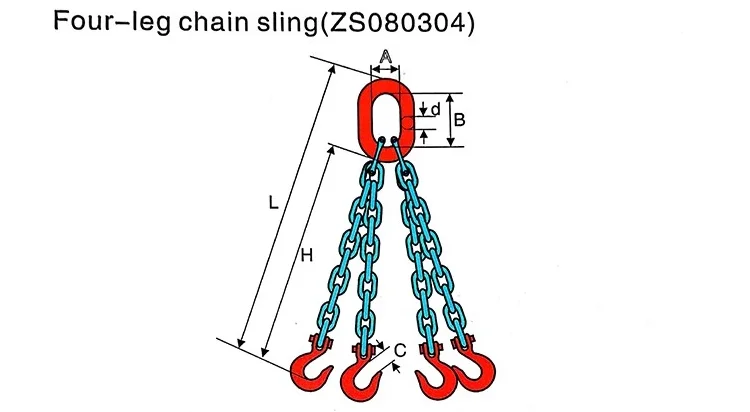

Chain Diameter
WLL (Ton)
Chain Weight
(mm)
0-45°
45°-60°
(kg/m)
6
2.35
1.68
0.79
8
4.2
3
1.38
10
6.61
4.72
2.2
13
11.13
7.95
3.8
16
16.38
11.7
5.63
20
23.52
16.8
8.6
22
31.5
22.5
10.2
26
44.5
31.8
15.2
32
66.15
47.25
22.29


Detailed Images

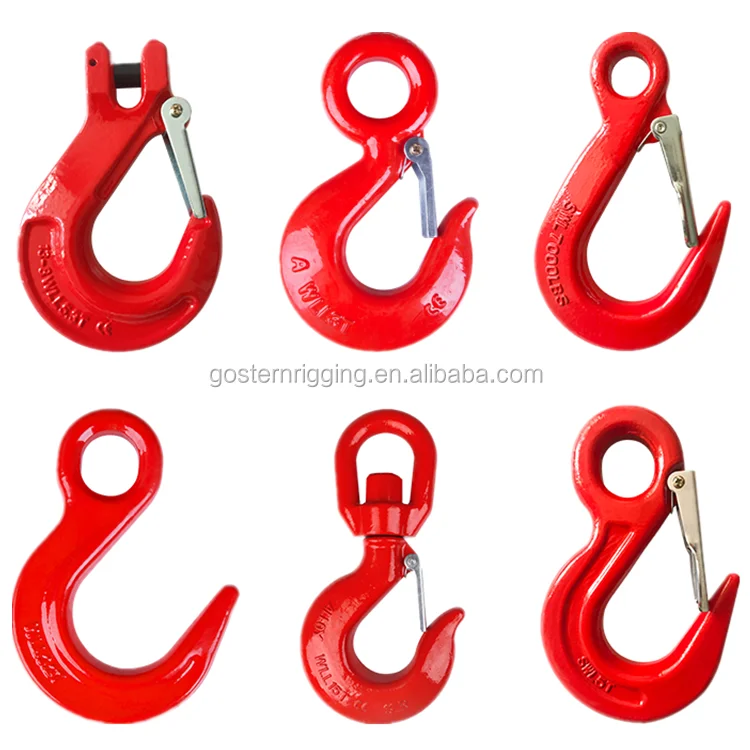

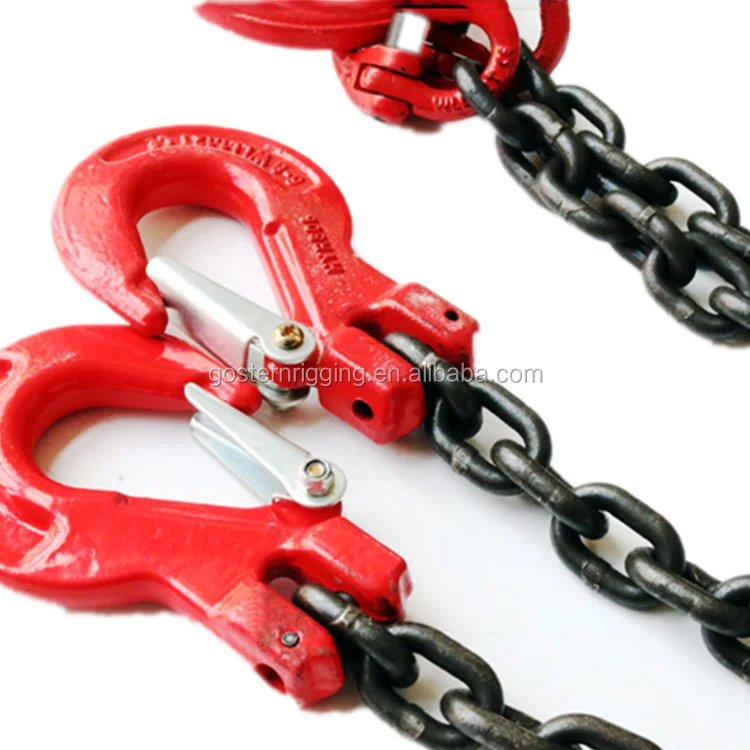

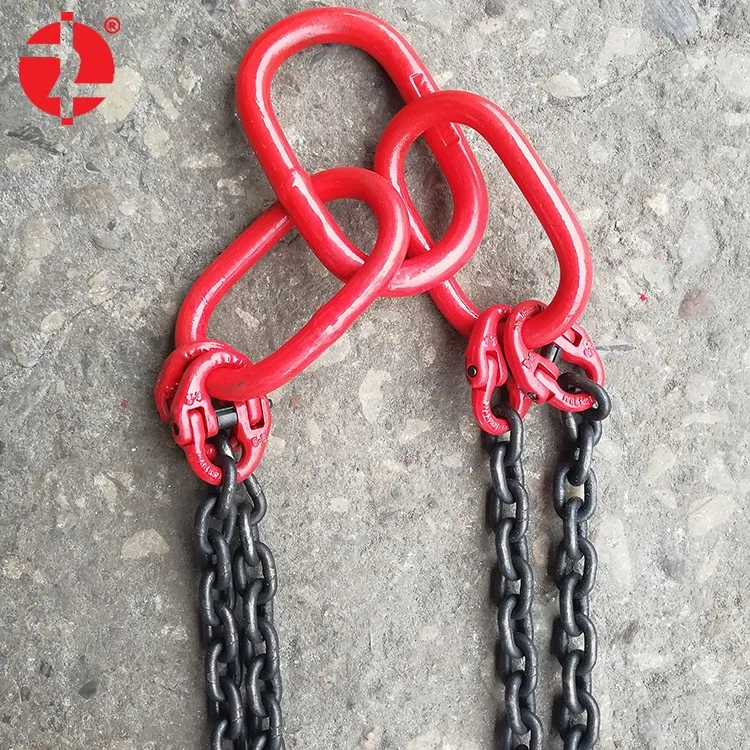

Name:  master link and chain connector for chain sling

Material: alloy steel

safety factor: 4 times

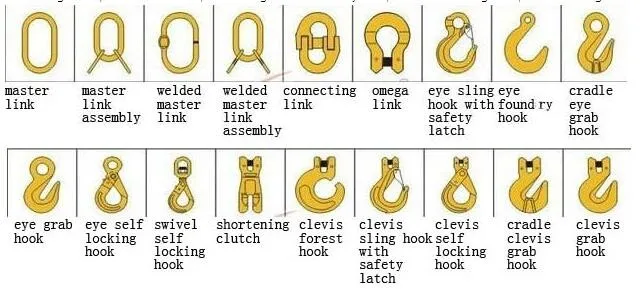

All rigging accessories can be customized according to the requirements





We can choose the above accessories to combine the chain sling.




Product flow


Raw material inspection

Adopt high quality alloy steel,with  certain proportion Cr,Ni,Mo elements.

Automatic knitting machine

Can knit automaticaly

Automatic welding machine

 Can weld automaticaly



Automatic calibrating machine


Heat treatment machine


Test Machine




Polish machine

Surface treatment


Can be customized





Package


iron drum+iron pallet

  Wooden case

container



Company Profile








Jiangsu Gostern Rigging Co., Ltd. was established in the year of 2001 in China. The company covers an area of 33000 square meters, more than 600 employees. It is a specialized slings company that can design, manufacture and market. The company has a strong technical ability, scientific technology procedures, testing equipment, and a perfect quality system. The company has achieved the ISO9001-2000 quality system certification. The quality of the products has been insured by the Chinese people and property insurance companies.

Our main products are wire rope slings, webbing slings, braided ropes, ratchet straps, tow straps, chain slings, steel plate lifting clamps, hanging beams, rigging accessories. The products are widely used in machinery, metallurgy, petroleum, chemical industrial, ports, shipbuilding and other fields.

The mission of Gostern: Our goal is to keep our customers satisfied with the quality products and services. We will continue to uphold the "quality first, the credibility of the first, the price is reasonable" service concept.




FAQ


Jiangsu Gostern Rigging Co., Ltd.
Q: Are you trading company or manufacturer ?
A: We are a manufacturer with nearly 20 years of experience.

Q: Why choose us?
A: Jiangsu Gostern Rigging Co., Ltd. is a factory specializing in producing the lifting sling, lifting clamp and lifting beams. We have over 20 years of experience in producing the products, and the operator of us are all with operation certification. Besides, we purchase the material from the best suppliers in China.

Q: Do you accept the drawing we supply and OEM?
A: Yes, we can design the lifting beams and lifting clamps according to your requirements, and we can produce the product according to your drawing. We also supply OEM service.

Q: What are your advantages in all these manufacturers?
A: We have a target that we will supply you products and service of high quality and reasonable price.

Q: How long is your delivery time?
A: According to the quantity and products you order, normally 5~30days, Generally it is 5~10 days if the goods are in stock.

Q: What is your terms of payment ?
A: Payment≤1000USD, 100% T/T in advance. Payment＞1000USD, 30% T/T in advance ,balance before shipment. Irrepealably L/C at sight.

Q: Do you offer free samples?
A: We can provide you with free samples if the value is not too high, but you need to pay the freight charge.

Q: How can you guarantee the quality of the products we order?
A: We have matching test machines and can do the test for all of the products you order, and we can provide you with the quality certificate.

Q: Can we have a visit to your factory?
A: Welcome to our factory, and we will arrange the pick-up.


Contact


Thanks for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.


Jiangsu Gostern Rigging Co., Ltd.
Winnie Jiang
Marketing Department
Tel: 86-523-86055553
Fax: 86-523-86889855
WhatsApp&Wechat: +86-15062999269
E-mail: winnie@zssling.com
Web: www.zssling.com
Add.: No.188, Longgang Road, Taizhou City, Jiangsu, China.
