mini excavator 2 ton 2.5 ton digger with epa engine
- Category: >>>
- Supplier: Shandong Mountain Raise Industry And Trade Co. Ltd.
Share on (1601035998404):
Product Overview
Description
Product Description

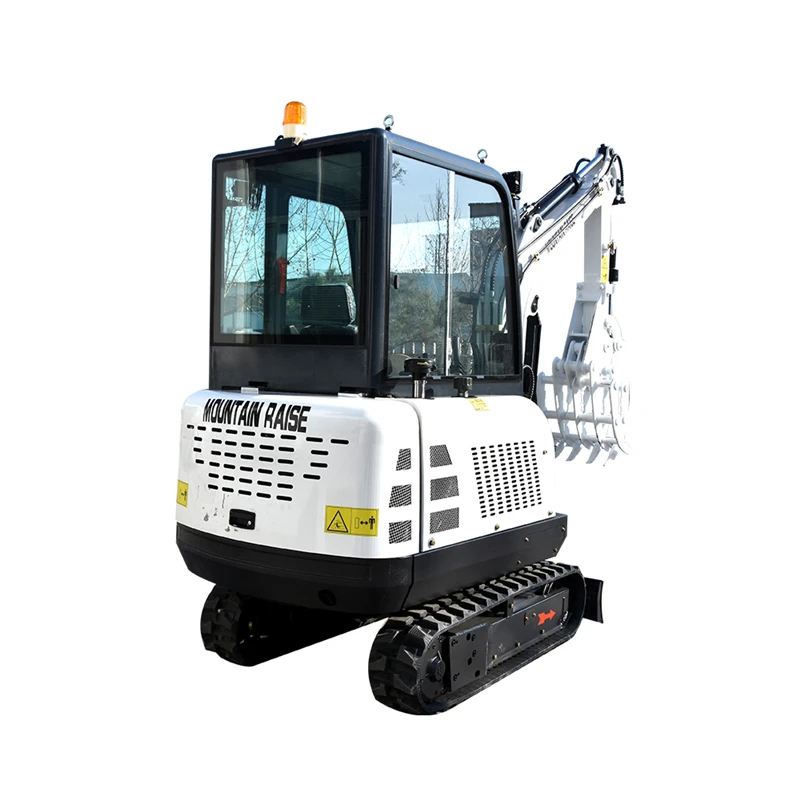

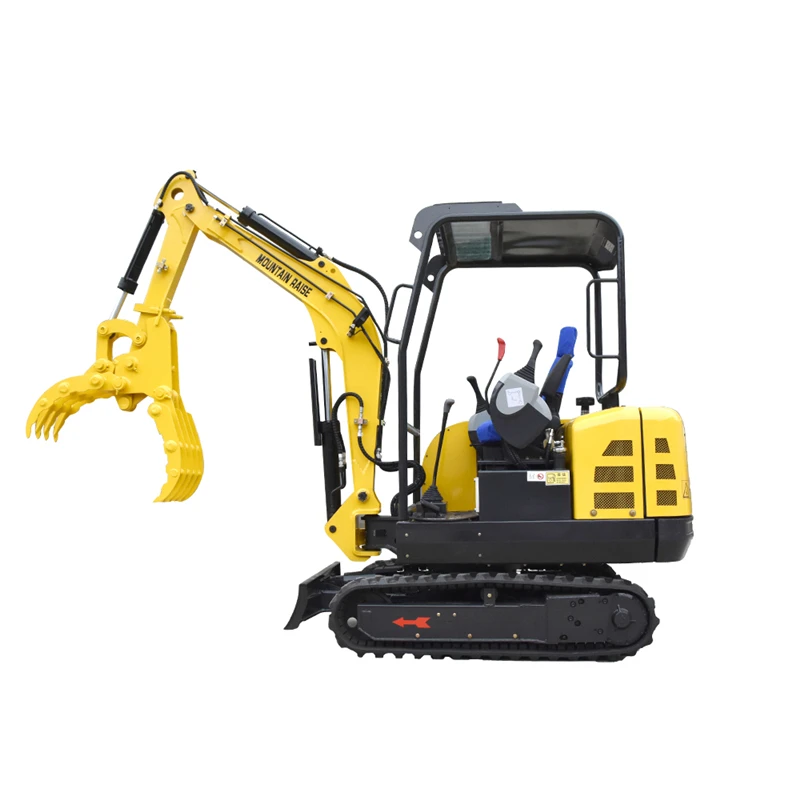

MR8022 2.2TON MINI EXCAVATOR with beautiful appearance, high configuration, superior performance, low consumption wide operating range.
It's compact design for small works in garden, farmland, municipal works, vegetable greenhouse etc.
YANMAR ENGINE AT OPTION, 22KW/2200RPM LAIDONG ENGINE.
HYDRAULIC JOYSTICK CONTROL
Specifications
SPECIFICATION
Model | MR8022 |
Operating Weight | 2200kg |
Digging bucket capacity | 0.08m3 |
Digging bucket width | 490mm |
Engine |
|
Engine | CHANGCHAI - ZN390Q |
Option engine | Yanmar |
Rated power | 22kw/2200rpm |
Displacement | 1.813L |
Cylinders | 3 |
Bore X Stroke | 90*95mm |
Cooling type | Water |
Hydraulic System |
|
Main pump | single cylinder |
Rated Pressure | 25/31.5 MPa |
Fuel Tank Capacity | 40L |
Hydraulic oil tank | 60L |
Overrall dimensions | |
Overall dimension( LxWxH) | 4090*1200*2310mm |
Track Gauge | 950 mm |
Counterweight ground clearance | 460mm |
Track grounding length | 1250 mm |
Total track length | 1610 mm |
Track show width | 230 mm |
Total Track width | 1200mm |
Min ground clearance | 190 mm |
Overall range | |
Max. Digging depth | 2150 mm |
Max. digging radius | 4095 mm |
Max. Digging height | 3800 mm |
Max. Dumping height | 2660 mm |
Packaging & Shipping
Our Services
Related product
Company Information
FAQ
Is your machine specification data real?
Yes, 100% real, we never overstate, never use fake data to attract customers.
What is your payment?
Normally we can work on T/T or L/C.
What is Quality Control system?
Mountain raise 5 steps:
A, After order confirmed, we have a meeting with the main peoples who work for workshop before production,investigate all the workmanship and some technical problems, ensure all of them have related ways to settle and control.
B, Inspect all the materials when arrived, ensure they will be catched up customers's requirements.
C, Inspect the semi-finished goods.
D, Inspect the finished products.
E, Final inspection when pack up all the goods.if there is not any problems for this step,our QC will issue the inspection report and release this products.
