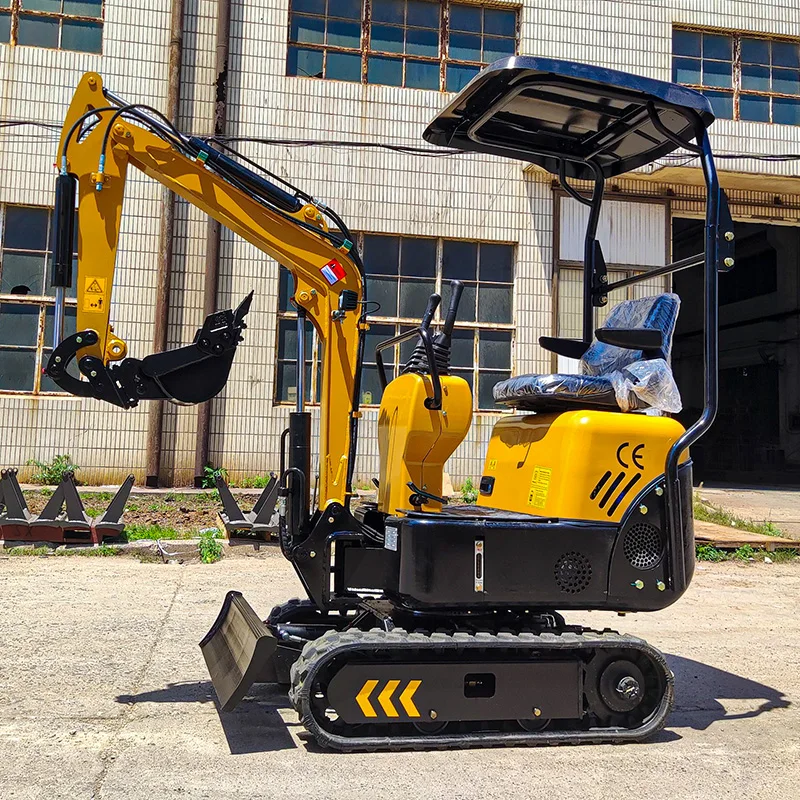

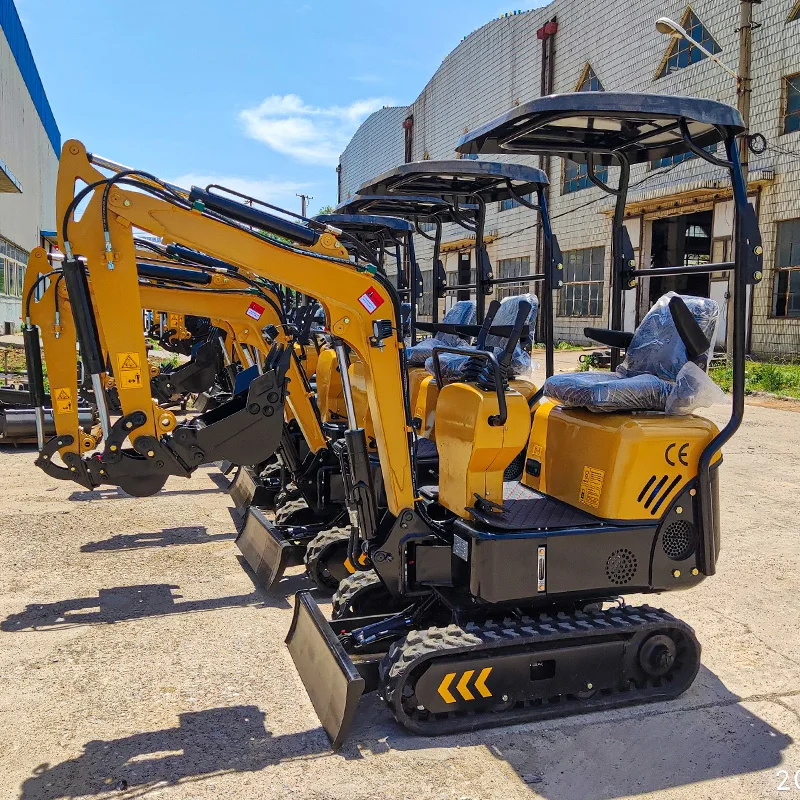

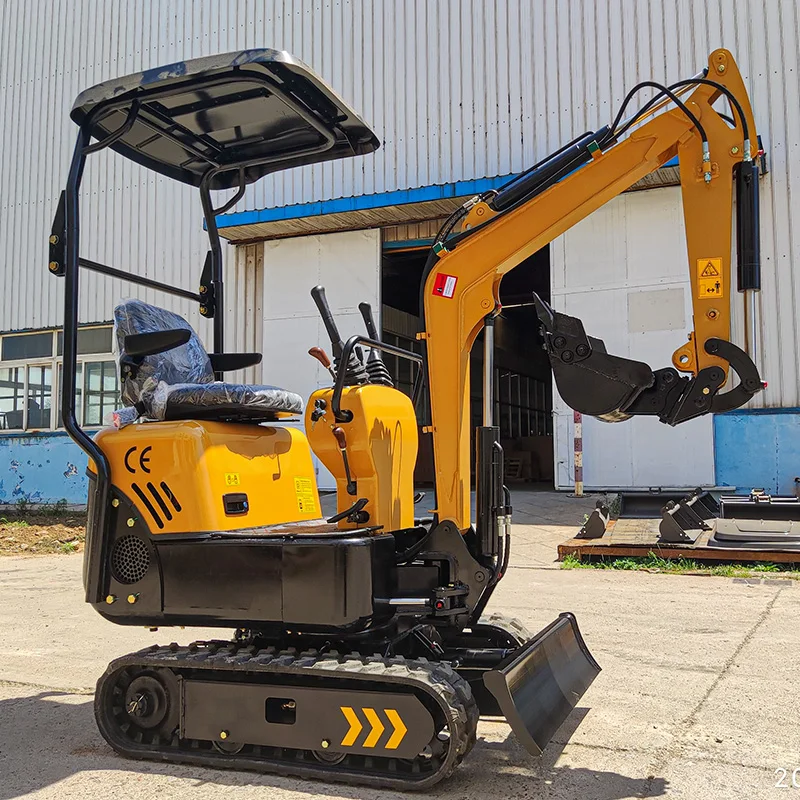

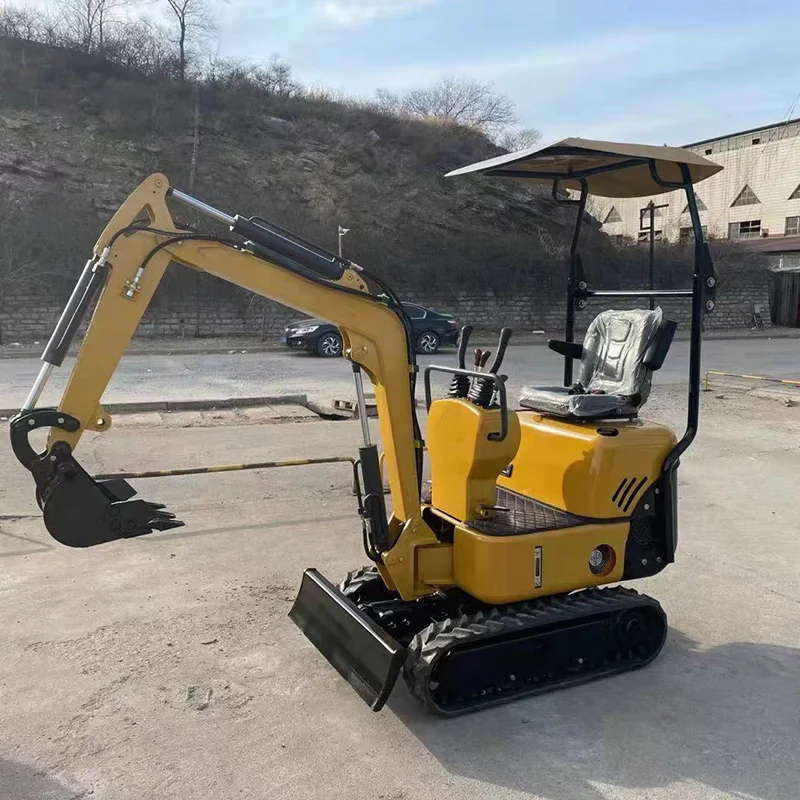

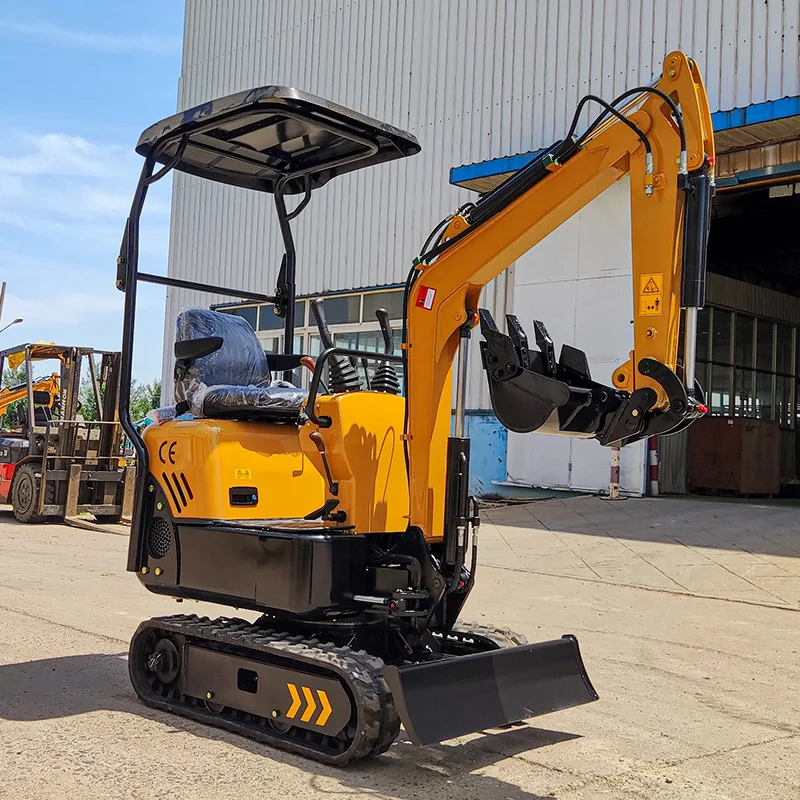

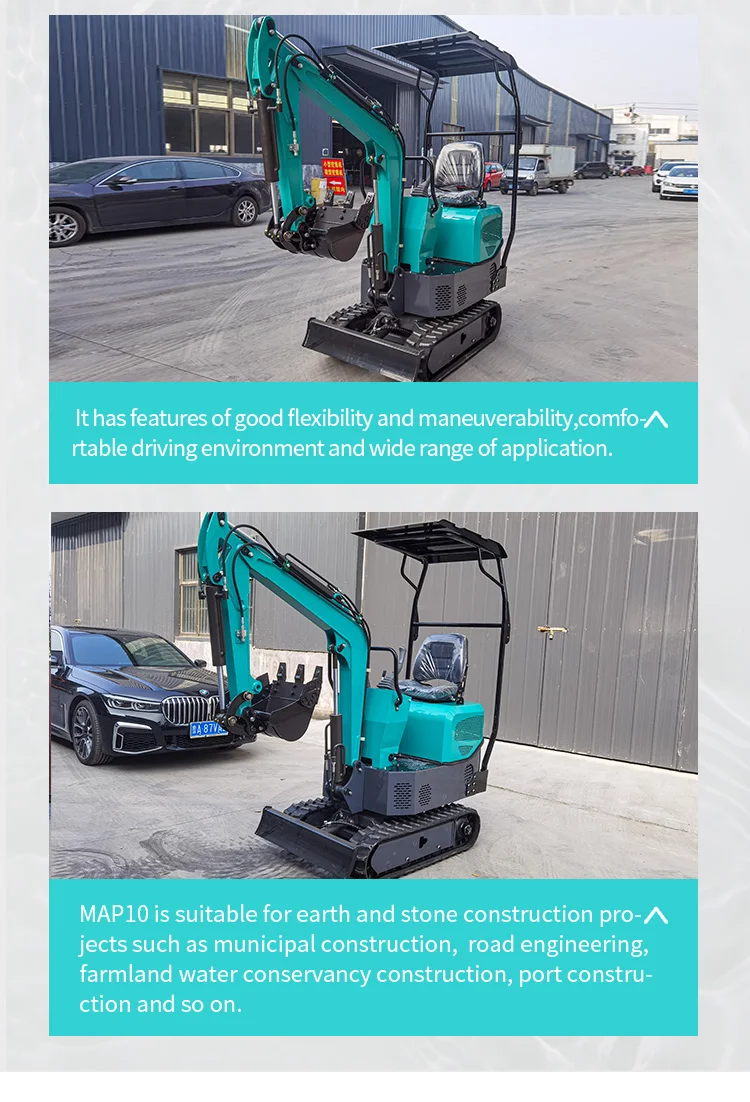

CE EPA Approved Wholesale 1000kg Mini Digger Chinese Mini Excavator Prices Excavator Machine Manufacturer
- Category: >>>
- Supplier: Weifang Yishan Heavy Machinery Co. Ltd.
Share on (1601037779111):
Product Overview
Description
PRODUCT SPECIFICATIONS
Model | YS10 |
Operating weight (ton) | 870 |
Bucket capacity (cbm) | 0.025 |
Engine model | KOOP KD192F-1 |
Hydraulic pump model | China Brand |
Max.flow (L/min) | 18 |
Working pressure (Mpa) | 17 |
Control valve model | China Brand |
Swing motor model | RMR-315 |
Travel motor model | R6K-310 |
Fuel tank capacity (L) | 8.3 |
Hydraulic oil tank capacity (L) | 15.3 |
Travel speed (km/h) | 1.9 |
Swing speed (r/min) | 13 |
Max. climbing degree (%) | 58 |
Arm digging force(KN) | 4.6 |
Bucket digging force (KN) | 7.2 |
Average grounding pressure (Kpa) | 20 |
A-Overall length (mm) | 2949 |
B-Overall width (mm) | 930 |
C-Overall height (to top of boom)(mm) | 1095 |
D-Overall height (to top of cab)(mm) | 2219 |
E-Counterweight ground clearance(mm) | 362 |
G-Tail swing radius (mm) | 834 |
H-Track Ground Length (mm) | 900 |
J-Track length (mm) | 1233 |
K-Track gauge (mm) | 740 |
