CE&ISO Passed Medical X Ray Machine (MT01001F01 01)

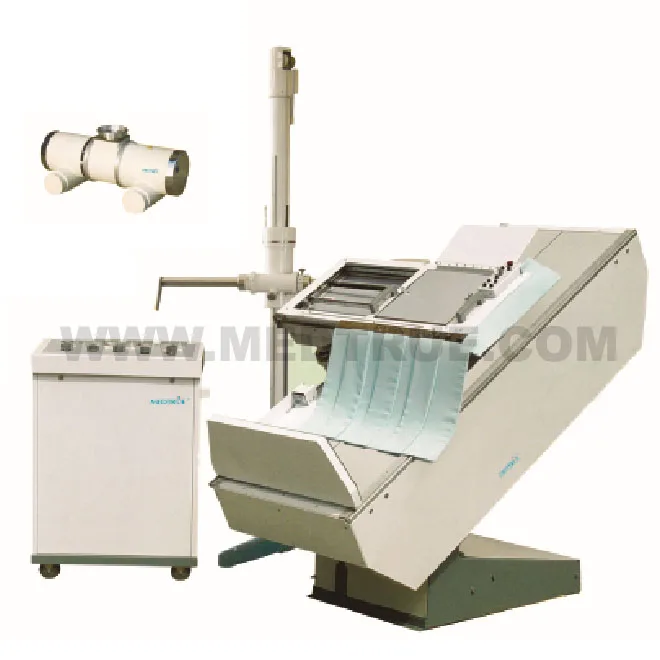

CE/ISO Approved Medical 200mA 125KV Medical X-Ray Machine (MT01001F01-01)

Diagnostic X-ray system consists of the control console, high tension generator, electric controlled diagnostic table, bucky table, over table X-ray tube, under table X-ray tube, collimator, linear tomography device (option), etc. It is designed for fluoroscopy, gastrointestinal examination, general radiography, bucky radiography, linear tomography (option), chest stand radiography (option), etc.

Feature:
1. Single bed and single tube
2. Rotary anode X-ray tube unit and tangential pipe sleeve.
3. Monophase full-wave rectification high-voltage generator.
4. Supply voltage V, roentgenoscopy and photograpy kV, infinitely variable control and electric mechanism.
5. Equipped with capacity protective circuit, and kV mAs sectional and graduated interlock protection.
6. Equipped with the manostat for filament of X-ray tube and equipped with space-charge compensator.
7. Adopt the digital circuit timer, grade according to R10 priority coefficient and can control time exactly.
8. Equipped with the digital circuit device for roentgenoscopy time accumulation.
9. Examining bed is of electric back rotation, with external balance structure and with vibrating filter-ray device.
10. The spot film device of luminescent screen can hold the film jacket of various sizes and solenoid valve locking.
11. Upright post is of top and bottom track. It moves lightly.
