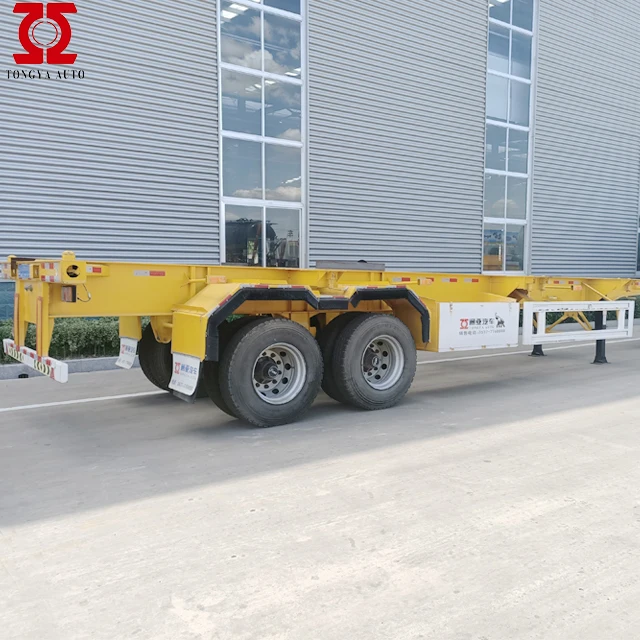

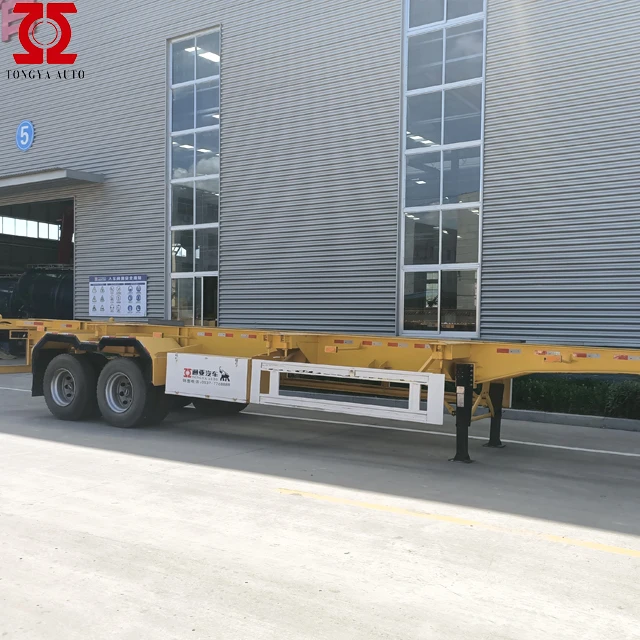

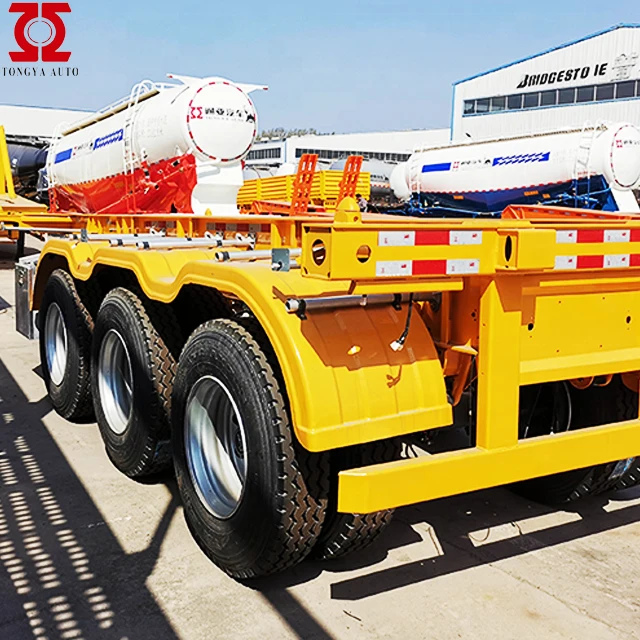

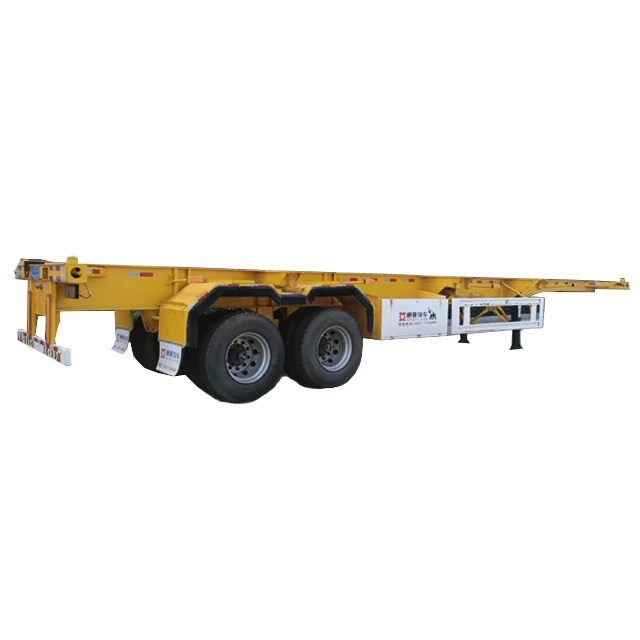

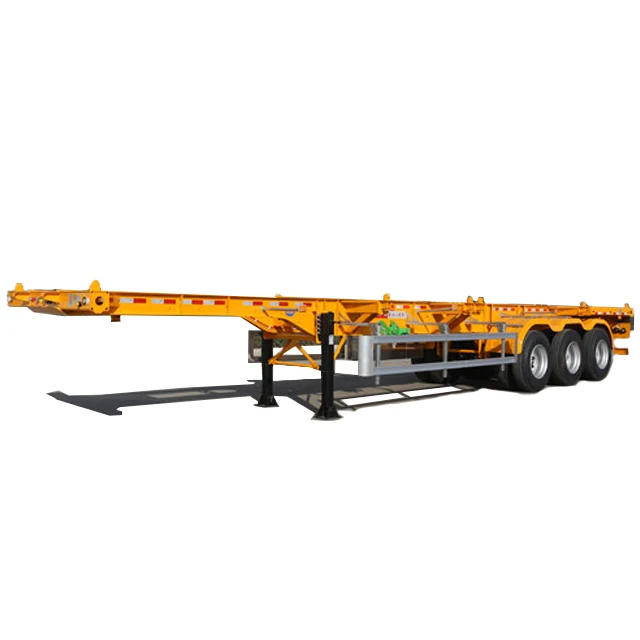

China Manufacture Tongya 2 or 3 Axles Skeleton Truck Trailer with Twist Lock
- Category: >>>
- Supplier: Tongya Automobile Co. Ltd.
Share on (1601039264282):
Product Overview
Description
Product Description
China Manufacture Tongya 2 or 3 Axles Skeleton Truck Trailer with twist locks
Used and features:
1, the skeleton type container semi-trailer. Port is mainly used in ships, hubs, Bridges, highway, tunnel, multimodal transport matching logistics system.
2, can undertake rapid loading and unloading, and can easily change directly from a means of transport to another transport.
1, the skeleton type container semi-trailer. Port is mainly used in ships, hubs, Bridges, highway, tunnel, multimodal transport matching logistics system.
2, can undertake rapid loading and unloading, and can easily change directly from a means of transport to another transport.
Detailed Images
Gross Weight | About 6.5tons | ||||||
Outer side dimension(mm) | 12450 × 2490 × 1557 | ||||||
Loading Capacity (Ton) | ≤ 45 T (40FT) | ||||||
AXLES | 13 T /PER , FUWA Brand, BPW Brand | ||||||
Tire | 12.00R22.5 or 315/80R22.5 China Brand or According to Customer requirement | ||||||
Rim | 9.00-22.5 China Brand | ||||||
Suspension | Mechanical suspension | ||||||
Spring leaf | 90(W)mm*13(Thickness)mm | ||||||
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type | ||||||
Support leg | JOST A300C or TONGYA 28T | ||||||
Main Beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel . | ||||||
Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; one piece of 45L air tanks | ||||||
Twist Locks | Twelve pieces (Lifting type or Twist Screw Type) | ||||||
Valve | WABCO valve | ||||||
ABS | Optional | ||||||
Light | LED light | ||||||
Voltage | 24V | ||||||
Receptacle | 7 ways (7 wire harness) | ||||||
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) | ||||||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||||||
Shipping Terms: | Transport by bulk cargo carrier, RORO or 40HQ container. | ||||||
Related Products
Company Introduction
Our service
Payment terms:
There are two method of payment way:
1. 30% contract value as the deposit by T/T, 70% contract value payoff before delivery time after production finished and inspection .( you can sent one technical person come to test our semi trailer after production finished).
2. 30% contract value as the deposit by T/T, 70% L/C at sight.
After-sales Service:
Out grantee term is 6 months. We will sent the engineer for mending the semi trailer for free within the six month , but you should pay the air-ticket fees go and back , and supply the food and room in your country .In our experience, the mending situation never happens before.
There are two method of payment way:
1. 30% contract value as the deposit by T/T, 70% contract value payoff before delivery time after production finished and inspection .( you can sent one technical person come to test our semi trailer after production finished).
2. 30% contract value as the deposit by T/T, 70% L/C at sight.
After-sales Service:
Out grantee term is 6 months. We will sent the engineer for mending the semi trailer for free within the six month , but you should pay the air-ticket fees go and back , and supply the food and room in your country .In our experience, the mending situation never happens before.
Packing&Shipping
FAQ
1.How about your price?
Although we are brand name products,but our prices are very favorable and competitive.
Although we are brand name products,but our prices are very favorable and competitive.
Customer from all over the world to purchase our products, because our best price.
2.What's your payment?
Our Payment could be
(1) 100% T/T
(2) 30% in advance, others before shipment.
(3)Advance, others letter of credit.
3.Could you special design and produce for you？
Sure, we have all kinds of professional engineers,
Could design and produce special product according to customer requested.
Such as: special Size, special control, or OEM, etc.
4.Do you looking for Agent?
Yes, we're looking for the agent all over the world, please contact us for further discussion.
2.What's your payment?
Our Payment could be
(1) 100% T/T
(2) 30% in advance, others before shipment.
(3)Advance, others letter of credit.
3.Could you special design and produce for you？
Sure, we have all kinds of professional engineers,
Could design and produce special product according to customer requested.
Such as: special Size, special control, or OEM, etc.
4.Do you looking for Agent?
Yes, we're looking for the agent all over the world, please contact us for further discussion.
