ANT Hot Selling Traffic Barrier Parking Stopper Heavy Duty Hydraulic Road Blocker For Road Safety
- Category: >>>
- Supplier: Shandong Ante Safety Equipment Co. Ltd.Shandong Ltd.
Share on (1601040074496):
Product Overview
Description
Product Description
ANT Hot Selling Traffic Barrier Parking Stopper Heavy Duty Hydraulic Road Blocker For Road Safety
Anti revolutionary roadblock equipment has played a huge role in protecting national property and public safety. The product is mainly used for intercepting vehicles at important checkpoints and passages. It is installed and applied in special places such as government agencies, prisons, troops, airports, oil stations, checkpoints, embassies, water plants, power plants, schools, hospitals, hotels, banks, subways, parks, exhibition halls, scenic commercial streets, sports venues, agricultural markets, and smart transportation, To prevent terrorists or other thugs from driving maliciously and forcefully through customs or checkpoints. By restricting passing vehicles, traffic order and the safety of major facilities and venues are effectively guaranteed, providing high safety and anti-terrorism anti-collision safety, and providing effective safety protection for key protection units.
Specification
Hydraulic pump specification: | 460mm * 460mm * 690mm, 120KG |
Hydraulic pump installation: | indoor, waterproof |
Oil pipe specification: | 1/4 high-pressure oil pipe, double-layer steel wire mesh structure |
Controller chip: | Industrial microcontroller |
Machine specifications: | length 6000mm * width 1000mm * height 820mm |
Interception length: | 5700mm |
Waterproof grade | IP68 |
Working temperature | -35 ℃~75 ℃ |
Lifting height: | 500mm |
Rising speed: | 3-5 seconds |
Descent speed: | 1-3 seconds |
Power supply voltage: | 380V (control voltage 24V) |
Panel thickness: | 16mm |
panel material: | A3 steel |
Tip specification: | 30mm * 60mm (diameter * length) |
Treatment process: | Anti rust paint treatment |
Overall weight: | 550kg per meter |

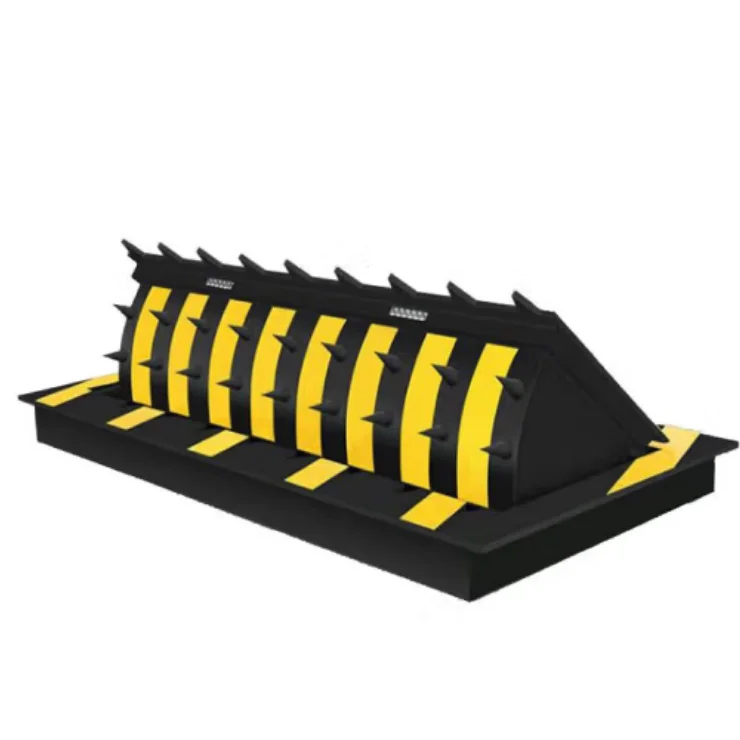

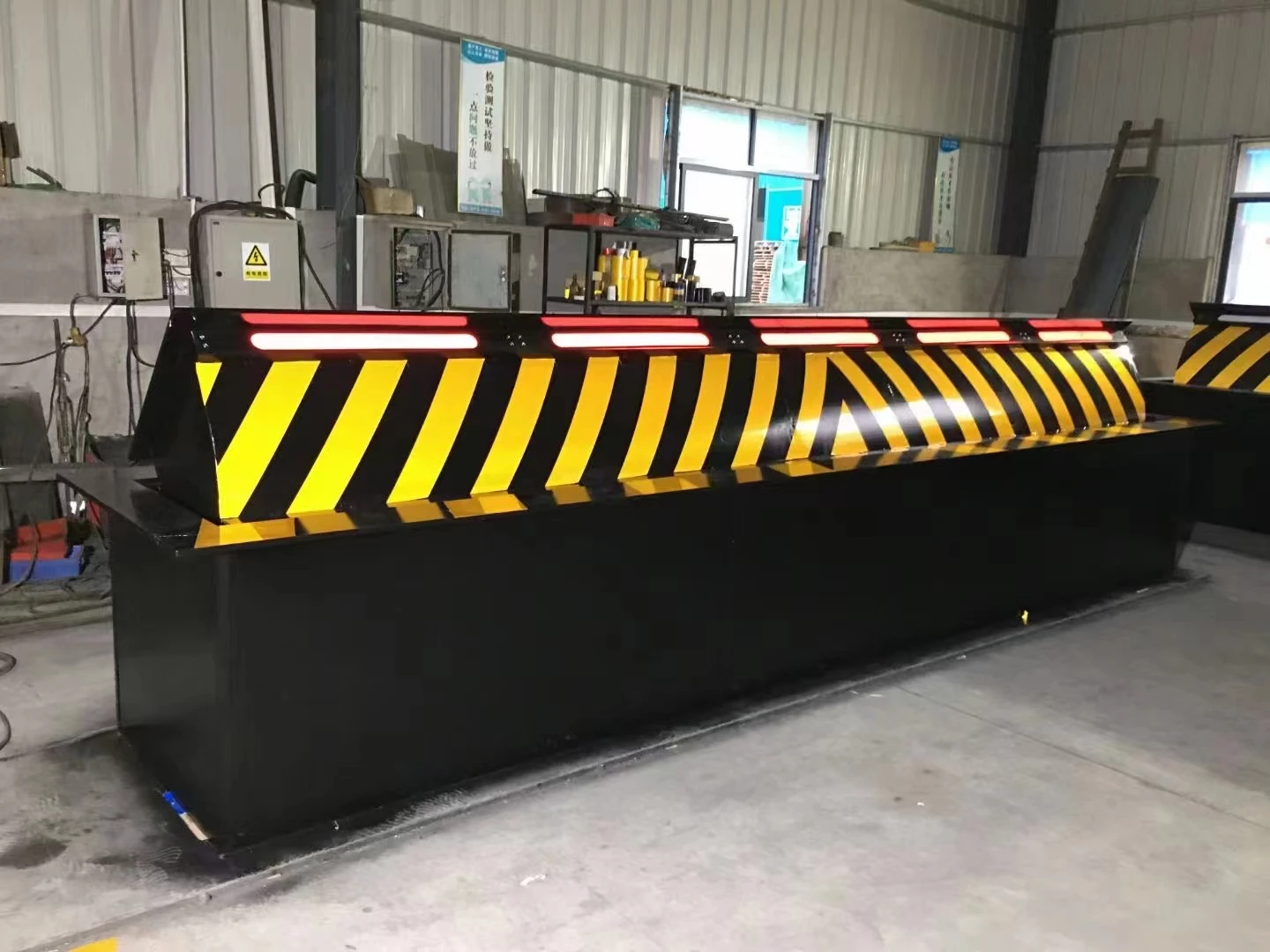

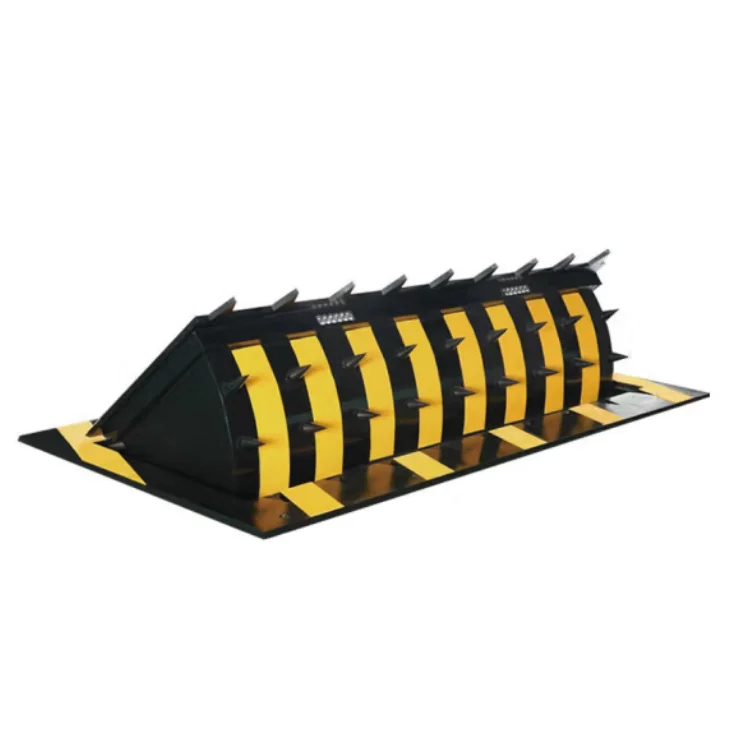

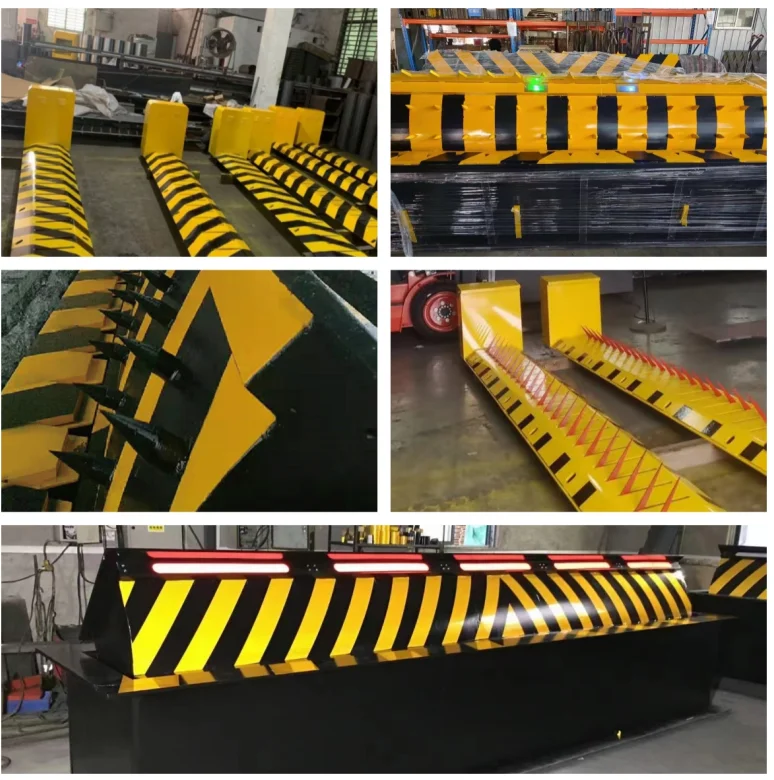

Hydraulic Roadblock Machine
1. Product style: Hydraulic roadblock machine
2. System control: electric+hydraulic
3. Machine specifications: length 6000mm * width 1000mm * height 820mm
4. Interception length: 5700mm
5. Lifting height: 500mm
6. Panel thickness: 16mm
7. Panel material: A3 steel
2. System control: electric+hydraulic
3. Machine specifications: length 6000mm * width 1000mm * height 820mm
4. Interception length: 5700mm
5. Lifting height: 500mm
6. Panel thickness: 16mm
7. Panel material: A3 steel
8. Tip specification: 30mm * 60mm (diameter * length)
9. Treatment process: Anti rust paint treatment
10. Overall weight: 550kg per meter
11. Lift: 2 tons
12. Waterproof level: IP68
13. Anti collision level: k6
14. Through pressure: capable of passing 80 ton container trucks
15. Rising speed: 3-5 seconds
16. Descent speed: 1-3 seconds
17. Power supply voltage: 380V (control voltage 24V)
18. System power: 3.7KW
18. System power: 3.7KW
19. Working temperature: -35 ℃~75 ℃ 27. Storage environment: -35 ℃~65 ℃, waterproof
Hydraulic Station
1. Hydraulic pump specification: 460mm * 460mm * 690mm, 120KG
2. Hydraulic pump installation: indoor, waterproof3. Oil pipe specification: 1/4 high-pressure oil pipe, double-layer steel wire mesh structure
4. Controller chip: Industrial microcontroller
Control Box
1. Controller specifications: 500mm * 400mm * 200mm
2. Controller installation: Indoor, wall mounted, waterproof
3. Linkage function: can link with barrier systems, traffic lights, AB doors, alarm systems, etc
4. One control box equipped with two wireless remote controls;
5. Remote control distance of 30-40 meters;
6. One controller controls one obstacle machine
2. Controller installation: Indoor, wall mounted, waterproof
3. Linkage function: can link with barrier systems, traffic lights, AB doors, alarm systems, etc
4. One control box equipped with two wireless remote controls;
5. Remote control distance of 30-40 meters;
6. One controller controls one obstacle machine
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
1. Shandong Ante Safety Equipment Co., Ltd focuses on providing high-quality security products and one-stop solutions (intelligent parking systems, pedestrian access systems，license plate recognition systems,facial recognition access control systems, etc) to customers worldwide. Our products are widely used in intelligent buildings, factories, scenic spots, campuses, government agencies, railroads, construction sites, smart communities,gymnasium and so on.
2. As a fast-growing manufacturer with modern manufacturing facility, we keep getting rid of the stale and bring forth the fresh to meet market requirements and maximize customer’s profits. Due to professional R&D team, advanced producing equipment and scientific management, our series of products with excellent quality are popular not only across the board of China but also overseas countries.

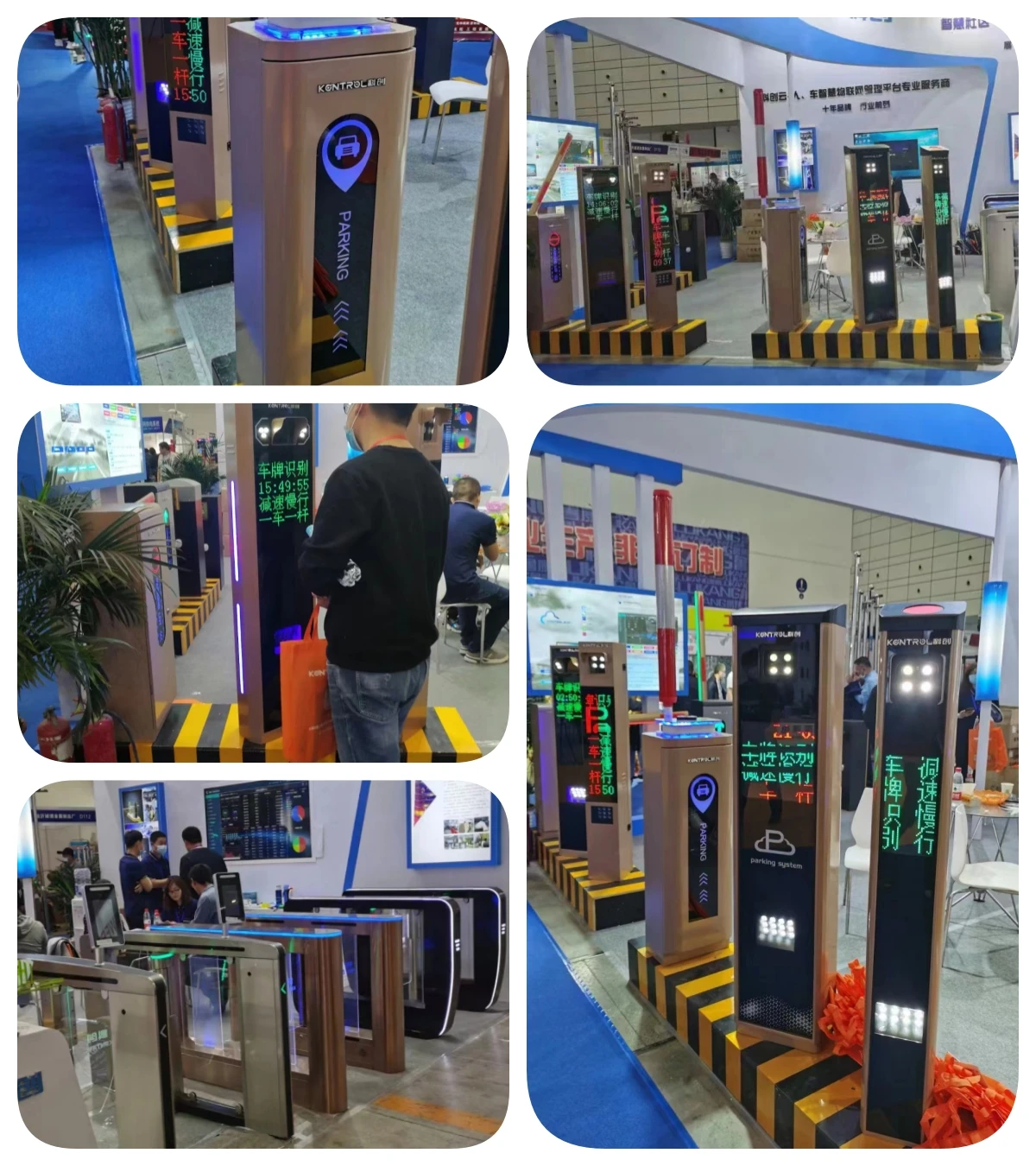

Exhibition
FAQ
1. Can I have a sample order?
Yes, we are willing to offer trial sample order for you to make the quality test. Mixed samples are available.
2. How long is the lead time?
Sample usual take about 1-3 business days, mass production time will take about 10-15 business days for the orders less than 5000pcs.
3. Do you have any MOQ limited?
Some of Inventory items MOQ is 1PC , and the EXW MOQ is 100pcs under blank box.
4. How do you ship the goods and how long does it delivery?
The sample will be sent to customers by optional shipping service (couriers, air, and sea). The delivery time is depended on the your choice of shipping method.
Yes, we are willing to offer trial sample order for you to make the quality test. Mixed samples are available.
2. How long is the lead time?
Sample usual take about 1-3 business days, mass production time will take about 10-15 business days for the orders less than 5000pcs.
3. Do you have any MOQ limited?
Some of Inventory items MOQ is 1PC , and the EXW MOQ is 100pcs under blank box.
4. How do you ship the goods and how long does it delivery?
The sample will be sent to customers by optional shipping service (couriers, air, and sea). The delivery time is depended on the your choice of shipping method.
5. How to proceed the order with logo printed service?
Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would make sampling firstly from silk print factory and take picture for your second confirmation before mass production.
Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would make sampling firstly from silk print factory and take picture for your second confirmation before mass production.
