CKMINE IP65 8 Input 1 Output Waterproof 8 String Solar Array PV Combiner Box
CKMINE IP65 8 Input 1 Output Waterproof 8 String Solar Array PV Combiner Box
CKMINE IP65 8 Input 1 Output Waterproof 8 String Solar Array PV Combiner Box
CKMINE IP65 8 Input 1 Output Waterproof 8 String Solar Array PV Combiner Box
CKMINE IP65 8 Input 1 Output Waterproof 8 String Solar Array PV Combiner Box
CKMINE IP65 8 Input 1 Output Waterproof 8 String Solar Array PV Combiner Box
CKMINE IP65 8 Input 1 Output Waterproof 8 String Solar Array PV Combiner Box

CKMINE IP65 8 Input 1 Output Waterproof 8 String Solar Array PV Combiner Box

Share on (1601040497764):


Price:$138.00 - $160.00

Quantity:


Product Overview

Description

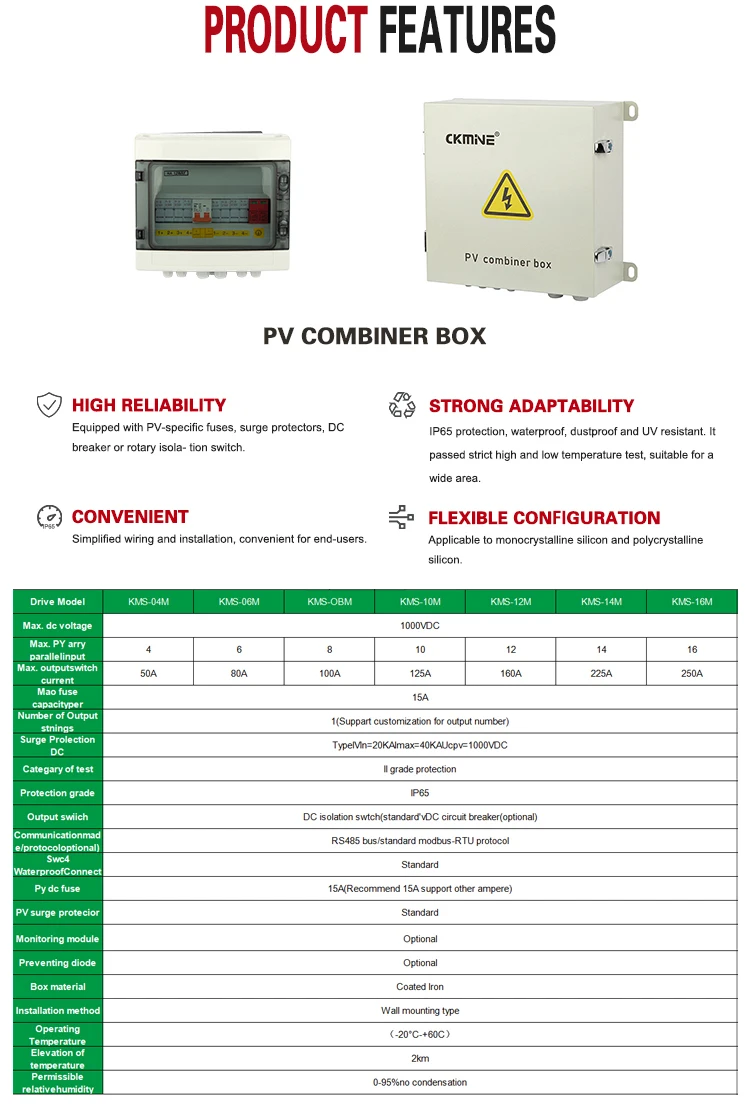

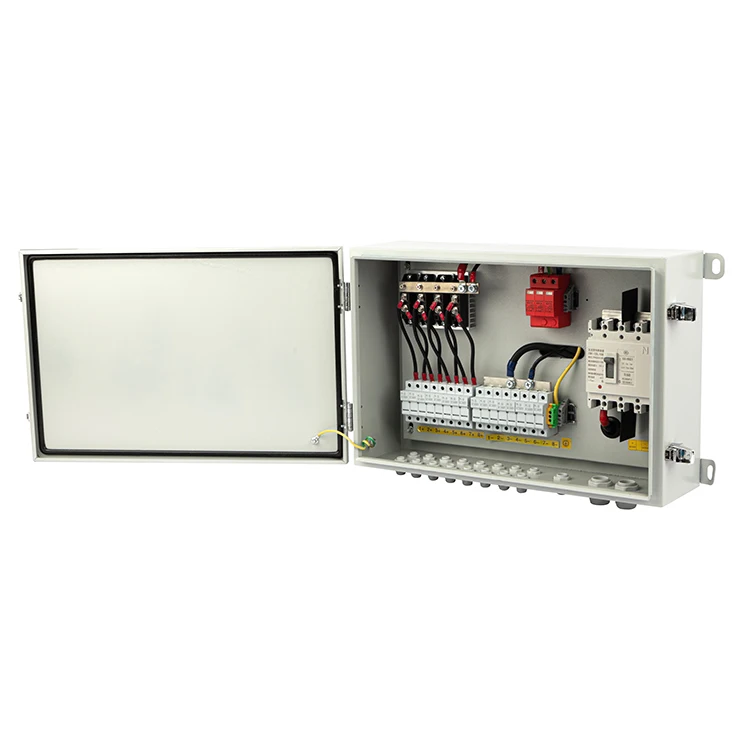

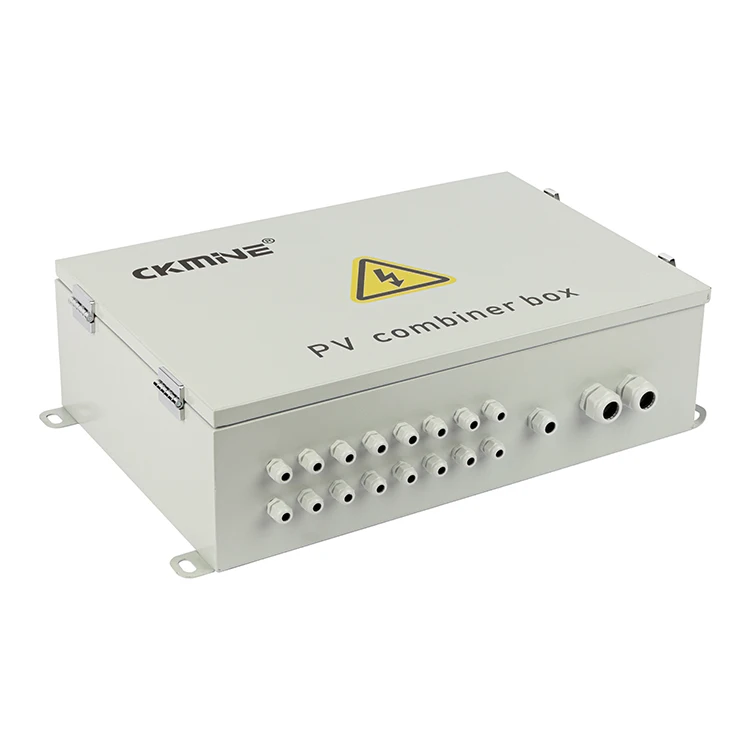

Solar System 8 String 1000VDC Waterproof Solar PV Combiner Boxes With Surge Protect




Banner




Product Name
PV Combiner Box
Drive Model
KMS-08M
Max. dc Voltage
1000VDC
Max. PV Arry Parallel Input Strings
8
Max. output Switch Current
100A
Max Fuse Capacity Per String(A)
15A
Number Of Output Strings
1 (Support customization for output number)
Surge Protection DC
Type II/In=20KA,Imax=40KA,Ucpv=1000VDC
Category Of Test
II grade protection
Protection Grade
IP65
Output Switch
DC isolation switch(standard)VDC circuit breaker(optional)
Communication Mode/Protocol(Optional)
Rs485 bus/standard modbus-RTU protocol
SMC4 Waterproof Connectors
Standard
PV DC Fuse
15A (Recommend 15A, support other ampere)
PV Surge Protector
Standard
Monitoring Module
Optional
Preventing Diode
Optional
Box Material
Coated Iron
Installation Method
Wall mounting type
Operating Temperature
－20℃~＋60℃
Elevation Of Temperature
2km
Permissible Relative Humidity
0-95%,no condensation


Products Description










Recommend Products




Company Profile








Why Choose Us




Customer Feedback




FAQ&Shipping




Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: How is delivery time?
A: Generally it takes 5-10 days for regular type , for big quantity or OEM/ODM orders, pls negotiate with sales.
Q4: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q5: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q6: How does your factory do the quality control?
A: Quality is our culture. We have strict quality control department to supervise each link from assembling to shipping.
Q7: How can I trust you ?
A: CKMINE has 18 years’ experience in producing Solar Pump Inverter, Relay,Timer ,etc.we have passed ISO9001 management system and got CE, CCC certificates. Assessment reports can be sent anytime if you require.
