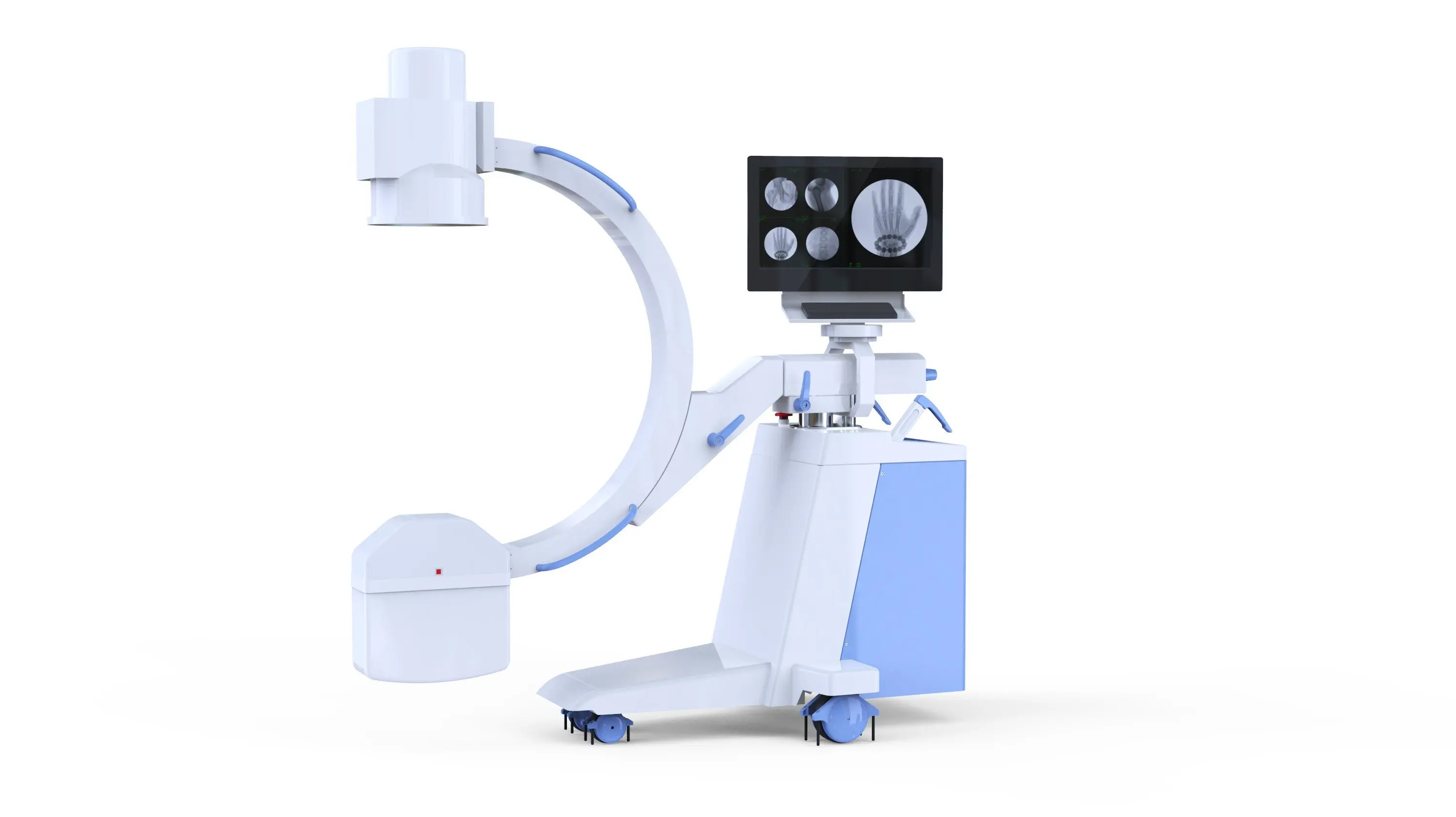

Ms 1050 High Frequency Mobile C Arm X Ray Unit for hospital

Product Overview

Description

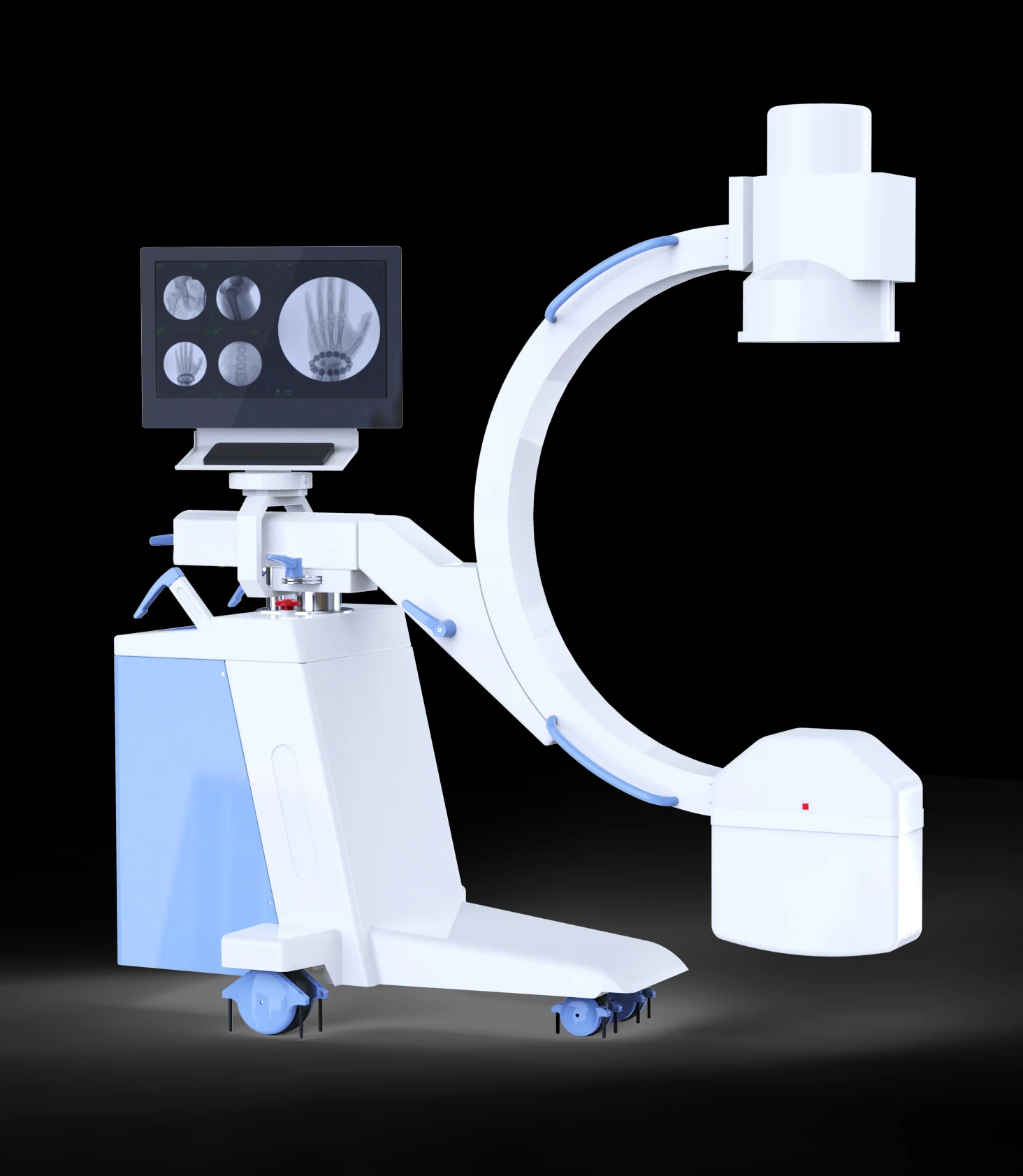

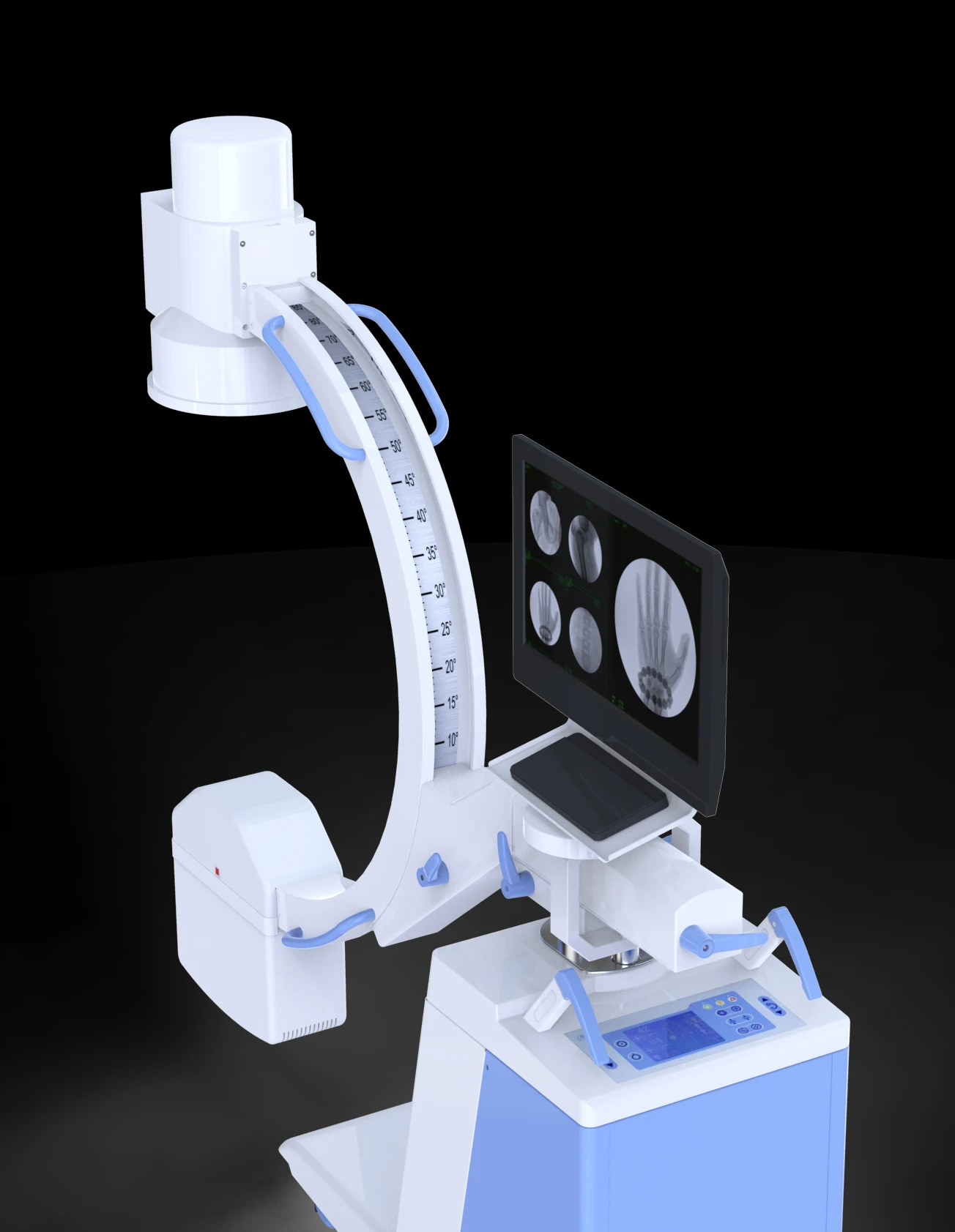

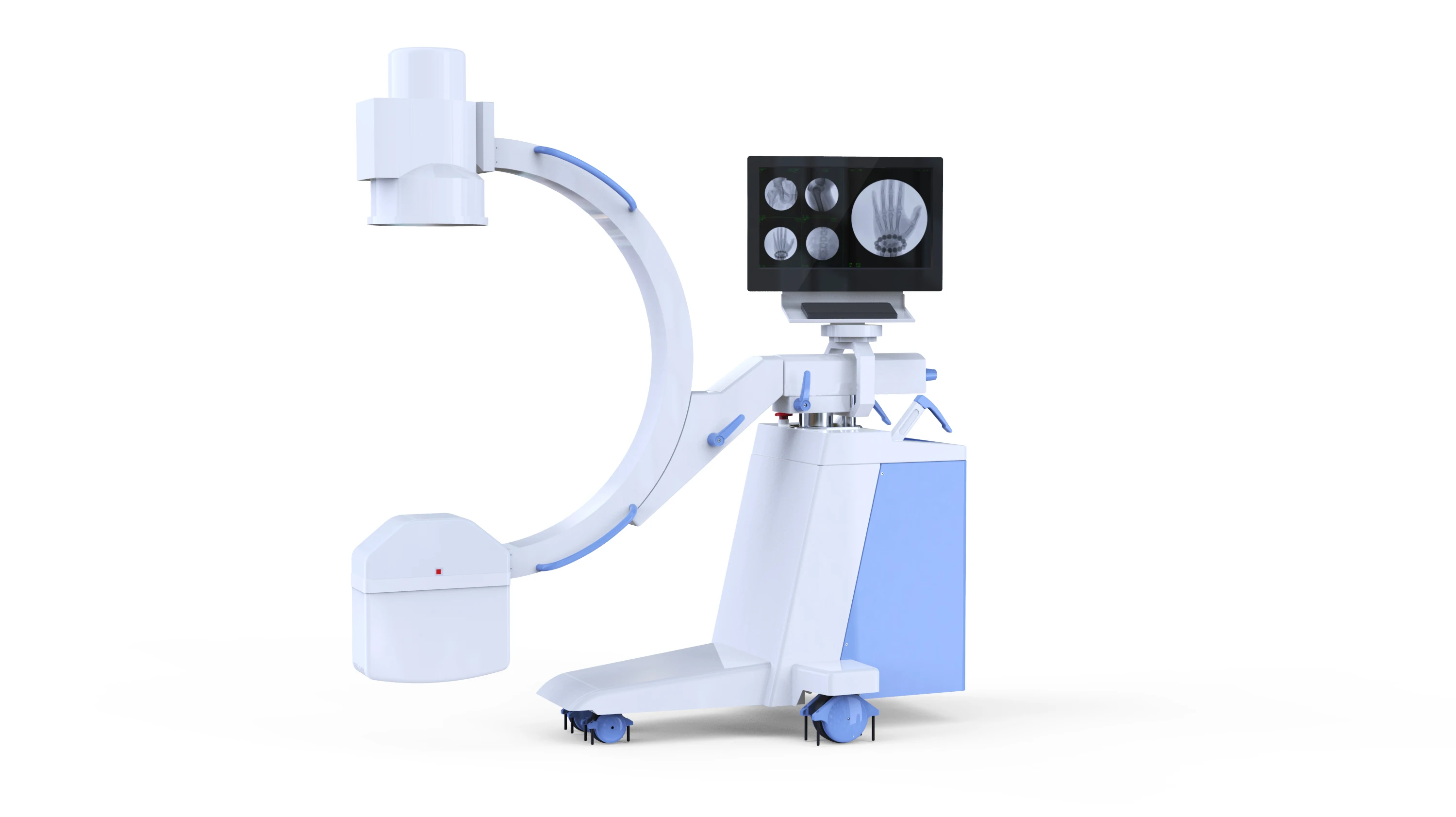

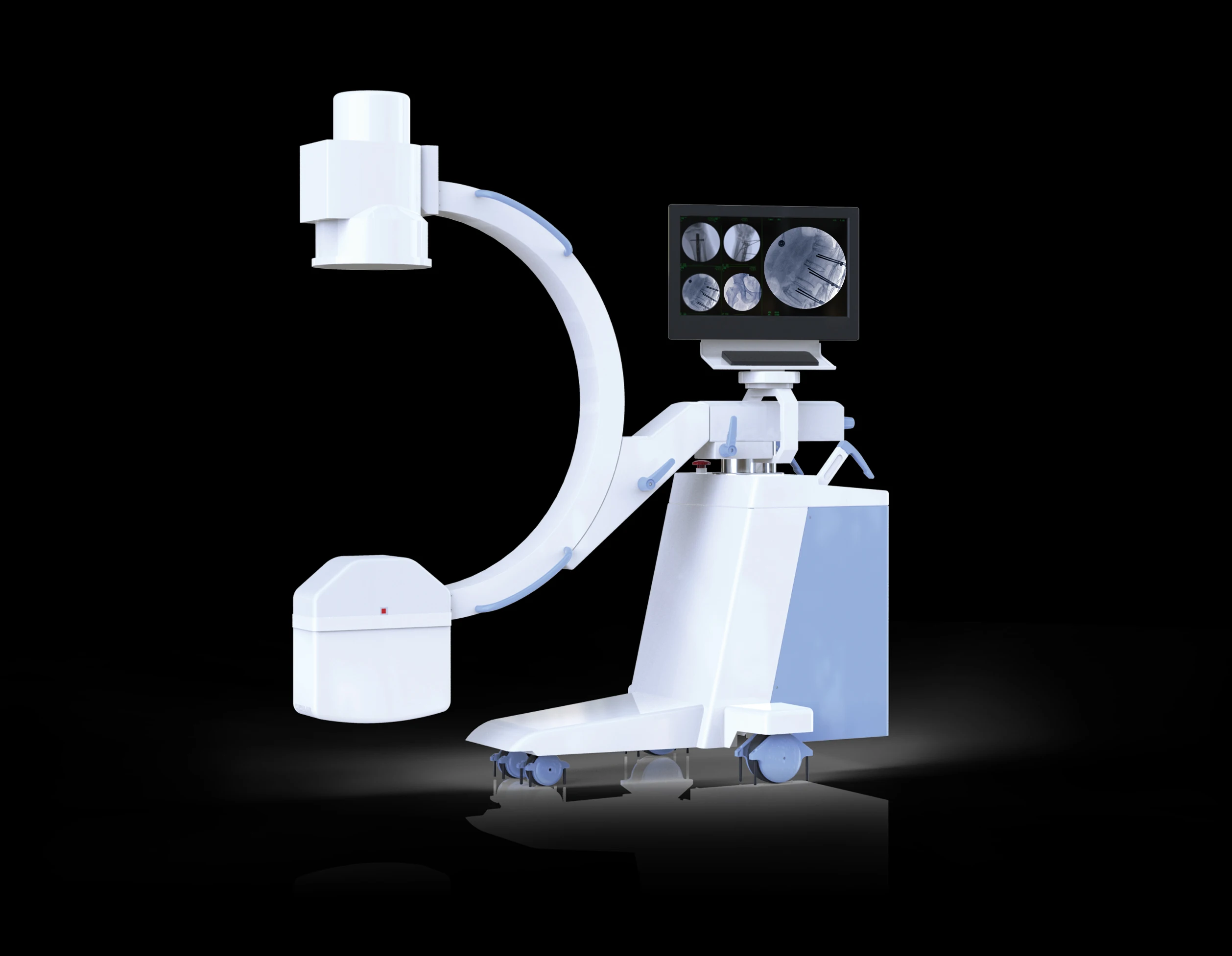

MS-1050 High frequency Mobile C-Arm X ray System

Specifications:

I. Application:
Orthopaedics: osteopathy, diaplasis, nailing
Surgery: removing foreign body, cardiac catheter, implanting pace maker, interventional therapy, partial radiography, local photography, and other work.
II. Features
1. New integrated design, compact appearance, convenient operation.;
2. Unique hand-held remote controller, more convenient operation
3. Graphical colorfully LCD touch screen console interface, convenient operation, fashionable design
4. High-quality combined HF-HV X-ray generator, greatly reducing the X-ray irradiation.
5. Toshiba image intensifier is employed, stable and reliable in quality , high-definition image and display system
6. With the perspective KV, MA automatic tracking feature, the image brightness and definition are automatically set at optimal function.
7. Medical high-resolution progressive output TV system, eight image storage, clearer image and convenient operation.
III. Configuration
1. New (with electric auxiliary support arm) C-arm main rack one set
2.High-frequency high-voltage X-ray generator and high-frequency inverter power supply(3.5KW,40KHZ,110KV) one set
3. Toshiba 9-inch image intensifier     one set
4. 1 million pixel ultra-low-light digital cameras one set
5. high- definition progressive output CCU main-control system   one set
6. High-thickness grids      one set
7. Electric adjustable collimator    one set
8. 14-inch high- definition medical monitor one set
9. Unique hand-held remote controller one set

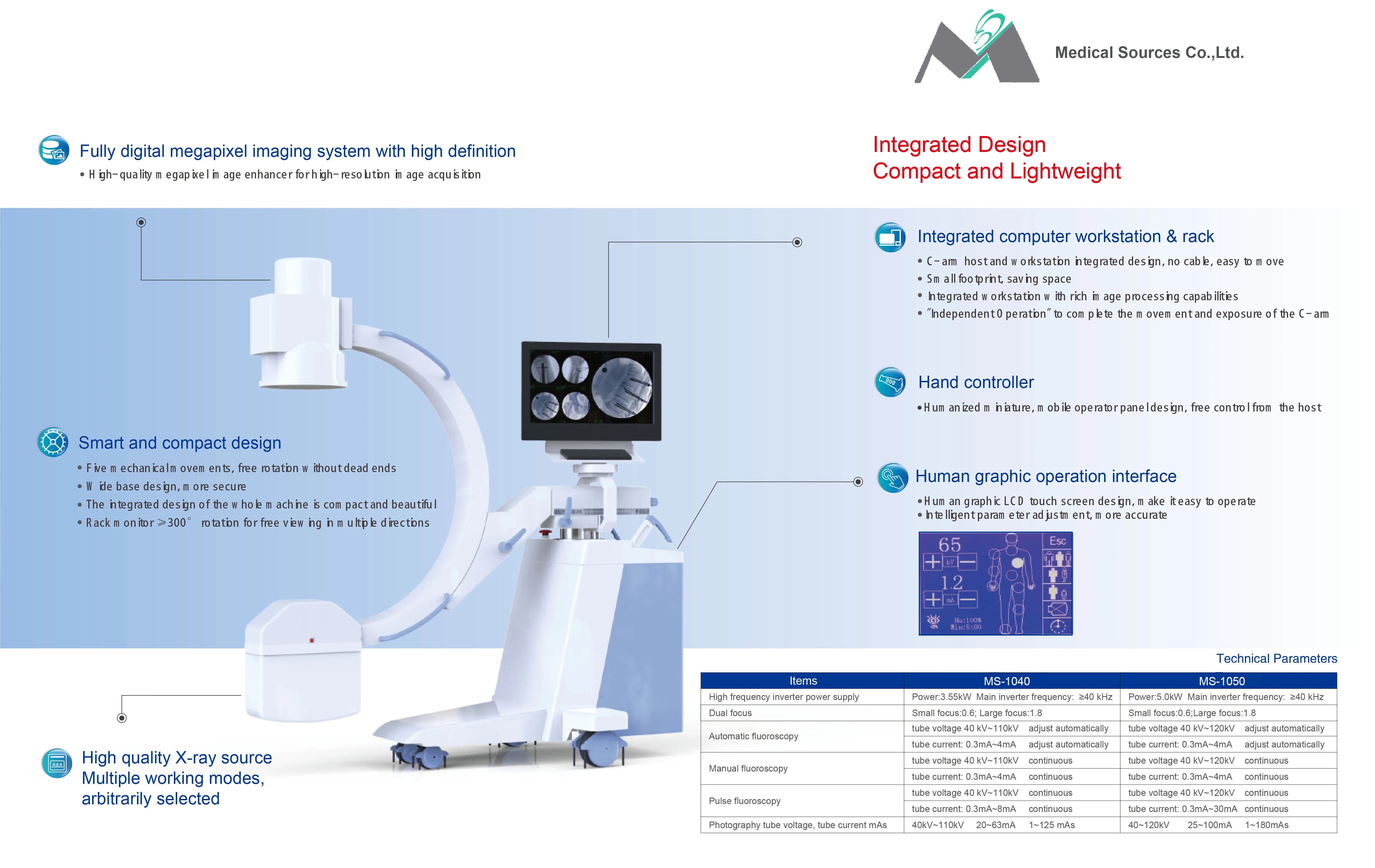

Category	Project	Content
Electrical Performance	Photography Capacity	3.5KW
	Fluoroscopy Capacity	Tube current:8mA Tube Voltage:110KV
	Automatic Fluoroscopy	Tube Voltage:40kV ~ 110kV automatical adjustment Tube Current: 0.3mA ~ 4mA automatical adjustment
	Manual Fluoroscopy	Tube Voltage:40kV ~ 110kV Continuous Tube Current: 0.3mA ~ 4mA Continuous
	Pulse Fluoroscopy	Tube Voltage:40kV ~ 110kV Continuous Tube Current: 4.1mA ~ 8mA Continuous
	Photography Tube Voltage and mAs	40 kV~110 kV 20-63mA 1-125mAs
	film holder Size	200mm×250mm(8″×10″)or 250mm×300mm(10″×12″)
X-ray Tube	X-ray Tube Special for High Frequency	Fixed anode   Dual-focus, small focus: 0.3, large focus:1.5 High Frequency Inverter: 40KHz thermal capacity 35KJ (47KHU) Tube thermal capacity 650KJ(867KHU)
Video System	Image Intensifier	TOSHIBA (9″) Image Intensifier
	CCD Video camera	Ultra low-light CCD camera
	Monitor	Horizontal center resolution 1000/L, edge 800/L Visual bandwidth12.5MHz 50bit Image 75 f/s
	CCU main control	High Definition progressive output mode, 8 level Noise Reduction,8 image storage, Vertical Image, Horizontal image flip, positive or negative image
Structure	Directive wheel and major wheel	Directive wheel 360° rotation, freely change the moving direction of the unit, major wheel ±90° rotation
	C-arm	Electrical Ascending & Descend ≥400mm Monitor rotation ±135° Forward and Backward Movement: 200mm   Rotation around Horizontal Axis:  ±180°  Rotation around Vertical Axis     :  ±15°  Focus screen distance:960mm C-arm opening: 760mm C-arm arc depth: 640mm? Slip on orbit: 120°(+90°~ -30°)
