Product Overview

Description





Product Description

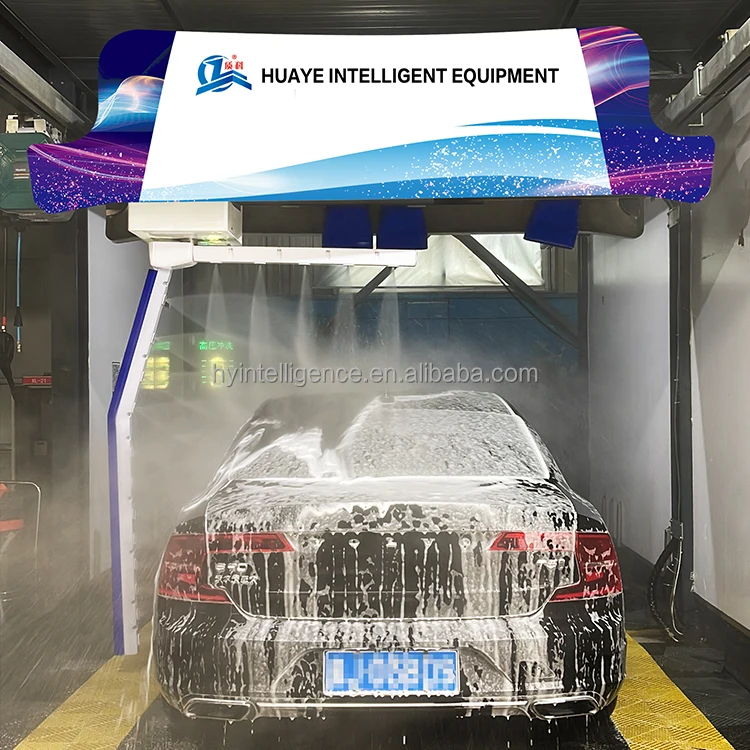

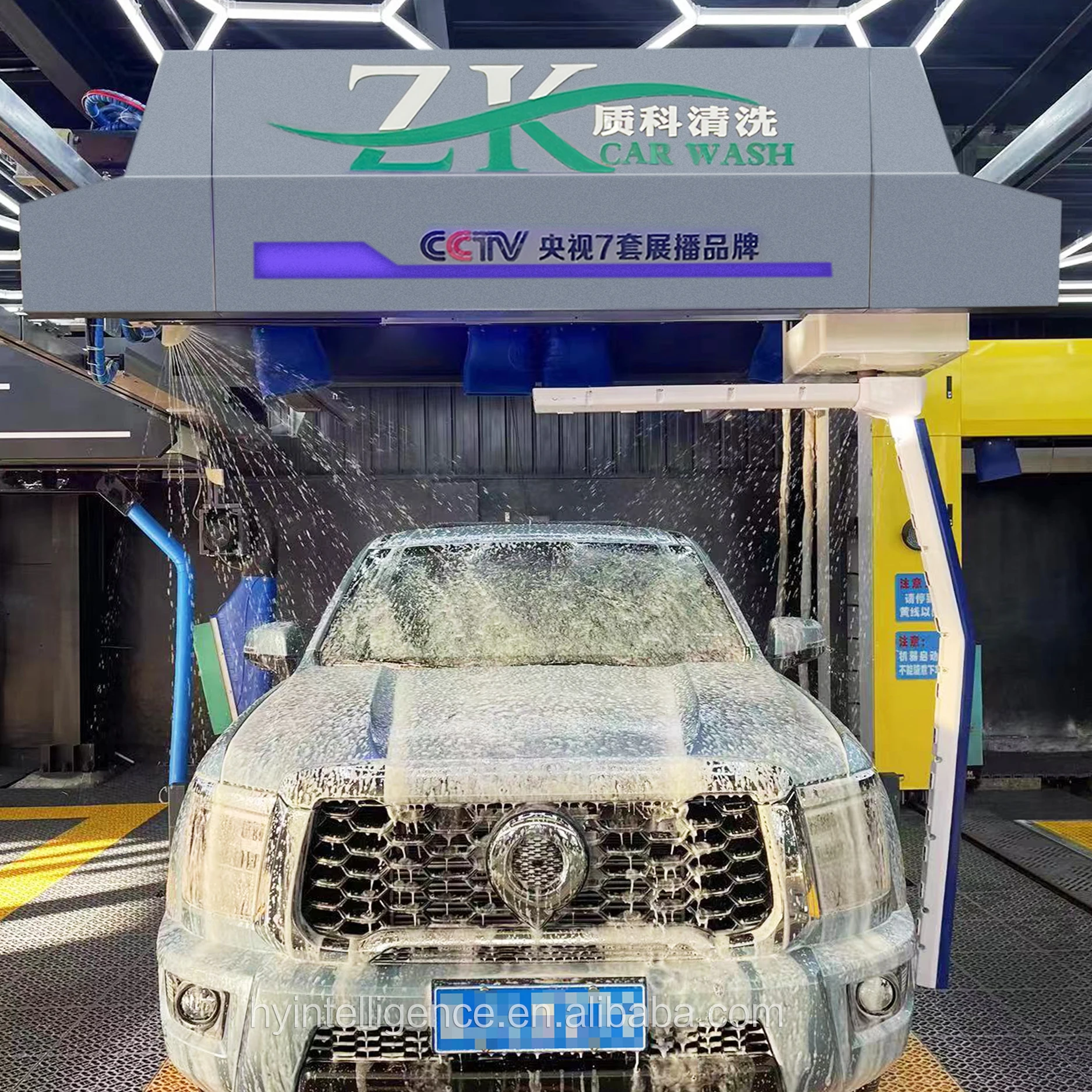

Automatic touchless car wash machine systems with factory price

The new generation of touchless system stands out in so many ways: looks, mechanics, flexibility, and versatility. It has been created to satisfy the needs of the most demanding professionals in the wash world. What’s more, this new series has a special quality which makes it different to anything the market has ever known before: its adaptability. The interior immediately appeals with its stylish modern design, which combines the latest technology and maximum reliability in the wash.



Specification


Item
Parameters
1
Dimension（L*W*H）
3000*1300*1000mm
2
Layout(L*W*H)
7500*3500*3200mm
3
Max. Wash height
2000mm
4
Max. Wash width
2500mm
5
Max. Wash length
6000mm
6
Washing speed
3-8 min.(depend on the operation mode or procedure chosen )
7
Total weight
2500kg
8
Power supply
380V/25kw
9
Air switch
100A
10
Water pump motor power
18.5kw
11
Fan motor power
5.5kw*4 sets
12
Moving motor power
0.37kw frequency control
13
Rotation motor power
0.37kw frequency control
14
Control system
PLC+HMI control system
15
Drive system
Frequency inverter control
16
Detection system
Ultrasonic intelligent three-dimensional detection
17
Water consumption
100-180L/car
18
Electricity consumption
0.5-1.4kw•H/car
19
Packing
≈13CBM


Products Description


Main Features:
1
Energy saving system
√
2
Water pressure stage control
√
3
Vehicle width detecting
(Spraying arm  Left-right moveable according to the vehicle width）
√
4
Self-parking and detecting system
√
5
Vehicle collision avoidance system
√
6
Inbuilt air dry system
√
7
Freeze Prevention system
√
8
Lubrication-free
√
9
Operation permission setting function
√
10
Equal pressure anti blocking nozzle
√
11
Safe alarm system
√
12
Throughput info.
√
13
Automatic standby system
√
14
Breakdown self check
√
15
Galvanized steel frame
√
16
LED indicator system
√
17
Voice prompts function
√
18
Remote control
√
19
Automatic standby service
√
Function:
1
Chassis wheel washing
√
2
360° high pressure washing
√
3
Detergent spraying
√
4
Colorful/high Foam spraying
√
5
Wax spraying
√
6
Air dryer
√
Optional:
1
Self-service payment system
●
2
Colorful lights
●
3
Water recycle system
●
                                                                      Standard √        Optional ●



Funtion：

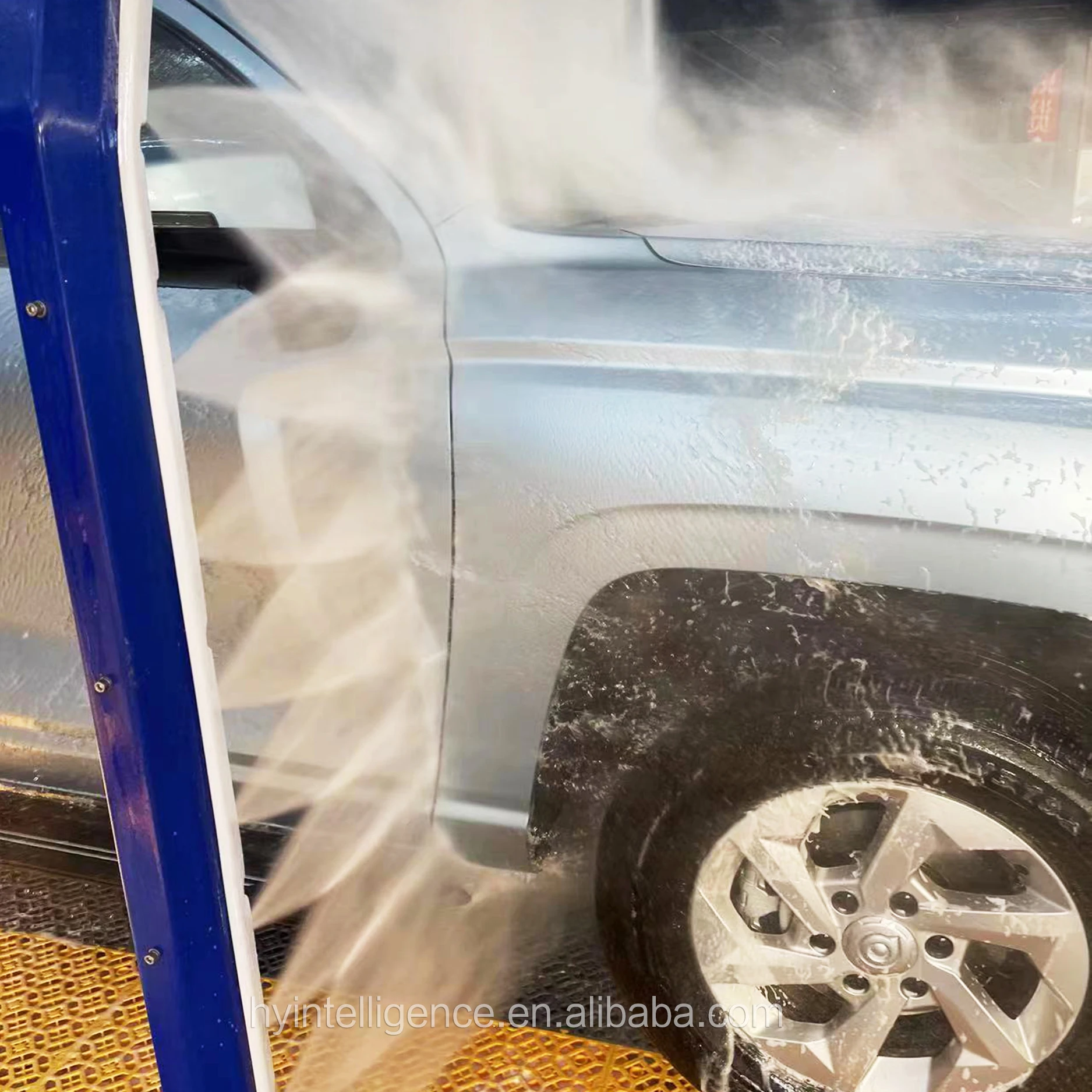

★Chassis and wheel washing
High Pressure water spray removes the dirt and muds on the chassis and wheels of the vehicle.




★ Washing liquid spraying

Offer your customers a real enhanced wash experience with the amazing Foam Sensation.
Easily removes road dust, dirt, oil, insect traces. Can be easily washed away from the surface without damaging the coverings of nonferrous metal alloys. Ideal for washing the car in summer. Contains anti-corrosion additives.
Due to its special components, it works great in the winter season in the northern regions. Effectively removes heavy soiling, anti-icing reagents and road film.

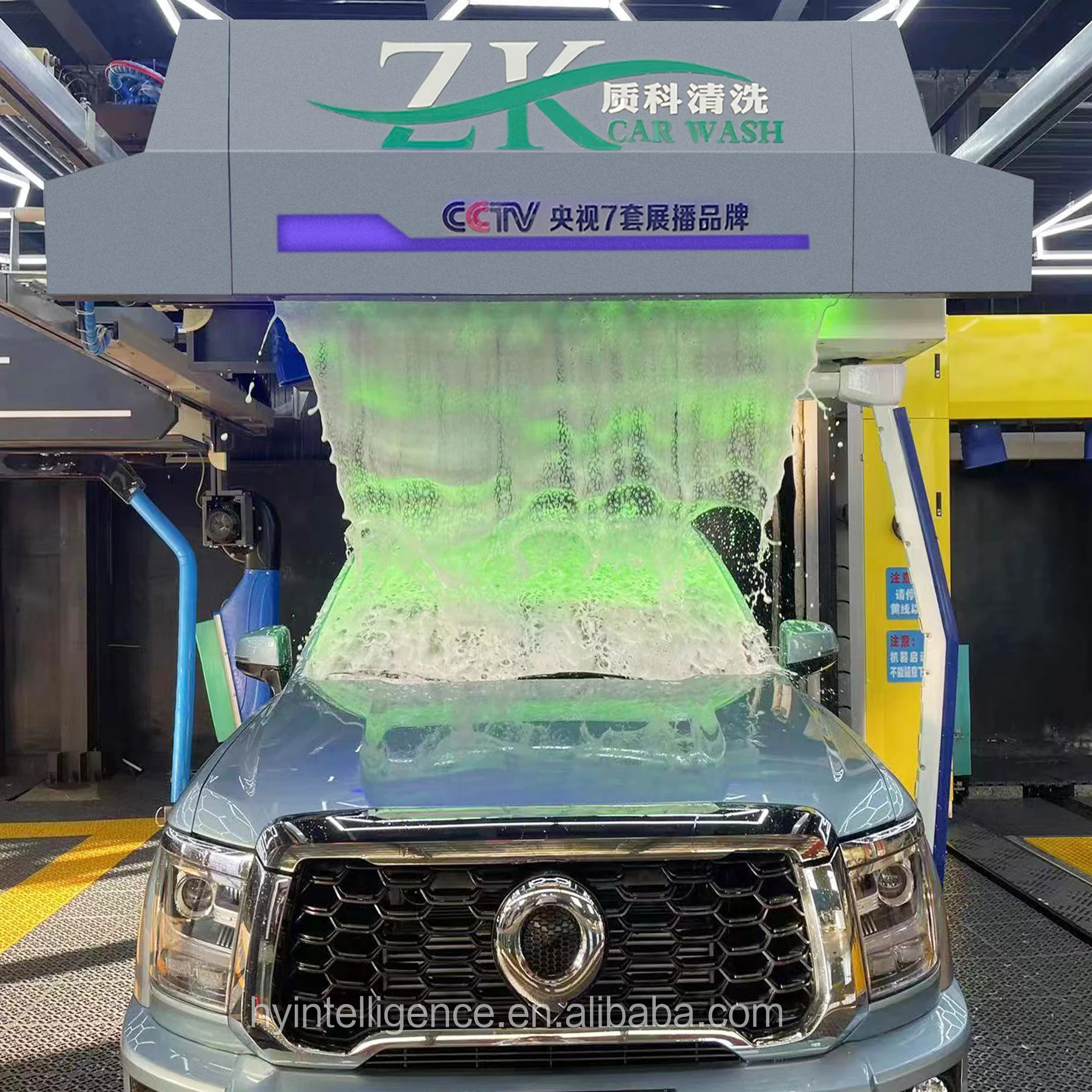

★ Colorful Foam spraying

Foam changes its color in the process of applying to the car body. Easily removes road dust, dirt, oil, insect traces. It makes a stable foam that is easily washed off the surface. Does not harm aluminum, nickel-plated surfaces and other coatings from non-ferrous alloys.

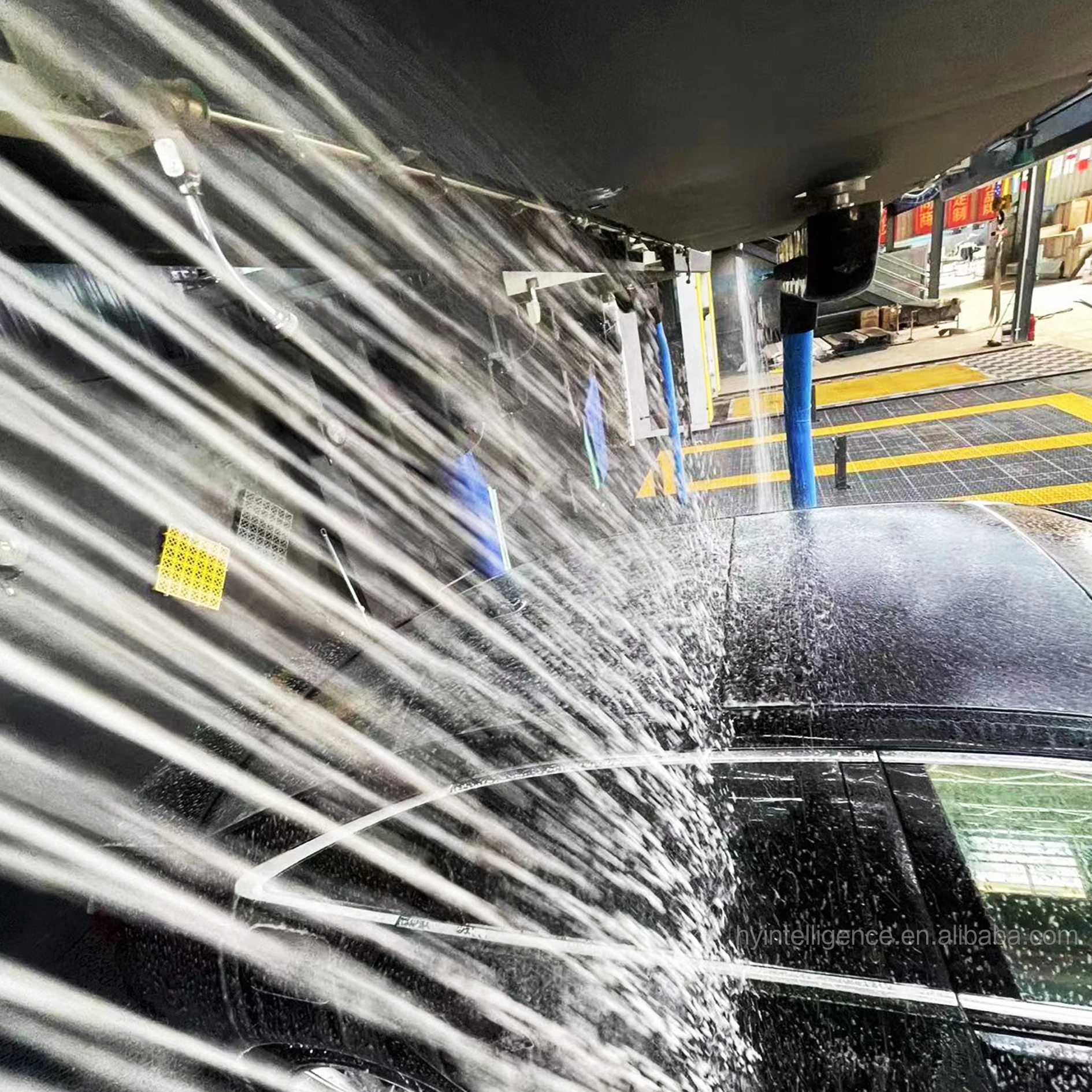

★ 360°high pressure washing

High water pressure up to 100 bar（150 bar is optional）to remove the dirt, muds and insects body on the vehicle body, the water pressure can be set freely on the man-machine interface. water saving and engery saving.





★ Wax spraying

It has a high water-repellent properties and dries quickly after being applied to the vehicle. The car stays completely dry, shiny and protected from environmental influences. The treated surface is self-cleaning after rain or when rinsing with water. The product has an antistatic effect. Works great even when using hard water and at low temperatures.





★ Air dryer 5.5kw*4sets frequency

Built-in fast air drying system, strong wind drive away the body moisture, realize the true sense of automatic cleaning.


Parts Brand/Power：




Customer show












Company Profile




We are widely known as the leading manufacturer and supplier of Car Washing Machines.We are the leaders of this industry because we satisfy the precise requirements of our customers using our ground breaking concepts in conjunction with the most up to date technology.
At Huaye, car wash industry leadership means we strive to be the best at what we do.That ideal is exemplified by our Mission Statement: “Huaye intelligent equipment co.,ltd. will provide the most user friendly, technologically advanced and consistently reliable in bay automatic car wash systems available. Our highly trained, experienced professionals will strive to exceed our customers’ expectations while creating employee, distributor and customer relationships that will last a lifetime.”
The buyers of car washing machine look for in the machine aspects such as cost effectiveness,affordability,and potential to yield huge profits while receiving the total gratification of their customers. Our machines fulfill the anticipations of our clients and we also go beyond their expectations with the features of our car wash machine such as quick and speed car wash with extreme safety, consistency, effective water and power consumption, user friendliness, minimal requirement of human interference etc. These factors not just bring high profits but also ease the entire operation and make them very fast.
We also excellent service, technical assistance and a complete inventory of spare parts together with our wide range of machinery and equipment.




Certifications




Packing & Delivery






FAQ


Q1.are you a factory or a trading company?
A:Our company is specialized in manufacturing automatic car washing machines including touchless car wash,brush roll over car wash and other related equipment for vehicle maintenance.

Q2. What is the machine warranty?
A: Three years . We will provide free spare parts in warranty.And we will provide spare parts and technical support for whole life span.

Q3. What is the delivery time?
A: 7-14 days

Q4. How about the machine installation and training ?
A: We will provide fundamental plan and installation manual.

Q5. How can you assure the machines’quality?
A: Every machine will be tested by our quality control department before delivery to assure the quality. We will provide free spare parts due to any defect of the machine in warranty.

Q6. What’s the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union,L/C at sight,D/P at sight.

Q7. Do you accept factory visiting?
A: You will be well welcomed to visited to my factory anytime.

Q8. How many years are you in car washing field?
A: We are specialized in car washing machine for more than 10 years sincy 2005.
