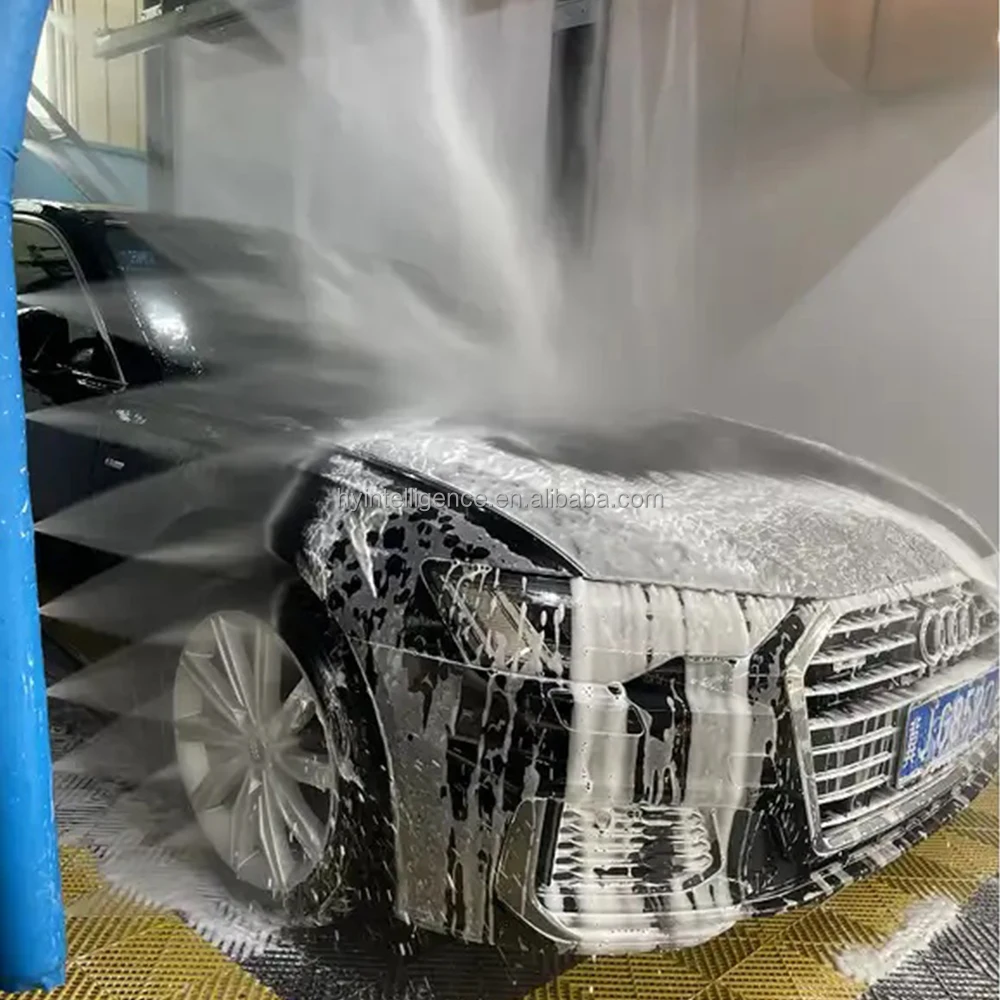

China factory new advanced washing car wash machine touch self service with colorful shampoo and four air dryer
- Category: >>>
- Supplier: Cangzhou Huaye Intelligent Equipment Co. Ltd.
Share on (1601042085296):
Product Overview
Description
Product Description

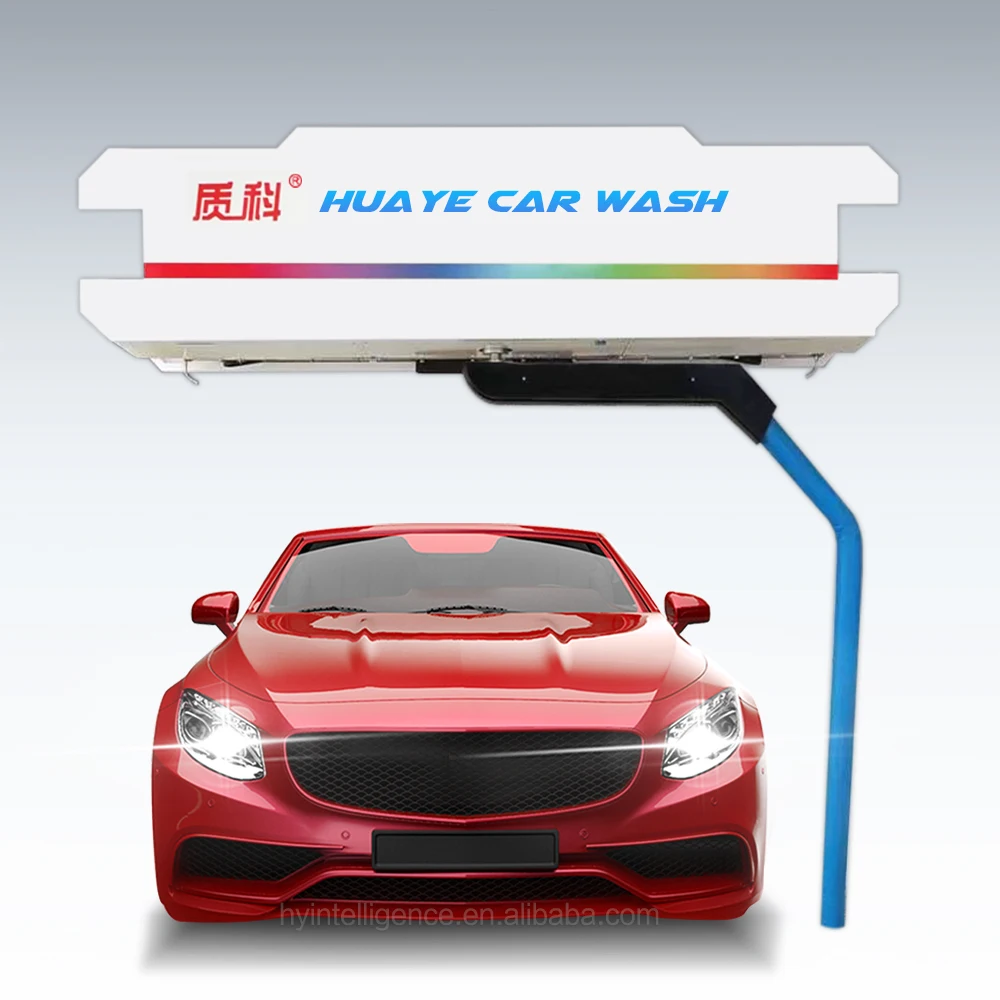

360 Car Wash Machine Touchless Automatic Robotic Car Washing System Tecnologia Car Care Cleanings
The new generation of touchless system stands out in so many ways: looks, mechanics, flexibility, and versatility. It has been created to satisfy the needs of the most demanding professionals in the wash world. What’s more, this new series has a special quality which makes it different to anything the market has ever known before: its adaptability. The interior immediately appeals with its stylish modern design, which combines the latest technology and maximum reliability in the wash.
Specification
Item | Parameters | |
1 | Machine size（L*W*H） | 2720*800*500mm |
2 | Installation size(L*W*H) | 7000*3500*3200mm |
3 | Max. Wash height | 2000mm |
4 | Max. Wash width | 2300mm |
5 | Max. Wash length | 5900mm |
6 | Washing speed | 3-6 min.(Depend on the operation mode or procedure set ) |
7 | Power supply | 380V/16kw |
8 | Air switch | 100A |
9 | Water pump motor power | 15kw |
10 | Air dryer power | 5.5kw*4 sets |
11 | Moving motor power | 0.37kw frequency control |
12 | Rotation motor power | 0.37kw frequency control |
13 | Control system | PLC+HMI control system |
14 | Drive system | Frequency inverter control |
15 | Detection system | Ultrasonic intelligent three-dimensional detection |
16 | Water consumption | 100-140L |
17 | Detergent consumption | 60ml/car |
18 | Electricity consumption | 0.4-1kw•H/car |
19 | Total weight | 1500kg |
20 | Packing | ≈8CBM |
Main Features: | ||||
1 | Self-parking and detecting system | √ | ||
2 | Vehicle collision avoidance system | √ | ||
3 | Inbuilt air dry system | √ | ||
4 | Freeze Prevention system | √ | ||
5 | Safe alarm system | √ | ||
6 | Automatic standby system | √ | ||
7 | Breakdown self check | √ | ||
8 | Lubrication-free | √ | ||
9 | Operation permission setting function | √ | ||
10 | Equal pressure anti blocking nozzle | √ | ||
11 | Throughput counting | √ | ||
12 | Galvanized steel frame | √ | ||
13 | LED indicator system | √ | ||
14 | Voice prompts function | √ | ||
15 | Remote control | √ | ||
Function: | ||||
1 | Chassis wheel washing | √ | ||
2 | 360° high pressure washing | √ | ||
3 | Detergent spraying | √ | ||
4 | Wax spraying | √ | ||
5 | Air dryer | √ | ||
Optional: | ||||
1 | Self-service payment system | ● | ||
2 | Colorful lights | ● | ||
3 | Water recycle system | ● | ||
Standard √ Optional ● | ||||
Products Description
Chassis and wheel washing
High Pressure water spray removes the dirt and muds on the chassis and wheels of the vehicle.
Washing liquid spraying
Easily removes road dust, dirt, oil, insect traces. Can be easily washed away from the surface without damaging the coverings of nonferrous metal alloys. Ideal for washing the car in summer. Contains anti-corrosion additives.
Due to its special components, it works great in the winter season in the northern regions. Effectively removes heavy soiling, anti-icing reagents and road film.

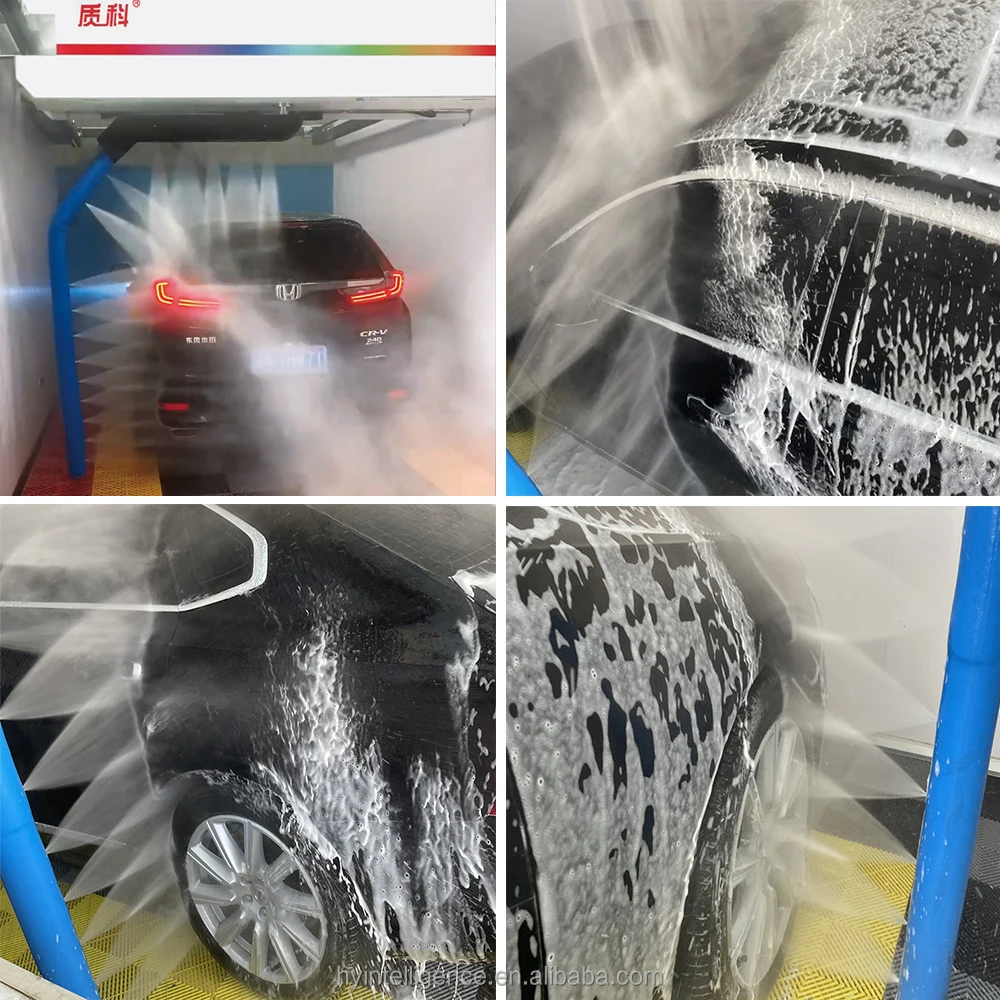

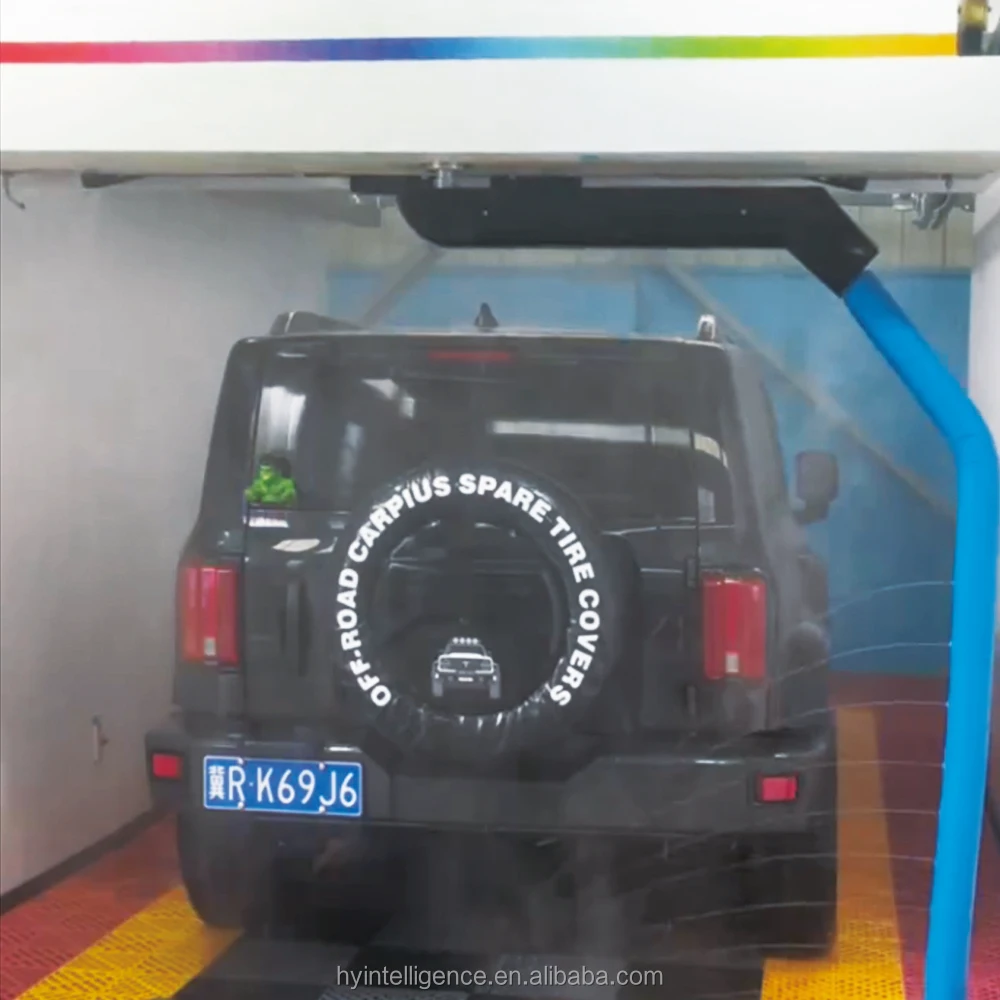

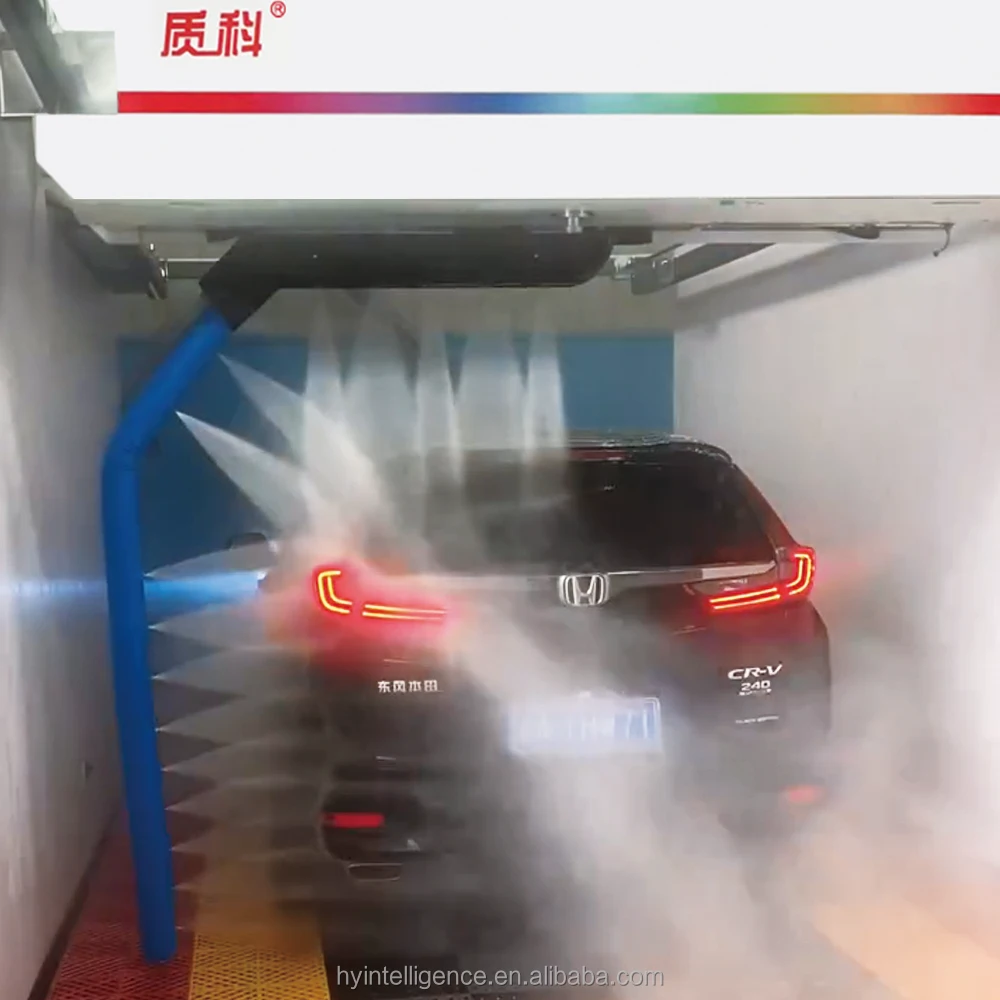

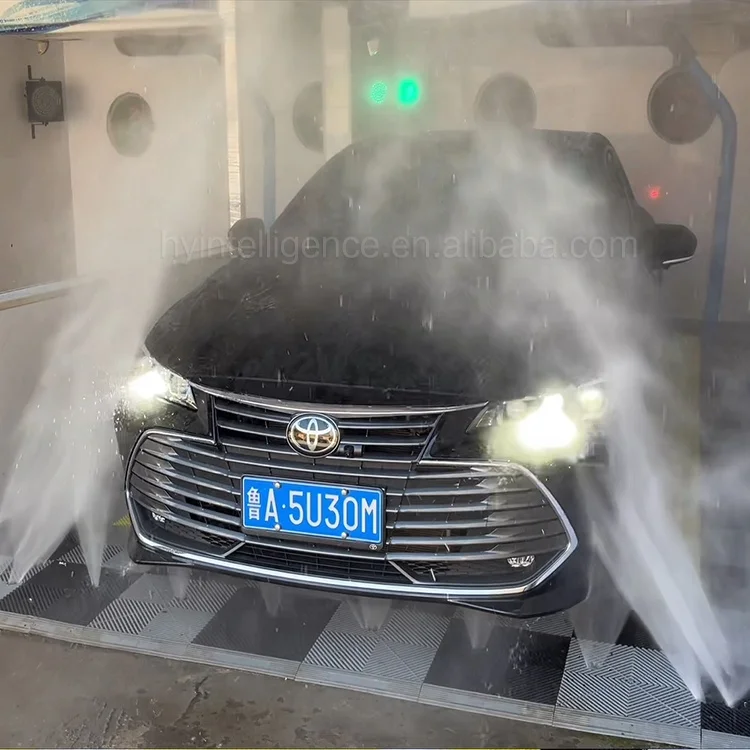

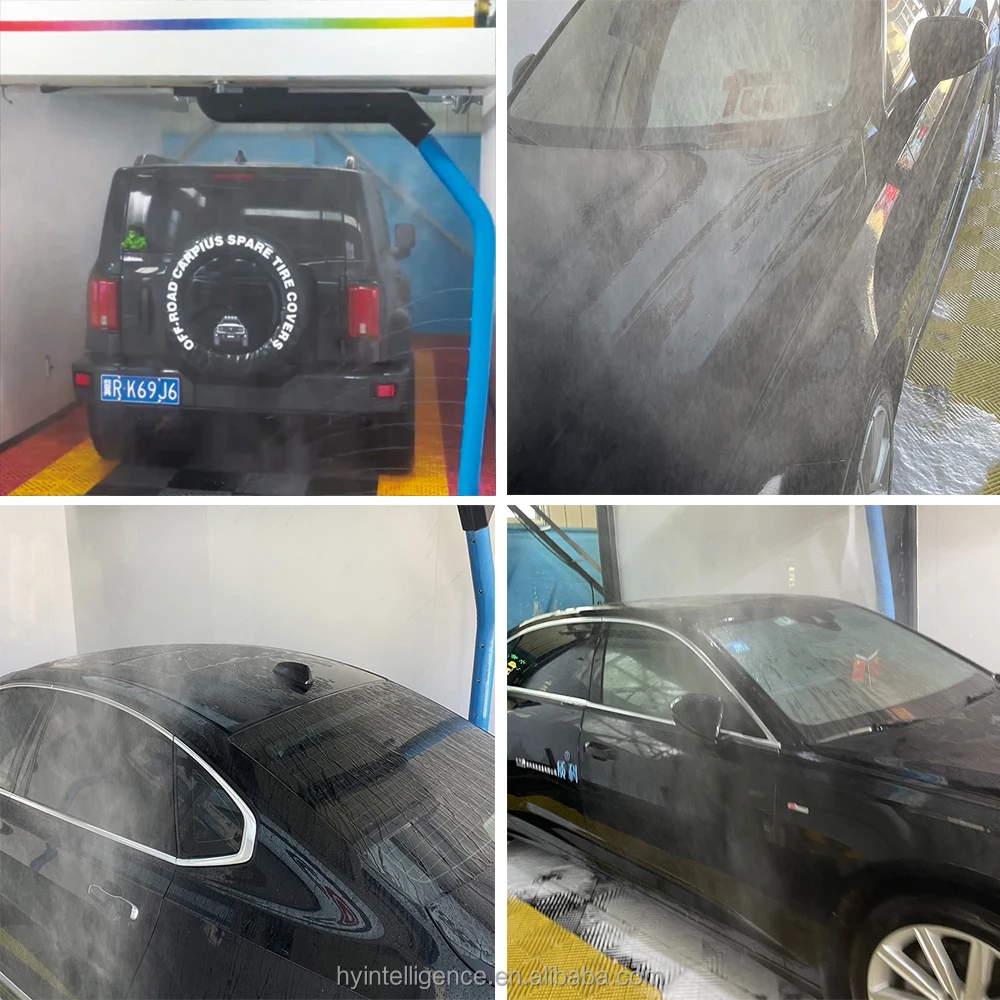

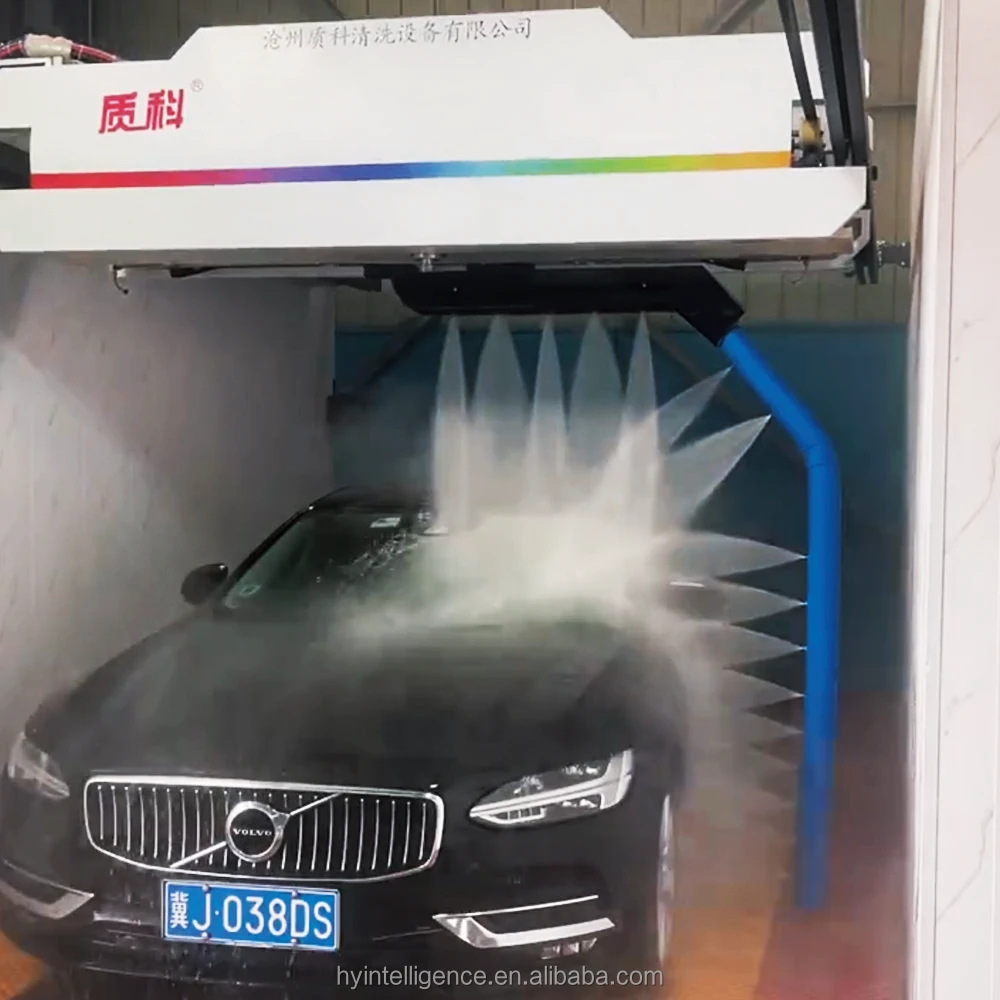

360°high pressure washing
High water pressure up to 100 bar（150 bar is optional）to remove the dirt, muds and insects body on the vehicle body, the water pressure can be set freely on the man-machine interface. water saving and engery saving.
Wax spraying
Air dryer 5.5kw*4sets frequency

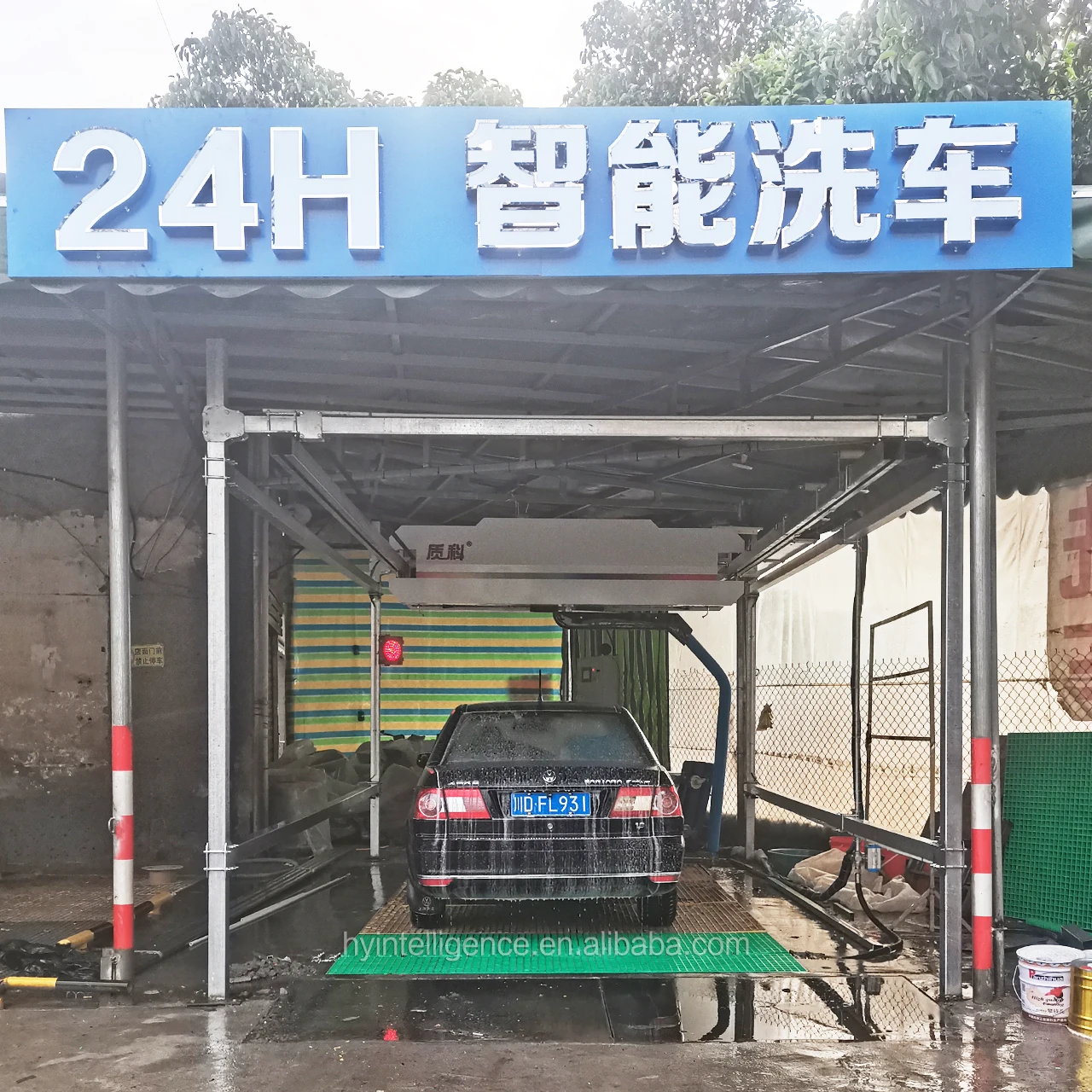

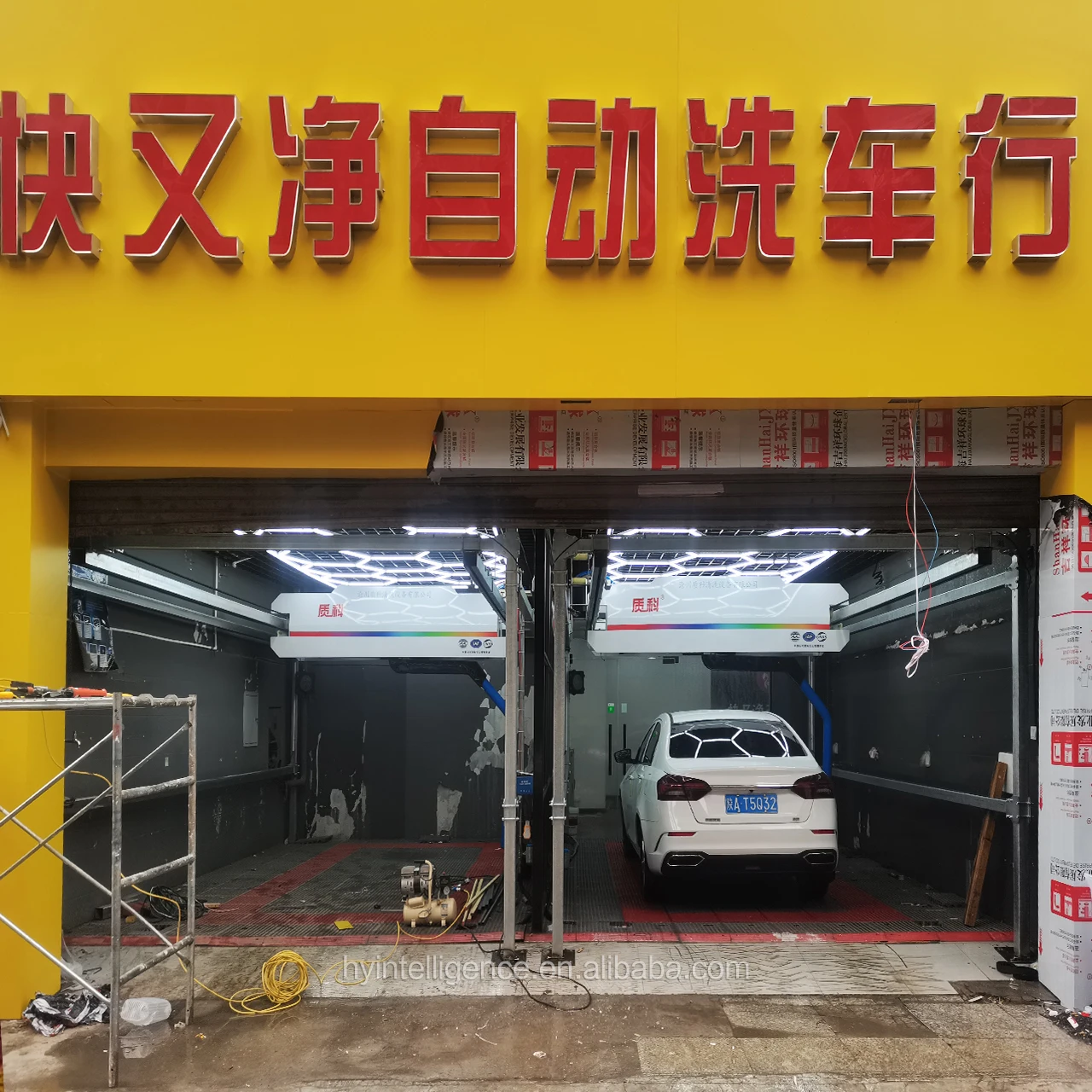

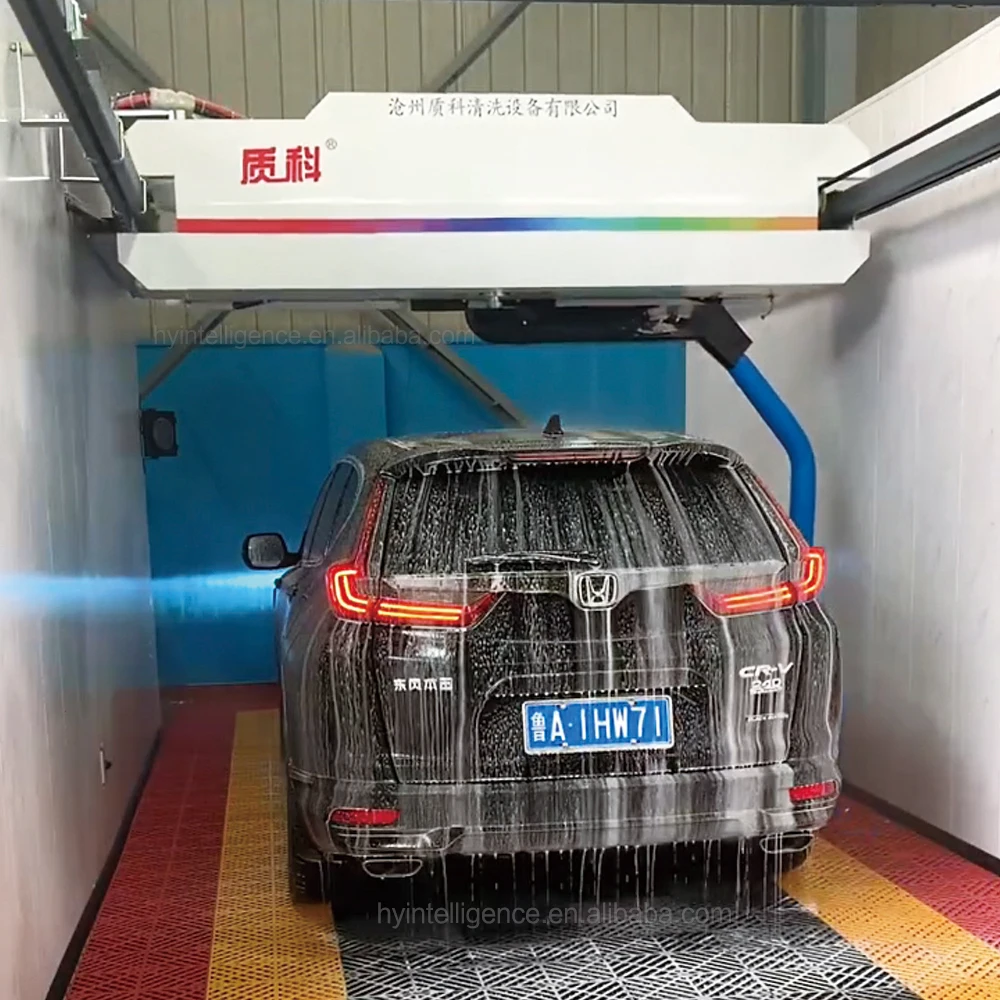

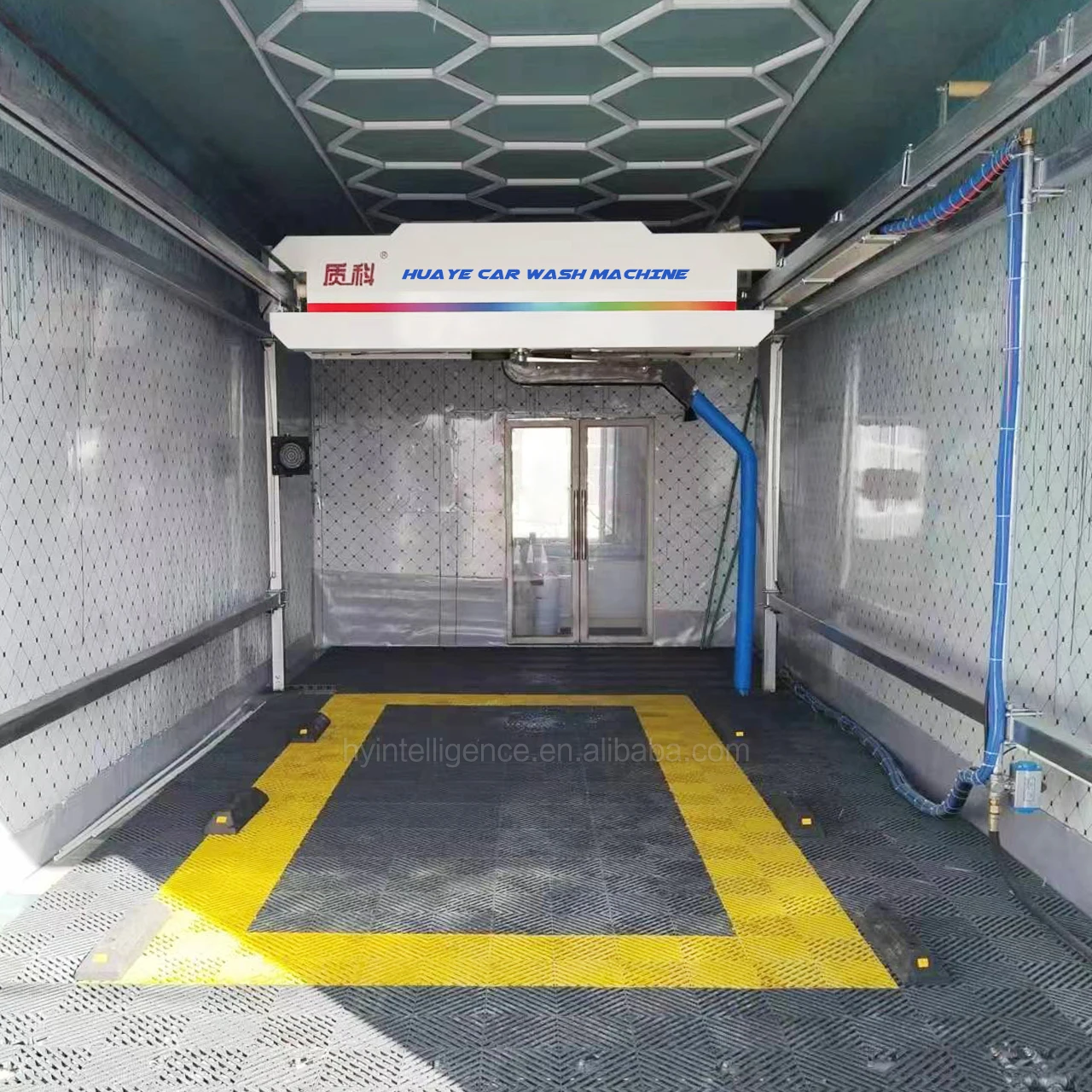

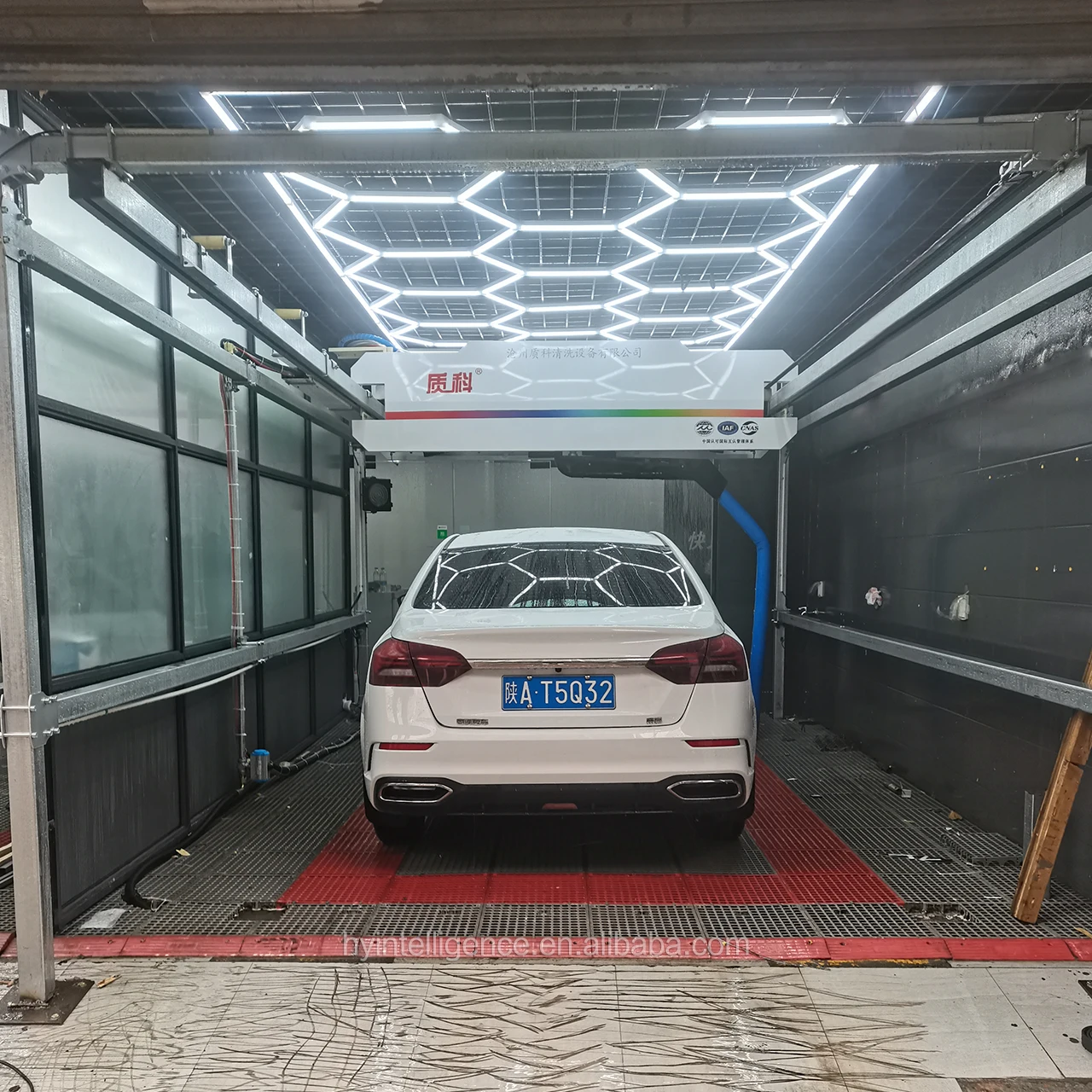

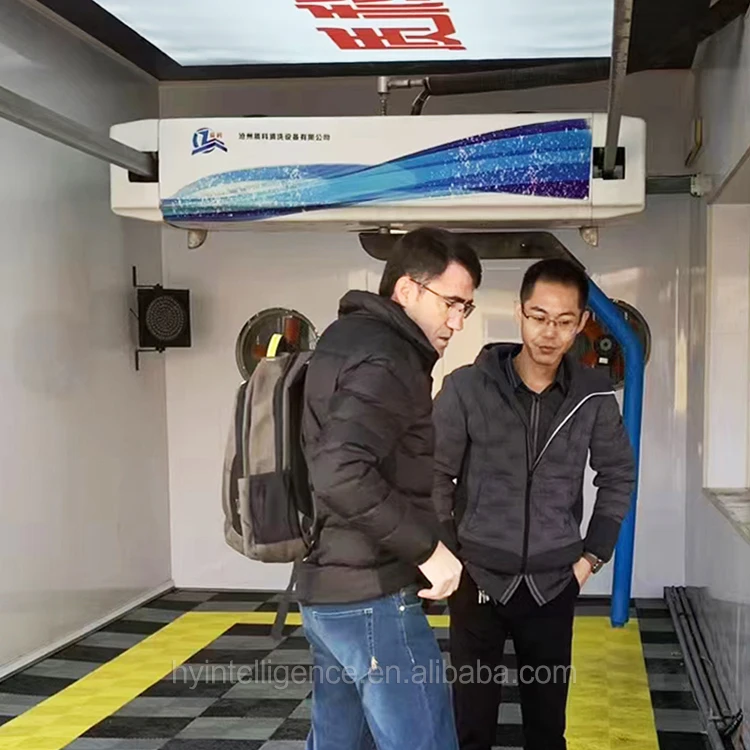

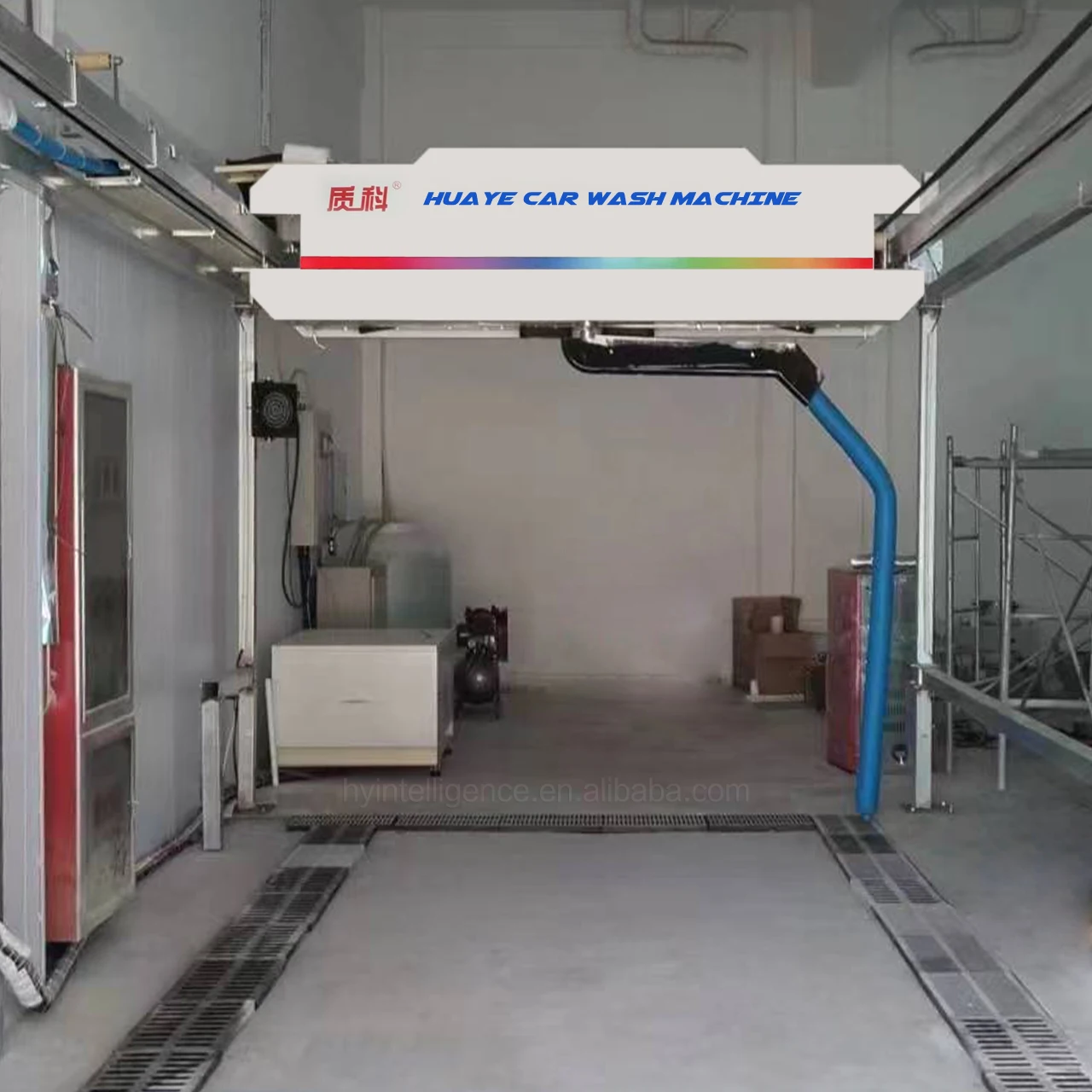

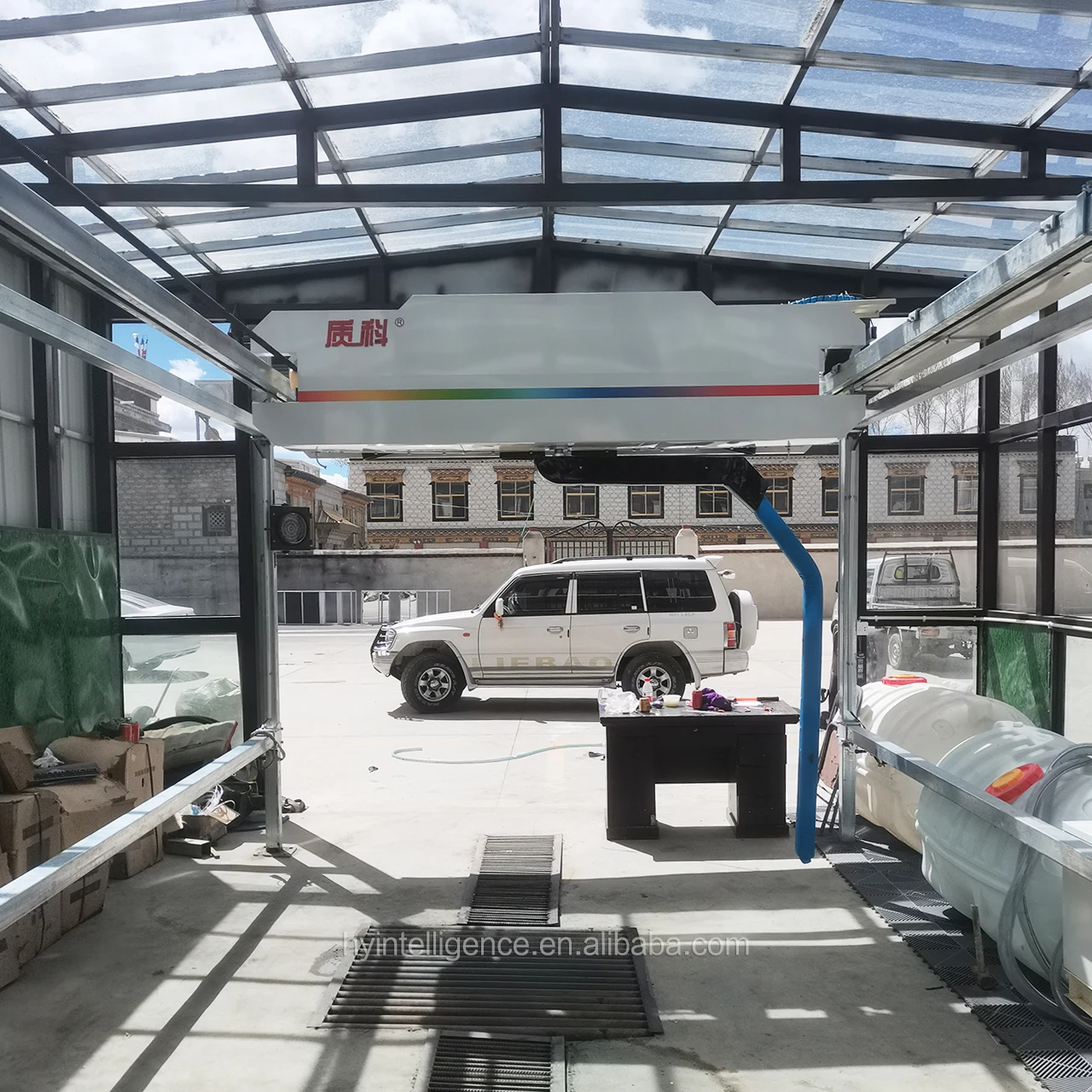

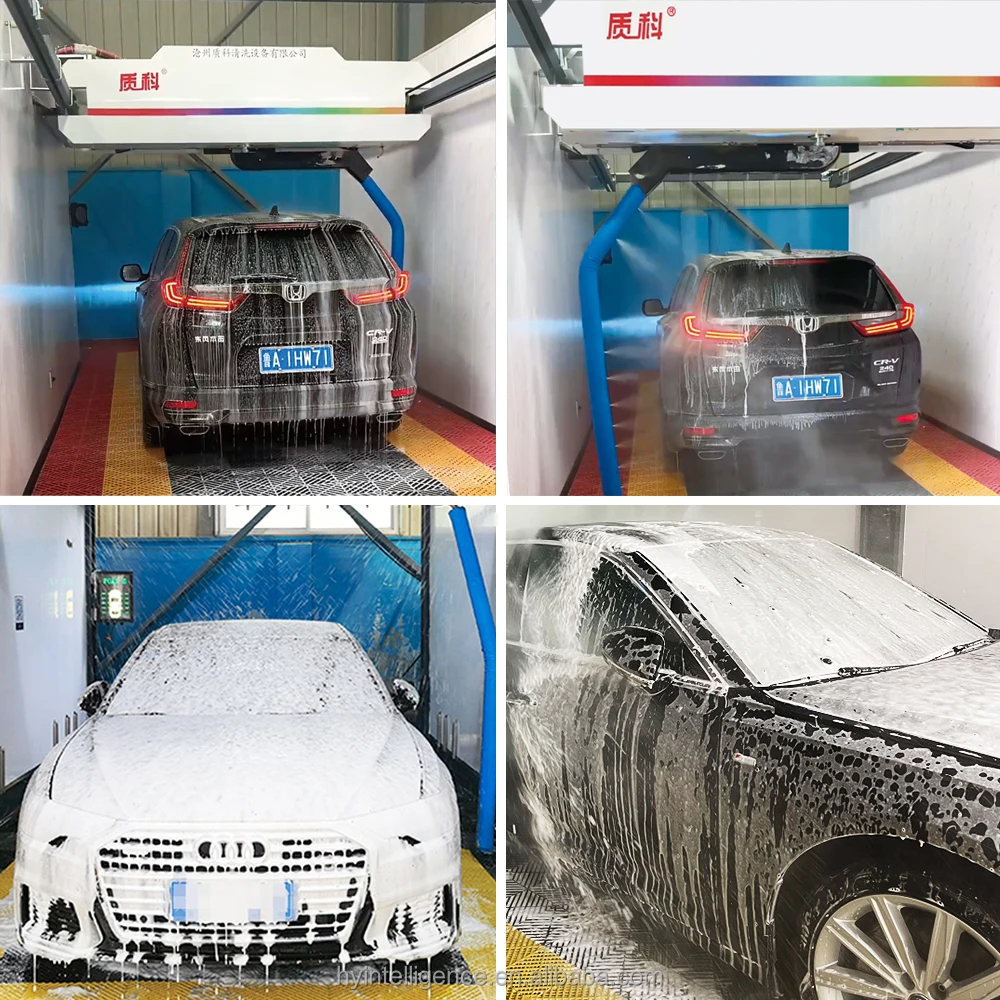

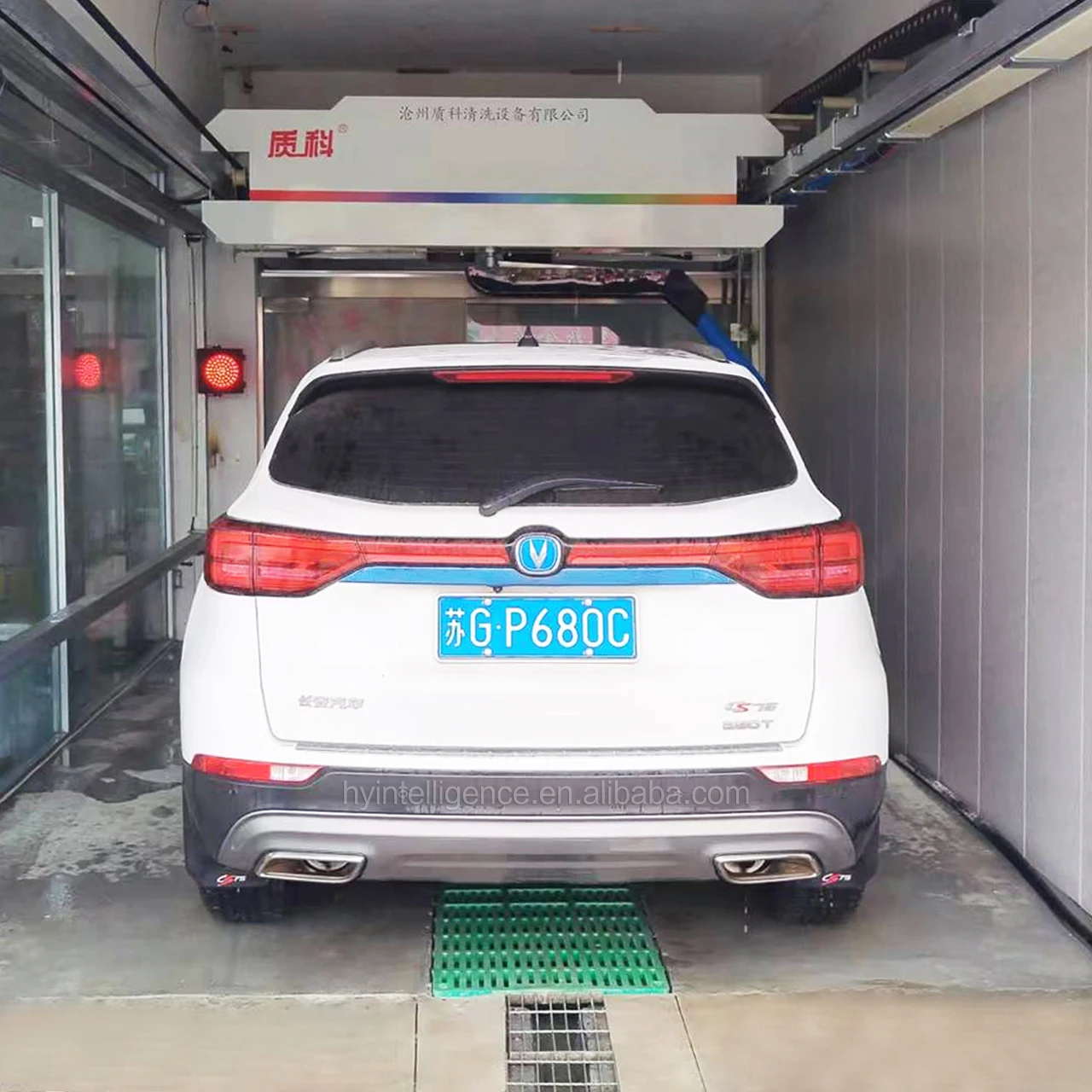

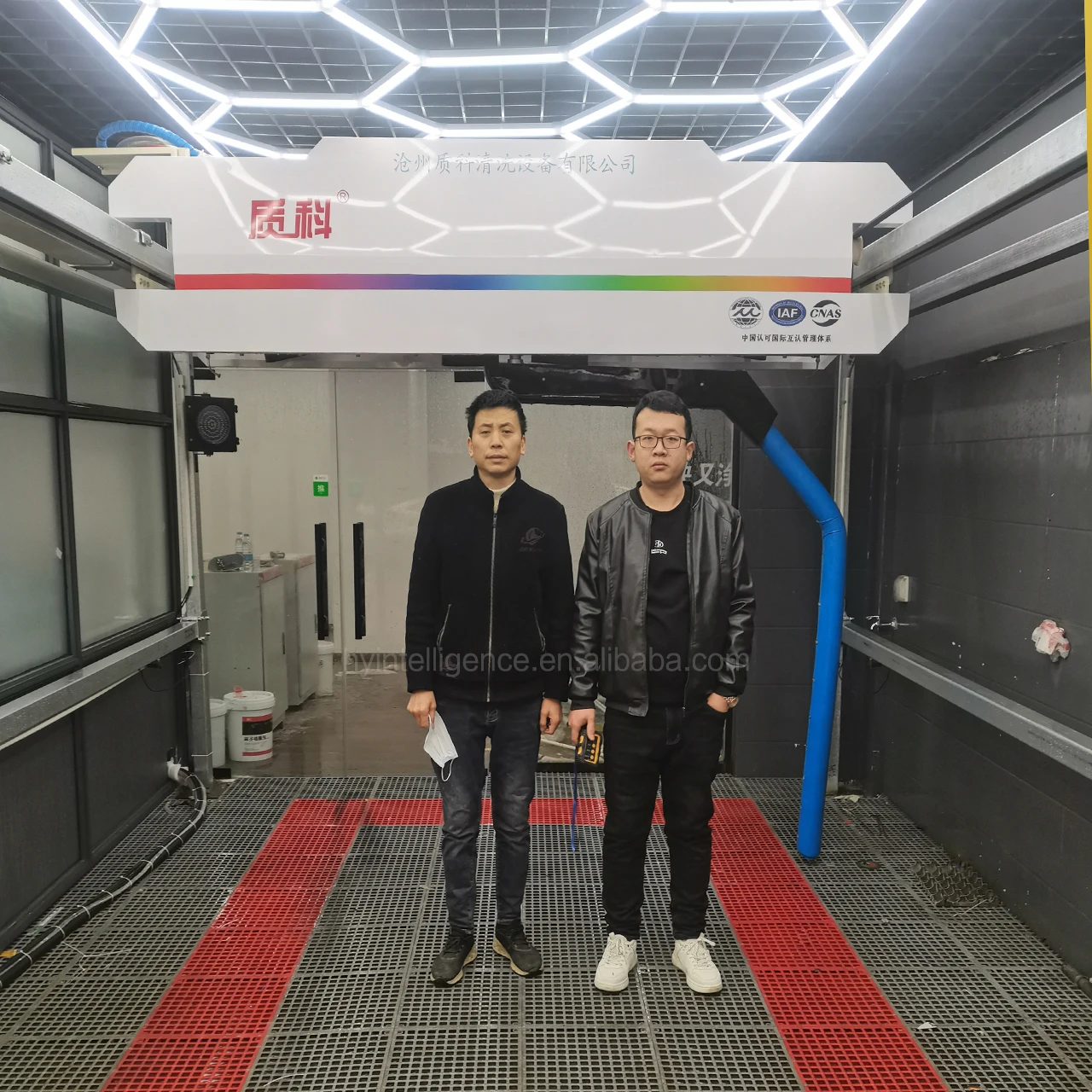

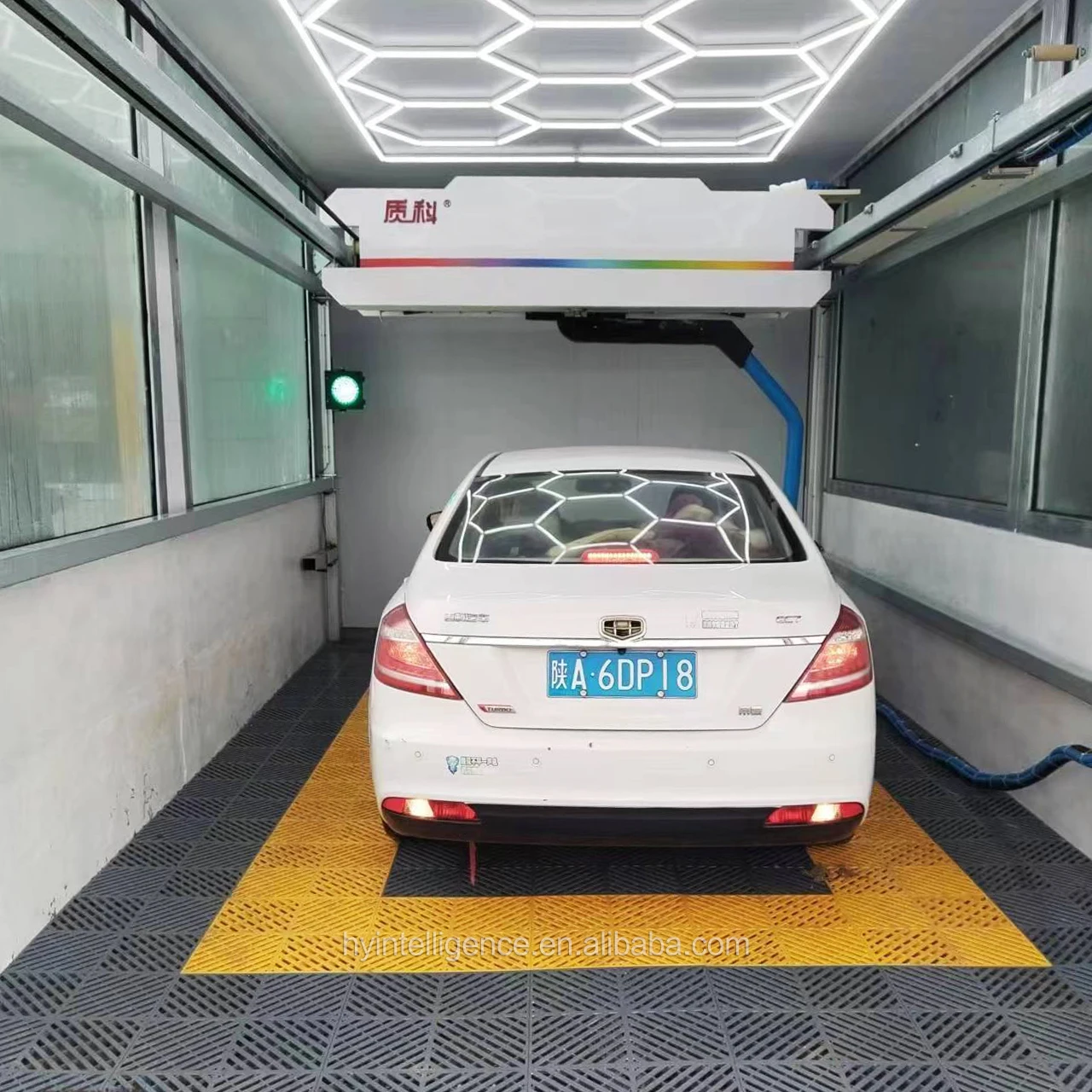

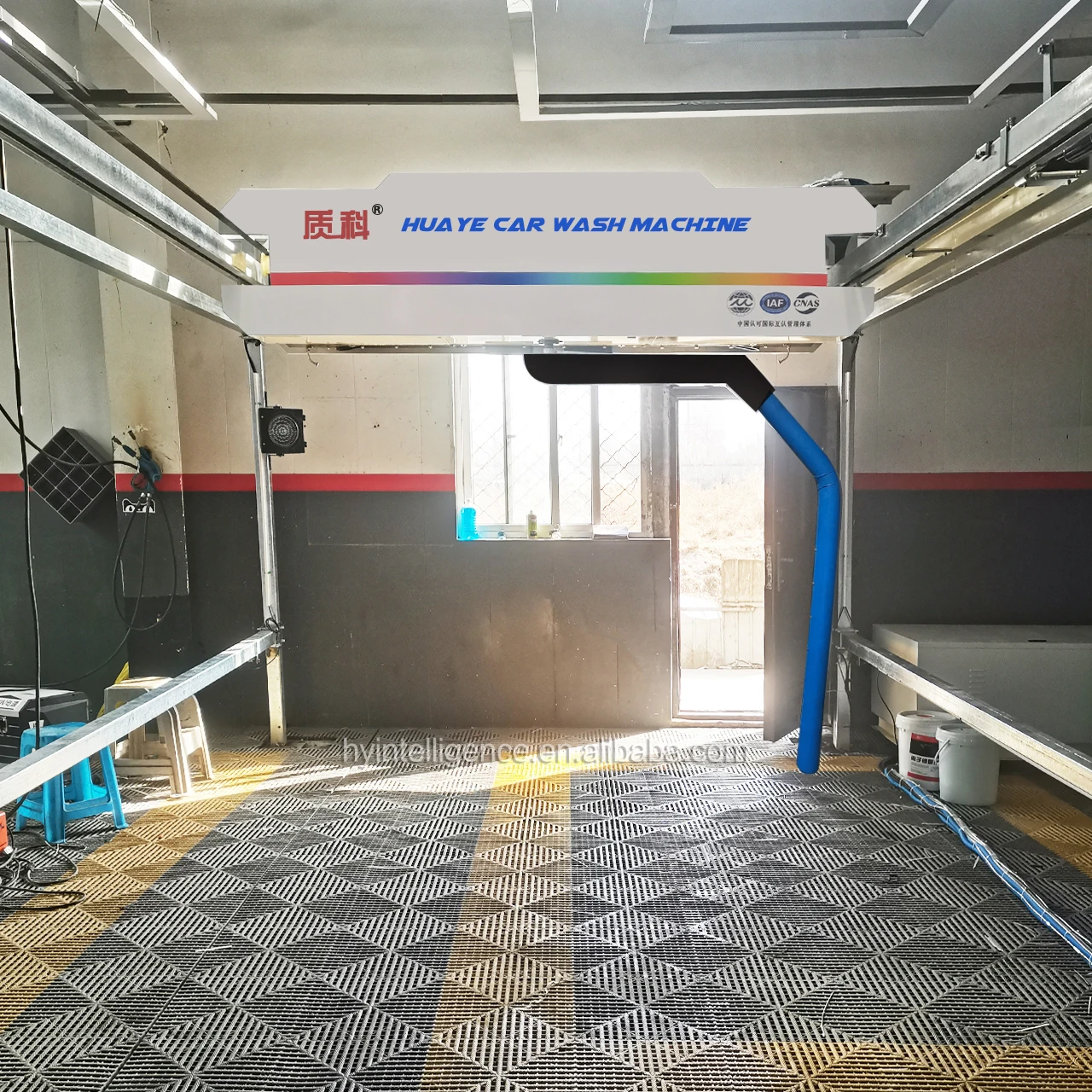

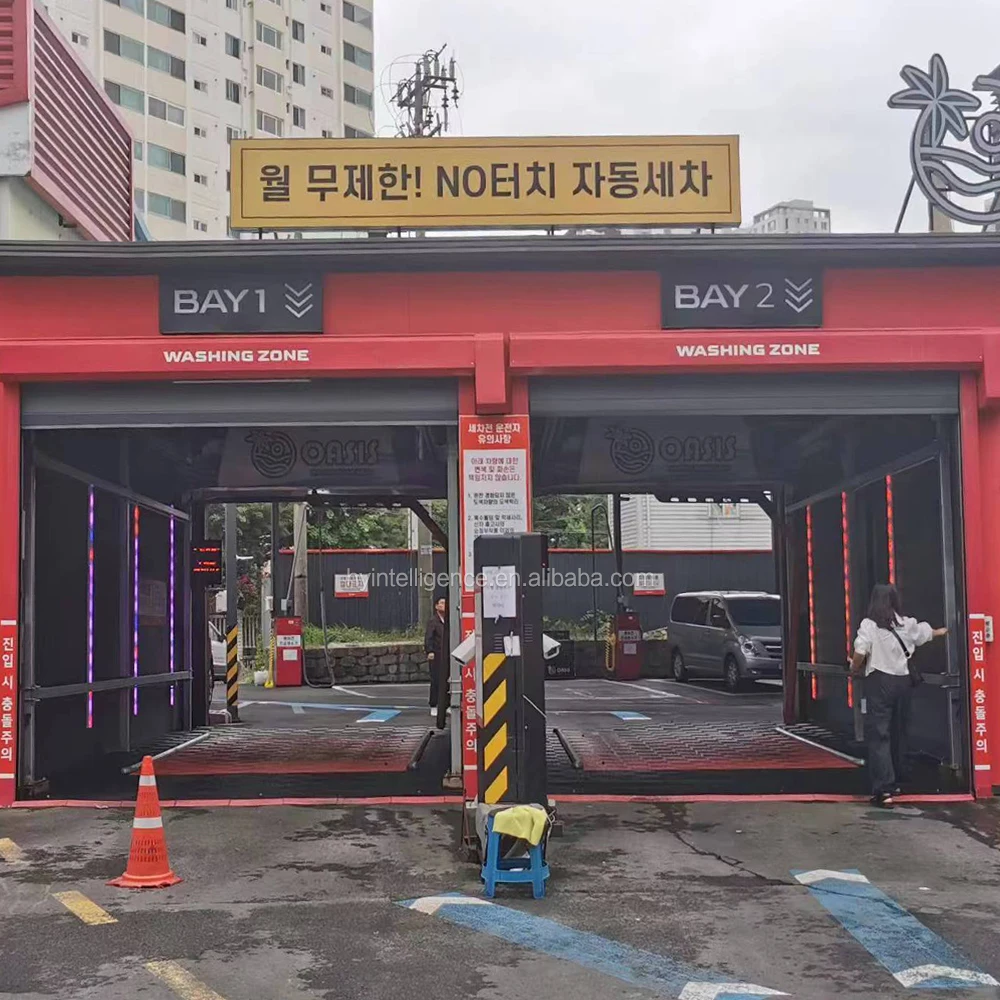

Customer show
Company Profile
We are widely known as the leading manufacturer and supplier of Car Washing Machines.We are the leaders of this industry because we satisfy the precise requirements of our customers using our ground breaking concepts in conjunction with the most up to date technology.
At Huaye, car wash industry leadership means we strive to be the best at what we do.That ideal is exemplified by our Mission Statement: “Huaye intelligent equipment co.,ltd. will provide the most user friendly, technologically advanced and consistently reliable in bay automatic car wash systems available. Our highly trained, experienced professionals will strive to exceed our customers’ expectations while creating employee, distributor and customer relationships that will last a lifetime.”
The buyers of car washing machine look for in the machine aspects such as cost effectiveness,affordability,and potential to yield huge profits while receiving the total gratification of their customers. Our machines fulfill the anticipations of our clients and we also go beyond their expectations with the features of our car wash machine such as quick and speed car wash with extreme safety, consistency, effective water and power consumption, user friendliness, minimal requirement of human interference etc. These factors not just bring high profits but also ease the entire operation and make them very fast.
We also excellent service, technical assistance and a complete inventory of spare parts together with our wide range of machinery and equipment.
At Huaye, car wash industry leadership means we strive to be the best at what we do.That ideal is exemplified by our Mission Statement: “Huaye intelligent equipment co.,ltd. will provide the most user friendly, technologically advanced and consistently reliable in bay automatic car wash systems available. Our highly trained, experienced professionals will strive to exceed our customers’ expectations while creating employee, distributor and customer relationships that will last a lifetime.”
The buyers of car washing machine look for in the machine aspects such as cost effectiveness,affordability,and potential to yield huge profits while receiving the total gratification of their customers. Our machines fulfill the anticipations of our clients and we also go beyond their expectations with the features of our car wash machine such as quick and speed car wash with extreme safety, consistency, effective water and power consumption, user friendliness, minimal requirement of human interference etc. These factors not just bring high profits but also ease the entire operation and make them very fast.
We also excellent service, technical assistance and a complete inventory of spare parts together with our wide range of machinery and equipment.
Certifications
Packing & Delivery
FAQ
Q1.are you a factory or a trading company?
A:Our company is specialized in manufacturing automatic car washing machines including touchless car wash,brush roll over car wash and other related equipment for vehicle maintenance.
Q2. What is the machine warranty?
A: Three years . We will provide free spare parts in warranty.And we will provide spare parts and technical support for whole life span.
Q3. What is the delivery time?
A: 7-14 days
Q4. How about the machine installation and training ?
A: We will provide fundamental plan and installation manual.
Q5. How can you assure the machines’quality?
A: Every machine will be tested by our quality control department before delivery to assure the quality. We will provide free spare parts due to any defect of the machine in warranty.
Q6. What’s the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union,L/C at sight,D/P at sight.
Q7. Do you accept factory visiting?
A: You will be well welcomed to visited to my factory anytime.
Q8. How many years are you in car washing field?
A: We are specialized in car washing machine for more than 10 years sincy 2005.
A:Our company is specialized in manufacturing automatic car washing machines including touchless car wash,brush roll over car wash and other related equipment for vehicle maintenance.
Q2. What is the machine warranty?
A: Three years . We will provide free spare parts in warranty.And we will provide spare parts and technical support for whole life span.
Q3. What is the delivery time?
A: 7-14 days
Q4. How about the machine installation and training ?
A: We will provide fundamental plan and installation manual.
Q5. How can you assure the machines’quality?
A: Every machine will be tested by our quality control department before delivery to assure the quality. We will provide free spare parts due to any defect of the machine in warranty.
Q6. What’s the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union,L/C at sight,D/P at sight.
Q7. Do you accept factory visiting?
A: You will be well welcomed to visited to my factory anytime.
Q8. How many years are you in car washing field?
A: We are specialized in car washing machine for more than 10 years sincy 2005.
