R32 R38 Underground Longhole Drilling Rod Threaded MM MF Speed

Product Overview

Description

R32 R38 Underground Longhole Drilling Rod Threaded MM MF Speed

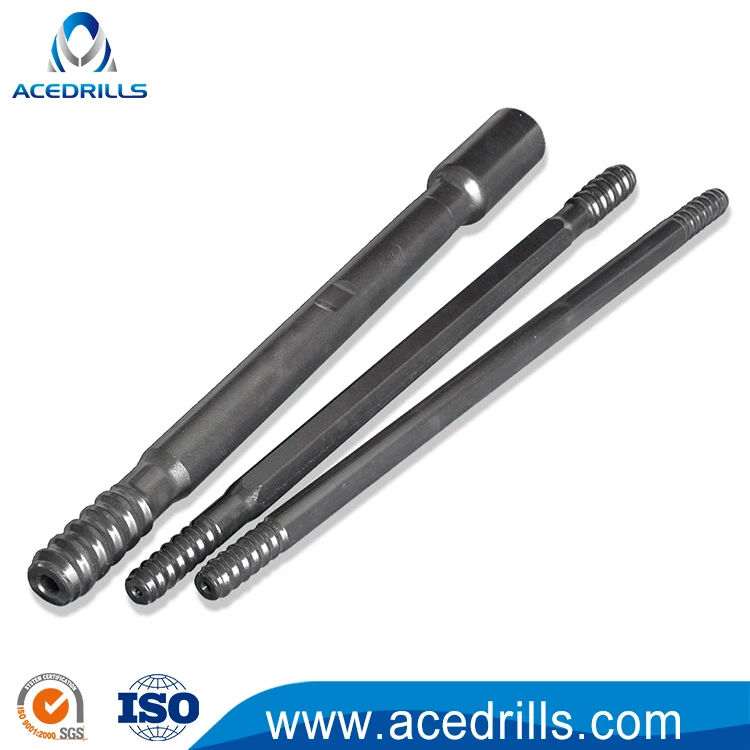

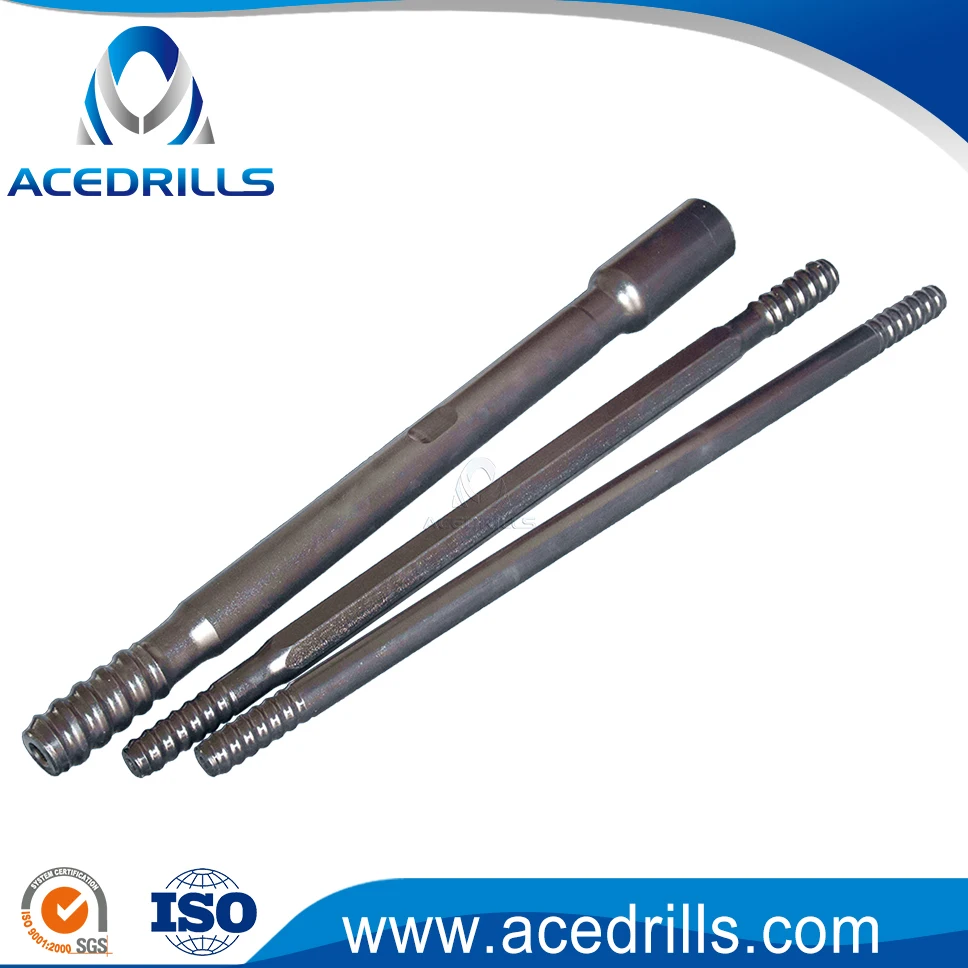

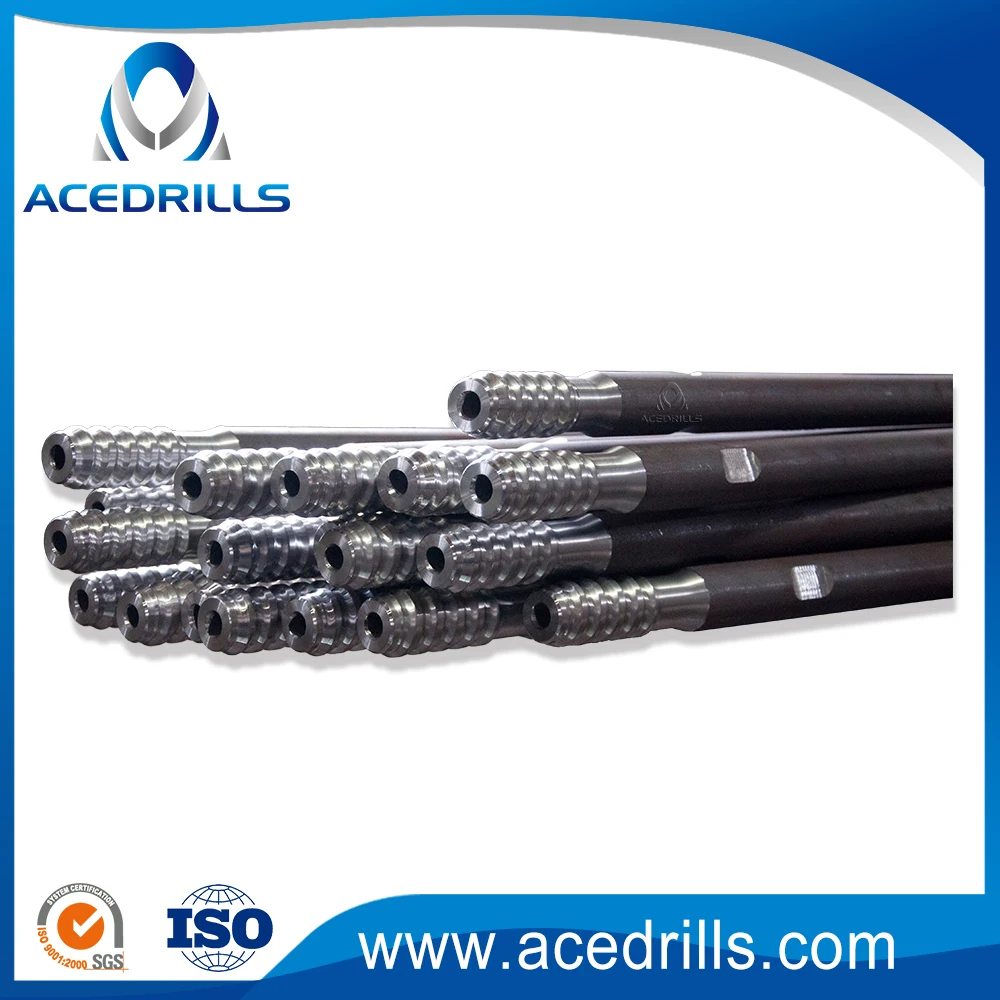

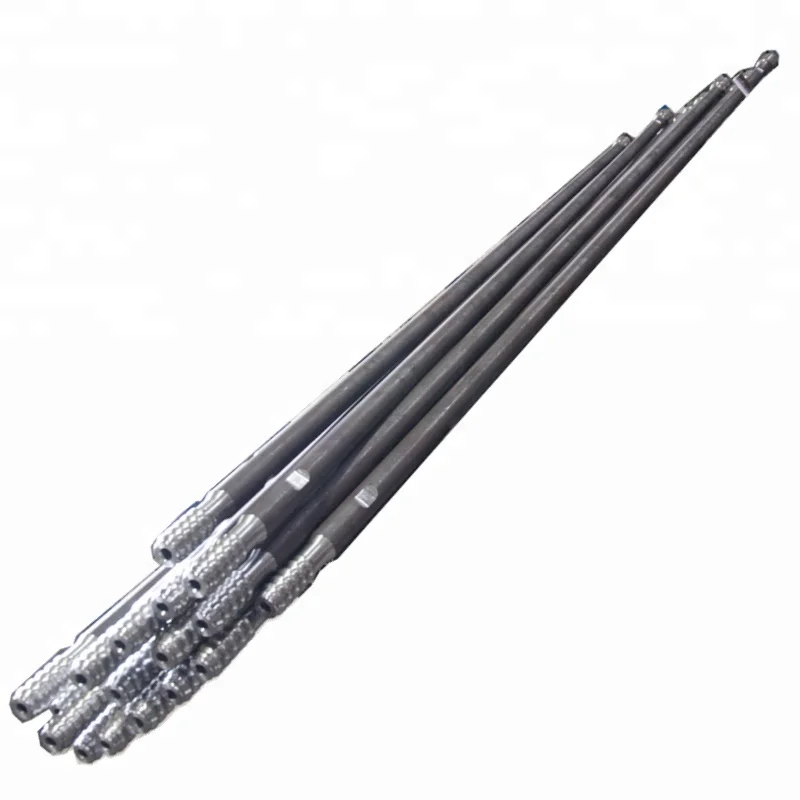

Extension Rods: Acedrills’ drifting and extension drill rods are for in drifting, tunneling, long-hole drilling, bench and production drilling industries. These rods are produced with round or hexagonal sections in all common thread designs, and in Male/Male (M/M) or Male/Female (M/F) connections. All our drifting and extension drill rods are heat-treated with carburization or high frequency, combinated with phosphorization.



	Rod Dimension
	Hex25, Hex28, Hex35
	Hex32, Round32
	R39, R46, R52
MM Length
915~6100mm
915~5530mm
610~6095mm
	MF Length
	610~6400mm
	915~4270mm
	610~6095mm



PRODUCT SPECIFICATION

Rods Dimension	Length				Driven Thread	Suitable Bits Thread	Drilling Hole Range
	M-M		M-F
	mm	foot	mm	foot			mm	inch

Hex.25	915 ~ 3700	3 ~ 12	610 ~ 1220	2 ~ 4	R25, R28, R32	R25	33 ~ 51	1 19/64 ~ 2
Hex.28	2100 ~ 4920	6 3/4 ~ 16	1220 ~ 3050	4 ~ 10	R28, R32, R38	R28	37 ~ 51	1 29/64 ~ 2
Hex.32	2400 ~ 5530	7 7/8 ~ 18			R28, R32, R38, T38	R32	40 ~ 64	1 37/64 ~ 2 1/2
Round32	915 ~ 4310	3 ~ 14	915 ~ 4270	3 ~ 14	R32, R38, T38	R32	45 ~ 64	1 3/4 ~ 2 1/2
Hex.35	2670 ~ 6100	8 5/8 ~ 20	3700 ~ 6400	12 ~ 21	R32, R38, T38	R32	45 ~ 76	1 3/4 ~ 3
Round39	610 ~ 6095	2 ~ 20	610 ~ 6095	2 ~ 20	R38, T38, T45	T38, T45	57 ~ 89	2 1/4 ~ 3 1/2
Round46	1830 ~ 6095	6 ~ 20	1525 ~ 6095	5 ~ 20	T38, T45, T51	T45, T51	70 ~ 102	2 3/4 ~ 4
Round52	3050 ~ 6095	10 ~ 20	1525 ~ 6095	5 ~ 20	T45, T51	T45, T51	76 ~ 127	3 ~ 5

Specification Notice



Notes:        1. The other specifications are also available if     upon customers’ request;          2. How to order?        Length + Thread + Body Shape and Diameter     For brochure and more product information, please click here  to tell us the detail.



The round cross sections are more prevalent for extension drilling applications. A round rod has less material and thus is lighter to handle and less expensive than an equivalent size hexagonal rod. While hexagonal rod is particularly advantageous for drifting and tunneling drilling. The increased rigidity of hexagonal drill rods enables them to abating hole-deviation and enhances flushing for cleaning holes. Even with the larger cross section, hexagonal steel can still accommodate the same diameter bit as that of an equivalent round steel.



M/F rods provides tighter connections and is easier for handling and quicker for uncoupling than M/M rods, and are potential to drill straighter holes.



Carburization technique is mainly used in the production of big diameter rods to ensure excellent performance. Carburizing is for hardening entire rod to provide an external over entire rod surface area. Carburized steels are used primarily in underground applications and where water is used as a flushing medium. High Frequency technique is primarily used in the production of small diameter rods to reduce fragileness of drill steels. High Frequency is for hardening only the thread ends of the rod. This provides the longevity of the product as well as being more suitable for more drilling condition need. Steels produced with this technics primarily used in surface drilling applications where air is the primary flushing medium. Phosphorising is to improve anti-erosion capability of the entire external rod surface area.
