3 Axles Side Dump Semi Trailer truck side wall tipper dump truck Hydraulic Dump Trailer for sale
- Category: >>>
- Supplier: Shandong Yanggu Flywheel Trailer Manufacturing Co. Ltd.
Share on (1601044839762):
Product Overview
Description
Shandong Yanggu Flywheel Trailer Manufacturing Co., Ltd. has nearly 15 years of production experience in the trailer industry. Please believe that our professional technology and
manufacturing experience can help your transportation be safer and more efficient. we can provide high quality products and competitive prices. Please contact me if necessary.
manufacturing experience can help your transportation be safer and more efficient. we can provide high quality products and competitive prices. Please contact me if necessary.

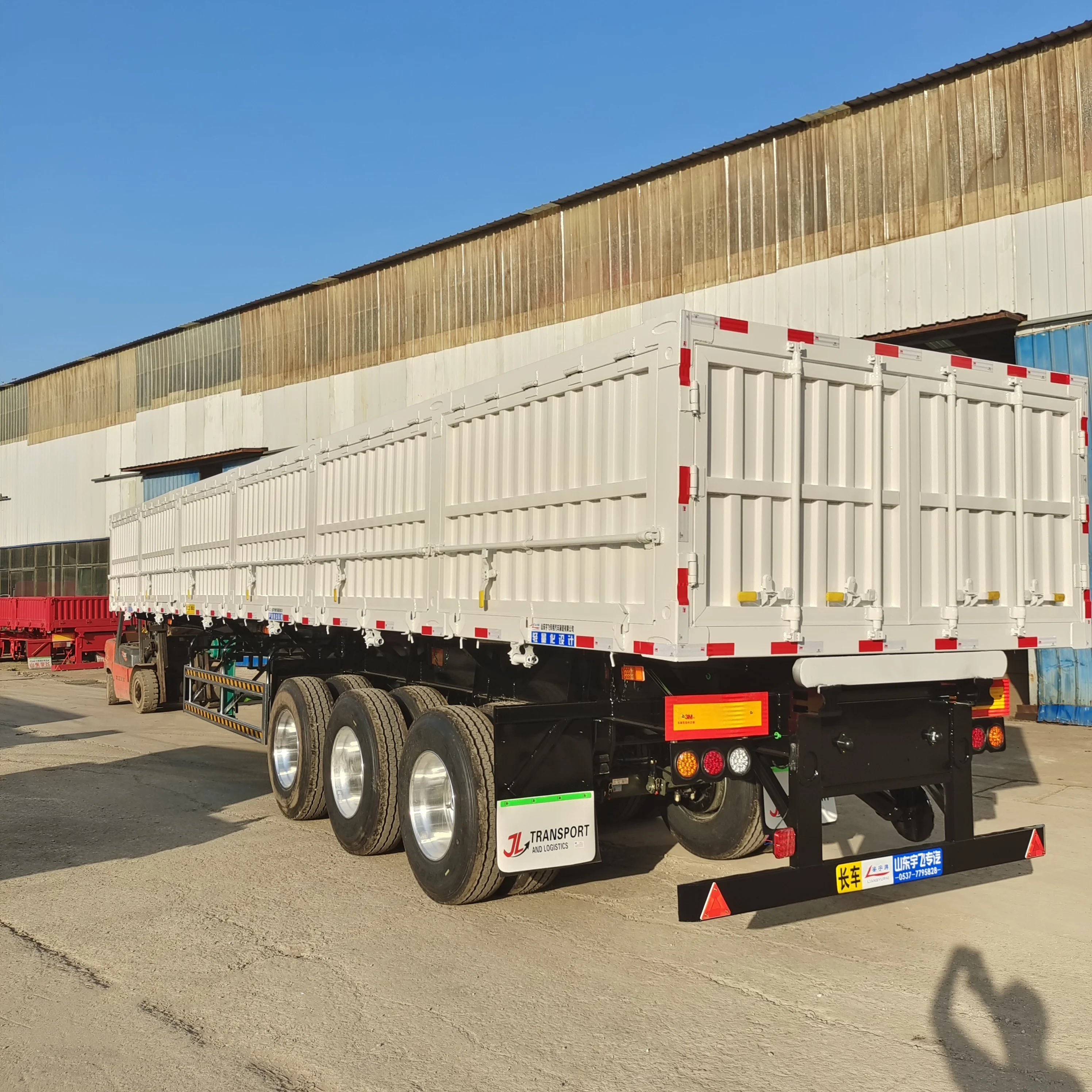

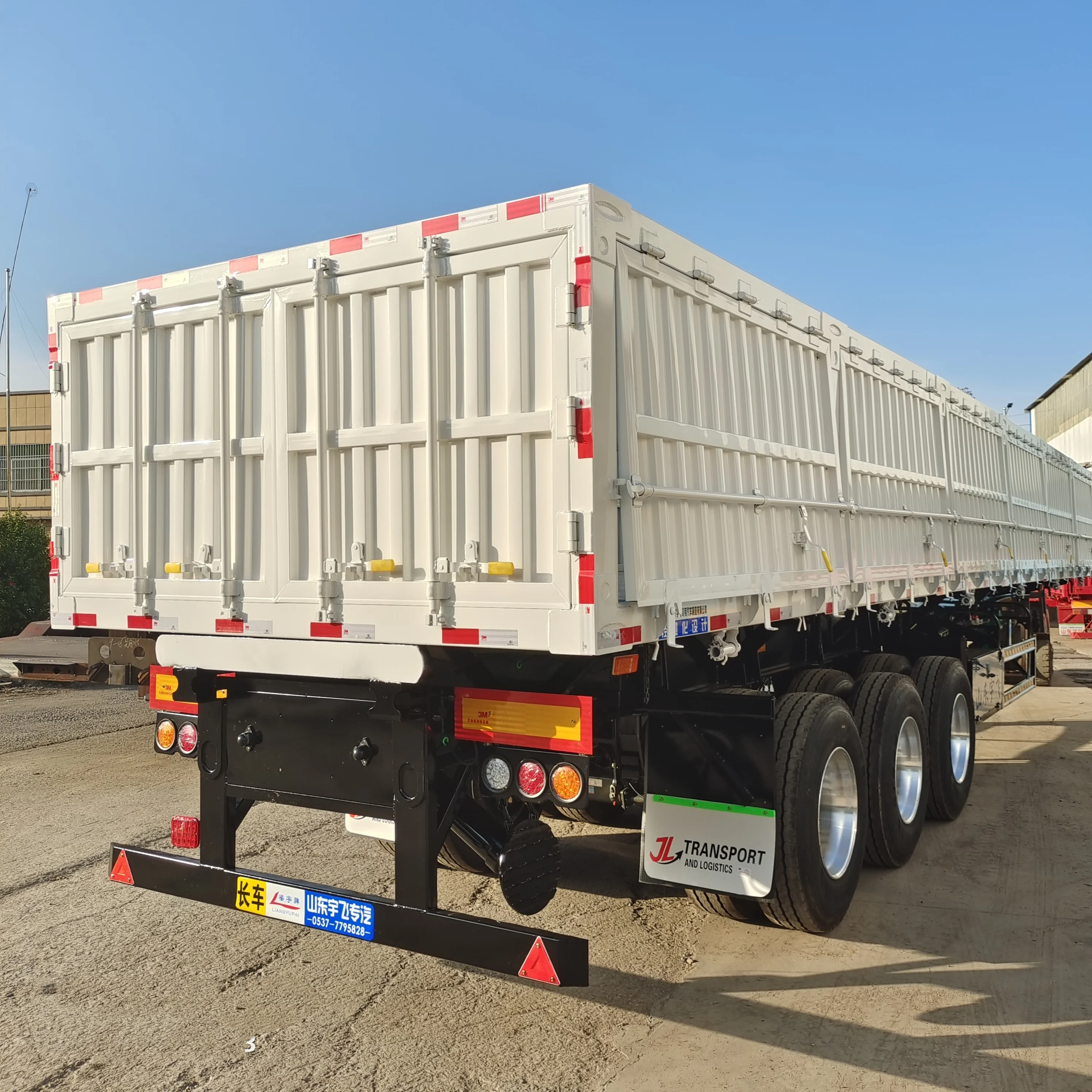

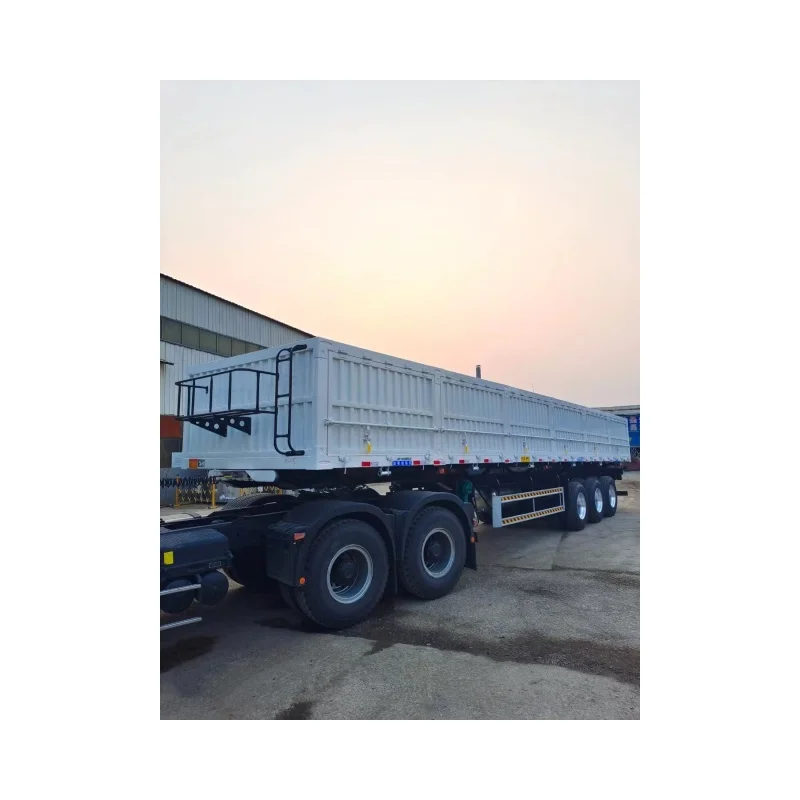

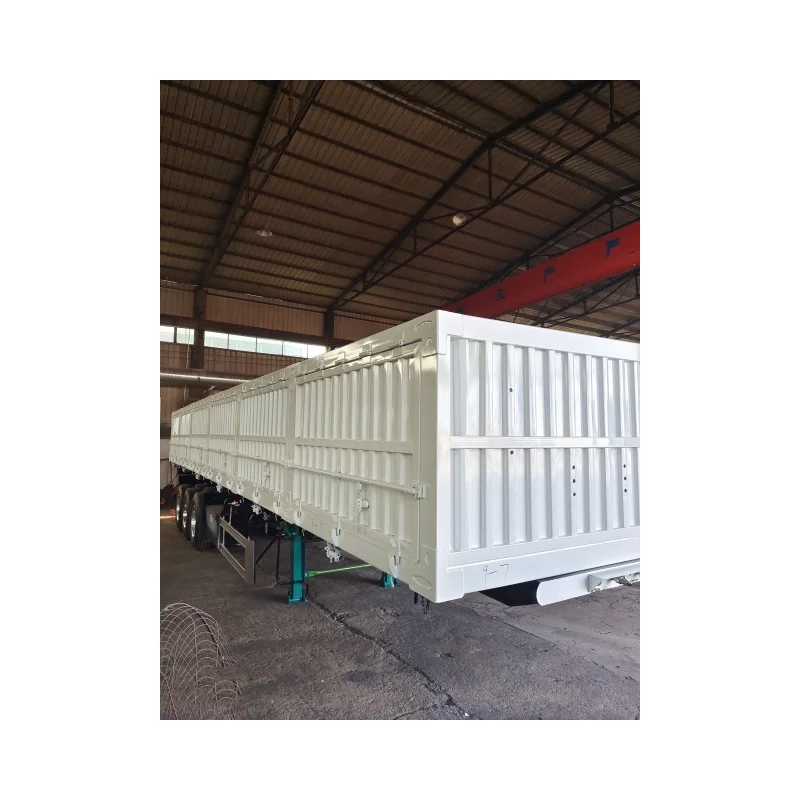

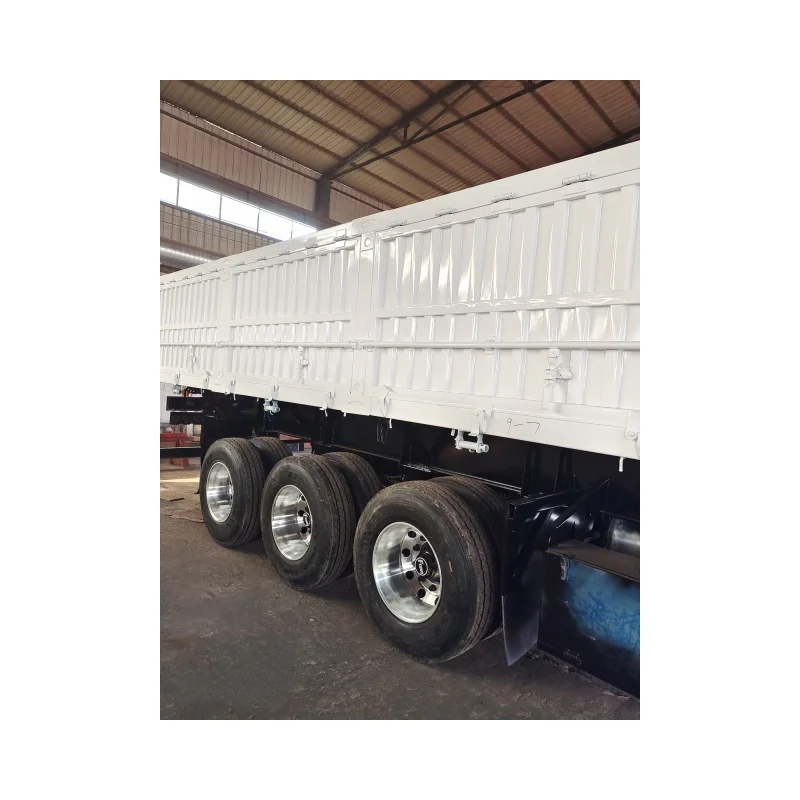

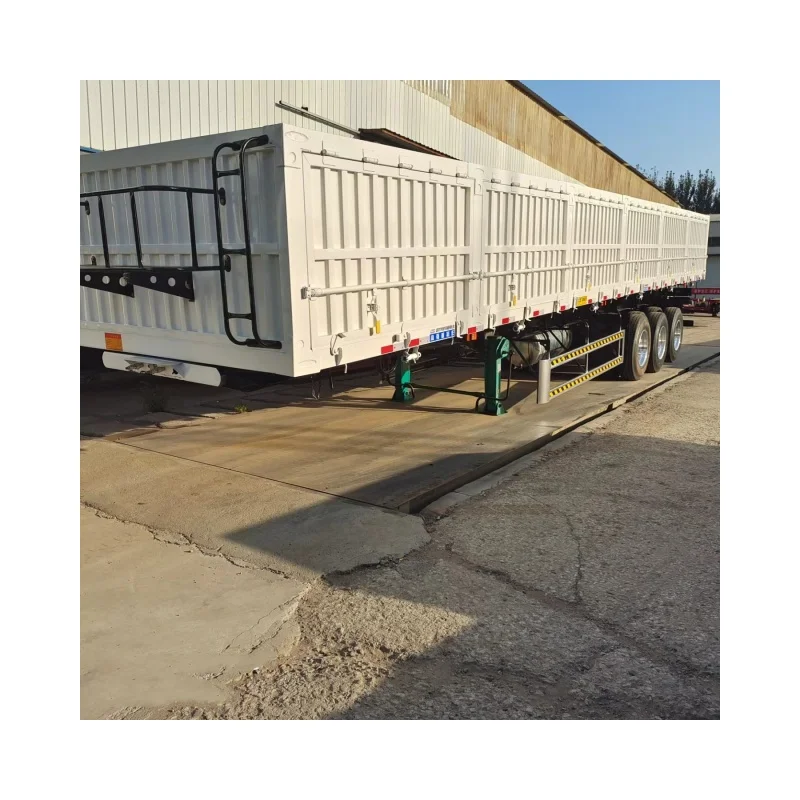

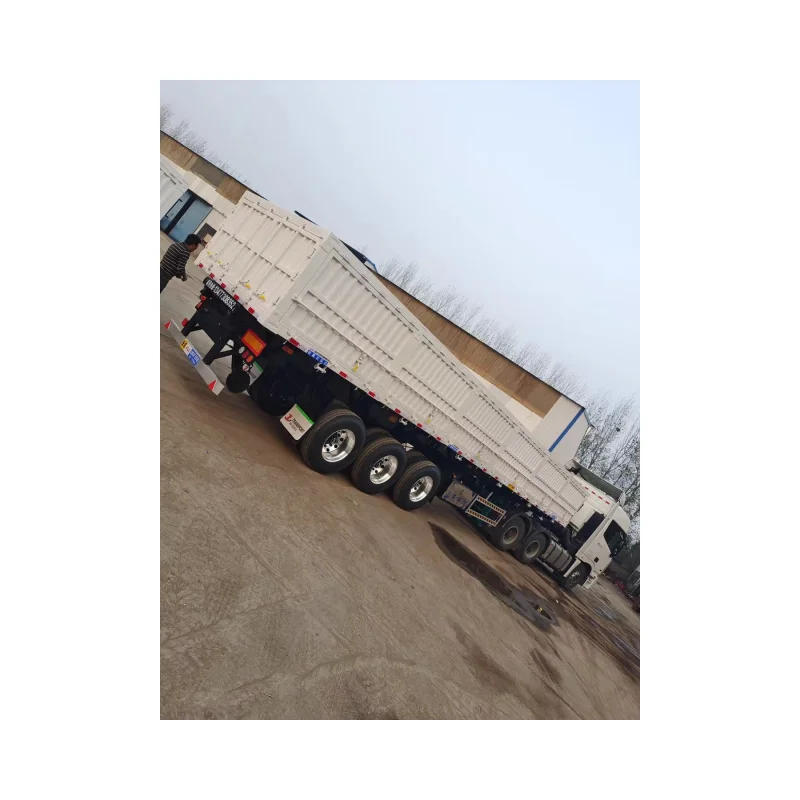

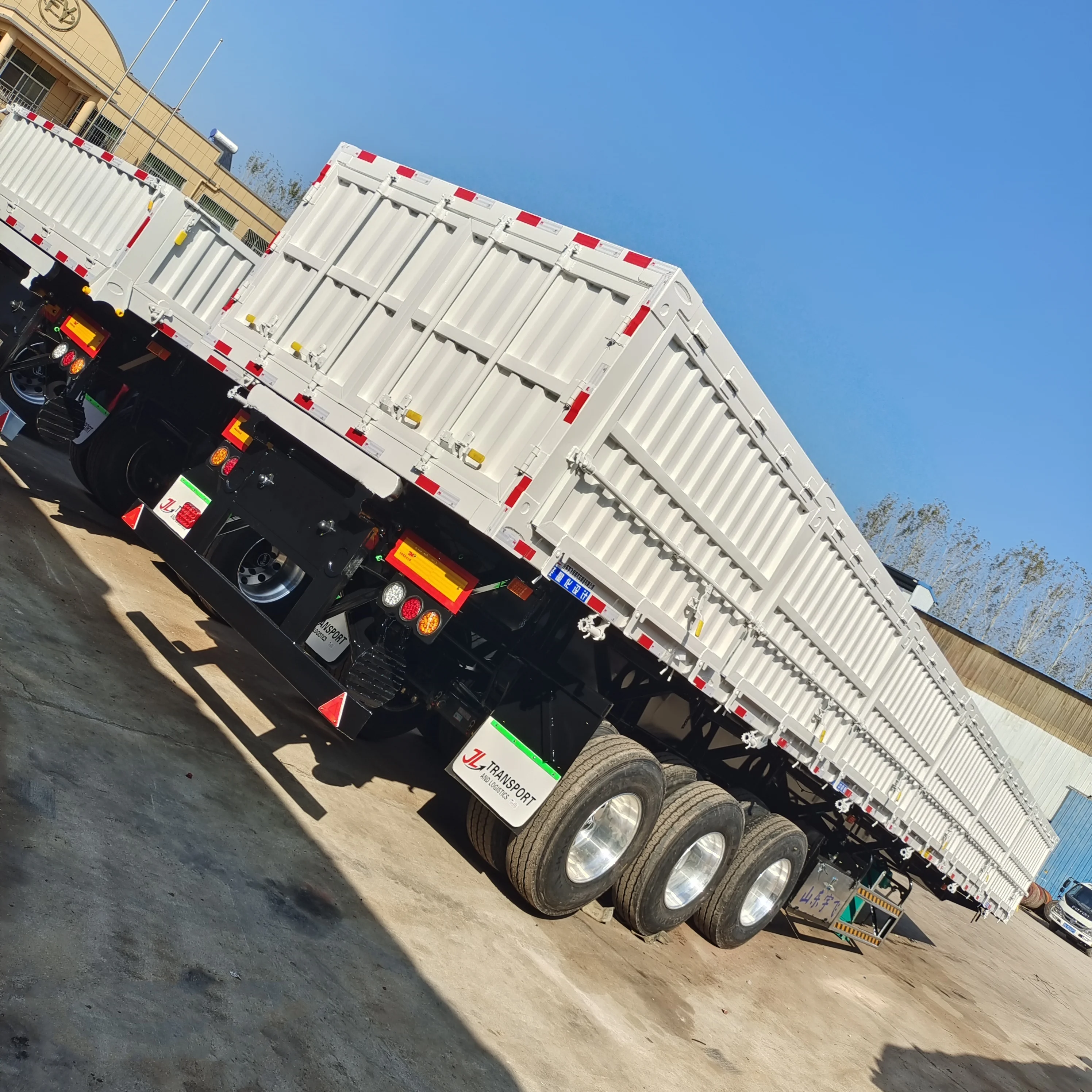

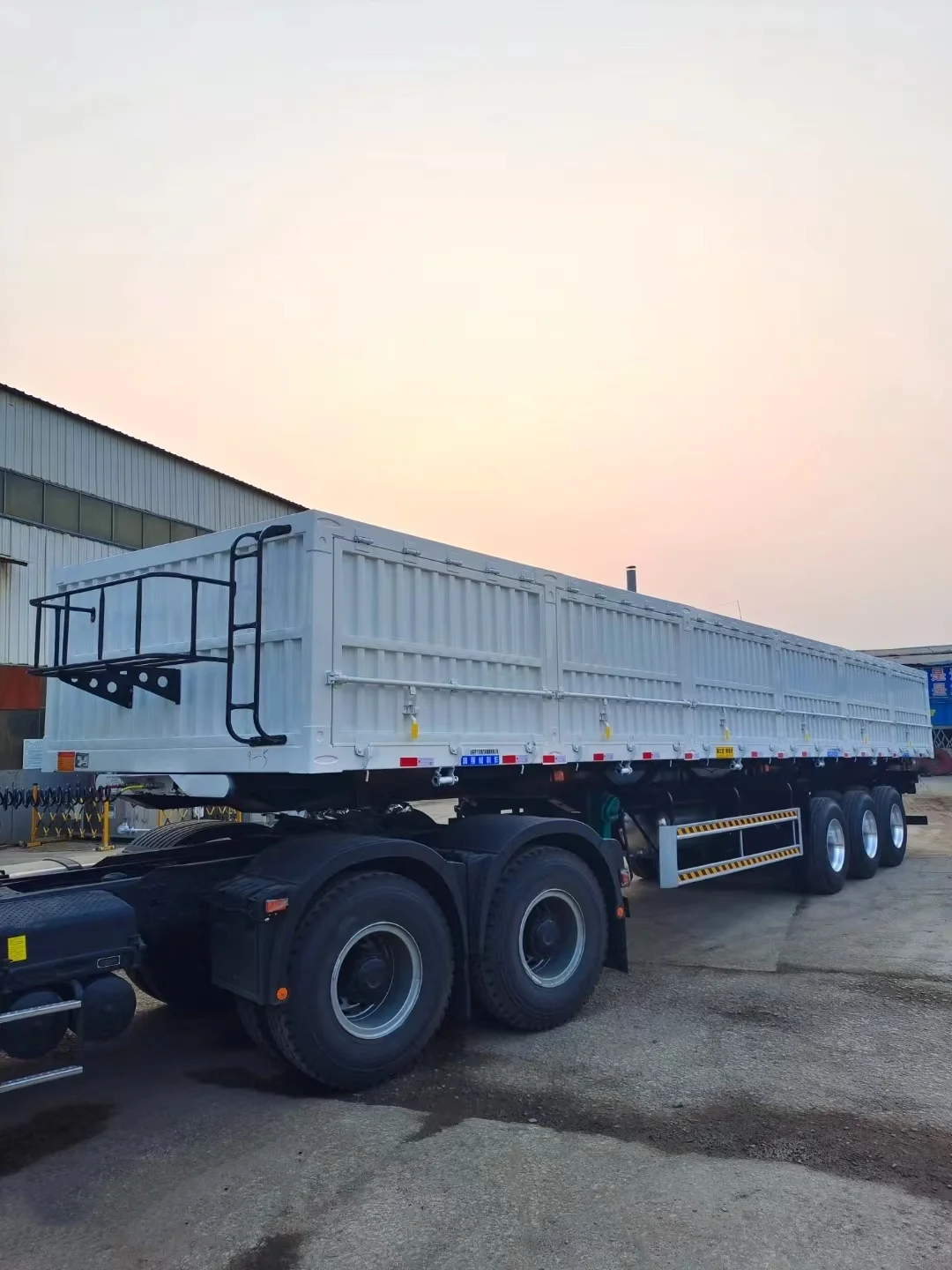

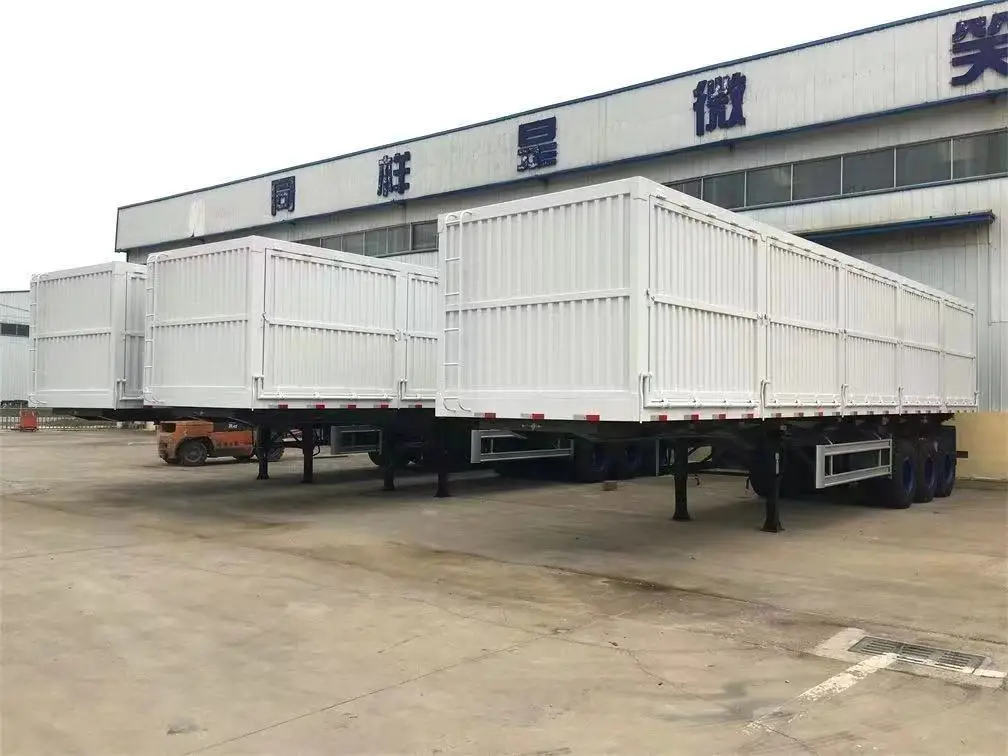

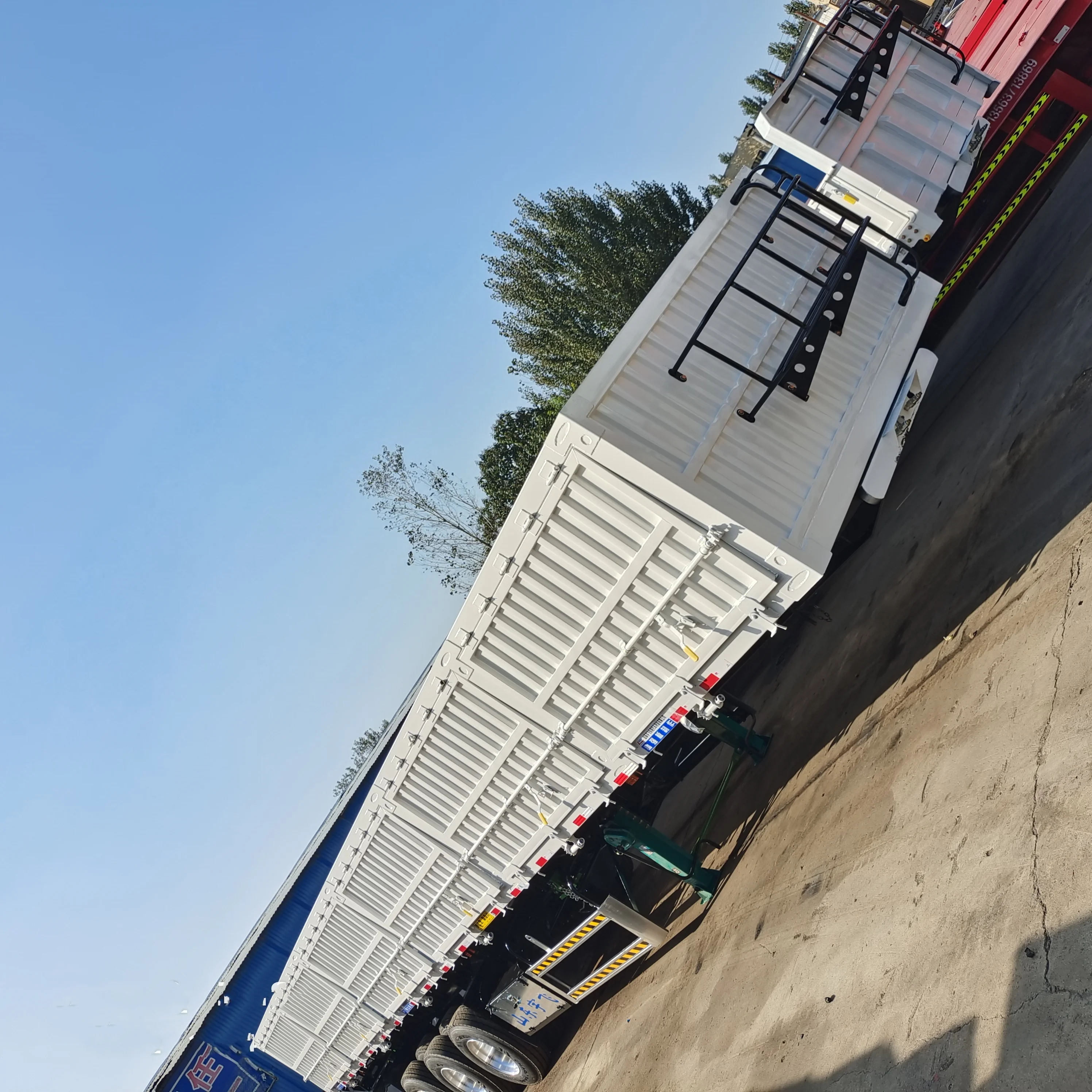

3 axles sidewall trailer can be used to transport a variety of items, from boxes to bulk cargo. The side boads can be opened for easier unloading. The trailer carriers are widely used in the logistics industry.
cargo trailers are known for their high-strength structural steel, and we can provide trailer floors in different configurations
to suit your transportation requirements.
to suit your transportation requirements.
RAILER SIDE WALL SEMI TRAILERS SPECIFICATIONS. | ||||||
Trailer Application | Transport container, loose cargo, bulk cement, bulk rice, Coal etc | |||||
Trailer Model | 2 Axles | 3 Axles | 4 Axles | |||
Trailer Brand | SFILUN TRAILER | |||||
Loading Capacity | 30-60T | 30T-80T | 40T-100T | |||
Product Size(L*W) | 13000mm*2550mm | 13000mm*2550mm | 13000mm*2550mm | |||
Sidewall Height | 600mm-1700mm | 600mm-1700mm | 600mm-1700mm | |||
OEM/ODM | Yes | Yes | Yes | |||
Doors Opening Type | Multi choices | Multi choices | Multi choices | |||
Main Beam Material | Q345/T700 | Q345/T700 | Q345/T700 | |||
Upper Plate Thickness | 12mm | 16mm | 18mm | |||
Middle Plate Thickness | 6mm | 10mm | 12mm | |||
Lower Plate Thickness | 14mm | 18mm | 20mm | |||
Height | 500mm | 500mm | 500mm | |||
Axles | 13 Ton LEAO/FUWA/BPW/Other | |||||
Tire | 12R22.5 Linglong/Triangle/Double-Coin/Bridgestone/Other | |||||
(8 Pieces) | (12 Pieces) | (16 Pieces) | ||||
Rim | 9.00*22.5 Steel/Aluminum | |||||
(8 Pieces) | (12 Pieces) | (16 Pieces) | ||||
Leaf Spring | 90mm*13mm*10/90mm*16mm*10 | |||||
Kin Pin | 50#(2")/90#(3.5") JOST/Other Brand | |||||
Landing Gear | 28 Tons Two Speed,JOST/Other Brand | |||||
Vehicle Painting | Electrophoresis paint | |||||
Above Information are VEHICLE Standard Spec.If customer want to change Spec.Please Let us know. | ||||||
1.CAPABLE OF ROUGH ROAD CONDITION
International standard heavy duty chassis and running system applied to cope with rough road
condition.
condition.
2.STEEL STRUCTURE
High tensile steel material and advanced design to achieve lower weight with high carrying capacity, reduce
operation cost.
operation cost.
3.LIGHT DESIGN
Lamp assembly uses advanced LED light, top quality PC and cast wire harness in dual circuit design.
4.SUSPENSION
Different types of suspension are designed for various operating condition, bogie suspension; air suspension;
mechanical suspension.
mechanical suspension.
5.THE FRAME
SFILUN trailer frame are beam through the structure, longitudinal beam using straight or gooseneck type. The web height
is from 400mm to 550mm manganese plate welding, the rail is welded by automatic submerged welding, the frame is shot peening, and
the beam is penetrated into the rail and welded as a whole.
is from 400mm to 550mm manganese plate welding, the rail is welded by automatic submerged welding, the frame is shot peening, and
the beam is penetrated into the rail and welded as a whole.
T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Landing Gear
The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil
and is rated for service from -30°C to 120°C.
and is rated for service from -30°C to 120°C.

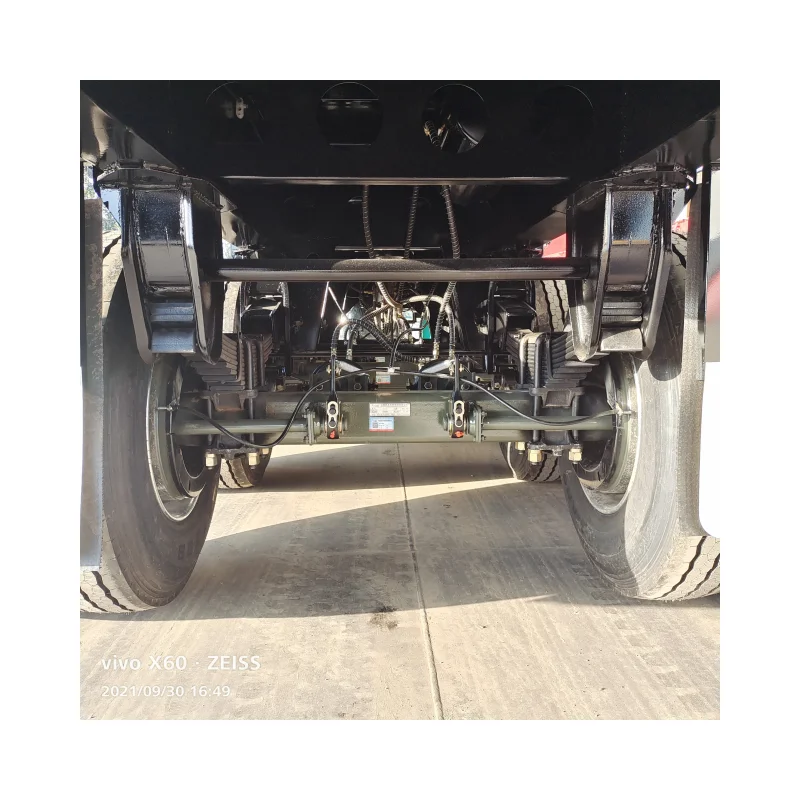

AxleBPW/FUWA/LEAO Axle optional.
We usually choose Fuwa axles(Chinese best axles) . If you want , we can choose other axles.

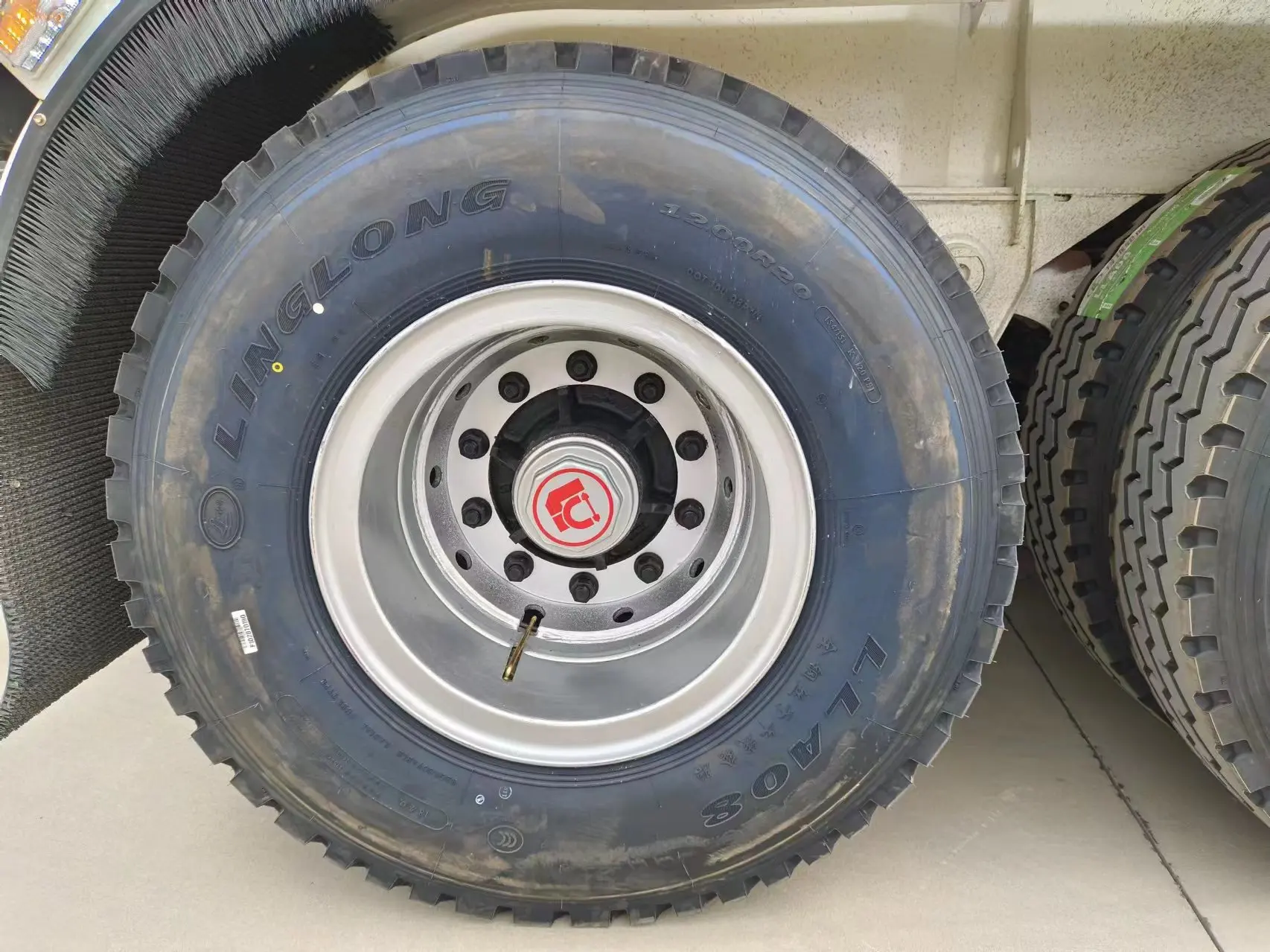

Featured Tire
Double Coin /LingLong/Michelin/Triangle/Bridgestone and other famous brand for choice.Better Performance in wear resistance.

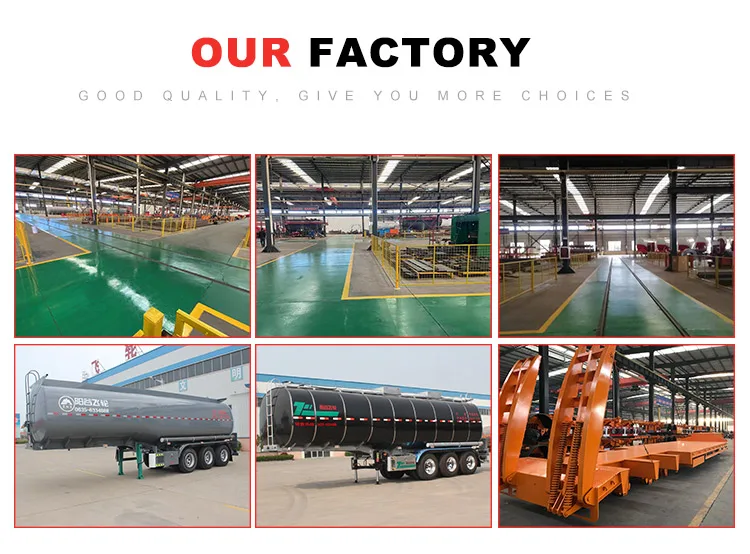

Shandong Yanggu Flywheel Trailer Manufacturing Co., Ltd. was established in 2004 and is located in Yanggu County, Shandong, China. It covers a total area of more than 600 acres, with a factory covering an area of more than 160,000 square meters. It has more than 800 employees and an annual output value of 600 million yuan. It is a scientific and technological innovation enterprise specializing in special vehicle and pressure vessel manufacturing that integrates scientific research, design, manufacturing and sales services. The company has a complete product system, covering more than 100 varieties in six series, including semi-trailer series, dump truck series, ordinary tank truck series, atmospheric dangerous goods tank truck series, pressure tank truck series, and work vehicle series. It has already established a leading position in the trailer industry more than 28 years of production experience. Flywheel Trailer Manufacturing Co., Ltd. is an automobile enterprise announced by the Ministry of Industry and Information Technology of China. The company has passed CCC、ISO9001 international quality management system certification and other certifications. It has strict quality assurance from product design, raw material procurement, parts incoming factory, manufacturing testing and other aspects, and careful on-site installation and debugging and patient after-sales service will be provided.Since 2015, our products have been exported to Southeast Asia, the Middle East, Africa, Russia and Mongolia and other countries and regions. We have been unanimously recognized by overseas customers.
We are customer-centered and market-oriented, fully absorb the most advanced technology, actively carry out technical cooperation, and rely on our strong capabilities to provide customers with high-level, high-quality and competitive products.
We are customer-centered and market-oriented, fully absorb the most advanced technology, actively carry out technical cooperation, and rely on our strong capabilities to provide customers with high-level, high-quality and competitive products.
We usually adopt shipping by bulk cargo, flat rack, container container and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:10-20 working days after payment receipt confirmed (based on actual quantity). Packing:Standard export packing,or customized packing as your request. Professional goods shipping forwarder.
1. who are we?
We are based in Shangdong, China, start from 2004,sell to Africa(40.00%),South Asia(10.00%),Northern Europe(10.00%),Mid
East(10.00%),Oceania(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%). There are total about 201-300
people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
oil tank semi trailer,bulk cement tank semi trailer,dump truck seriers,container transport trailer,lowbed transport semi trailer
4. why should you buy from us not from other suppliers?
Our company have formed a complete quality assurance system. It processes strict quality assurance in product design, procurement
of raw materials, component parts into the plant,manufacturing testing, site installation and commissioning and service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shangdong, China, start from 2004,sell to Africa(40.00%),South Asia(10.00%),Northern Europe(10.00%),Mid
East(10.00%),Oceania(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%). There are total about 201-300
people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
oil tank semi trailer,bulk cement tank semi trailer,dump truck seriers,container transport trailer,lowbed transport semi trailer
4. why should you buy from us not from other suppliers?
Our company have formed a complete quality assurance system. It processes strict quality assurance in product design, procurement
of raw materials, component parts into the plant,manufacturing testing, site installation and commissioning and service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
