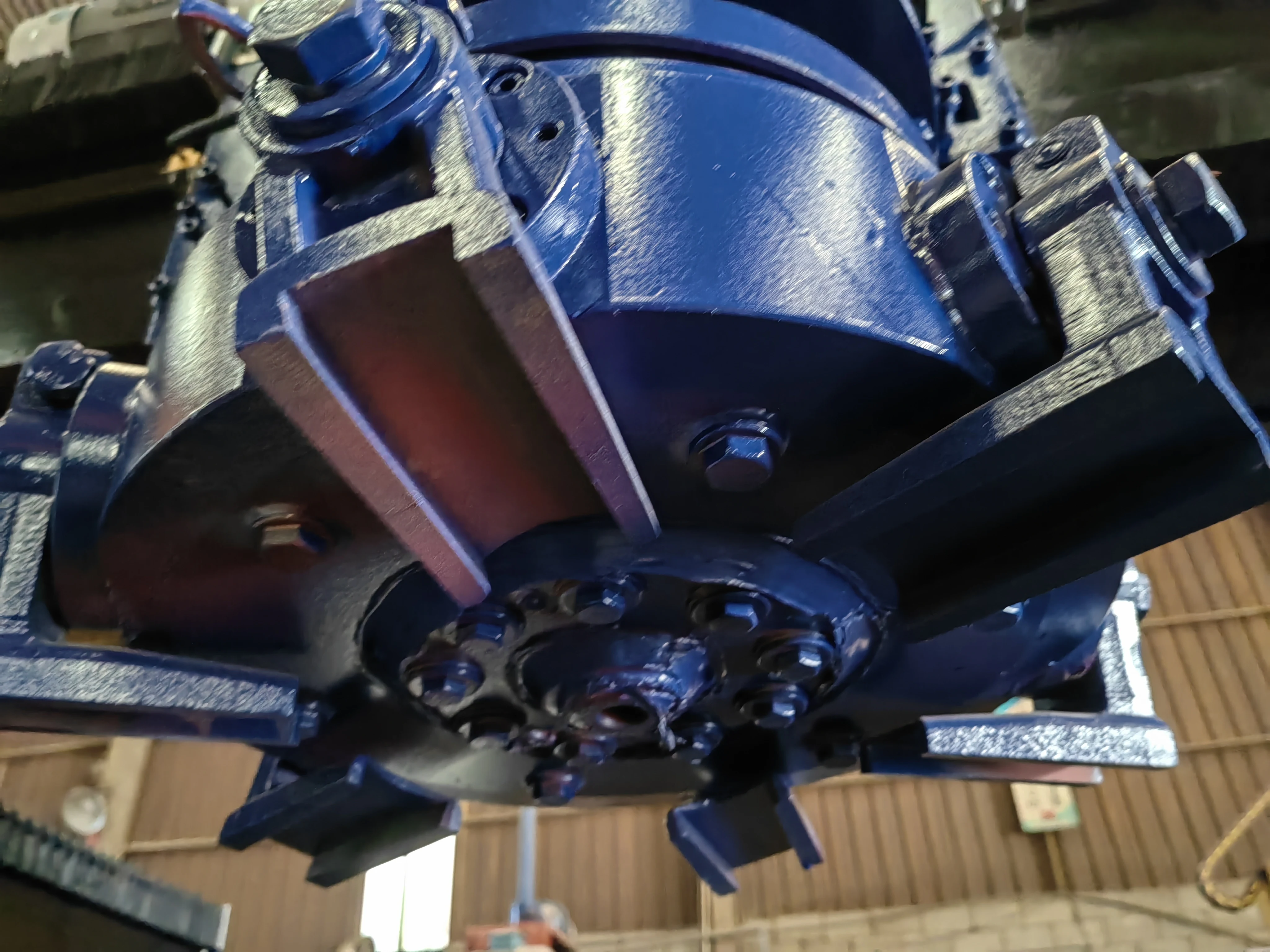

Single Head Stone Grinding Machine for Headstone and Monument Applications

Share on (1601045134891):


Price:$15,800.00

Quantity:


Product Overview

Description

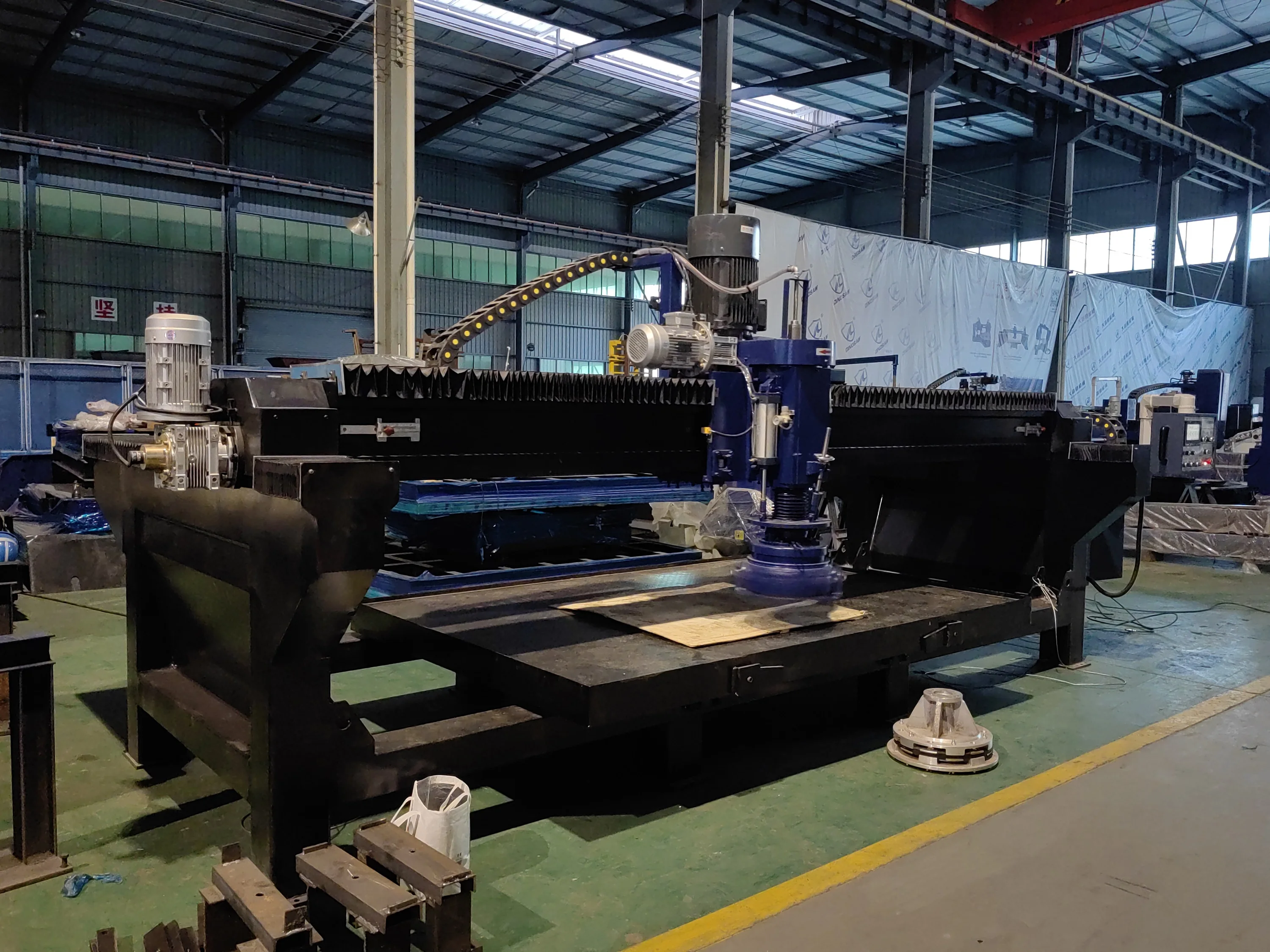

Dinosaw bridge single head automatic polisher for grinding stone



Product Description


Bridge single automatic policher for granite, marble, wood-based panels,suitable for polishing. The machine is characterized by good surface roughness,high gloss,comparable with the continuous grinding. The maximum polishing size up to 3X2m.Using ordinary abrasive,polished granite golss can easily reach more than 80 degree.







Technical Parameters of manual polishing machine













































































ModelUnitQDMJ-2000LQDMJ-2000H
Main motor powerkw1115
Grinding speedr/min450560
Grinding disc horizontal walking speedmm/min0-56000-5600
Grinding disc longitudinal walking speedmm/min0-43000-4300
User-prepared pressureMpa0.35-0.50.35-0.5
Gas source equipment flowm3/min0.15-0.300.15-0.30
Work efficiencym2/h2-2.53.5-4
Maximum grinding sizemm3000x2000x1503000x2000x150
Overall dimensions( LxWxH )mm6500x2200x20006500x2500x2000
Water consumptionm3/h44
Approximate weightkg50005500

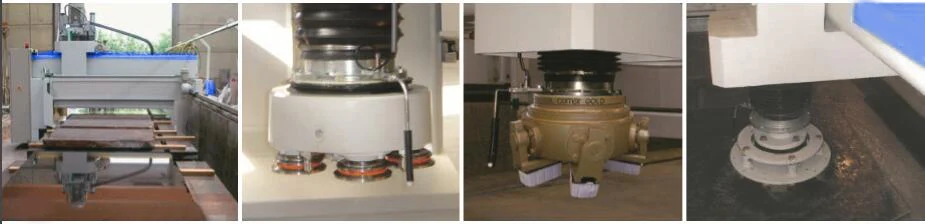

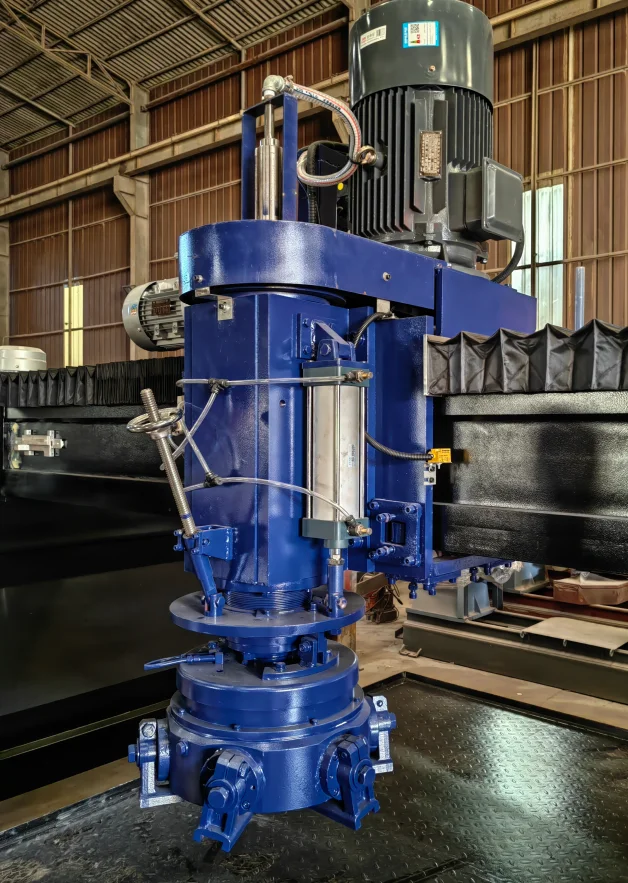

 single head polisher.jpg





Packaging & Loading







Our Services


Dinosaw service.jpg








Associated Brands


Brand Partner.jpg

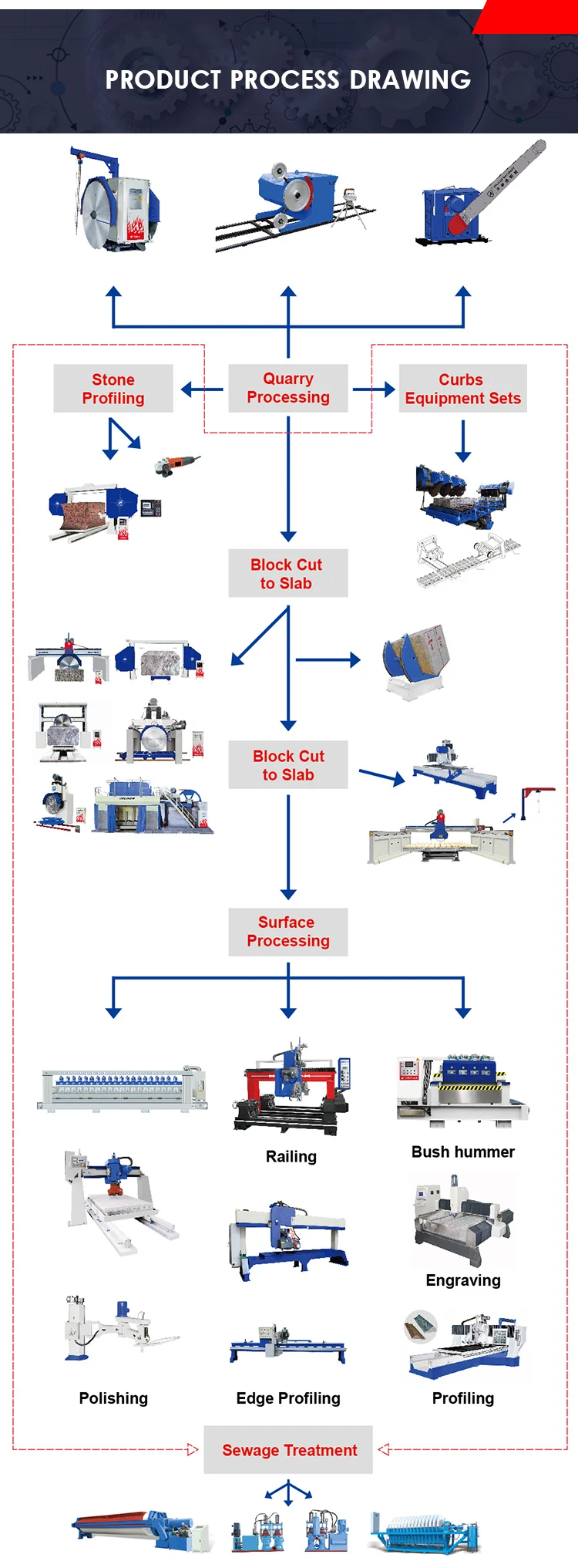

Process Guides







Company Information





About US


Company Culture.jpgFair.jpg


Patent Certificate.jpg





FAQ





 Q: Are you manufacturer or trading company?


A: We are manufacturer that has our own factory, technical Dept., marketing and after sale service teams.





Q: What is your advantage?


A: Firstly we are manufacturer, you could get best price without paying any commission. Secondly, we provide advisory machinery, debugging, maintenance and fault handling package of services. Thirdly, we offer customized overall solutions and one stop service. Both of our machine and diamond tools are excellent. Forthly, we give you technology support on not only machine, but also diamond tools. Finally, better and lower cost after-sale service could be provided thanks to our worldwide network.





Q: When can you ship my order?


A: Normally 15-20days after advanced payment is received. The exact delivery date will be advised after order is confirmed. We will try our best to deliver soonest, if you need them urgently.





Q: How long is the warranty period for machine?


A: one year !





Q: How do I install and operate the machine, after receiving it?


A: For simple machine, we will provide sufficient installation, operation and maintenance instruction and videos, which will make the whole thing as simple as possible for users. For high-tech machine, our engineers can fly abroad to help you install & debug the machine, and teach you how to operate and maintain the machine properly in the future.
