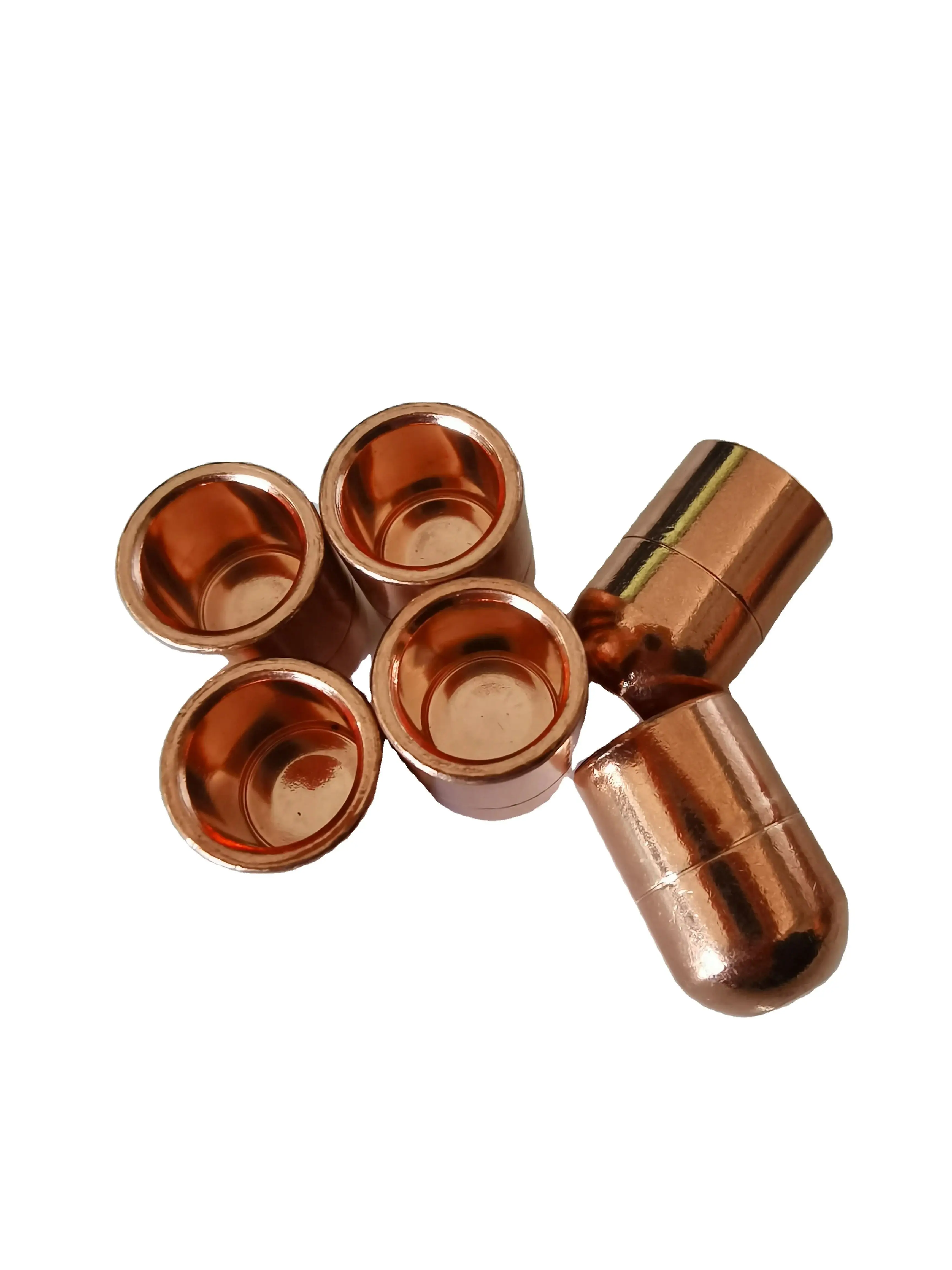

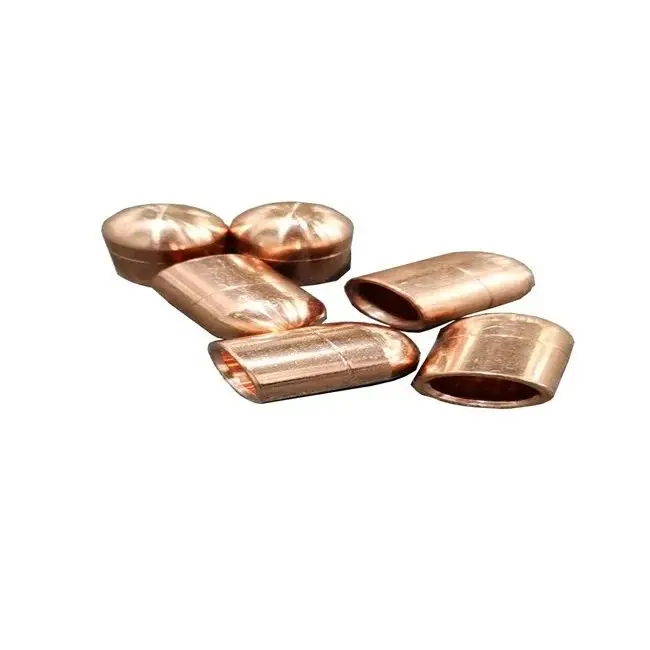

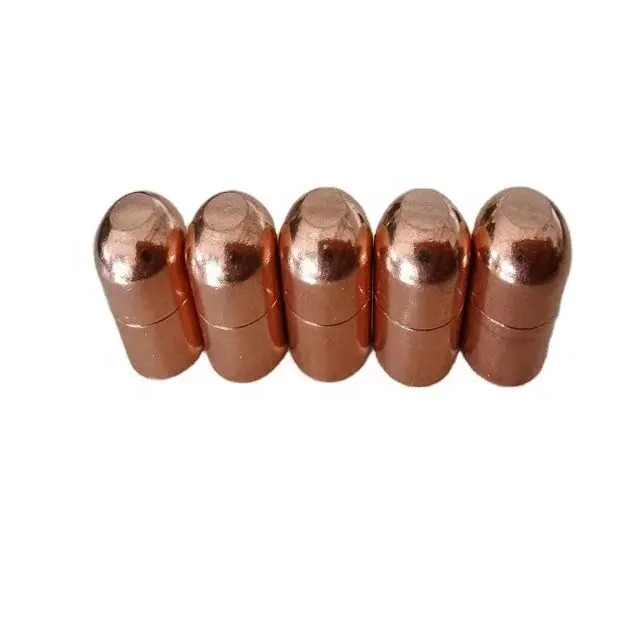

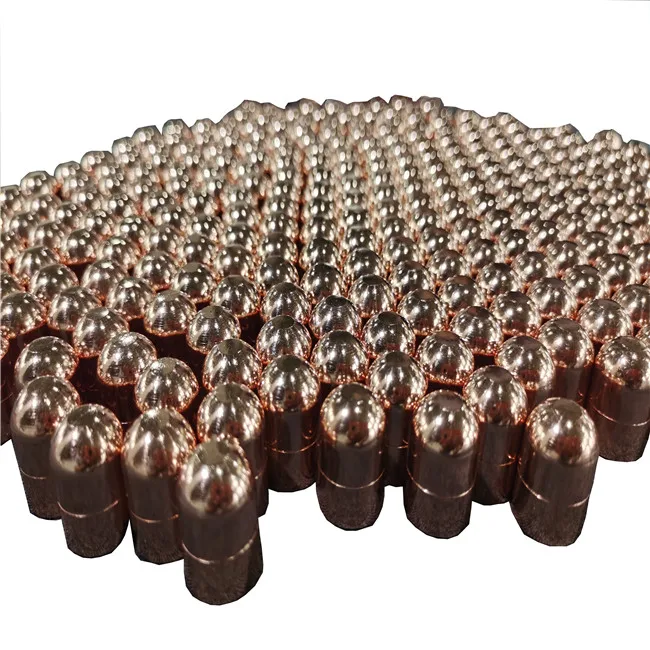

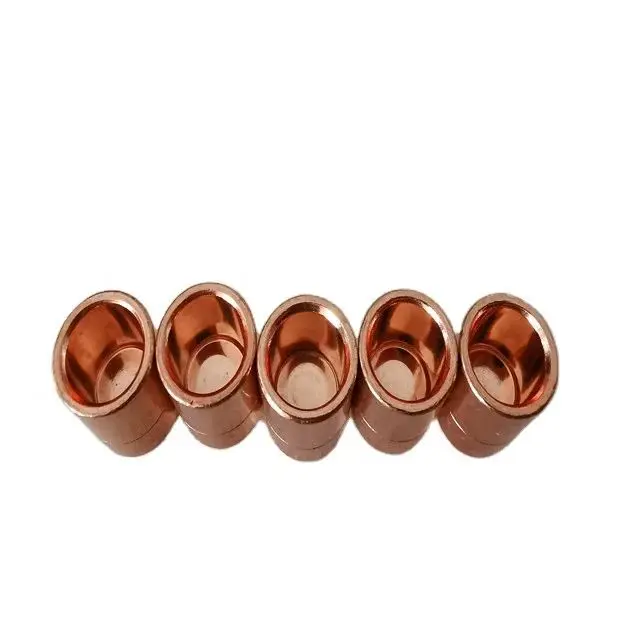

Cold Forming Cucrzr Spot Welding Tip Caps 13mm for Spot Welder Good Price
- Category: >>>
- Supplier: XY(Nanjing) Industry Equipment Co. LTDXY(Nanjing) LTD
Share on (1601046538779):
Product Overview
Description
Product Description
The electrode cap is the last component of a resistance welding system and is therefore subject to the highest stress in the welding process. Our electrode cap tips are manufactured using advanced cold-forming techniques to produce high quality, affordably priced, male and female caps. Cap production are conducted according to various standards, our own developments and customer requirements.
An extensive range of styles and materials are available.
RWMA Class 2 (CuCrZr; Chrome-Zirconium-Copper): hard, high in electric and thermal conductivity; the most economical cap and universal cap.
RWMA Class 20 (AL2O3Cu; GlidCop dispersion strengthened copper), longer weld life and works well on all steels.
Standard diameters of 1/2", 5/8" 3/4", 13mm, 16mm and 20mm.

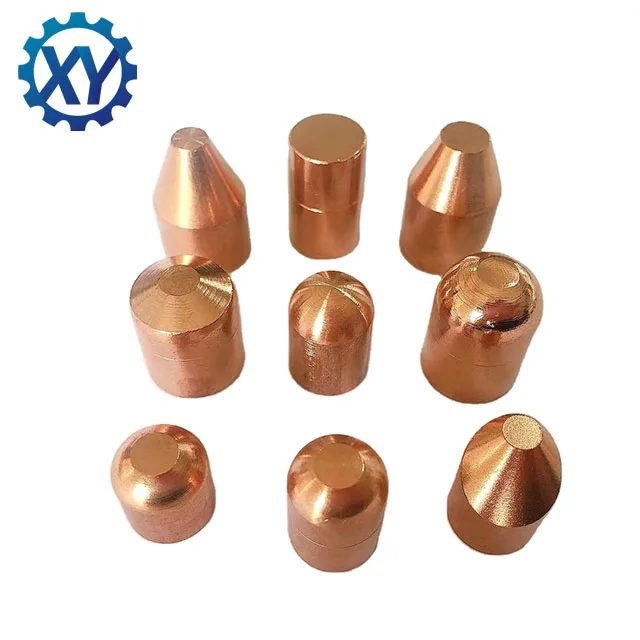

Standard nose styles: D, R, P, E, and F.
Non-standard styles and specifications (quoted upon request) are available.
| Product Name | Electrode Cap Tips |
| Application | For Spot Welding |
| Diameter | 13mm |
| Length | 23mm |
| Material | Provide CuCrZr or Al2O3Cu to Choose |
Product Parameters
Standard Cap Tip Parameters
| Item | Model | Diameter | Length | Taper Ratio | Shape | Material |
| Electrode cap tip | 13*20 | 13mm | 20mm | 1/9.6 or 1/10 | D/F/R/C/P | Cucr,Cucrzr,Al2O3Cu |
| 13*23 | 13mm | 23mm | 1/9.6 or 1/10 | D/F/R/C/P | Cucr,Cucrzr,Al2O3Cu | |
| 16*22 | 16mm | 22mm | 1/9.6 or 1/10 | D/F/R/C/P | Cucr,Cucrzr,Al2O3Cu | |
| 16*23 | 16mm | 23mm | 1/9.6 or 1/10 | D/F/R/C/P | Cucr,Cucrzr,Al2O3Cu | |
| 16*25 | 16mm | 25mm | 1/9.6 or 1/10 | D/F/R/C/P | Cucr,Cucrzr,Al2O3Cu |
Company Information
We are a group company which focus on welding solution. We have four subsidiaries:
1, Nanjing Dianjin Welding and Cutting Equipment Co.,LTD, founded in 2003 and the main product is welding consumables, such as MIG welding nozzle and contact tip, spot welding electrode cap tip, holder, KCF pins and so on.
2, Nanjing FST Welding Technology Co.,LTD, founded in 2013 and the main product is fixed spot welder and robotic spot welding gun.
3, Nanjing Guoke Intelligent Technology Co.,LTD, founded in 2018 majored in Industrial automation equipment design and manufacturing.
4, XY(Nanjing) Industry Equipment Co.,LTD, founded in 2022 especially for export and import business.
Over the past twenty years, we have united more than 100 professionals including 15 engineers from R&D and sales service departments.We have more than 100 sets machines for production. With these high-performance devices, we can continually provide various best products that customers need. We have always been committed to providing high-quality welding accessories and services to global customers. We've got ISO quality system certification, CE certificate, and over 30 Chinese patents. We believe that people are the determinants of value creation, and that good tools can help people create value with less effort. We are committed to a high standard of precision and service to facilitate the success of our customers.

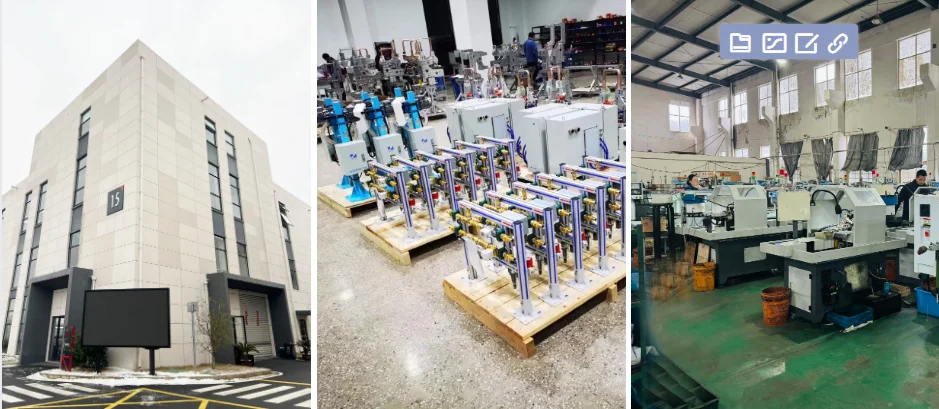

Production Line
Certifications
Exhibition
Contact Us
FAQ
Q1. What does your factory produce?
A: We produce and export all kinds of MIG welding accessories, welding torch, resistance welding gun, spot welding equipment, and support building welding work station.
Q2. How can we guarantee quality?
A: Always a pre-production sample before mass production and 100% Inspection before shipment.
Q3. Can you produce according to the samples?
A: Yes, we can support customized requirement. We can produce according to your samples or technical drawings.
Q4. Can I have a sample for testing?
A: Yes, we can support sample.
Q5. Can I put my logo on the boxes/cartons?
A: Yes, OEM and ODM are available.
Q6. What services can we provide?
Accepted Delivery Terms: EXW, FOB, CFR, CIF, Express Delivery;
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T, L/C, PayPal,Western Union;
Language Spoken: English,Chinese
