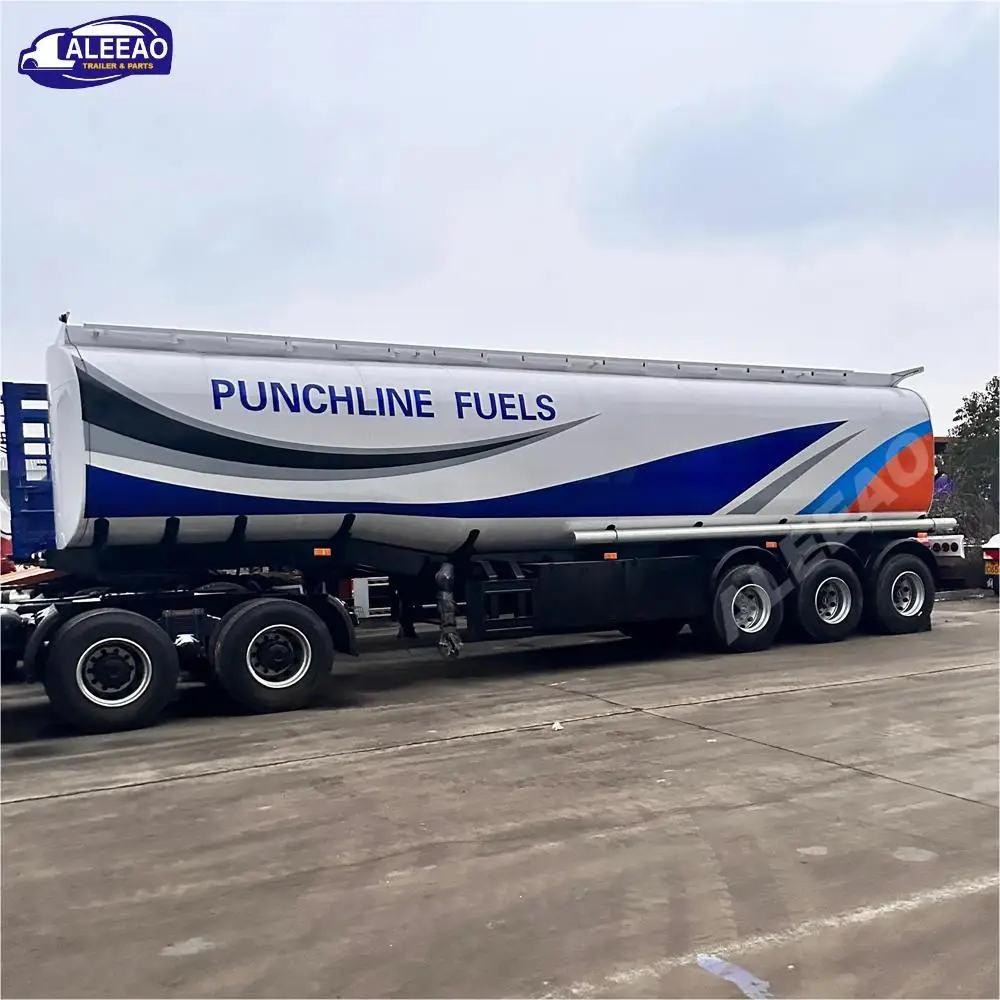

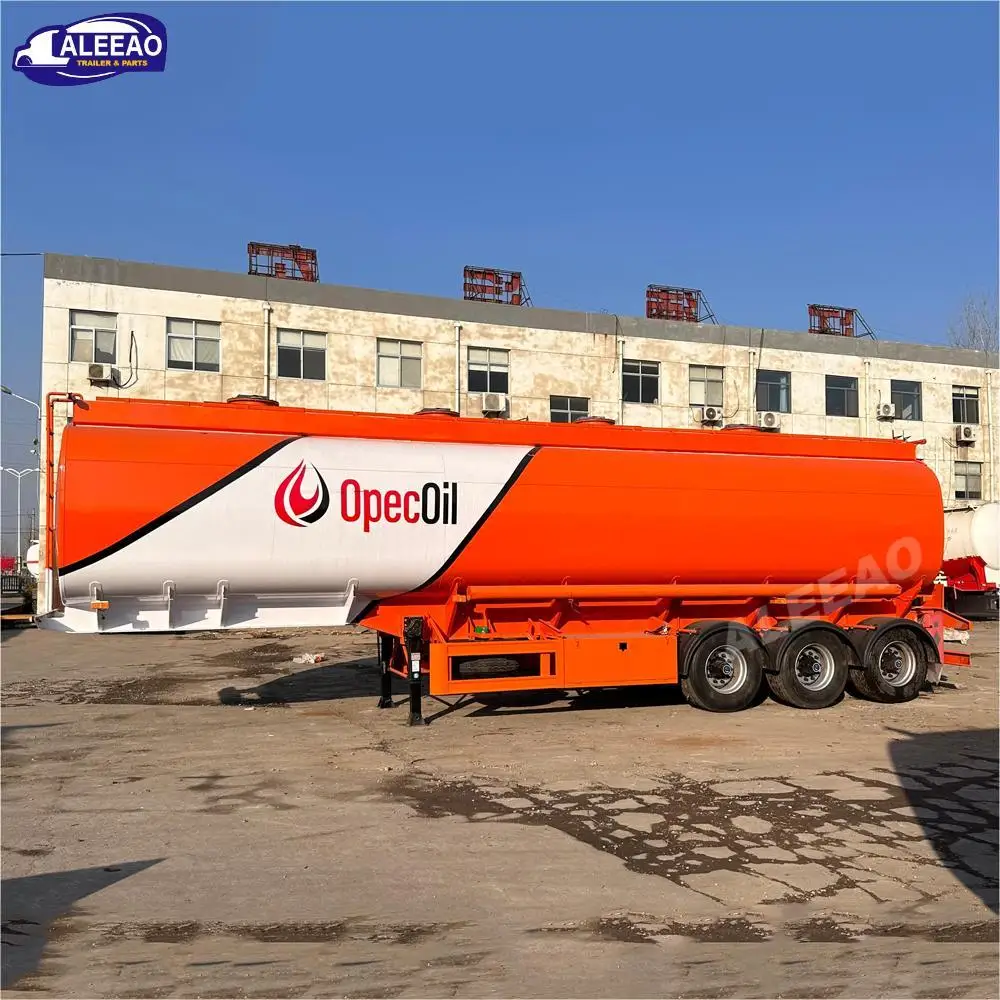

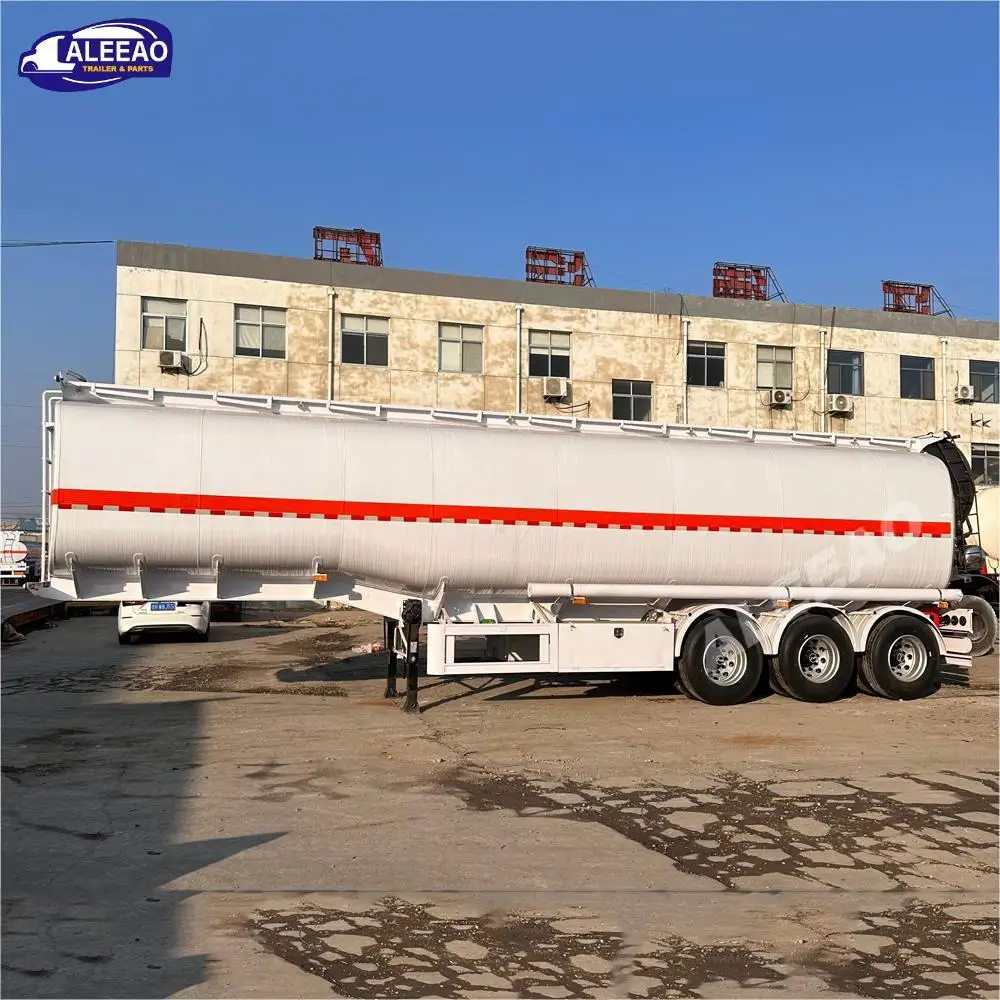

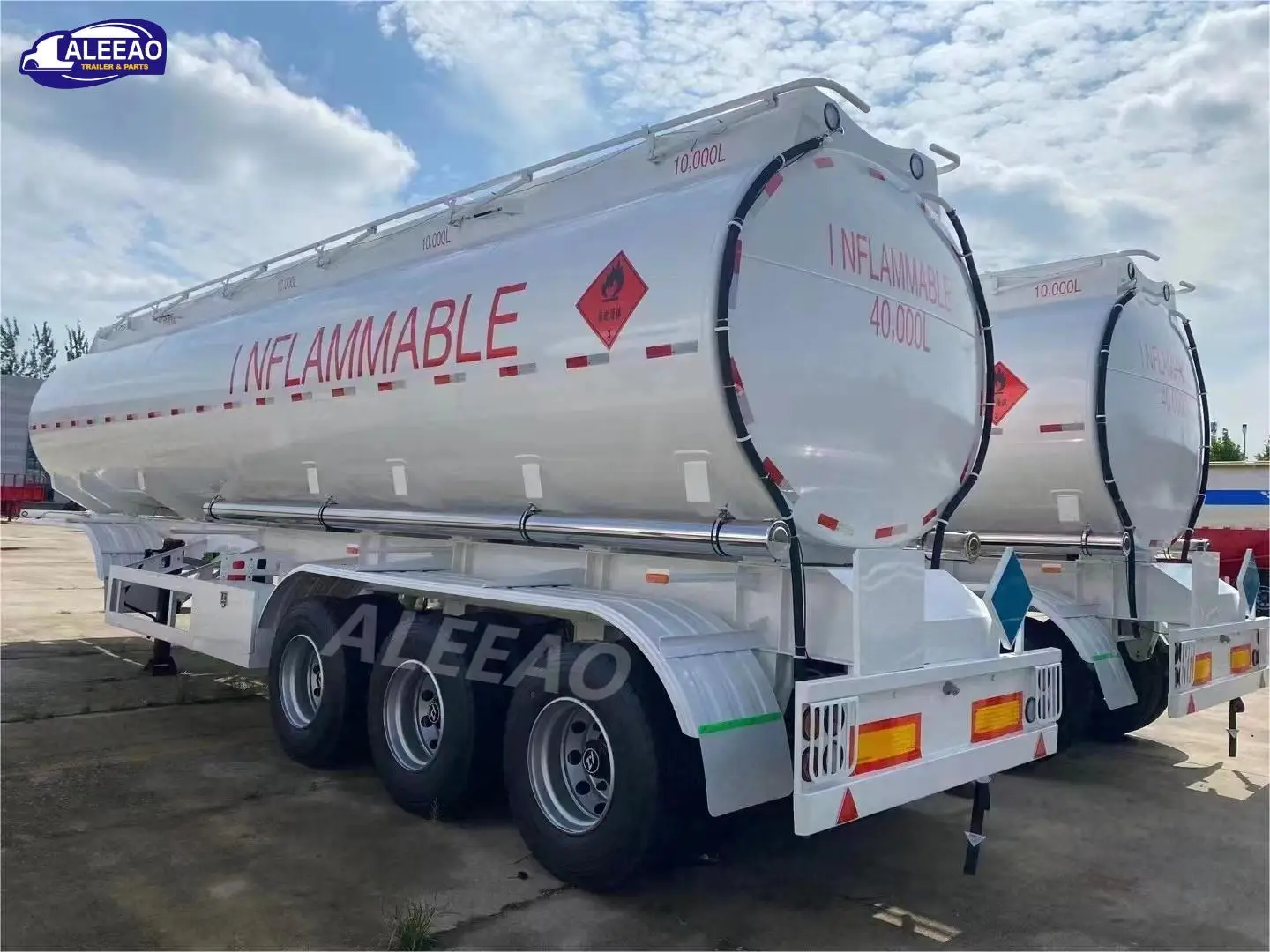

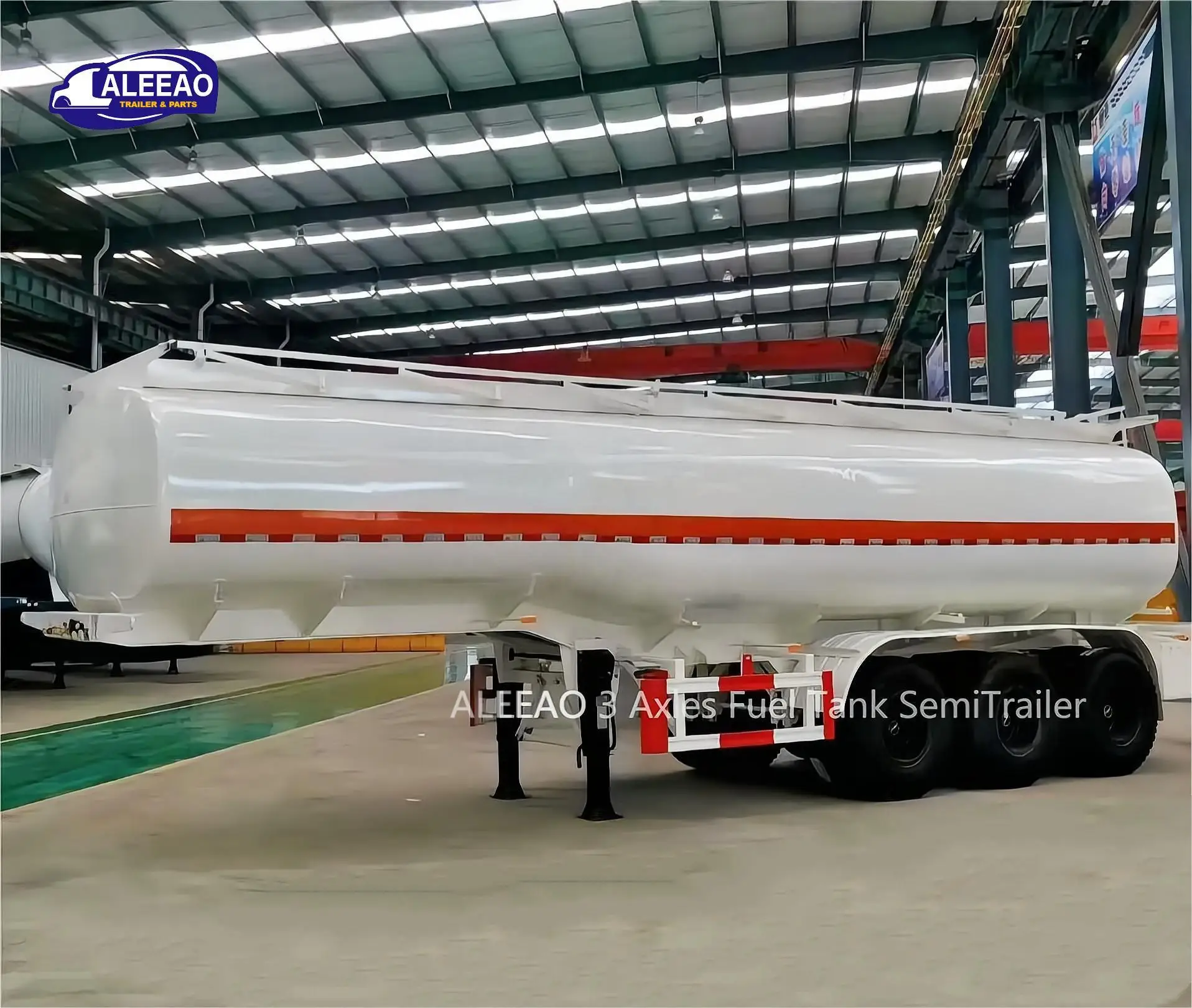

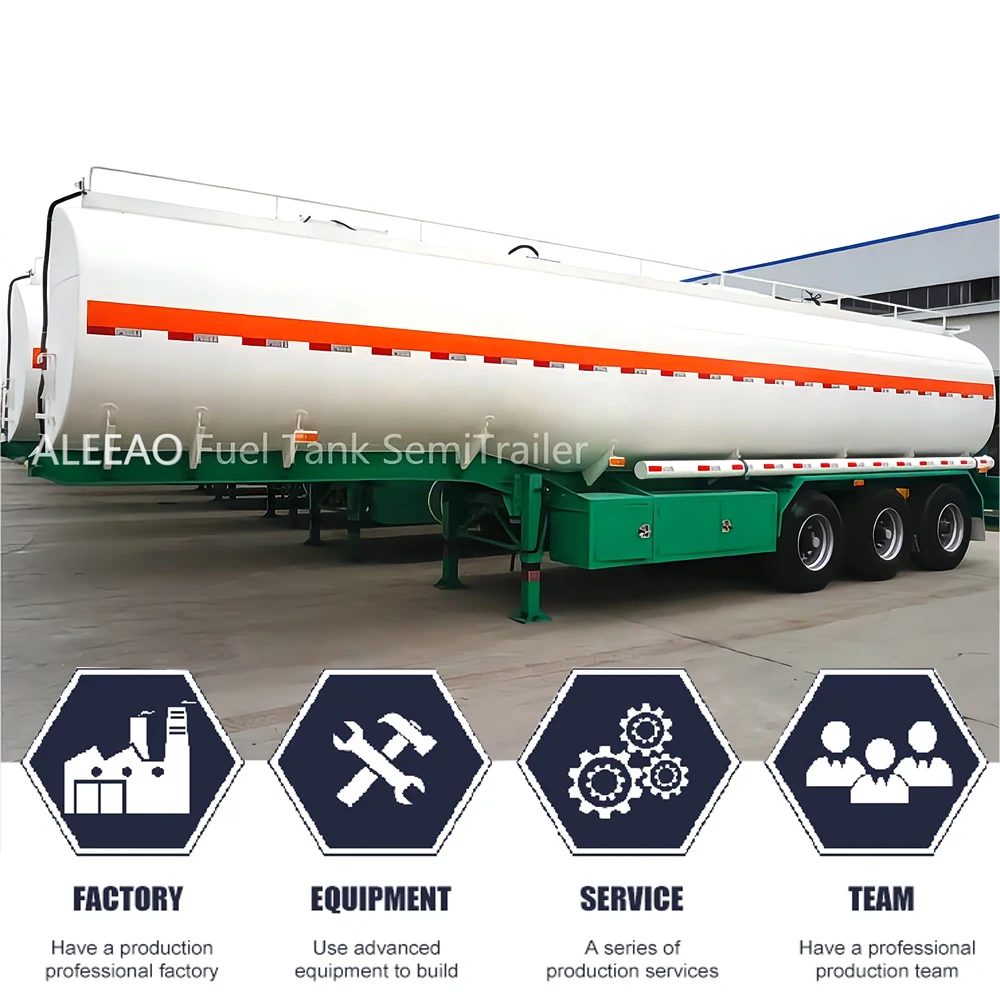

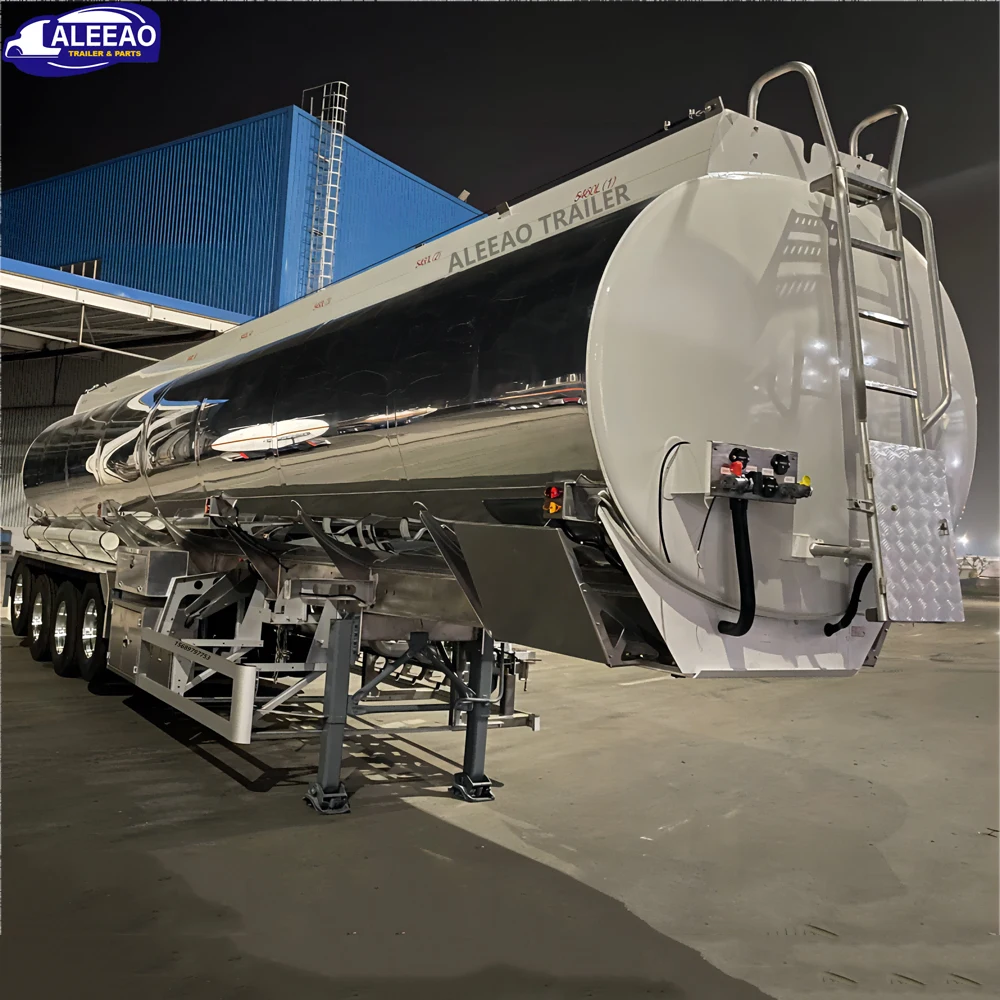

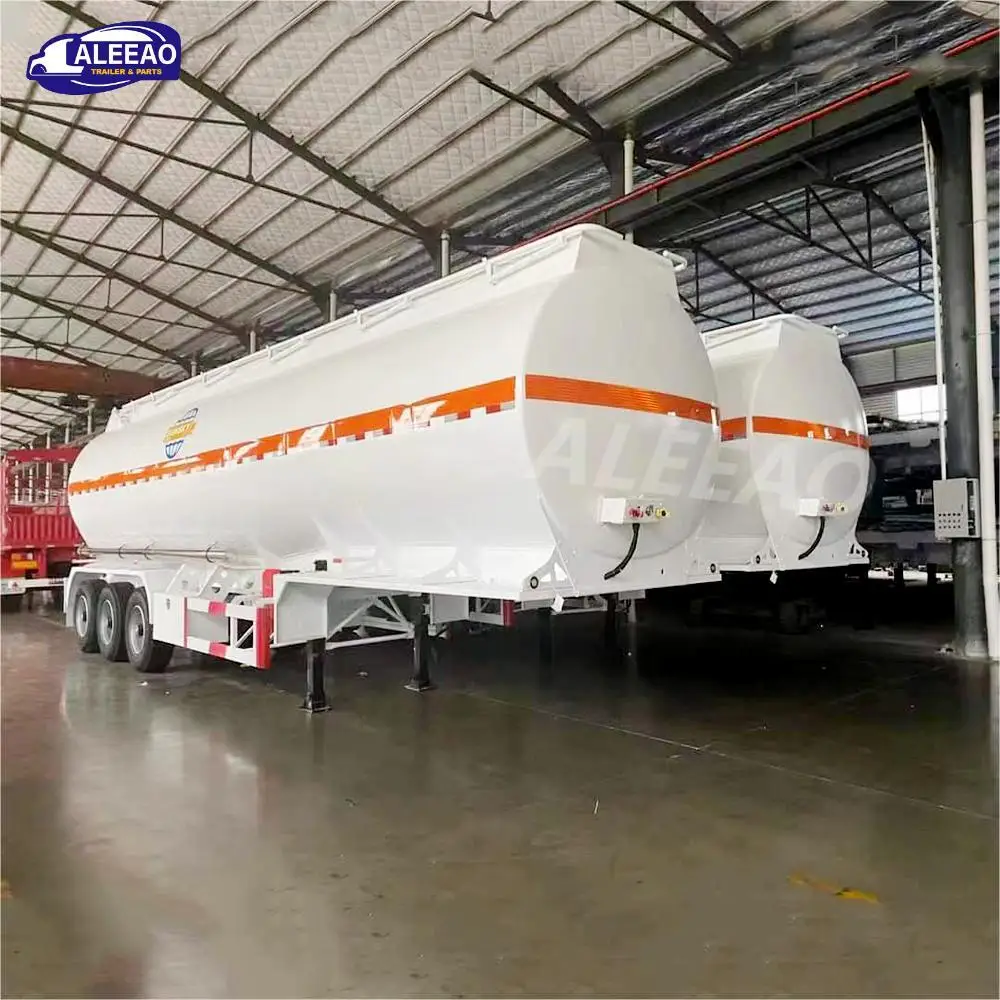

ALEEAO Brand New 3 Axle Carbon Steel Oil Fuel Tanker Tanks 60000L Semi Trailer for Sale
- Category: >>>
- Supplier: Liangshan Leao Machinery Co. Ltd.
Share on (1601046767503):
Product Overview
Description
Liangshan LEAO Machinery factory has nearly 17 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and more efficient. we can provide high quality products and competitive prices. Please contact me if you necessary.
Product Display
1.Compared with the common single oil tank truck, the semi-trailer fuel tank can effectively improve the transportation efficiency. In the case of the same tonnage, the transportation cost is reduced and the fuel consumption is saved.
2.The fuel tank body is made of 4mm or 6mm high-quality carbon steel produced by the iron and steel company according to the national standard. It can also produce heating and thermal insulation series tanks.

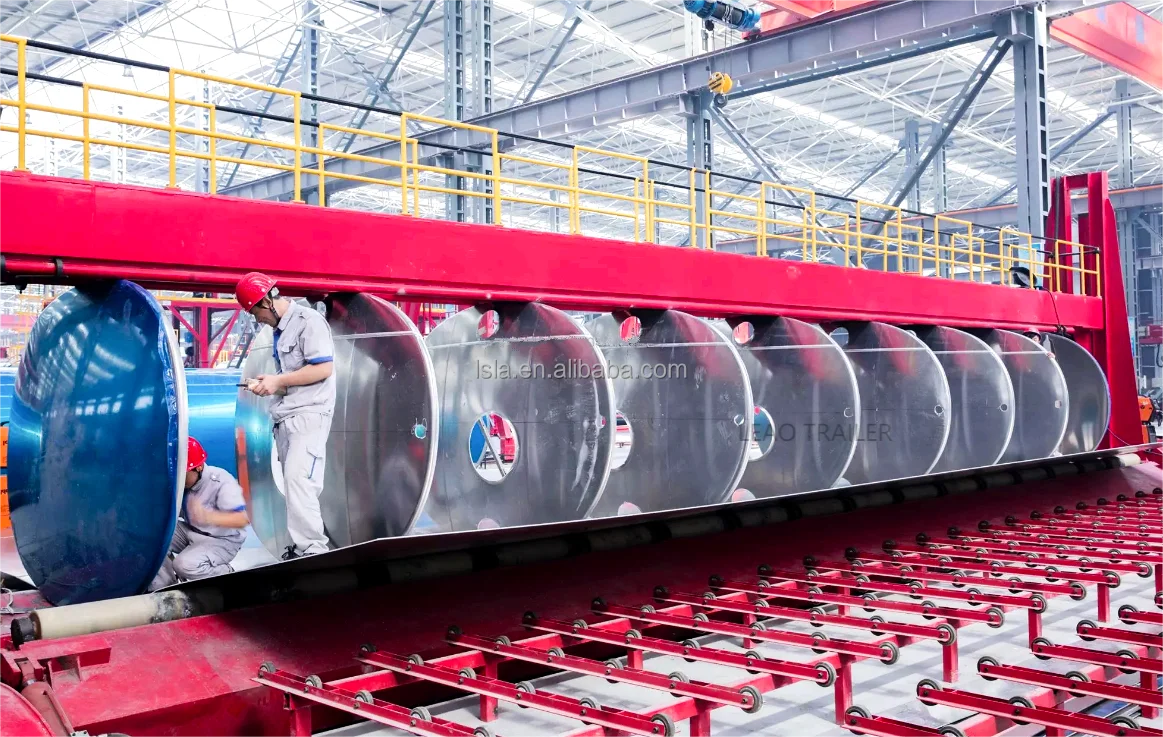

3.There are multiple anti-wave baffles in the tank. High-pressure gas leak detection is adopted, so that the tank has the characteristics of high strength, stable center of gravity, safe and stable vehicle transportation, etc.
4.Centrifugal pumps, gear pumps and stainless steel pumps can be selected according to the purpose of the tanker, which have the characteristics of large flow rate and fast suction speed.
5.Single-counting and double-counting flow meters can be selected for the measurement of oil tankers, and a tax-controlled computer fuel dispenser can also be installed, and a 10-15m automatic retractable return reel can be installed, equipped with a refueling gun. Edible oil products can be measured with a computerized edible oil product meter.
30000 Liters Liquid Fuel Tank Trailer
40000 Liters Liquid Fuel Tank Trailer
45000 Liters Liquid Fuel Tank Trailer
55000 Liters Liquid Fuel Tank Trailer
We choose clearly thickness for tanker body and end plate, and the tanker will be much safer than normal type

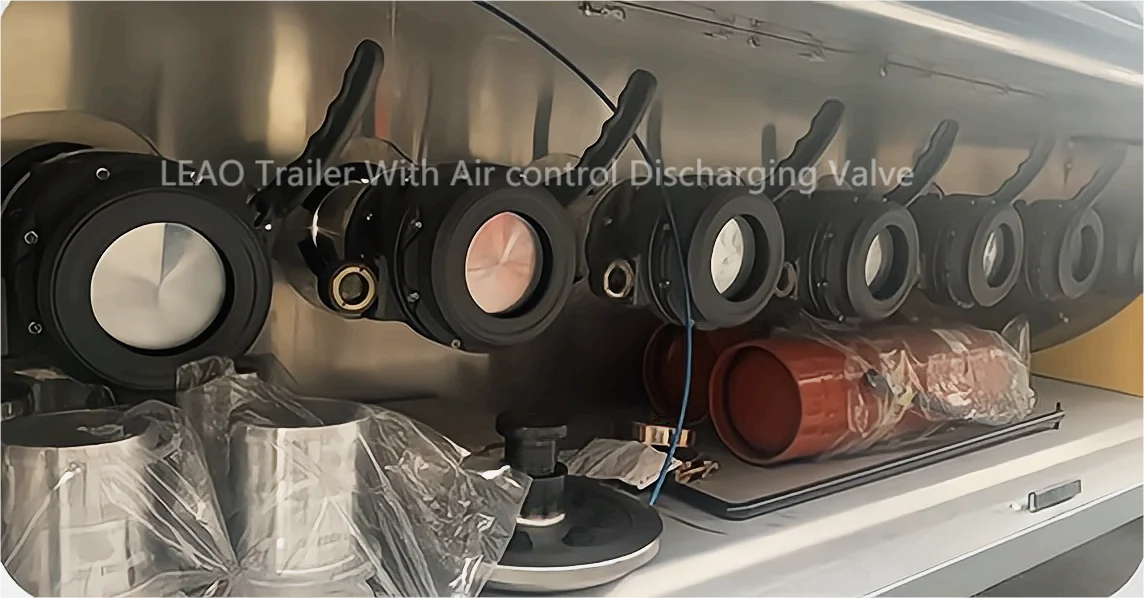

API Discharging valve with high quality. It can control the oil flowing

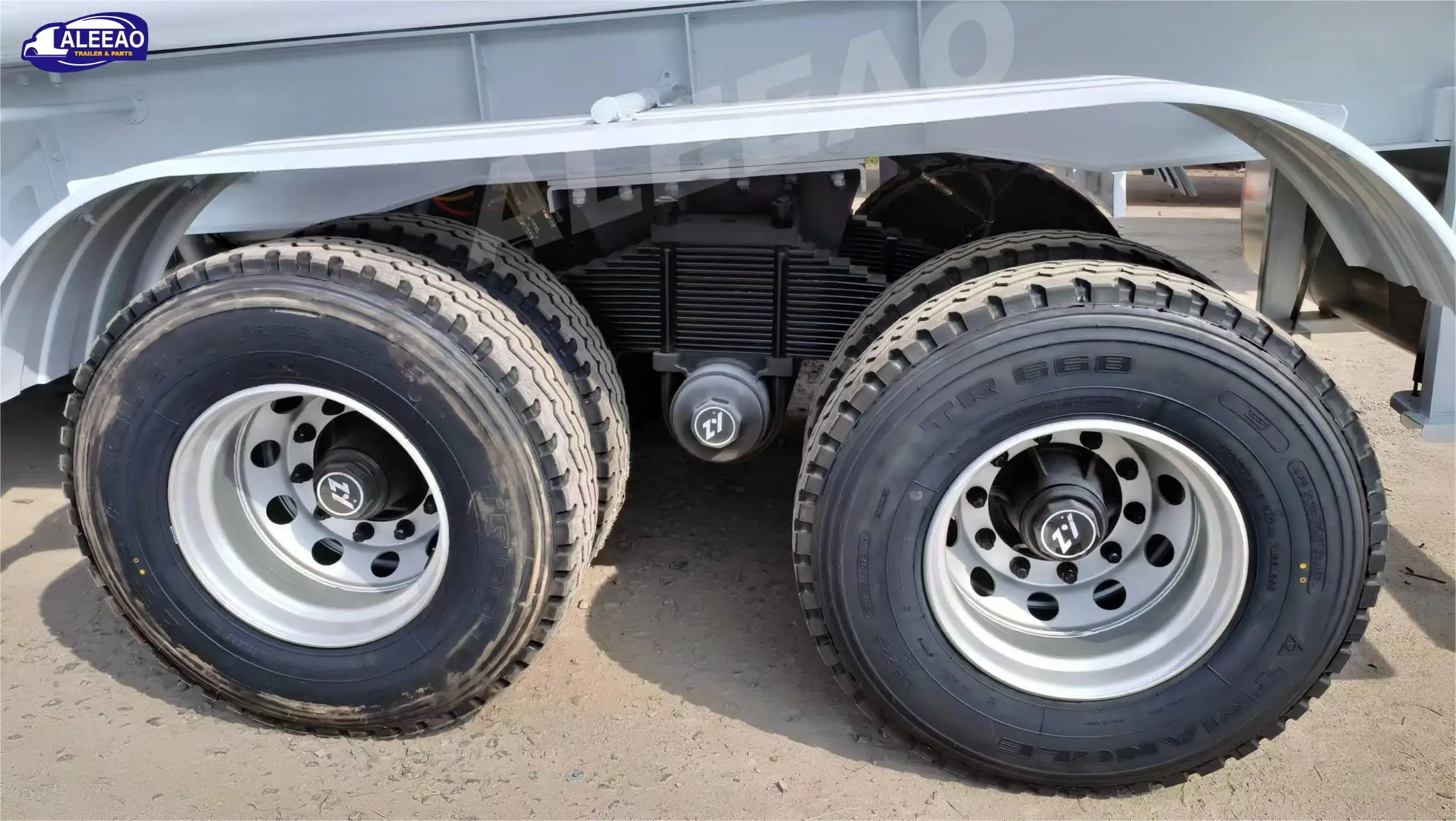

Bogie Suspension
Optional double-axle bogie suspension,It is not easy to change the wheel angle when the vehicle height is lowered, and the steering feel remains consistent.
Landing Gear
The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses lowtem perature premium chassis oil and israted for service from -30'C to 120°C
The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses lowtem perature premium chassis oil and israted for service from -30'C to 120°C
Axle BPW/FUWA Axle optional.
Because oil tankers are special to transport oil, they need high quality to ensure safety. We usually choose Fuwa axles(Chinese best axles) . If you want , we can choose other axles.
Because oil tankers are special to transport oil, they need high quality to ensure safety. We usually choose Fuwa axles(Chinese best axles) . If you want , we can choose other axles.
Featured Tire
Double Coin / LingLong/ Michelin/ Triangle/Bridgestone and other famous brand for choice. Better Performance in wear resistance.
Double Coin / LingLong/ Michelin/ Triangle/Bridgestone and other famous brand for choice. Better Performance in wear resistance.
Specification
LEAO fuel tank semi-trailers are mainly used to transport oil and liquids, such as fuel, gasoline, diesel, crude oil, asphalt, palm oil, JET A-1, water, liquid chemicals, food oil, etc. We can design with different capacity: 30 cubic, 40 cubic, 50 cubic and
so on. It can carry 40,000 liters, 45,000 liters, 54,000 liters, and up to 90,000 liters of liquid. Also, the material can be different: carbon steel, stainless steel, aluminum alloy. We can customize different volumes and compartments.
Our advantage:
1. 7% low center of gravity gooseneck design is more secure
2. The design volume of the semi-elliptical section cylinder is increased by 12%
3.10 years of automatic arc welding for tank trucks with long service life
4. The ADR standard fits the rules of most oil companies

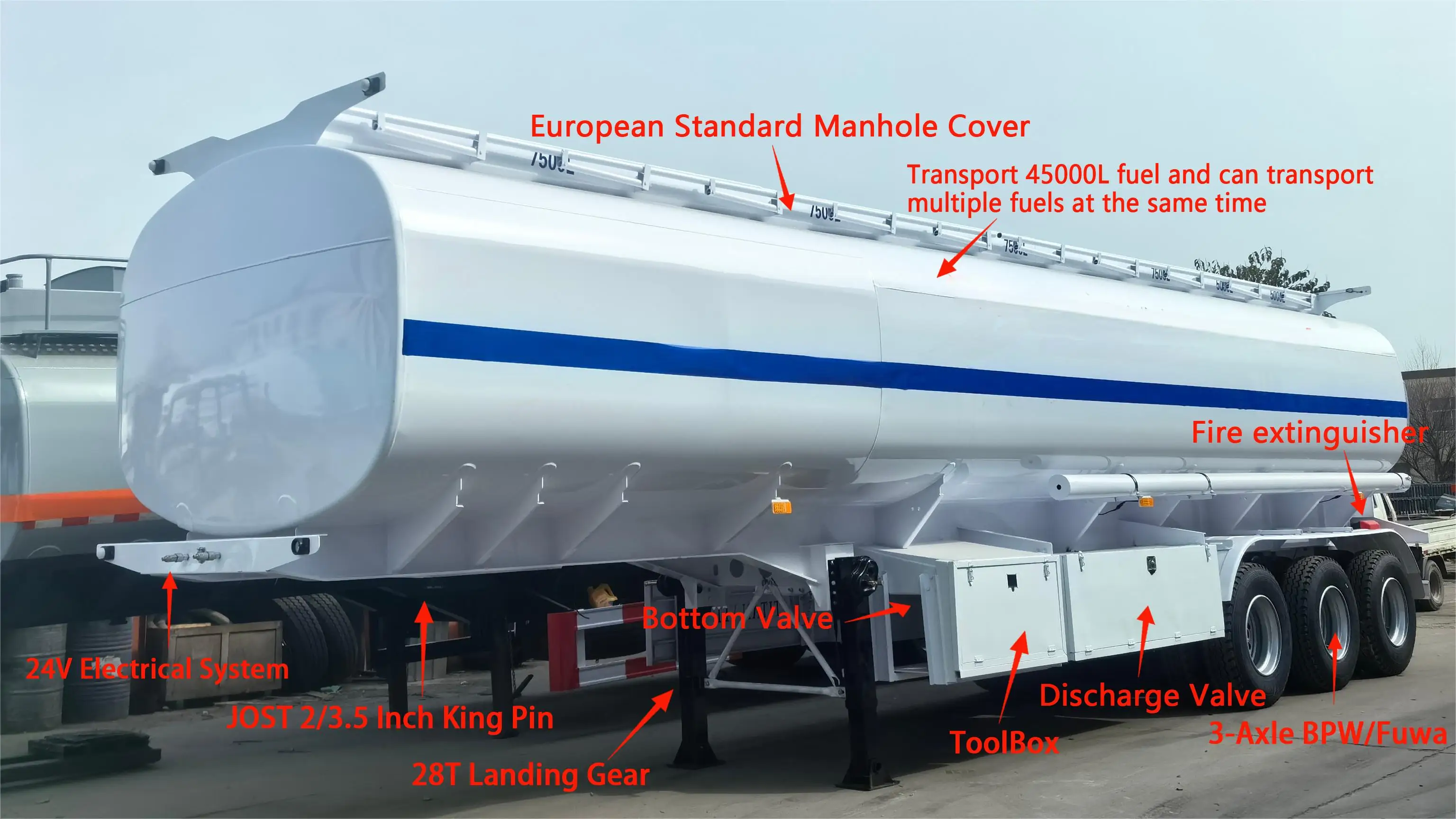

LEAO Fuel Tanker Truck Trailer | ||
Material | Carbon Steel/Aluminum/Stainless Steel | |
Application | Fuel/Liquid Loading | |
Volume of Tank | 20-55 CBM Customized | |
Axle | 2/3/4 Axles | |

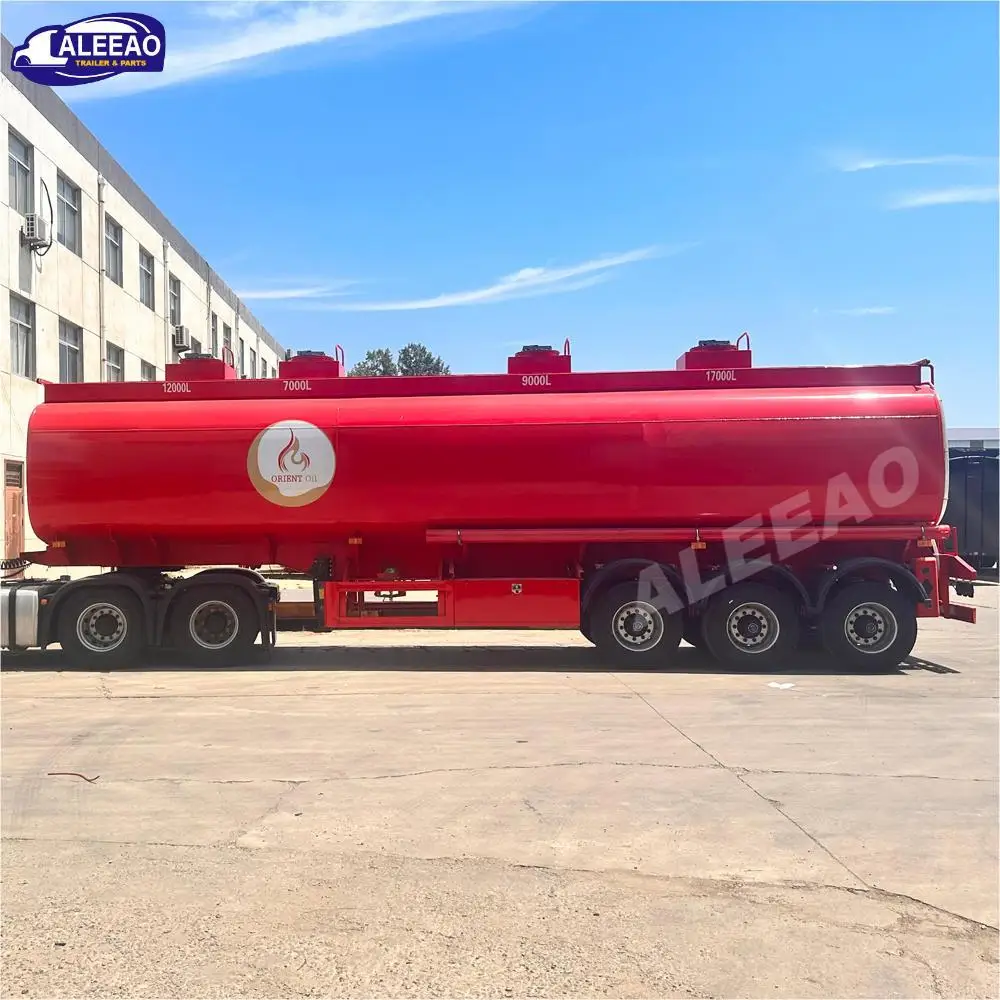

Compartment | 1 to 9 | |

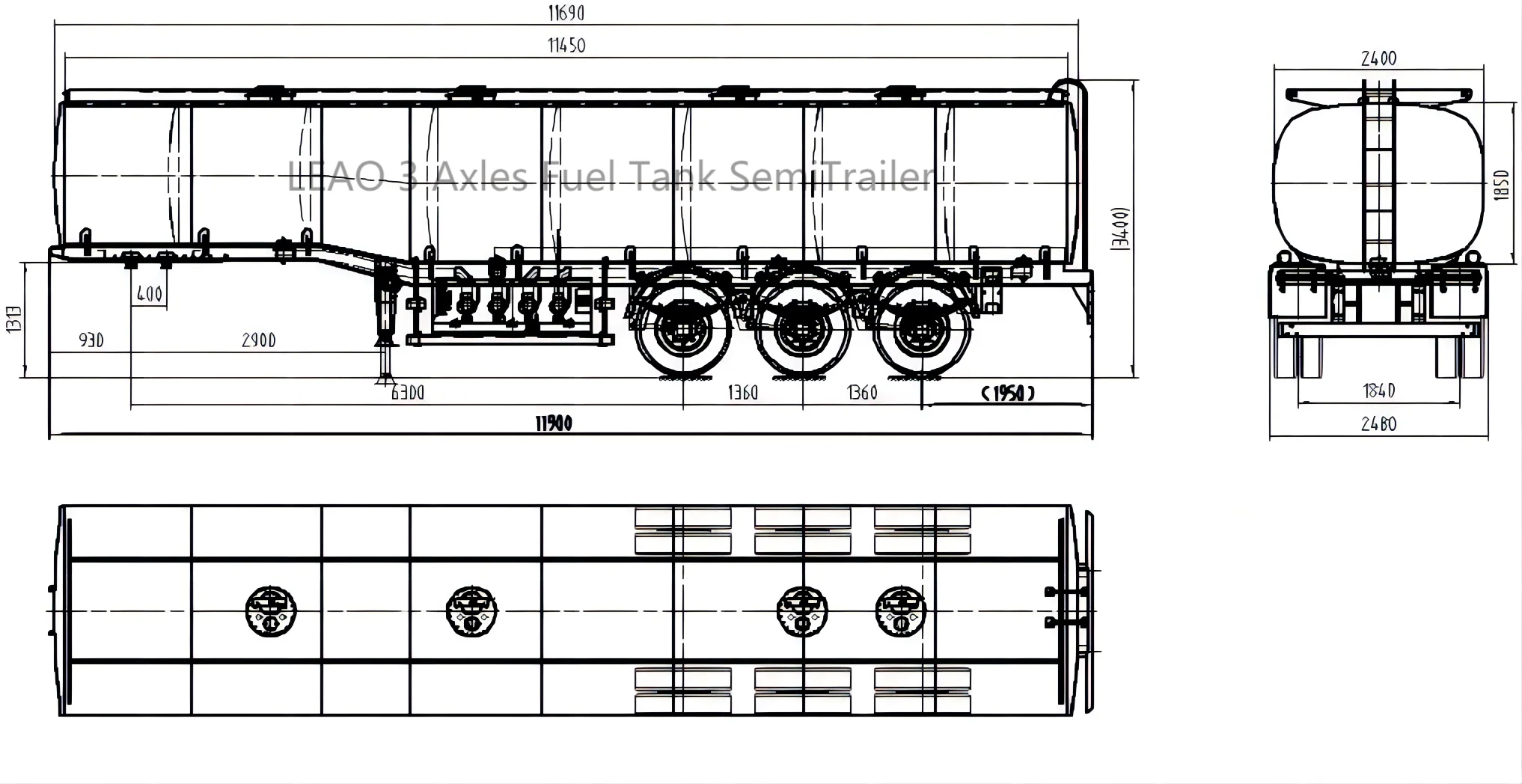

Length*Width*Height | 13000mm*2500mm*3800mm | |
European System | Available | |
Thermal | Available | |
Manhole | Anti-Explosion | |
Lifted Axle | Available | |
Vehicle Examination | X-RAY Room Examination | |
OEM/ODM | Available | |
SKD/CKD Cooperation | Available | |
Tank Shape | D Style/Round Style | |
Item | Spec. | |
Tank Thickness | 5mm | |
Dish End Thickness | 6mm | |
Buffle Thickness | 4mm | |

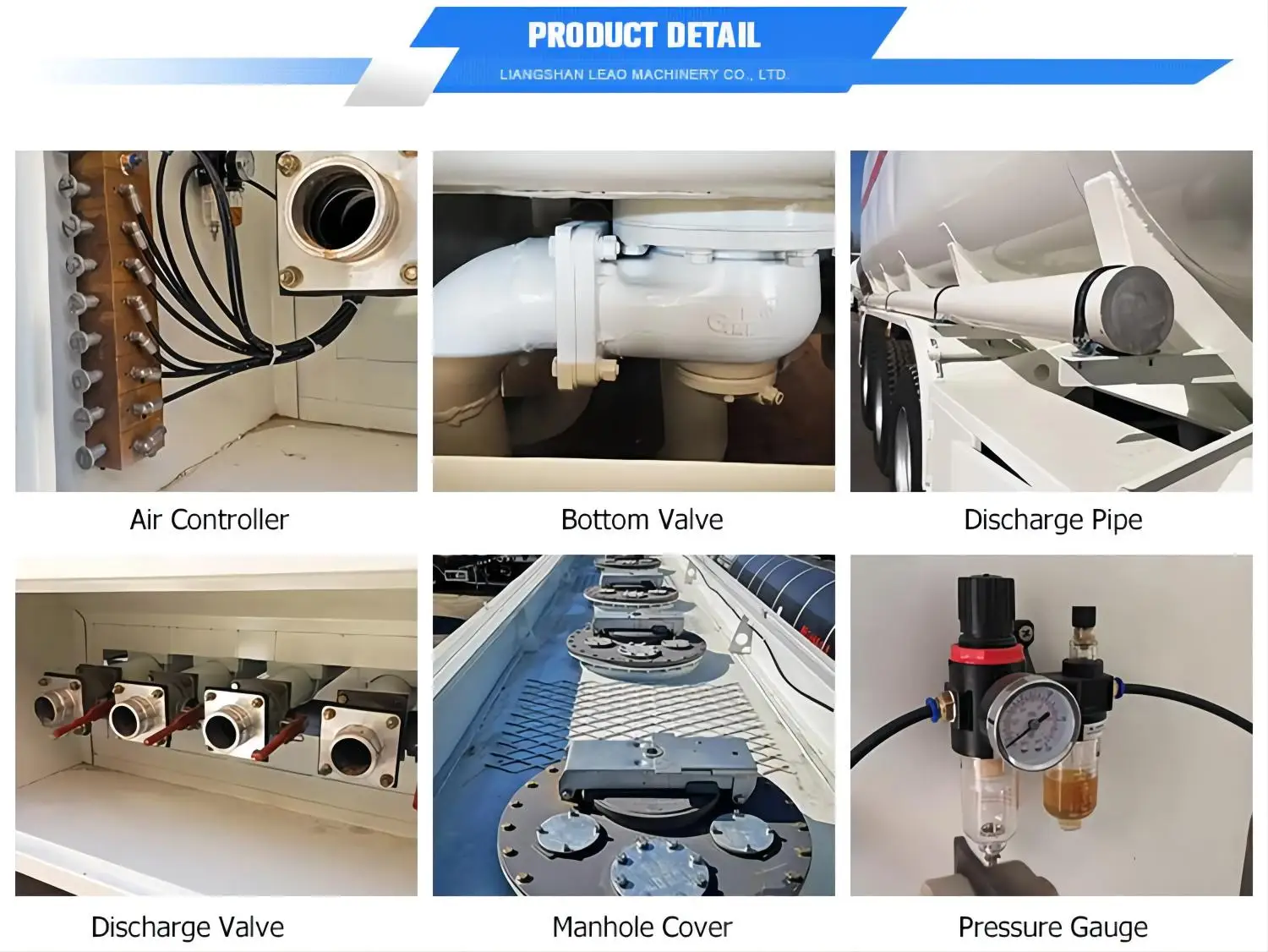

The spare parts below are based on the quantity of compartments.For ExampleOne Compartment. | ||
Manhole | X-RAY Room Examination | |
Discharge Valve | 2*3 inch | |
Bottom Valve | 4 inch Aluminum | |
Discharge Pipe | 3 inch rubber hose,6m/each | |
Hose Carrier | 2 Pieces Carbon Steel/Aluminum | |
Axles | 2/3/4 Axles *13/16 Ton FUWA/BPW/Other | |
Tire | 12R22.5/11.00r20 (8/12/16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other | |
Rim | 9.00*22.5/8.0 (8/12/16 Pieces) Steel/Aluminum | |
Leaf Spring | 90mm*13mm*10/90mm*16mm*10 | |
Suspension System | Mechanical or Air Suspension | |
Kin Pin | 50#(2")/90#(3.5") JOST/Other Brand,Changeable | |
Landing Gear | 28 Tons Two Speed,/JOST/Other Brand | |
Tool Box | Steel or Aluminum | |
Extinguisher | 2 Sets | |
Above Information are Standard Spec.If customer want to change Spec.Please Let us know. Want to know more details,please contact us directly. | ||
Company Profile
Liangshan LEAO Machinery Co., Ltd. has its own independent trailer factory - ALEEAO TRAILER, which is an enterprise integrating trailer manufacturing, design, trade, parts production and sales. LEAO has 17 years of experience in the production of semi-trailers and trailer parts. The company is located in Liangshan County, Shandong Province, and has passed IS09001-2000 certification and 3C certification.
LEAO's main products are flatbed trailers, low-bed trailers, cargo transport trailers, dump truck trailers, tanker trailers, car transport trailers, animal transport fence trailers and axle parts. They are exported to more than 30 countries in Africa, South America, Southeast Asian countries and the Middle East. country.

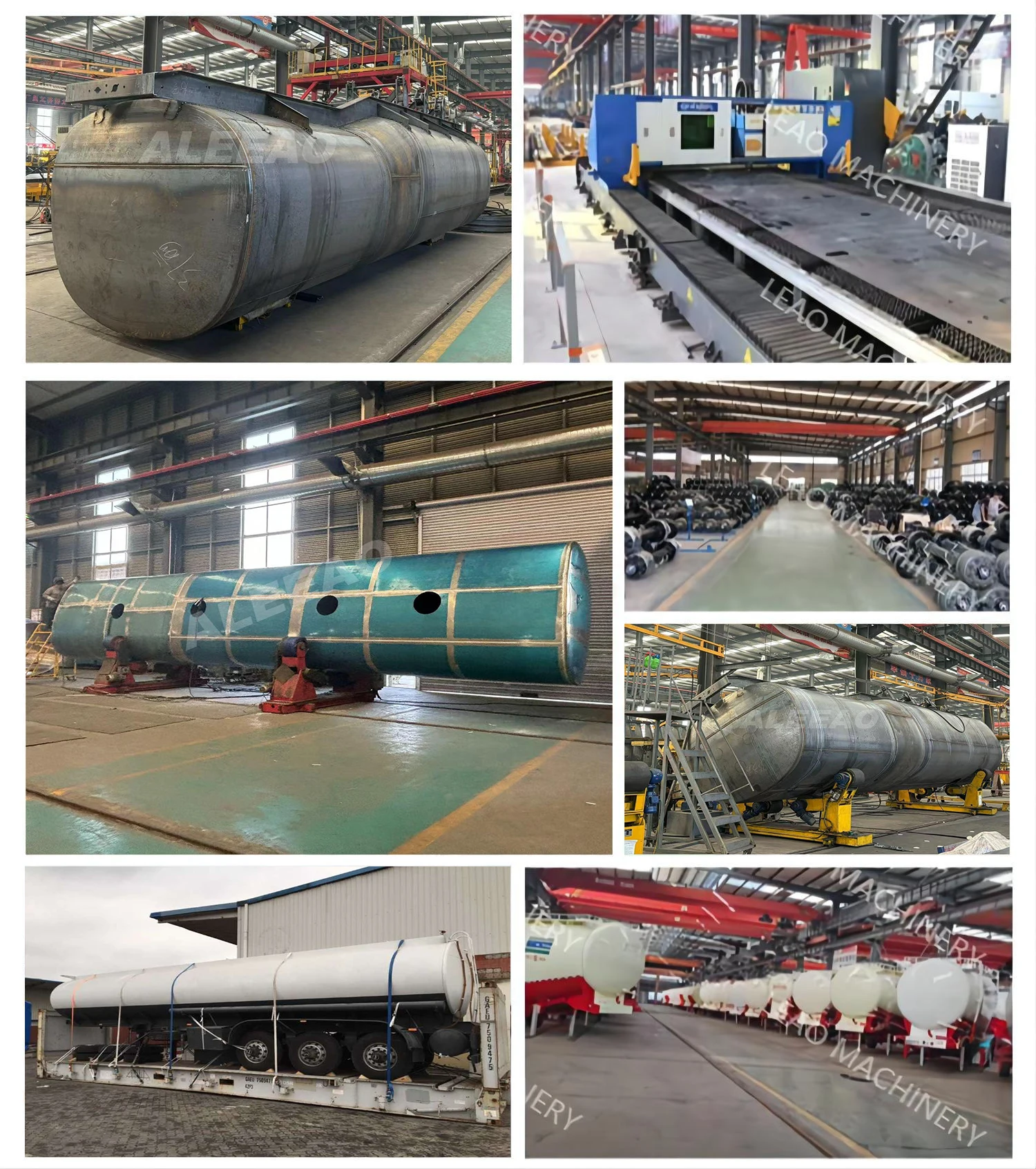

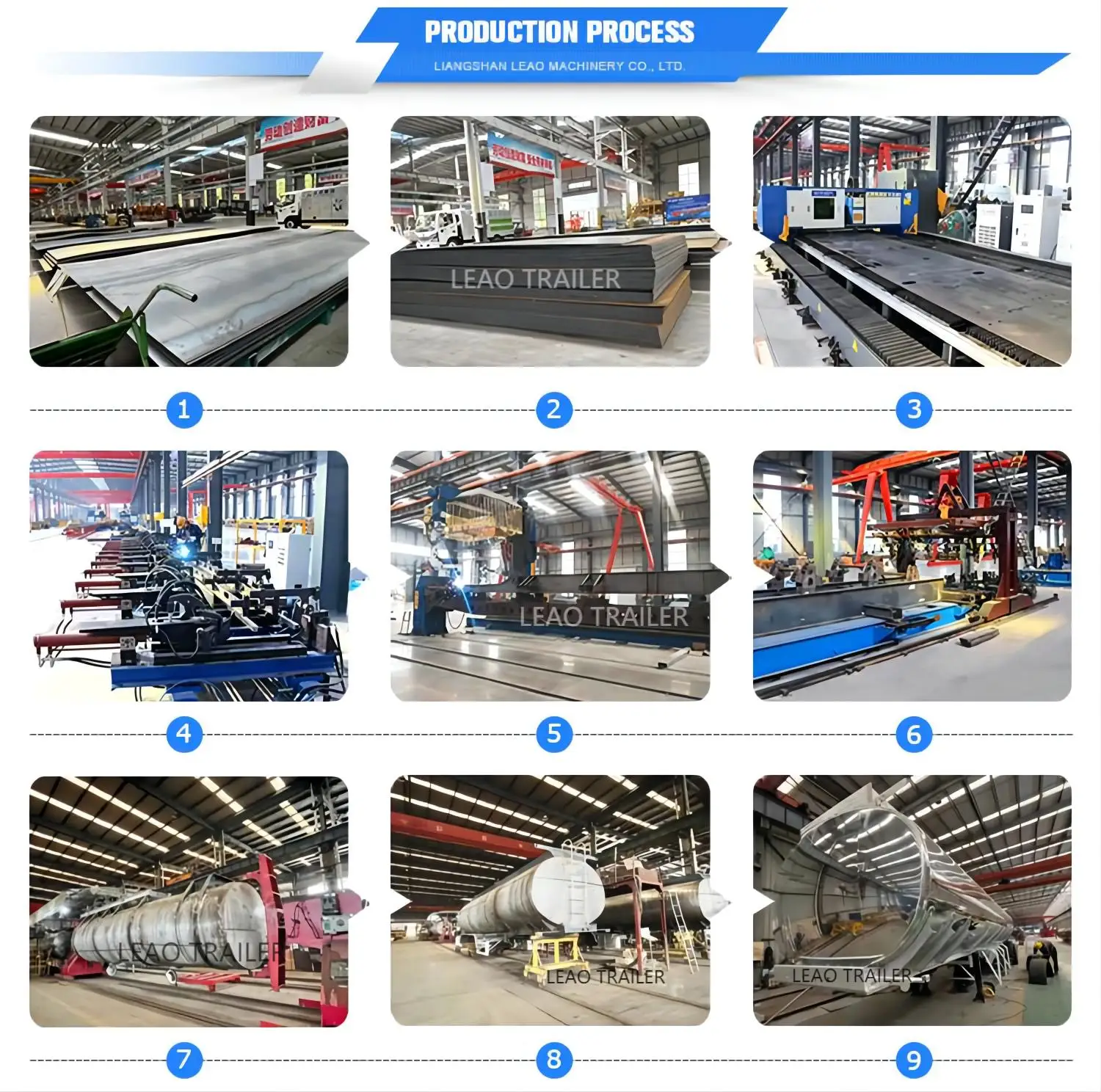

LEAO company has first-class trailer production equipment, mainly including CNC cutting machines, gantry automatic welding machines, large bending machines, shearing machines, etc. Leo has several professional engineers and more than 100 technical workers, with first-class technology, strict management and excellent team, making due contributions to the global transportation industry!
Beautiful Liangshan, Honest LEAO, we sincerely welcome customers at home and abroad to visit us for guidance.
LEAO's main products are flatbed trailers, low-bed trailers, cargo transport trailers, dump truck trailers, tanker trailers, car transport trailers, animal transport fence trailers and axle parts. They are exported to more than 30 countries in Africa, South America, Southeast Asian countries and the Middle East. country.
LEAO company has first-class trailer production equipment, mainly including CNC cutting machines, gantry automatic welding machines, large bending machines, shearing machines, etc. Leo has several professional engineers and more than 100 technical workers, with first-class technology, strict management and excellent team, making due contributions to the global transportation industry!
Beautiful Liangshan, Honest LEAO, we sincerely welcome customers at home and abroad to visit us for guidance.
FAQ
1. Who are we?
We are based in Shandong, China, start from 2007,sell to Africa(30.00%),Mid East(20.00%),SoutheastAsia(20.00%),South America(10.00%),South Asia(5.00%),Eastern Asia(5.00%),Eastern Europe(2.00%),NorthAmerica(2.00%),Southern Europe(1.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production.
Always finalInspection before shipment:
3.What can you buy from us?
Trailer Axle,Landing Gear,Container Chassis Flatbed Trailer,Lowbed Trailer,Rear Dump Tipper Trailer
4. Why should you buy from us not from other suppliers?
We are based in Shandong, China, start from 2007,sell to Africa(30.00%),Mid East(20.00%),SoutheastAsia(20.00%),South America(10.00%),South Asia(5.00%),Eastern Asia(5.00%),Eastern Europe(2.00%),NorthAmerica(2.00%),Southern Europe(1.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production.
Always finalInspection before shipment:
3.What can you buy from us?
Trailer Axle,Landing Gear,Container Chassis Flatbed Trailer,Lowbed Trailer,Rear Dump Tipper Trailer
4. Why should you buy from us not from other suppliers?
Liangshan LEAO Machinery Co., Ltd. was established in 2007 and has 15 years of experience in the production ofsemi-trailers, lowbed trailer, traller axles, mechanical suspensions and other trailer spare parts. Our productshave been favored by customers.
5.What services can we provide?
Accepted Delivery TermS: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES,Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF:Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language
Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,ltalian
5.What services can we provide?
Accepted Delivery TermS: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES,Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF:Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language
Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,ltalian
