Vacuum tube solar glass solar water heater collector tube 58*1800mm

Product Overview

Description

High Pressurized Solar Water Heater Solar Evacuated Heat Pipe Tubes



Main parts: vacuum tube, heat pipe, aluminum fins and sealing gasket.



1. Higher heat efficiency: Advanced heat transferring style of the heat pipe, excellent selective absorbent

    coating and perfect combination with high vacuum heat preservation
2. Wide applicable range: As the heat pipe has less heat capacity, it can be started quickly even under

    cloudy fine day and collect heat effectively. It can work normally even -30 below degree. As no water

    in the vacuum tube, it can effectively prevent lowing of heat efficiency due to frost cracking or scaling
3. Each individual tube can work independently, and the whole machine can still work if individual tube is

    damaged. The service life of the heat pipe can be longer than 15years.
4. The unique connection between the heat pipe and the vacuum tube can ensure both sealing and

    replace of damaged glass vacuum tube.



2.Main parts show:

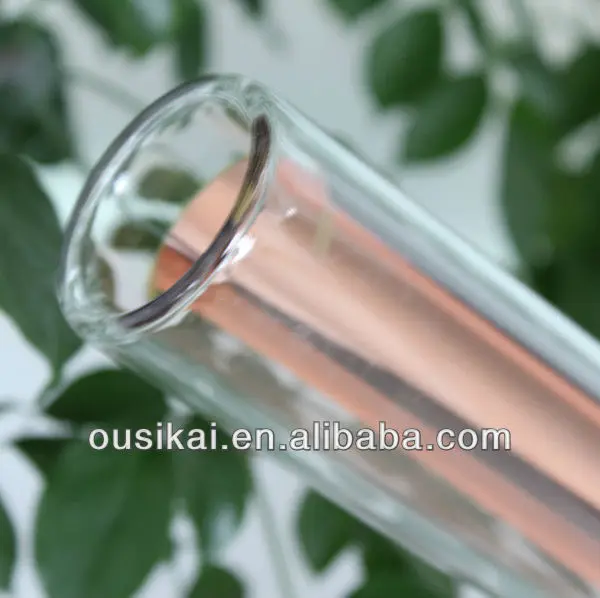

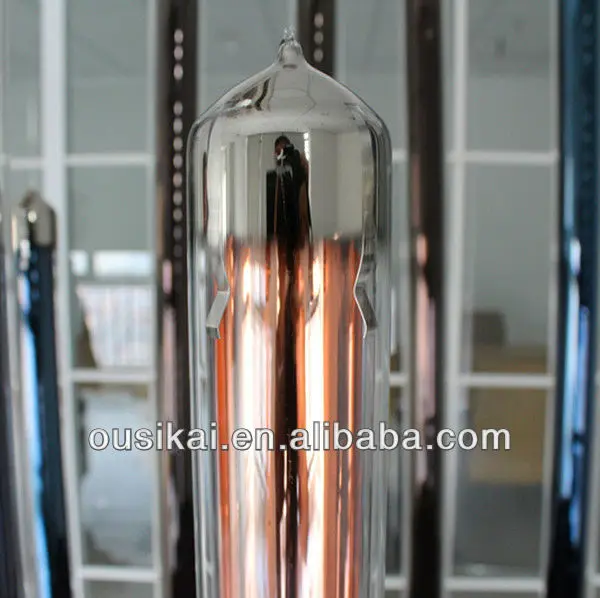

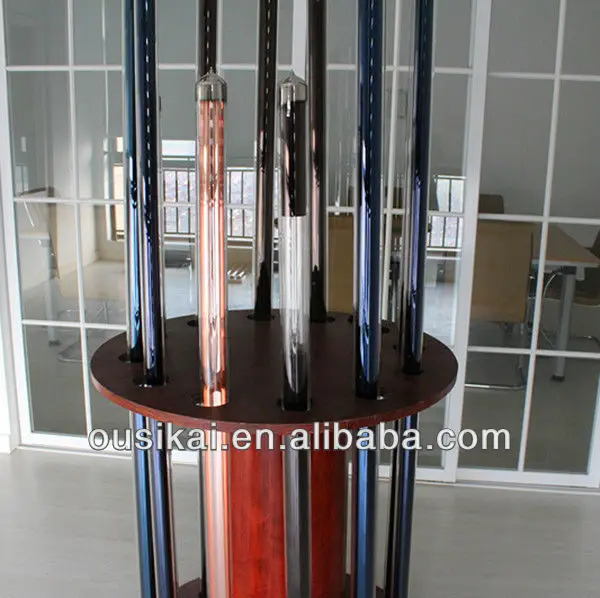

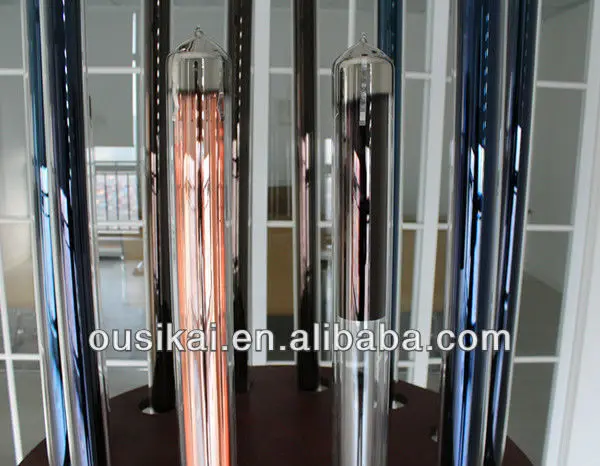

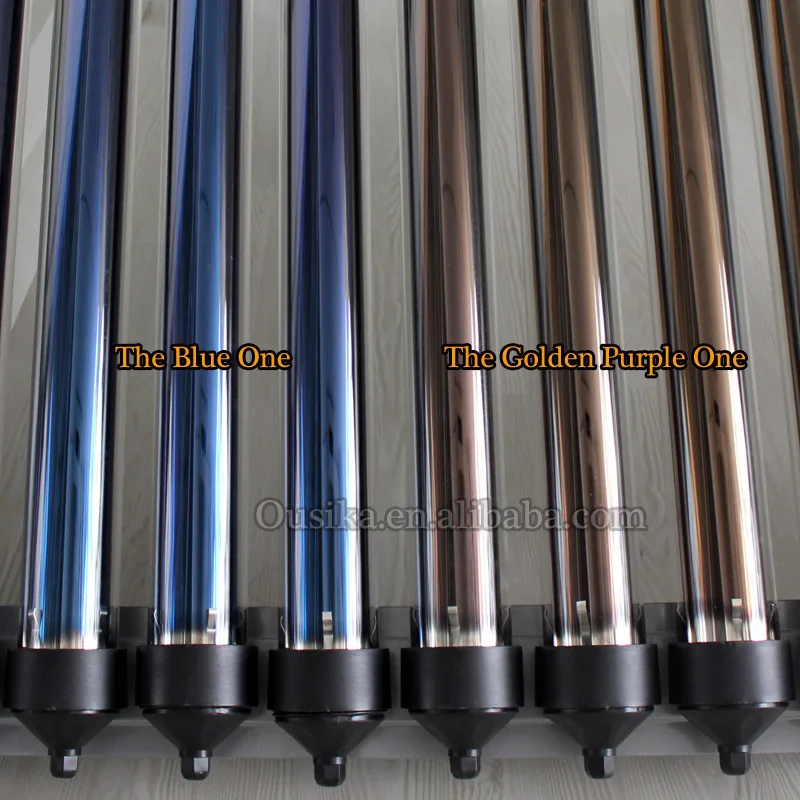

Vacuum tubes: Three target coating(Blue and golden purple tube)

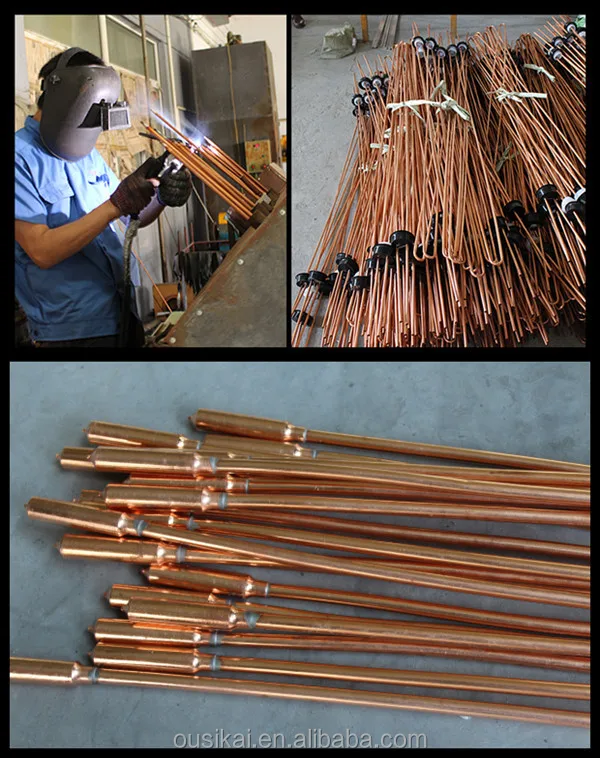

Heat pipe: Copper TU1







Aluminum fins and sealing gasket:

Aluminum fins absorb solar energy, 0.25mm thickness

Sealing gasket:anti-corrosion cilicon ring







3.Solar heat pipe working principle:
1. On heat-pipe collector, the condenser zone of the heat-pipe is inserted to the copper sleeves which are distributed on the water pipe averagely.
2. After the solar energy is absorbed by the vacuum tubes, it is transferred to the heat-pipe through the aluminum fin.
3. Heated by the energy, the medium in the heat-pipe is working and transferring the heat energy to the condenser zone.
4. When water or other medium in the water pipe flows across the copper sleeves, they would bring the energy and be heated.
5. The heated water or other medium makes water in the tank hotter and hotter by walking across the coils in the tank.



Heat pipe vacuum tubes size:

Model Specification	Packing count(pieces)	Package Size(CM)	Packing CBM	20GP' sets		40GP' sets		40HQ' sets
				Cartons	Tubes	Cartons	Tubes	Cartons	Tubes
47*1500	20	156*27*26	0.11	254	5080	490	9800	618	12360
47*1500	25	156*27*33	0.139	201	5025	388	9700	489	12225
47*1500	18	156*20*33	0.103	271	4878	524	9432	660	11880
47*1500	24	156*26*33	0.133	210	5040	406	9744	511	12264
58*1800	8	186*27*17	0.09	311	2488	600	4800	755	6040
58*1800	10	186*33.5*17	0.11	254	2540	490	4900	618	6180
58*1800	12	186*27*23.5	0.12	233	2796	450	5400	566	6792
58*1800	15	186*33.5*23.5	0.15	186	2790	360	5400	453	6795
58*1800	9	186*21*23.5	0.091	307	2763	593	5337	747	6723



    1. 7-15 working days for 20’GP/40’GP/40’HQ

    2. FCL: packed in carton box with PE foam board

    3. LCL :packed in wooden box

    4. Customize as you like



High Tech & Good Quality & Competitive Price



Feel free send us emails or TM for more details,thanks.
