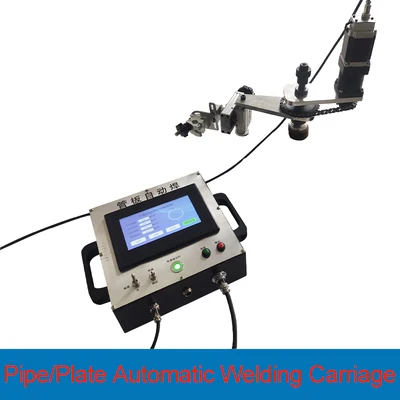

Welding torch Weaving 1500mm 3000mm Straight welding carriage tractor for metal pipe plate

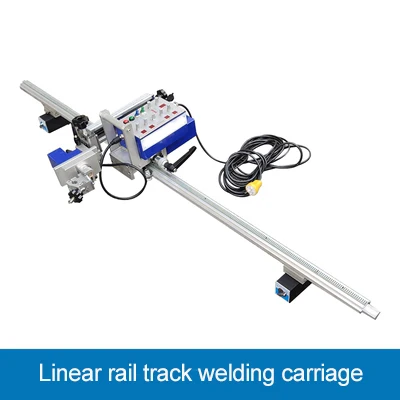

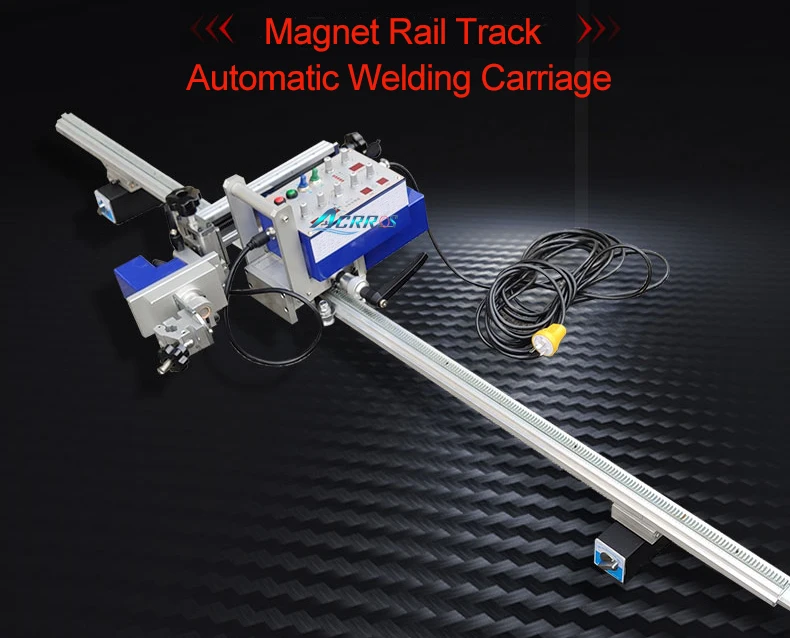

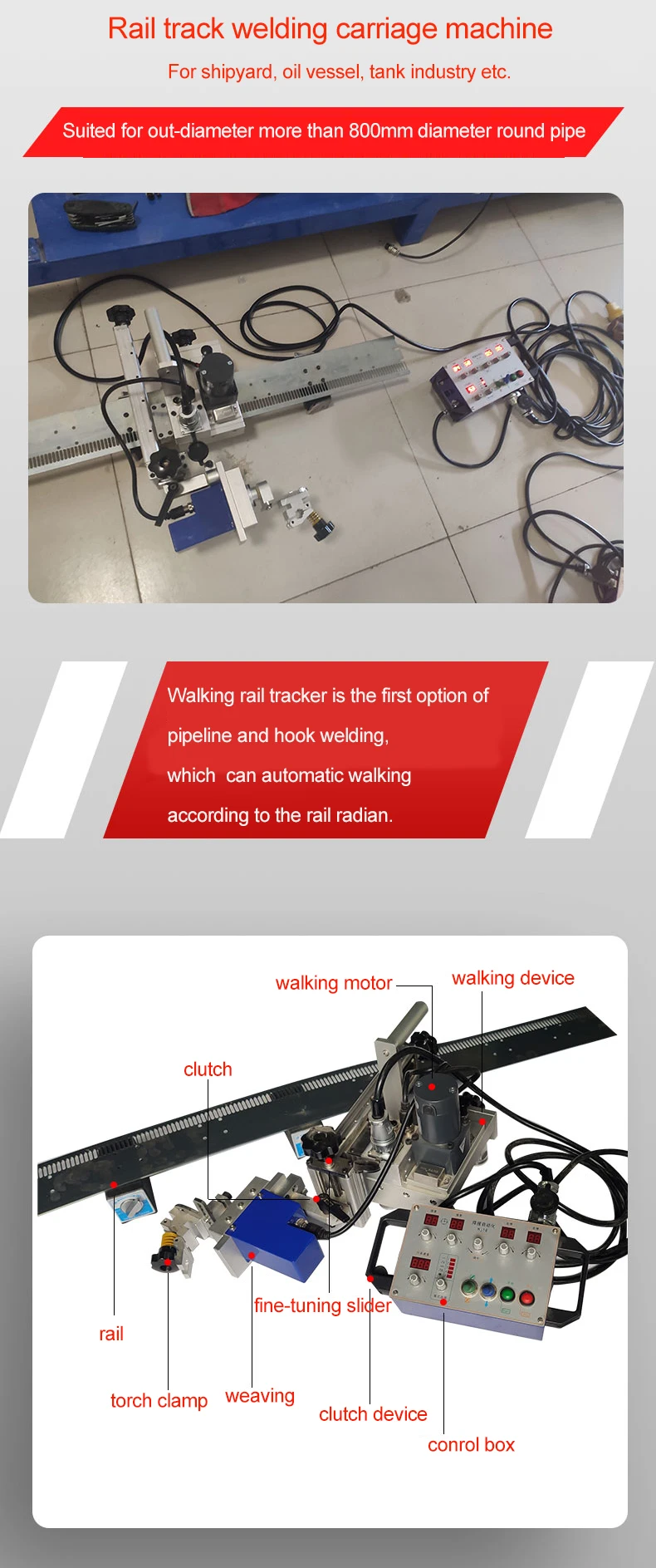

Magnetic Rail Track Welding Carriage

High Accuracy Low Price Automatic Weaving welding carriage welding for cold plate

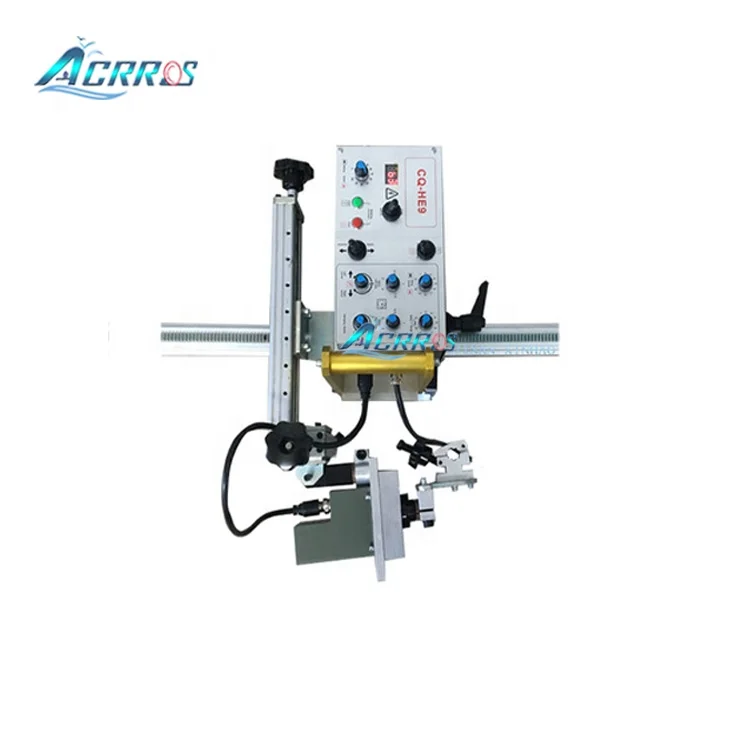

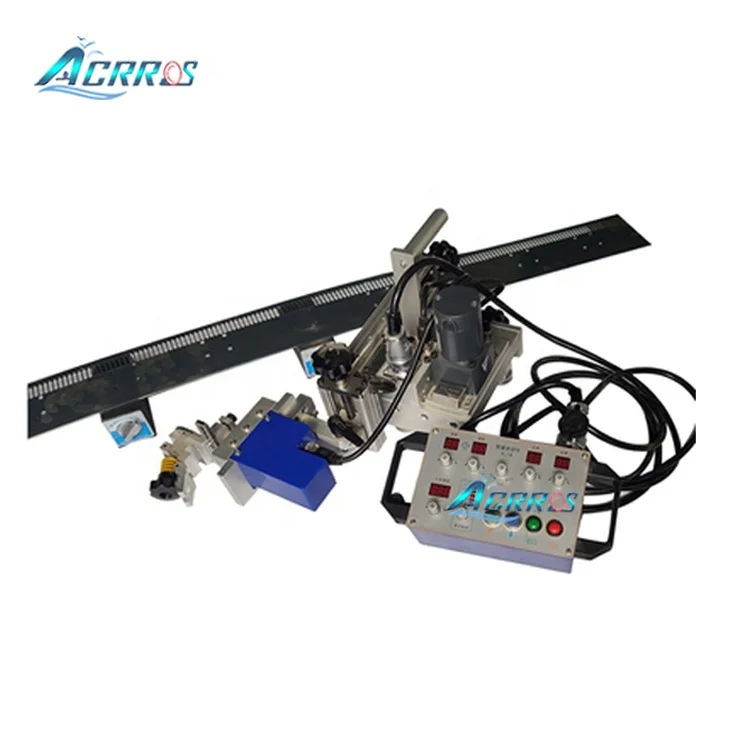

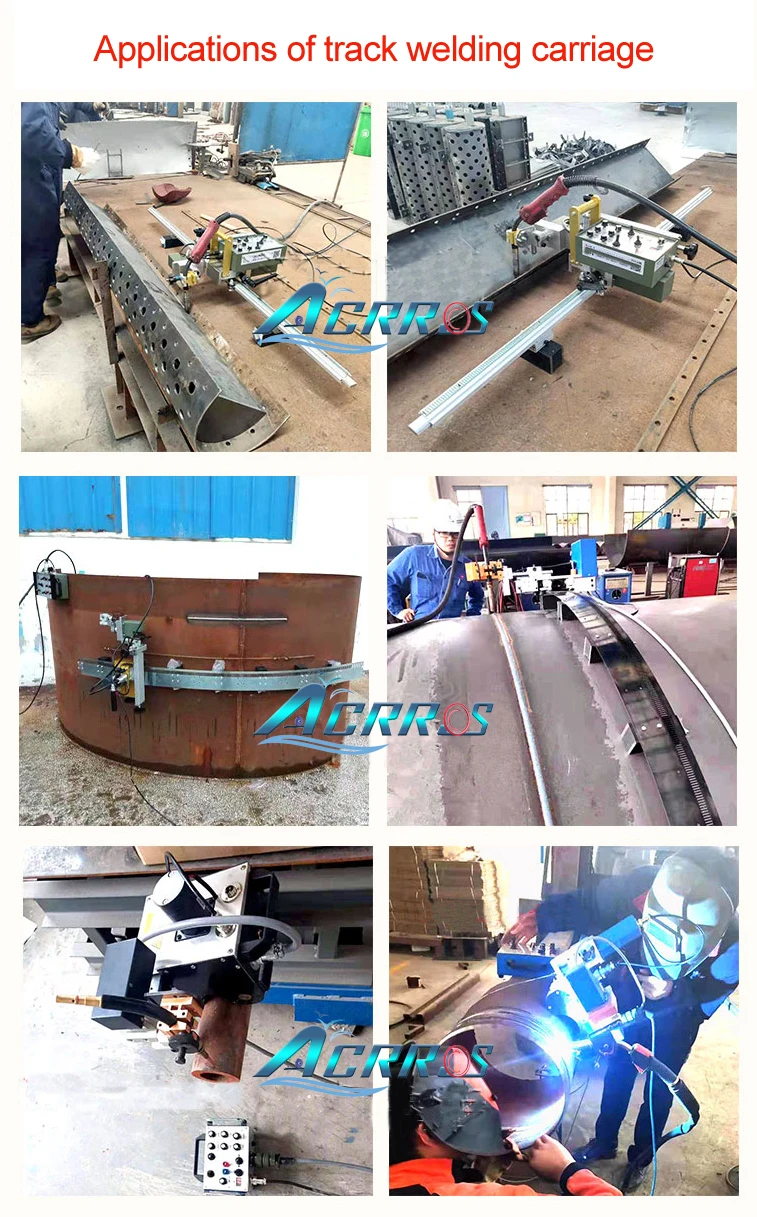

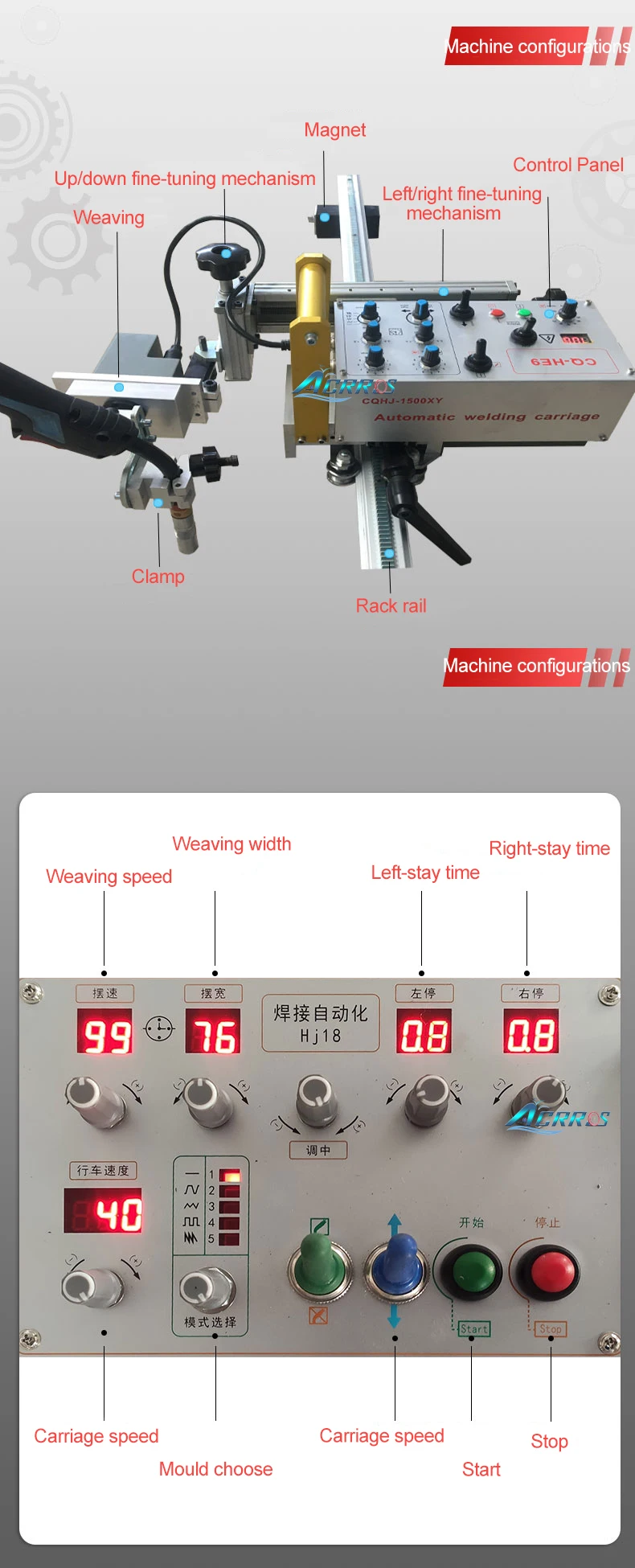

Automatic welding carriage is a welding equipment that uses a rack and pinion method to drive on the track. It is widely used in horizontal welding and vertical welding, and is especially suitable for welding of medium and thick plates. By adjusting the position and angle of the welding gun, it can do fillet welding, horizontal welding and overhead welding. The carriage body, oscillating device, and control panel are integrated, which can be welded while walking on the track. The track is attracted to the workpiece with a strong magnet, which is easy to install and disassemble. It is widely used in ships, bridges, locomotives, steel structures, petrochemical industries and other industries. It is suitable for welding of various welded structures, such as: welding of stiffener plates, ribs, cross parts, and welding of box beams.

Main advantages: reduce labor intensity, improve working environment, and increase work efficiency, which is 1.5 times that of manual welding; avoid poor weld quality caused by human factors.

Welding Carriages specifications

Welding Carriage body	Voltage	AC 220V 50/60 HZ
	Size	500x355x243
	Weight	10.6Kg
	Driving method	Rack drive
	Walking speed	0-100mm/min
	Torch adjust range	Up/down  ±20mm Front/back  ±20mm Operating angle   360° Carrying angle   ±90°
Track	Install	Magnet removable
	Size	40x29.3x1500
	Material	Aluminum
	Weight	6 Kg
Oscillate parameters	Oscillate pattern
	Oscillate speed	0-1520mm/min
	Oscillate range	±20mm
	Left-Right stay time	0-2s
	Center position	±5mm

 Acrros Machine Co, Ltd has focused on introducing and cultivating high-tech talents and takes it as development strategy at present. Dalian Acrros Machine Co.,Ltd have been specialized in manufaturing welding positioners for more than 20 years. All of its welding positioner are certificated approved and exported all over the world. ACRROS is getting great reputation for its great quality and service. Welding positioners are the machines be used to change the position of work piece on the welding positioner table and to ensure smooth rotation of the work piece at certain required speed. So welding postitioner normally means a table rotates workpiece at certain rotation speed, optional torch holder, tailstock, pipe bracket etc.
ACRROS can be your loyal friends, we can establish our own national brand and witness prosperous future m a harmonious world.

If you interested in our products,Please dont hesitate to contact us for inquiry,

Q: Can I get some samples?
A: Yes, sample orders welcomed.

Q: Could I use my own logo or design the items?
A: Yes, customized logo and design on mass production are available,.

Q: Why do I trust you?
A: We are "Alibaba" verified supplier and we have high quality goods and service.

Q: What is your shipping item ?

A:

1. By Couriers: DHL/UPS/FEDEX/TNT to your address directly.

2. By Sea: Delivery to your sea port.

3. To your agent: Delivery to your China agent.
