Safety double barrel guardrail highway roller barriers for tunnel entrance
- Category: >>>
- Supplier: Qingdao Florescence Marine Supply Co. Ltd.
Share on (1601048524218):
Product Overview
Description
Product Description

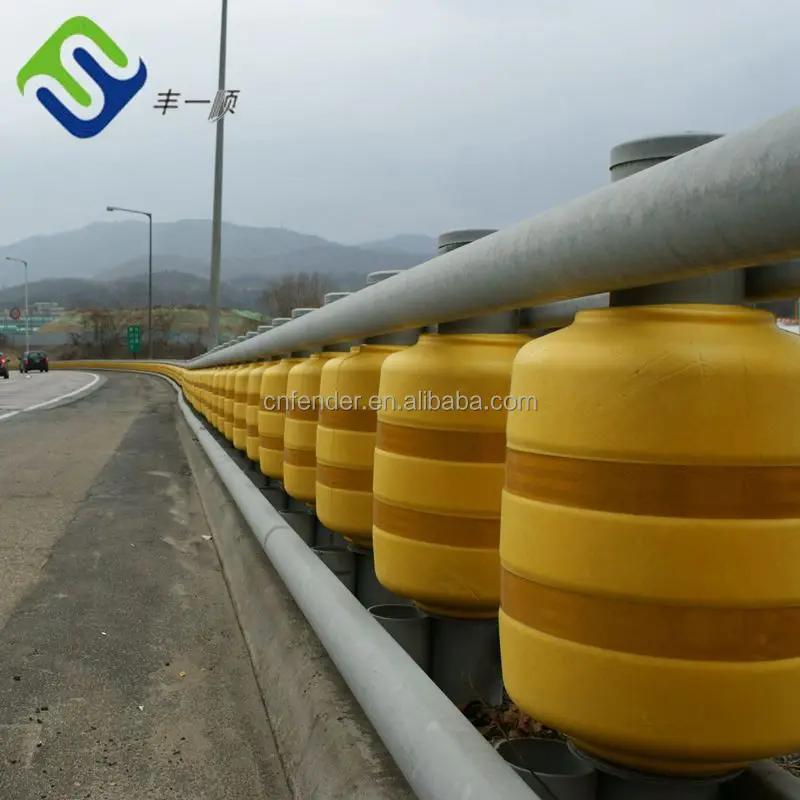

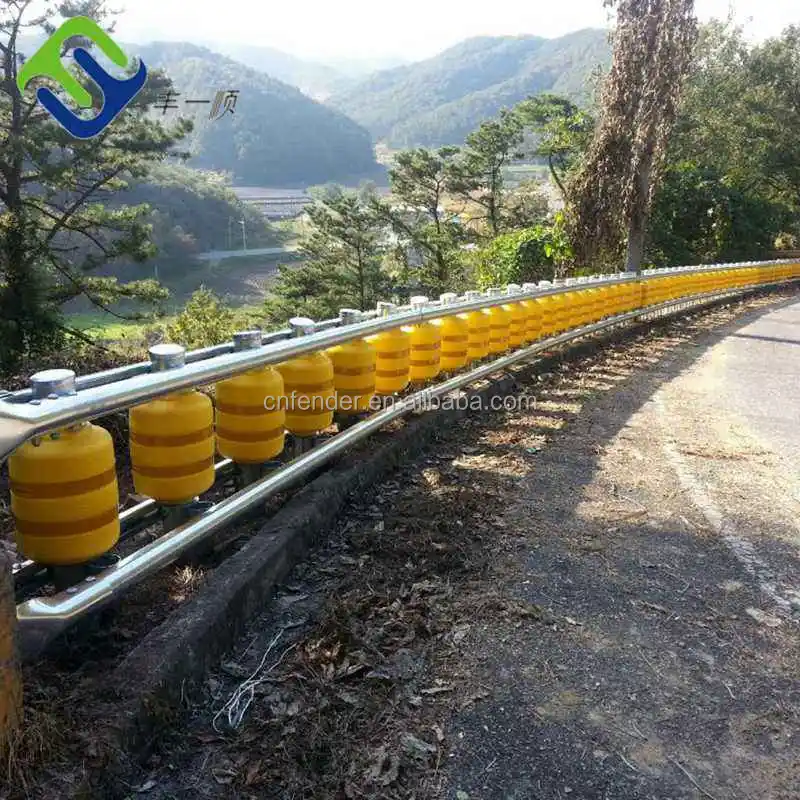

Safety double barrel guardrail highway roller barriers for tunnel entrance

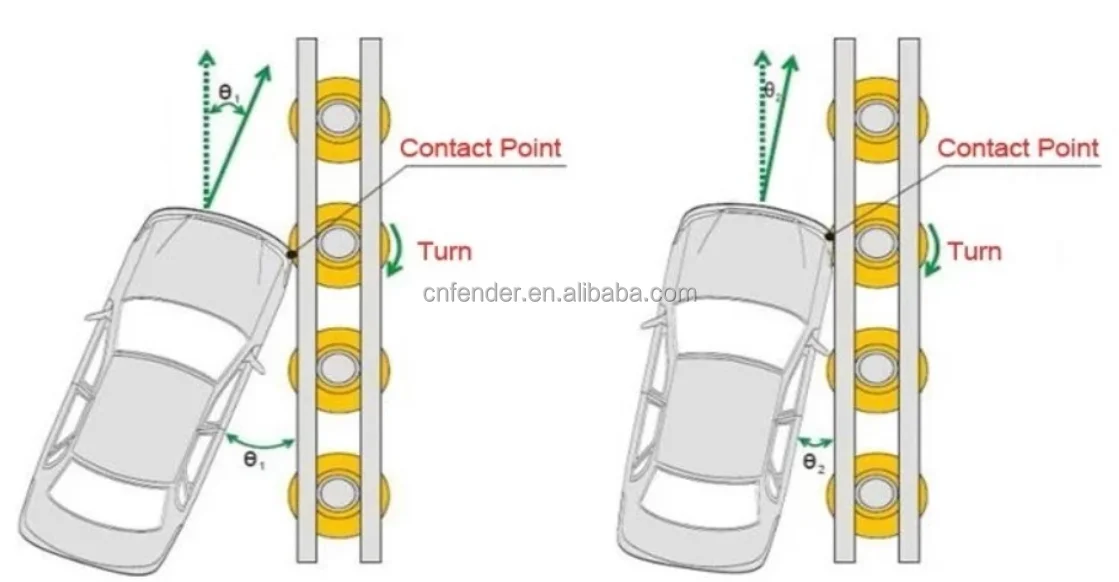

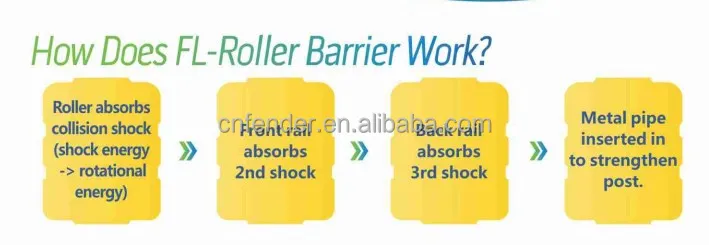

Safety roller barrier is a fixture that prevent drivers and passengers from fatal accidents by not only absorbing shock energy but also converting shock energy into rotational energy.It is designed to effectively absorb shock and lead vehicle to the road direction to prevent large accidents. It can also called roller barrier, rolling barrier, roller type barrier, drum barrier or highway roller, and widely used on sharp carve road or bend road zone.

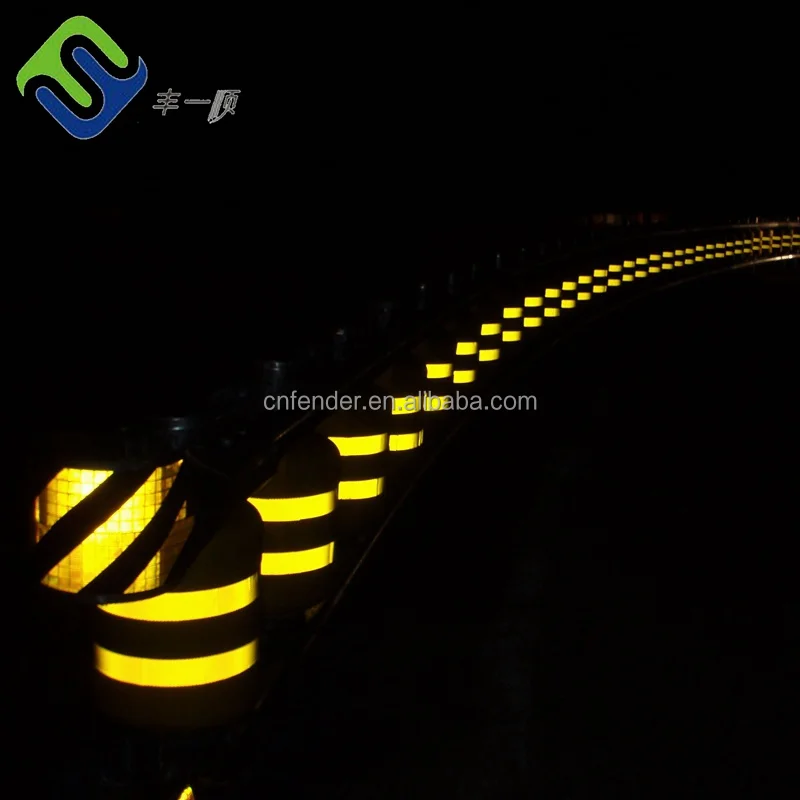

Safety roller is a fixture that prevent drivers and passengers from fatal accidents by not only absorbing shock energy but also converting shock energy into rotational energy. It is designed to effectively absorb shock and lead vehicle running back to the road direction to prevent large accidents at bend or carve road sites. Safety roller will effectively function for drivers to properly control vehicles with its noticeable color and self-luminescence.

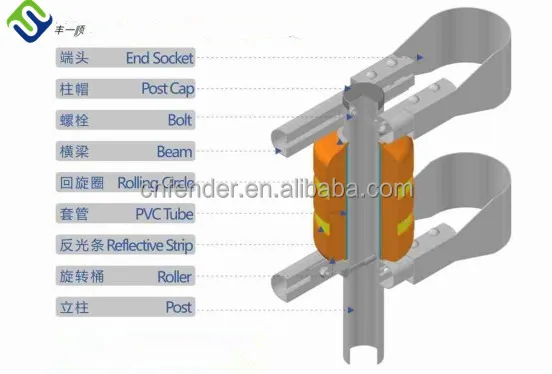

Material of highway safety roller barrier
Specification
Brand Name | Florescence |
Product Name | Safety double barrel guardrail highway roller barriers for tunnel entrance |
Material | EVA,PE,etc |

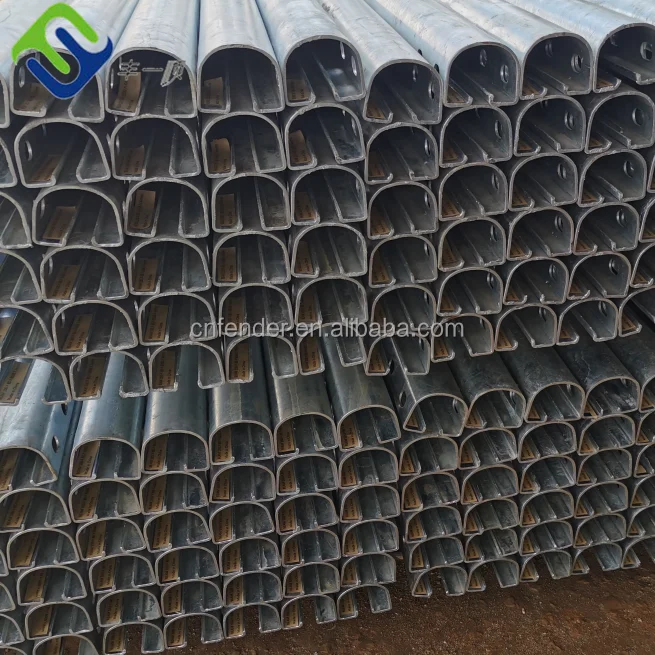

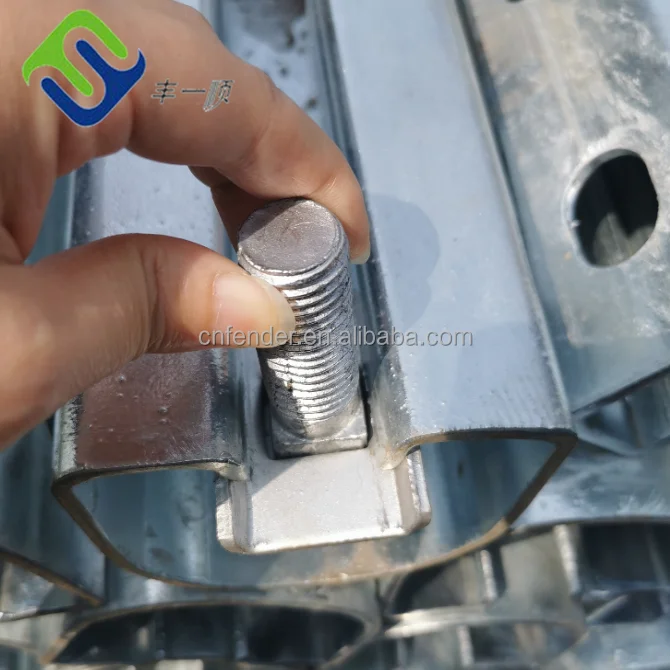

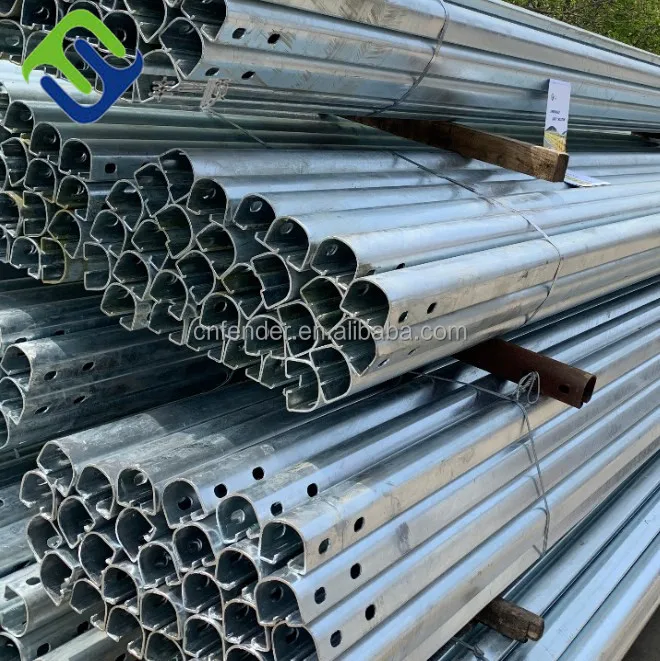

Material of post | Q235 Q345 steel |
Size | 350*250mm,350*490mm,request |
Type | Double beams or single beam |

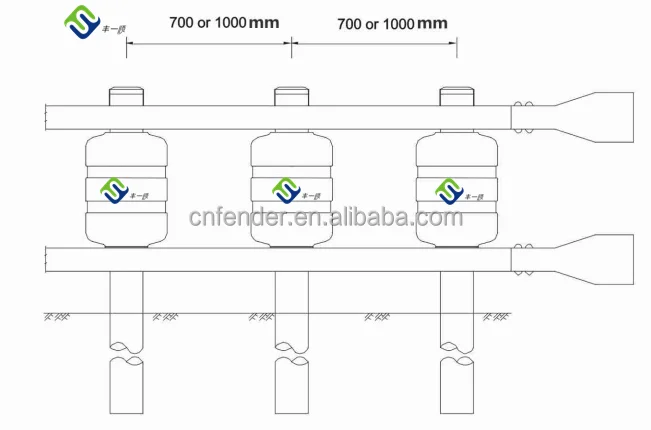

Distance | 700mm or 1000mm |
Color | Yellow, orange or as your request |

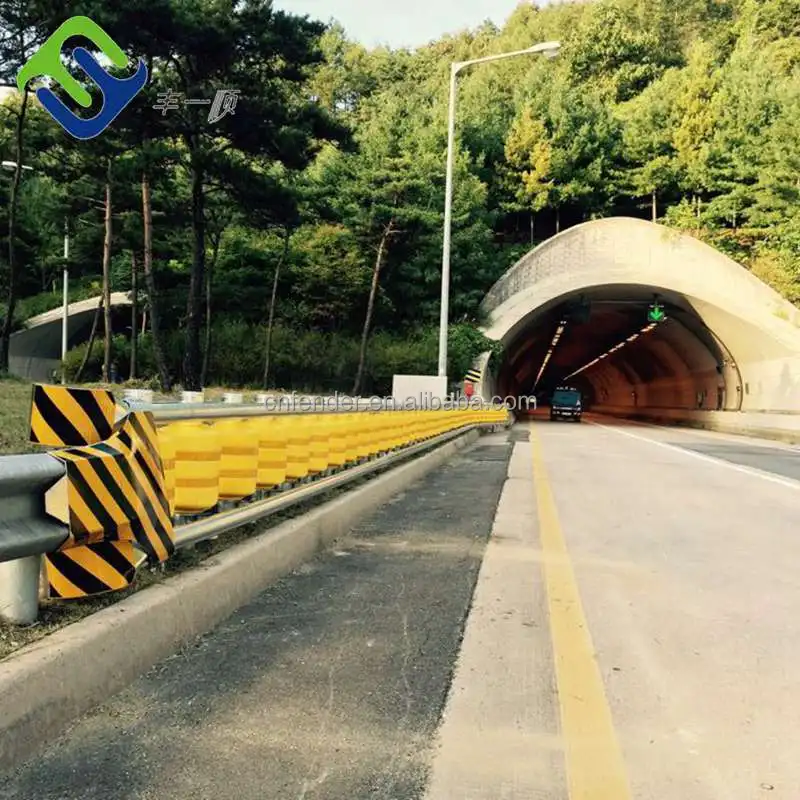

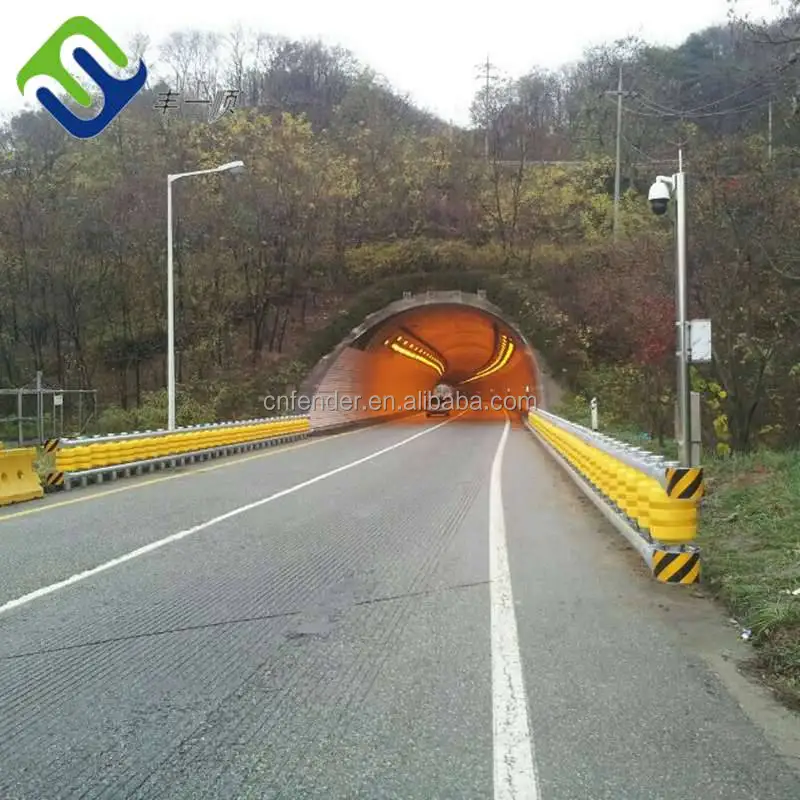

Application | Highway, curved ramp, tunnel entrance,etc |
Service life | 10 years |
Warranty | 1 year |
The minimum setting length of roller barrier
Highway Classification | Seperate Setting (m) | Lapped Setting(m) |
Highway / First Grade Road | 70 | 15 |
Second Grade Road | 48 | 10 |
Third and Forth Grade Road | 28 | 5 |
Width of central separator
Design Speed km/h | 120 | 100 | 80 | 60 |
Width m | 3 | 2 | 2 | 2 |
Horizontal curve radius
Design Speed km/h | 120 | 100 | 80 | 60 | 40 | 30 | 20 |
Horizontal Curve Radius m | 1000 | 700 | 400 | 200 | 100 | 65 | 30 |

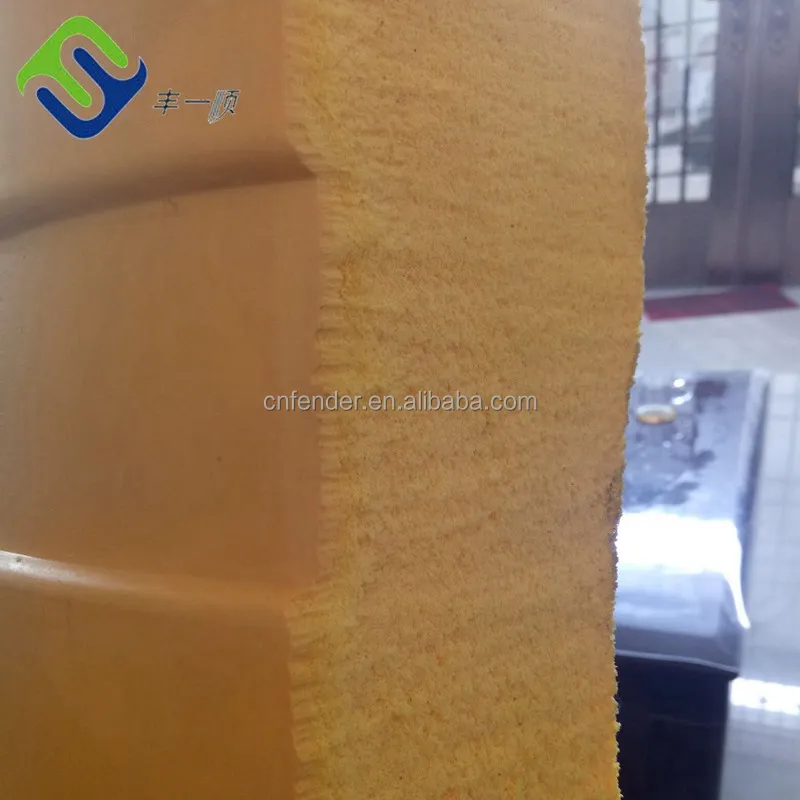

Roller material specifications
Item | Specifications |
Apparent Density (kg/m³) | ≥125 |
Tensile Strength (Mpa) | ≥1.15 |
Elongation (%) | ≥320 |
Compression Permanent Distortion (%) | ≥38 |
Resilience Rate(%) | ≥72 |
Features of roller barrier
1. Reduce speed by stopper board
2. Guide reflective leads a driver to drive safely
3. Recyclable material (eco-friendly)

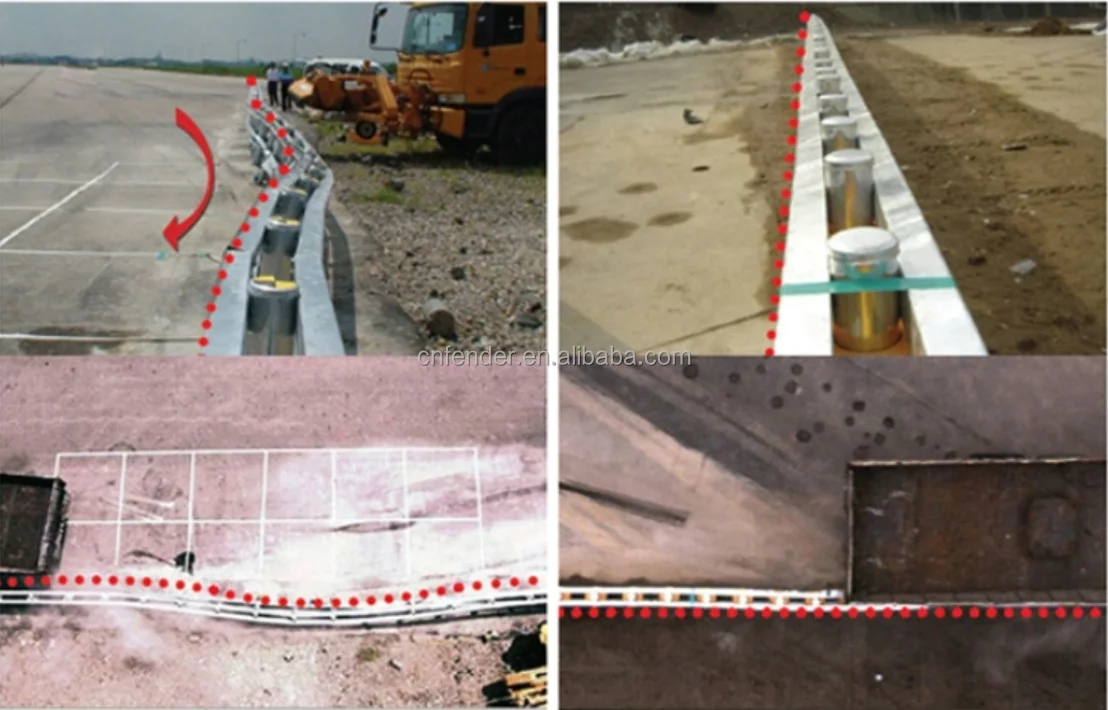

4. Help a vehicle turn back to the road by its spinning when the car crashed the rollers laterally
5. Minimize fatal damage of people and vehicles by absorbing collision shock
6. Reduce costs in repairing and maintenance due to Roller’s resilience.
7. Stopper boards help prevent larger accidents by slowing down Roller’s spin
8. Can be used for many years, less cost.
2. Guide reflective leads a driver to drive safely
3. Recyclable material (eco-friendly)
4. Help a vehicle turn back to the road by its spinning when the car crashed the rollers laterally
5. Minimize fatal damage of people and vehicles by absorbing collision shock
6. Reduce costs in repairing and maintenance due to Roller’s resilience.
7. Stopper boards help prevent larger accidents by slowing down Roller’s spin
8. Can be used for many years, less cost.

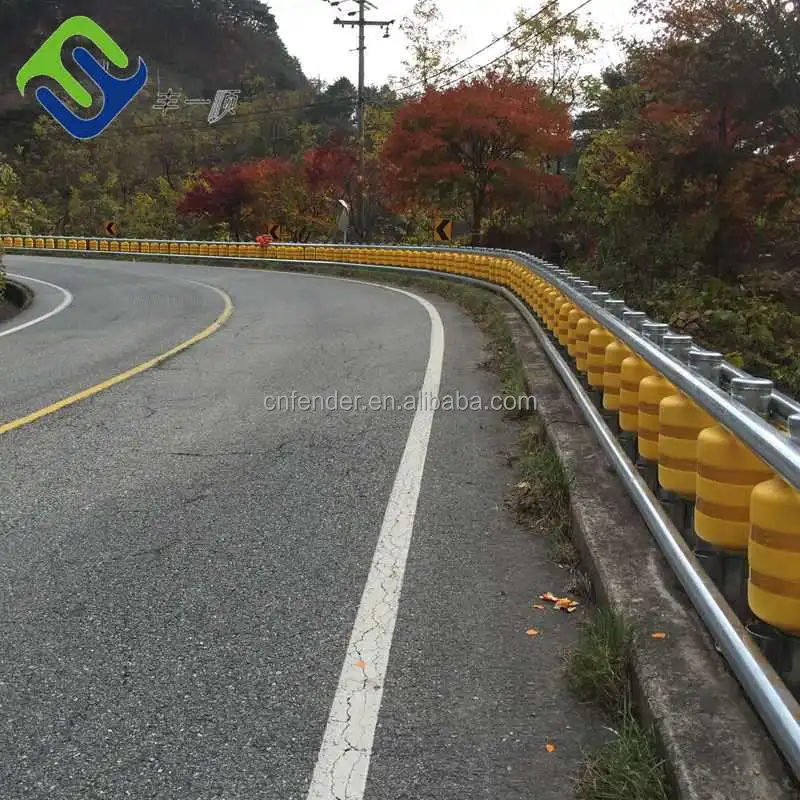

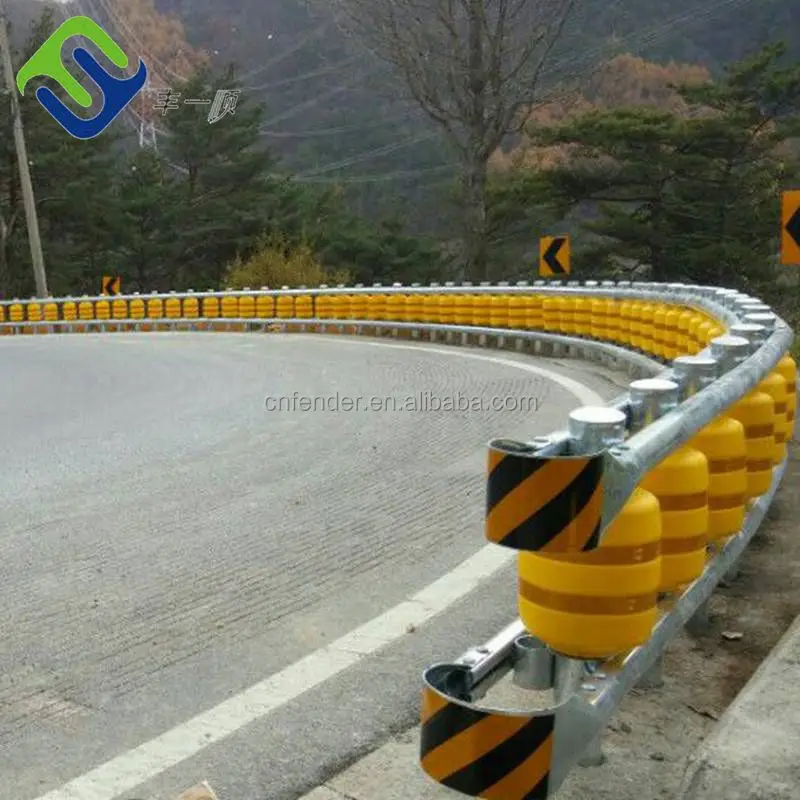

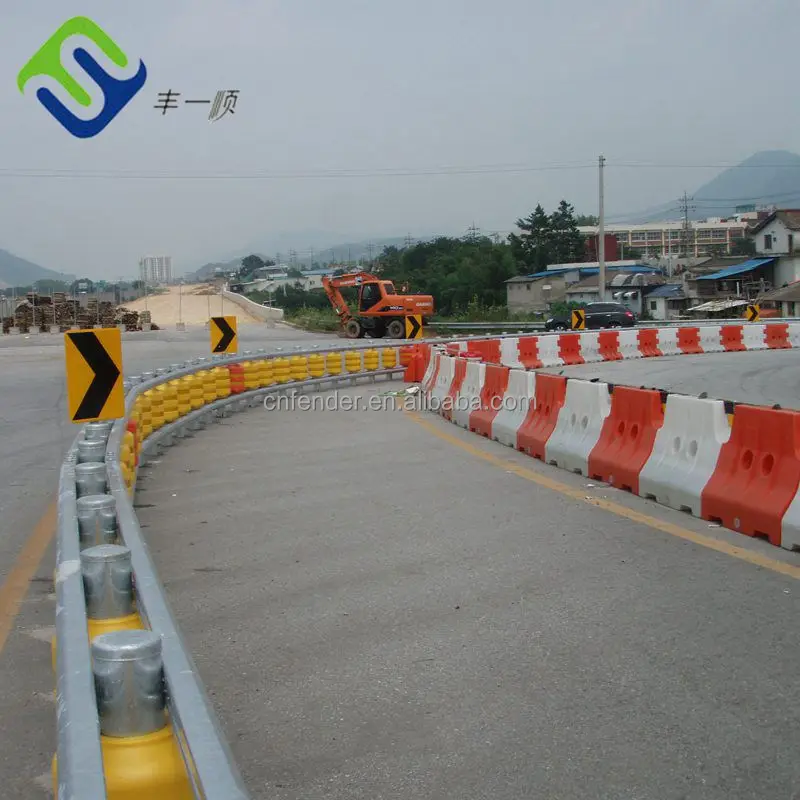

Application of roller barrier

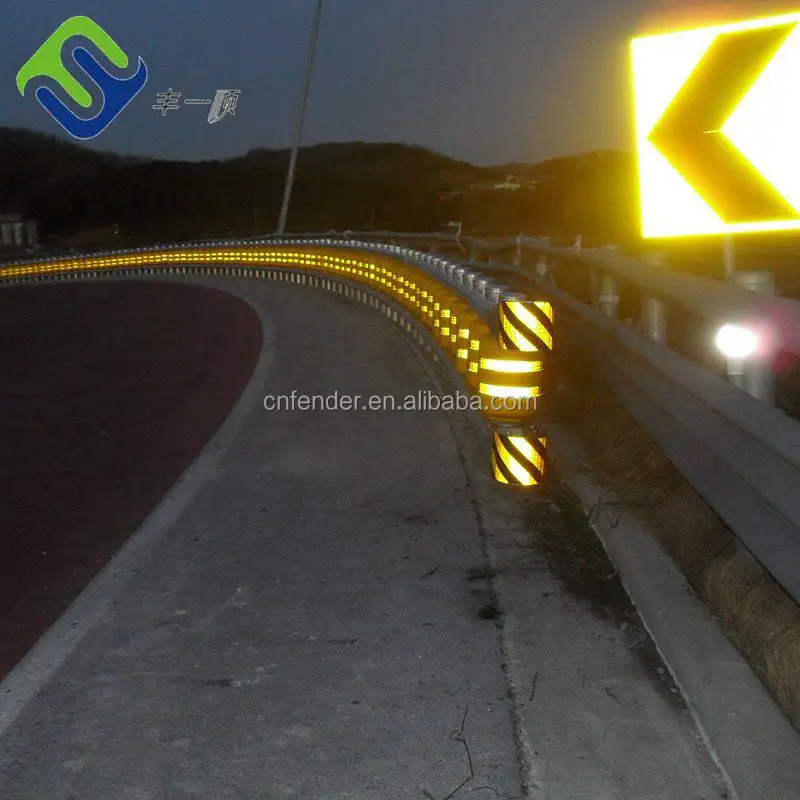

●Curved Median Strip
●Curved Ramp
●Diverging Point
●Curved Tunnel
●Curved Downhill
●Passge Intersectio
●Curved Ramp
●Diverging Point
●Curved Tunnel
●Curved Downhill
●Passge Intersectio
●School Zone
●Danzer Zone etc.

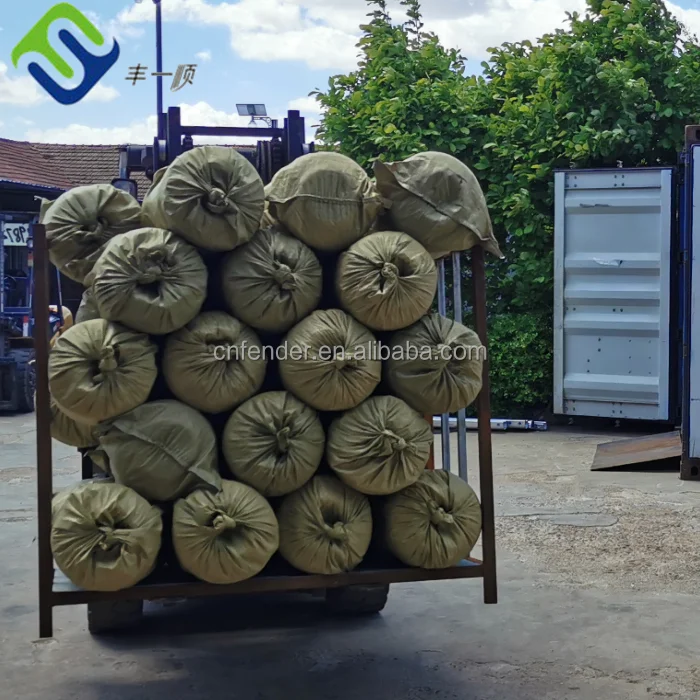

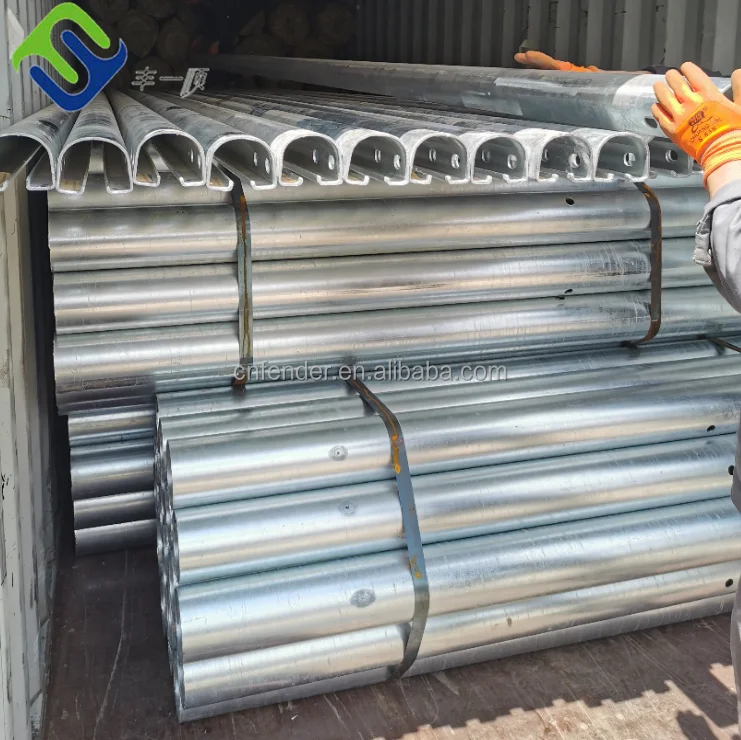

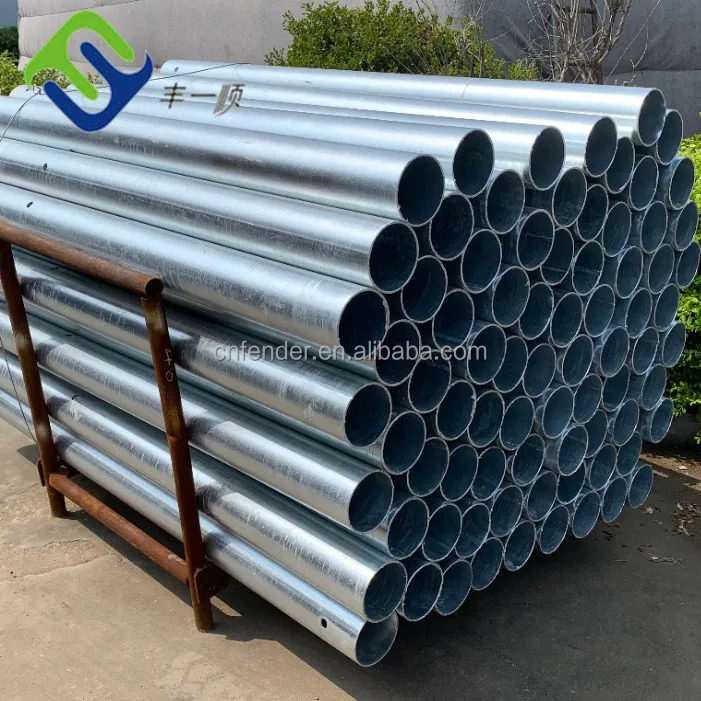

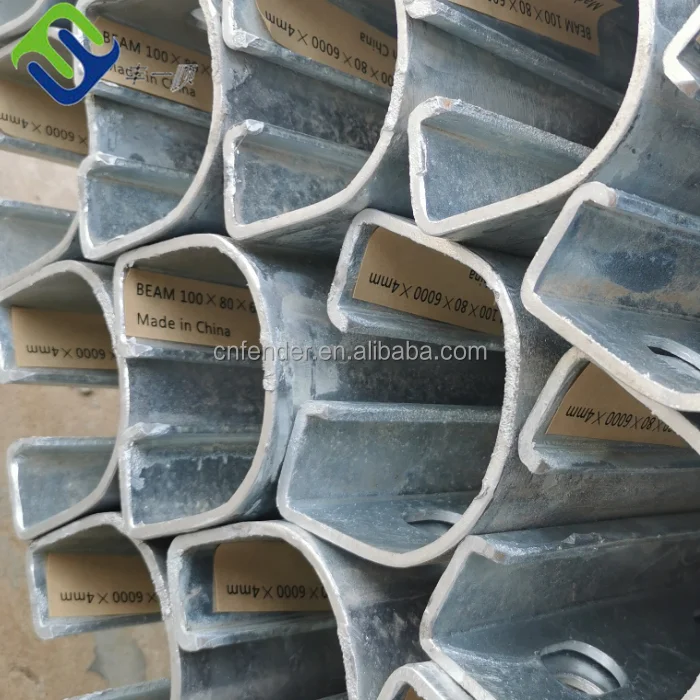

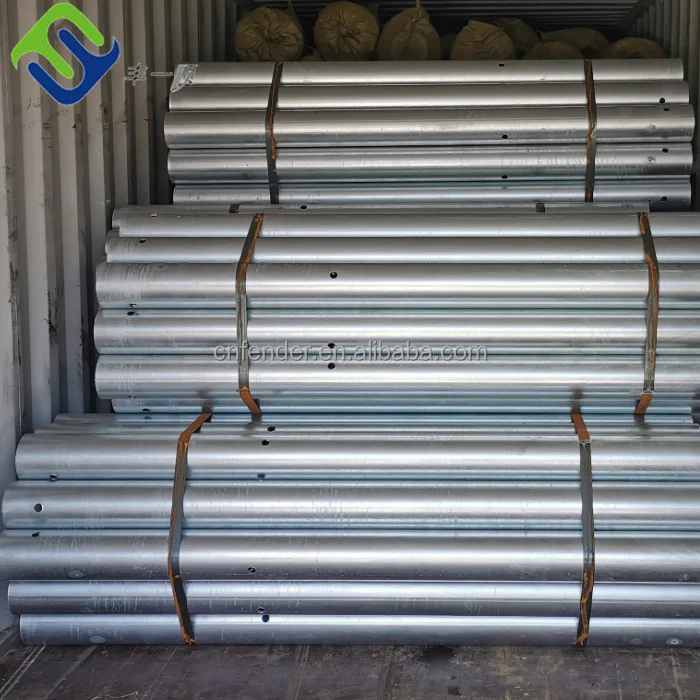

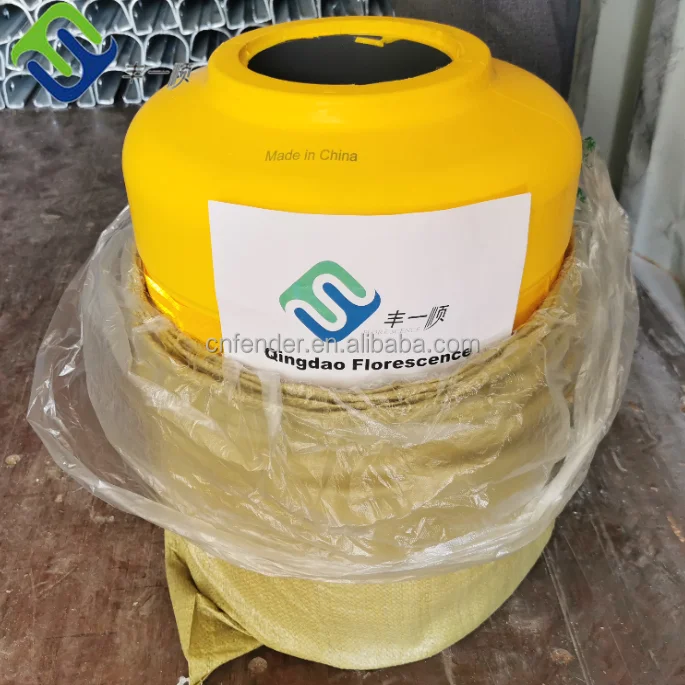

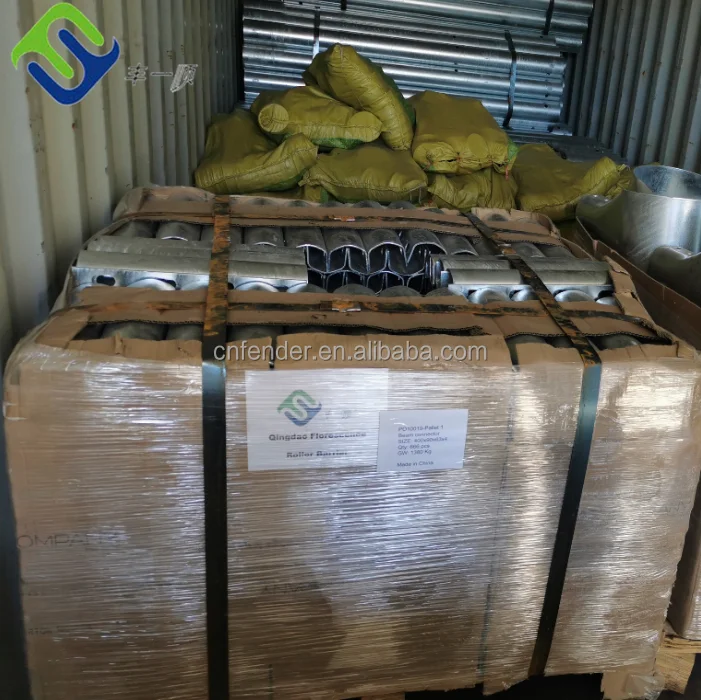

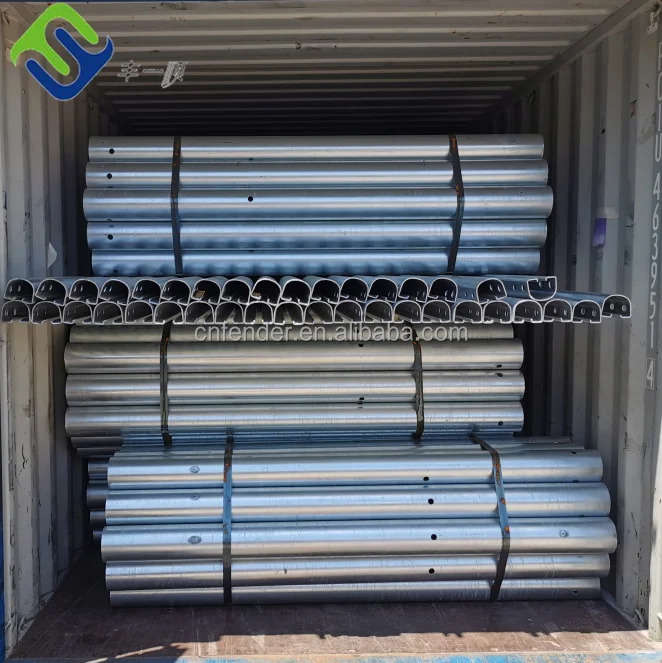

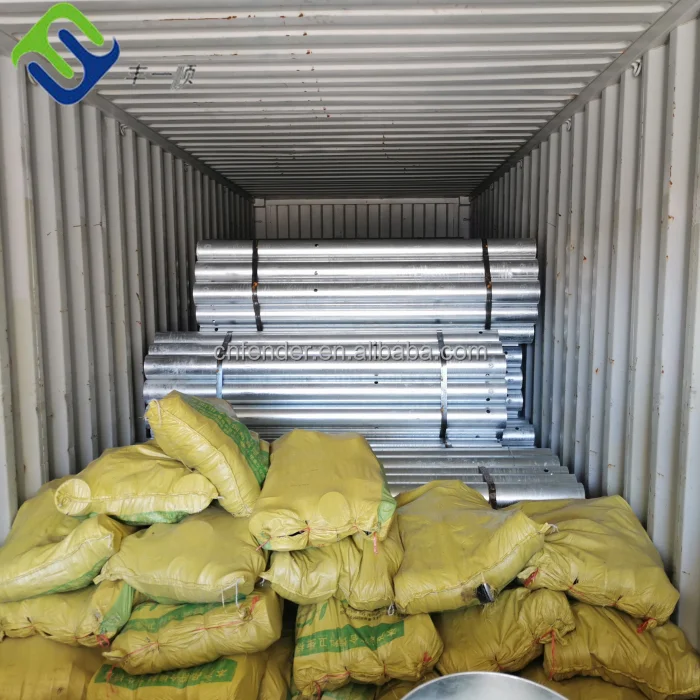

Packing and delivery
