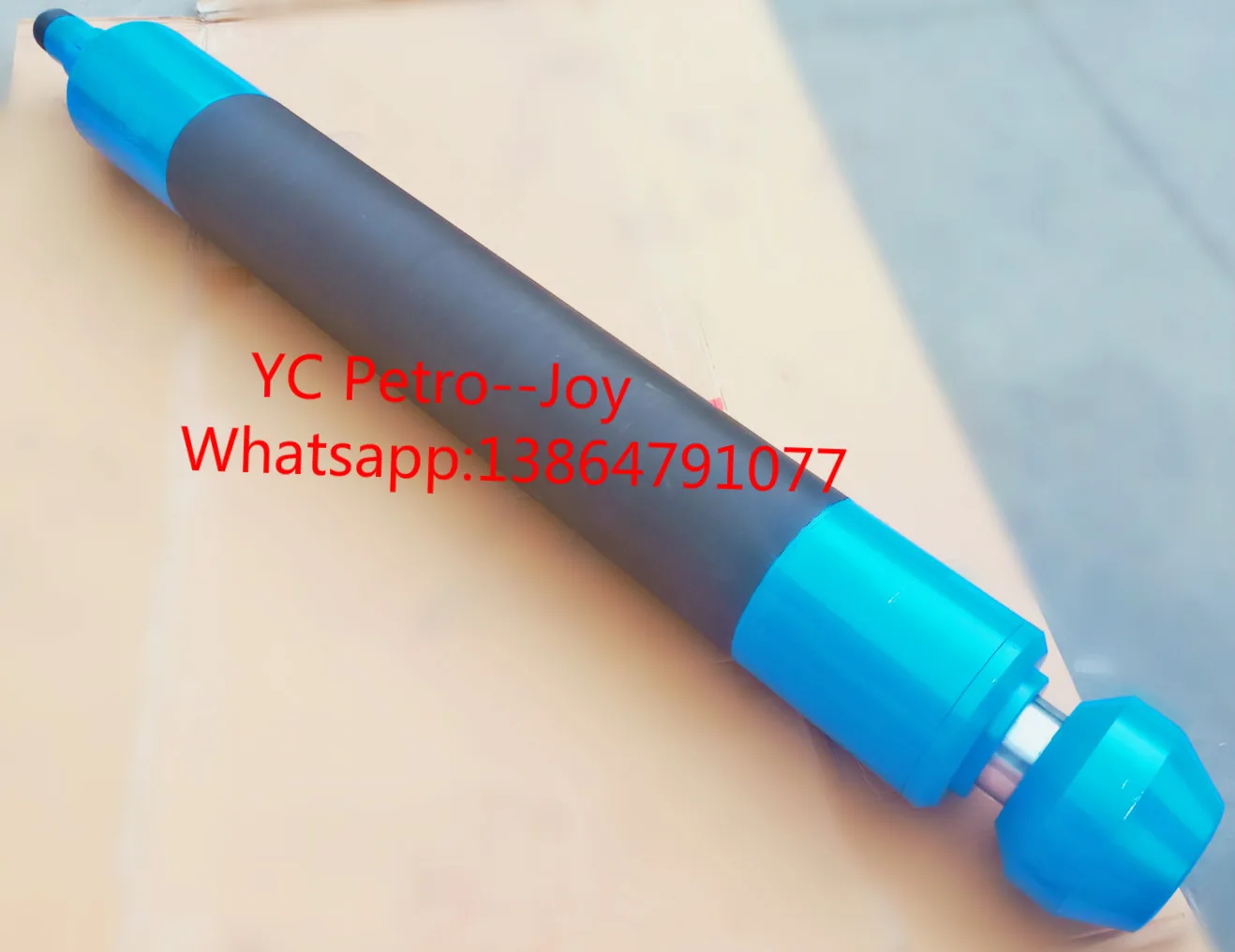

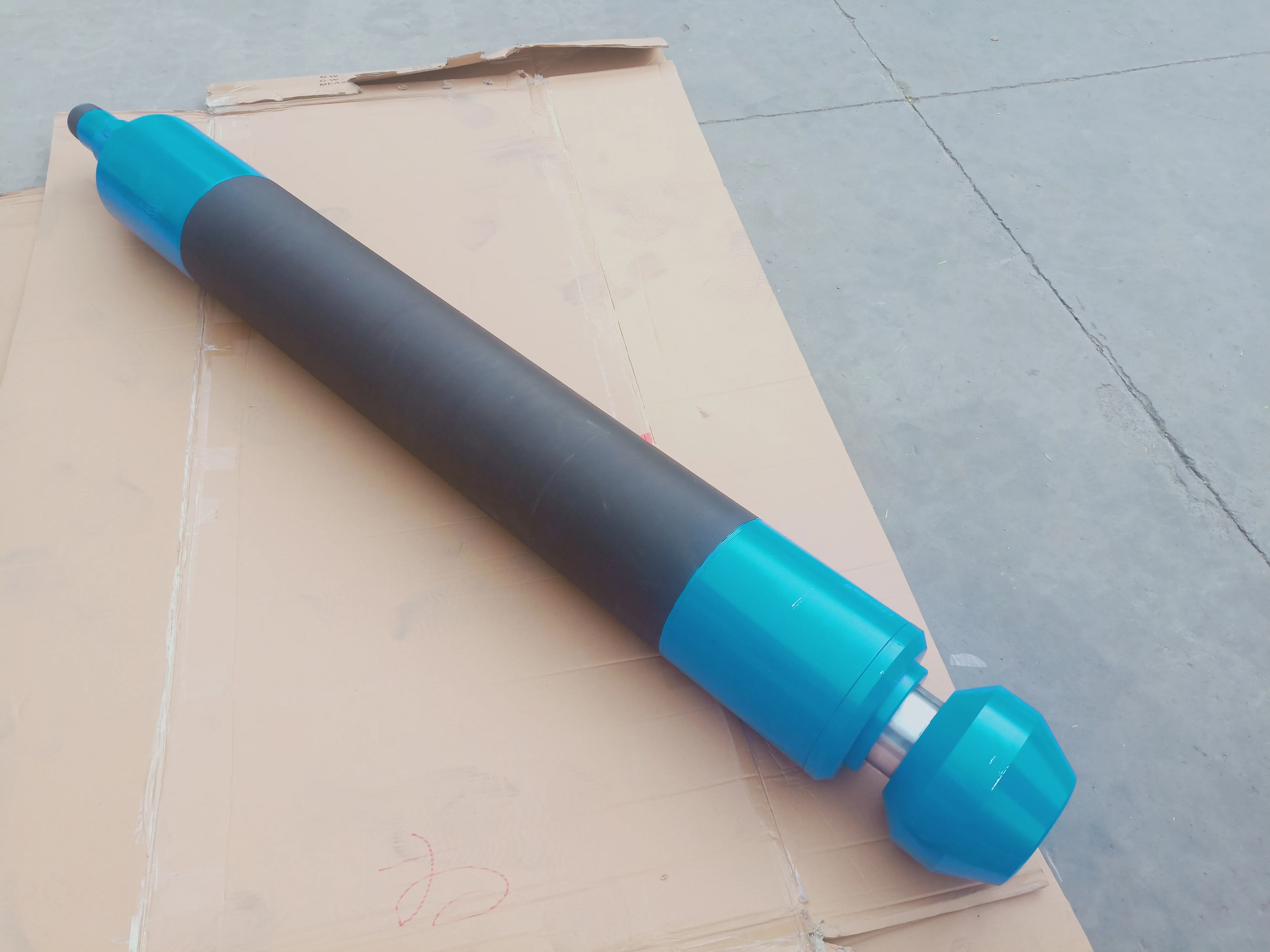

API hydraulic external casing packer for cementing tools
- Category: >>>
- Supplier: Shandong Yacheng Petroleum Technology Co. Ltd.
Share on (1601048974816):
Product Overview
Description

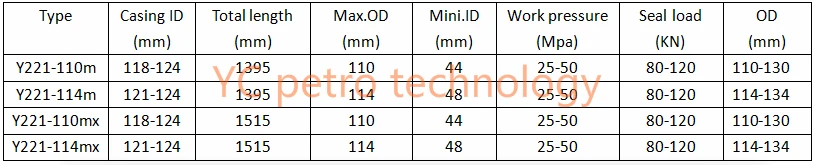

Specification
Type | External and hydrualic |
product name | Inflatable Cementing Packer Casing Packer |
Nominal diameters | 48 mm -298 mm |
Max O D. | 78 mm -349 mm |
Sealing Length of Rubber Tube | 1150/2000/3000/4000/6000/10000 |
Effective Length | 2600/3450/4540/5540/7540/11540 |
Well diameters Range | D+15-1.7D |
Temperature | 150 centigre |
Used | oil, gas, water etc |
color | blue yellow or as your request |
Materials | steel and rubber |
Product Description
Advantages
Profile
It is an important well completion tool. It’s mainly used in complex oil, gas or water well completion constructions to realize downhole packing or plugging and improve quality of well completion.
It is an important well completion tool. It’s mainly used in complex oil, gas or water well completion constructions to realize downhole packing or plugging and improve quality of well completion.
Using expanding steel frame rubber as sealing element, it is a permanent external casing packer that setting controlled by combination valves. It is mainly composed of valve joint, rubber assembly, central tube, sub, coupling and so on.
Advantages:
1) Simple operation, no need to change operation technology.
2) Better adaptability, applicable to oil/water well with various conditions.
3) Valve system can effectively protect and exactly control setting of packer.
4) Big expansion coefficient, small diameter rubber barrel can seal the big diameter well. For example,
70mm packer can be used in 7``casing and breakdown pressure can reach 28Mpa.
5) Small residual deformation.
6) High adaptability to well diameter. It can change along with deformation of wellbore.
7) Long sealing section and reliable setting.
Advantages:
1) Simple operation, no need to change operation technology.
2) Better adaptability, applicable to oil/water well with various conditions.
3) Valve system can effectively protect and exactly control setting of packer.
4) Big expansion coefficient, small diameter rubber barrel can seal the big diameter well. For example,
70mm packer can be used in 7``casing and breakdown pressure can reach 28Mpa.
5) Small residual deformation.
6) High adaptability to well diameter. It can change along with deformation of wellbore.
7) Long sealing section and reliable setting.
Company Profile
We shandong yacheng petroleum technology are established in 2003 year, located in Dongying city, shengli oilfield, which is the second largest oilfield of China.
Our business scope includes oilfield equipment supply, such as, drilling equipment and spares, wellhead equipment ,oil recovery equipment.
We have been served Sinopec -Shengli oilfield in the last 15 years, established a solid partnership and network with quality OEM factories.
Based on our responsive and responsible engineering & commercial team, we can provide one-stop shop service to our customer, and package plan of procurement which brings added value in terms of delivery time, fair prices, inventory in stock.
We are Looking forward to build up partnership with your company and provide our attentive service to you.
Our business scope includes oilfield equipment supply, such as, drilling equipment and spares, wellhead equipment ,oil recovery equipment.
We have been served Sinopec -Shengli oilfield in the last 15 years, established a solid partnership and network with quality OEM factories.
Based on our responsive and responsible engineering & commercial team, we can provide one-stop shop service to our customer, and package plan of procurement which brings added value in terms of delivery time, fair prices, inventory in stock.
We are Looking forward to build up partnership with your company and provide our attentive service to you.
Exhibition

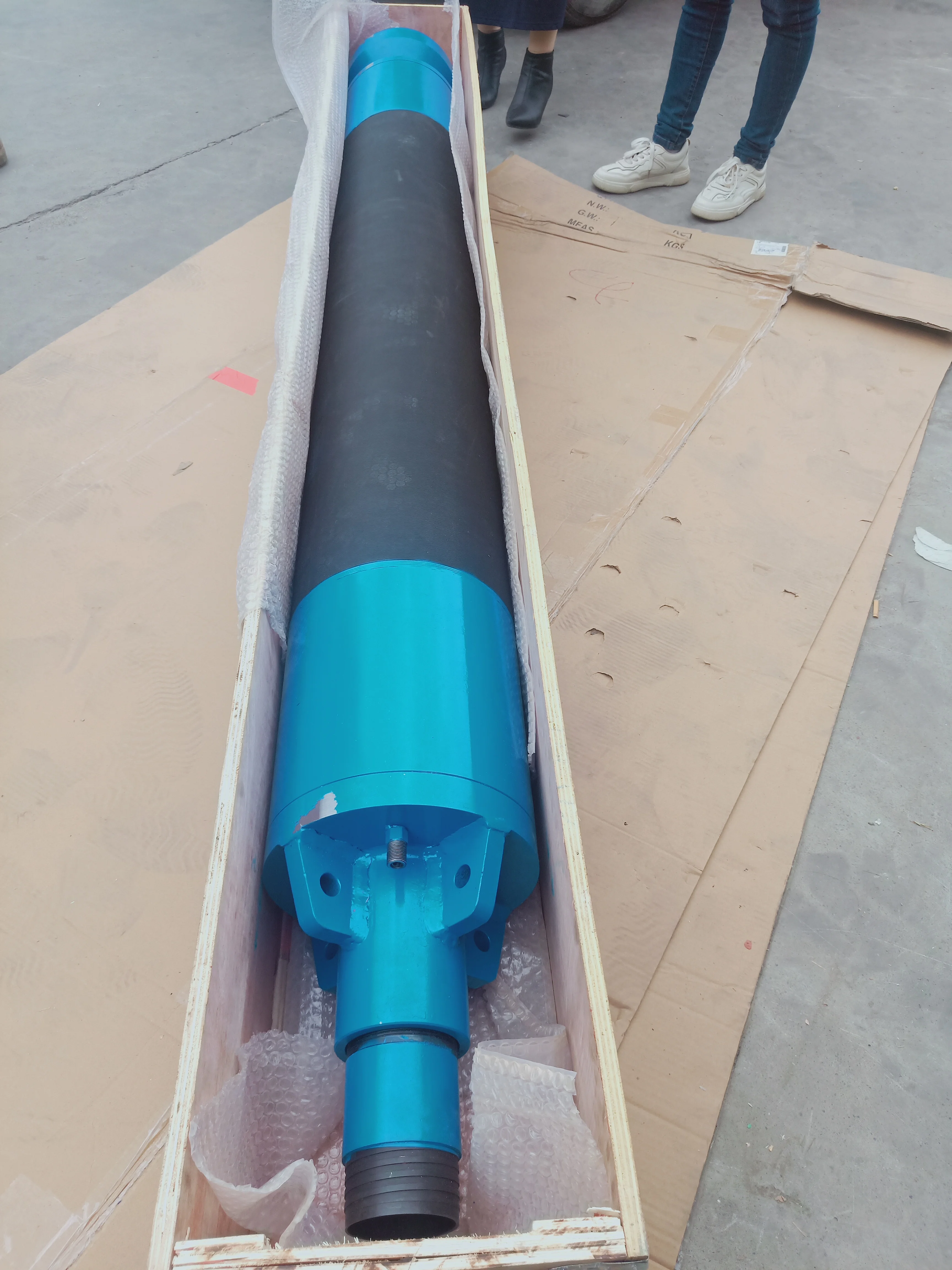

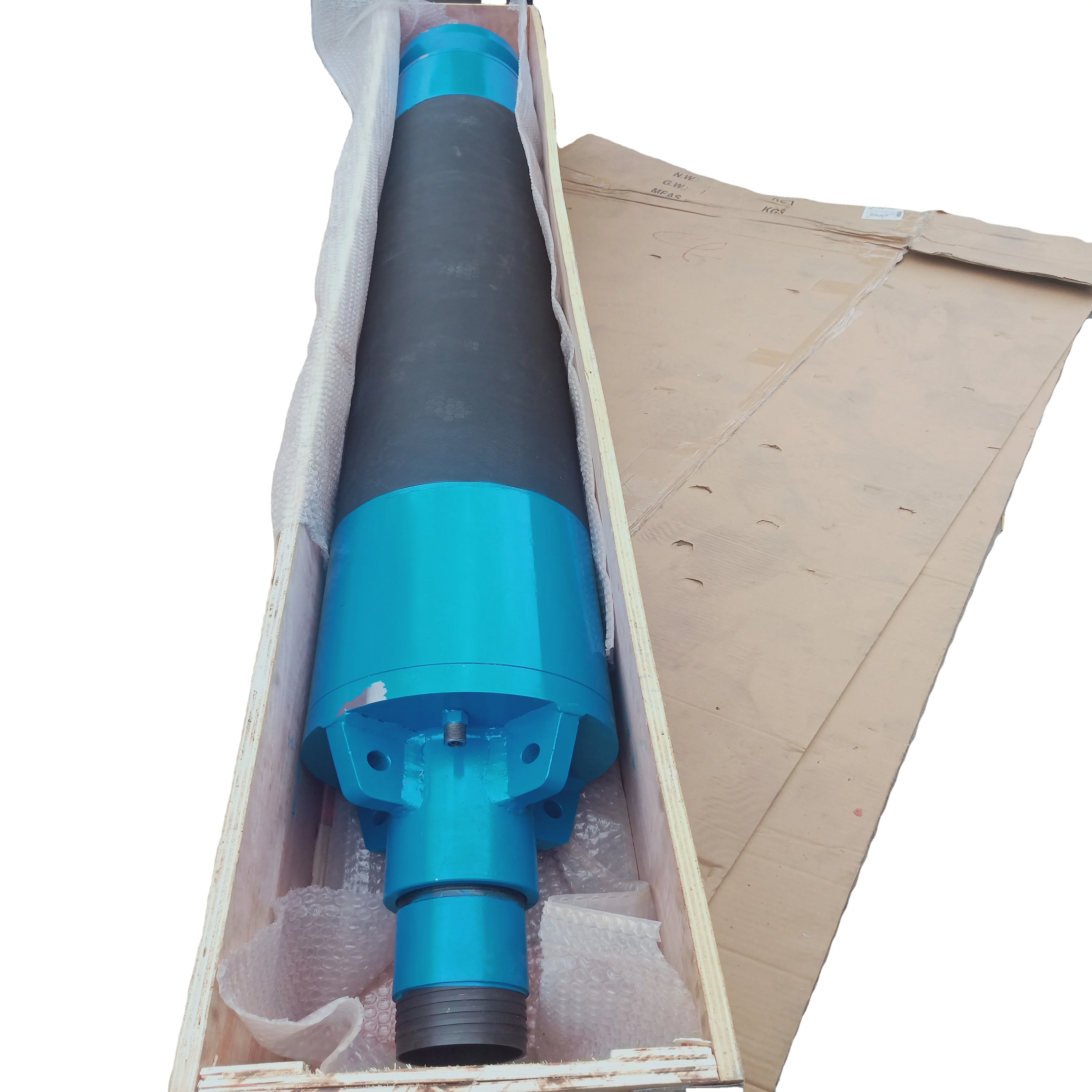

Packing & Delivery
