made in china truck trailer 3axles 12 tires Rear dump material carrier special transportation
- Category: >>>
- Supplier: Shandong Yanggu Flywheel Trailer Manufacturing Co. Ltd.
Share on (1601049330010):
Product Overview
Description

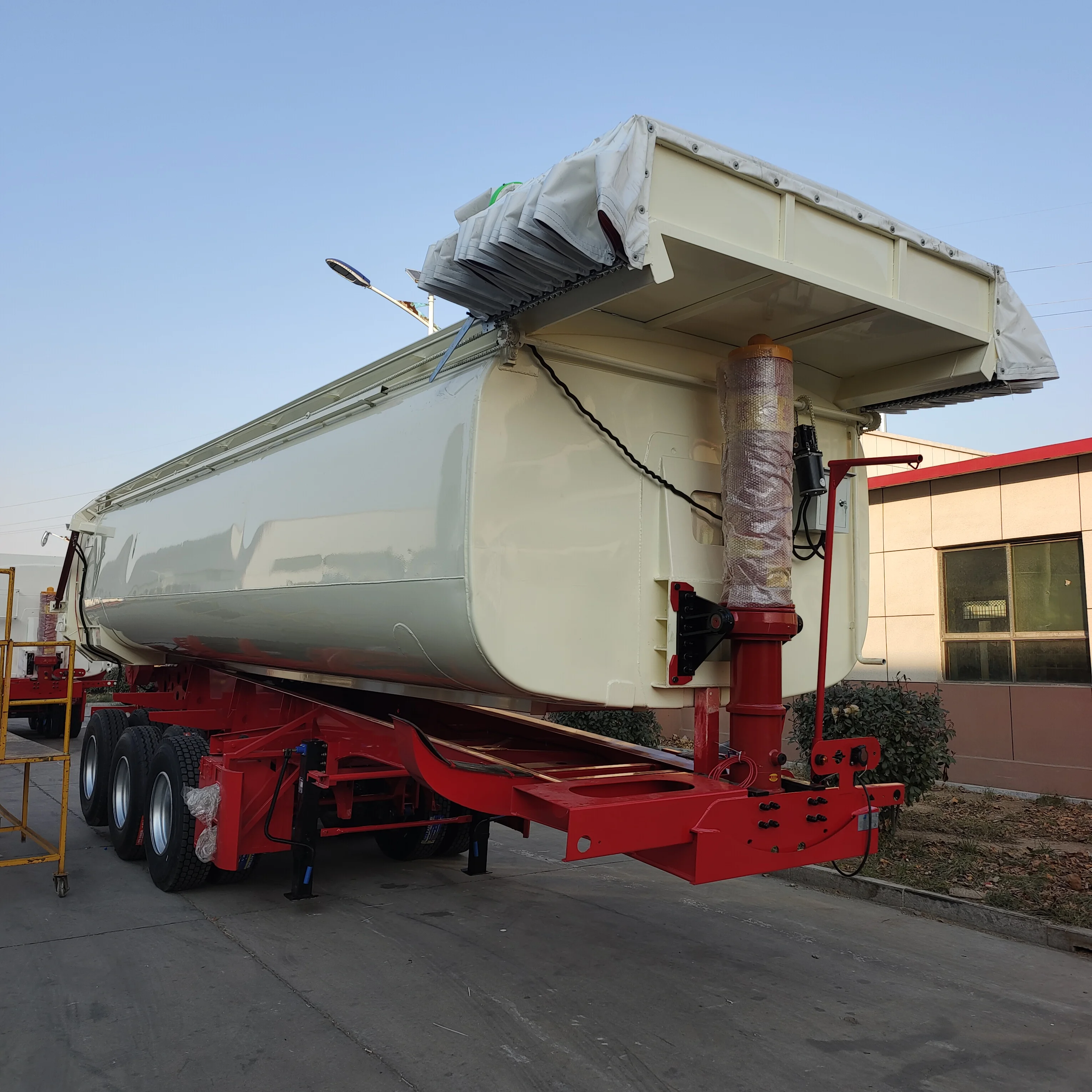

SFILUN 2/3/4/5/6 Axles Hydraulic Rear Dump Trailer
Shandong Yanggu Flywheel Trailer Manufacturing Co., Ltd.has More than 20 years of production experience in the trailer industry. Please believe that our
professional technology and manufacturing experience can help your transportation be safer and more efficient. we can provide high
quality products and competitive prices. Please contact me if necessary.
Our factory has passed the ISO9001 quality system certification. Our cooperation can be in ODM or OEM mode. Please contact us.
Shandong Yanggu Flywheel Trailer Manufacturing Co., Ltd.has More than 20 years of production experience in the trailer industry. Please believe that our
professional technology and manufacturing experience can help your transportation be safer and more efficient. we can provide high
quality products and competitive prices. Please contact me if necessary.
Our factory has passed the ISO9001 quality system certification. Our cooperation can be in ODM or OEM mode. Please contact us.
Dimension(Optional) | Axle No. | Rated Load (kg) | Tire No. | Tire Size | |||
By Customer Needs | 2 | 25000 | 8 | 825R20 1000R20 1100R20 1200R20 12R22.5 | |||
3 | 35000 | 12 | |||||
4 | 50000 | 16 | |||||
Manufacture | Shandong Yanggu Flywheel Trailer Manufacturing Co., Ltd. | ||||||
Wheel Base (mm) | 1310 | ||||||
leaf-spring Pcs | 10 | ||||||
Axle | 13/16/18 T | ||||||

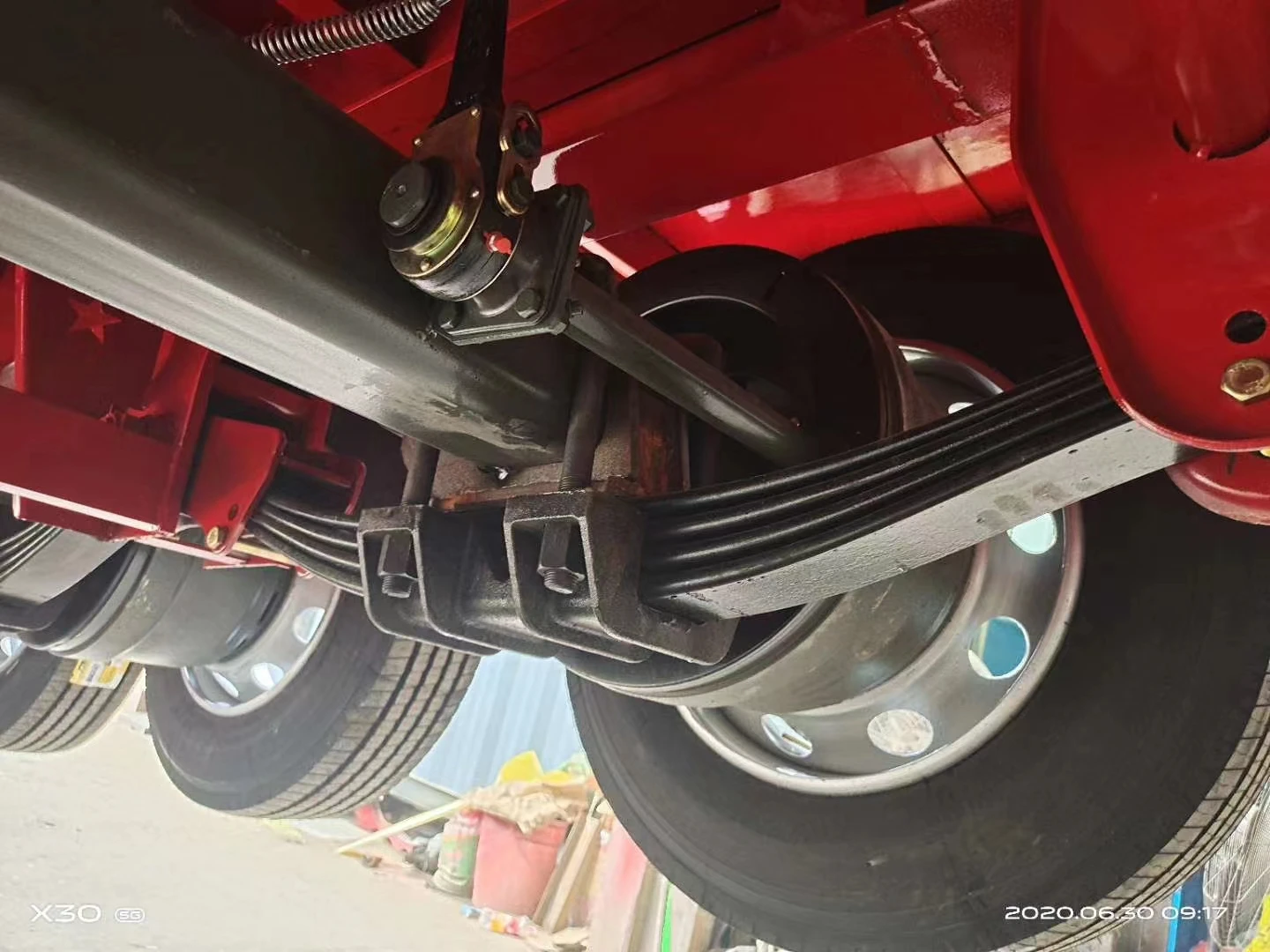

Suspension | Heavy Duty Mechanic Suspension with Leaf Springs | ||||||
Main Beam Material | Q345B manganese plates, automatic submerged arc welded | ||||||
Brake System | Dual line braking system with automatic braking system/chambers | ||||||
Brake Air Chamber | Double Model | ||||||
Kingpin | 2' or 3.5' Interchangeable | ||||||
Landing gear | 28T loading capacity with 80T static lifting capacity. | ||||||
Floor Thickness | 6mm | ||||||
Body Thickness | 5mm | ||||||
Brake System | Dual Lines Braking System With Automatic Air Chambers | ||||||
Brake Air Chamber | Four double and two single chamber | ||||||
Electrical System | 24V, 7core socket, lights according to European standards. | ||||||
Mainbeam Size | Upper plate | 14mm | |||||
Lower plate | 16mm | ||||||
Mid Web | 8 mm | ||||||
Height | 500-520mm | ||||||
1.The Dump Trailer is the main product of our company. It use high stength full thickness Steel, titanium content of 0.98‰, which
ensure Beam and frame’s Toughness and strength. The strong Loading Capacity, 30-100 Tons Loading Range.
ensure Beam and frame’s Toughness and strength. The strong Loading Capacity, 30-100 Tons Loading Range.
2.The frame chassis of this series adopts the through-beam structure, and the frame structure includes straight and gooseneck
types. The overall strength is high, the weight is light, the appearance is beautiful, and the use is safe and reliable.
types. The overall strength is high, the weight is light, the appearance is beautiful, and the use is safe and reliable.
3.Using advanced manufacturing technology, submerged arc automatic welding is used for longitudinal beams. 42 strong reinforcing
ribs are designed to ensure the safety and carrying capacity of the trailer.
ribs are designed to ensure the safety and carrying capacity of the trailer.

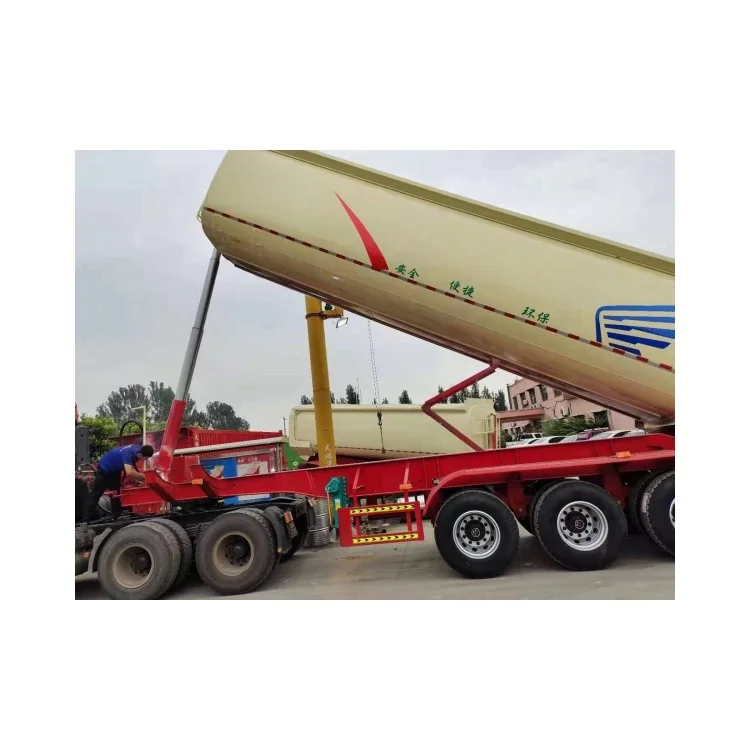

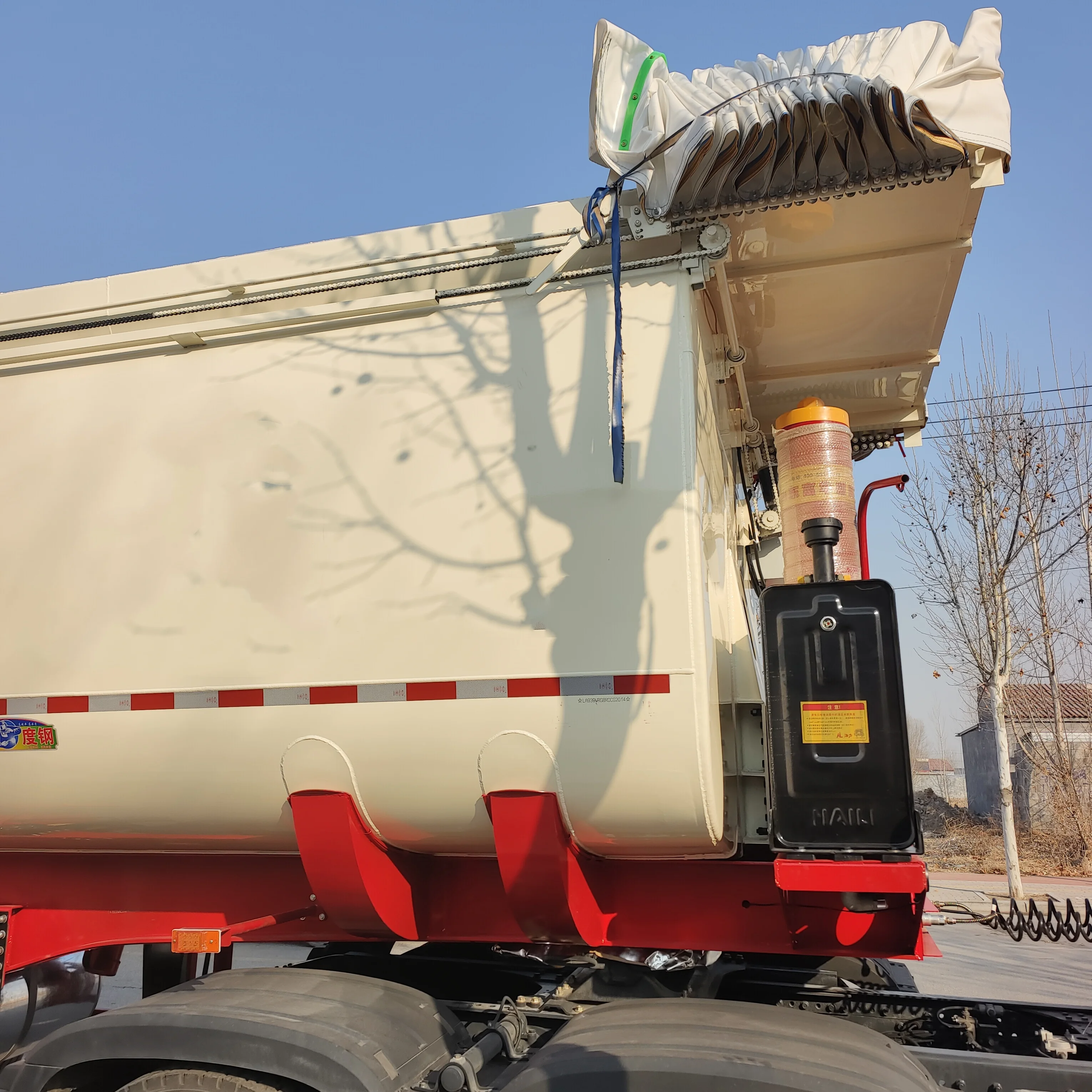

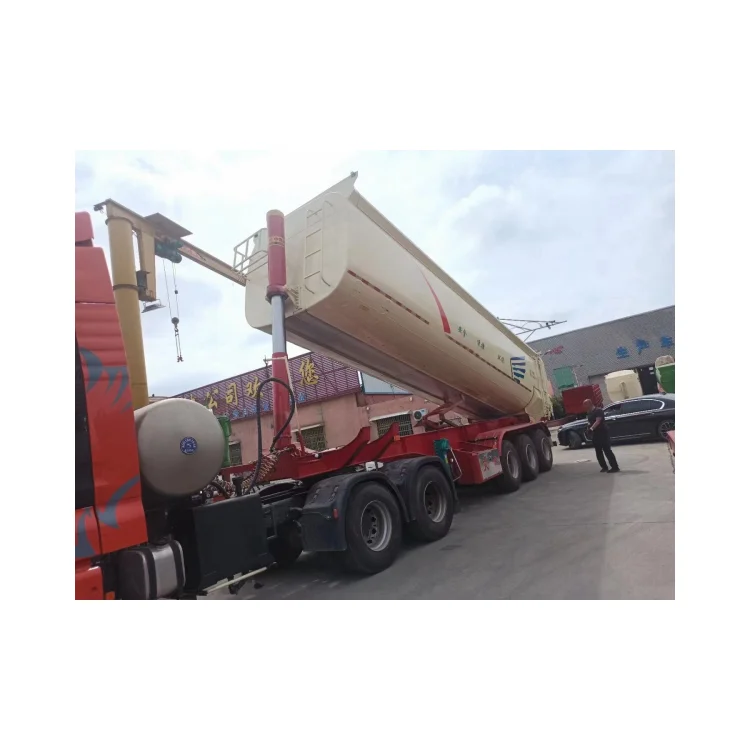

Hydraulic cylinder
Landing Device
LEAO/JOST Landing Gear.Self R&D LEAO Aluminum or Steel Landing Gear Warranty come with above 5 Years long.Gear Box with low
temperature premlum chassis lube rated for service from -30°C~120°C.
temperature premlum chassis lube rated for service from -30°C~120°C.
Tire
LEAO/ Double-Coin/ LingLong/ Michelin/ Triangle/Bridgestone and other famous brand for choice.Better Performance in wear
resistance.
resistance.
Brake System
From the point of view of safety, the vehicle with the air brake system needs both the service brake and the parking brake, so it
must be equipped with a double-chamber air chamber.
must be equipped with a double-chamber air chamber.
Advanced Axle Performance LEAO/BPW/FUWA
Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle
maintenance-free could reach 3 Year/400,000 kilometers.
maintenance-free could reach 3 Year/400,000 kilometers.
Specification

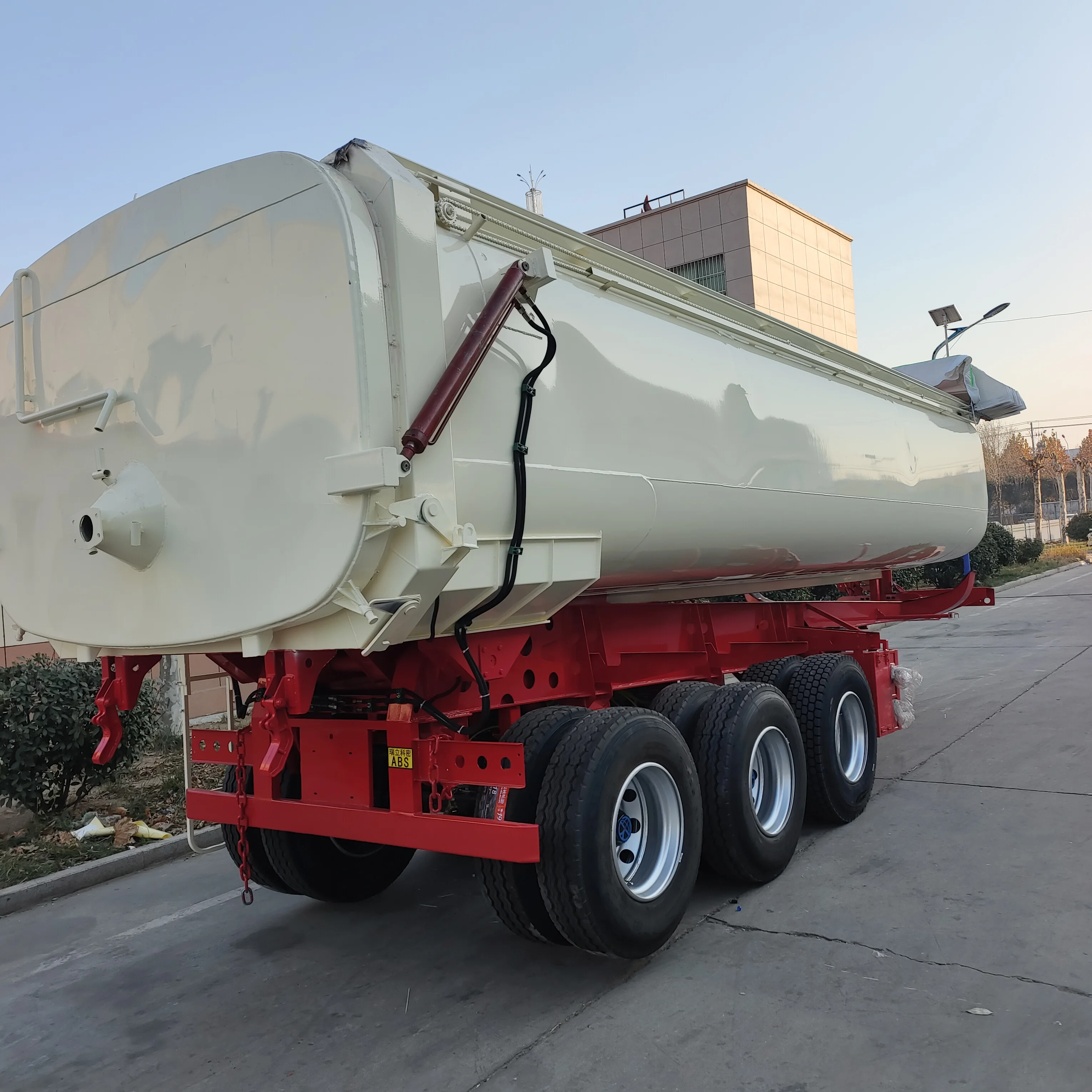

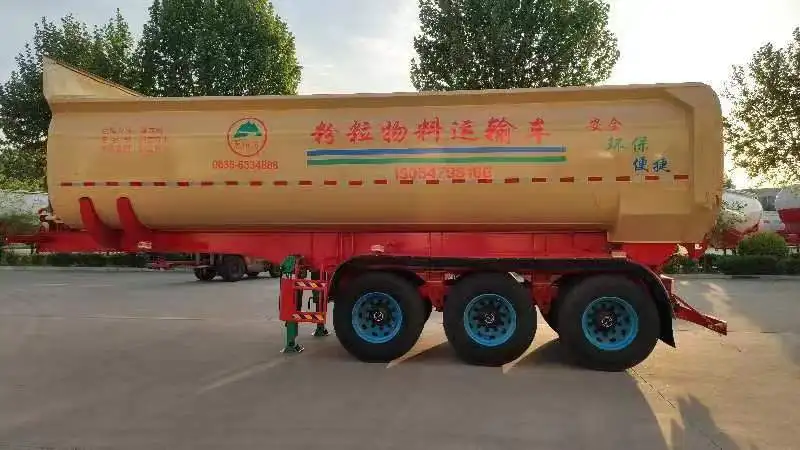

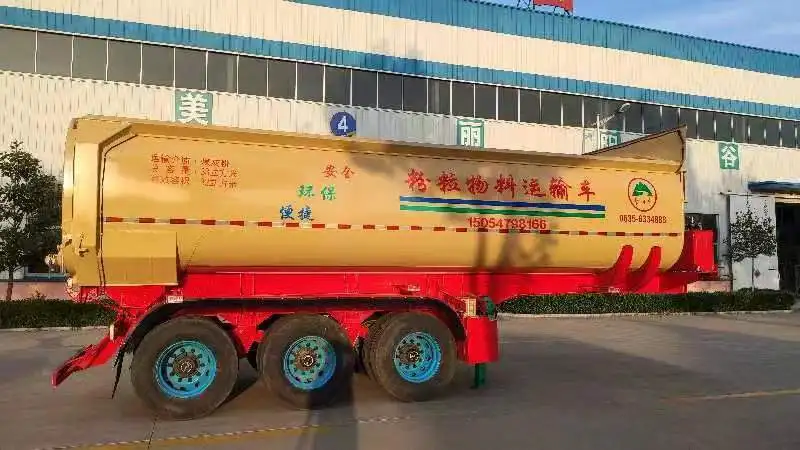

SFILUN Rear Dump Tipping Semi Trailer
The end dump trailer is also called a tipper trailer or tipping trailer. They are used to load sand, stone, coal and other solid
building materials or industrial raw materials. Rear dump semi-trailers are designed to make unloading easier. After the The back
of the trailer is locked, sand can be loaded. When it arrives at the destination, the front side of the semi-trailer can be
raised, which makes the goods drop from the back. The bucket of the trailer requires a thicker steel plate , because the goods are
often hard materials, and the steel plate can prevent the cargo from damaging the trailer.
Hydraulic Dump truck trailer for sale can be customized from 15 tons to 80 tons semi tipper trailers for sale, 80 tons to 120 tons
tipper tractor trailer, 120 tons-180 tons tipper semi trailer of different tonnage according to the different cargoes. The common
volumes are 30 cubic meters semi tipper trailer, 32 cubic meters semi tipper for sale, 35 cubic meters, 45 cubic meters, 50 cubic
meters, 60 cubic meters, 80 cubic meters and so on.
The end dump trailer is also called a tipper trailer or tipping trailer. They are used to load sand, stone, coal and other solid
building materials or industrial raw materials. Rear dump semi-trailers are designed to make unloading easier. After the The back
of the trailer is locked, sand can be loaded. When it arrives at the destination, the front side of the semi-trailer can be
raised, which makes the goods drop from the back. The bucket of the trailer requires a thicker steel plate , because the goods are
often hard materials, and the steel plate can prevent the cargo from damaging the trailer.
Hydraulic Dump truck trailer for sale can be customized from 15 tons to 80 tons semi tipper trailers for sale, 80 tons to 120 tons
tipper tractor trailer, 120 tons-180 tons tipper semi trailer of different tonnage according to the different cargoes. The common
volumes are 30 cubic meters semi tipper trailer, 32 cubic meters semi tipper for sale, 35 cubic meters, 45 cubic meters, 50 cubic
meters, 60 cubic meters, 80 cubic meters and so on.
item | value |
Place of Origin | China |
Shandong | |
Brand Name | FLUN |
Product name | Three-axle 100T heavy-duty back-tipping dump truck |
Key words | 3 axle 60 ton rear tipper truck |
Certificate | ISO9001 CCC |
Wheel | 12 |
Load Capacity | 60 ton |
Weight | 9000kg |
Material | T700 |
Warranty | 1Year |
Color | Customized |
Packing | RORO |
Shandong yangufeilun trailer manufacturing co.,Ltd is located in yanggu county shandong province, the company is established in 2004 year. Good industial atmosphere provides the condition to produce the high quality products. The company is commited to provide high-quality special loading truck trailer and tank for auto refitting enterprises.
The company mainly produce the contriner transport trailer, plate semi-trailer column, the stake transport trailer( flat-type), stake transport trailer( gooseneck), atmospheric dangerous goods tank car series, dump truck series, etc.( more than 100). They fully absorbs the most advanced technology and actively carry out the technical cooperation, relying on it's own strong ability to supply competitiveness productions for customers.
The company have passed ISO9001 the international quality managerment sytem certification and formed a complete quality assurance system. It processes strict quality assurance in product design, procurement of raw materials, component parts into the plant, manufacturing testing, site installation and commissioning and after- sales service.
We will be focus on customer,market-oriented and follow the "high-quality, better service" concept. We take enterprise development and progress for a vision to ensure a high level of design and high quality of manufacturing and provides timely, efficient, professional service. It efforts to achieve international market, to provide goods cargo loading for truck.
The company mainly produce the contriner transport trailer, plate semi-trailer column, the stake transport trailer( flat-type), stake transport trailer( gooseneck), atmospheric dangerous goods tank car series, dump truck series, etc.( more than 100). They fully absorbs the most advanced technology and actively carry out the technical cooperation, relying on it's own strong ability to supply competitiveness productions for customers.
The company have passed ISO9001 the international quality managerment sytem certification and formed a complete quality assurance system. It processes strict quality assurance in product design, procurement of raw materials, component parts into the plant, manufacturing testing, site installation and commissioning and after- sales service.
We will be focus on customer,market-oriented and follow the "high-quality, better service" concept. We take enterprise development and progress for a vision to ensure a high level of design and high quality of manufacturing and provides timely, efficient, professional service. It efforts to achieve international market, to provide goods cargo loading for truck.
1. who are we?
We are based in Shangdong, China, start from 2004,sell to Africa(40.00%),South Asia(10.00%),Northern Europe(10.00%),Mid East(10.00%),Oceania(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
oil tank semi trailer,bulk cement tank semi trailer,dump truck seriers,container transport trailer,lowbed transport semi trailer
4. why should you buy from us not from other suppliers?
Our company have formed a complete quality assurance system. It processes strict quality assurance in product design, procurement of raw materials, component parts into the plant,manufacturing testing, site installation and commissioning and service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shangdong, China, start from 2004,sell to Africa(40.00%),South Asia(10.00%),Northern Europe(10.00%),Mid East(10.00%),Oceania(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
oil tank semi trailer,bulk cement tank semi trailer,dump truck seriers,container transport trailer,lowbed transport semi trailer
4. why should you buy from us not from other suppliers?
Our company have formed a complete quality assurance system. It processes strict quality assurance in product design, procurement of raw materials, component parts into the plant,manufacturing testing, site installation and commissioning and service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
