Symmetrix Casing System ODEX 219mm Concentric Casing System

Share on (1601049594561):


Price:$120.00

Quantity:


Product Overview

Description






* Casing OD: 219mm
* ID of casing tube :194mm
* Reaming Diameter: 240mm
* Casing shoe min OD: 187mm
* Ring Bit OD: 305mm
* Max OD. of Pilot Bit OD: 186mm
* Matched DTH Hammer: DHD360/SD6/QL60

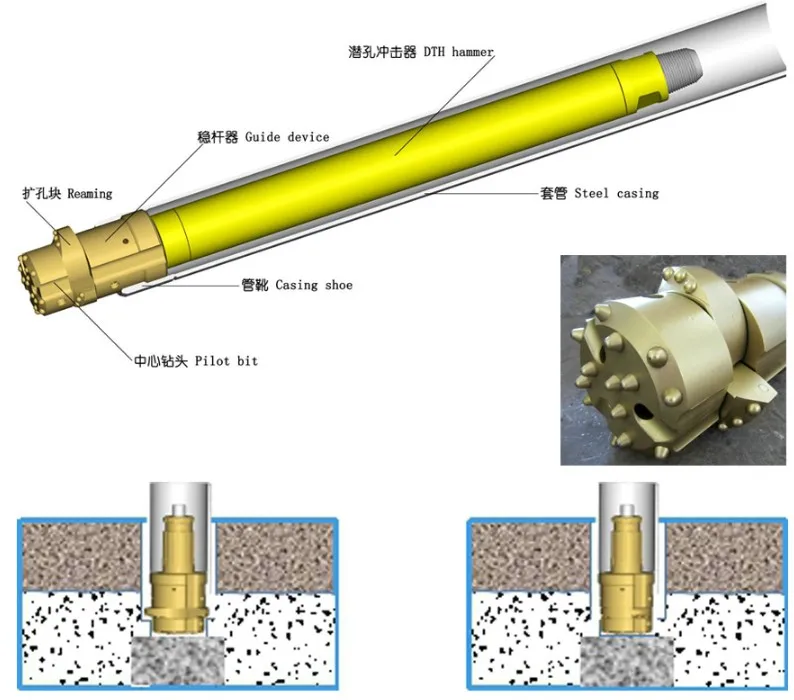

Operation Procedure


1. When drilling starts, the pilot bit drives the casing shoe and casing tube.

2. When reaching the bedrock, reverse rotation of the tools and pull the pilot bit out from the hole.


3. Pour in concrete or move to the next construction procedure.
4. Use conventional tools to drill to the desired depth.


Our Advantages



* High-quality construction ensures durability and longevity
* Compatible with DHD360 DTH hammer
* 219mm Casing while drilling for enhanced drilling performance


Benefits:

* Efficient drilling process saves time and resources
* Provides a permanent casing solution for stability and support
* Allows for easy installation and removal
* Ensures accurate and precise drilling results

Upgrade your drilling experience with the Symmetrix Casing Tube. Order yours today and revolutionize your drilling operations.






Type

Casin g OD (mm)

Casing Min ID (mm)
Reaming Diameter
(mm)
Casing Shoe Min ID (mm)
Pilot
Bit
Max
OD
(mm)


DTH Hammer
GL70A-70-89
89
77
98
71
70
GL70A
GL90-85-108
108
94
112
86
85
GL90/GL90-I
GL335-85-108
108
94
114
88
86
GL335
GL335-90-114
114
98
127
91
90
GL335
GL335-100-127
127
114
136
101
100
GL335
GL110-120-146
146
130
156
121
120
GL110
GL4.5-120-146
146
130
156
121
120
GL4.5
GL340-120-146
146
130
156
121
120
GL345A
GL350-140-168
168
152
180
142
140
GL350/355/355SK
GL350-145-178
178
160
183
146
145
GL350/355/355SK
GL350-150-183
183
165
190
152
150
GL350/355/355SK
GL360-186-219
219
194
240
187
186
GL360SK
GL360-194-219
219
194
240
195
194
GL360SK
GL360-203-219
219
203
240
206
203
GL360SK
GL380-203-219
219
205
240
206
203
GL380SK
GL380-203-245
245
232
266
206
203
GL380SK
GL380-241-273
273
260
305
244
241
GL380SK


Related Product
-Middle-low/high air pressure DTH hammers & bits
-Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling.
-Eccentric overburden drilling system
-Hole opener bit
-Shank adapter, coupling sleeves and all kinds of adapters


Packing and Transport


Packing: Plywood Box
Delivery: Normally 3-5days after your down payment.
