Medical X ray film dry printer HYC 860 DICOM system connect with CR CT MRI machine
- Category: >>>
- Supplier: Weifang Hengcai Digital Photo Materials Co. Ltd.
Share on (1601050872985):
Product Overview
Description
Product Overview

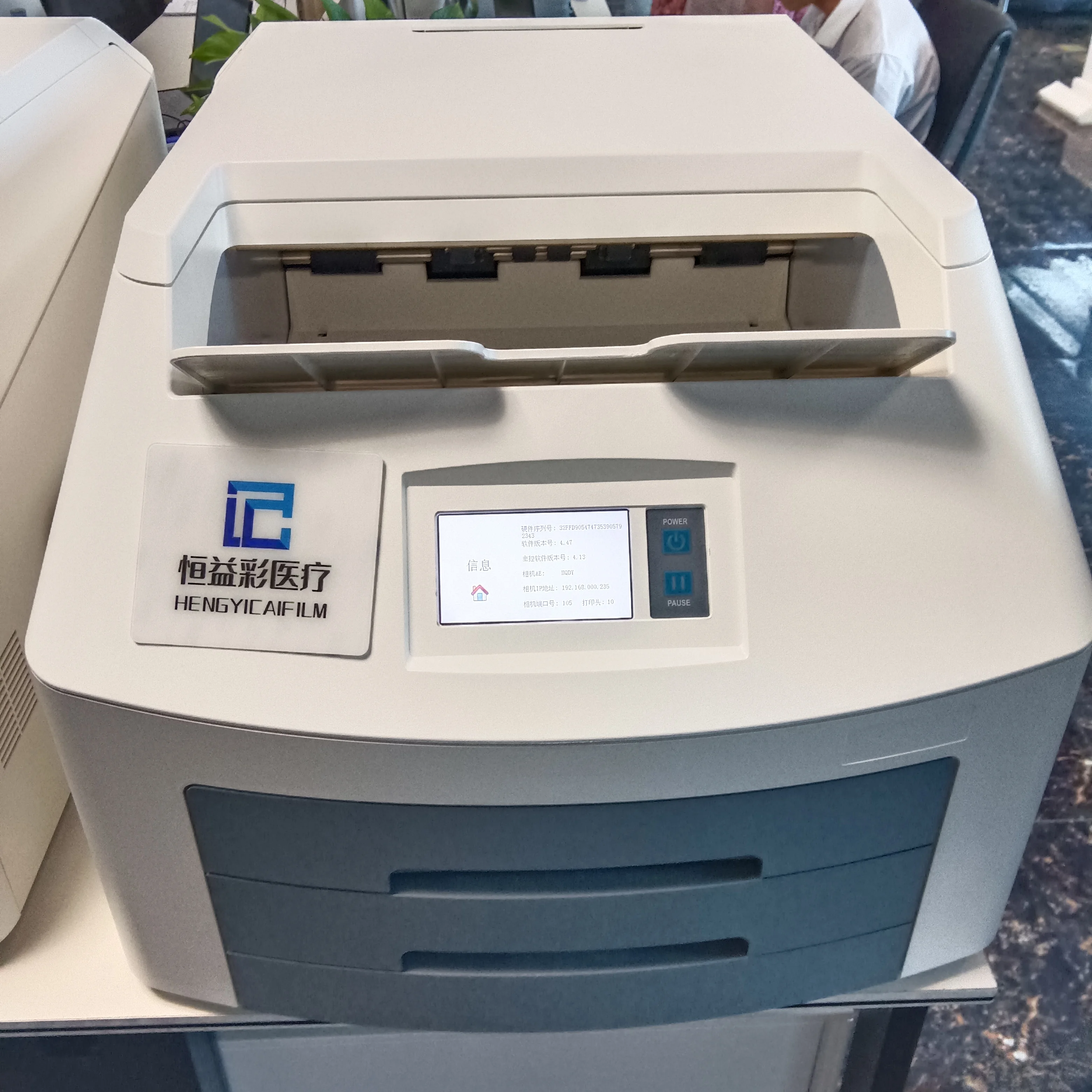

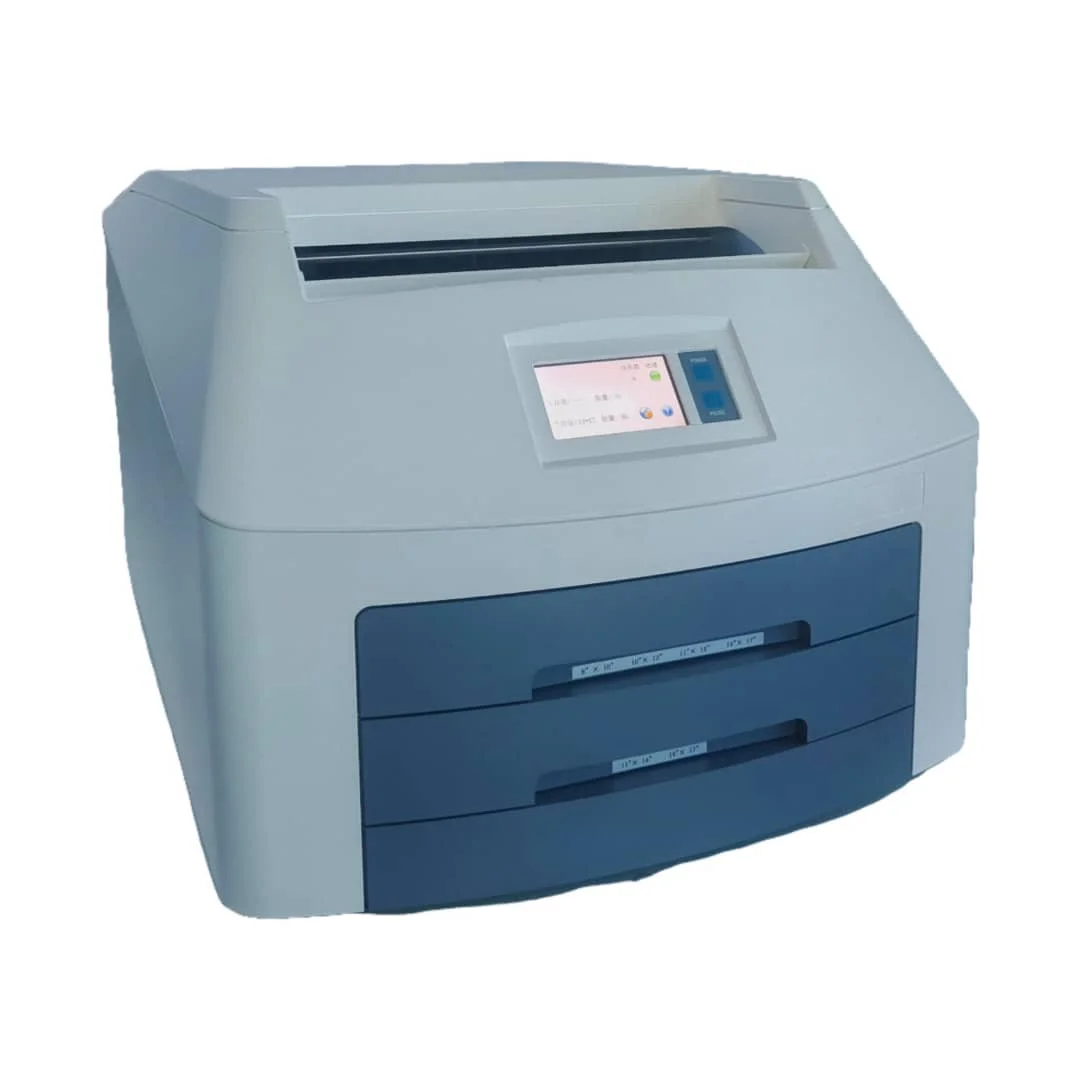

HYC-4600 Medical Thermal Dry Printer
The dry imager is a medical imaging output device.
It is engineered to achieve its optimal performance when used with HYC-brand medical dry films.
It is engineered to achieve its optimal performance when used with HYC-brand medical dry films.
Different from the old method of film processors, our dry imager can be operated under daylight condition.
FEATURES AT A GLANCE
With the elimination of chemical liquid, this thermal dry printing technology is significantly more environmentally friendly. However, to ensure the quality of output image, please keep away from heat source, direct sunlight, and acid and alkaline gas such as hydrogen sulfide, ammonia, sulfur dioxide, and formaldehyde, etc
Front elevation
Right elevation
Touchscreen
PRODUCT SPECIFICATIONS
No | Item | Data | No | Item | Data |
1 | Print Technology | Direct thermal (dry, daylight-load film) | 9 | Image Quality | Automatic calibration using built-in densitometer |
2 | Spatial Resolution | 320dpi (12.6 pixels/mm) | 10 | Control Panel | Touch Screen, Online Display, Alert, Fault and Active |
3 | Grayscale Contrast Resolution | 14 bits | 11 | Power Supply | 100-240VAC 50/60Hz 600W |
4 | Film Tray | Two supply trays, 200-sheet capacity total | 12 | Weight | 50Kg |
5 | Film Sizes | 8×10, 10×12, 11×14, 14×17 (inch) | 13 | Operating Temperature | 5℃-35℃ |

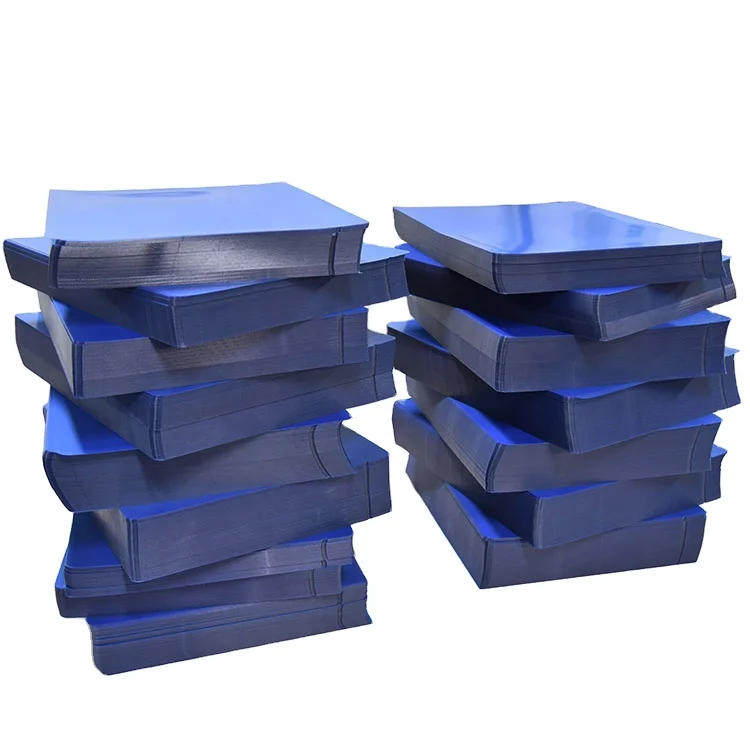

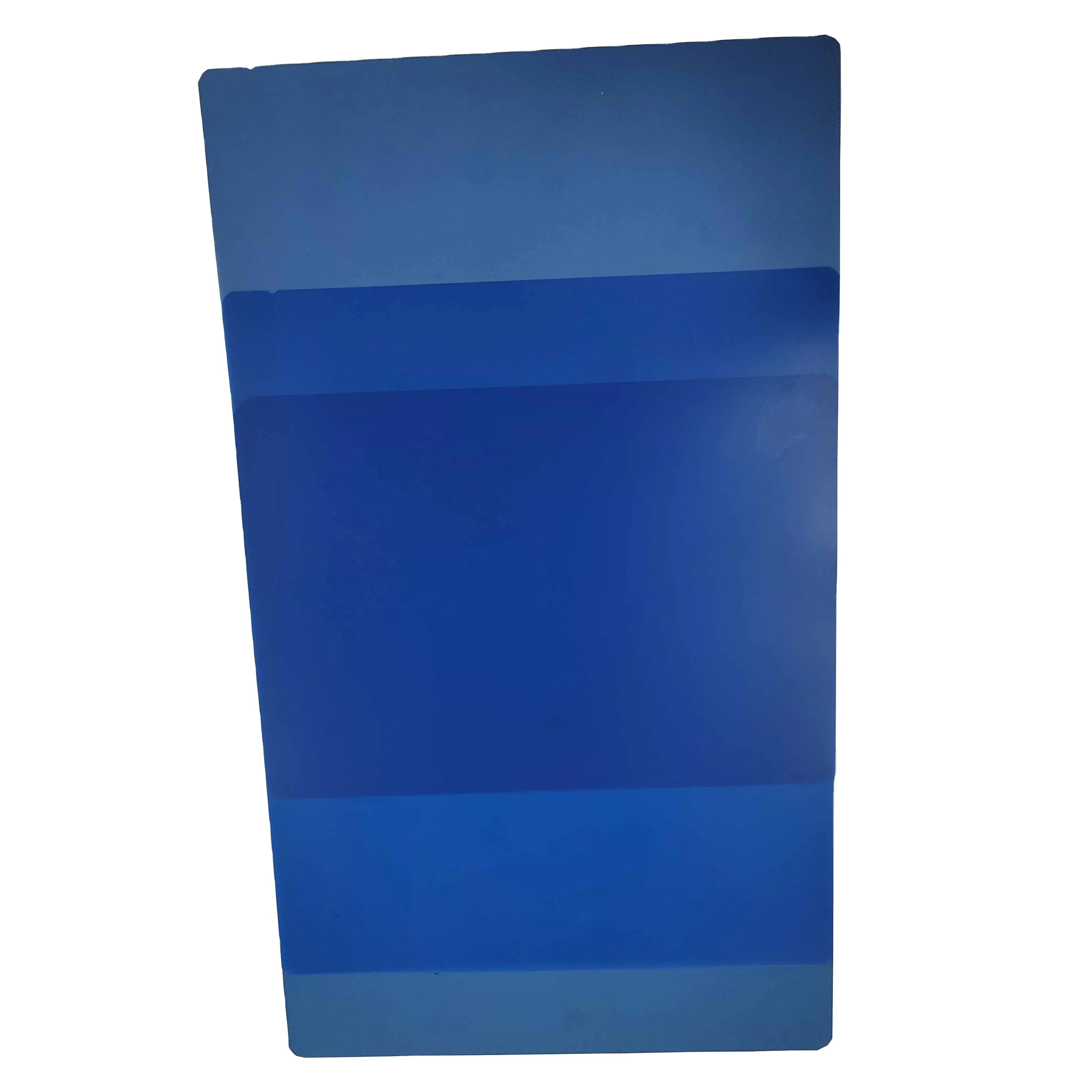

6 | Applicable film | Medical Dry Thermal Film (blue or clear base) | 14 | Storage Humidity | 30%-95% |
7 | Interface | 10/100/1000 Base-T Ethernet (RJ-45) | 15 | Storage Temperature | -22℃-50℃ |
8 | Network Protocol | Standard DICOM 3.0 connection |
CERTIFICATIONS
EXHIBITION
SIMILAR PRODUCTS

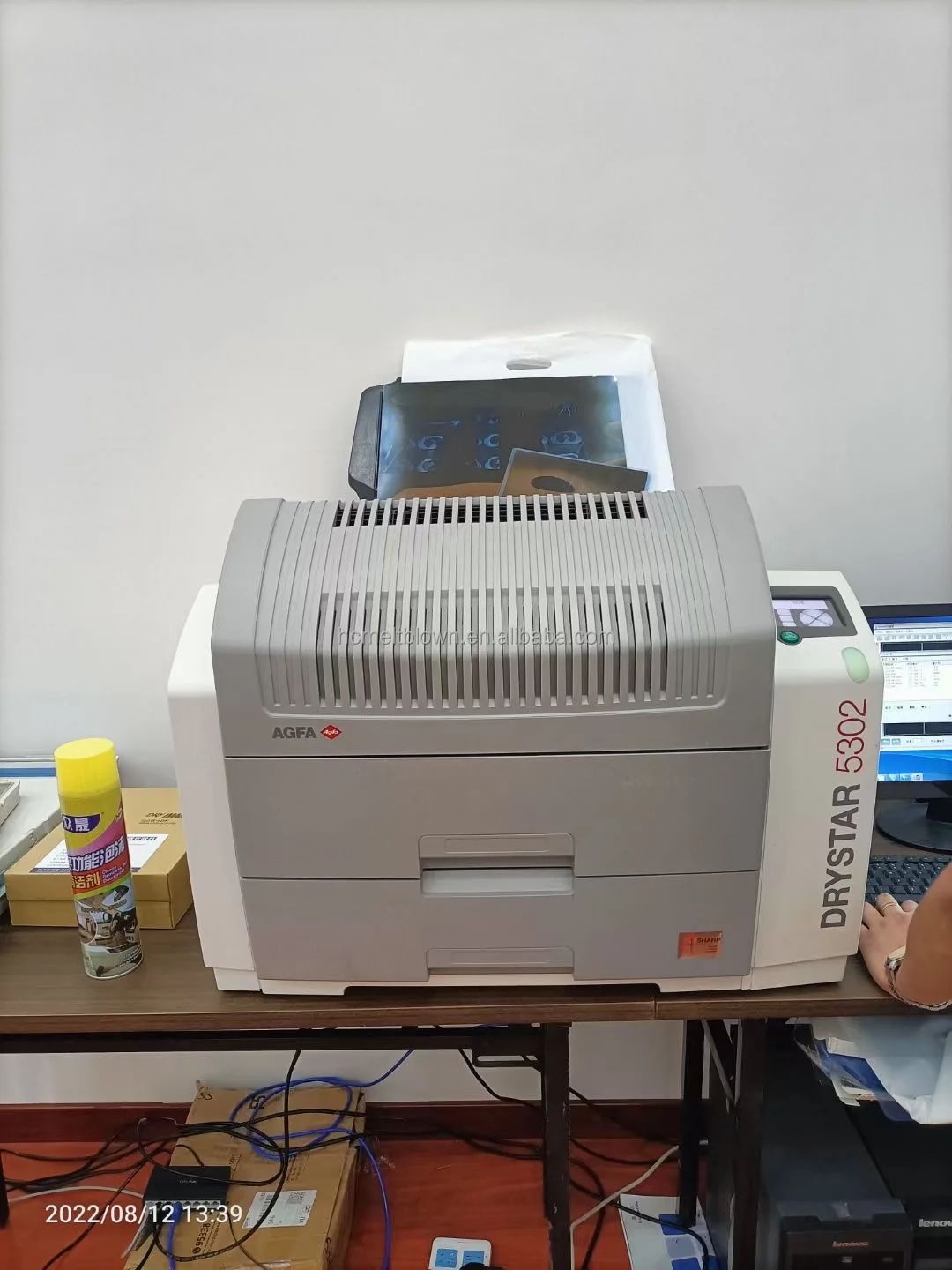

AGFA Drystar 5302
FUJI Drypix 3500
HYC-860(work with Hu.q)
PACKING&SGIPING
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level. Since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices.
2. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15-30 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
3. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment. Per minor problems, we can provide free spare parts for replacements, and oneline technic-support. Per serious problems, we can make replacement of free charge.
4. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, etc.
T/T, Credit Card, L/C, Western Union, PayPal, etc.
