Tuyou endoscope Top class China manufacturers FULL HD medical endoscope camera system laparoscopy tower endoscopy
- Category: >>>
- Supplier: Shenzhen Tuyou Medical Imaging Co. Ltd.Shenzhen Ltd.
Share on (1601356722327):
Product Overview
Description
Product Parameters

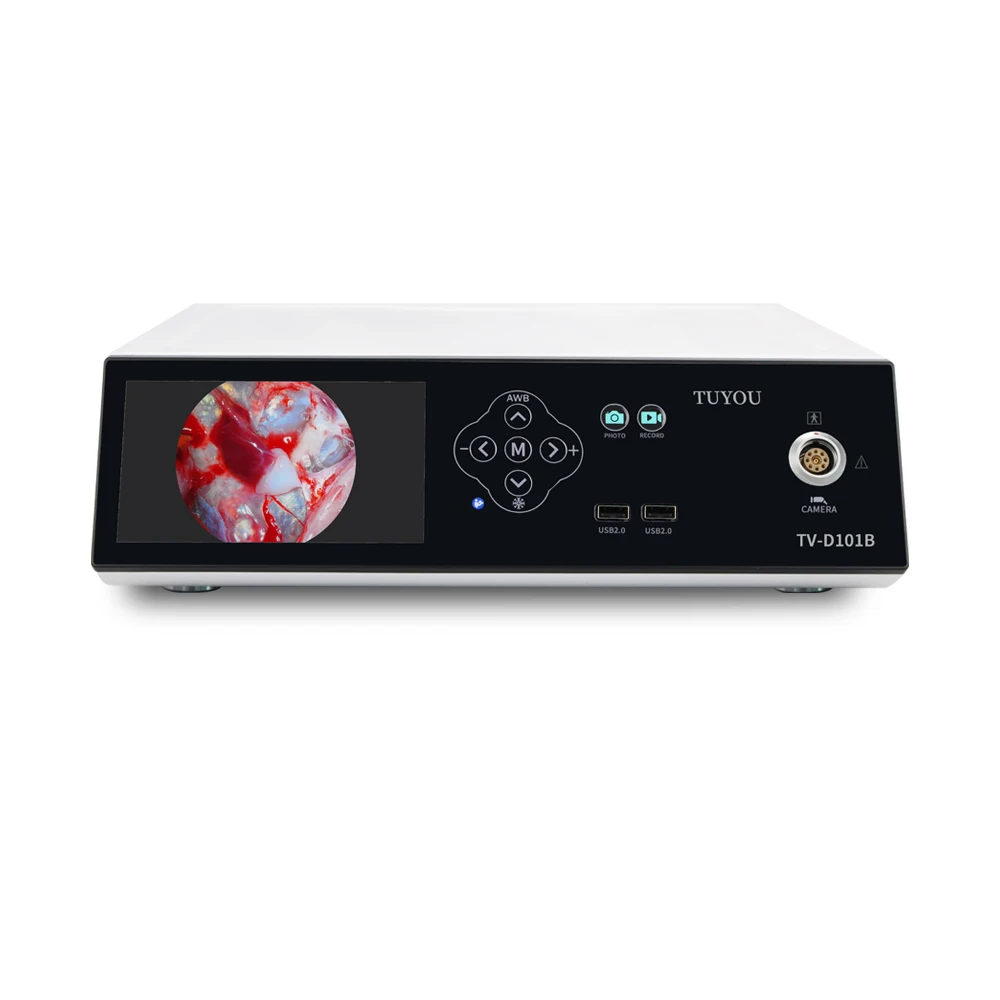

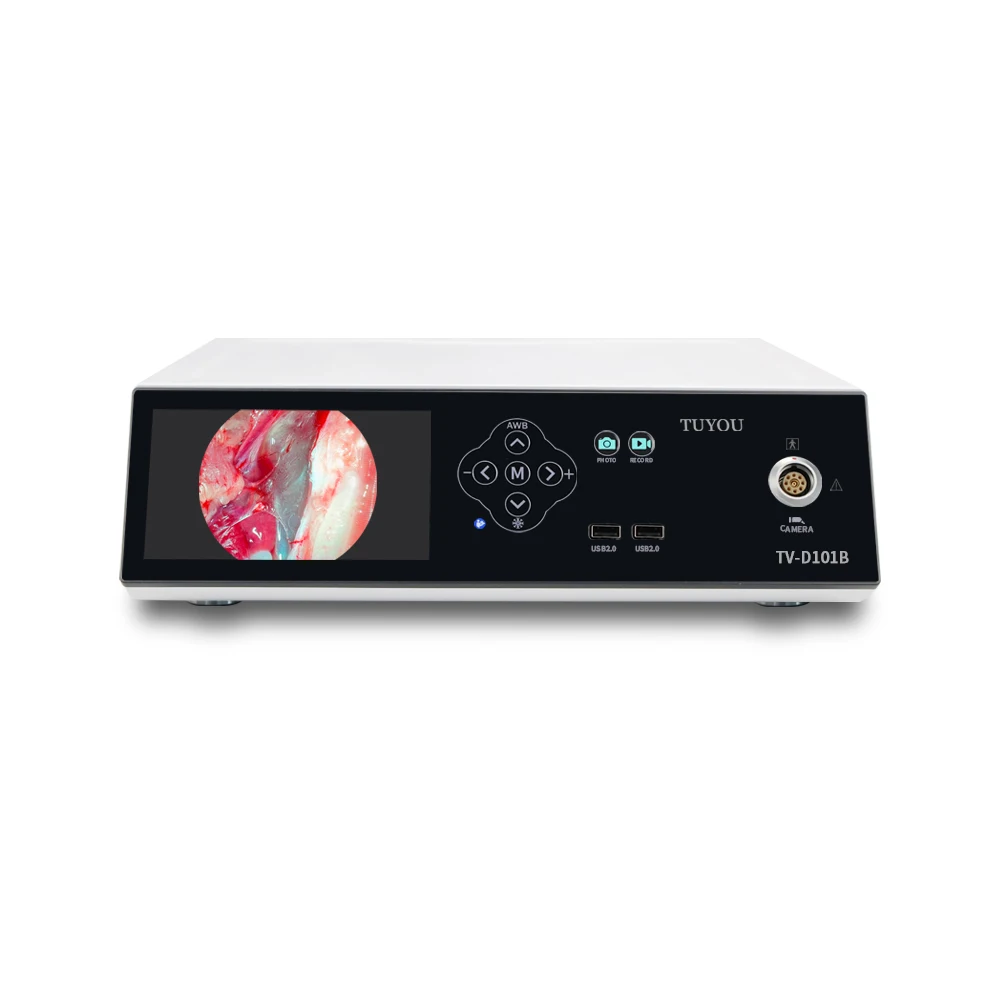

Product Item No. | TV-D101B(1080P Carema) |
System Parameters | ||
Input Interface | 1080P | |

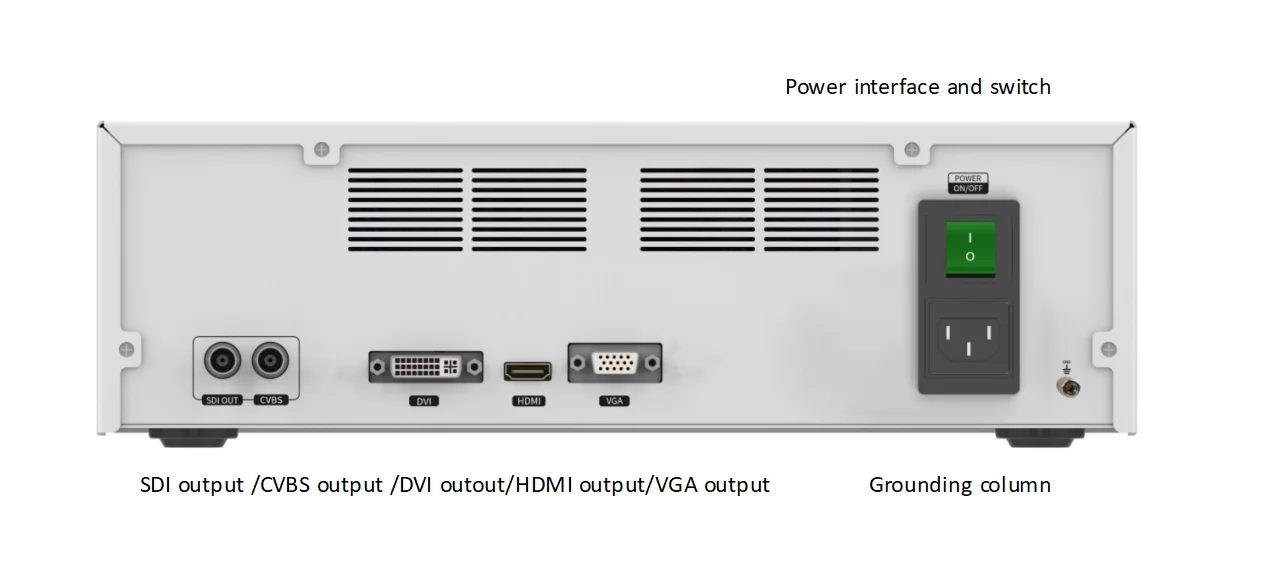

Output Interface | HDMI/DVI/VGA/SDI/CVBS | |
Keypad Control | Control the motherboard menu and shortcut keys through RX/TX | |
Power | AC110V~240V | |
U Disk | Double USB storage device output(up to 32GB) video recording and photo capture | |
Shortcut Key Function | Freeze/white balance/video/photograph/digital zoom | |
SNR(Signal Noise Ratio) | <45db | |
Working Environment | -10℃~60℃ | |
Product Size | L336*W330*H116mm | |
Net Weight | 3.9KG | |
Camera Parameters | ||
Image Sensor | 1/2” CMOS | |
Effective Pixels | 1845(H) × 1097(V)Approx. 2.13M pixels | |
Resolution | SDI 1080P | |
FREEZE | Support | |
AWB | Support | |
D-ZOOM | 0-8x | |
Brightness | 1-30 steps | |

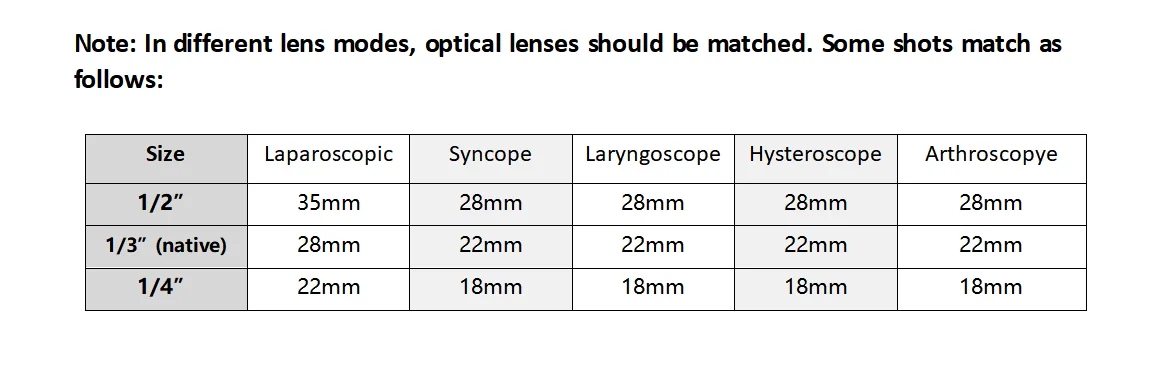

Lens Mode | PTED/Fiber/Arthroscope/Cystoscope/Hysteroscope/Ureteroscope/Laparoscope/ENT | |
Language | Chinese, English, Japanese, Korean and other languages | |
Working Environment | -30℃~60℃ | |
Power(Max.) Supply | TV-D100B: DC12V ±10%<3W | |
Working Current | TV-D100B: 140mA±10mA | |
Products Description

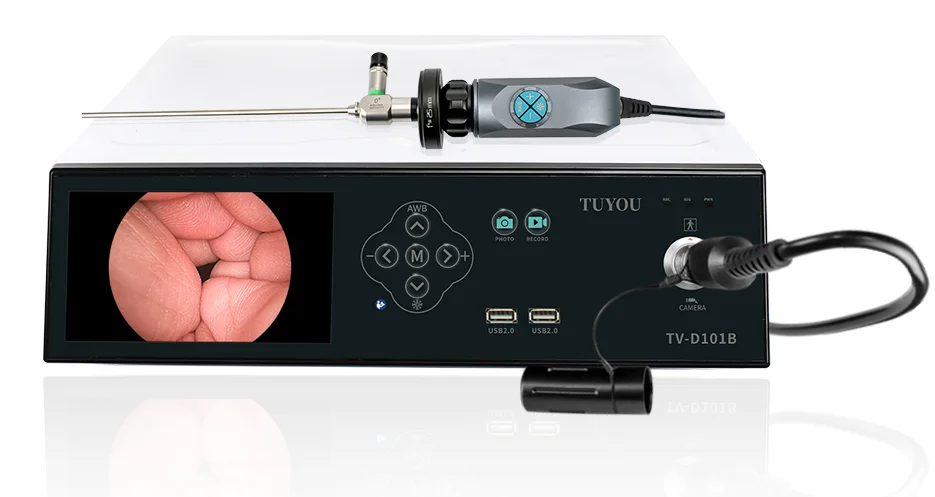

Product composition:

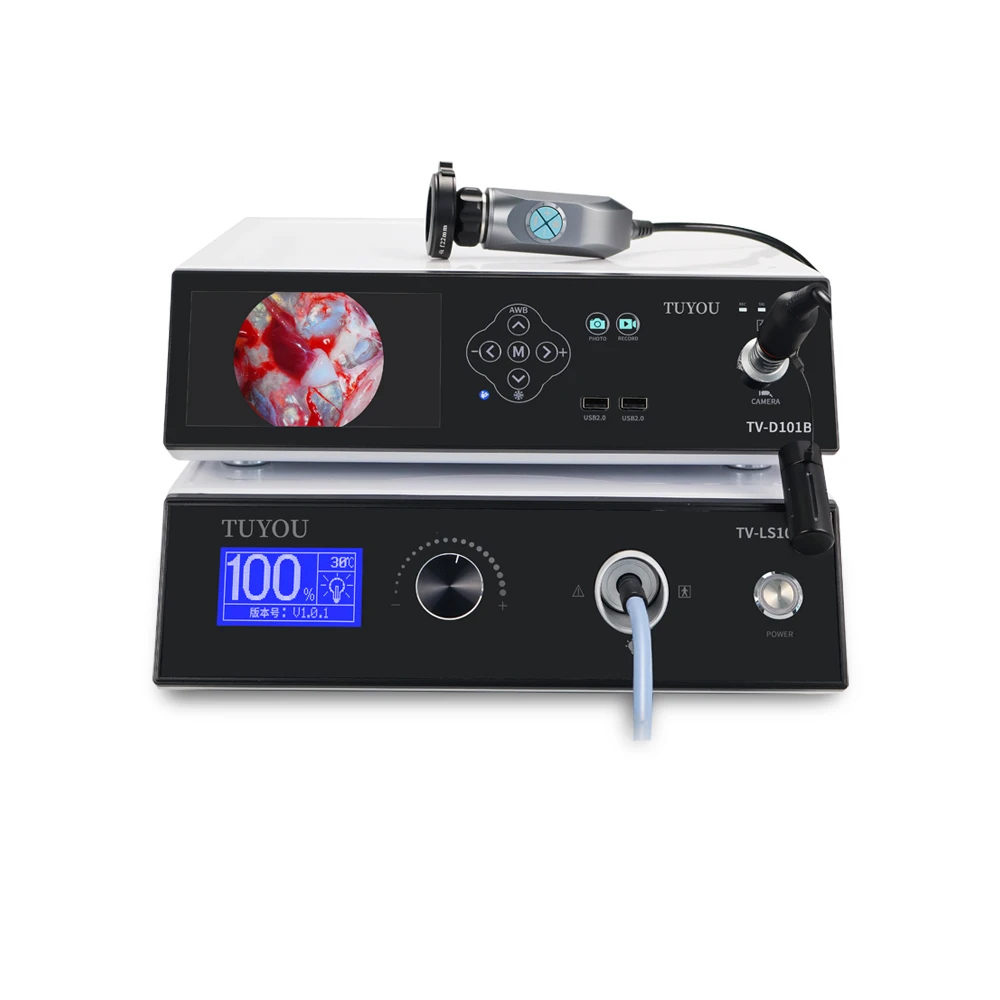

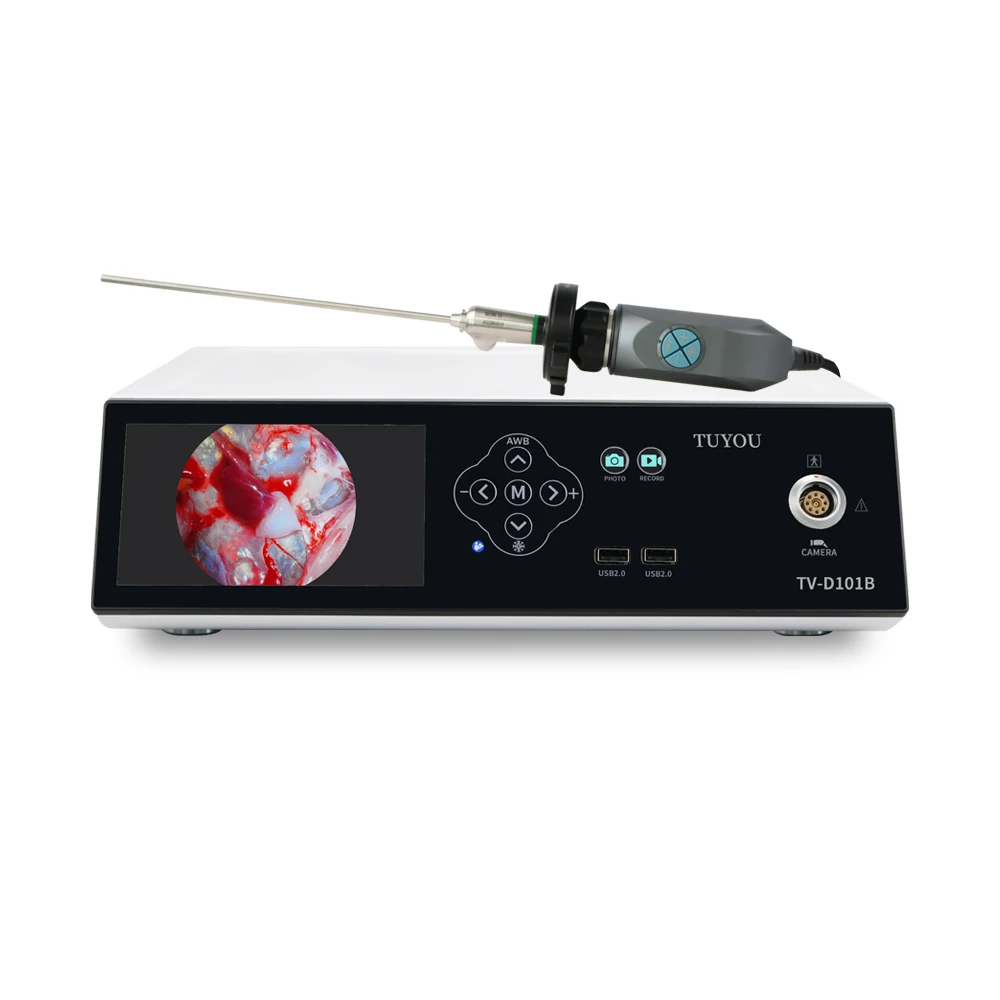

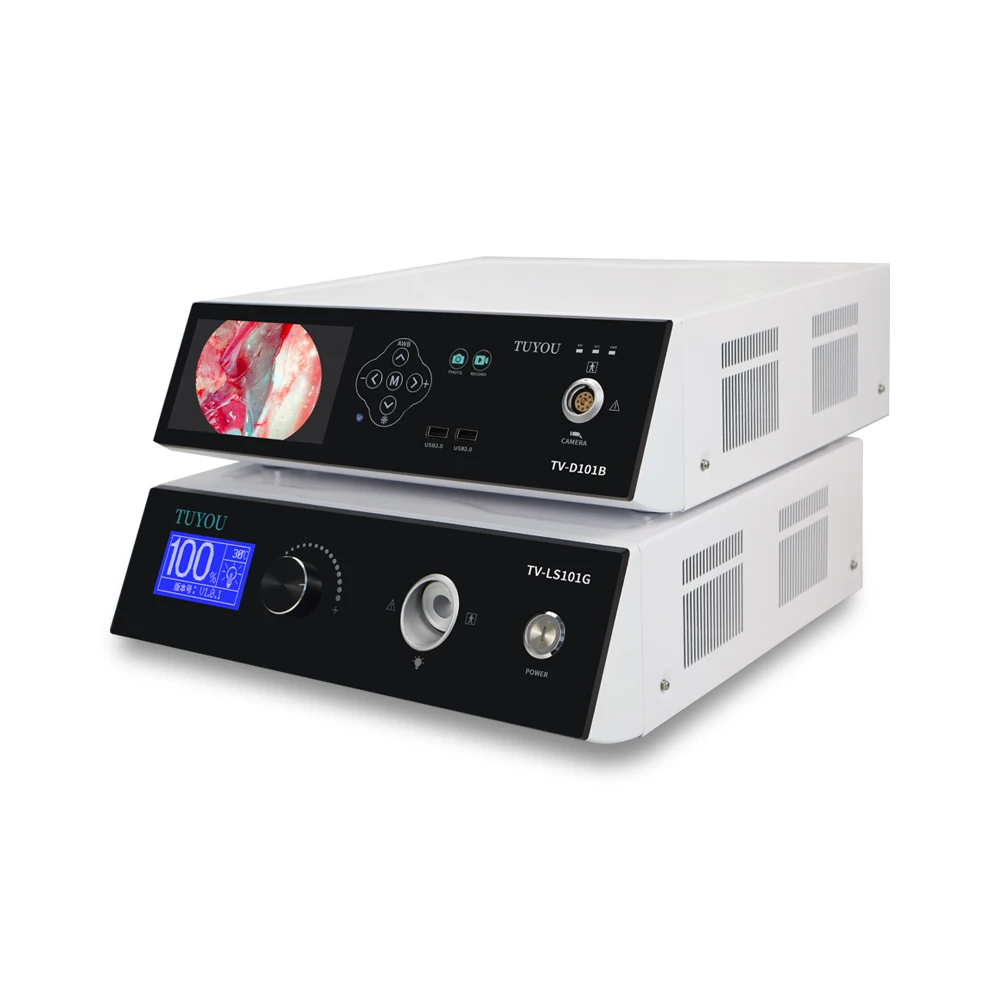

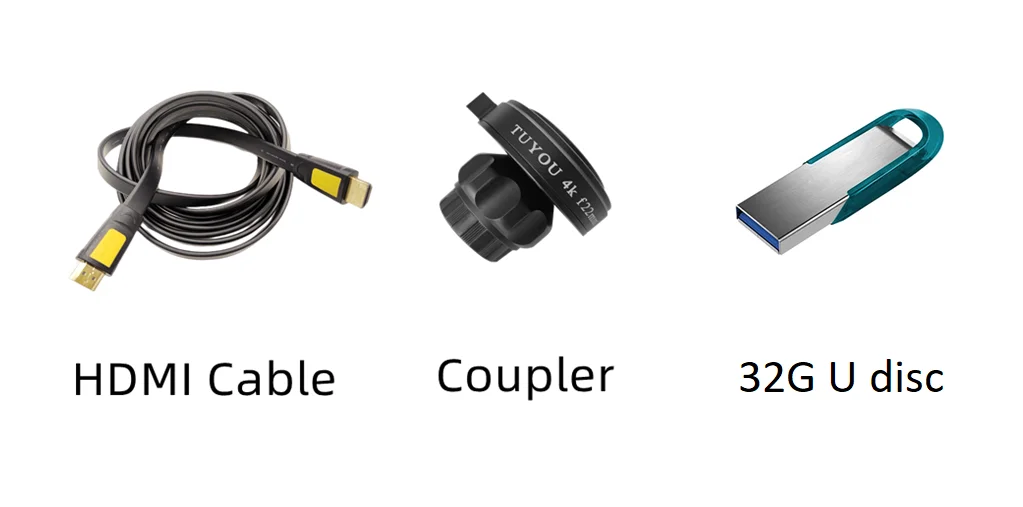

Endoscope camera system consists of camera control unit, camera head and optical adapter (optical interface).
Product Features:

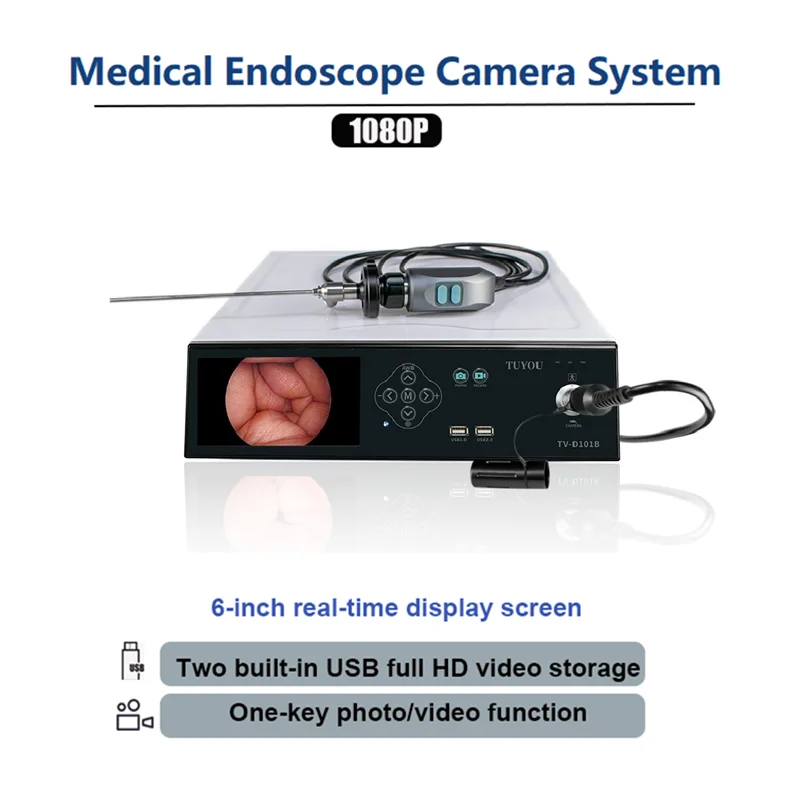

1. Full HD endoscope camera system,
2. Comes with 6-inch display screen for real-time viewing;
3. Double built-in USB full HD video storage, can be connected to an external monitor;
4. One-key freeze, one-key white balance, One-key photo/video function;

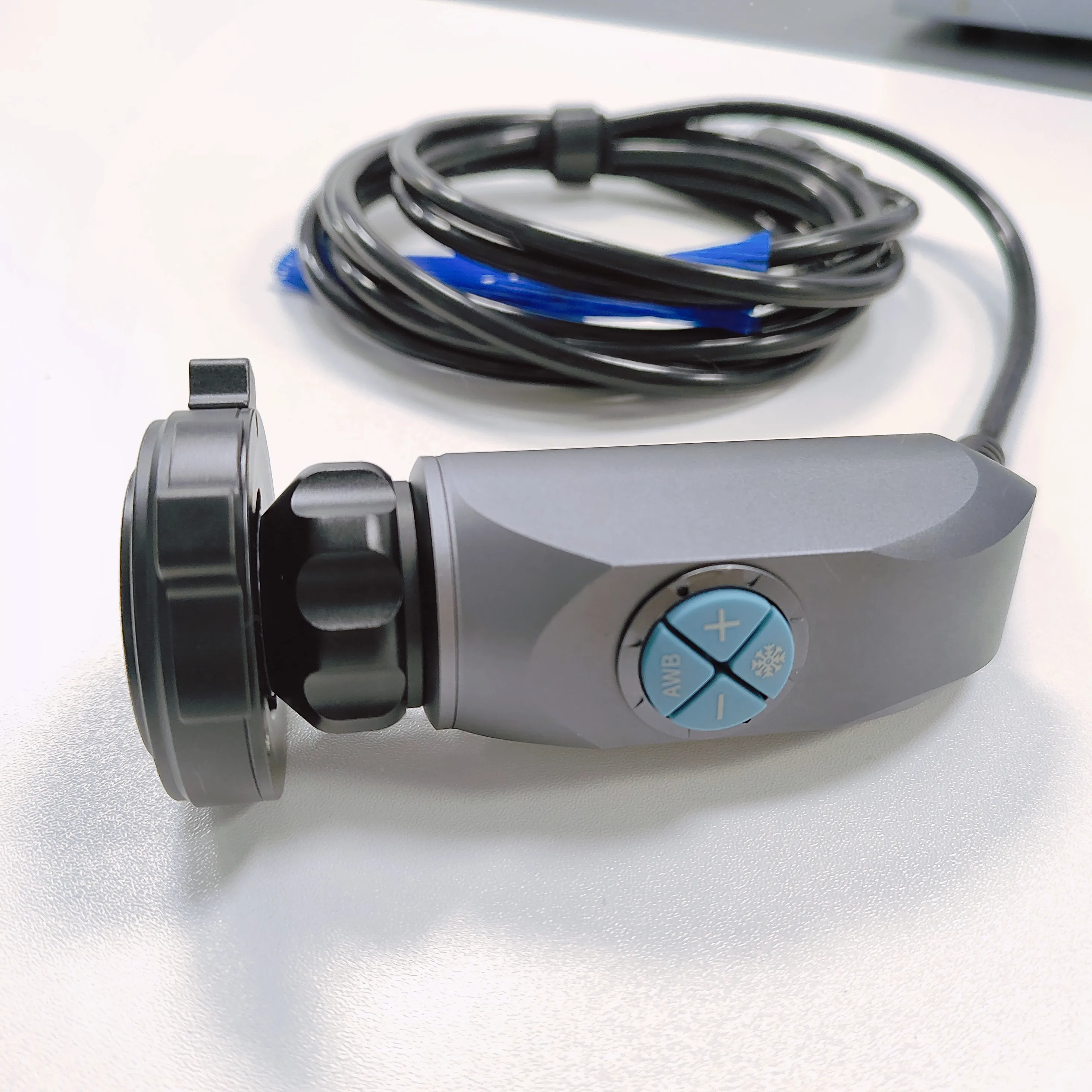

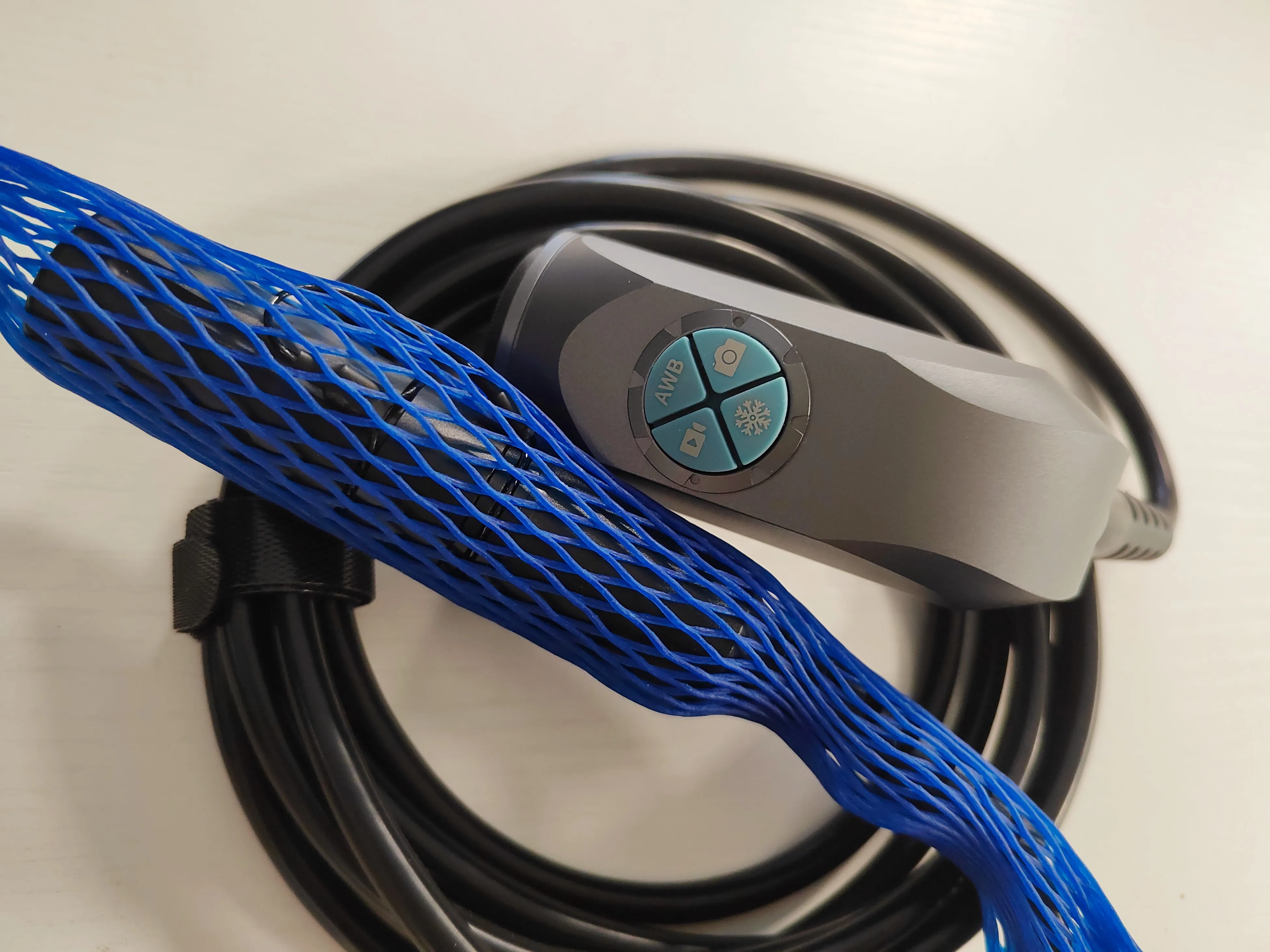

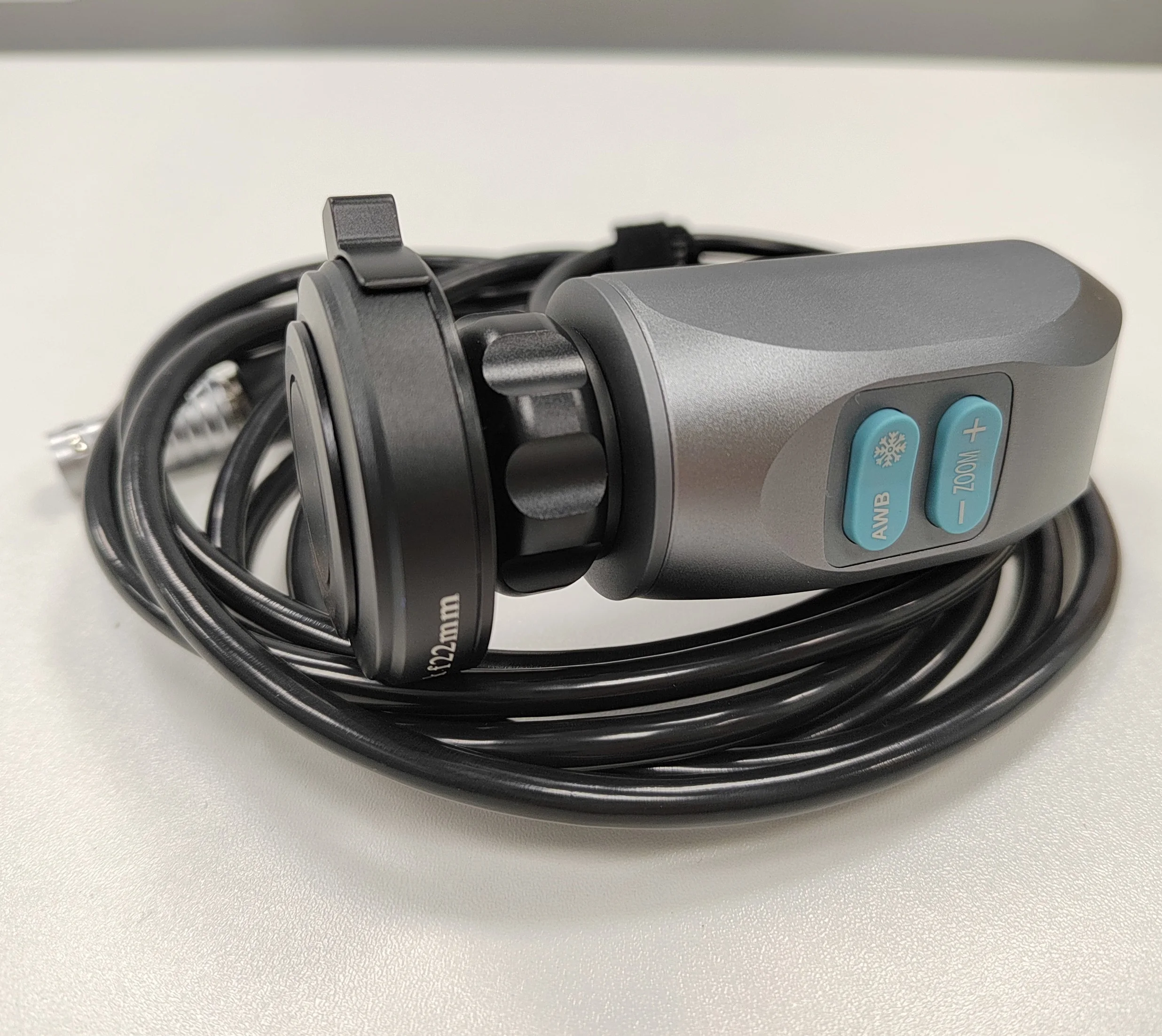

Camera Head: Three types of camera head selection.
1. Full HD endoscope camera system,
2. Comes with 6-inch display screen for real-time viewing;
3. Double built-in USB full HD video storage, can be connected to an external monitor;
4. One-key freeze, one-key white balance, One-key photo/video function;
Camera Head: Three types of camera head selection.
Customer Feedback
Company Profile

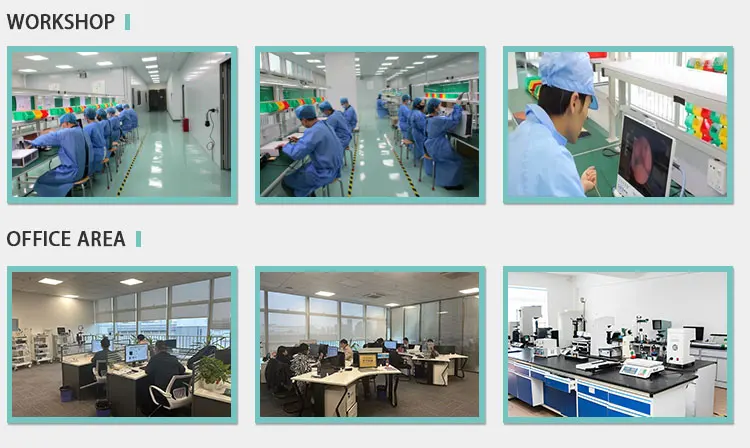

Shenzhen Tuyou Medical Imaging Co., Ltd.
Shenzhen Tuyou Medical Imaging Co., Ltd. was established in 2005, with 3500 square meters automated SMT dust-free workshop and over 50 employees, specializing in R&D, production and sales of medical equipment. Depending on leading HD image technology and sincerely considerate service, our company has already earned customers' trust and built a good reputation in medical Industry both domestically and internationally.
We have successfully developed 60W/120W cold light source, 4K/1080p medical digital video recorder, 27 inch medical monitor, 4K/1080p medical endoscope camera and high quality endoscope camera cable, etc. So far, we can offer ONE-STOP medical solutions for our customers.
Tuyou brand comes from our boss Gordon's idea, the Chinese meaning is ‘perfect image’, at the same time, it also means providing high-quality medical products and reliable services to you (TUYOU) as our mission. Our vision is continuing to develop our products in order to meeting the needs of market and our customers, and achieving the win-win business with our customers together.
We have successfully developed 60W/120W cold light source, 4K/1080p medical digital video recorder, 27 inch medical monitor, 4K/1080p medical endoscope camera and high quality endoscope camera cable, etc. So far, we can offer ONE-STOP medical solutions for our customers.
Tuyou brand comes from our boss Gordon's idea, the Chinese meaning is ‘perfect image’, at the same time, it also means providing high-quality medical products and reliable services to you (TUYOU) as our mission. Our vision is continuing to develop our products in order to meeting the needs of market and our customers, and achieving the win-win business with our customers together.
Certifications
Packing & Delivery
FAQ
Q: Who are we?
Our company is located in Shenzhen, Guangdong, China, our products have been sold to Domestic Market(45.00%), Southeast Asia(25.00%), Eastern Europe(15.00%), Africa(10.00%), Southern Europe(5.00%) since 2021. There are about 51-100 employees in our office.
Q: How can we guarantee quality?
We always provide a pre-production sample before the mass production;
We always have final inspection before shipment.
Our company is located in Shenzhen, Guangdong, China, our products have been sold to Domestic Market(45.00%), Southeast Asia(25.00%), Eastern Europe(15.00%), Africa(10.00%), Southern Europe(5.00%) since 2021. There are about 51-100 employees in our office.
Q: How can we guarantee quality?
We always provide a pre-production sample before the mass production;
We always have final inspection before shipment.
Q: What kind of products do we have?
A: Endoscope Camera System, Laparoscopy Camera, Medical Endoscope Camera, Medical Light Source, Laparoscope Unit, Medical Monitor, Disposable Flexible Endoscope and Reusable Flexible Endoscope.
Q: Why should you buy from us instead of buying products from other suppliers?
A: Our company is a high-tech enterprise dedicated to the research and development, production, sales and service of medical endoscopic imaging products. With ISO13485 system certification and more than 20 years experience in video research and development, we are very professional.
Q: What services can we provide?
A: Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, CPT, DDP, Express Delivery, DAF；
Accepted Payment Currency: USD, EUR, JPY, HKD, CNY;
Accepted Payment Type: T/T, D/P D/A, MoneyGram, PayPal, Western Union, Cash;
Language support: English, Chinese
A: Endoscope Camera System, Laparoscopy Camera, Medical Endoscope Camera, Medical Light Source, Laparoscope Unit, Medical Monitor, Disposable Flexible Endoscope and Reusable Flexible Endoscope.
Q: Why should you buy from us instead of buying products from other suppliers?
A: Our company is a high-tech enterprise dedicated to the research and development, production, sales and service of medical endoscopic imaging products. With ISO13485 system certification and more than 20 years experience in video research and development, we are very professional.
Q: What services can we provide?
A: Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, CPT, DDP, Express Delivery, DAF；
Accepted Payment Currency: USD, EUR, JPY, HKD, CNY;
Accepted Payment Type: T/T, D/P D/A, MoneyGram, PayPal, Western Union, Cash;
Language support: English, Chinese
