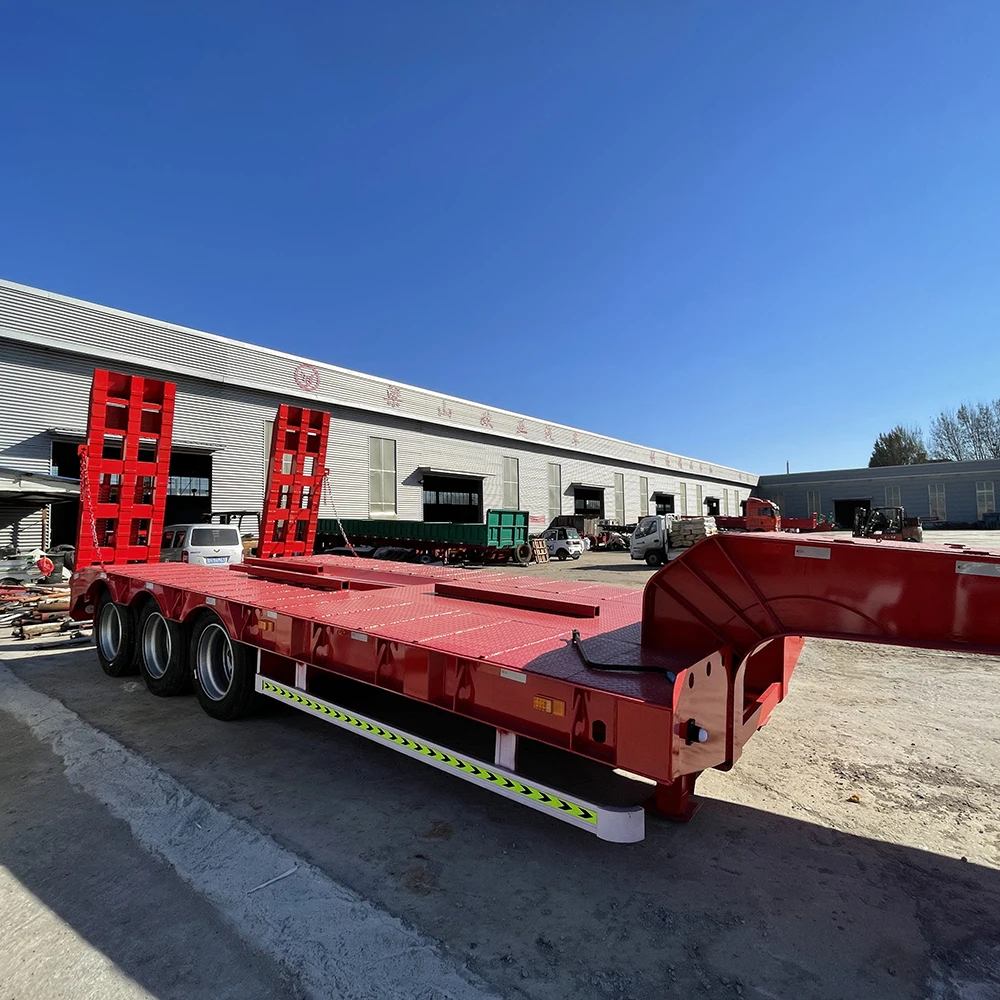

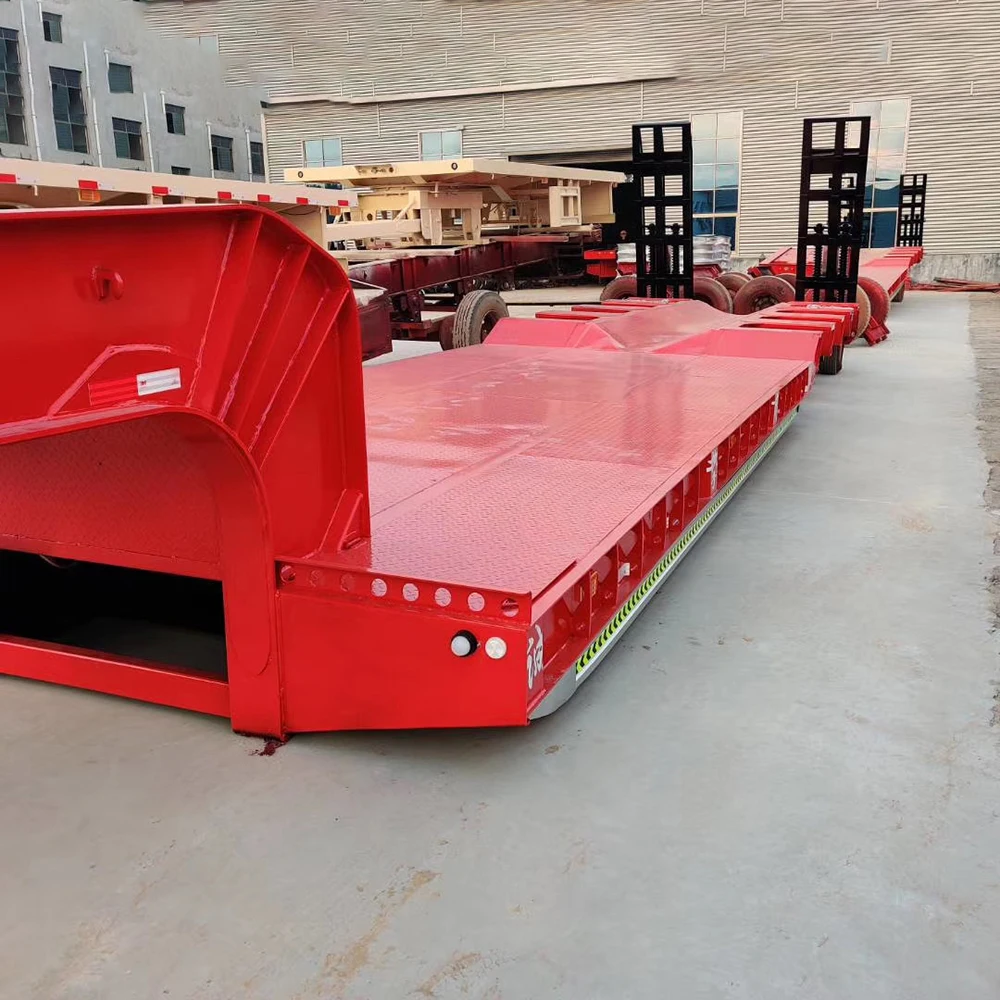

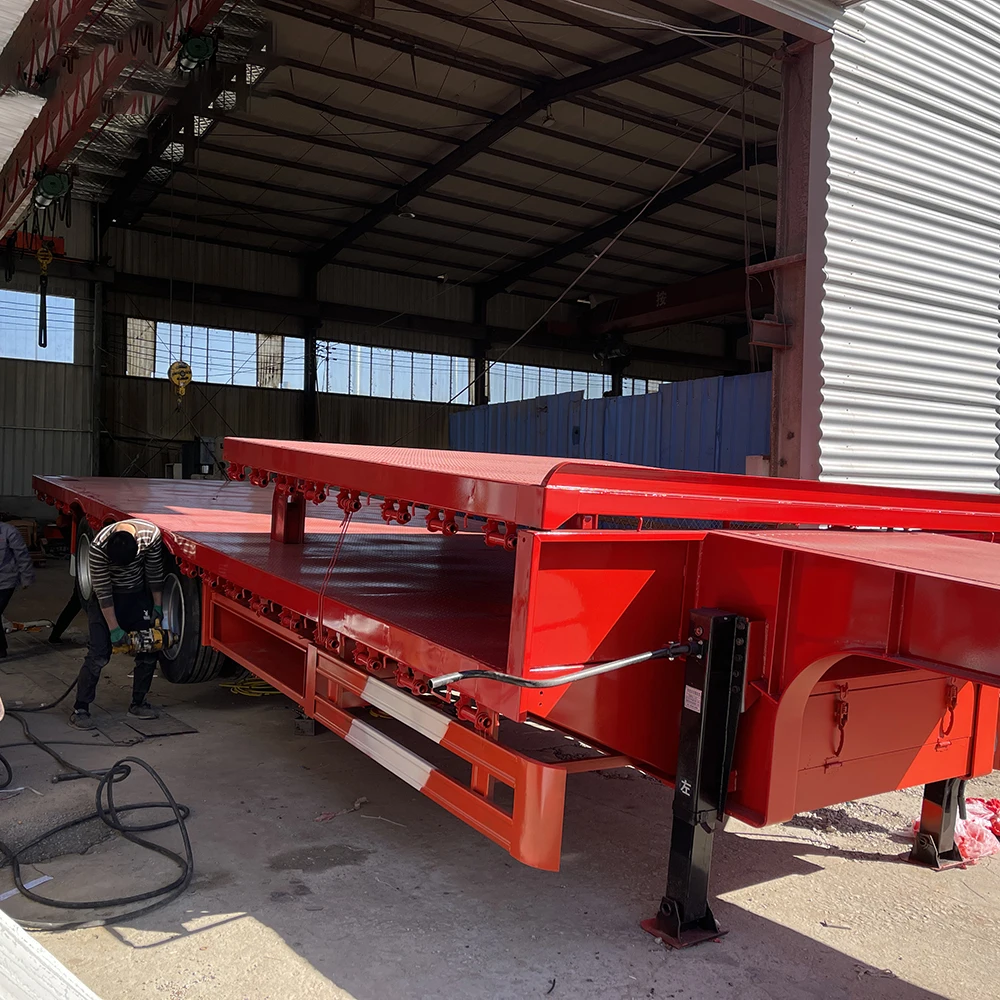

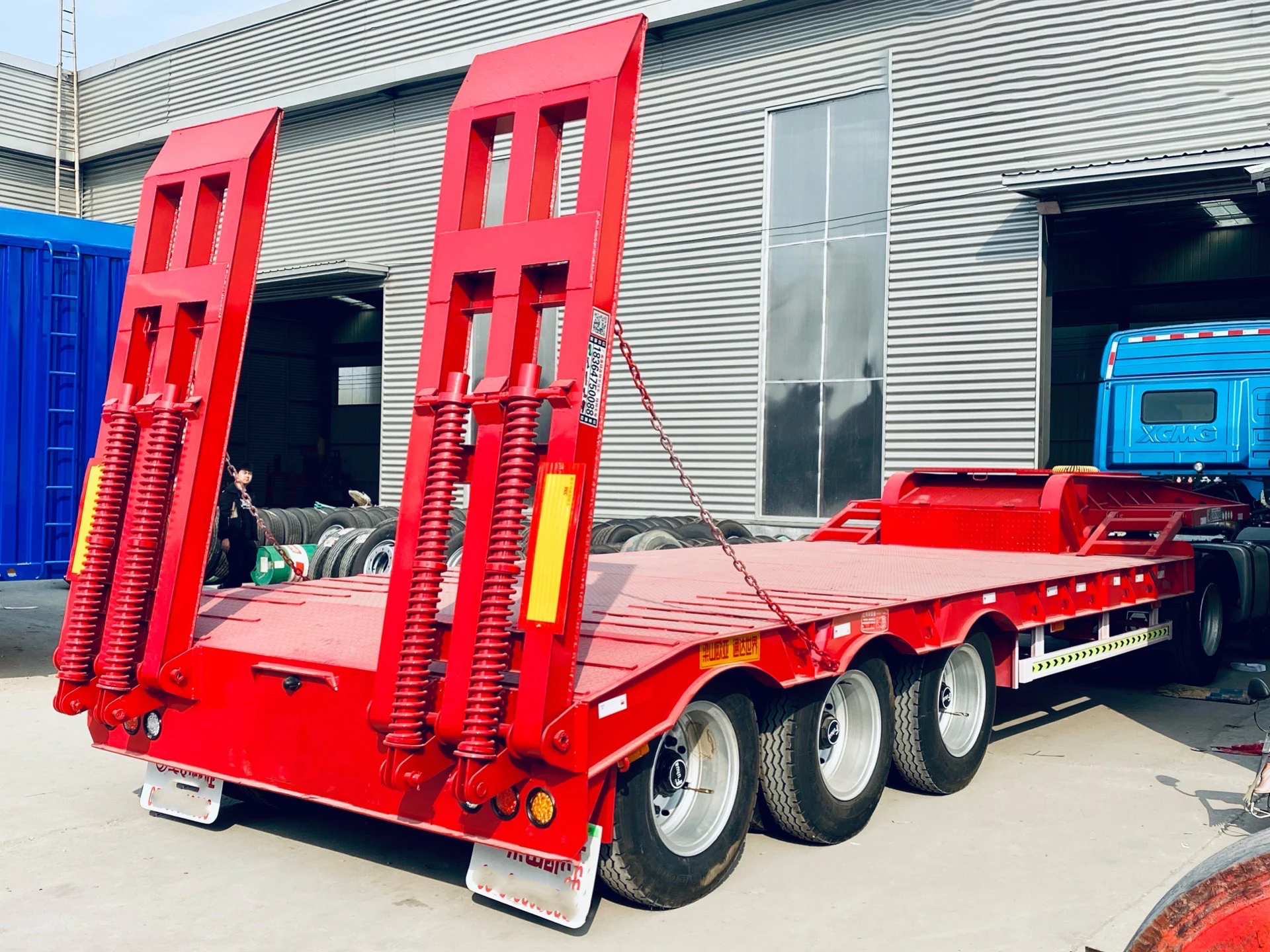

Front load low bed semi trailer 80 ton detachable gooseneck lowbed lowboy trailer
- Category: >>>
- Supplier: Shandong Dahong Industrial Equipment Co. Ltd.
Share on (1601052340487):
Product Overview
Description
Low bed semi-trailer is a special type of semi-trailer. Its main feature is that the load area is composed of flat plates supported by multiple axes, and the height of the load plane is relatively low. This design allows low bottom semi-trailer to easily allow vehicles or construction machinery to move up and down on their own.
The load of a low bed semi-trailer varies depending on the number of axles and tire size. The more axles there are, the greater the load, ranging from 20 to 150 tons.
The load of a low bed semi-trailer varies depending on the number of axles and tire size. The more axles there are, the greater the load, ranging from 20 to 150 tons.
Lowbed Lowboy Semi Trailer(Customerize and OEM Service Available) | ||||||
Product Name | 2 axles lowbed semi trailer | 3 axles lowbed semi trailer | 4 axles lowbed semi trailer | |||
Size（mm） | 12500*3000*1100 | 13000*3000*1100 | 14000*3000*1100 | |||
Payload | 40000KG | 60000KG | 80000KG | |||
Plate | 4mm checked plate | 4mm checked plate | 5mm checked plate | |||
Axles | 2 * 13ton capacity | 3 * 13ton capacity | 4 * 13ton capacity | |||
(Brand optional) | (Brand optional) | (Brand optional) | ||||

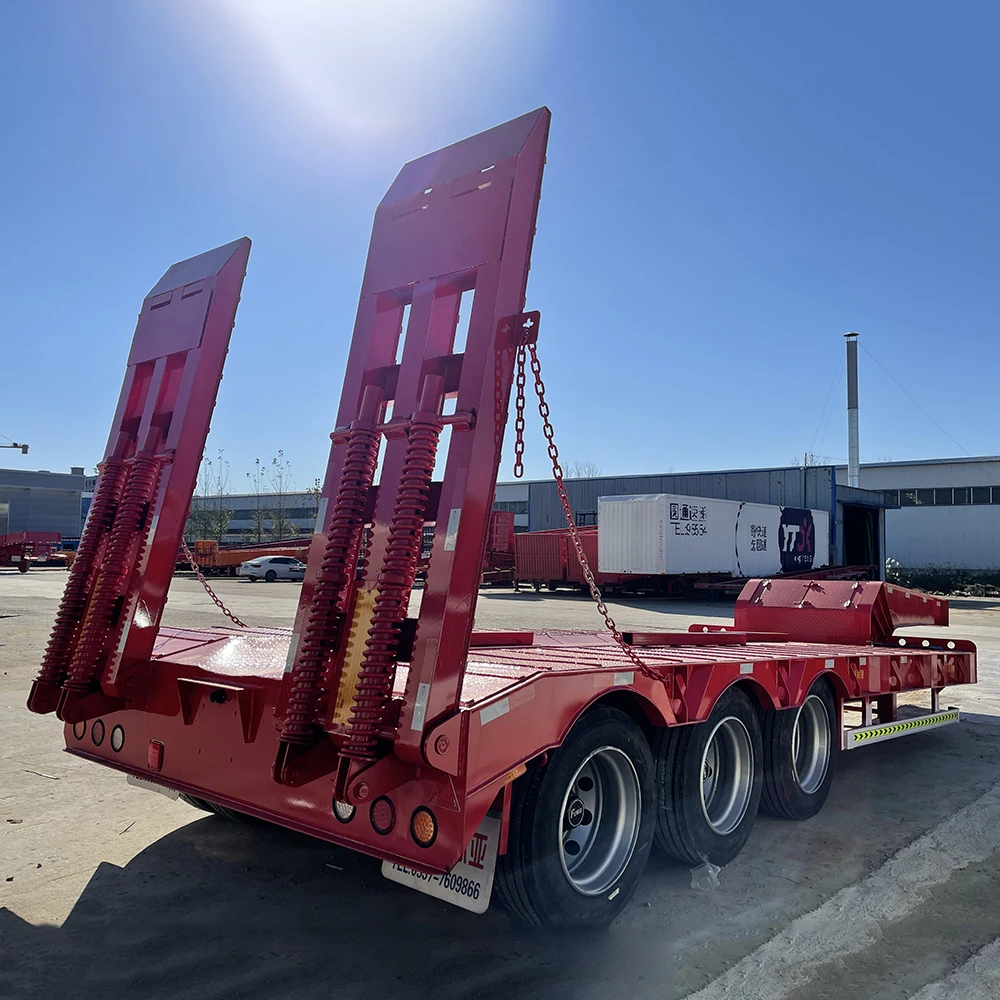

Ladder | Hydraulic ladder or Mechanical spring ladder | |||||
Main beam | Height:500mm, upper plate is 16mm, middle plate is 8mm, down plate is 18mm | |||||
Material is Q345B Steel. | ||||||
Side beam | 250mm I beam; 20mm channel steel ( Material is Q235steel ). | |||||
Bottom Platform | 4mm thickness diamond steel plate | |||||

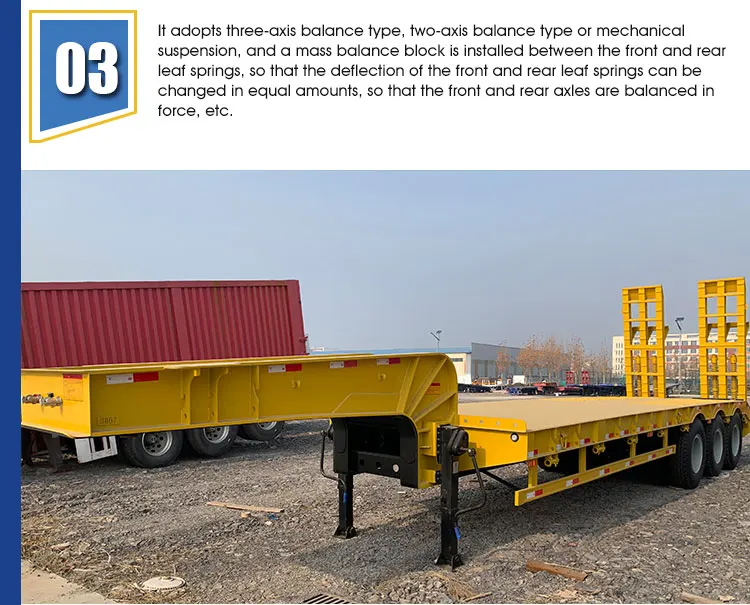

Suspension | Mechanical suspension (Air suspension optional) | |||||
Leaf spring | 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets) | |||||
Tire | 12R22.5 / 11.00R20 8pcs (Other size optional) | |||||
Rim | 9.00-22.5 / 11.00R20 8pcs (Other size optional) | |||||
Kin pin | 2’’/3.5’’ bolt type | |||||
Landing gear | 28 Ton two speed | |||||
Braking system | Double air chamber ,brake valve,45L air tanks ;ABS optional | |||||
Electrical | LED light , 7 ways ,24V | |||||
Accessory | One tooling box with a set of standard trailer tool | |||||

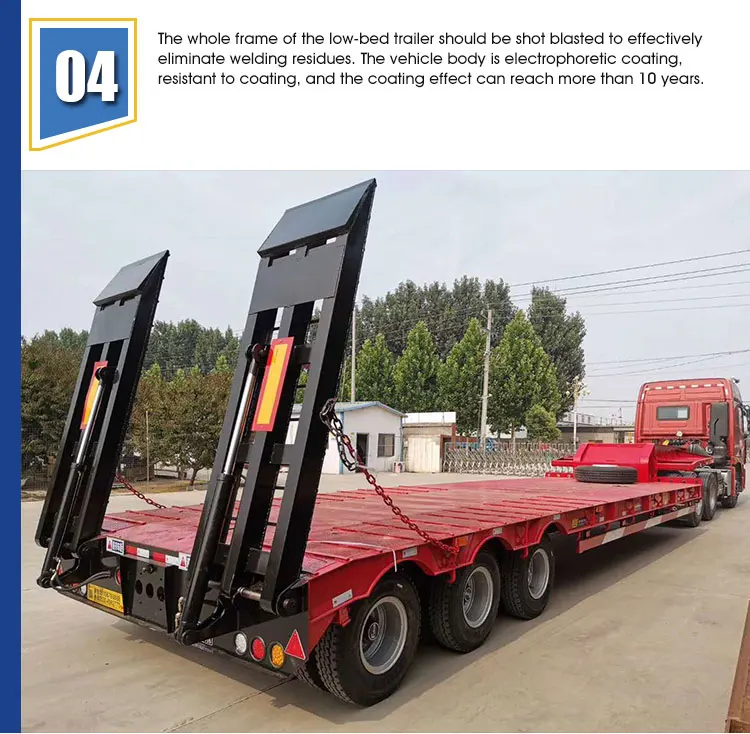

Painting | 1.Sand blasting processing clean rust. | |||||
2.Coat of anticorrosive primer. | ||||||
3.Coats of finish urethane paint. | ||||||
4.Color as customer choice. | ||||||

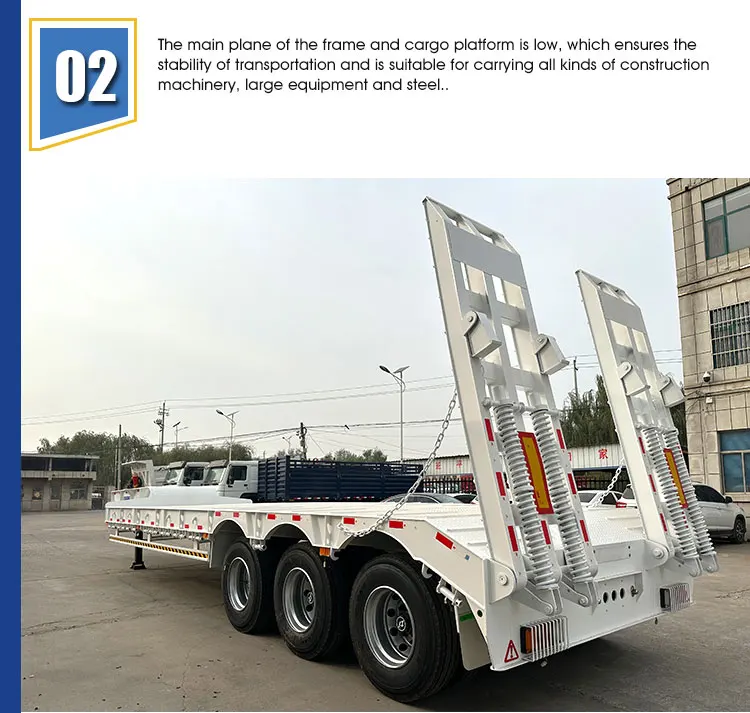

Other Descriptions | The cargo platform is lower than others, it is applicable for unsound road condition, and ensuring the stablenessof the transportation. | |||||
Usage | It is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks, power plant equipment or machine, and all sorts of steel products. | |||||

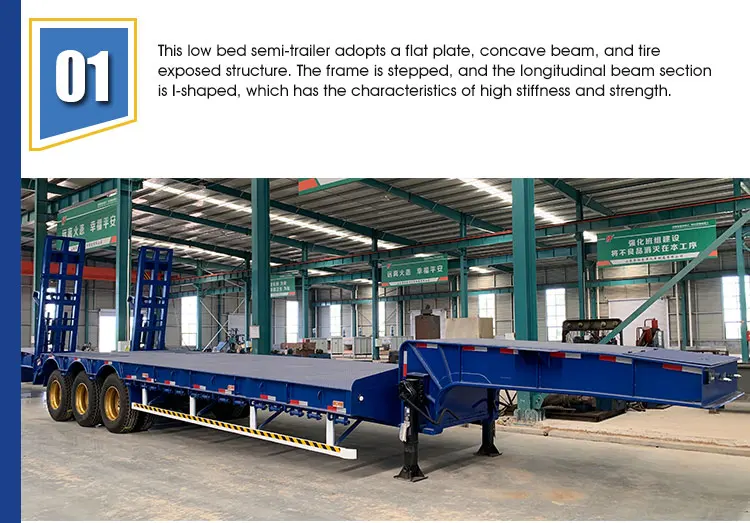

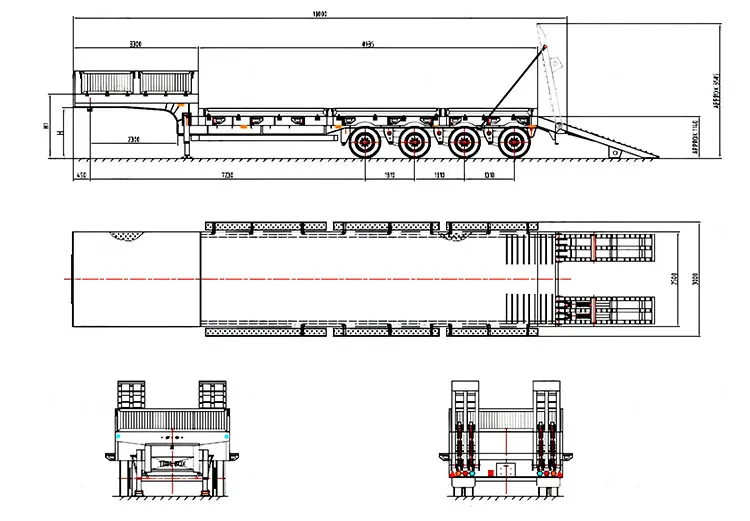

Other Specifications | It's concave structured with tyre appeared style, the height of the cargo's carrying platform from ground is 900mm, (ladders belong to optional components), with the overall height of 1710 mm. | |||||
Remark | We can design model according to client's requirement | |||||
Shandong Dahong Industrial Equipment Co., Ltd. specializes in the manufacturing, sales and service of trucks and semi-trailers. Adhering to the business philosophy of "quality first, customer first", it provides efficient and reliable transportation products and solutions. Experienced technical team, continuous innovation and upgrading of products. Improved production management and quality control system to ensure that every product meets standards. A variety of truck and semi-trailer products to meet one-stop procurement needs. Actively expand Internet sales channels to serve a wider customer base. Adhere to the entrepreneurial spirit of integrity, pragmatism and innovation, and strive to become a leading enterprise in the industry.
Q1: Who are we?
A1: Our headquarters is located in Shandong, China. Since 2017, we have been selling to the domestic market (87.80%), Africa (3.00%), South America (2.50%), the Middle East (1.60%), South Asia (1.50%), Southeast Asia (1.50%), Central America (1.20%), East Asia (0.80%), and North America (0.10%). Our company has a total of approximately 500-600 people.
Q2: How do we ensure quality?
A2: Always provide pre production samples before mass production and always conduct final inspection before shipment.
Q3: What can you purchase from us?
A3: Semi trailer, truck trailer, truck semi-trailer, dump semi-trailer, fence semi-trailer
Q4: Why do you want to purchase from us instead of other suppliers?
A4: We mainly provide detachable gooseneck trailers, low flatbed trailers, extendable semi-trailers, box/cargo/fence trailers, flatbed trailers, tilt/rear dump trailers, container transport frame trailers, automotive transport vehicle semi-trailers, special semi-trailers, second-hand trailers, second-hand car heads, axles, etc.
Q5: What services can we provide?
A5: Accept delivery terms: FOB, CIF, EXW;
Accepting payment currencies: USD, RMB;
Payment terms accepted: T/T, L/C, D/P D/A, credit card, Western Union remittance, cash;
Spoken language: English, Chinese
Accepting payment currencies: USD, RMB;
Payment terms accepted: T/T, L/C, D/P D/A, credit card, Western Union remittance, cash;
Spoken language: English, Chinese
