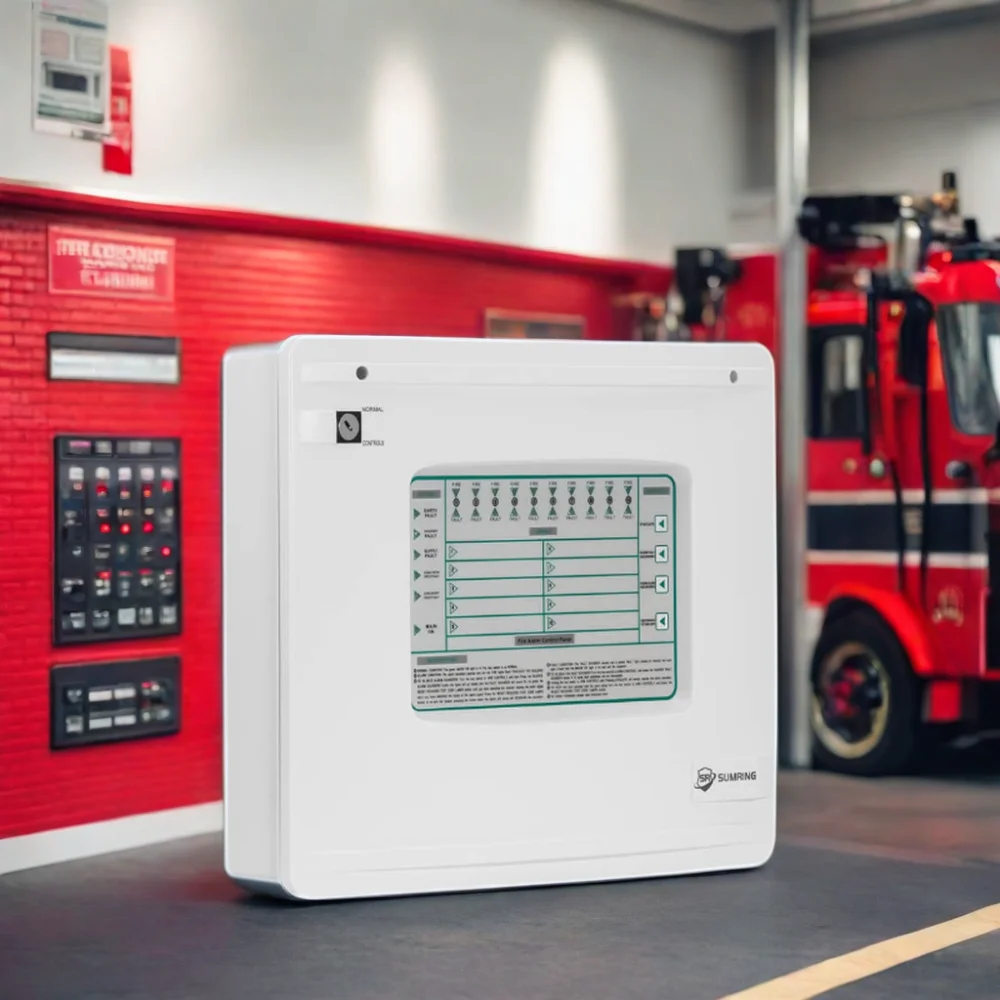

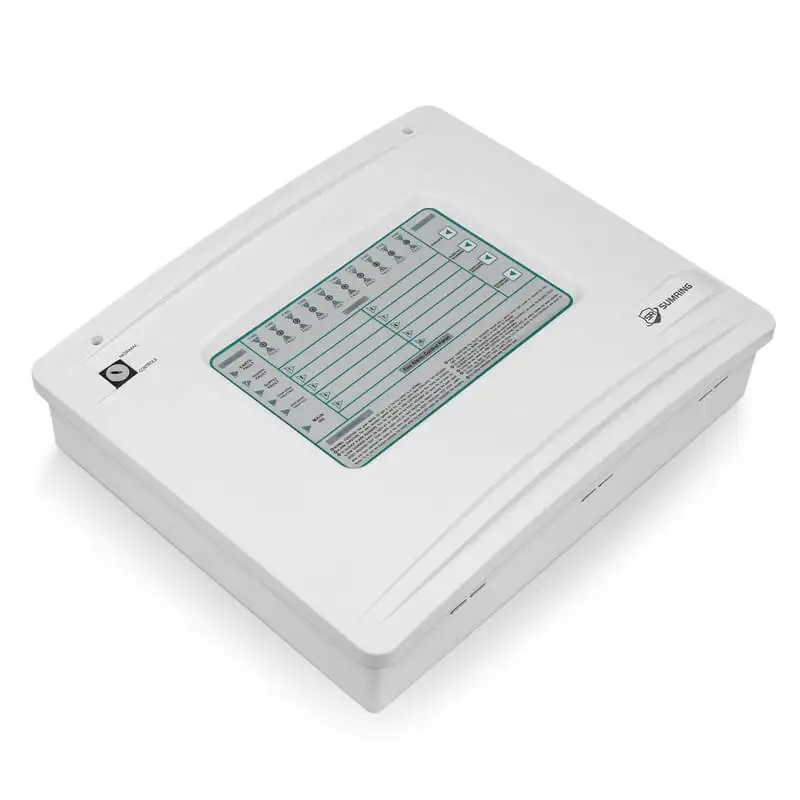

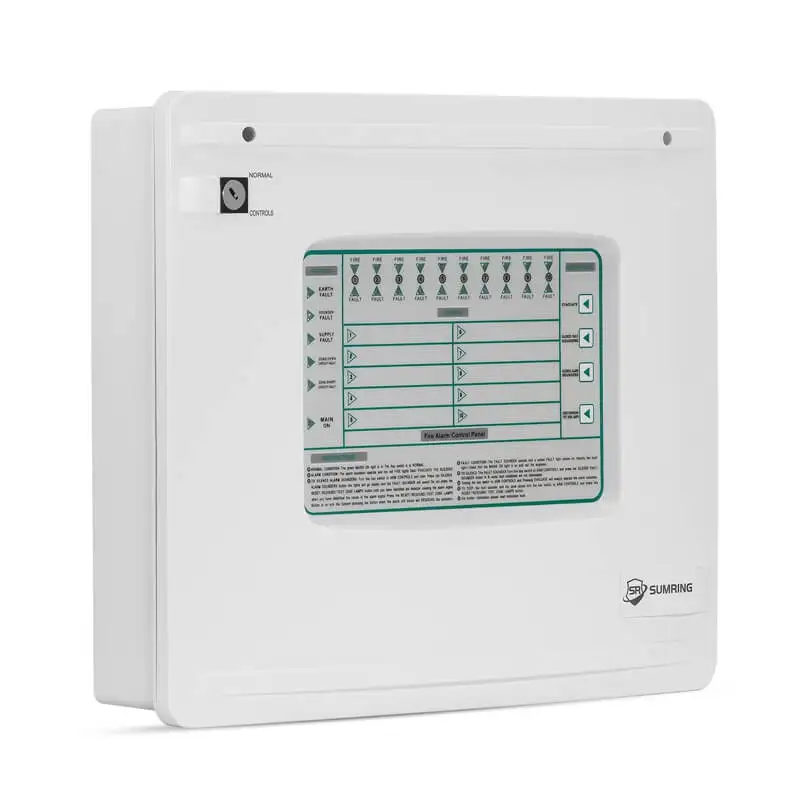

High end Innovative Technology Series Security Fire Control Alarm Panels Available at Best Market Price
- Category: >>>
- Supplier: Shenzhen Sumring Technology Co. Ltd.
Share on (1601052814947):
Product Overview
Description
kindly reminder
The price displayed on this page is for purchasing SR-P02-2, 2 zones. Please pay attention to differentiation, thank you !
Features

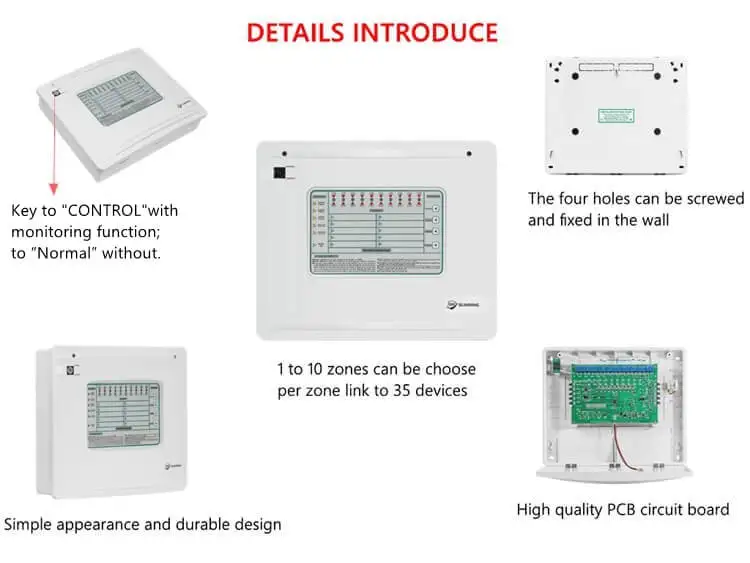

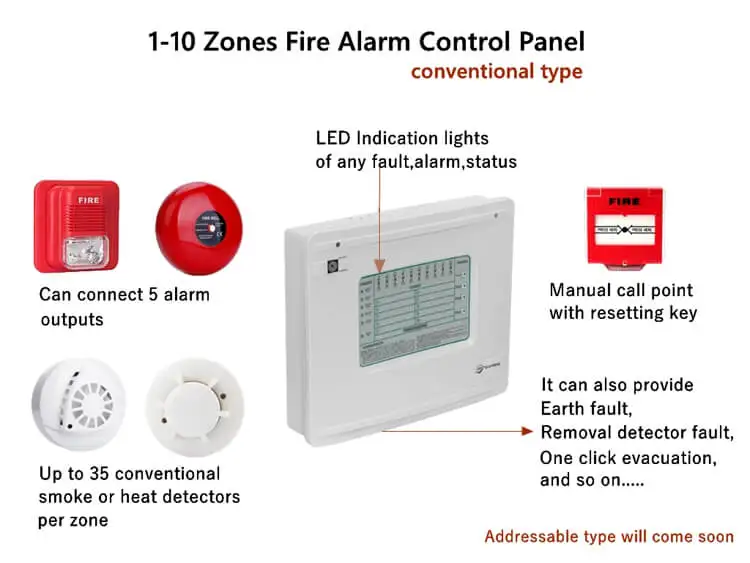

• 1-10 zones fire alarm control panel

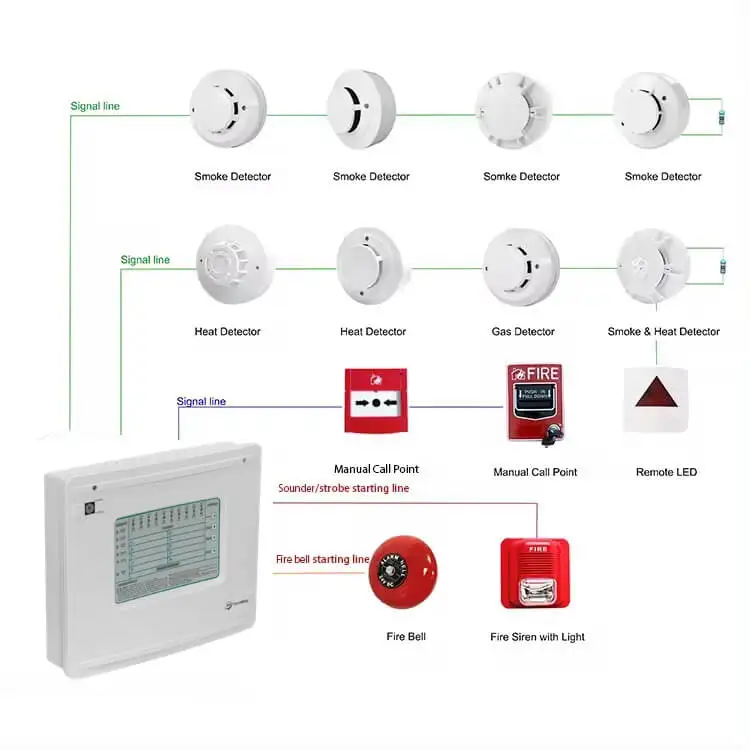

• Up to 35 conventional smoke and/or heat detectors per zone
• AUX DC24V outputs
• Test and silence function
• 2 sounder circuits
• High power relay output
• Fault Monitoring: Supply Fault, Battery Fault, Sounder Fault, Zone Fault (open or short circuit), Detector Removal Fault
• Indication of EARTH fault
• Fault relay output, NC/NO optional
• Alarm relay output, NC/NO optional
• Zone alarm relay output of 5 adjacent zone, NC/NO optional
• 10 zone enable/disable settings
• Enable/disable settings: GND, power supply, sounder, zone open circuit, zone short circuit, relay output

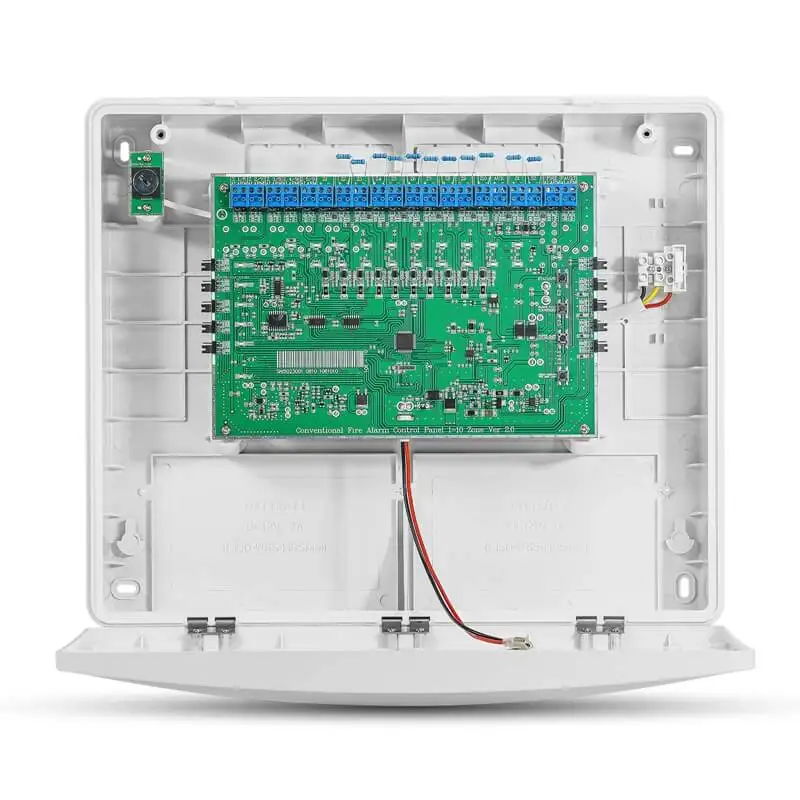

• Terminal blocks wiring connection
• Up to 35 conventional smoke and/or heat detectors per zone
• AUX DC24V outputs
• Test and silence function
• 2 sounder circuits
• High power relay output
• Fault Monitoring: Supply Fault, Battery Fault, Sounder Fault, Zone Fault (open or short circuit), Detector Removal Fault
• Indication of EARTH fault
• Fault relay output, NC/NO optional
• Alarm relay output, NC/NO optional
• Zone alarm relay output of 5 adjacent zone, NC/NO optional
• 10 zone enable/disable settings
• Enable/disable settings: GND, power supply, sounder, zone open circuit, zone short circuit, relay output
• Terminal blocks wiring connection
Power Supply Voltage | AC220V±15% | ||||||
Operating Humidity | 10%-95%RH (non-condensing) | ||||||
Operating Temperature | -10℃~+55℃ | ||||||
Power Supply Output | DC 24V 3.5A (>7 zone) DC 24V 2.5A (<7 zone) | ||||||
Zone Output Voltage | DC24V | ||||||
Auxiliary Supply Output | DC24V | ||||||
Number of Detection Zone | 1-10 ZONE | ||||||
Backup Battery | DC12V/7A*2PCS(not included) | ||||||
Mains Fuse | AC250V/1.5A | ||||||
EOL Resistor | 4.7-10KΩ | ||||||
Alarm Resistor | 470-1KΩ | ||||||
Alarm Relay | 250VAC / 8A | ||||||
Fault Relay | 250VAC / 10A | ||||||
Zone Alarm Relay | 250VAC/ 10A | ||||||

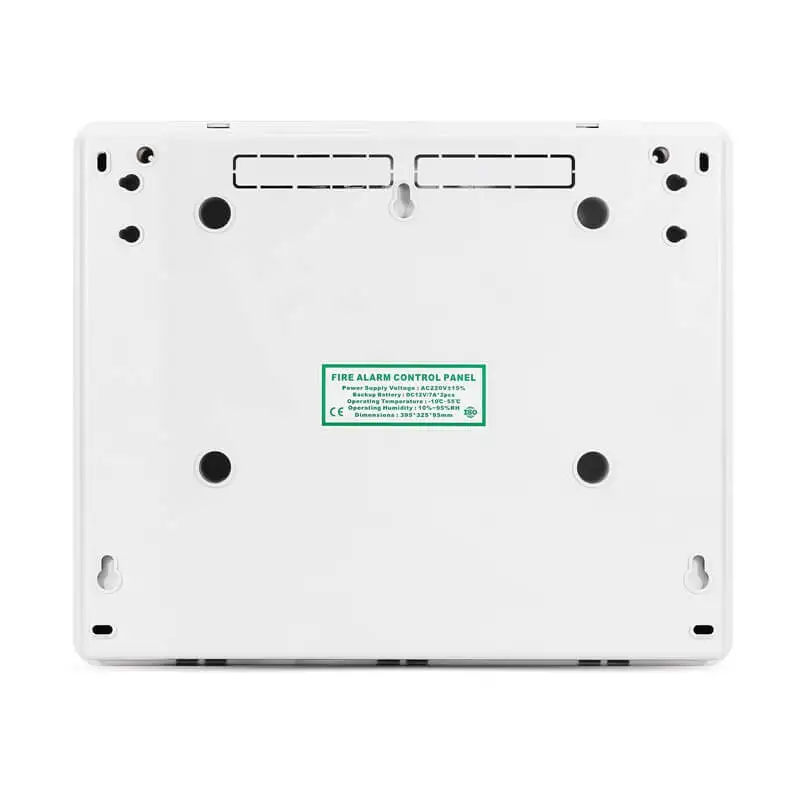

Dimensions | 395*325*95mm | ||||||
